Avonic CM60-IPX-BOX User manual

Avonic
CM60-IPX-BOX
Full HD 20x zoom SDI Box Camera IP White
User Manual
Version 2.0
Update notes:
Join Avonic
linkedin.com/company/avonic
twitter.com/avonic

www.avonic.eu
2
facebook.com/avonic

www.avonic.eu
3
Contents
Introduction...................................................................................6
Congratulations ................................................................................................................................... 6
Safety Notes......................................................................................................................................... 6
Package contents ...........................................................................7
Accessories ....................................................................................7
Product Overview ..........................................................................8
Features............................................................................................................................................... 8
Main Unit............................................................................................................................................. 9
Input and Output Description ................................................................................................. 9
Bottom Parts ........................................................................................................................... 9
Installation................................................................................... 10
Connection Diagram .......................................................................................................................... 10
Power adapter ................................................................................................................................... 10
Operation .................................................................................... 11
OSD Menu.......................................................................................................................................... 11
MENU(Main Menu) ............................................................................................................... 11
EXPOSURE.............................................................................................................................. 12
COLOR.................................................................................................................................... 13
IMAGE.................................................................................................................................... 14
FOCUS.................................................................................................................................... 15
NOISE REDUCTION................................................................................................................. 15
SETTING................................................................................................................................. 16

www.avonic.eu
4
INFORMATION....................................................................................................................... 17
RESTORE FACTORY SETTINGS................................................................................................ 17
Serial Communication Control........................................................................................................... 17
COM port settings ................................................................................................................. 17
Command List........................................................................................................................ 18
IP camera control............................................................................................................................... 18
TCP/UDP Control ................................................................................................................... 19
VLC stream media player monitoring.................................................................................... 20
Homepage introduction ........................................................................................................ 21
Media..................................................................................................................................... 22
System Setting....................................................................................................................... 23
Network Setting..................................................................................................................... 24
Information............................................................................................................................ 26
Maintenance................................................................................ 27
Camera Maintenance ........................................................................................................................ 27
Unqualified Application ..................................................................................................................... 27
Troubleshooting........................................................................... 27
Image ................................................................................................................................................. 27
Control ............................................................................................................................................... 28
Contact ........................................................................................ 28
Appendix A .................................................................................. 29
VISCA Camera Command List ............................................................................................................ 29
VISCA Camera Control Command List ............................................................................................... 31
VISCA Query Command List............................................................................................................... 36
Pelco-D Protocol Command List ........................................................................................................ 43
Pelco-P Protocol Command List......................................................................................................... 44

www.avonic.eu
5
VISCA over IP commands................................................................................................................... 45
Camera return commands .................................................................................................... 45
Camera control commands ................................................................................................... 47
Inquiry Commands ................................................................................................................ 53
Appendix B Dimensions................................................................ 57

www.avonic.eu
6
Introduction
Congratulations
Thank you for purchasing the Avonic CM60-IPX-BOX Integration HD Color Box Camera. Before
beginning to operate this device, please read the manual in order to make sure the best performance
is obtained. Save this manual for future reference.
Safety Notes
•Installation and servicing should only be done by Qualified Service Personnel and conform to
all local codes.
•This unit is designed for indoor use only and it must not be installed where exposed to water
or other liquids and moisture.
•Before powering on the device, check the input power voltage carefully.
•Avoid shock and vibration when transporting and installing the device.
•Use wall mount brackets or ceiling mount brackets available at Avonic for safe installation.
•Electronic devices produce heat. Do not block the ventilation slots of the device and make
sure the installation environment is well ventilated to avoid overheating.
•Before cleaning, unplug the power cable. Use a soft, damp cloth to clean the device, do not
use strong or abrasive detergent to clean that will damage the device.
•If you wish to dispose this product, please contact Avonic to obtain info about the take-back
procedure.

www.avonic.eu
7
Package contents
Quantity
Decription
Avonic SKU
1 pc
PTZ Camera
CM60-IPX-BOX
1 pc
Power Supply 12V/1A
CM-PSU-BOX
Accessories
Wall Mount for CM60-IPX-BOX Avonic SKU : CM-WMW-BOX

www.avonic.eu
8
Product Overview
The Avonic CM-series cameras are designed for fixed installations. Without concessions on quality,
these cameras are an affordable choice for many installations. The cameras are equipped with a
Panasonic CMOS sensor combined with a glass high-quality glass lens with 12x /20x /30x optical
zoom. Control these cameras over RS232/485 with the Avonic CM-CON100 PTZ controller or any
third party controller that supports VISCA, Pelco-P/D protocols.
These high-quality conference video cameras, with resolutions up to 1080p/60 and h.265 encoded
ultra-low bandwidth video streams, have adopted Panasonic’s HD CMOS sensor, which produces
high-quality images. The high SNR (55db) of the CMOS sensor combined with 2D and 3D noise
reduction algorithms, effectively reduce the noise, even under low light conditions. Supports HDMI,
SDI and CVBS output with high effective transmission distances. Using RS232/485 interface all the
parameters of the camera can be remote-controlled.
Features
•20x Optical Zoom. TAMRON high quality super telephoto lens.
•H.264 and H.265 Support, enabling full HD 1080p/60fps video stream by ultra-low
bandwidth, lag-time within 200ms.
•1080P Full HD, Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS
sensor.
•Double Interface, 3G-SDI interface and IP streaming at the same time.
•Ultra-high Frame Rate up to 60fps in 1080P or even up to 120fps output in 720P over IP only.
•AAC Audio Encoding, better sound quality and smaller bandwidth.
•Low-light, high SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm,
effectively reduce the noise, even under low illumination conditions.
•ICR Infrared Filter with auto switch, keep watch over day and night.

www.avonic.eu
9
Main Unit
Input and Output Description
1. 3G-SDI interface
2. RJ45 interface
3. Audio Line in interface
4. DC 12V power interface
5. Power light (flashing red when on)
6. Audio Line out interface
7. Right key
8. MENU key
9. Down key
10. Left key
11. Up key
12. RS485 interface
Bottom Parts
1 Camera Back Cover
2 Installation Positioning Track
3 Camera Front Cover
4 Lens Cap

www.avonic.eu
10
Installation
Connection Diagram
Power adapter
This equipment is equipped with a 12V/1A DC power supply. Insert the power supply according to
the requirements. The Power LED is flashing red when turned on.

www.avonic.eu
11
Operation
OSD Menu
Use the 5 keys on the back of the camera to control the OSD Menu.
MENU(Main Menu)
Directly press "MENU" button to enter the main menu.
Use the select key up and down. Choose a menu item, press【MENU】to enter submenu.
Choose[Exit] press【MENU】to exit menu.
MENU
Exposure
Color
Focus
Noise Reduction
Setting
Information
Restore Factory Settings
Exit

www.avonic.eu
12
EXPOSURE
•Mode: Set the camera exposure mode, Optional items: Auto, Bright, Iris Priority, Shutter
Priority, Manual, WDR.
•Shutter: Set the Shutter values, only when the Mode for the Shutter Priority Mode and
Manual Mode effective, Optional items:
1/10000s,1/6000s,1/4000s,1/3000s,1/2000s,1/1500s,1/1000s,1/725s,1/500s,1/350s,1/250s,
1/200s,1/125s,1/100s,1/90s,1/60s,1/30s.
•Iris: Set the Iris values, only when the Mode for the Iris Priority and Manual Mode effective,
Optional items:F1.8,F2.0,F2.4,F2.8,F3.4,F4.0,F4.8,F5.6,F6.8,F8.0,F9.6,F11.0,Close
•GainLimit: Set the Gain value, Optional items: 0 ~ 15.
•Bright: Set the brightness values, only when the effective Mode for Bright Mode, Optional
items: 0 ~ 17.
•ExpCompMode: Set the exposure compensation mode, can be installed: On, Off.
•ExpComp: Set the exposure compensation value, only when ExpCompMode item to On
effective, Optional items: -7 ~ 7.
•Backlight: Set the backlight compensation, Optional items: On, Off.
•DRC Strength: Set up digital wide dynamic strength, can set up different levels of wide
dynamic effect, Optional items: 0 ~ 8.
EXPOSURE
Mode Auto
ExpCompMod On
ExpComp -1
GainLimit 3
Backlight Off
DRC Strength 3
Anti Flicker 50Hz
Return

www.avonic.eu
13
•Anti Flicker: Set the flashing function, Optional items: 50Hz, 60Hz, Off.
•DCRStrength: Set the DRC strength values, Optional items: 0 ~ 6.
•Return: get back
COLOR
•WB Mode: Set the camera white balance mode, Optional items: Auto, 3000K/Indoor, 4000K,
5000K/Outdoor, 6500K-1, 6500K-2, 6500K-3,One Push, Manual.
•RGTuning: Adjust the camera white balance mode of red tuning, are effective only when the
white balance mode to Auto, Optional items: -10 ~ 10.
•BGTuning: Adjust the camera white balance mode of blue tuning, are effective only when the
white balance mode to Auto, Optional items: -10 ~ 10.
•R Gain: Adjust the camera white balance mode of red gain, are effective only when the white
balance mode to Manual, Optional items: 0 ~ 255.
•B Gain: Adjust the camera white balance mode of blue gain, are effective only when the
white balance mode to Manual, Optional items: 0 ~ 255.
•Saturation: Color saturation adjustment, Optional items: 60% ~ 200%.
•Hue: Chroma adjustment, Optional items:0 ~ 14.
•IR Filter: Choose IR Filter, Optional items: 1~ 3.
COLOR
WB Mode Auto
AWB Sens Low
RG Tuning 2
BG Tuning -1
Saturation 100%
Hue 7
Return

www.avonic.eu
14
•AWB sens: The white balance sensitivity, Optional items: Low, Middle, High.
•Return: get back.
•Luminance: Brightness adjustment, Optional items: 0~14.
•Contrast: Contrast adjustment, Optional items: 0~14.
•Sharpness: Sharpness adjustment, Optional items:Auto,0~15.
•Flip-H: Image flipped horizontally. Optional items: On, Off.
•Flip-V: Image Flip Vertical. Optional items: On, Off.
•Gamma: Optional items: default, 0.45, 0.5, 0.56, 0.63.
•Style: Optional items: Norm, Clarity, Bright, Soft,5S.
•Return: get back.
Luminance 7
Contrast 7
Sharpness 2
Flip-H Off
Flip-V Off
Gamma Default
Style Clarity
Return

www.avonic.eu
15
FOCUS
•Z-Doom Limit: Digital zoom camera settings, Optional items:x1.
•AF Sensitivity: Focus camera sensitivity, Optional items: Low, Middle, High.
•Auto Focus: Autofocus camera settings, Optional items: On, Off.
•Return: get back.
NOISE REDUCTION
•2D NR:2D noise reduction, Optional items:1 ~ 5,Close,Auto.
•3D NR:3D noise reduction, Optional items:1 ~ 8,Close.
•Return: get back.
FOCUS
D-Zoom Limit x1
AF Sensitivity High
Auto Focus On
Return
NOISE REDUCTION
2D NR 3
3D NR 3
Return

www.avonic.eu
16
SETTING
•Language: Language Settings, Optional items: English, Chinese.
•Protocol: Communication protocol Settings, Optional items: VISCA,PELCO-D,PELCO-P.
•VISCA Address: Address of the Visca Settings, Optional items: 0~7.
•P-D Address:P-D address settings, valid in PELCO-D mode, Optional items: 0~254.
•P-P Address:P-P address settings, valid in PELCO-P model, Optional items: 0~31.
•Baudrate: Camera baud rate settings, Optional items: 38400, 19200, 9600, 4800, 2400.
•Video Format: Camera video format settings, Optional items: 1080P60, 1080P50, 1080I60,
1080I50, 1080P30, 1080P25, 720P60, 720P50.
•Lens: Set lens type, Optional items: Type1, Type2.
•Return: get back.
SETTING
Language English
Protocol VISCA
VISCA Address 1
Baudrate 9600
Video Format 1080P30
Lens Type2
Return

www.avonic.eu
17
INFORMATION
RESTORE FACTORY SETTINGS
•Yes: verify, press【MENU】to restore factory Settings.
•No: cancel, press【MENU】to back to menu.
•Return: get back.
Serial Communication Control
COM port settings
RS485 Communication Control:
The camera can be controlled via RS485, Half-duplex mode:
Information
Version 7.2.01
Data 2016-08-10
AF Version 1.1.7
IP 192.168.100.99
Gateway 192.168.100.1
Netmask 255.255.255.0
Return
RESTORE FACTORY SETTINGS
Yes
No
Return

www.avonic.eu
18
•Baud rate: 2400/4800/9600 bit/s.
•Start bit: 1 bit.
•Data bit: 8 bits.
•Stop bit: 1bit.
•Parity bit: none.
Command List
The camera provides the following commands to control menu over RS-485:
function
command packet
Notes
UP
8x 01 06 01 08 08 03 01 FF
Equivalent to the back four direction keys.
DOWN
8x 01 06 01 08 08 03 02 FF
LEFT
8x 01 06 01 08 08 01 03 FF
RIGHT
8x 01 06 01 08 08 02 03 FF
OK
8x 01 04 0B 02 FF
or
8x 01 04 0B 03 FF
Equivalent to the back【MENU】key.
x:Camera VISCA address number.
For the complete VISCA command list, see Appendix A
IP camera control
IP camera default IP address is
192.168.100.99,
user "admin",
password "admin"

www.avonic.eu
19
After modified, IP Camera be restarted
Unknow camera IP, view as below:
Method 1: connect camera to TV, press [menu] of the behind camera, select "Information", the
camera IP will be show on screen.
Change IP address,2 methods as below:

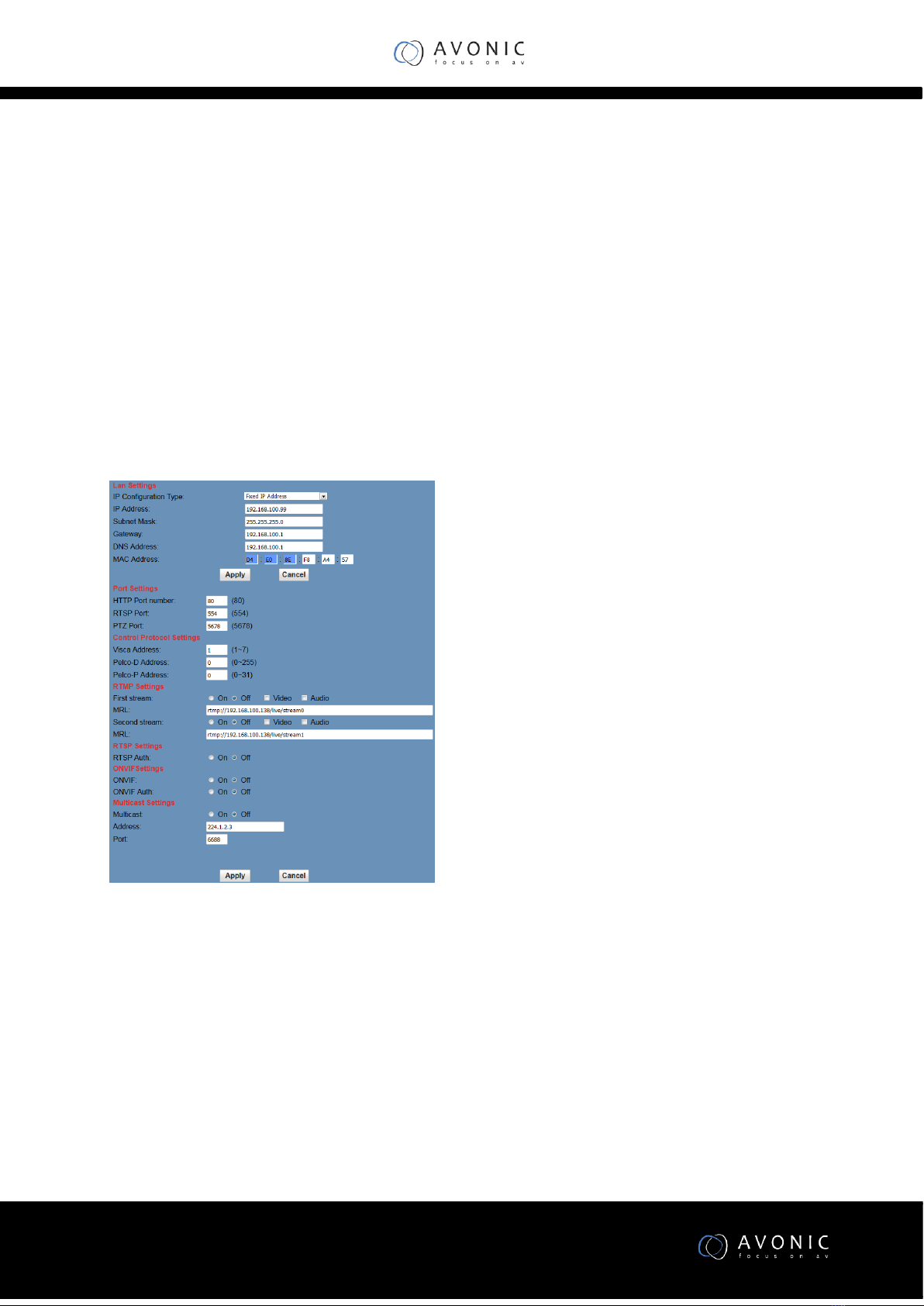

Method 1: On web control page, find "Network"--->Change IP---->Click "Apply"
----> Restart camera
TCP/UDP Control
The Avonic IP camera is implemented with a TCP server inside. The default TCP port number is 5678.
This number can be changed in the WebGUI in the Network Menu. Once the connection between
client and server is set up, the client will be able to send VISCA PTZ commands to the server. The
server then parses and executes the VISCA PTZ command.
The Avonic IP Camera has also implemented an UDP server inside. The UDP port number is 1259. This
number cannot be changed. Once the connection between client and server is set up, the client will

www.avonic.eu
20
be able to send VISCA PTZ commands to the server. The server then parses and executes the VISCA
PTZ command.
The PTZ Command Format is according to the definition of the VISCA protocol. Not all VISCA
commands are implemented for TCP/UDP control. The camera address is default set to 1. This
number can be changed in the WebGUI in the Network Menu. The commands are listed in Appendix
A.
VLC stream media player monitoring
Visit VLC media server procedure
Open VLC media player, click "Media"->"Open Network Steam ",or click "Ctrl+N"; as below:
Input URL address:
rtsp://ip: port number/1 (First stream);
rtsp://ip: port number/2 (Second stream).
NOTE！
RTSP port number default value is 554.
