Avonic CM60 User manual

User Manual | Version 1.0
www.avonic.eu
PTZ Camera 20x Zoom White
CM60

www.avonic.eu
2
Contents
Contents................................................................................. 2
Introduction ............................................................................ 5
Congratulations ................................................................................................................................... 5
Safety Notes ....................................................................................................................................... 5
Package contents ................................................................. 6
Accessories ........................................................................... 6
Product Overview ................................................................. 7
Features............................................................................................................................................... 7
Main Unit............................................................................................................................................. 8
Input and Output Description ................................................................................................. 8
IR Remote Controller ....................................................................................................................... 10
Remote Control Shortcuts..................................................................................................... 12
Remote Control IR channel Settings................................................................................... 13
Installation............................................................................ 14
Connection Diagram......................................................................................................................... 14
System Select Switch ...................................................................................................................... 14
Power adapter................................................................................................................................... 15
RS232 Interface................................................................................................................................ 16
RS232 network connection diagram............................................................................................... 16

www.avonic.eu
3
RS485 network connection diagram............................................................................................... 17
Operation ............................................................................. 19
OSD Menu ........................................................................................................................................ 19
1. MENU................................................................................................................................. 21
2. EXPOSURE ....................................................................................................................... 22
3. COLOR............................................................................................................................... 24
4. IMAGE................................................................................................................................ 25
5. P/T/Z................................................................................................................................... 26
6. NOISE REDUCTION......................................................................................................... 27
7. SETUP ............................................................................................................................... 28
8. COMMUNICATION SETUP.............................................................................................. 29
9. RESTORE DEFAULT ....................................................................................................... 30
Serial Communication Control......................................................................................................... 30
COM port settings ................................................................................................................. 30
Command List................................................................................................................................... 31
Maintenance ........................................................................ 32
Camera Maintenance ....................................................................................................................... 32
Unqualified Application ..................................................................................................................... 32
Troubleshooting................................................................... 32
Image ................................................................................................................................................. 32
Control ............................................................................................................................................... 33

www.avonic.eu
4
Contact................................................................................. 33
Appendix A.......................................................................... 35
VISCA Camera Return Command List .......................................................................................... 35
VISCA Camera Control Command List ......................................................................................... 38
VISCA Parameter Values ................................................................................................................ 42
VISCA Query Command List .......................................................................................................... 46
Pelco-D Protocol Command List .................................................................................................... 54
Pelco-P Protocol Command List..................................................................................................... 56
Appendix B Quick Start..................................................... 57
Appendix C Dimensions .................................................... 59

www.avonic.eu
5
Introduction
Congratulations
Thank you for purchasing the Avonic CM6x-IP HD PTZ Camera. Before beginning to operate
this device, please read the manual in order to make sure the best performance is obtained.
Save this manual for future reference.
Safety Notes
•Installation and servicing should only be done by Qualified Service Personnel and conform
to all local codes.
•This unit is designed for indoor use only and it must not be installed where exposed to
water or other liquids and moisture.
•Before powering on the device, check the input power voltage carefully.
•Avoid shock and vibration when transporting and installing the device.
•Use wall mount brackets or ceiling mount brackets available at Avonic for safe installation.
•Electronic devices produce heat. Do not block the ventilation slots of the device and
make sure the installation environment is well ventilated to avoid overheating.
•Before cleaning, unplug the power cable. Use a soft, damp cloth to clean the device,
do not use strong or abrasive detergent to clean that will damage the device.
•If you wish to dispose this product, please contact Avonic to obtain info about the take-
back procedure.

www.avonic.eu
6
Package contents
Quantity
Description
Avonic SKU
1 pc
PTZ Camera
CM60-IP
1 pc
Power Supply 12V/A
CM-PSU
1 pc
Remote Control
CM-RC
1 pc
RS232 9-pin female to 8-pin male
CM-RS232
Accessories
Avonic Wall mount
SKU White : CM-WMW
SKU Black : CM-WMB
Avonic Ceiling mount
SKU White : CM-CMW
SKU Black : CM-CMB

www.avonic.eu
7
Product Overview
The Avonic CM-series cameras are designed for fixed installations. Without concessions on
quality, these cameras are an affordable choice for many installations. The cameras are equipped
with a Panasonic CMOS sensor combined with a glass high-quality glass lens with 12x /20x
/30x optical zoom. Control these cameras over RS232/485 with the Avonic CM-CON100 PTZ
controller or any third party controller that supports VISCA, Pelco-P/D protocols.
These high-quality conference video cameras, with resolutions up to 1080p/60 have adopted
Panasonic’s HD CMOS sensor, which produces high-quality images. The high SNR (55dB) of
the CMOS sensor combined with 2D and 3D noise reduction algorithms, effectively reduce the
noise, even under low light conditions. Supports HDMI, 3G-SDI and CVBS output with high
effective transmission distances. Using RS232/485 interface, all the parameters of the camera
can be remote-controlled.
Features
•Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor,
•Frame rate up to 60fps in 1080P, optional 120fps output in 720P.
•High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm,
effectively reduce the noise, even under low illumination conditions, picture can still keep
clean and clear.
•HDMI output
•3G-SDI interface (SMTPE 424M), effective transmission distance up to 100 meters.
SMTPE 425M, 8 bit RGB, chroma subsampling 4:2:2, level A

www.avonic.eu
8
•SD CVBS output.
•20x Optical Zoom
•Remote Control Using RS232/485 interface, all the parameters of the camera can be
remote controlled by high-speed communications.
•Freeze Image while switching presets.
Main Unit

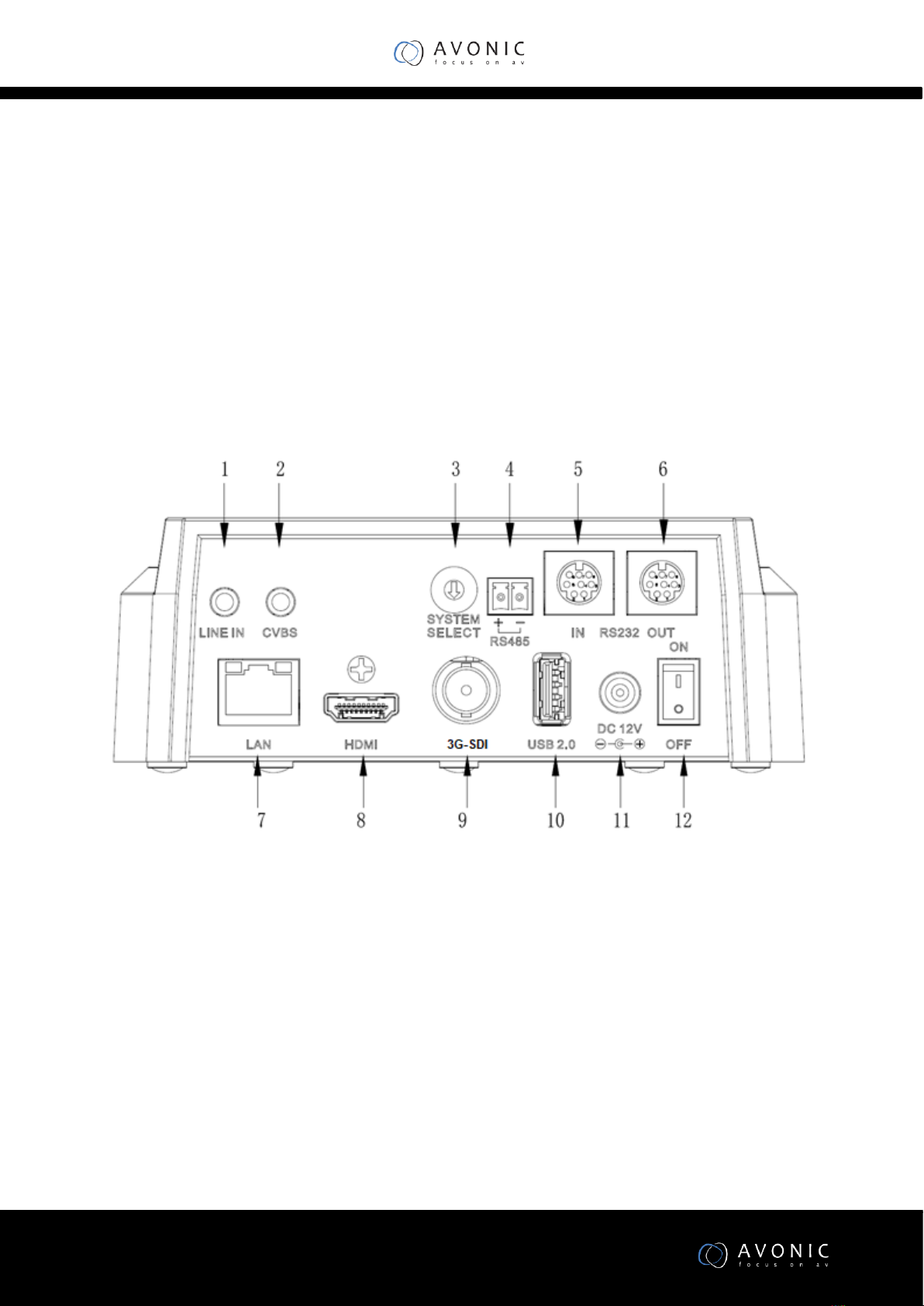

Input and Output Description
1. Audio LINE IN Interface (not in use)
2. CVBS Interface
3. System select switch
4. RS485 interface
5. RS232 IN interface
6. RS232 OUT interface
7. Network Interface (update only)

www.avonic.eu
9
8. HDMI Interface
9. 3G-SDI Interface (SMPTE 424M)
10. USB2.0 (update only)
11. DC 12V jack
12. Power switch

www.avonic.eu
10

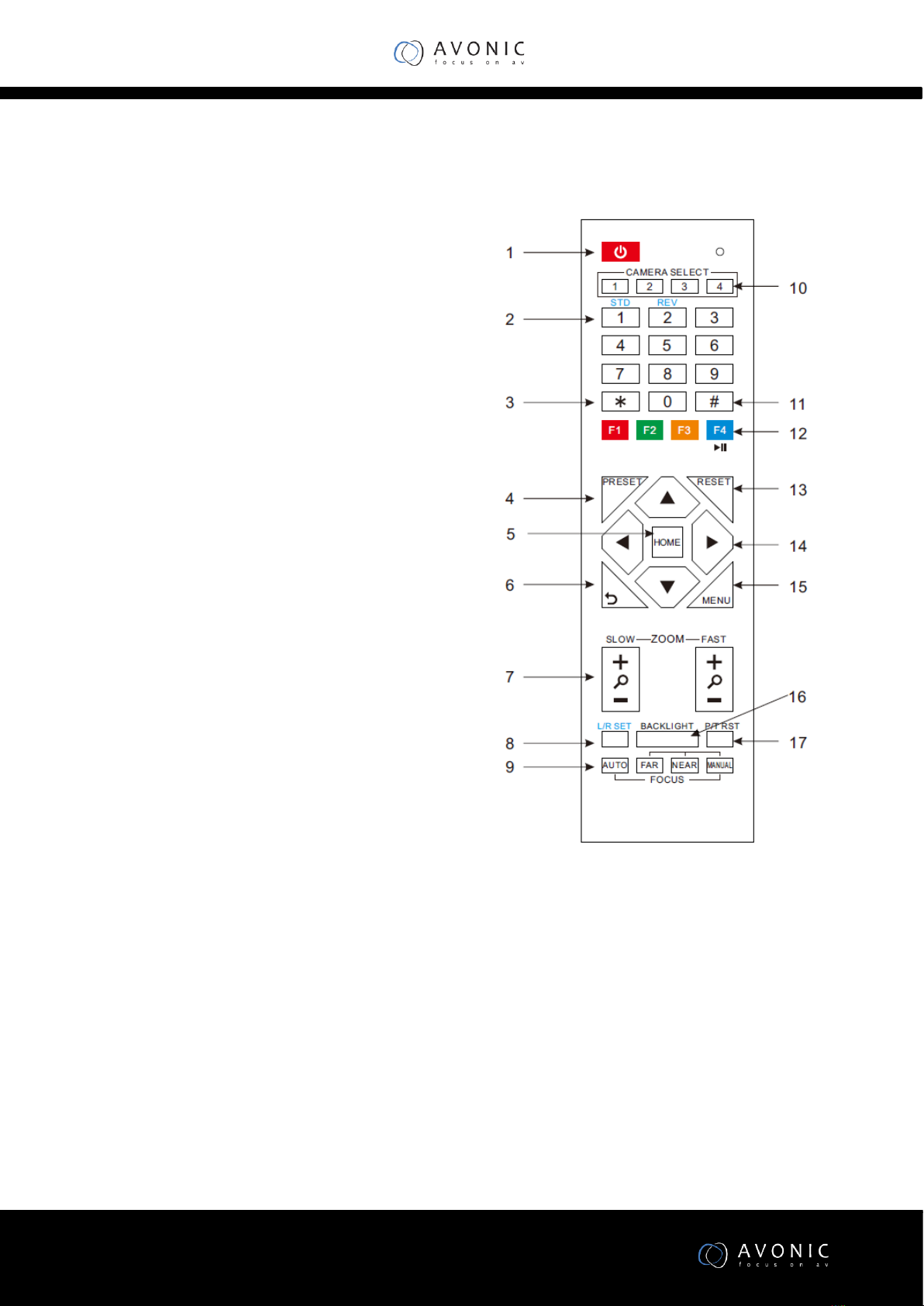

IR Remote Controller
1. Standby Button
Press this button to enter standby mode.
Press it again to enter normal mode. (Note:
Power consumption in standby mode is
approximately half of the normal mode)
2. Position Buttons
To set preset or call preset
3. *Button
Used with other buttons
4. Set/Preset Buttons
Set preset: Store a preset position
[SET PRESET] + Numeric button (0-9):
Setting a corresponding numeric key preset
position
5. Pan-Tilt control Buttons
Pressing the Pan-Tilt back to the middle position
6. Back buttons
Press the OSD menu return to the superior.
7. Zoom Buttons
Slow Zoom: Zoom In [+] or Zoom Out [-] slowly
