Avonic CM-MIC100 User manual

User Manual | Version 1.0
www.avonic.eu
USB 2.0 Video Conferencing Table
Speakerphone
CM-MIC100

2
www.avonic.eu 2
CONTENTS
Introduction............................................................................................................................. 3
Congratulations .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3
Contact. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3
Join Avonic .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3
Safety Notes .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3
Package contents and Accessories ...................................................................... 4
Contents.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4
Product Overview................................................................................................................ 4
Features .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4
Product Description. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 5
Installation ............................................................................................................................... 6
Connection Diagram. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 6
Operation Instructions. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 6
Maintenance .......................................................................................................................... 6
Appendix ................................................................................................................................... 7
Technical Data .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 7

3
www.avonic.eu 3
• Installation and servicing should only be done by Qualified Service Personnel and conform to all
local codes.
• This unit is designed for indoor use only and it must not be installed where exposed to water or
other liquids and moisture.
• Before powering on the device, check the input power voltage carefully.
• Avoid shock and vibration when transporting and installing the device.
• Electronic devices produce heat. Do not block the ventilation slots of the device and make sure
the installation environment is well ventilated to avoid overheating.
• Before cleaning, unplug the power cable. Use a soft, damp cloth to clean the device, do not use
strong or abrasive detergent to clean that will damage the device.
• If you wish to dispose this product, please contact Avonic to obtain info about the disposal
procedure.
facebook.com/avonicPTZ linkedin.com/company/avonic twitter.com/avonic
For any questions or suggestions, contact your reseller or the local distributor of Avonic. Find the local
distributor on the website of Avonic. For the most recent version of the manual or datasheet, look at the
Avonic website: www.avonic.eu
Thank you for your Avonic purchase. Before beginning to operate this device, please read the manual in
order to make sure the best performance is obtained. Save this manual for future reference.
Join Avonic
Safety Notes
Contact
Congratulations
INTRODUCTION
Back to top

www.avonic.eu 4
Quantity Description Avonic SKU
1 pc USB 2.0 Video Conferencing Table Speakerphone CM-MIC100
1 pc USB 2.0 Cable (Type A to USB mini)
1 pc Neoprene Soft Sleeve
Contents
PACKAGE CONTENTS AND ACCESSORIES
• Light, classical and elegant, easy to carry
• Firm and compact design
• Full duplex high quality audio
• With 3 cardioid microphones to pick up all voices around the table
• Hassle free full duplex conversation due to enhanced echo and noise cancellation
• Easy plug and play installation
• Ideal for use with Skype for Business and other UC Platforms
• USB powered, no additional power cords or adapter
The Avonic CM-MIC100 Speakerphone is an ideal USB2.0 table speaker and microphone for video
conferencing or personal calls. It is the recommended companion for the Avonic Cameras. Your
office can be anywhere with this easy plug-and-play and portable speakerphone. The sound is
clear and the 360 pickup gives a very realistic performance.
Features
PRODUCT OVERVIEW
Back to top

5
www.avonic.eu
1. Speaker
2. Speaker Mute, the LED is on when the speaker is muted
3. Decrease Volume
4. Mic Zone, the LEDs indicate which mic is active
5. Increase Volume
6. Microphone Mute, the LED is on when mic is muted
7. Three microphones
8. (not in use)
9. USB
Product Description
Back to top

6
www.avonic.eu
INSTALLATION
MAINTENANCE
Connect the CM-MIC100 directly to an USB input of the PC. Connecting to a USB hub may result
in operation problems.
The Windows OS allows only 1 audio device for audio input or output.
Loop through the menu to select the active microphones by pressing the Mic Zone Button.
Before cleaning, unplug the power cable. Use a soft, damp cloth to clean the device, do not use
strong or abrasive detergent to clean that will damage the device.

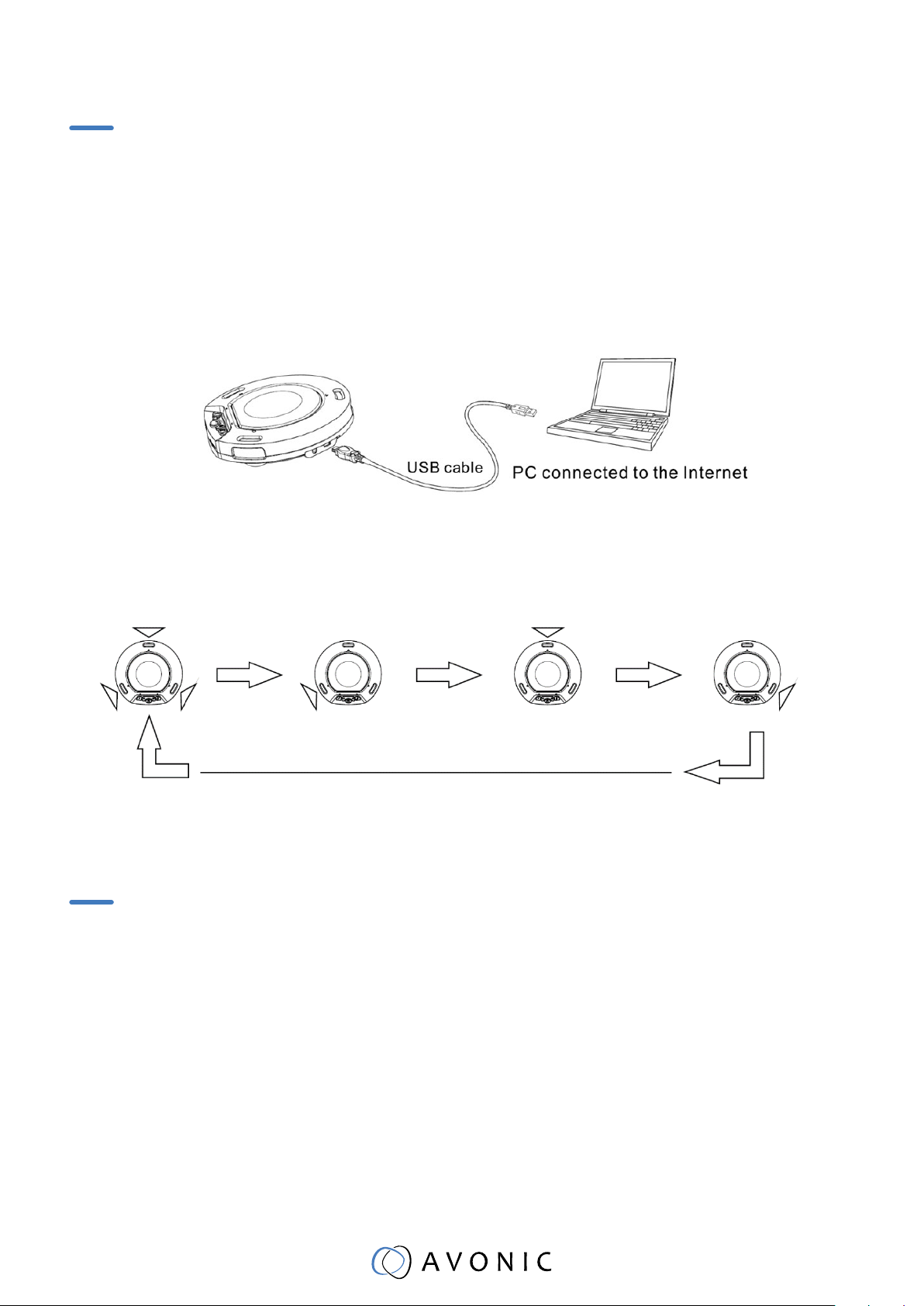

Connection Diagram
Operation Instructions
Back to top

7
www.avonic.eu
APPENDIX
Technical Data
Console Speaker 1 antimagnetic 3 inch speaker
Volume adjustable to 94 dBA SPL (peak) volume at 0.5
meters
Frequency bandwidth 300 to 20.000 Hz
Console Microphones 3 cardioid microphones
Microphone mute key
Up to 3 meter microphone pickup range
Gated microphones with intelligent microphone mixing
Dynamic noise reduction
Audio Technology AEC Echo canceller, NR noise canceller, AGC automatic
gain controller, NLP Nonlinear echo canceller, ALC auto-
matic level controller, EQ frequency equalizer
Power USB powered
DC 5V 500mA
Power consumption: 2.5W
Dimensions Product Size: 5.5 x 14.8 x 3.7cm, 0.34kg
Package Size: 27 x 23x 8.3cm, 0.85 kg
