AVPro Edge AC-MX88-AUHD-HDBT User manual

AC-MX88-AUHD-HDBT
AC-MX88-AUHD-HDBT-GEN2
User Manual
18 Gbps True 4K60 4:4:4 4 x 4 HDMI Matrix w/ Mirrored 18Gbps (Using ICT) HDBaseT
Outputs. 70 Meters 4K 60 4:4:4 & HDR / 100 Meters 1080P. Dual Audio De-
Embedding, Scaling & Audio Delay.
AC-MX44-AUHD-HDBT
AC-MX44/88-AUHD-HDBT
Page 1

The AC-MX44/88-AUHD-HDBT is a true HDMI/HDBaseT matrix switch. This unit includes 4/8 HDMI inputs, and 4/8 HDMI/
HDBaseT output blocks. These output blocks include a HDBaseT and HDMI port, these ports are mirrored, and both are
active. This Matrix supports HDMI 2.0(a/b), HDCP 2.2, up to 4K video resolution, and up to 18 Gbps bandwidth. We are able
to pass 18Gbps through category cable by using the new HDBaseT technology we have developed called "ICT", learn more
about ICT below. This switch allows any source (Blu-ray, UHD Blu-ray, satellite receiver, game consoles, PCs, etc ... ) to be
shown on any of the connected displays. This matrix equalizes and amplifies the output to ensure the HDMI signal can be
transmitted through long HDMI cables without loss of quality.
Audio Delay is “On-Board” so you can manage lip-sync issue before it is a problem. Also with built in Scalers you don't have
to forfeit that 4K signal just because you have a couple older displays. All that with Full EDID management allows maximum
flexibility with today's wide mixture of sources and displays.
This is an ideal solution for digital entertainment centers, HDTV retail, show sites, data centers, schools, conference and
training centers and more!
Features:
• HDMI 2.0(a/b)
• 18Gbps Uncompressed Bandwidth
Support on HDMI
• 18 Gbps wit ICT on HDBaseT outputs
• 4K60 4:4:4 Support
• Full HDR Support (HDR 10 & 12 Bit)
• Dolby Vision, HDR10+ and HLG Support
• HDCP 2.2 (and all earlier versions
supported)
• 1080p > 4K Up Scaling on HDMI
outputs
• 4K > 1080P Down Scaling on HDBaseT
outputs
• Advanced EDID Management
• IR, RS-232 and LAN Control Options
• Digital Toslink Out (7CH PCM, DD, DD+,
DTS, DTS-MA)
• Balanced Analog Out (2CH PCM)
• Audio Delay for Digital & Analog Out
• HDBaseT Compatibility mode for mixed
systems! (More below)
• Driver Support for Crestron, C4, RTI,
ELAN and more!!!
• Extracted Audio Now Supports DD+,
DTS Master Audio on Toslink
• Extracted Audio Now Has 3 Operating
Modes. Bound to Input, Bound to
Output, or Independent Matrix
• Built in Test Pattern on Each Output to
Verify Infrastructure
Easy to use:
• Install in seconds
• Feature rich
• Powerful EDID management
• Front Panel Control
• IR Remote
• IR & RS-232 Control
• LAN Control
In The Box:
• AC-MX44-AUHD-HDBT Matrix
Switch
• IR Remote Control
• IR Extension Cable
• 48v Power Supply
• RS-232 terminal blocks
• Rack ears
Quick Installation:
1. Connect the HDMI input sources (Blu-ray, Set Top Box, etc...) to
the AC-MX44/88-AUHD-HDBT.
2. Connect the HDMI output devices (AVR, Display, Distribution
Amplifier, Extender) to the ACQUICK-MX44/88-AUHD-HDBT.
3. Power on the sources.
4. Connect the power supply into the AC-MX44/88-AUHD-HDBT.
5. Turn on output devices/displays.
6. Use the front panel controls, supplied IR remote or free PC
software to control the switch.
AC-MX44/88-AUHD-HDBT
Page 2

Specifications
AC-MX44/88-AUHD-HDBT
Page 3

Device Overview:
•Definition - Matrix switches provide the ability to route any input to any output or to multiple
outputs at any time. Depending on the model, a matrix switch can route HD, UHD or AUHD
content in this manner. Additionally, since most venues have both, audio zones and video zones,
the requirement to breakout or strip off the audio is often necessary and has become almost a
standard feature on most matrix switches.
•Control – Matrix switches are generally controlled via a third-party controller (like Control 4, RTI,
Crestron, etc...). Many integrators want ready-made drivers for their control system in order to
make programming and deployment easier.
•Matrix Switches are widely used in both, Commercial and Residential Applications.
Front & Rear Panel:
HDBaseT Port Indicator lights:
LINK
STATUS
AC-MX44/88-AUHD-HDBT
Page 4

1. Check the length. The maximum distances and resolution compatibilities are:
a. AC-EX70-444-RNE ~ 70m (230ft) on 4K 60 4:4:4 & HDR and 100m (330ft) on 1080P
b. AC-EX70-UHD-R ~ 40m (131ft) on 4K 60 4:2:0 (NO HDR) and 70m (230ft) on 1080P
2. Remove any coils of cable and make sure that there is not excess cabling.
3. Bypass all patch panels and punch-down blocks.
4. Re-terminate connectors. Sometimes, even if a cable tester indicates the run is valid, something may be slightly off.
5. Contact AVProConnect if these suggestions do not work.
Indicator Troubleshooting Lights on the HDBaseT Port on Matrix and Receiver:
LINK - Above RJ45 (HDBT) Port & Below it on the Matrix: (Green) This indicator shows that the AV HDBT link
between the Tx and Rx is in tact. This light should ALWAYS be solid.
STATUS- Above RJ45 (HDBT) Port & Below it on the Matrix: (Amber) This is an indicator showing
that the power is present between the Transmitter and Receiver. This light ALWAYS BLINKS steadily
indicating everything is OK.
If the lights are not as discussed above - please check the following:
Compatible Receivers:
•70M 4K 60 4:4:4 & HDR
•100M 1080P
NOTE: You MUST use this receiver to
get 18Gbps ICT Video
AC-EX70-UHD-R:
•40M 4K 60 4:2:0
•70M 1080P
AC-MX44/88-AUHD-HDBT
Page 5
AC-EX70-444-RNE: (W/ICT)

Common Application Diagram & What Is ICT:
AC-MX44/88-AUHD-HDBT
Page 6

Full List of Quick Commands From Front Panel:
NOTE: A factory reset may be performed by pressing and holding 4 buttons together for 10 seconds. Press and hold:
•HD-->4K (Scaler Settings)
•4K-->HD (Scaler Settings)
•MUTE (Audio Delay Settings)
•BYPASS (Audio Delay Settings)
AC-MX44/88-AUHD-HDBT
Page 7

Front Panel Control
Switching:
The AC-MX44-AUHD-HDBT can be switched from the front panel by selecting the OUTPUT button first and then selecting
the INPUT button:
1. Press the button (1 through 4) on the bottom row that corresponds with the OUTPUT
(Display, or Sink Device) you would like to send to a source.
2. Once pressed, the switch will illuminate the OUTPUT button that you have selected, along with the INPUT row
(as pictured), indicating that it is ready for you to select the INPUT.
3. Select the desired INPUT.
Figure 1 – Switching with the front panel controls. NOTE: Select the OUTPUT and then the INPUT.
Select OUTPUT First
Select INPUT Second
Scaler Control:
The AC-MX44-AUHD-HDBT has scalers built into every output. The HDbaseT Port can be DOWNSCALED and the HDMI
Port can be UPSCALED. The scalers are set on the OUTPUT side of the switch and each can have separate settings.
Control the scaler:
• HD-4K (Scales 1080P to 2160P - On HDMI Port Only)
• ICT Mode (Enables ICT Compression mode on HDBT Port) - DEFAULT
• 4K-HD (Scales 2160P to 1080P - On HDBT Port Only)
• AUTO (Automatically detects capabilities of attached display - for HDBT Port Only)
• BYPASS (There will be no scaling set)
NOTE: When using a non ICT receiver the unit automatically applies HDBT-C mode when ICT mode is selected,
which reduces 10-18Gbps content to 9Gbps for legacy infrastructures. This mode maintains 4K resolution, but
removes HDR.
STEP 1:
Press and hold the
desired output you
want to scale
STEP 2:
Choose the scaler
mode
The LCD Screen
shows current
status
AC-MX44/88-AUHD-HDBT
Page 8

Audio Binding Setup:
The AC-MX44-AUHD-HDBT can be configured to extract audio in 3 ways
•Bind to OUTPUT(Default)
•Bind to INPUT
•Matrix
To Set:
1.
2.
Press and hold (3 sec) BYPASS from the audio settings (top right of
machine).
3. Once a desired selection is found, quick press the BYPASS button again.
Press & Hold
"Bypass"
Use Up/Down
to toggle mode
Toggle selection by pressing the "UP" and
"DOWN" buttons
Audio Matrix Control:
Once in "Matrix" mode for audio, the extracted audio routing on the AC-MX44-AUHD-HDBT can be controlled
from the front panel:
To Control:
1. Press and hold (3 sec) BYPASS button from the audio settings (top right of machine).
2. Make sure the screen says "Matrix" and quick press the BYPASS button again in order to enter the AUDIO MATRIX.
3. Press the desired extracted audio OUTPUT.
4. Press the INPUT for the desired audio source.
5. Quick press BYPASS button again to exit audio matrix . When audio matrix mode is ON, press and
hold "Bypass" to enter route selection
Choose extracted
audio OUTPUT first
Then choose
the INPUT
AC-MX44/88-AUHD-HDBT
Page 9

STEP 1:
Press and hold the desired extracted audio
output you want to delay
STEP 2:
Choose the Delay
Setting
The LCD Screen
Shows Current
Status
Audio Delay Control:
The AC-MX88/44-AUHD has an Audio Delay feature built-in. Audio Delay is set on the extracted audio
OUTPUT (Digital and Analog) of the switch and each can have separate settings. The Audio Delay
has 4 controls:
• UP (Increase Delay)
• Down (Decrease Delay)
• MUTE (The audio will be muted)
• BYPASS (There will be no delay set)
*Delay settings are in increments of 90 milliseconds. Settings are: 90MS, 180MS, 270MS, 360MS, 450MS, 540MS or
630MS. Control this feature from the front panel:
1. Press and hold the OUTPUT number for which you want to delay the audio.
2. The available options will light up (as pictured).
3. Press UP, DOWN, MUTE or BYPASS to control the delay.
4. The current setting will be indicated on the LCD screen.
Audio Output Logic and Cable Prep:
You can extract audio from toslink or balance 2CH Audio. Audio outputs are an un-decoded output. This means that
what goes in, is what goes out.
2CH Balanced Audio Port - Supports 2CH PCM audio only, which is ideal for 2 Channel systems and zoned audio
systems. No Down-mixing see AC-ADM-AUHD or AC-ADM-COTO
Toslink Audio Port - Supports PCM, LPCM (up to 7CH), Dolby Digital, Dolby Digital Plus, DTS, DTS-HD, DTS Master
Audio, which is ideal for multi-channel audio systems and older AVR's that do not support 18Gbps.
Need to down-mix for combination, uncompressed and 2CH systems? Check out the AC-ADM-AUHD and AC-ADM-
COTO.
You can use balanced analog outputs in a balanced system, but you can also prep a cable as shown below to convert
to a traditional 2CH unbalanced (L/R) system. You can also purchase pre-made cables (AC-CABLE-5PIN-2CH)
AC-MX44/88-AUHD-HDBT
Page 10

Audio Wiring Diagram:
AC-MX44/88-AUHD-HDBT
Page 11

EDID Management:
This matrix has 29 factory defined EDID settings. It also has 3 user defined EDID memories. The user EDID
memories are independent to each input and can be set differently. The user defined EDID can be uploaded using
the free PC Control software or RS-232. In addition, you can choose to read the EDID from the desired output and
the captured EDID will automatically store and overwrite the EDID in
"USER EDID 1" and will be applied to the selected source.
By default, the matrix is set to a 1080P EDID, this is to maximize plug and play capability. When using 4K sources,
you will want to define a 4K EDID on each input (or read from the display).
To Change the EDID setting:
1. Press and hold (for 3 seconds) the INPUT you want to change.
2. The “UP” and “DOWN” button’s will illuminate (as pictured below), and the LCD will show the active EDID.
3. Toggle through the EDID options by pressing up or down repeatedly.
4. Press the “INPUT” you had selected in order to apply the EDID (this will still be illuminated).
These are the pre-defined EDID settings that you can toggle through:
1. 1080P_2CH
2. 1080P_6CH
3. 1080P_8CH
4. 1080P_3D_2CH
5. 1080P_3D_6CH
6. 1080P_3D_8CH
7. 4K30HZ_3D_2CH
8. 4K30HZ_3D_6CH
9. 4K30HZ_3D_8CH
10. 4K60HzY420_3D_2CH
11. 4K60HzY420_3D_6CH
12. 4K60HzY420_3D_8CH
13. 4K60HZ_3D_2CH
14. 4K60HZ_3D_6CH
15. 4K60HZ_3D_8CH
16. 1080P_2CH_HDR
17. 1080P_6CH_HDR
17. 1080P_8CH_HDR
18. 1080P_3D_2CH_HDR
19. 1080P_3D_6CH_HDR
20. 1080P_3D_8CH_HDR
21. 4K30HZ_3D_2CH_HDR
22. 4K30HZ_3D_6CH_HDR
23. 4K30HZ_3D_8CH_HDR
24. 4K60HzY420_3D_2CH_HDR
25. 4K60HzY420_3D_6CH_HDR
26. 4K60HzY420_3D_8CH_HDR
27. 4K60HZ_3D_2CH_HDR
28. 4K60HZ_3D_6CH_HDR
29. 4K60HZ_3D_8CH_HDR
30. User EDID 1
31. User EDID 2
32. User EDID 3
*You may also copy EDID from any output and apply to any input, simply select “Copy EDID from Output x” (x=1-4). This
will copy the EDID from the display attached and store it into “User EDID 1” and apply it to the input you have selected.
STEP 1:
Press and hold the desired
INPUT
STEP 2:
Use Up/Down to toggle
through EDID's
The LCD Screen
shows current
status
STEP 3:
Short press the INPUT again
to set the selection
AC-MX44/88-AUHD-HDBT
Page 12

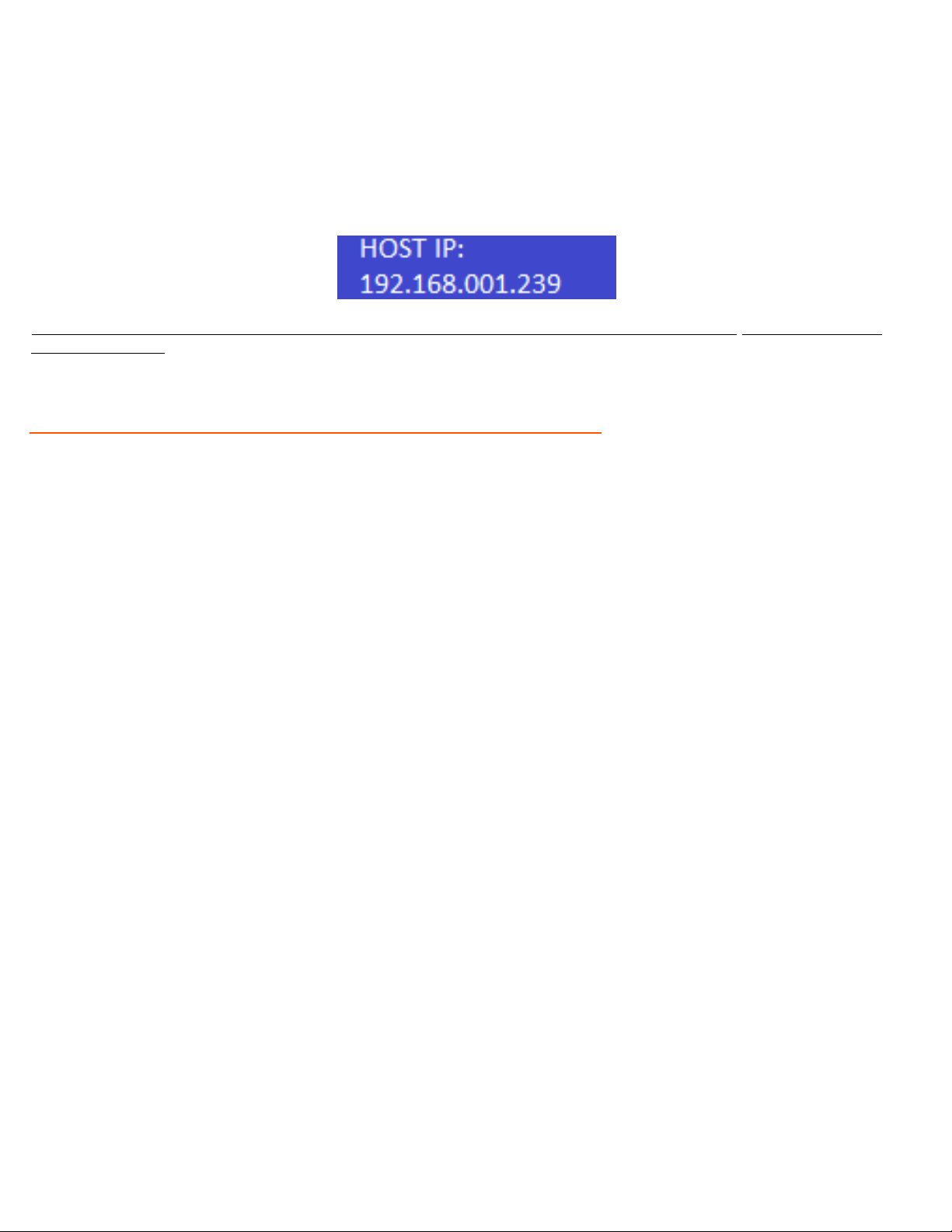

Display IP Data:
In order to see the current IP settings, press and hold (for 3 seconds) INPUT 3 and INPUT 4 buttons simultaneously. This screen will
change every 3 seconds showing additional settings (host, net mask, router IP). NOTE: This screen always starts with the current IP
address of the matrix:
In order to toggle DHCP on and off, press and hold (for 3 seconds) the INPUT 1 and INPUT 4 buttons
simultaneously.
In order to prevent potential IP problems, most IP settings have to be managed in the Free PC Software or by using
RS-232 commands.
NOTE: The default IP address is 192.168.001.239 (as pictured above).
Quick Network Connect to Web
Interface:
Use the following steps to quickly and immediately connect to the matrix
switch:
1. Connect the LAN port into an active router port.
2. On most networks you can simply type the Default IP address into any web browser.
The Default IP Address is 192.168.1.239.
If you are on a closed network or non-standard, the following may work better when using DHCP:
1. Use an Ethernet cable to connect the LAN port on the switch to an unused, active port on the router.
2. Enable DHCP by pressing the INPUT 1 and INPUT 4 buttons simultaneously for 3 seconds.
3. Wait 5 seconds, then press and hold (for 3 seconds) the INPUT 3 and INPUT 4 buttons simultaneously.
The display will show the assigned IP address.
4. Input the IP Address into any web browser.
Setting a Static IP:
•Once connected, you can use the web interface to set a static IP address.
•A static IP can also be set by using the RS-232 software or a direct command (see RS-232 below for
more information).
AC-MX44/88-AUHD-HDBT
Page 13

Web Interface: Switching
Use this page to switch between inputs and outputs from the web interface.
AC-MX44/88-AUHD-HDBT
Page 14

Web Interface: Video Setting
HDBT Video Scaler Modes:
With the video scaler mode, you can scale each HDBaseT output independently
•BYPASS = Bypass - Scaler is disabled (Default)
•HD-4K = 2K --> 4K - If the incoming signal is 1080P it will be upscaled to 4K.
•W = Weak - Minimum level of enhancement
•M = Medium - Medium level of enhancement
•S = Strong - Strongest setting for image enhancement
•OFF = None - Feature disabled
Output Signal Generator:
The Output Signal Generator will output an internally stored 1080p color bar
test pattern (see the image on the right) to test infrastructure. It can be
turned on and off for each output, but remember to turn it off to resume
normal functionality.
Image Enhancement:
The Image Enhancement feature will add extra sharpness to edges in the image. This effect may be desirable for
presentations in corporate or classroom environments. NOTE: Image Enhancement only works when upscaling from 2k to 4k.
•4K-HD = 4K --> 2K - If incoming signal is 4K, it will be downscaled to 1080P or 1900x1200 depending on the input format.
•ICT MODE = ICT Mode (Enables ICT (18G) Compression mode on HDBT Port) - DEFAULT
HDMI Video Scaler Modes:
With the video scaler mode, you can scale each HDMI output
independently
AC-MX44/88-AUHD-HDBT
Page 15

Web Interface: Audio Settings
EX-Audio Delay:
This setting allows the user to change the audio delay to overcome lip-sync issues when using audio separate from HDMI. The
user can choose from the above options in milliseconds. Bp = Bypass or No Delay. Delay can be different per audio output
port.
Audio Status:
This allows the user to turn ON and OFF the extracted audio output. When this is set to OFF the audio is muted from the
extracted port.
Audio Matrix:
This allows the user to route the audio in a matrix fashion for the extracted audio ports.
NOTE: The Audio Matrix Function only works if "MATRIX" is selected on the right (See next explanation).
Ex-Audio Matrix Mode:
This allows the user to set a binded audio setting or set the extracted audio to Matrix. The options are:
•Bind to Input - The extracted audio port is always fixed to a specific input. For example, when a source is plugged
into INPUT 1, OUTPUT 1 will always have the audio signal from INPUT 1. This will happen regardless of which input is
selected for OUTPUT 1
•Bind to Output (Default) - The extracted audio always follows the corresponding HDMI output. For example, in this
mode AUDIO OUT 1 and HDMI OUT 1 are the same (Switched Together).exa
•Matrix - You can set to "Matrix" and it will allow routing of the audio as a separate, stand-alone "Matrix". This allows
use of the "Audio Matrix" buttons pictured above.
AC-MX44/88-AUHD-HDBT
Page 16

Web Interface: EDID Manage
17. 1080P_8CH_HDR
18. 1080P_3D_2CH_HDR
19. 1080P_3D_6CH_HDR
20. 1080P_3D_8CH_HDR
21. 4K30HZ_3D_2CH_HDR
22. 4K30HZ_3D_6CH_HDR
23. 4K30HZ_3D_8CH_HDR
24. 4K60HzY420_3D_2CH_HDR
25. 4K60HzY420_3D_6CH_HDR
26. 4K60HzY420_3D_8CH_HDR
27. 4K60HZ_3D_2CH_HDR
28. 4K60HZ_3D_6CH_HDR
29. 4K60HZ_3D_8CH_HDR
30. User EDID 1
31. User EDID 2
32. User EDID 3
1. 1080P_2CH
2. 1080P_6CH
3. 1080P_8CH
4. 1080P_3D_2CH
5. 1080P_3D_6CH
6. 1080P_3D_8CH
7. 4K30HZ_3D_2CH
8. 4K30HZ_3D_6CH
9. 4K30HZ_3D_8CH
10. 4K60HzY420_3D_2CH
11. 4K60HzY420_3D_6CH
12. 4K60HzY420_3D_8CH
13. 4K60HZ_3D_2CH
14. 4K60HZ_3D_6CH
15. 4K60HZ_3D_8CH
16. 1080P_2CH_HDR
17. 1080P_6CH_HDR
EDID Manage:
Using the built-in EDID manager, a multitude of EDID's can be set for each input, and each input can
be assigned a different EDID. This should be used to optimize or to manage infrastructure.
The EDID options are:
*You can copy the EDID from any output and apply it to any input. Select "Copy EDID from Output x" (x=1-8). This
will copy the EDID from the display and apply it to the selected input. The new EDID will be stored as "USER EDID1"
AC-MX44/88-AUHD-HDBT
Page 17

Web Interface: System Settings
IP Settings:
Set network settings such as:
• Static IP
• Subnet Mask
• Router IP
• TCP Port
• Enable DHCP
Port Alias Settings:
Rename inputs and outputs for easy management. Each custom name is limited to eight (8) characters.
AC-MX44/88-AUHD-HDBT
Page 18

Web Interface: IR Routing
IP Switch:
This allows you to route the IR Signals on the IR outputs manually if you want to fix a specific route
AC-MX44/88-AUHD-HDBT
Page 19

IR Control:
For IR Control there is an IR Window on the front face of the device.
IR Remote Control:
When routing HDMI, the matrix can be controlled
by using the IR remote supplied with the product.
The labels on the left are the OUTPUT numbers.
The l
eft arrow button decrements to the next input port,
and the right arrow increments to the next input port.
The numbers are for selecting a desired INPUT.
IR Receiver Eye
AC-MX44/88-AUHD-HDBT
Page 20
