Awei T23 User manual

Wireless Earbuds
User Manual
Thank you for purchasing our products. This manual
addresses the safety guidelines, warranty and operating
instructions. Please review this manual thoroughly
before operating your device.
T23

Package Contents.............................................................
At a Glance.......................................................................
Earbuds LED Indicator Guide...........................................
Charging Case LED Indicator Guide.................................
Wearing the Earbuds........................................................
Using the Earbuds............................................................
Cleaning the Earbuds and Charging Case.......................
Trouble Shooting.............................................................
Specifications..................................................................
SAFETY AND WARRANTY.............................................
1
2
3
3
4
5
11
12
15
16
English Version

Package Contents
- 1 -
③
② ①
④⑤
①Wireless earbuds × 1 pair (L / R)
②Charging case × 1
③ Eartips × 3 pairs (S / M / L; M size eartips
pre-installed)
④ USB-C charging cable × 1
⑤User manual × 1

- 2 -
At a Glance
Charging Case
Earbuds
Charging pins
USB-C charging port
LED indicator
Microphone
Touch button
LED indicator Charging contacts

Earbuds LED Indicator Guide
- 3 -
Power on
Power off
Pairing
Connected
Being charged
Fully charged
The indicator stays red and white
for one second
The indicator stays red for one
second
The indicator flashes red and
white alternately
The indicator flashes white once
every 5 seconds
The indicator stays red
The indicator goes off
System State Indicator Activity
Charging Case LED Indicator Guide
You can take an earbud out of the case and then
put it back to check the charging case battery level.

Note:
The indicator flashes red when the charging case is
being charged and turns white when fully charged.
- 4 -
The indicator flashes
white once
The indicator flashes
white twice
The indicator flashes
red three times
70%-100% battery
25%-70% battery
1%-25% battery
Indicator State Battery Level
Wearing the Earbuds

- 5 -
Insert the earbud into your ear and rotate to fit
comfortably. Ensure the microphone is pointing
towards your mouth. To determine the best fit, you
may need to try all sizes of eartips.
When you use the earbuds for the first time, remove
the insulating films on the charging contacts of the
earbuds.
Using the Earbuds

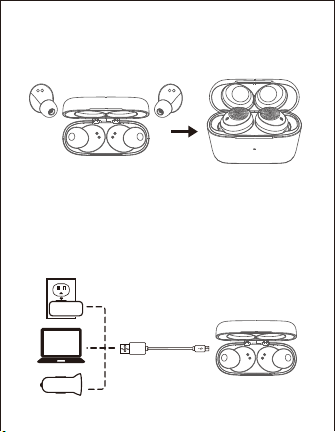

●Charge the earbuds
1) Align the charging contacts on the right earbud
with the charging pins on the right side of the
case.

●Charge the charging case
1) Plug the small end of the USB-C cable into the
USB-C port of the charging case.
2) Plug the other end into a USB wall charger or
computer (DC 5V) that is powered on.
- 6 -
2) Repeat step 1 and to charge the left earbud.
3) Close the case.

- 7 -
Notes:
●It takes approximately 1 hour to fully recharge the
earbuds.
●Fully charge both the earbuds and the charging
case before the first-time using.
●The earbuds and the charging case charge
simultaneously. The charging case can be used
as a standalone charger.
●Power on / off
Automatic operation
Power on: Open the charging case and take the
earbud(s) out.
Power off: Put the earbud(s) back into the charging
case and close the case.
Manual operation
Power on: Tap and hold the touch button on the left /
right earbud for 2 seconds.
Power off: Tap and hold the touch button on the left /
right earbud for 4 seconds.

- 8 -
Notes:
●The earbuds will directly enter pairing mode the
first time you turn them on.
●Each time you turn on your earbuds, they will
automatically connect to your last successfully
connected device if available within the Bluetooth
range.
Note:
When the earbuds are being charged in the charging
case and the case is out of power, the earbuds will
turn on automatically.
●Pair
1) Make sure the earbuds and your Bluetooth
device are next to each other or within 3 feet
and there are no obstacles between.
2) Turn on the Bluetooth of your Bluetooth device.
3) Turn on the earbuds and the earbuds enter
pairing mode.
4) In the list of found Bluetooth devices in your
Bluetooth device, choose "T23" to pair.

- 9 -
●When the earbuds are on but not paired with a
Bluetooth device, they will be automatically off in
5 minutes.
●Mono mode: When Bluetooth connected, you
can use either one of the earbuds only by putting
the other one back into the charging case and
closing the cover.
●Earbuds functions
Function
Play / Pause
Previous /
Next track
What to do
Tap the touch button of the left or
right earbud.
Double-tap the touch button of the
left / right earbud.

- 10 -
●Reset the earbuds / clear all pairing information
on the earbuds
Turn off the earbuds and hold the touch buttons of the
left and right earbuds for 10 seconds.
●Call functions
Function
Answer / end a call
Reject a call
Activate Siri or
other voice
assistant software
What to do
Tap the touch button of the left or
right earbud.
Tap and hold the touch button for
one second.
Triple-tap the touch button of the
left or right earbud.

- 11 -
Cleaning the Earbuds and Charging Case
The earbuds and charging case may require periodic
cleaning.
Earbud nozzles
Charging pins (on
earbuds and case)
Charging case
Clean only with a dry, soft cotton
swab or equivalent.
Note: Never insert any cleaning
tool into the nozzle.
To prevent rusting, regularly clean
with a dry, soft cotton swab or
equivalent.
Clean only with a dry, soft cotton
swab or equivalent.

- 12 -
Trouble Shooting
Q: Pairing fails.
A: 1) Put the earbuds back to the charging case
and make sure that they are off.
2) Take the earbuds out of the case and
earbuds enter pairing mode.
3) Choose "T23" in your phone to pair.
If the pairing still fails, check the following points:
●Make sure the earbuds and your Bluetooth
device are next to each other or within 33 feet or
10 meters and there are no obstacles between.
●There are no signal interferences nearby (check
the question "Connection is not stable" for signal
interference conditions).
●Try to reboot your Bluetooth device.
Q: I paired the earbuds with my phone before,
but I failed to pair them with my phone again.
A: Turn on the Bluetooth of your phone and in
"MY DEVICES", choose "T23" and tap " " →
"Forget This Device".Then pair the earbuds
with your phone again.

- 13 -
Q: Connection is not stable.
A: Bluetooth signal is transmitted wirelessly and
signals can be affected, which results in
intermittent sound of earbuds, in the following
conditions:
●The distance between the earbuds and your
Bluetooth device is at the edge of the
Bluetooth pairable distance.
●Transmitted signals encounter obstacles or
human body blockage.
●There are high-power electronic devices
nearby.
●There are other Bluetooth devices and are
being turned on / off nearby.
To resume stable connection between the
earbuds and your Bluetooth device, try to avoid
the above conditions and do the pairing again
following the steps in the pairing fails part.

- 14 -
Q: Power runs out fast.
A: The earbuds playtime varies according to
volume level and audio content. The following
conditions may cause fast power consumption:
●When the charging case is out of power, the
earbuds will not turn off automatically and
charge when you put them back into the
case. To avoid unwanted power consumption,
turn off the earbuds manually.
●When the earbuds are being charged in the
charging case and the case is out of power,
the earbuds will turn on automatically. To
avoid unwanted power consumption, turn off
the earbuds manually.

- 15 -
Specifications
Model
Bluetooth Version
Battery
Charging Time
Waterproof Rate
Input
Playtime
(varies by volume level
and content)
Bluetooth Range
Supporting Protocols
Working Temperature
T23
V5.0
43mAh (each earbud),
400mAh (charging case)
Approximately 1 hour (earbuds),
2.5 hours (charging case)
IPX5
5V / 1A
4.5-5.5 hours (Up to 28 hours
with the charging case)
10 m / 33 ft.
A2DP / HFP / HSP / AVRCP
-10°C to 40°C

- 16 -
SAFETY AND WARRANTY
Important safety instructions
● Use of earbuds will impair your ability to hear other
sounds. Use caution while using your earbuds
when you are engaging in any activity that requires
your full attention.
● If you have a pacemaker or other electrical medical
devices, you should consult your physician before
using this product.
● This package contains small parts that may be
hazardous to children and should be kept out of
reach from children. This product is not a toy –
never allow children to play with this product.
Always store the product out of reach from
children. The bags themselves or the many small
parts they contain may cause choking if ingested.
● Never try to dismantle the product yourself, or push
objects of any kind into the products, as this may
cause short circuits which could result in a fire or
electric shock.
● None of the components can be replaced or
repaired by users. Only authorized dealers or
service centers may open the product. If any parts
of your product require replacement for any reason,

including normal wear and tear or breakage, please
contact us.
● Avoid exposing your product to heat and humidity
to protect against damage to the product or injury to
you.
● Keep all products, cords, and cables away from
operating machinery.
● If the product overheats, if the product has been
dropped or damaged, if the product has a damaged
cord or plug, or if the product has been dropped in
a liquid, discontinue use and contact us.
● Do NOT use in areas where there are explosive
hazards.
● Do NOT submerge the earbuds in water. Do NOT
expose the earbuds to moving water (e.g., from a
faucet, etc.).
● Do NOT wear the earbuds while showering or
bathing, or when participating in water sports, e.g.,
swimming, waterskiing, surfing, etc.
● This product contains magnetic material. Consult
your physician on whether this might a�ect your
implantable medical device.
- 17 -

● Leaving the product in hot or cold places, such as
in a closed car in the summer and winter
conditions, will reduce the capacity and lifetime of
the earbuds.
● Dispose of the product according to local standards
and regulations.
Remember: Always drive safely, avoid distractions and
follow local laws!
● Using the earbuds while operating a motor vehicle,
motorcycle, watercraft or bicycle may be
dangerous, and is illegal in some jurisdictions, just
as use of the earbuds with both ears covered while
driving is not permitted in certain jurisdictions.
Check your local laws. Use caution while using your
earbuds when you are engaging in any activity that
requires your full attention. While engaging in any
such activity, removing the earbuds from your ear
or turning off your earbuds will keep you from being
distracted, so as to avoid accident or injury. Do not
take notes or read documents while driving.
● When using and charging this product, basic
precautions should always be followed, including
the following:
- 18 -
