Axel FOX MKII User manual

FOX MKII
User Manual
Broadcast Audio Changeover
(Rev. 3.4 ENG)

ENG
| INTRODUCTION
2
TABLE OF CONTENTS
1INTRODUCTION.........................................................................................................................................................4
1.1 FOX VERSIONS AVAILABLE........................................................................................................................................4
1.2OPTION AVAILABLE ON FOX ......................................................................................................................................4
1.3 USE OF THIS MANUAL ..............................................................................................................................................4
1.4 FOX –DEPLIANT AND BROCHURE ..............................................................................................................................5
1.5 COMPARISON TABLE BETWEEN GENIUS D AND FOX......................................................................................................7
1SAFETY WARNINGS / ISTRUZIONI PER LA SICUREZZA ......................................................................................8
1.1 FOREWORD.......................................................................................................................................................8
2SAFETY WARNINGS.................................................................................................................................................9
3CONSIGNES DE SÉCURITÉ IMPORTANTES.........................................................................................................10
4ISTRUZIONI IMPORTANTI PER LA SICUREZZA...................................................................................................11
5WICHTIGE SICHERHEITSHINWEISE......................................................................................................................12
6INSTRUCCIONES IMPORTANTES DE SEGURIDAD.............................................................................................14
7UNPACKING AND INSPECTION.............................................................................................................................16
8FIRST INSTALLATION RECOMMENDATIONS ......................................................................................................17
8.1 POWER SUPPLYCABLE .................................................................................................................................17
8.2 AC MAINS VOLTAGE SETTING (230 V/115 V) ...............................................................................................17

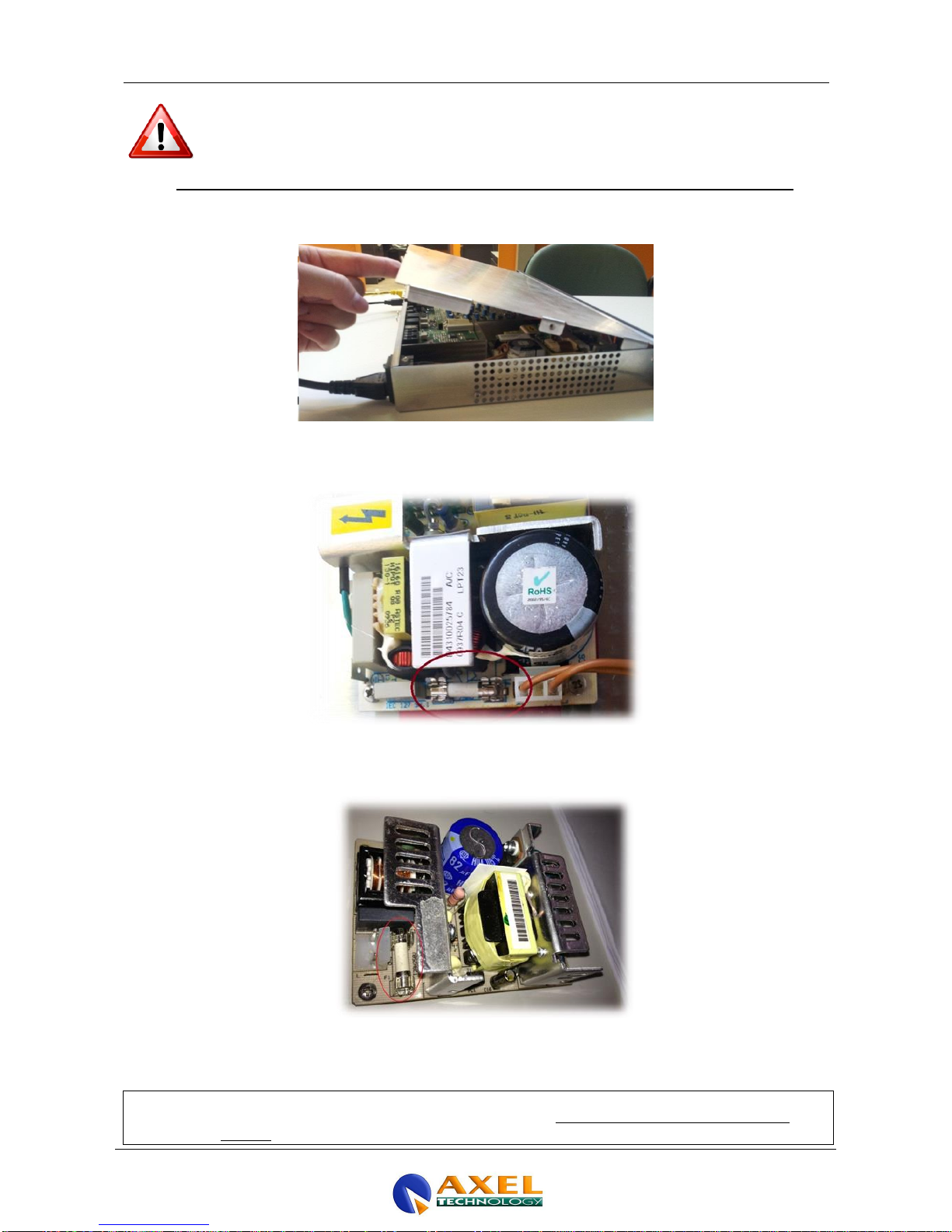

8.3 FUSE REPLACEMENT.....................................................................................................................................17
8.4 PROTECTION AGAINSTLIGHTNING..............................................................................................................19
8.5 VENTILATION...................................................................................................................................................20
2GENERAL DESCRIPTION OF FOX.........................................................................................................................21
2.1 FOX FRONT PANEL ................................................................................................................................................21
2.2 FOX REAR PANEL ..................................................................................................................................................22
3INSTALLATION AND USE OF THE FOX COMMAND SOFTWARE.......................................................................24
4USE OF THE AUDIO CHANGEOVER ADDRESS MANAGER SOFTWARE ..........................................................26
5USE OF THE AUDIO CHANGEOVER REMOTER SOFTWARE .............................................................................27
5.1 ACCESS VIA USB AND SERIAL CONNECTION ..............................................................................................................27
5.2 ACCESS THROUGH A TCP/IP CONNECTION................................................................................................................28
6MANAGEMENT OF FOX VIA SOFTWARE .............................................................................................................29
7DETAIL OF AUDIO CHANGEOVER REMOTER .....................................................................................................30
7.1 DESCRIPTION OF FOX COMMAND SOFTWARE ............................................................................................................30
7.2 ANALOG AND DIGITAL INPUTS SECTION ....................................................................................................................30
7.3 ANALOG OUTPUT AND DIGITAL OUTPUT SECTION.......................................................................................................31
7.4 SECTION GP INPUTS AND GP OUTPUTS.....................................................................................................................32
7.5 DTMF GENERATOR AND DECODER SECTION..............................................................................................................32
7.6 SECTION SETUP AND DISCONNECT ..........................................................................................................................33
7.6.1 Description section Input -A Input -B (Analog Inputs)....................................................................................................33
7.6.2 The Analog Input Denoiser module.................................................................................................................................35
7.6.3 Description section Input -C and Input -D (Digital Inputs).............................................................................................36
7.6.4 The Digital Input Denoiser module.................................................................................................................................38
7.7 OUTPUT SECTION..................................................................................................................................................39
7.8 SETTINGS SECTION ...............................................................................................................................................41
7.8.1 DTMF Generator section ................................................................................................................................................41
7.8.2 Section DTMF Decoder...................................................................................................................................................44
7.8.3 General Purpose I/O Section...........................................................................................................................................45
7.8.4 Delay Section...................................................................................................................................................................47
7.9 PROGRAM SETTINGS SECTION ................................................................................................................................48
8CONNECTION EXAMPLE - FOX MKII.....................................................................................................................49
8.1 EXAMPLE 1–FOX AS AUTOMATIC CHANGEOVER.......................................................................................................49
8.2 EXAMPLE 2–FOX STUDIO CHANGEOVER .................................................................................................................50
8.3 EXAMPLE 3–FOX AS AUTOMATIC CHANGEOVER (FAULT)ANL.....................................................................................51
8.4 EXAMPLE 4–FOX AS AUTOMATIC CHANGEOVER (FAULT)ANL-DGT..............................................................................52
8.5 EXAMPLE 5–FOX COME CHANGEOVER AUTOMATICO (FAULT)DGT-DGT ......................................................................53
9TECHNICAL APPENDIX ..........................................................................................................................................54
9.1 APPENDIX A -BALANCED AUDIO CONNECTION AND PINOUT.........................................................................................54
9.2 APPENDIX B -SERIAL DATA CONNECTION AND PINOUT ...............................................................................................54
9.3 APPENDIX C -ETHERNET/LAN CONNECTIONS............................................................................................................55
9.4 APPENDIX D -USB A/B CONNECTION........................................................................................................................55
9.5 APPENDIX E –GPIO PORT.......................................................................................................................................56
9.5.1 Connection to GPIn and GPOut via internal activation (Relay) .....................................................................................56
9.5.2 Connection to GPIn and GPOut via external activation (TTL).......................................................................................57
9.5.3 Connection to GPIn and GPOut via external activation -2 (TTL)...................................................................................58
9.5.4 Operative Example..........................................................................................................................................................59
10 APPENDIX F - FIRMWARE UPGRADE PROCEDURE .......................................................................................60
10.1 PREPARATION OF THE UNIT FOR UPGRADE...............................................................................................................60

ENG
| INTRODUCTION
3
11 APPENDIX G –MIB DESCRIPTION AND ASCII PARSER.................................................................................62
11.1 MIB DESCRIPTION HANDLED BY FOX SNMP AGENT AND ASCII COMMANDS .....................................................................62
11.1.1 SNMP default configurations:.....................................................................................................................................62
11.1.2 ASCII default configurations: .....................................................................................................................................62
12 APPENDIX H - ASCII COMMANDS FOR FOX ....................................................................................................70
12.1 OVERVIEW ...........................................................................................................................................................70
12.2 COMMANDS..........................................................................................................................................................70
13 APPENDIX I –INTERFACE DJPRO TO A FOX MKII..........................................................................................72
14 APPENDIX L - DATA STRUCTURES .................................................................................................................74
15 TECHNICAL SPECIFICATION FOX.....................................................................................................................76
16 WEEE Directive –RAEE information.................................................................................................................77
17 WARRANTY .........................................................................................................................................................78
DECLARATION OF CONFORMITY 79

ENG
| INTRODUCTION
4
1 INTRODUCTION
1.1 FOX VERSIONS AVAILABLE
CODE#
MODEL
COMMERCIAL DESCRIPTION
A110130000
FOX MKII
Digital audio changeover with 2 XLR analog inputs, 2
AES/EBU digital inputs, 1 XLR analog out, 1 AES/EBU
output. DTMF Encoder and decoder, USB and Serial port,
GPIN and GPOUT remote. 1u rack 19''space. Universal
power supply.
1.2 OPTION AVAILABLE ON FOX
CODE#
MODEL
COMMERCIAL DESCRIPTION
A110130300
FOX-LAN
Ethernet port for TCI/IP and UDP/IP connection, Rs232
(Parser ASCII) only for Fox.
1.3 USE OF THIS MANUAL
This manual can be used with the Fox MKII product. Certain features may be changed without notice.

ENG
| INTRODUCTION
5
1.4 FOX –DEPLIANT AND BROCHURE
Fox
BROADCAST AUDIO CHANGEOVER
HIGHLIGHTS
1. Analogue and digital audio changeover, 4 inputs / 2 outputs
2. Broadcast digital audio DSP-based
3. 4 analog/digital inputs and 2 analog/digital outputs with SRC converter
4. Any kind of commutation managed by the D/A and A/D converter
5. Input to output switch and fade with customizable time intervention and restore
6. Features audio: Denoiser Module, AGC Stage , input delay and Tone Generator
7. Graphic LCD display and front panel button for monitor and control
8. Internal DTMF Encoder e Decoder for automation system
9. 1 Ethernet, 1 Rs232Serial port, 1 USB and GPIO Port

ENG
| INTRODUCTION
6
MAIN DESCRIPTION
Fox is a fully digital audio changeover, designed for Radio and TV broadcast marketplace.
Fox matches the most hi-end broadcast use requirements, with two analog inputs, two digital inputs, one analog output
and one digital output. All the inputs can be routed to a different audio output thanks to the A/D and D/A converter, so
that any kind of switch between different inputs can be managed.
Switching policies between inputs and outputs are fully user-configurable in order to suit individual requirements.
Furthermore Fox plays inside the entire audio chain the delicate role of program supervisor, thanks to an integrated
audio detector and the ability to generate an alarm when the nominal operating conditions are not met. When an alarm
rises, a switching command via GPO is provided. Fox presents in the front side a graphic LCD display that shows the
levels of analog and digital inputs and outputs and the alarms detected during the normal use.
The control software comes for free with Fox and allows the configuration of the timing and the policy of
intervention/recovery of switching, displaying levels of input and output signals and configure every working
parameter. It is also possible to save the data to a single device and create a database for all the Fox in operation into
the chain.
The process is based on DSP audio and the audio features included are: Denoiser, that eliminates unwanted noise on
the audio chain; the Delay module, a delay line applicable to a fully synchronous input in order to keep all audio sources.
During the process of allignement and calibration of the audio network, a Tone Generator generator with variable sample
frequency and amplitude is is provided with Fox and available on Analog and/or Digital outputs. Furthermore, a DTMF
encoder and a DTMF decoder with customizable strings, allow the remote management of automation systems.
The Fox’s rear panel is provided with XLR conneters, for balanced analog and digital AES/EBU signals. The outputs are
equipped with hardware bypass. In case of fault of the equipment the main analog input is directly routed to the analog
output and the main digital input is routed to the digital output.
In order to set up and use Fox, the connection to a Pc it is possible via RS232 remote serial port, USB connection and a
simply logic state via GPIO port with open collector and opto couplers that are representing the operational‘s states of
any alarms, along with command automation equipment using DTMF decoding strings. Optionally, it is possible to install
an Ethernet port and use the SNMP - TCP/IP protocol, in addiction to the web server installed on board that allows to
display the equipment status via a common web page.
Universal Power Supply 90-264Vac 47-63Hz that can operate in any region of the world. Fox takes up 1 rack unit
standard 19 "

ENG
| INTRODUCTION
7
1.5 COMPARISON TABLE BETWEEN GENIUS D AND FOX
General Features
Genius D
Fox
Audio Features
Audio Process
120Mhz @ 24bit DSP-Based audio process
Input Mode
Stereo, MonoL, MonoR, MonoL+R,Swap Left/Right, Stereo Inverted Right, Stereo Inverted Left,
Swap inverted Right, Swap inverted Left
Fading mode
Fast switching, Slow fading, Normal fading, fast fading.
Waiting time / Return time
From 1sec to 120sec / From 1sec to 31sec
Working / Output Sequence
Off, Automatic, Manual, Manual by command Gpio
Tone Generator
Off, Left=Right, onlyLeft, onlyRight @ 1 kHz
Switch Command by Gpio/Serial


A.G.C –DeNoiser


DTMF Encoder / Decoder


Delay time –Settings
-

A/Dal and Digital to Analog
Converter
-

Front Panel operation
Automatic / Manual


LCD Panel


Level Input / Output


Input selection (Manual)


Audio Input and Output
Analog Input


Analog Output


Digital Input
-

Digital Output
-

Remote Control
GPIO Connector –Type
SubD 15p HD - 4x GP In opto coupled, 4x GP Out Open Collector opto isolated
USB
1x USB –B Type EMI Filtered
Serial
2x Rs232 EMI Filtered
Software Remoter


Ethernet Port /Web Server
-
by option
Parser ASCII protocol
Rs232 by default
Rs232 by default. TCP/IP and UDP by option

ENG
| SAFETY WARNINGS / ISTRUZIONI PER LA SICUREZZA
8
1 SAFETY WARNINGS / ISTRUZIONI PER LA SICUREZZA
SAFETY WARNINGS
CONSIGNES DE SÉCURITÉ IMPORTANTES
ISTRUZIONI IMPORTANTI PER LA SICUREZZA
WICHTIGE SICHERHEITSHINWEISE
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
(Rel. 2.0)
1.1 FOREWORD
For your own safety and to avoid invalidation of the warranty all text marked with these Warning Symbols
should be read carefully.
Information in this manual is subject to change without notice and does not represent a commitment on the part of the
vendor.
The manufacturer shall not be liable for any loss or damage whatsoever arising from the use of information or any error
contained in this manual, or through any mis-operation or fault in hardware contained in the product.
It is recommended that all maintenance and service on the product should be carried out by the manufacturer or its
authorised agents. The manufacturer cannot accept any liability whatsoever for any loss or damage caused by service,
maintenance or repair by unauthorised personnel.

ENG
| SAFETY WARNINGS
9
2 SAFETY WARNINGS
The installation and servicing instructions in this manual are for use by qualified personnel only.
-
Read All Instructions. All safety and operating instructions must be read before operating the product. They also
must be retained for future reference, as it contains a number of useful hints for determining the best combination of
equipment settings for Yr particular application.
-
Heed All Warnings. All warnings on the product and those listed in the operating instructions must be adhered to.
-
Heat. This product must be situated away from any heat sources such as radiators or other products (including
power amplifiers or transmitters) that produce heat.
-
Power Sources. This product must be operated from the type of power source indicated on the marking label and in
the installation instructions. If you are not sure of the type of power supplied to your facility, consult your local power
company. Make sure the AC main voltage corresponds to that indicated in the technical specifications. If a different
voltage (ex. 110/115 VAC) is available, open the equipment closure and set the voltage switch on the main supply
circuit, located behind the AC socket
-
Power Cord Protection. Power supply cords must be routed so that they are not likely to be walked on nor pinched
by items placed upon or against them. Pay particular attention to the cords at AC wall plugs and convenience
receptacles, and at the point where the cord plugs into the product
-
Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When
a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
-
Lightning. For added protection for this product during a lightning storm, or when it is left unattended and unused for
long periods of time, unplug it from the AC wall outlet and the audio connections. This will prevent damage to the
product due to lightning and power line surges
-
Installation. Configuration and installation should only be carried out by a competent installation engineer
-
Cabling. Using high quality wires, well protected. Make sure the cable integrity.
This symbol alerts you to the presence of dangerous voltage inside the closure –voltage which
may be sufficient to constitute a risk of shock. Do not perform any servicing other than that
contained in the operating instructions. Refer all servicing to qualified personnel
The exclamation point within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
Do not change the voltage setting or replace the mains fuse without first turning the unit off
and unplugging the mains cord
Make sure the AC main voltage corresponds to that indicated in the technical specifications.
THIS APPARATUS MUST BE EARTHED !
To avoid risk of fire use the correct value fuse, as indicated on the label stuck on the right
side of the unit.
This apparatus uses a single pole mains switch and does therefore not separate the unit
completely from the mains power. To completely separate from mains power (in the event of
danger) unplug mains power cord. As the MAINS plug is the disconnect device, the
disconnect device shall remain readily operable.

ENG
| CONSIGNES DE SÉCURITÉ IMPORTANTES
10
3 CONSIGNES DE SÉCURITÉ IMPORTANTES
-
Lire ces consignes
-
Conserver ces consignes
-
Observer tous les avertissements
-
Suivre toutes les consignes
-
Ne pas utiliser cet appareil à proximité de l’eau
-
Ne pas obstruer les ouvertures de ventilation. Installer en respectant les consignes du fabricant
-
Ne pas installer à proximité d'une source de chaleur telle qu'un radiateur, une bouche de chaleur, un poêle ou
d'autres appareils (dont les amplificateurs) produisant de la chaleur.
-
Ne pas annuler la sécurité de la fiche de terre, la troisième branche est destinée à la sécurité. Si la fiche fournie
ne s'adapte pas à la prise électrique, demander à un électricien de remplacer la prise hors normes.
-
Protéger le cordon d'alimentation afin que personne ne marche dessus et que rien ne le pince, en particulier aux
fiches, aux prises de courant et au point de sortie de l’appareil
-
Utiliser uniquement les accessoires spécifiés par le fabricant
-
Utiliser uniquement avec un chariot, un support ou une table spécifié par le fabricant ou vendu avec l’appareil. Si
un chariot est utilisé, déplacer l’ensemble chariot–appareil avec précaution afin de ne pas le renverser, ce qui
pourrait entraîner des blessures
-
Débrancher l’appareil pendant les orages ou quand il ne sera pas utilisé pendant longtemps.
-
Confier toute réparation à du personnel qualifié. Des réparations sont nécessaires si l’appareil est endommagé
d’une façon quelconque, par exemple: cordon ou prise d’alimentation endommagé, liquide renversé ou objet tombé
à l’intérieur de l’appareil, exposition de l’appareil à la pluie ou à l’humidité, appareil qui ne marche pas normalement
ou que l’on a fait tomber.
-
NE PAS exposer cet appareil aux égouttures et aux éclaboussements. Ne pas poser des objets contenant de
l'eau, comme des vases, sur l'appareil
Ce symbole indique la présence d'une tension dangereuse dans l'appareil constituant un risque de
choc électrique.
Ce symbole indique que la documentation fournie avec l'appareil contient des instructions
d'utilisation et d'entretien importantes.
Avant de modifier le commutateur de changement de tension ou replacer le fusible il faut
débrancher l’appareil de la prise électrique. Pendant son usage, l’appareil doit etre branchee à la
prise de terre
Utiliser le fusible principal AC avec le valeur qui est indiquée sur l'étiquette collée sur le coffret.
Assurez-vous que la tension principale AC correspond à celle indiquée dans les spécifications
techniques.
L’interrupteur d’alimentation interrompt un pôle du réseau d’alimentation excepté le conducteur
de terre de protection. En cas de danger, debrancher le cordon d'alimentation. Parce que la prise
du réseau de alimentation est utilisée comme dispositif de déconnexion, ce dispositif doit
demeuré aisément accessible

ENG
| ISTRUZIONI IMPORTANTI PER LA SICUREZZA
11
4 ISTRUZIONI IMPORTANTI PER LA SICUREZZA
-
Leggere le presenti istruzioni
-
Conservare queste istruzioni
-
Osservare tutte le avvertenze
-
Seguire scrupolosamente tutte le istruzioni
-
Non usare questo apparecchio in prossimità di acqua
-
Non ostruire alcuna apertura per il raffreddamento. Installare l’apparecchio seguendo le istruzioni
-
Non installare l'apparecchio accanto a fonti di calore quali radiatori, aperture per l'afflusso di aria calda, forni o
altri apparecchi (amplificatori inclusi) che generino calore
-
Non rimuovere il terminale di connessione a terra sul cordone di alimentazione: esso ha lo scopo di tutelare
l’incolumità dell’utilizzatore. Se la spina in dotazione non si adatta alla presa di corrente, rivolgersi ad un elettricista
per far eseguire le modifiche necessarie.
-
Evitare di calpestare il cavo di alimentazione o di comprimerlo, specialmente in corrispondenza della spina e del
punto di inserzione sull’apparato.
-
Utilizzare solo dispositivi di collegamento e gli accessori specificati dal produttore.
-
Utilizzare l’apparecchio solo con un carrello, un sostegno, una staffa o un tavolo di tipo specificato dal produttore o
venduto insieme all’apparecchio. Se si utilizza un carrello, fare attenzione negli spostamenti per evitare infortuni
causati da ribaltamenti del carrello stesso.
-
Scollegare l’apparecchio dalla presa di corrente durante i temporali o quando inutilizzato a lungo
-
Per qualsiasi intervento, rivolgersi a personale di assistenza qualificato. È’ necessario intervenire sull’apparecchio
ogniqualvolta si verificano danneggiamenti di qualsiasi natura. Ad esempio, la spina o il cavo di alimentazione sono
danneggiati, è entrato liquido nell’apparecchio o sono caduti oggetti su di esso, l’apparecchio è stato esposto alla
pioggia o all’umidità, non funziona normalmente o è caduto.
-
Non esporre a sgocciolamenti o spruzzi. Non appoggiare sull'apparecchio oggetti pieni di liquidi, ad esempio vasi
da fiori.
Questo simbolo indica la presenza di alta tensione all'interno dell'apparecchio, che comporta rischi
di scossa elettrica.
Questo simbolo indica la presenza di istruzioni importanti per l'uso e la manutenzione nella
documentazione in dotazione all'apparecchio.
Non sostituire il fusibile o cambiare la tensione di alimentazione senza aver prima scollegato il
cordone di alimentazione. L’APPARATO DEVE ESSERE CONNESSO A TERRA.
Sostituire il fusibile generale con uno di identico valore, come indicato sulla etichetta applicata
sul mobile dell’apparato
Assicurarsi che la tensione di rete corrisponda a quella per la quale è configurato
l’apparecchio
Questo apparato utilizza un interruttore di alimentazione di tipo unipolare e l’isolamento dalla
rete elettrica non è pertanto completo. Per ottenere un isolamento totale (ad esempio in caso di
pericolo), scollegare il cordone di alimentazione. Inoltre, poichè la spina di alimentazione è
utilizzata come dispositivo di sezionamento, essa deve restare facilmente raggiungibile

ENG
| WICHTIGE SICHERHEITSHINWEISE
12
5 WICHTIGE SICHERHEITSHINWEISE
-
Diese Hinweise LESEN
-
Diese Hinweise AUFHEBEN
-
Alle Warnhinweise BEACHTEN
-
Alle Anweisungen BEFOLGEN
-
Dieses Gerät NICHT in der Nähe von Wasser verwenden
-
KEINE Lüftungsöffnungen verdecken. Gemäß den Anweisungen des Herstellers einbauen
-
Nicht in der Nähe von Wärmequellen, wie Heizkörpern, Raumheizungen, Herden oder anderen Geräten
(einschließlich Verstärkern) installieren, die Wärme erzeugen
-
Die Schutzfunktion des Schukosteckers NICHT umgehen. Bei Steckern für die USA gibt es polarisierte Stecker,
bei denen ein Leiter breiter als der andere ist; US-Stecker mit Erdung verfügen über einen dritten Schutzleiter. Bei
diesen Steckerausführungen dient der breitere Leiter bzw. der Schutzleiter Ihrer Sicherheit. Wenn der mitgelieferte
Stecker nicht in die Steckdose passt, einen Elektriker mit dem Austauschen der veralteten Steckdose beauftragen
-
VERHINDERN, dass das Netzkabel gequetscht oder darauf getreten wird, insbesondere im Bereich der Stecker,
Netzsteckdosen und an der Austrittsstelle vom Gerät
-
NUR das vom Hersteller angegebene Zubehör und entsprechende Zusatzgeräte verwenden.
-
NUR in Verbindung mit einem vom Hersteller angegebenen oder mit dem Gerät verkauften Transportwagen, Stand,
Stativ, Träger oder Tisch verwenden. Wenn ein Transportwagen verwendet wird, beim Verschieben der
Transportwagen-Geräte- Einheit vorsichtig vorgehen, um Verletzungen durch Umkippen
-
Das Netzkabel dieses Geräts während Gewittern oder bei längeren Stillstandszeiten aus der Steckdose
ABZIEHEN.
-
Alle Reparatur- und Wartungsarbeiten von qualifiziertem Kundendienstpersonal DURCHFÜHREN LASSEN.
Kundendienst ist erforderlich, wenn das Gerät auf irgendwelche Weise beschädigt wurde, z.B. wenn das Netzkabel
oder der Netzstecker beschädigt wurden, wenn Flüssigkeiten in das Gerät verschüttet wurden oder Fremdkörper
hineinfielen, wenn das Gerät Regen oder Feuchtigkeit ausgesetzt war, nicht normal funktioniert oder fallen gelassen
wurde.
-
Dieses Gerät vor Tropf- und Spritzwasser SCHÜTZEN. KEINE mit Wasser gefüllten Gegenstände wie zum
Beispiel Vasen auf das Gerät STELLEN.
Dieses Symbol zeigt an, dass gefährliche Spannungswerte, die ein Stromschlagrisiko darstellen,
innerhalb dieses Geräts auftreten.
Dieses Symbol zeigt an, dass das diesem Gerät beiliegende Handbuch wichtige Betriebs- und
Wartungsanweisungen enthält.
Vor Änderung der Netzspannung oder Sicherungswechsel Netzkabel trennen.
Das Gerät muss für den Betrieb geerdet werden.
Hauptsicherung nur mit einer gleichwertigen austauschen
(s. entsprechende Etikette).
Vor Einschalten Netzspannungseinstellung am Gerät überprüfen bzw. anpassen.

ENG
| WICHTIGE SICHERHEITSHINWEISE
13
Inpoliger Netzschalter. In Notfälle oder für Wartungsarbeiten Netzkabel trennen. Der Netzstecker
fungiert auch als Trennelement muss deshalb zugänglich bleiben

ENG
| INSTRUCCIONES IMPORTANTES DE SEGURIDAD
14
6 INSTRUCCIONES IMPORTANTES DE SEGURIDAD
-
LEA estas instrucciones
-
CONSERVE estas instrucciones
-
PRESTE ATENCION a todas las advertencias.
-
SIGA todas las instrucciones
-
NO utilice este aparato cerca del agua
-
NO obstruya ninguna de las aberturas de ventilación.Instálese según lo indicado en las instrucciones del
fabricante
-
No instale el aparato cerca de fuentes de calor tales como radiadores, registros de calefacción, estufas u otros
aparatos (incluyendo amplificadores) que produzcan calor
-
NO anule la función de seguridad del enchufe polarizado o con clavija de puesta a tierra. Un enchufe polarizado
tiene dos patas, una más ancha que la otra. Un enchufe con puesta a tierra tiene dos patas y una tercera clavija con
puesta a tierra. La pata más ancha o la tercera clavija se proporciona para su seguridad. Si el toma corriente no es
del tipo apropiado para el enchufe, consulte a un electricista para que sustituya el toma corriente de estilo anticuado
-
PROTEJA el cable eléctrico para evitar que personas lo pisen o estrujen, particularmente en sus enchufes, en los
toma corrientes y en el punto en el cual sale del aparato
-
UTILICE únicamente los accesorios especificados por el fabricante
-
UTILICESE únicamente con un carro, pedestal, escuadra o mesa del tipo especificado por el fabricante o vendido
con el aparato. Si se usa un carro, el mismo debe moverse con sumo cuidado para evitar que se vuelque con el
aparato
-
DESENCHUFE el aparato durante las tormentas eléctricas, o si no va a ser utilizado por un lapso prolongado.
-
TODA reparación debe ser llevada a cabo por técnicos calificados. El aparato requiere reparación si ha sufrido
cualquier tipo de daño, incluyendo los daños al cordón o enchufe eléctrico, si se derrama líquido sobre el aparato o
si caen objetos en su interior, si ha sido expuesto a la lluvia o la humedad, si no funciona de modo normal, o si se ha
caído.
-
NO exponga este aparato a chorros o salpicaduras de líquidos. NO coloque objetos llenos con líquido, tales como
floreros, sobre el aparato.
Este símbolo indica que la unidad contiene niveles de voltaje peligrosos que representan un riesgo
de choques eléctricos.
Este símbolo indica que la literatura que acompaña a esta unidad contiene instrucciones
importantes de funcionamiento y mantenimiento.
Antes de cambiar la alimentacion de voltaje o de cambiar el fusible, desconecte el cable de
alimentacion. Para reducir el riesgo de descargas electricas, esta unidad debe ser conectada a
tierra.
Remplaze el fusible con lo mismo, que corresponde a lo indicado en el panel del equipo.
Antes de encender, controlar que la linea de alimentacion de voltaje corresponda a la indicada

ENG
| INSTRUCCIONES IMPORTANTES DE SEGURIDAD
15
El interruptor de alimentación es unipolar. En el caso de peligro, desconecte el cable de
alimentación. Porque la clavija de conexion a red sirve por la desconection de la unidad, la
clavija debe ser ubicada en proximidad de la unidad

UNPACKING AND INSPECTION
| UNPACKING AND INSPECTION
16
7 UNPACKING AND INSPECTION
Your equipment was packed carefully at the factory in a container designed to protect the unit during shipment.
Nevertheless, we recommend making a careful inspection of the shipping carton and the contents for any signs of
physical damage.
Damage & Claims
If damage is evident, do not discard the container or packing material. Contact your carrier immediately to file a claim for
damages. Customarily, the carrier requires you, the consignee, to make all damage claims. It will be helpful to retain the
shipping documents and the waybill number.
Save all packing materials! If You should ever have to ship the unti (e.g. for servicing), it is best to ship it in the
original carton with its packing materials because both the carton and packing material have been carefully designed to
protect the unit.
Under normal conditions no user maintenance or calibration are required. Internal links and preset controls may be set to
configure the unit during installation. Any service work required should be carried out by qualified service
personnel only.
We are able to offer further product support through our worldwide network of approved dealers and service agents.
To help us provide the most efficient service please would you keep a record of the unit serial
number, and date and place of purchase to be quoted in any communication regarding this
product.
The actual equipment Serial Number is indicated on the silver label stuck on the rear panel of the equipment closure.
Tools And Equipment Needed
Only standard technician’s tools are required to install this equipment.

FIRST INSTALLATION RECOMMENDATIONS
| FIRST INSTALLATION RECOMMENDATIONS
17
8 FIRST INSTALLATION RECOMMENDATIONS
8.1 POWER SUPPLY CABLE
A power supply cable of approx. 2 mt length is supplied with the device, which has a moulded IEC plug attached –this is
a legal requirement.
The type of plug for the power supply depends on the country in which it is delivered.
If for any reason, you need to use this appliance with a different plug, you should use the following wiring guidelines in
replacing the existing plug with the new one:
Earth
Green, or green and yellow
Neutral (N)
Blue
Live (L)
Brown
Supply cables should be laid in such a manner that one does not step or walk on them. They should not be squashed by
any objects.
THIS EQUIPMENT MUST BE EARTHED.
The chassis is always connected to mains earth to ensure your safety: check your mains wiring and earthing before
switching on.
8.2 AC MAINS VOLTAGE SETTING (230 V / 115 V)
BE SURE THAT THE UNIT IS SET TO THE CORRECT MAINS/LINE VOLTAGE FOR YOUR
COUNTRY BEFORE PLUGGING IT INTO THE WALL OUTLET !
The actual Mains voltage is indicated on the label stuck on the equipment closure. Should the type of power at the
operation location not be known, please contact your dealer or electricity company.
If, for some reason, the unit is to be operated at a mains input voltage which is different to that as supplied, you need to
switch the voltage selector on the right side of the unit. You also need to replace the AC main fuse, according to
information provided on the external label or on the Technical Specifications table at the end of this user manual.
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, ALWAYS DISCONNECT THE AC
MAINS CABLE BEFORE ALTERING THE CHANGE-OVER SWITCH. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
8.3 FUSE REPLACEMENT
The power supply socket has an integral fuse drawer containing the AC power fuse and a spare, both of the same value.


FIRST INSTALLATION RECOMMENDATIONS
| FIRST INSTALLATION RECOMMENDATIONS
18
BEFORE REPLACING THE POWER FUSE, MAKE SURE YOU HAVE THE RIGHT TYPE OF FUSE FOR
THE VOLTAGE TO BE PROTECTED.
USING WRONG FUSE TYPE WILL RESULT IN INSUFFICIENT PROTECTION.
Make sure that the power is switched off and the power cable is disconnected from the equipment.
a. Open the upper iron cover using a screwdriver.
b. Replace the fuse located at the internal position –Power supply Type-1
c. Replace the fuse located at the internal position –Power supply Type-2
Perform the set-up under static control conditions. Static charges are likely to completely destroy one or
more of the CMOS semiconductors employed in the unit. Static damage will not be covered under
warranty.

FIRST INSTALLATION RECOMMENDATIONS
| FIRST INSTALLATION RECOMMENDATIONS
19
Basic damage prevention consists of minimizing generation, discharging any accumulated static charge
on your body and preventing that discharge from being sent to or through any electronic component.
Uninsulated dangerous voltage are inside the enclosure, voltage that may be sufficient to constitute a
risk of shock.
Always disconnect to AC Mains before removing the top cover
8.4 PROTECTION AGAINST LIGHTNING
When the upper iron cover is removed, a plastic transparent cover helps the user safety, to avoid from flashlight coming
from the switching power supply. After the power cord has been disconnected some parts of the power supply remain
electrically loaded for a lot of time.
Axel Technology suggest to don’t touch never this parts, and it is not responsible for human flash light or electrical burns.
Should the device be put out of action due to being struck by lightning or excess voltage, disconnect it
from the power supply without delay. Do not reconnect until the device has been checked. If in doubt
contact the technical support service.
Make sure there is suitable lighting protection to protect the device.
Alternatively you should disconnect all connectors from the device during a storm or when the device
is going to be unsupervised or not used for a longer period of time.
These measures will protect against damage by lightning or excess voltage.

FIRST INSTALLATION RECOMMENDATIONS
| FIRST INSTALLATION RECOMMENDATIONS
20
8.5 VENTILATION
The equipment will operate as a free-standing unit without requiring any special cooling arrangement.
However, slots and openings in the product are provided for ventilation. They ensure reliable operation of the product,
keeping it from overheating. These openings must not be blocked nor covered during operation.
YOU MUST LEAVE AT A MINIMUM ONE RACK UNIT OF EMPTY SPACE ABOVE THE EQUIPMENT TO ENHANCE
VENTILATION AND TO GET A LONGER EQUIPMENT LIFE.
