P6121-V3
12.1” XGA TFT Monitor
User’s Manual

ii
Disclaimers
This manual has been carefully checked and believed to contain accurate information.
Axiomtek Co., Ltd. assumes no responsibility for any infringements of patents or any third
party’s rights, and any liability arising from such use.
Axiomtek does not warrant or assume any legal liability or responsibility for the accuracy,
completeness or usefulness of any information in this document. Axiomtek does not make any
commitment to update the information in this manual.
Axiomtek reserves the right to change or revise this document and/or product at any time
without notice.
No part of this document may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written permission of Axiomtek Co., Ltd.
CAUTION
If you replace wrong batteries, it causes the danger of explosion. It is recommended by the
manufacturer that you follow the manufacturer’s instructions to only replace the same or
equivalent type of battery, and dispose of used ones.
©Copyright 2021 Axiomtek Co., Ltd.
All Rights Reserved
September 2021, Version A1
Printed in Taiwan

iii
Safety Precautions
Before getting started, read the following important cautions.
1. Be sure to ground yourself to prevent static charge when installing the internal
components. Use a grounding wrist strap and place all electronic components in any
static-shielded devices. Most electronic components are sensitive to static electrical
charge.
2. Disconnect the power cords from the P6121-V3 Series before making any installation. Be
sure both the system and the external devices are turned OFF. Sudden surge of power
could ruin sensitive components. Make sure the P6121-V3 Series is properly grounded.
3. Do not open the system’s top cover. If opening the cover for maintenance is a must, only
a trained technician is allowed to do so. Integrated circuits on computer boards are
sensitive to static electricity. To avoid damaging chips from electrostatic discharge,
observe the following precautions:
◼Before handling a board or integrated circuit, touch an unpainted portion of the
system unit chassis for a few seconds. This will help to discharge any static
electricity on your body.
◼When handling boards and components, wear a wrist-grounding strap, available
from most electronic component stores.
Trademarks Acknowledgments
Axiomtek is a trademark of Axiomtek Co., Ltd.
Windows®is a trademark of Microsoft Corporation.
IBM, PC/AT, PS/2, VGA are trademarks of International Business Machines Corporation.
Intel®and Pentium®are trademarks of Intel Corporation.
AMI is trademark of American Megatrend Inc.
Other brand names and trademarks are the properties and registered brands of their
respective owners.

iv
Table of Contents
Disclaimers.....................................................................................................ii
Safety Precautions........................................................................................iii
Chapter 1 Introduction............................................. 1
1.1 General Description............................................................................1
1.2 Features...............................................................................................2
1.3 Specifications......................................................................................2
1.4 Dimensions and Outlines ...................................................................3
1.5 I/O Outlets............................................................................................4
1.6 Packing List.........................................................................................5
Chapter 2 System Setup .......................................... 7
2.1 System Configuration.........................................................................7
2.2 Panel Mounting ...................................................................................8
2.3 Wall Mounting......................................................................................8
2.4 VESA Mounting ...................................................................................9
2.5 OSD Key Configuration ......................................................................9
Appendix A Supported Input Timing Modes ............. 10
Appendix B OSD Operation........................................ 12
Function Description of OSD Menu............................................................12

P6121-V3 User’s Manual
Introduction 1
Chapter 1
Introduction
This chapter contains general information and detailed specifications of the P6121-V3.
Chapter 1 includes the following sections:
⚫General Description
⚫Features
⚫Specifications
⚫Dimensions and Outlines
⚫I/O Outlets
⚫Package List
1.1 General Description
The P6121-V3, an industrial 12.1 inches view area LCD Monitor comes with slim, light and
reliable features to replace traditional bulky CRT for Industrial application. Its unique flat design
is fit for panel mounting, VESA mounting, Wall mounting and Rack mounting. The display
interface offers DP, HDMI and VGA for different input source from PC system or multimedia
system that let you upgrade the display don’t change anything from your system. Besides, for
varied HMI field, you can choose one of resistive touch or glass interface to meet your
application. In addition, this monitor has more comfort, safety, and environmental protection for
humanized & health consideration those would be the benefit that users can get.
This LCD monitor builds in color active matrix thin-film-transistor (TFT) liquid crystal display to
provide superior display performance. A maximum resolution of 1024x768 is ideal for
displaying complex graphics and high-definition images. Other outstanding designs that
enhance this LCD monitor’s performance are Plug & Play compatibility, and OSD (On Screen
Display) controls, especially OSD, it made you ease adjustment on screen image.

P6121-V3 User’s Manual
2 Introduction
1.2 Features
⚫High contrast color 12.1”XGA TFT LCD display support resolution up to 1024x768
⚫Flat design with NEMA4/IP65-compliant
⚫Suits with resistive touch or glass
⚫High Brightness and Ultra-wide viewing angle with anti-glare features.
⚫Power management system conforms to VESA DPMS standard
⚫Advanced OSD control for picture quality adjustment
⚫Supports VESA ARMs, Desktop Stand Rear, Panel, Wall mount
1.3 Specifications
⚫12.1” XGA(1024x768) LCD with LED backlight
⚫Resistive Touch or glass
⚫Front bezel design with NEMA4/IP65
⚫Control: OSD (On Screen Display) control pad on the side
⚫Mounting: Support Panel mount, VESA arm mount, Wall mount
⚫Net/Gross Weight
◼P6121-V3: 2.35 kg (5.18 lbs)/2.8 kg (6.17 lbs)
⚫Dimension (Main Body Size)
◼P6121-V3: 311.81 mm (12.28") (W) x 250.31 mm (9.85") (H) x 54.95 mm (2.16") (D)
⚫Operation Temperature
◼0℃to 50℃
⚫Relative Humidity
◼10% to 90% @ 40℃, Non-Condensing
⚫Power input
◼DC Version: Terminal block (24Vdc)
◼Max power consumption: 21W
NOTE: All specifications and images are subject to change without notice.

P6121-V3 User’s Manual
Introduction 3
1.4 Dimensions and Outlines
The following diagrams show the dimensions and outlines of P6121-V3
(AC Version by project)

P6121-V3 User’s Manual
4 Introduction
1.5 I/O Outlets
Please refer to the following illustration for I/O locations of the P6121-V3.

P6121-V3 User’s Manual
Introduction 5
1.6 Packing List
When you receive the P6121-V3, the bundled package should contain the following items:
⚫P6121-V3 unit x 1
⚫VGA cable x1
⚫USB cable cable x1 (for touch version only )
⚫Panel mount kit set x 1 (optional)
⚫HDMI cable x1 (optional)
⚫DP cable x1 (optional)
⚫Wall mount bracket x1 (optional)
If you can not find the package or any items are missing, please contact Axiomtek distributors
immediately.

P6121-V3 User’s Manual
6 Introduction

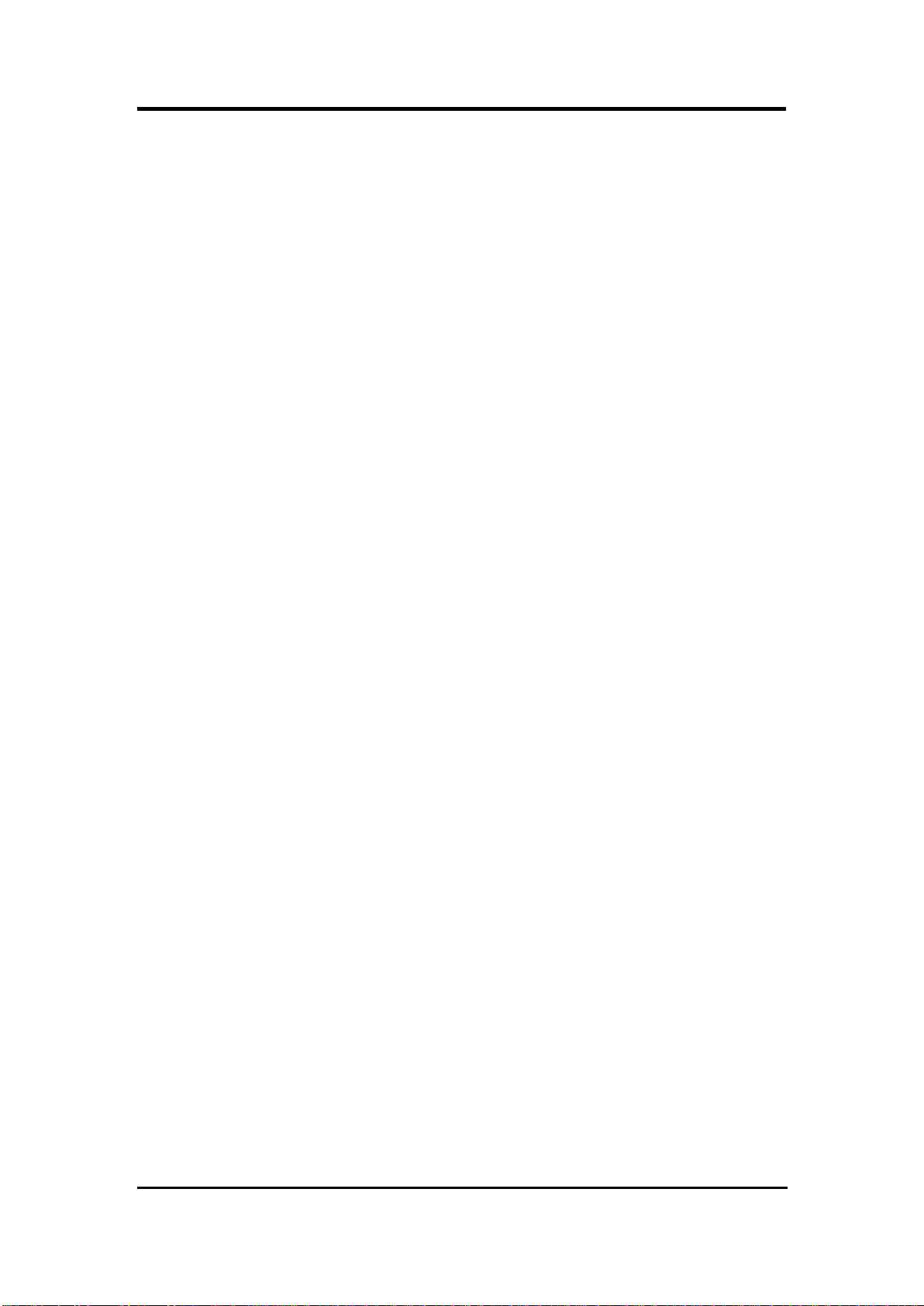

This page is intentionally left blank.
