AXIOMTEK GOT-2770S User manual

GOT-2770S
7.7” DSTN LCD, Xscale-based touch screen
computer
User’s Manual

Disclaimers
The information in this manual has been carefully checked and is
believed to be accurate. AXIOMTEK Co., Ltd. assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
AXIOMTEK assumes no responsibility for any inaccuracies that may be
contained in this document. AXIOMTEK makes no commitment to update or to
keep current the information contained in this manual.
AXIOMTEK reserves the right to make improvements to this document and/or
product at any time and without notice.
No part of this document may be reproduced, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of
AXIOMTEK Co., Ltd.
Copyright 2003 by AXIOMTEK Co., Ltd.
All rights reserved.
Nov. 2003,
Printed in Taiwan
Edition V1.00
ii

ESD Precautions
Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:
 Do not remove boards or integrated circuits from their anti-static
packaging until you are ready to install them.
 Before handling a board or integrated circuit, touch an unpainted
portion of the system unit chassis for a few seconds. This helps to
discharge any static electricity on your body.
 Wear a wrist-grounding strap, available from most electronic
component stores, when handling boards and components.
Trademarks Acknowledgments
AXIOMTEK is a trademark of AXIOMTEK Co., Ltd.
IBM is a registered trademark of International Business
Machines Corporation.
MS-DOS, Microsoft C and QuickBasic are trademarks of
Microsoft Corporation.
TURBO C is a trademark of Borland Inc.
BASIC is a trademark of Dartmouth College.
Intel is a trademark of Intel Corporation.
Other brand names and trademarks are the properties
and registered brands of their respective owners.
iii

Unpacking
The GOT-2770S is packed in an anti-static bag. The product has components
that are easily damaged by static electricity. Do not remove the anti-static
wrapping until proper precautions have been taken. Safety instructions in front
of this User’s Manual describe anti-static precautions and procedures.
After unpacking the product, place it on a raised surface and carefully inspect
the board for any damage that might have occurred during shipment. Ground
the product and exercise extreme care to prevent damage to the product from
static electricity.
Integrated circuits will sometimes come out of their sockets during shipment.
The GOT-2770S 7.7” DSTN LCD, Xscale-based touch screen computer
package includes the following:
 GOT-2770S * 1
 Driver CD *1
 USB sync. cable *1
 Touch pen * 1
 Fuse * 1
 Panel mount * 2
Make sure that all of the items listed above are present.
What To Do If There Is A Problem
If there are damaged or missing parts, contact your supplier and/or dealer
immediately. Do not attempt to apply power to the product if there is damage
to any of its components.
iv

Safety Instructions
Overview
This section states the safety instructions, which must be followed when
installing, operating and servicing the GOT-2770S. If neglected, physical injury
and death may follow, or damage may occur to controller and related
equipment. The material in this chapter must be studied before attempting any
work on, or with, the unit.
Warnings and Notes
This manual distinguishes safety instructions. Warnings are used to inform of
conditions, which can, if proper steps are not taken, lead to a serious fault
condition, physical injury or death. Notes are used when the reader is required
to pay special attention or when there is additional information available on the
subject. Notes are less crucial than warnings, but should not be disregarded.
Warnings Readers are informed of situations that can result in
serious physical injury and/or serious damage to
equipment with the symbol shown to the left. A Warning
symbol indicates that the reader should pay special
attention to the accompanying text. Precautionary steps
should be taken to insure that the installation is in
compliance with warnings. Warnings include hazardous
conditions that could cause personal injury or equipment
damage if care is not taken. The text next to this symbol
describes ways to avoid the danger.
Warnings Dangerous Voltage Warnings: Warns of situations in
which high voltage can cause physical injury and or
v

damage equipment.
General warning: Warns of situations, which can cause
physical injury and or damage equipment by means other
than electrical.
Electrostatic Discharge Warning: Warns of situations in
which an electrostatic discharge can damage equipment.
Readers are notified of the need for special attention or additional in formation
available on the subject with the following symbols:
CAUTION! Aims to draw special attention to it.
Note: Note: gives additional information or points out more
information available on the subject.
vi

Table of Contents
Disclaimers ------------------------------------------ ii
ESD Precautions --------------------------------- iii
Unpacking ------------------------------------------- iv
Safety Instructions -----------------------------v
Chapter 1 Introduction----------------------- 1
1.1 Introduction ------------------------------------------------ 1
1.2 Features ----------------------------------------------------12
1.3 Specifications---------------------------------------------- 2
Chapter 2 Installation Instructions--- 5
2.1 Mounting Instructions..........................................5
2.1.1 Location Considerations.......................... 5
2.1.2 Making a NEMA-4 Mounting.................... 5
2.1.3 Environmental Considerations ................ 6
2.2 Power Connections..............................................7
2.2.1 Power Requirements ................................ 8
2.2.2 Grounding Requirements ...................... 10
2.2.3 CE Requirements .................................... 10
2.2.4 Safety Guidelines ................................... 11
2.3 Communications Connections...........................13
2.3.1 Connector COM 1 [RS232] .................... 14
2.3.2 Connector COM2 [RS232] ..................... 15
2.3.3 Connector COM3 [RS422/485] .............. 16
2.3.4 USB Client port........................................ 17
2.3.5 USB Master port ...................................... 18
2.3.6 Dip Switch ............................................... 19
2.4 CE Requirements ...............................................20
2.5 Dimensions of GOT-2770S .................................21
Table of Contents vii

Chapter 3 Windows CE.NET --------------- 23
3.1 Introduction .......................................................23
3.2 Utilities...............................................................24
3.2.1 Soft-Keyboard ........................................ 24
3.2.2 System Settings ....................................... 25
3.2.3 IPSM ......................................................... 29
3.2.4 Startup..................................................... 30
3.2.5 Remote Desktop Connection (Windows
XP only) .................................................. 31
3.3 GOT-2770S Networking ......................................34
3.3.1 Networking via Ethernet ........................ 34
3.3.2 Networking via USB Client Port.............. 36
3.3.3 Web browser........................................... 38
3.4 Application program development ....................39
3.4.1 Microsoft eMbedded Visual C++ 4.0 .... 39
3.4.2 GOT-2770S SDK ....................................... 41
Appendix A Example Program ------------ 44
Table of Contents
viii

GOT-2770S User’s Manual
Chapter 1
Introduction
1.1 Introduction
The GOT-2770S series are fan-less and compact-size touch panel
computers. It equips with 7.7” DSTN LCD display, Windows CE.NET
and low power consumption CPU, Intel Xscale PXA255. Therefore,
GOT-2770S series are good cost-effective choices for operator
interface applications.
The GOT-2770S adopts most reliable and stable design. With fan-less
CPU and CompactFlash card, GOT-2770S is especially suitable for
vibration environment such as transportation, semiconductor etc. In
addition, GOT-2770S is also bundled with Windows CE.NET, which
forms a bridge that lets GOT-2770S be an open HMI solution for
system integration. Furthermore, GOT-2770S also supports Visual
Studio Framework 1.1. For connecting other devices, the GOT-2770S
provides several interfaces: USB, RS-232/422/485, Ethernet etc.
Introduction 1

GOT-2770S User’s Manual
1.2 Features
 Fan-less and low power consumption CPU-Xscale PXA255
 7.7” VGA color DSTN LCD
 Windows CE.NET/ Visual Studio Framework 1.1 supported
and flash ROM on-board
 Slim and compact size design
 Suitable for reliable and vibration application – Fan less and
CompactFlash card
 NEMA 4 / IP65 compliant front panel
 Support USB 2.0 host and client
 Over-voltage power protection – fuse
1.3 Specifications
 Construction: plastic molding housing
 Display: 7.7" VGA Color DSTN LCD
 CPU and core logic: Intel™ PXA255
 DRAM: 64 MB on board
 Storage: 32 MB Flash memory on board,
 1 CompactFlash™ card slot
 I/O: 3 serial ports (COM1 RS-232, COM2: RS232, COM3:
RS422/485),
 1 Ethernet port (10/100Base-T)
 1 USB client for ActiveSync
 2 USB Host ports
 Sound output: 16 bit sound output
 RTC: Built-in
 Power input: 24 VDC, 0.5A maximum
 Dimension (W x H x D): 231 x 176 x 55mm
 Weight: 1.3kg
Introduction
2

GOT-2770S User’s Manual

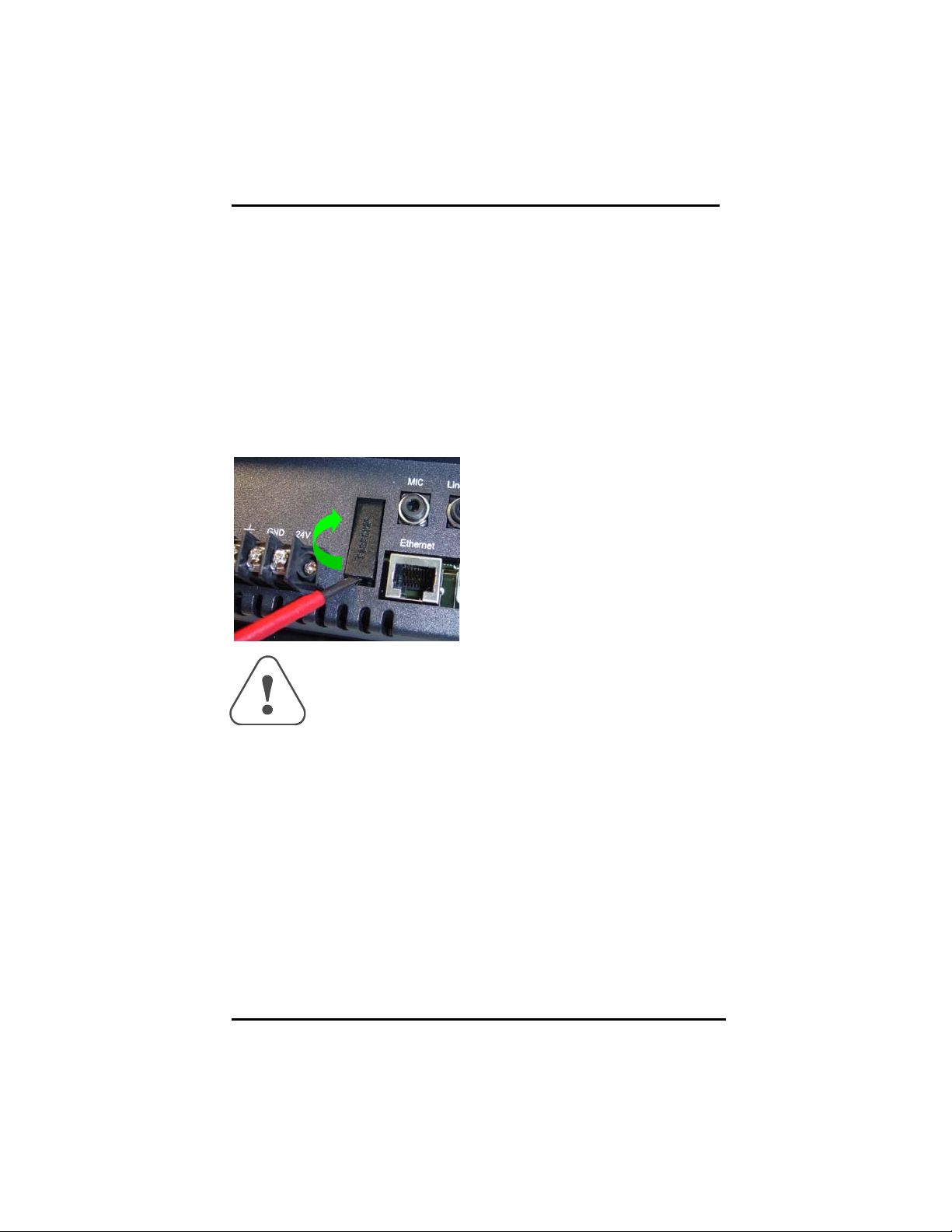

FUSE
 BUSSMANN Fast Acting, Glass Tube
 Rating: 1A
 Size: 5x20mm
LCD Display
 Display type: DSTN color LCD
 Display size (diagonal) 7.7"
 Max colors: 65536
 Resolution: 320 x 240
 Pixel pitch (HxV, mm): 0.246 x 0.246
 Viewing angle (°): 40/30/50/50 (T/B/R/L)
 Luminance (cd/m2): 150
 Storage temperature (°C): -20~60
 Operating temperature (°C): 0~45
 Backlight: CCFLx2
 Contrast ratio: 30:1
Touch screen
 Type: 4-wire, analog resistive
 Resolution: continuous
 Light transmission: above 80%
 Life: 1 million activation minimal
Environmental Specifications
 Operating temperature: 0° ~ 45°C (32° ~ 113°F)
 Relative humidity: 10% ~ 90% @ 40°C, non-condensing
 Shock (operation): 10 to 25Hz(X,Y,Z direction 2G
30minutes)
 EMI: Complies FCC class A
 CE: Complies with EN50081-2 and EN50082-2 standards
 Front panel meets NEMA4 / IP65
Introduction 3

GOT-2770S User’s Manual
This page does not contain any information.
Introduction
4

GOT-2770S User’s Manual
Chapter 2
Installation Instructions
2.1 Mounting Instructions
2.1.1 Location Considerations
Care should be taken when locating equipment behind the unit to
ensure that AC power wiring, PLC output modules, contactors, starters
and relays, and any other source of electrical interference are located
away from the back of the unit.
Particular note should be taken to the position of variable speed drives
and switching power supplies. Their input and load cables should be
screened to a central star earth point.

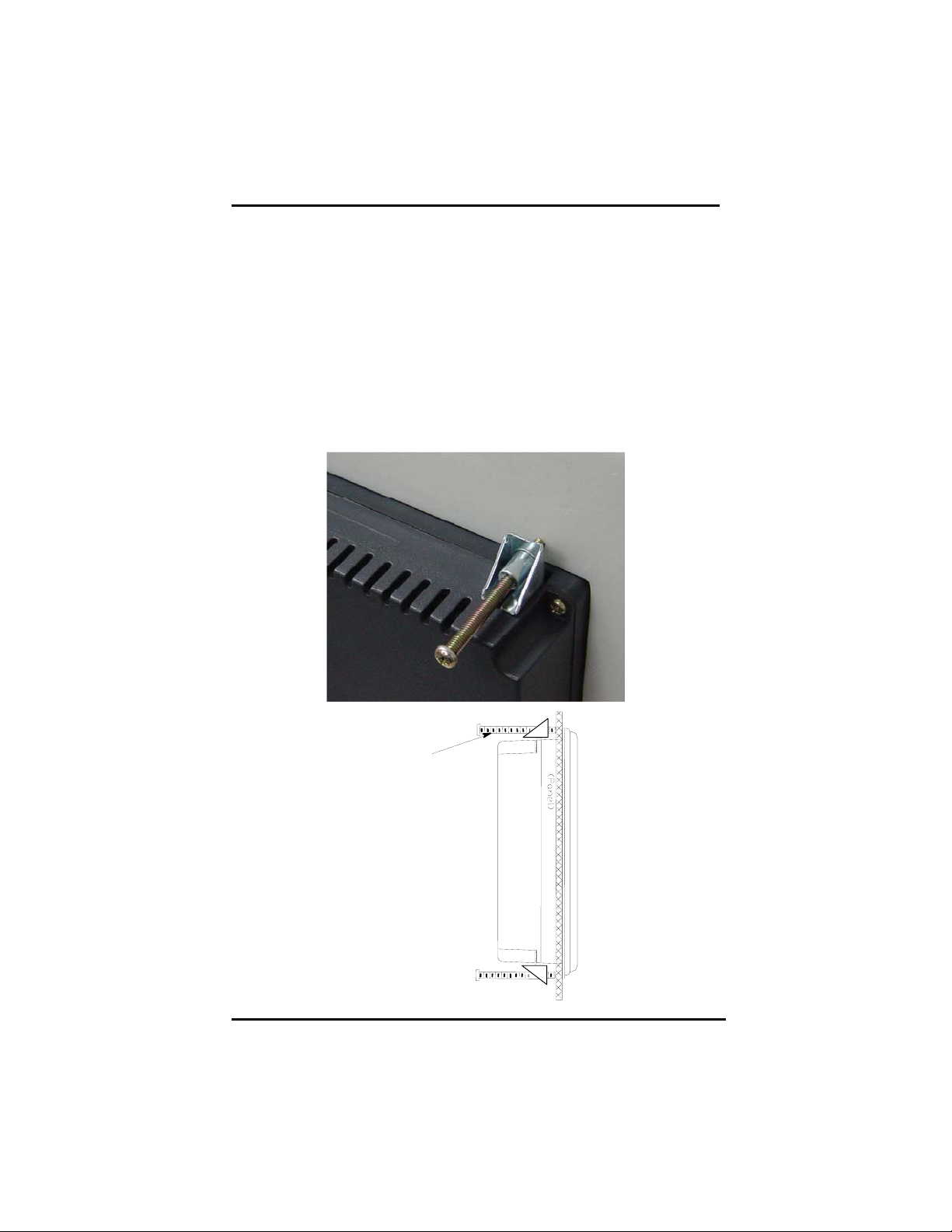

2.1.2 Making a NEMA-4 Mounting
Panel Details The unit can be mounted into panels with a depth of
4”(105mm). It is recommended that the unit be
mounted on the front panel of a steel enclosure,
through an appropriate opening*. Allow a clearance of
1”(25mm) around the sides of the unit for mounting
hardware. Allow clearance for cable connections to
the back of the unit. Unit depth may vary according to
cable type used. Typically, plan a depth to
accommodate at least 4”(105mm) behind the panel.
NEMA-4
Mounting
Put the unit through the panel cut out. Slide the
clamps into the 6 holes provided around the case.
Tighten the clamping screws in an even pattern until
the unit is secured in the panel.
Caution! Do not over tighten mounting clamps!
Note: Specifications Note:
To seal to NEMA-4 specifications, all supplied
mounting clamps must be used and panel cannot flex
more than 0.010”.
Installation Instructions 5

GOT-2770S User’s Manual
2.1.3 Environmental Considerations
 The GOT-2770S are to be used indoors as built in displays. Make
sure that the displays are installed correctly and that the
operating limits are followed (See Specifications).
 Do not operate the unit in areas subject to explosion hazards due
to flammable gases, vapors or dusts.
 The unit should not be installed where fast temperature variations
and/or high humidity are present. This will cause condensation of
water in the device.
 Do not install these terminals in environments where have
inflammable gases.
Panel-mounting clamp
4 places (only 2 shown)
Side View
Installation Instructions
6

GOT-2770S User’s Manual

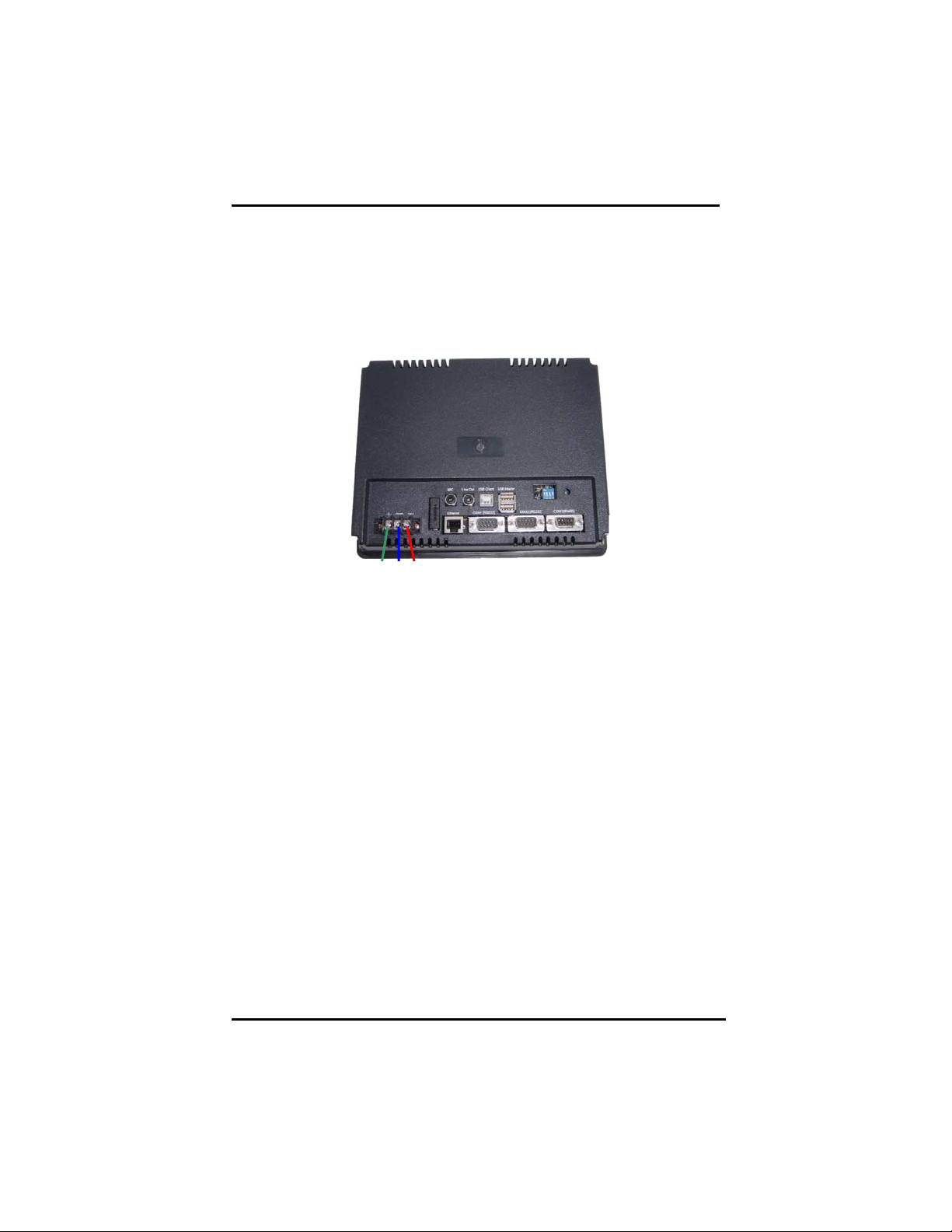

2.2 Power Connections
Make sure that all local and national electrical standards are met when
the installing the unit. Contact your local authorities to determine which
codes apply.
FG 0V +24V
Installation Instructions 7

GOT-2770S User’s Manual
2.2.1 Power Requirements
Power The GOT-2770S can be powered by DC power only.
The specified voltage range is +21 to 25 Volts DC.
This insures compatibility with most controller DC
systems. The power conditioning circuitry inside the
unit is accomplished by a switching power supply.
The peak starting current can be as high as 700mA.
Fusing
Requirements
If the display does not come on within 2 seconds of
power up, remove power. An internal fuse will
prevent damage if the polarity of the DC power is
incorrect. Check wiring to insure proper connections
and try to power up again.
Caution
High Voltage
An Internal fuse will prevent damage for over voltage
condition however it isn’t guaranteed.
DC voltage sources should provide proper isolation
from main AC power and similar hazards.
Caution
Emergency
Stop
A Hard-wired EMERGENCY STOP should be fitted
in any system using a GOT-2770S to comply with
ICS Safety Recommendations.
Caution
Supply Voltage
Condition
Do not power the GOT-2770S and inductive DC
loads, or input circuitry to the controller, with the
same power supply. Note: The 24 VDC output from
some controllers may not have enough current to
power the GOT-2770S.
Caution
Wire Routing
Wire lengths should be minimized (Maximum 1600’
(500 m) shielded, 1000’ (300 m) unshielded).
Wires should be run in pairs with a neutral or
common paired with a hot or signal line.
If wiring is to be exposed to lightning or surges, use
appropriate surge suppression devices.
Keep AC, high energy, and rapidly switching DC
wiring separate from signal wires.
Equip ungrounded DC supplies with a resistor and
Installation Instructions
8

GOT-2770S User’s Manual
capacitor in parallel to earth ground. This provides a
path for static and high frequency dissipation.
Typical values to use are 1MOhm and 4700pF.
Connection To make a connection, strip about 3/8” of insulation
off the end of the wire, turn the connector screw
counterclockwise until the gap is wide open, insert
the wire all the way in, and turn the screw clockwise
until it’s tight.
Connect positive DC line to the ‘+24V’ terminal and
the DC ground to the ‘GND‘ terminal.
FUSE Replacement:
The fuse use on GOT-2770S is:
BUSSMANN
Fast Acting, Glass Tube
Rating: 1A
Size: 5x20mm
Warning:
1. Make sure the power off before replace the fuse.
2. Do not replace the fuse with a different rating fuse.
Installation Instructions 9

GOT-2770S User’s Manual
2.2.2 Grounding Requirements
Chassis ground must be used. DC ground is not directly coupled to
Earth ground internally. It is preferable not to ground DC negative
return to chassis ground as poor site earths can introduce noise into a
system, but if necessary an earth connection should be made, from the
power supply return point to the central star earth point. Ground
conductors should be as short and as large in size as possible. The
conductors must always be large enough to carry the maximum short
circuit current of the path being considered. Ground conductors should
be connected to a tree from a central star earth ground point. This
ensures that no ground conductor carries current from any other
branch.
2.2.3 CE Requirements
To make an GOT-2770S comply with EMC directives, and to reduce
susceptibility to electrical interference, a separate #14 AWG ground
wire should be taken to the chassis ground terminal of the power
connector. This ground connection should be run directly to the central
star earth connection point (as recommended in most Installation
Instructions).
Installation Instructions
10

GOT-2770S User’s Manual
2.2.4 Safety Guidelines
This section presents recommended installation practices, and
procedures. Since no two applications are identical, these
recommendations should be considered as guidelines.
Hardware Considerations WARNING!
The system designer should be aware that devices in Controller
systems could fail and thereby create an unsafe condition.
Furthermore, electrical interference in an operator interface, such as a
GOT-2770S, can lead to equipment start-up, which could result in
property damage and/or physical injury to the equipment operator.
If you, or your company, use any programmable control systems that
require an operator or attendant, you should be aware that this
potential safety hazard exists and take appropriate precautions.
Although the specific design steps depend on your particular
application, the following precautions generally apply to installation of
solid-state programmable control devices. In addition, these
precautions conform to the guidelines for installation of Controllers as
recommended in the NEMA ICS 3-304 Control Standards.
Programming Considerations
To conform with ICS Safety Recommendations, checks should be
placed in the controller to ensure that all writable registers that control
critical parts of plant or machinery have limit checks built into the
program, with an out-of-limit safe shut down procedure to ensure
safety of personnel.
Installation Instructions 11

GOT-2770S User’s Manual
ICS 3-304.81 Safety Recommendations:
Consideration should be given to the use of an emergency stop
function, which is independent of the programmable controller.
Where the operator is exposed to the machinery, such as in loading or
unloading a machine tool, or where the machine cycles automatically,
consideration should be given to the use of an electromechanical
override or other redundant means, independent of the programmable
controller, for starting and interrupting the cycle.
If provision is required for changing programs while the equipment is in
operation, consideration should be given to the use of locks or other
means of assuring that only authorized personnel can make such
changes.
These recommendations are intended as safeguards against the
failure of critical components and the effects of such failures or the
inadvertent errors that might be introduced if programs are changed
while the equipment is in operation. *
 The ICS 3-304.81 Safety Recommendations are reproduced by
permission of the National Electrical Manufacturers Association
from NEMA ICS 3-304
Installation Instructions
12
