Axminster Craft AC200WDG User manual

AC200WDG
150/200mm Wet & Dry Grinder
Code 105246
Original Instructions
AT&M: 09/04/2019
BOOK REF : 105790

Index of Contents
2
EU Declaration of Conformity
Fully read manual
and safety instructions
before use
Eye protection
should be worn
Ear protection
should be worn
HAZARD
Motor gets hot
Dust mask
should be worn
The symbols below advise the correct safety procedures when using this machine.
Cert No: TLG-150WG
Axminster Tools & Machinery Ltd
Axminster Devon
EX13 5PH UK
axminster.co.uk
Type Wet & Dry Grinder
Model AC200WDG and conforms to the machinery example for which the
EC Type-Examination Certificate No AM 50269230, AN 50269231, AE 50269284
has been issued by Wendeng Allwin Motors Manufacturing Co.,Ltd.
at: No. 15 Sichan Road Wendeng, Shandong 264400 China
and complies with the relevant essential health and safety requirements.
2006/42/EC
2006/95/EC
EN 61000-3-3:2008
EN 55014-2:1997+A1+A2
declares that the machinery described:-
This machine complies with the following directives:
EU Declaration of Conformity
EN 61000-3-2:2006+A1+A2
EN 55014-1:2006+A1+A2
Signed
Andrew Parkhouse
Operations Director Date: 02/1/2014
EU Declaration of Conformity 02
What’s Included 03
General Instructions for 230V Machines 04
Specific Safety Precautions for Grinding Machines 04
Assembly/Setup 05-06-07
Illustration and Parts Description 08-09
Operating Instructions 10
Changing the 150mm Grinding Stone 10-11
Changing the 200mm Wetstone 12-13

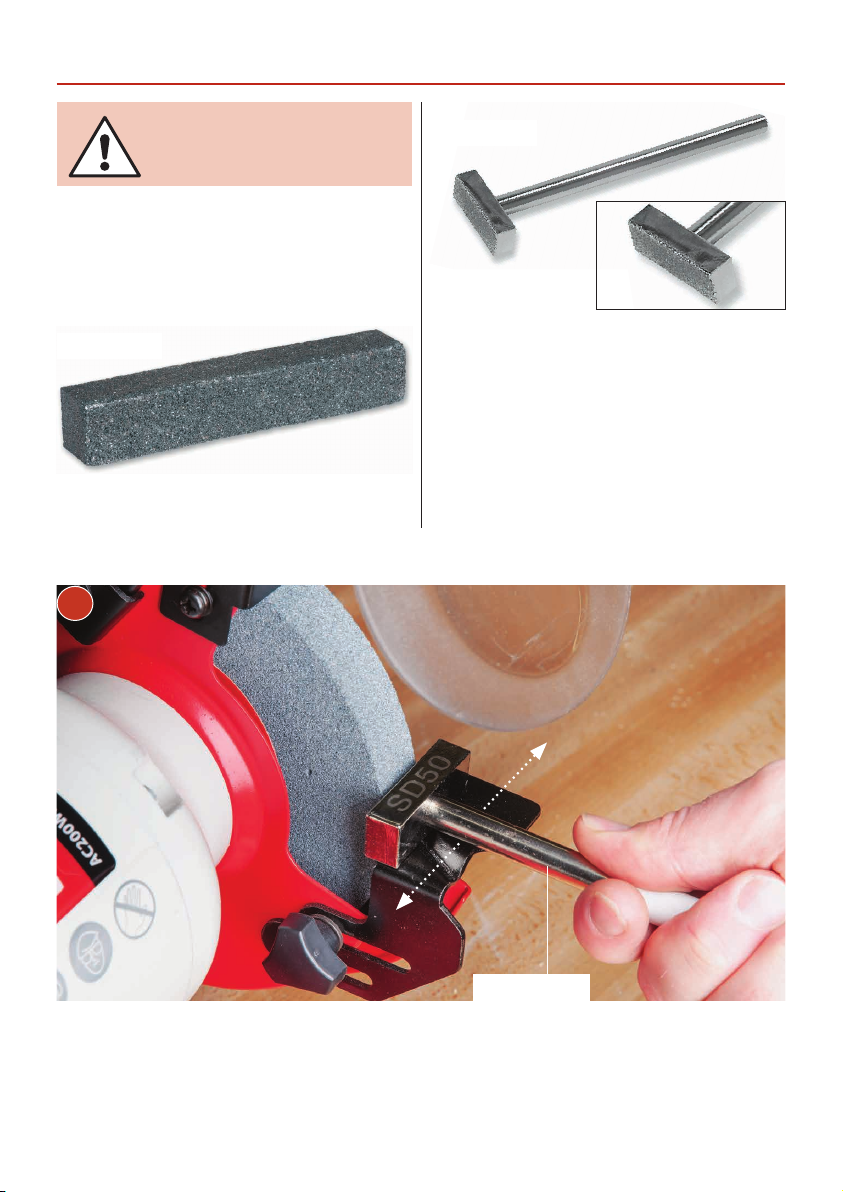

Dressing the Stone 14
Exploded Diagrams/Lists 15-16-17
Wiring Diagram 18
Notes 19

What’s Included
3
Quantity Item Part Model Number
AC200WDG
1 Wet & Dry Grinder A
1 Eye shield mounting bar B
1 Spark guard bracket C
1 Mounting bar square bracket D
1 Threaded bolt E
1 Small screw with spring & flat washers F
1 Flat washer G
1 Tool rest with drill bit recess H
1 Star locking knob with flat & spring washers I
1 Eye sheild J
1 Instruction Manual
A
C D E F G
J
B
H
I

General Instructions for 230V Machines
4
The following will enable you to observe good working
practices, keep yourself and fellow workers safe and
maintain your tools and equipment in good working order.
Mains Powered Tools
•Tools are supplied with an attached 13 Amp plug.
•Inspect the cable and plug to ensure that neither are
damaged. Repair if necessary by a suitably
qualified person.
•Do not use when or where it is liable to get wet.
Workplace
•Do not use 230V a.c. powered tools anywhere
within a site area that is flooded.
•Keep machine clean.
•Leave machine unplugged until work is about to
commence.
•Always disconnect by pulling on the plug body
and not the cable.
•Carry out a final check e.g. check the cutting tool
is securely tightened in the machine and the
correct speed and function set.
•Ensure you are comfortable before you start work,
balanced,not reaching etc.
•Wear appropriate safety clothing, goggles, gloves,
masks etc.Wear ear defenders at all times.
•If you have long hair wear a hair net or helmet to prevent
it being caught up in the rotating parts of the machine.
•Consideration should be given to the removal of rings and
wristwatches.
•Consideration should also be given to non-slip
footwear etc.
•If another person is to use the machine, ensure they are
suitably qualified to use it.
•Do not use the machine if you are tired or distracted.
•Do not use this machine within the designated safety
areas of flammable liquid stores or in areas where there
may be volatile gases.
•Check cutters are correct type and size,are
undamaged and are kept clean and sharp, this will
maintain their operating performance and lessen the
loading on the machine.
•OBSERVE…. make sure you know what is
happening around you and USE YOUR COMMON SENSE.
WARNING!! KEEP TOOLS AND
EQUIPMENT OUT OF REACH OF
YOUNG CHILDREN
KEEP WORK AREA AS
UNCLUTTERED AS IS PRACTICAL.
UNDER NO CIRCUMSTANCES
SHOULD CHILDREN BE ALLOWED
IN WORK AREAS.
Specific Safety Precautions for Grinding Machines
1. Do not operate your machine until it is completely
assembled and installed according to the instructions.
2. If you are not familiar with the operation of grinding
machines obtain advice from your supervisor or instructor
or another qualified person.
3. Only use grinding wheels or attachments rated higher
than 3600 rpm with a 1/2”(12.7mm) arbor on this machine.
4. Never use a chipped or cracked wheel. Always inspect
each wheel before mounting it on the grinder.If during
inspection you discover a damaged grinding wheel, replace
it immediately.
5. Do not over tighten wheel nuts.
6. Always maintain a distance of 2mm or less between the
wheel and the tool rest. Adjust the tool rests as the wheels
decrease in size.
7. Ensure the tool rests are tightened so they cannot move
while in use.
8. Never grind on a cold wheel.The grinder should always
be run for at least one minute before applying work to it.
9. Never grind on the side of the wheel. Always grind on
the face of the wheel only.
10. Never apply coolant directly to a dry running grinding
wheel, it may cause the bonding to fail. If the work piece
becomes hot, dip it into a water pot to cool it down.

Specific Safety Precautions for Grinding Machines
5
11. Hot sparks are a hazard! Never carry out grinding
operations near flammable gas or liquid.
12. Always make sure the spark guards and eye shields
are in place,that they are properly adjusted and secured.
13. Keep the spark guards close to the wheels and
re-adjust them as the wheels wear.
14. Ensure the soft washer and the flanges furnished with
the grinder are used to mount any attachments (grinding
wheels, wire brushes, buffing wheels, etc) onto the shaft.
15. Always stand to one side of the grinder when starting
the machine.
16. Avoid awkward hand positions where a sudden slip
could cause the hands to come into contact with a grinding
wheel, wire brush etc.
17. If the wheel requires dressing, dress only the front of
the wheel, do not dress the sides.
18. Do not use any attachments that causes the machine
to vibrate. If, after changing grinding wheels or adding
attachments, the machine does vibrate, remove the
recently replaced item and change again.
19. Grinding creates heat. Do not touch the work face
of the work piece until you are sure it has cooled down
sufficiently.
Assembly/Setup
Continues Over...
1
2
3
4
5
6
H
I
C
B
D
F

Assembly/Setup
6
14
13
12
11
10
9
8
7
Loosen the nut
J
• Slide the eye shield mounting bracket (J) over the
mounting bar (B) and nip-up the nut.
• Adjust the spark guard bracket (C) until it’s just clear of
the stone.
• Adjust the tool rest (H) the same as described above.
Lower the
shield
C
H
Make sure the draining plug
is inserted into the base of
the water trough.
Drain plug
B
J

Assembly/Setup
7
16
17
• Fill the water trough with clean water to a level about
15-20mm below the lip of trough.
15mm
20mm
NOTE: The Wetstone will shed the grinding waste and
dust into the water; the heavy waste will sink to the
bottom of the trough, the dust and ‘light material’ will
form a film on the surface of the water and can be dragged
up and lay on the stone.A sufficiently heavy layer can
be ‘glazed’onto the stone by the grinding action, which
reduces its cutting efficiency.The ‘heavy’ waste which sinks
to the bottom of the trough, can also start to rust, due to
the oxygenated nature of the water, (air trapped in the
surface water on the stone,being passed through the
trough as it rotates).Clean the trough and refill with clean
water frequently.See page 12 for removing the trough.
Specification
Code 105246
Model AC200WDG
Rating Craft
Power 250W 230V 50Hz 1Ph
Wheel Speed (Dry/Wet) 2,850rpm/130rpm
Grinding Wheel Diameter (Dry) 150mm
(Wet) 200mm
Grinding Wheel Width (Dry) 20mm
(Wet) 40mm
Bore Size (Dry/Wet) 12.7mm/20mm
Overall L x W x H 510 x 290 x 300mm
Weight 11.4kg
15
Lip of trough
Stones rotation

Illustration and Parts Description
8
On/Off switch
Storage drawer
Water trough
drain plug
Stone guard
Tool rest
clamping knob
Tool rest
Motor
Eye shield guard
Slow running
grinding stone
Water trough Gearbox
Bench mounting hole
Eye shield
mounting
bar

Illustration and Parts Description
9
On/Off Switch Trough draining plug
Storage drawer Tool rest with drill bit angle recess
Grinding stone eye shield guard Support notches to steady tools being
offered up to the stone

Operating Instructions
10
CONNECT THE GRINDER TO THE
MAINS SUPPLY.
hand if you need it. Fill the trough with 15-20mm water, see
page 07. Start the machine, wait until it reaches full speed.
Check it runs smoothly, no knocking or scraping noises for
example. If all ok, apply a work piece.When work has been
completed switch off the grinder and wait until it comes to
a complete stop. Disconnect the machine from the mains
supply. Clean the water trough.
NOTE: DO NOT leave the stone submerged in water if
the grinder is not in use.This will prevent the stone
from swelling and cracking.
NOTE: Store and use at room temperature.
Changing the 150mm Grinding Stone
6
5
4
3
2
1
Grasp the stone using a cloth, use a 19mm spanner to
loosen the nut, remember undo the nut in the direction of
the stone’s rotation as indicated by the embossed arrow on
the guard cover.
Loosen the three screws
Rotate the guard cover
Carry out final checks e.g. check the gap between the tool
rest and the stone is correct, check the stones are not badly
deformed (rounded edges,grooved face, etc; unless you
have specifically shaped the stone to these profiles), check
the eye shield is correctly positioned.Have a cooling pot to
ALWAYS WEAR EAR DEFENDERS
AND SAFETY GOGGLES.
DISCONNECT THE GRINDER FROM
THE MAINS SUPPLY.

Changing the 150mm Grinding Stone
11
11
12
10
8
7
9
Remove plate flange and carefully remove the stone.
Clean the interior stone guard, inspect the new stone for
cracks and damage to either the front face or the edges
before fitting. Carefully slide the stone on the shaft,
replace the plate flange and the nut then tighten against
the rotation of the stone. DO NOT OVERTIGHTEN.
Tighten the three screws
Rotate the guard cover
CONNECT THE GRINDER
TO THE MAINS SUPPLY.
CONNECT THE GRINDER
TO THE MAINS SUPPLY.
Reconnect the grinder to the mains supply, give the grinder
a ‘short burst’, by switching it on and off quickly. Check the
grinder is not subject to any undue vibration. If the grinder
does vibrate, switch off immediately and disconnect from
the main supply. Remove the guard cover and check stone
and plate flange are fitted correctly. Check again, if the
grinder is still vibrating the stone/s may need dressing.
Dress the new stone lightly to ensure a‘good face’and
good concentricity.
Switch on the grinder, wait until it reaches full speed and
leave the machine running for at least one minute before
carrying out any work. Apply a work piece and check that
the spark guard is correctly positioned and that the tool
rest is securely fixed. Switch off and wait until the grinder
comes to a complete stop.

Changing the 200mm Wetstone
12
DISCONNECT THE GRINDER FROM
THE MAINS SUPPLY.
6
7
4
5
3

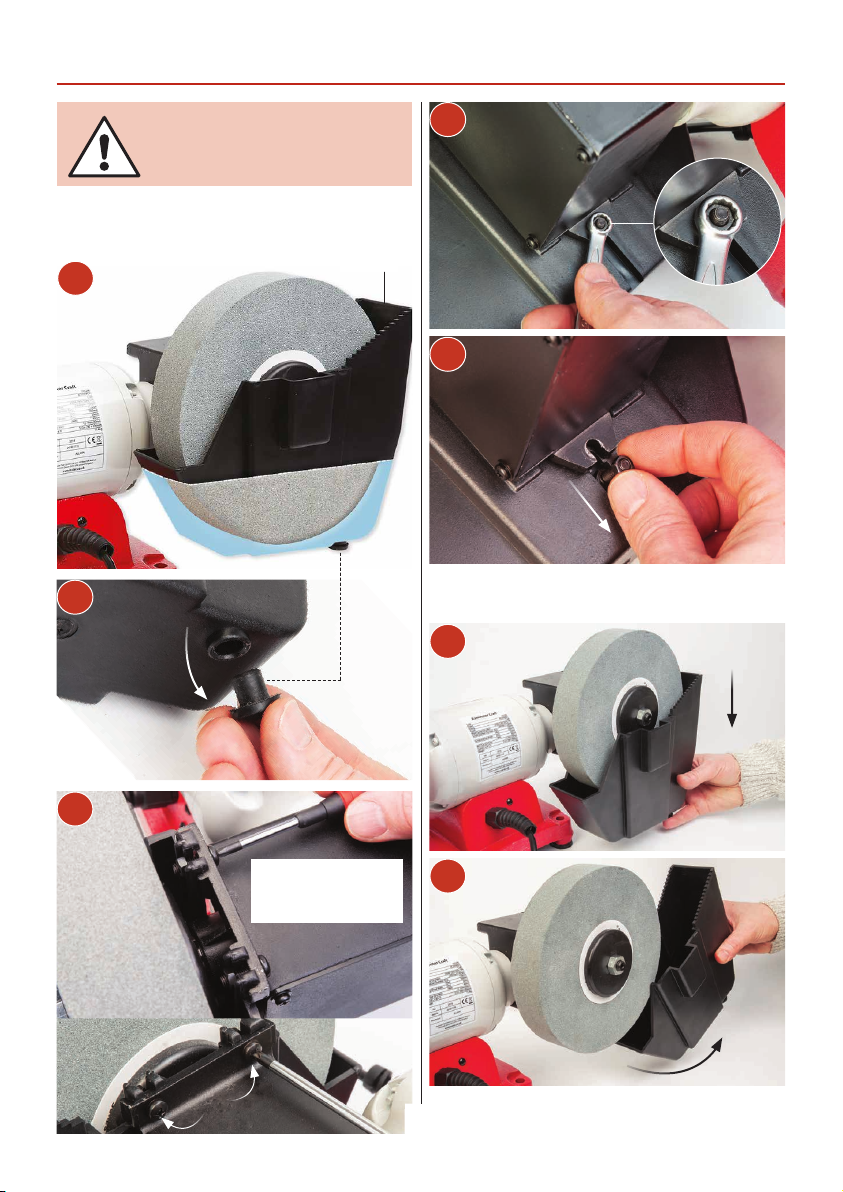

2Loosen and lower the nut/bolt beneath the gearbox
assembly and remove the trough.
Place a container under the trough and drain the water by
removing the drain plug from beneath.
Loosen the upper
clamping screws
holding the trough
Drain plug
1
Trough

Changing the 200mm Wetstone
13
13
12
11
10
9
8
Grasp the stone using a cloth, use a 19mm spanner to
loosen the nut, remember undo the nut in the direction
of the stone’s rotation.
Remove plate flange and carefully remove the stone.
Clean the drive shaft and rear plate flange, inspect the new
stone for cracks and damage to either the front face or the
edges before fitting. Carefully slide the stone on the shaft,
replace the plate flange and the nut then tighten against
the rotation of the stone. DO NOT OVERTIGHTEN.
Reassemble the trough as shown in steps 3-7 on the
previous page. Replace the drain plug.
CONNECT THE GRINDER
TO THE MAINS SUPPLY.
Reconnect the grinder to the mains supply, give the
grinder a ‘short burst’, by switching it on and off quickly.
Check the grinder is not subject to any undue vibration.
If the grinder does vibrate, switch off immediately and
disconnect from the main supply. Remove the trough
and check stone and plate flange are fitted correctly.
Reassemble and refill the trough with clean water.
Switch on the grinder, wait until it reaches full speed and
leave the machine running for at least one minute before
carrying out any work. Apply a work piece.When work
has been completed switch off and wait until the grinder
comes to a complete stop. Disconnect the grinder from
the mains supply.

Dressing the Stone
14
If the grinder starts to vibrate or uneven wear appears on
the stones including,crests dips or rounded edges you
may need to dress the stones. The stones will need to be
dressed out using a suitable wheel dressing stick. See our
website and in our catalogue for details.
CONNECT THE GRINDER
TO THE MAINS SUPPLY.
Wheel Dressing Stick for coarse carborundum
and dressing worn or unbalanced wheels.
Code 410074
Switch the grinder on and allow it to run for at least one
minute. Rest the dressing tool on the tool rest and advance
it to the stone until it touches the maximum diameter;
gently move the dresser back and forth across the face of
the stone until all irregularities have been removed and
the edges of the stone are nice and sharp, see step 14.
Diamond Dressing Block useful for dressing across the
width of the grinding wheels or to produce flatter surfaces
than single point dressers.
Code 410057
14
Diamond
dressing block

Exploded Diagrams/Lists
15

Exploded Diagrams/Lists
16
No. Description Specification Qty
1 Storage drawer 1
2 Base assembly 1
3 Phillips screw+flat
washer assembly
M4 x 6 4
4 Phillips
Screw+spring
washer+flat washer
assembly
M4 x 8 2
5 Spring washer 4 2
6 Capacitor support Q235 1
7 Hex nut M8 1
8 Capacitor 4uf/450V 1
9 Phillips
Screw+spring
washer assembly
M6 x 18 2
10 Wheel rotation
direction label
1
11 Tooth washer 4 1
12 Rubber foot 4
13 Switch HY12 1
14 Phillips screw M5 x 8 2
15 Switch plate Q235 1
16 Base HT150 1
17 Strain relief 1
18 Plug and cord 1
19 Bolt M6 x 18 1
20 Water block 1
21 Hex nut M5 3
22 Hex bolt M5 x 16 1
23 Wet wheel stone
guard
ABS 1
24 Worm shaft 1
25 Phillips screw M4 x 10 2
26 Turbine 1
27 Phillips screw M4 x 18 2
28 Phillips screw M4 x 8 4
29 Flat washer 4 4
30 Case body access
cover
1
31 Worm pole 1
32 Phillips
Screw+spring
washer+flat washer
assembly
M5 x 10 4
33 Phillips
Screw+spring
washer+flat washer
assembly
M5 x 8 1

Exploded Diagrams/Lists
17
34 Flat washer 5 1
35 Phillips screw M5 x 16 2
36 Case body ADC12 1
37 Retainer ring 17 1
38 Wet wheel flange 2
39 Wet wheel stone 200 x 40 x
20mm
1
40 Hex nut M12 2
41 Hex nut M4 4
42 Left end cap 1
43 Wave spring washer 65Mn 34.5 1
44 Ball bearing 6202 2
45 Stator 1
46 Wire bushing 1
47 Special nut M6 2
48 Rotor 1
49 Right end cap 1
50 Phillips screw+flat
washer assembly
M4 x 135 4
51 Phillips screw+spring
washer+flat washer
assembly
M5 x 18 3
52 Right wheel guard
cover
Q235 1
53 Wheel flange Q235 2
54 Wheel stone 150 x 20 x
12.7mm
1
55 Right wheel guard Q235 1
56 Spark deflector Q235 1
57 Lock washer M5 3
58 Right tool rest Q235 1
59 Flat washer 6 1
60 Lock handle M5 x 10 1
61 Hex bolt M6 x 14 1
62 Bracket Q235 1
63 Eyeshield mount rod Q235 1
64 Hex nut M4 2
65 Eyeshield 1
66 Hex nut M6 1
67 Spring washer 5 2
68 Eyeshield bracket Q235 1
69 Phillips screw+spring
washer assembly
M5 x 10 3
70 Flat washer 5 1
71 Strain relief plate 1
72 Strain relief subplate 1
73 Phillips screw M4 x 16 2

Wiring Diagram
18

Notes
19

Axminster Tools & Machinery
Axminster Devon EX13 5PH
axminster.co.uk
The packaging is suitable for recycling.
Please dispose of it in a responsible manner.
Do not dispose of electric tools together with household waste material.
By law they must be collected and recycled separately.
EU Countries Only
The Axminster guarantee is available on
Craft,Trade, Engineer, Air Tools & CNC Technology Series machines
Buy with confidence from Axminster!
So sure are we of the quality, we cover all parts and labour free of charge for three years!
For more information visit axminster.co.uk/3years
