Axminster 150/200mm Wetstone Grinder User manual

400126
150/200mm
Wetstone Grinder
Axminster Reference No:AWWSG
User Manual
WHITE
AXMINSTER
W
www.axminster.co.uk

WHITE
AXMINSTER
W
Index of Contents...
Safety Protection Symbols
SAFETY!!
!
The symbols shown on the cover of this
manual advise that you wear the correct
safety protection when using this machine.
E
y
e
P
r
o
t
e
c
t
i
o
n
S
a
f
e
t
y
H
e
l
m
e
t
P
r
o
t
e
c
t
i
v
e
G
l
o
v
e
s
S
a
f
e
t
y
F
o
o
t
w
e
a
r
R
e
s
p
i
r
a
t
o
r
S
a
f
e
t
y
V
i
s
o
r
R
e
a
d
M
a
n
u
a
l
T
w
o
M
a
n
A
s
s
e
m
b
l
y
E
a
r
D
e
f
e
n
d
e
r
s
D
u
s
t
M
a
s
k
Index of Contents....................................................................................................................02
Declaration of Conformity ………….………........……..…………........................................03
What’s in the Box………….………........……..………….......................................................... 04
General Instructions for 240V Machines........................................................... 05-06
Initial Assembly........................................................................................................ 07
Set up the Grinder.............................................................................................. 08-09
Specifications ….………........……..…………........................................................................09
Identification and Description of the Grinder.......................................................... 10
Grinder Illustration and Parts Description............. ....................................................... 11
Specific Safety Precautions for Grinding Machines............................................... 12
Changing the Dry Grinding Wheel.....................................................................13-14
Changing the Wet Grinding Wheel.................................................................... 14-15
Dressing a Stone..................................................................................................... 15
Page No.

WHITE
AXMINSTER
W
03
Declaration of Conformity...

FREEPHONE 0800 371822
Copied from CE Certificate
The undersigned, authorised
by Yancheng Baoding Electrical Tools Co., Ltd.
No. 88 Yandu Road, Yandu New District 224005
Yancheng P.R. China declares that this product:
MD150/200Q
Bench Grinder
manufactured by Yancheng Baoding Electrical Tools
Co. is in compliance with the following standards or
standardisation documents in accordance with
Council Directives
EN 61029-1/A12:2003
EN 61029-2-4/A1:2003

04
WHITE
AXMINSTER
WWhat’s in the Box...
www.axminster.co.uk
1 No. 150/200mm WetStone Grinding Model no. MD150/200Q
with grinding wheels fitted
1 No. Combined Eye Shield/ Spark guard
complete with:-
1 No. M5 Phillips Head Screw
1 No. 5mm Washer
1 No. 5mm Spring Washer
1 No. M5 Nut
1 No. Tool Rest
complete with:-
1 No. M6 Plastic Star Knob
1 No. M6 Coach Bolt
1 No. 6mm Washer
1 No. 6mm Anti-vibration Washer
1 No. Rubber Bung/Stabilising Leg
1 No. Guarantee Card
1 No. Instruction Manual

WHITE
AXMINSTER
W
05
General Instructions for 240V Machines...

FREEPHONE 0800 371822
The following suggestions will enable you to observe good working
practices, keep yourself and fellow workers safe and maintain your
tools and equipment in good working order.
Good Working Practices/Safety
Mains Powered Tools
Primary Precautions
Work Place/Environment
WARNING!!
!
KEEP TOOLS AND EQUIPMENT OUT
OF THE REACH OF YOUNG CHILDREN
These machine are supplied with a moulded 13 Amp. Plug and 3 core power cable. Before
using the machine inspect the cable and the plug to make sure that neither are damaged. If
any damage is visible have the machine inspected/repaired by a suitably qualified person. If
it is necessary to replace the plug, it is preferable to use an 'unbreakable' type that will
resist damage on site. Only use a 13 Amp plug, and make sure the cable clamp is
tightened securely. Fuse as required. If extension leads are to be used, carry out the same
safety checks on them, and ensure that they are correctly rated to safely supply the current
that is required for your machine.
WARNING!!
!
If the machine is not fitted with a NVR type ON/OFF switch, always check that the
machine is OFF before connecting it to the mains supply.
The machine is designed for indoor operation, do not use when or where it is liable to get
wet. If the machine is to be used outside and it starts to rain, stop work and move it inside.
If the machine has got wet; dry it off as soon as possible, with a cloth or paper towel. Do
not use 230Va.c. powered machines anywhere within a site area that is flooded or puddled,
and do not trail extension cables across wet areas. Keep the machines clean; it will enable
you to more easily see any damage that may have occurred. Clean the machine with a
damp soapy cloth if needs be, do not use any solvents or cleaners, as these may cause
damage to any plastic parts or to the electrical components.
Keep the work area as uncluttered as is practical, this includes personnel as well as
material.
Under no circumstances should CHILDREN be allowed in work areas.

06
WHITE
AXMINSTER
WGeneral Instructions for 240V Machines...
www.axminster.co.uk
Work Place/Environment Continued
If the machine is not permanently fixed in place it is good practice to leave the machine
unplugged until work is about to commence, also make sure to unplug the machine when it is
not in use, or unattended. Always disconnect by pulling on the plug body and not the cable.
Once you are ready to commence work, remove any tools used in the setting operations
(if any) and place safely out of the way. Re-connect the machine.
Make sure you are comfortable before you start work, balanced, not reaching etc.,
If the work operation appears to be excessively noisy, wear ear-defenders.
If you wear your hair in a long style, wearing a cap, safety helmet, hairnet, even a sweatband,
will minimise the possibility of your hair being caught up in the rotating parts of the machine,
likewise, consideration should be given to the removal of rings and wristwatches, if these are
liable to be a 'snag' hazard. Consideration should also be given to non-slip footwear, etc .It is
NOT recommended that gloves are worn when carrying out grinding operations, there is a
definite loss of 'touch', if the work piece gets very hot, dowse frequently in the cooling pot.
If you are allowing another person to use the machine, ensure that they are suitably qualified
to do so.
DO NOT use any tools or machinery if you are under the influence of drink, drugs or
prescribed medication.
DO NOT work with abrasive tools of any description if you are tired, your attention is
wandering or you are being subjected to distraction. A deep graze, a ground fingertip or
worse; is not worth it!
DO NOT use this machine within the designated safety areas of flammable liquid stores or in
areas where there may be volatile gases. There are very expensive, very specialised
machines for working in these areas, THIS IS NOT ONE OF THEM.
Above all, OBSERVE…. make sure you know what is happening around you, and USE
YOUR COMMON SENSE.

WHITE
AXMINSTER
W
07
Initial Assembly...

FREEPHONE 0800 371822
Carefully unpack the machine and all the loose items from the box. Check the contents
against the "What’s is in the box" list. If any items are missing please contact our technical
services department using the telephone numbers that you will find in our catalogue.
Having removed all the items from the box, please dispose of your unwanted packaging
responsibly. A lot of the packaging is biodegradable.
Initially we suggest that you merely carry out a 'loose' assembly of the various parts of the
grinder. After assembly has been completed we will set up the various components
correctly and tighten securely.

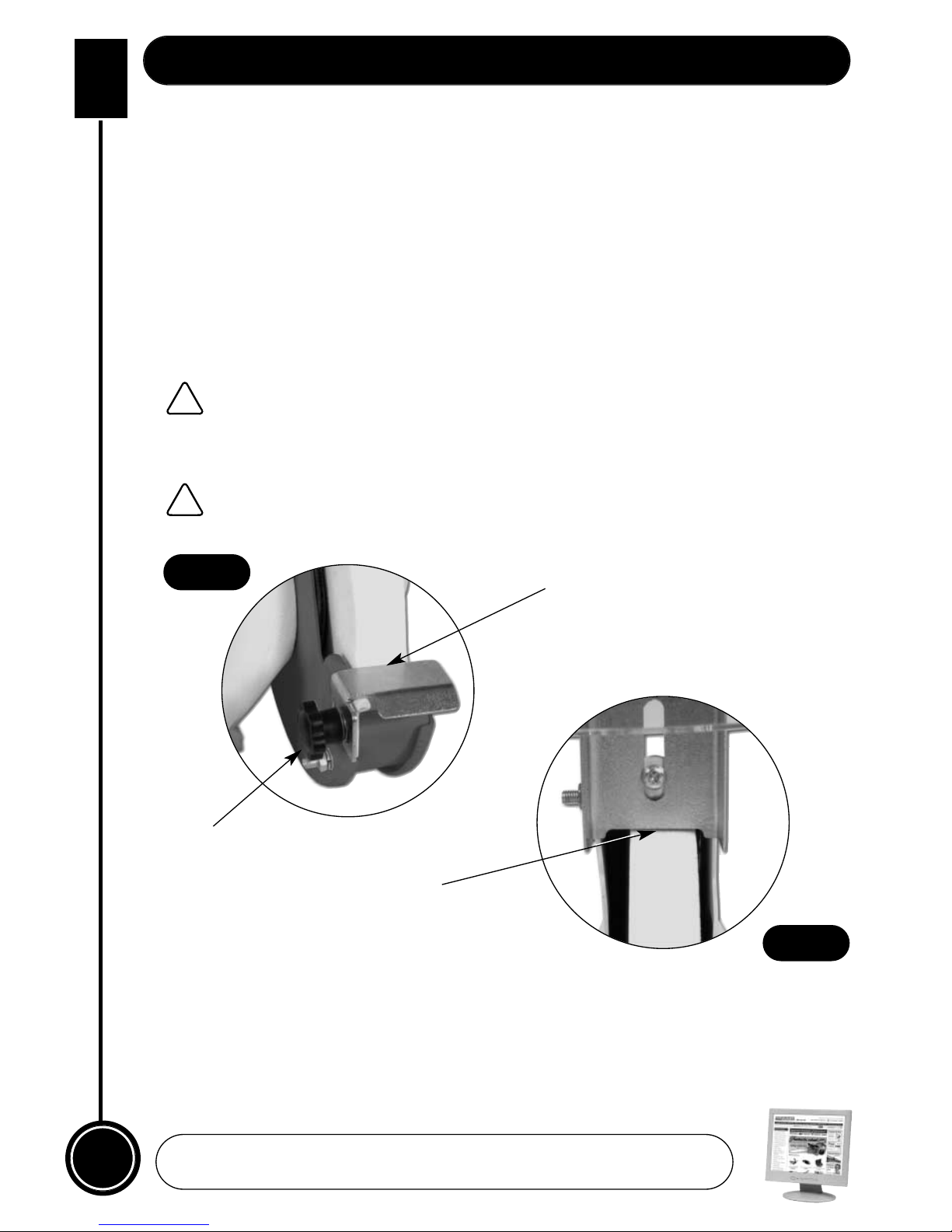

Identify the Tool Rest, and secure it to the inside face of the wheel cover using the coach
bolt/star nut and washers provided. (See fig 1)
Hand tool rest Bolts/star nuts
Fig 1
Identify the Eye Shield/ Spark guard and fit to the hard point on the top of the stone cover
part of the guard, using the M5 screw etc, provided. (See fig 2)
Identify the rubber bung/stabilising leg and press home into the hole in the base of the
water trough. (See fig 3)
Fig 2 Fig 3

08
WHITE
AXMINSTER
WSetting up the Grinder...
www.axminster.co.uk
Please read the section entitled Identification and Description of Parts, in order for
you to understand the terminology that we will use, so that you may better
understand the working and capability of your grinder. Keep this manual to hand for
reference for any other personnel that may be required to use the grinder.
Having assembled all the grinder attachments loosely, now the machine has to be set up
correctly and all the attachments securely fastened.

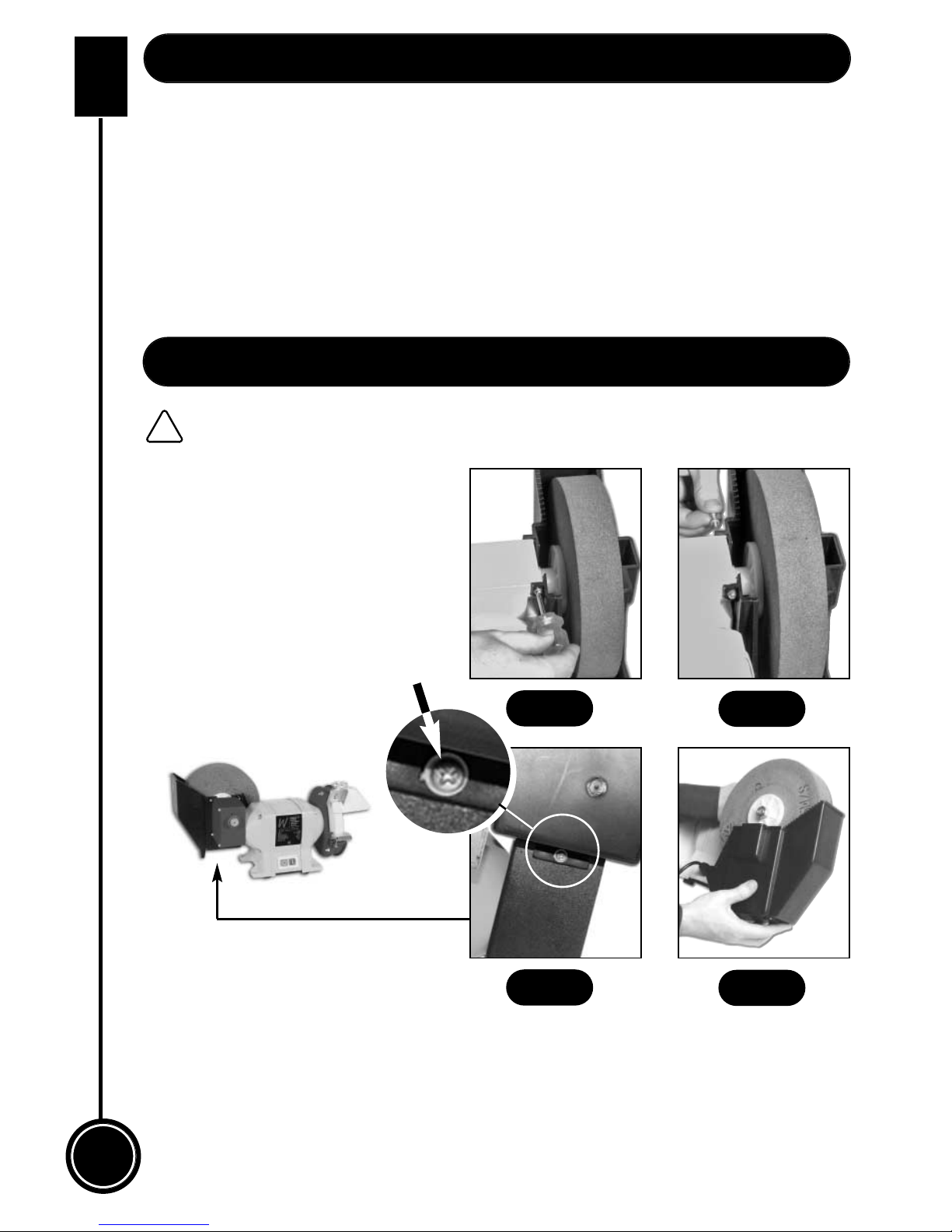

Place the grinder on a flat level surface.
Position the tool rest leaving a gap of approximately one and a half millimetres between the
grindstone and the rest, with the rest horizontal (preferably) tighten the star nut securely.
(See fig 4)
Adjust the spark guard until it is just clear of the grindstone; fasten the fixing bolt securely.
(See fig 5)
Fig 4
Fig 5
Leave a gap of approximately
one and a half millimetres
between the grindstone
and the rest
Adjust the spark guard until it is
just clear of the grindstone
!
Position the eye shield on its pivot bolt, (if necessary, 'nip' the clamping bolt of the eye
shield clamp so that the eye shield remains in place).
If there is any tendency for the grinder to move, tip or tilt while it is being operated, it should
be bolted down; either to the bench or to a specific stand or base board.
It is a good idea to dress new grindstones before use, to remove any possible irregularities,
and ensure the stones are running concentrically.
Star nut
Remember to adjust the tool rest as the grindstone wears down.
!Remember to adjust the spark guard as the grindstone wears down.

WHITE
AXMINSTER
W
09
Setting up the Grinder...

FREEPHONE 0800 371822
Carry out a final check e.g. start the machine, check it runs smoothly. Check that the spark
guard is adjusted down to the stone, check the gap between the tool rest and the stone is
correct, check the stone is not badly deformed (rounded edges, grooved face, etc; unless
you have specifically shaped the stone to these profiles)check the eye shield is correctly
positioned. Have a cooling pot to hand if you need it, and remember safety goggles are a
good investment. (you are only issued with 1 pair of eyes).
Finally, fill the water trough with clean water to a level about 15-20 mm below the lower lip of
the trough.
NOTE. The Wetstone will shed the grinding waste and dust into the water; the heavy waste
is not a problem as it will sink to the bottom of the trough, the dust and 'light stuff' will form
a film on the surface of the water and can be dragged up and lay on the stone. A sufficiently
heavy layer can be 'glazed' onto the stone by the grinding action, which reduces its cutting
efficiency. The 'heavy' waste which sinks to the bottom of the trough, can also start to rust,
due to the oxygenated nature of the water, (air trapped in the surface water on the stone,
being passed through the trough as it rotates). Clean the trough and refill with clean water
frequently.
Specification
Axminster No. AWWSG
Rating Hobby
Motor 240V 50Hz 250W
Dry Wheel Size 150 dia, 20mm wide 12.7mm bore (uses bushes to reduce to 12.7mm)
Wet Wheel Size 200 dia, 40mm wide 20mm bore (uses bushes to reduce to 12mm)
Speed (Dry Stone) 2950 rpm
Speed (Wet Stone) 134 rpm
Footprint (Fully Assembled) 250mm High,410mm Wide, 320mm Deep
Hold Down Holes (8mm) Fixing Centres 155mm x 100mm
Weight 9 Kgs

10
WHITE
AXMINSTER
WIdentification and Description of the Grinder...
www.axminster.co.uk
Grinding Essentially a double ended motor, with a mounting base, the motor
machine flanges mount the wheel guard at the dry stone end and the transition
gearbox at the wet stone end. The motor base contains the On/Off NVR
switch.
Wheel guard A formed metal guard that encloses the grinding wheel. It is formed in
three parts. The inner part is mounted onto the motor flange, The stone
cover is 'sprung' into the lip of the inner part and the outer part is
located on it. The whole assembly is bolted together. There are various
'hard point locations' that accept the fixing bolts that secure the
attachments of the machine.
Tool rest Formed metal plate that bolts onto a hard point on the inside cover of
the wheel guard. There is an elongated slot in the rest which gives
adjustment along the coach bolt fixing.
Eye shield/ Clear protective shield that mounts over the grindstone to afford a
spark guard view of the workpiece, but offer protection for the eyes; it is mounted
onto the spark guard making a complete assembly that bolts through a
hard point on the upper part of the stone cover. The spark guard itself
has an elongated slot to allow positioning and adjustment as the wheel
diameter decreases. Its' function is to contain any material (esp.sparks)
that would be tracked around the grindstone and sprayed out of the
machine esp. over the hands.
Gearbox A transition (through 90˚) gearbox that is mounted onto the end flange
of the motor. The gearbox reduces the speed of the wet stone to approx.
120 rpm.
Water trough A moulded plastic trough that is screwed to the o/p face of the gearbox.
During operation the trough is filled with water, and the stone runs
partially immersed., This self dousing action maintains the 'cold
temperature' of the stone and helps to remove the grinding waste from
the face of the stone. There are a number of preformed notches in the
lip of the trough that can be used to rest/steady objects being offered
up to the stone. (See page 11) There is a shaped rubber plug, which
also acts as a stabilising support for the grinder as well as blocking the
drain hole. (See fig 3)
ON/OFF switch A NVR double button switch panel, marked 'I' for On and 'O' for Off. The
NVR function ensures the machine will not be left in the 'ON' condition,
in the event of a power failure, and subsequent re-establishment of the
supply.
Hold down holes Four 8mm holes set in a matrix in the corner flanges of the chassis to
enable the grinder to be bolted down to the bench or a stand.

WHITE
AXMINSTER
W
11
Grinder Illustration and parts Description...

FREEPHONE 0800 371822
Tool rest
Eye shield /spark guard
Gearbox
Water trough
Grindstones
ON/OFF switch
Hold down holes
On
Off
Rubber plug stabilising foot
Water trough notches

12
WHITE
AXMINSTER
WSpecific Safety Precautions for Grinding Machines.
1. DO NOT operate your machine until it is completely assembled and installed according
to the instructions.
2 . If you are not familiar with the operation of grinding machines obtain advice from your
supervisor or instructor or another qualified person.
3. Only use dry grinding wheels or attachments rated higher than 3600 rpm with a
5/8"(16mm) arbor on this machine.
4. NEVER use a chipped or cracked wheel. Always inspect each wheel before mounting it
on the grinder. If, during inspection you discover a damaged grinding wheel; replace it
immediately.
5. DO NOT over tighten the wheel nut.
6. Always maintain a distance of 2mm or less between the wheel and the tool rest. Adjust
the tool rest as the wheel decreases in size.
7. Ensure the tool rest is tightened so it cannot move while in use.
8. NEVER grind on a cold wheel. The grinder should always be run for at least one minute
before applying work to it.
9. NEVER grind on the side of the wheel. Always grind on the face of the wheel only.
10. NEVER apply coolant directly to a dry grinding wheel, it may cause the bonding to fail.
If the work piece becomes hot, dip it into the water trough to cool it down.
11. HOT SPARKS ARE A HAZARD! NEVER carry out grinding operations near flammable
gas or liquid.
12. Always make sure the spark guard and eye shield is in place, that they are properly
adjusted and secured.
13. Keep the sparks guard close to the wheel and re-adjust it as the wheel wears.
14. Ensure the soft washer and the flanges furnished with the grinder, are used to mount
any attachments (grinding wheels, wire brushes, buffing wheels, etc) onto the shaft.
15. Always stand to one side of the grinder when starting the machine.
16. Avoid awkward hand positions where a sudden slip could cause the hands to come into
contact with a grinding wheel, wire brush etc.
17. If the wheel requires dressing, dress only the front of the wheel, do not dress the sides.
18. DO NOT use any attachments that causes the machine to vibrate. If after changing
grinding wheels or adding attachments, the machine does vibrate; remove the recently
replaced item and change again.
19. Grinding creates heat. DO NOT touch the work face of the work piece until you are
sure it has cooled down sufficiently.

WHITE
AXMINSTER
W
13
Changing the Dry Grinding Wheel...

FREEPHONE 0800 371822
Loosen the nut holding the
grinding wheel to the shaft.
Carefully remove the nut,
the plate flange and the
soft washer that is
clamping the grindstone in
place. (See figs 8 &9)
Then, very carefully
remove the grindstone
from the shaft, take care
that no damage or
distortion is done to the
bush (if one is fitted). (See
fig 10) Now is a good time
to clean out the interior of
the wheel guard, removing
any loose or compacted
material that may have accumulated. Carefully inspect the new grinding wheel before it is
fitted, check that there are no cracks, and there is no damage to either the front face or the
edges. If required, fit the bush to the grindstone. Carefully mount the grindstone onto the
shaft, reposition the soft washer and the wheel flange, replace the holding nut and tighten
carefully. Do Not Overtighten. Refit the outside shell of the wheel guard and secure with its
nuts and bolts. Refit the tool rest, positioning as in "Setting up the grinder". Fasten securely
Ensure that the grinder is disconnected from the mains supply.

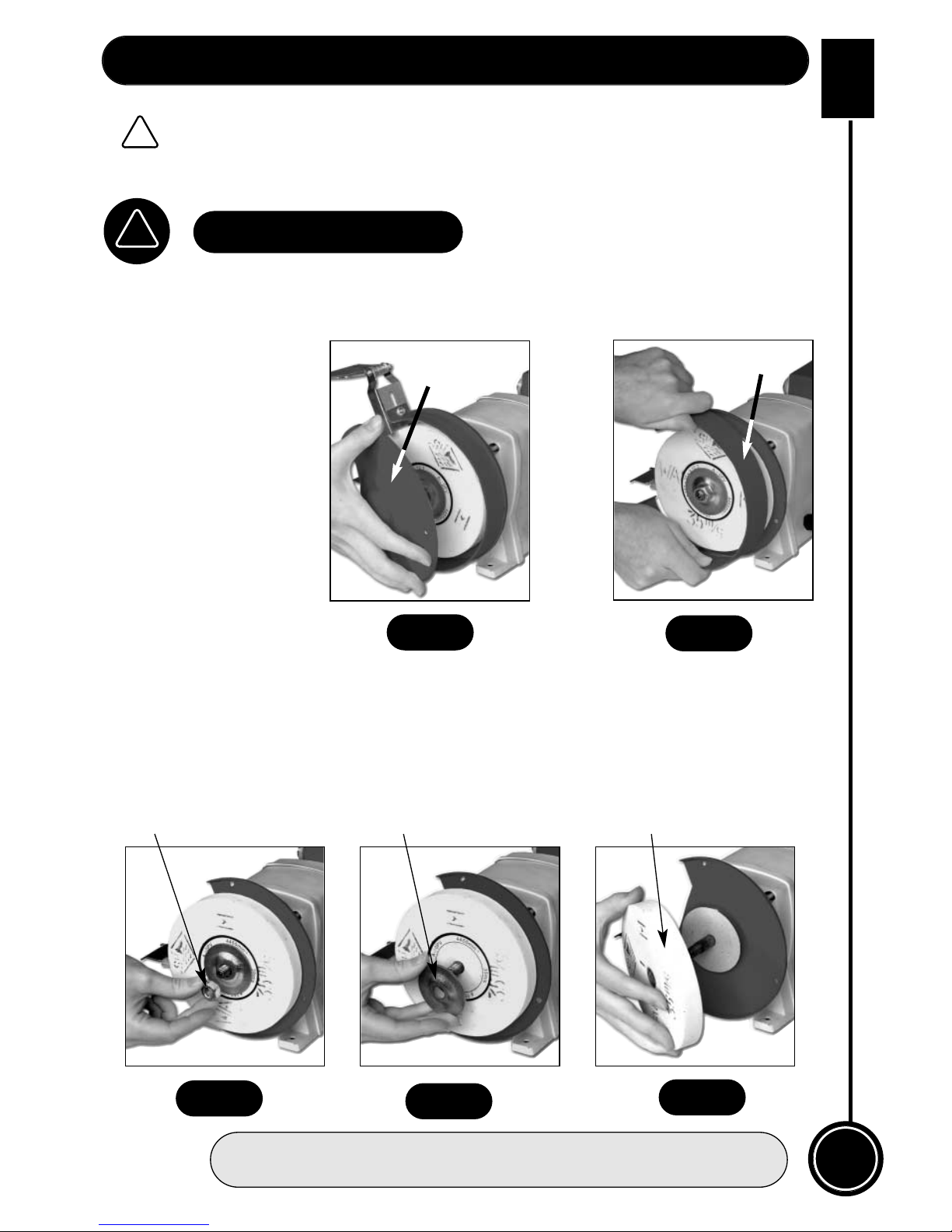

Undo the nuts and bolts that secure the outer shell of the wheel guard to the inner
shell. Remove the outer shell and place it and the nuts, bolts and washers
carefully aside. (See fig 6)
WARNING!!
!
Be very careful that the stone cover does not 'spring' out of its location lip
on the inner cover, it can spring out with some force. (See fig 7)
Fig 6 Fig 7
Fig 9
Fig 8 Fig 10
Nut Plate flange Grindstone
!

14
WHITE
AXMINSTER
WChanging the Dry Grinding Wheel...
Remove the rubber stabilising foot.
Drain the water from the trough. Release
the three screws that secure the trough
to the gearbox and put carefully aside.
(See figs 11,12,13)
Remove the trough. (See fig 14)
Ensure that the grinder is disconnected from the mains supply.
!
Fig 11 Fig 12
Fig 13 Fig 14
Check that the spark guard and the tool rest are not touching the grindstone. Reconnect the
grinder to the mains supply, give the grinder a 'short burst', by switching it on and off
quickly. Check the grinder is not subject to any undue vibration. If the grinder does vibrate,
strip it down again and check that the bush (if fitted) is correctly positioned and is the
correct size for the stone and the spindle. Check the bore of the stone is correct. If these all
seem correct, refit and carryout the 'quick burst' procedure again. If the machine is still
vibrating, discard the stone and replace with another one. Run up to speed normally. Leave
the machine running for at least one minute before carrying out any work. Apply a
workpiece and check that the spark guard is correctly positioned and that the tool rest is
securely fixed.
Undo the nut, (fig 15) and remove the wheel flange (fig 16) and the stone (fig 17).
NOTE. Take care removing the flange or the stone from the flange as the flanges form the
bushing to size the grindstone bore to the gearbox shaft. (See fig 17)
Changing the Wet Grinding Wheel...

WHITE
AXMINSTER
W
15
Changing the Wet Grinding Wheel...

FREEPHONE 0800 371822

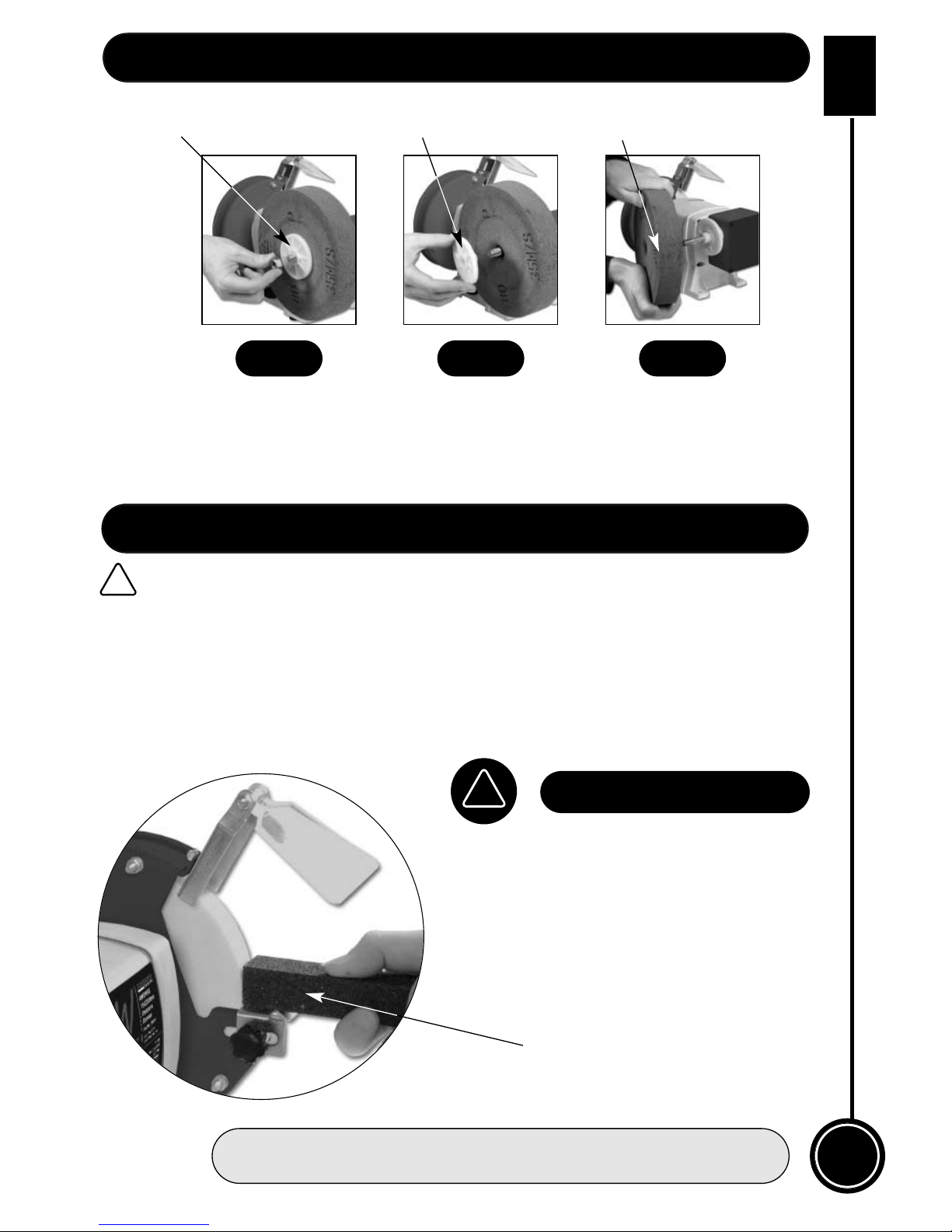

If the grindstones wear unevenly, producing crests, dips or rounded edges, they
should be dressed out using a suitable wheel dressing tool. (A selection of stone dressing
tools are available in the Axminster catalogue.)
!
Switch the grinder on and allow it to run for at least one minute. Rest the dressing tool on
the tool rest and advance it to the stone until it touches the maximum diameter; gently move
the dresser back and forth across the face of the stone until all irregularities have been
removed and the edges of the stone are nice and sharp.
PLEASE NOTE
!
This is not a procedure that can be
rushed, it must be carried out slowly
and steadily.
Dressing the wheel using a
Wheel Dressing Stick or
Devil Stone
Part no. 410074
Dressing a Stone...
Fig 15 Fig 16 Fig 17
Nut Plate flange Grindstone
Now is a good time to clean the water trough thoroughly, and check for, and correct any
signs of erosion/oxidation on the gearbox components. Fit the new stone and re-assemble
in reverse order. Take care not to over-tighten the securing screws, as damage could result
to the fixing lugs of the water trough. Replace the bung/leg and refill the trough with clean
water.

WHITE
AXMINSTER
W
400126
www.axminster.co.uk
Axminster Devon EX13 5PH UK
FREEPHONE 0800 371822
Axminster Reference No:AWWSG
150/200mm Wetstone Grinder
