AIRPREP AIR DRYER SYSTEM
OPERATION AND MAINTENANCE MANUAL
NOVEMBER 2007
SAVE THIS MANUAL AND MAKE AVAILABLE
TO ALL USERS OF THIS EQUIPMENT!
Manual Part Number 7200-230
AXXIOM Manufacturing, Inc.
11927 S. Highway 6, Fresno, Texas 77545
800.231.2085 * 281.431.0581 * fax [phone]

WARNING
1. Anyperson intending tooperatethisequipmentor any personintendingtobe
in the vicinity during its operation must receive proper training from his/her
supervisor, employer and/or supplier. If this equipment is to be leased or
rented, the supplier must assure that the lessee or renter has received proper
trainingbeforethe lesseeorrentertakespossessionof the equipment.Consult
Axxiom Manufacturing, Inc.
2. Any person authorized to operate this equipment or any person intending to
be in the vicinity during its operation and who is not capable of reading and
understandingthismanual mustbefullytrainedregardingtheRulesforSafer
Operation and all operating procedures and must be made aware of all the
Dangers, Warnings, and Cautions identified herein. Consult Axxiom
Manufacturing, Inc.
3. Do Not operate any abrasive blaster or blast equipment before reading and
completely understanding all the warnings, operating procedures and
instructions, and the Rules for Safer Operation contained in this manual.
4. DoNot operateanyabrasive blaster orblastequipmentwithoutfollowingthe
Rules for Safer Operation and all the operating procedures and instructions.
Failure to properly use blast equipment could result in serious injury or
death.
5. DoNot performanymaintenance onanyabrasive blaster orblastequipment
whileit is pressurized.Alwaysdepressurizethe abrasiveblastervessel before
loading abrasive or performing any maintenance.
6. Do Not use abrasives containing free silica. Silica can cause silicosis or other
related respiratory damage. You must wear personal protective equipment
for all abrasive blasting operations. Observe all applicable local, state and
federal safety regulations in conjunction with airline filters and respiratory
protection. Reference OSHA 29 CFR 1910.134.
7. Do Not enter areas during abrasive blasting operations without breathing
protection.Allpersonnel inthevicinityofabrasive blasting operationsshould
wear NIOSH approved air fed respirators, hoods or helmets.
8. Do Not modify or alter any abrasive blaster, blast equipment or controls
thereof without written consent from Axxiom Manufacturing, Inc.
9. Do Not use bleeder type deadman valves on any Schmidt® abrasive blaster.
The use of A-BEC,Clemco orasimilar bleeder typedeadmanvalvecancause
unintentional start-up without warning, which can result in serious personal
injury.
10. DoNot sell,rent,oroperateabrasive blasterswithoutremotecontrols. OSHA
regulations require remote controls on all blast machines. Failure to use
remote controls can cause serious injury or death to the operator(s) or other
personnel in the blasting area. Reference OSHA 29 CFR 1910.244(b).
11. Do Not repair or replace any portion of Schmidt® equipment using
componentsthat arenotSchmidt®original factory replacementparts.Useof
replacementcomponents thatarenotSchmidt®original factory replacement
parts may result in equipment failure which can result in serious personal
injury and in addition will void all warranties.

i
This manual contains information needed to operate and maintain your Airprep System. Read this entire
operations and maintenance manual before using your Airprep System. Pay close attention to the Rules
for Safer Operation (Section 1.0), and the Dangers, Warnings, and Cautions identified.
The purpose of safety symbols and explanations are to alert you of the possible hazards and explain how
to avoid them. The safety symbols and explanations do not by themselves eliminate any danger.
However, following the instructions given and taking proper accident prevention measures will greatly
lower the risk of injury to personnel. Below are the three hazard levels as used in this manual.
WHITE LETTERS with RED BACKGROUND
DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or
serious injury. This signal word is limited to the most extreme situations.
BLACK LETTERS with ORANGE BACKGROUND
WARNING: Indicates a potentially hazardous situation that, if not avoided, could result in death or
serious injury.
BLACK LETTERS with YELLOW BACKGROUND
CAUTION: Indicates a potentially hazardous situation that, if not avoided, may result in minor or
moderate injury. It may also be used to alert against unsafe practices that may cause property damage.
This manual contains terms that may be specific to the abrasive blast industry. Understanding these
terms will help you understand the procedures and instructions given in this manual. Please familiarize
yourself with the following terms and refer to them as needed while reading this manual.
Term Definition
Pressure
Vessel
A fabricated tank (or reservoir) that is part of the Airprep System which is filled with
compressed air and deliquescent. (Also referred to as “separator tank” or “vessel”.)
Separator
Tank
A fabricated tank (or reservoir) that is part of the Airprep System which is filled with
compressed air and deliquescent. (Also referred to as “pressure vessel” or “vessel”.)
Pressurize To manually or automatically fill the Airprep System vessel with compressed air.
Depressurize To manually or automatically release all the compressed air from inside the Airprep
System vessel. (Also referred to as “blowdown”.)
Blowdown To manually or automatically release all the compressed air from inside the Airprep
System vessel. (Also referred to as “depressurize”.)
Instructions for use of manual sections

ii
Listed below are the warning labels and the corresponding hazards encountered with this equipment.
Refer to Figures 0.1(a) and 0.1(b) for images of the warning decals. Refer to Figures 0.2(a), 0.2(b) and
0.2(c) for the locations of these warning decals.

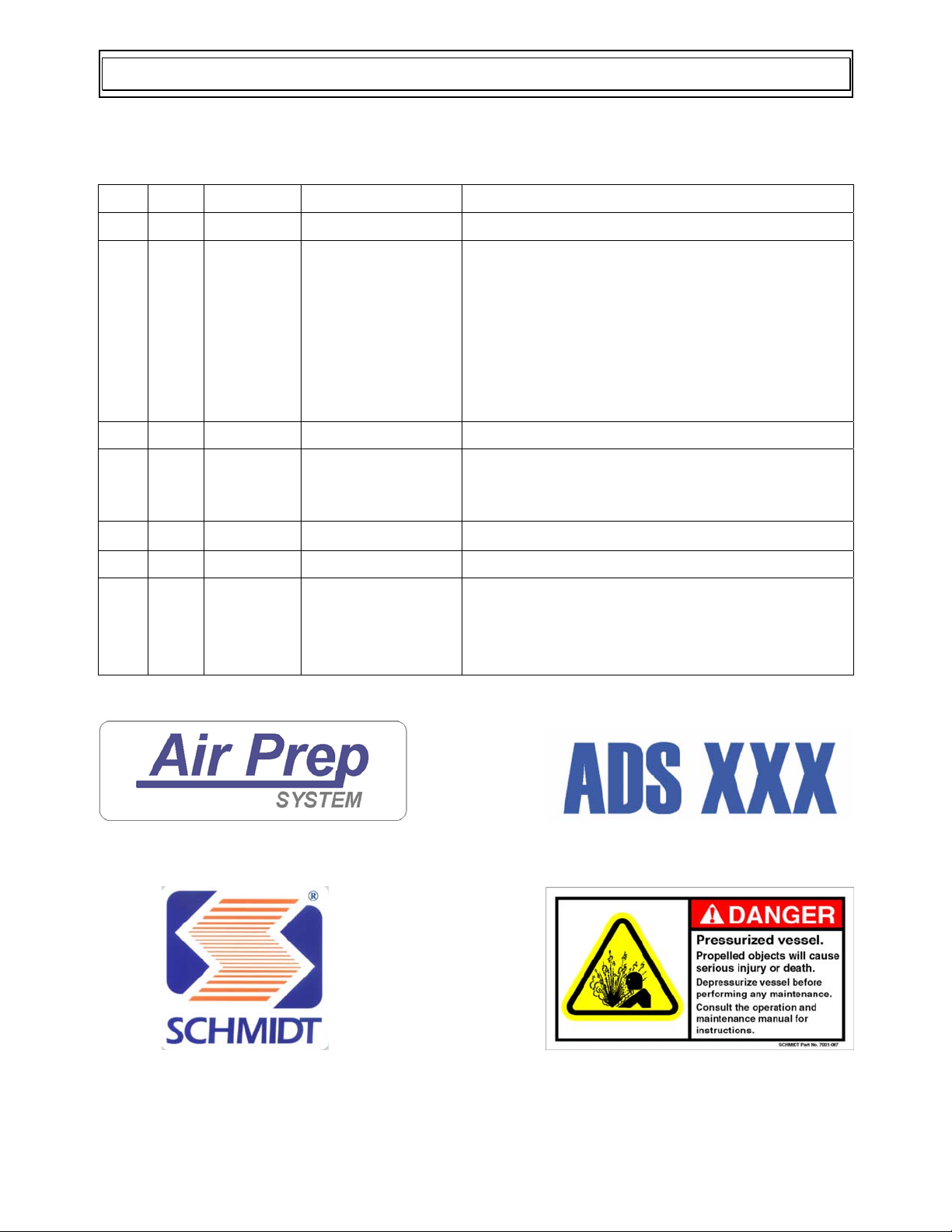

No. Qty. Part no. Description
Mdi Sh idt
Hazard
1. 1 7031-019 Air Prep System Not Applicable
2. 1
7031-033
7031-034
7031-035
7031-036
7031-037
7031-038
7031-051
7031-052
ADS 250
ADS 400
ADS 750
ADS 950
ADS 1200
ADS 1600
ADS 2000
ADS 2500
Not Applicable
3. 1 7031-001 Medium
h
id
Not Applicable
4. 2 7031-007A
“Danger”
Pressurized
Vessel.
Propelled objects will cause serious injury or death.
Depressurize vessel prior to performing any
maintenance. See Section 6.2.
5. 1 7031-017 Inlet Not Applicable
6. 1 7031-018 Outlet Not Applicable
7. 1 7031-057
“Warning”
Read manual
before using this
machine.
Read and understand operator’s manual before
using this machine. Failure to follow operating
instructions could result in injury or damage to
equipment. See Section 1.0.
1) 7031-019 2) 7031-XXX
3) 7031-001 4) 7031-007A
Figure 0.1(a) – Warning decal summary
0.0 Warning Label Identification and Location

iii

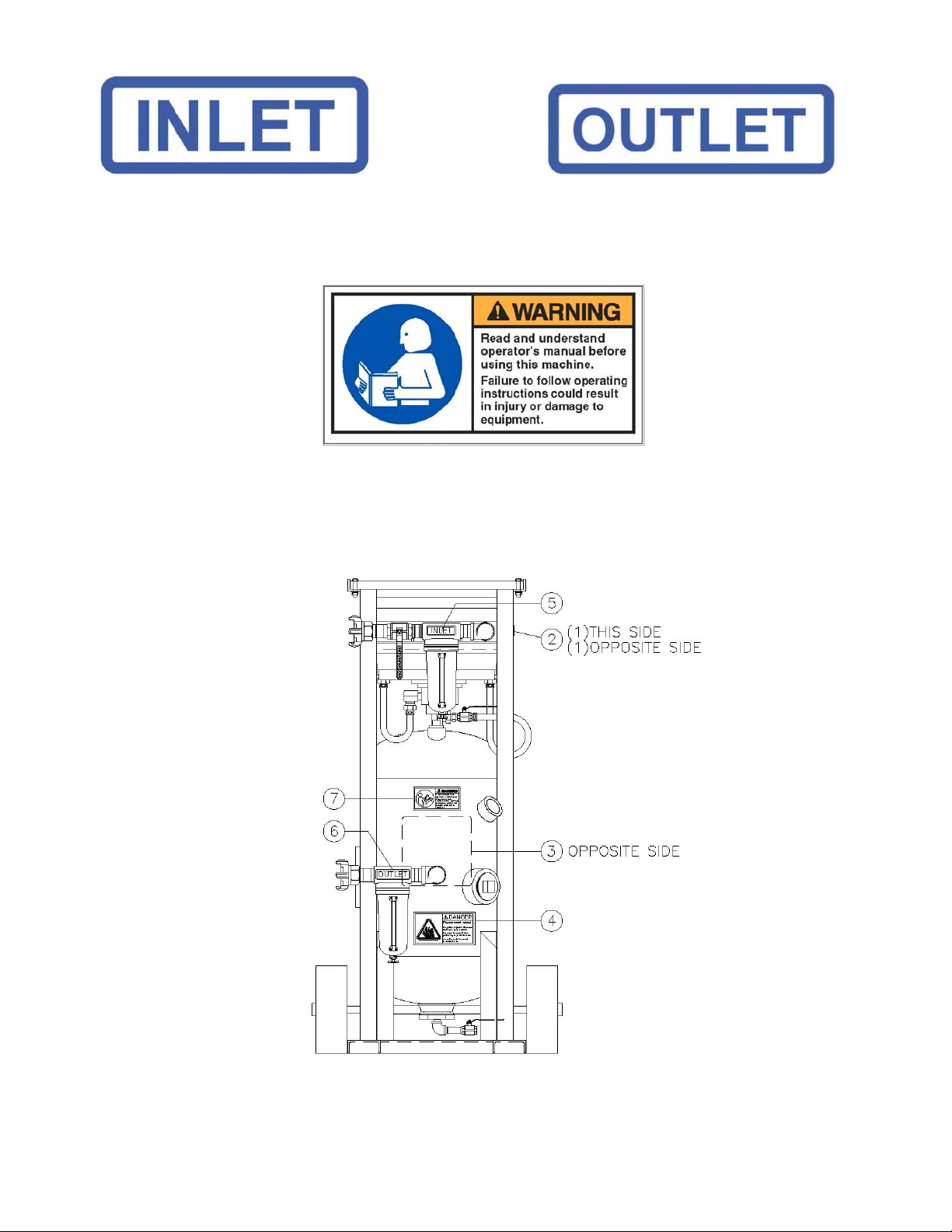

5) 7031-017 6) 7031-018
7) 7031-057
Figure 0.1(b) – Warning decal summary (continued)
Figure 0.2(a) –Warning decal location for ADS 250 Dryer

iv
Figure 0.2(b) –Warning decal location for ADS 400-2500 Dryer
Figure 0.2(b) –Warning decal location for ADS 3500 Dryer

Section Page
0.0 Warning Decal Identification and Location ii
1.0 Rules for Safer Operation 1
2.0 Specifications and General Information 9
3.0 System Requirements 11
4.0 Abrasive Blast System General Operation 14
5.0 AirPrep System General Operation 15
6.0 Pre-operation Procedures 20
7.0 Operating Instructions 27
8.0 Maintenance and Inspection Instructions 30
9.0 Drawings and Parts Lists 34
10.0 Recommended Spare Parts List 45
11.0 AirPrep System Technical Data and Troubleshooting 46
12.0 Warranty and Reference Information 47
13.0 Blasting Data Tables 51
Table of Contents

1
1.1. GENERAL RULE FOR SAFER OPERATION.
SCHMIDT® AIRPREP SYSTEMS HAVE BEEN DESIGNED TO BE SAFE WHEN USED IN
THE PROPER MANNER. ALL AIRPREP SYSTEMS ARE POTENTIALLY DANGEROUS IF
ALL SAFETY PRECAUTIONS ARE NOT RIGOROUSLY FOLLOWED. PROPER
TRAINING IS REQUIRED BEFORE OPERATION. PROPER PROCEDURES MUST BE
FOLLOWED. THE AIRPREP SYSTEM AND ALL COMPONENTS MUST BE PROPERLY
MAINTAINED. FAILURE TO OPERATE, SERVICE AND MAINTAIN THE AIRPREP
SYSTEM AS SET FORTH IN THIS MANUAL MAY CAUSE INJURY OR EVEN DEATH
TO ANY PERSON USING, SERVICING OR IN THE VICINITY OF THE AIRPREP
SYSTEM.
THIS MANUAL IDENTIFIES POTENTIAL HAZARDS BY DANGER, WARNING, AND
CAUTION SYMBOLS. HOWEVER, ALL THE RULES, PROCEDURES AND
RECOMMENDATIONS MUST BE FOLLOWED. FAILURE TO OPERATE PROPERLY IS
VERY LIKELY TO PLACE PERSONS AND PROPERTY AT HIGH RISK OF DAMAGE,
INJURY OR EVEN DEATH.
THIS EQUIPMENT IS DESIGNED TO BE USED IN CONJUNCTION WITH ABRASIVE
BLAST EQUIPMENT THEREFORE SOME OF THE RULES FOR SAFER OPERATION
THAT FOLLOW MAY NOT BE SPECIFIC TO THE USE OF THE AIRPREP SYSTEM
HOWEVER, OPERATORS MAY ENCOUNTER THESE POTENTIAL HAZARDS.
AIRPREP SYSTEMS AND THE ABRASIVE BLAST OPERATION ARE POTENTIALLY
DANGEROUS IF ALL SAFETY PRECAUTIONS ARE NOT FOLLOWED. FAILURE TO
OPERATE THE AIRPREP SYSTEM WITHOUT FOLLOWING ALL THE RULES FOR
SAFER OPERATION MAY RESULT IN SERIOUS INJURY OR DEATH TO OPERATING
PERSONNEL OR PERSONS IN THE OPERATING VICINITY.
1.2. KNOW YOUR EQUIPMENT.
Do Not operate this equipment in a manner other than its intended application (see Section 4.0).
Do Not operate this equipment or any other Schmidt® equipment without following the Rules
for Safer Operation and all the operating procedures and instructions. Learn the applications and
limitations as well as the specific potential hazards related to this machine. Failure to do so could
result in serious injury or death.
1.3. RECEIVE PROPER TRAINING.
Do Not operate this equipment unless you have received operational and maintenance training.
Begin by thoroughly reading and understanding this operation and maintenance manual and all
included information. Consult an authorized Schmidt distributor or Axxiom manufacturing, Inc.
1.4. PROTECT YOUR FEET.
Do Not operate this equipment without wearing OSHA approved foot protection. Observe all
applicable local, state and federal regulations. See Section 3.9 and OSHA 29 CFR 1910.136.
Heavy objects can shift while being blasted and may fall on operators. Wear foot protection to
prevent injury. See Section 3.9 and OSHA 29 CFR 1910.136.
1.0 Rules for Safer Operation

2
1.5. PROTECT YOUR EYES.
Do Not operate this equipment without wearing OSHA approved safety glasses. Observe all
applicable local, state and federal safety regulations. See Section 3.9 and OSHA 29 CFR
1910.133.
The abrasive blast operation produces a dusty work environment which can leave dust that can
be blown in the face and eyes of operators. Wear OSHA approved safety glasses. See Section 3.9
and OSHA 29 CFR 1910.133.
1.6. PROTECT YOUR LUNGS.
Do Not operate this equipment without wearing OSHA approved respiratory protection.
Abrasive blasting produces dust contaminated with toxic substances from the abrasive used, the
coating being removed, and the object being blasted. This dust may contain Silica which can
cause severe and permanent lung damage, cancer, and other serious diseases. Do Not breathe the
dust. Do Not rely on your sight or smell to determine if dust is in the air. Silica and other toxic
substances may be in the air without a visible dust cloud. If air-monitoring equipment for silica
is not provided at the worksite, then all personnel MUST wear appropriate respiratory protection
when using or servicing this equipment. Breathing air supplied to respirators must be of
acceptable quality. Consult your employer and OSHA regarding the appropriate respiratory
protection and breathing air quality. See Section 3.9 and OSHA 29 CFR 1910.134.
Abrasive blasting produces dust which may contain Silica and other toxic substances that can
cause severe and permanent lung damage, cancer, and other serious diseases if inhaled. Wear
OSHA approved respiratory protection. See Section 3.9 and OSHA 29 CFR 1910.134.
1.7. BREATHING AIR QUALITY.
Do Not use breathing air that does not meet OSHA Class D standards. Extreme caution must be
taken when selecting a source of breathing air. Breathing air provided by an oil-lubricated air
compressor can contain carbon monoxide and therefore requires the use of a carbon monoxide
detector (See Section 3.9). Carbon monoxide can be in the compressed air produced by an oil-
lubricated air compressor when it is operated at extremely high temperature; therefore a high
temperature alarm is required to alert the operators when this condition exists. Reference OSHA
29 CFR 1910.134(i).
Extreme caution must be taken when connecting to factory air sources. Factories can
have sources of compressed gases such as nitrogen which is fatal if used as a breathing air
source. Verify that the air source is breathable air.
Breathing air must meet OSHA Class D standards. Use of breathing air sources that do not meet
Class D standards can cause asphyxiation and result in death. Verify that all air sources are
breathable quality and use a high-temperature alarm and a carbon monoxide monitor when
required. Reference OSHA 29 CFR 1910.134(i).
Enclosed blast areas must be ventilated to reduce airborne dust to an acceptable level as required
by OSHA 29 CFR 1910.1000.

3
1.8. PROTECT YOUR HEARING.
Do Not operate this equipment without wearing OSHA approved hearing protection. Observe all
applicable local, state and federal safety regulations. See Section 3.9 and refer to OSHA 29 CFR
1910.95.
Loud noise is generated by the blast nozzle and the blowdown operation of this equipment. Wear
OSHA approved hearing protection. See Section 3.9 and OSHA 29 CFR 1910.95.
1.9. PROTECT YOUR PERSON
Abrasive blasting produces dust contaminated with toxic substances from the abrasive used, the
coating being removed, and the object being blasted. All blast operators and other personnel
involved in the blast operation or in the vicinity of the blast operation should wear protective
clothing. The protective clothing should be disposable or washable work clothes that should be
removed at the worksite so that contaminated dust is not transferred into automobiles or homes.
See Section 3.9 and OSHA 29 CFR 1910.94 and 1910.134.
1.10. ADHERE TO ALL REGULATIONS.
Do Not operate this equipment without observing all local, state, and federal safety regulations
including, but not limited to, OSHA (Occupational Health and Safety Administration).
1.11. STAY ALERT.
Do Not operate this equipment when you are tired or fatigued. Use caution and common sense
while operating and/or performing maintenance on this equipment.
1.12. DO NOT USE DRUGS, ALCOHOL, or MEDICATION.
Do Not operate this equipment while under the influence of drugs, alcohol, or any medication.
1.13. PROTECT BYSTANDERS.
Do Not allow blast equipment and related equipment operators and other personnel to enter the
vicinity of the blast operation without providing respiratory protective equipment that meets
OSHA regulations. If dust concentration levels exceed the limitations set in OSHA 29 CFR
1910.1000 then respirators are required.
1.14. KEEP CHILDREN AND VISITORS AWAY.
Do Not allow children or other non-operating personnel to contact this equipment or the
connecting hoses and cords. Keep children and non-operating personnel away from work area.
1.15. AVOID DANGEROUS ENVIRONMENTS.
Do Not operate this equipment without familiarizing yourself with the surrounding environment.
The blast operation and the use of this equipment create high level of noise which will prevent
the operator from hearing other possible dangers (i.e. traffic or moving equipment). In such
situations a stand-by watch person may be necessary to prevent injury to personnel.
1.16. AVOID DANGEROUS ENVIRONMENTS.
Do Not use this equipment in areas cluttered with debris. Debris in the work area can create
tripping hazards which can cause the operator to loose balance and result in injury to operating
personnel. Keep work area clean and well lit. When working at an elevated location, pay
attention to articles and persons below.
