VGS3D-VID GRAPHICS
2D/3D ACCELERATED CARD
Users Manual
Version 1.0
VGS3D-VID GRAPHICS CARD USER'SMANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
2
©Copyright
The software described in this manual is protected by international copyright laws. Under this copyright law, you
are prohibited from duplicating the software for any purpose other than making archival copies for the sole
purpose of backing-up against loss.
In addition, no part of this manual may be reproduced or transmitted, in any form or by any means, electronic or
mechanical, including photocopying, recording, or information storage and retrieval systems, for any purpose other
than the purchasers personal use, without the prior written permission of Aztech Systems Ltd.
 PentiumII is a registered trademark of Intel Corp.
 Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corp.
 Savage3D is a registered trademark of S3 Inc.
 All other company or product names are trademarks or registered trademarks or service marks of their
respective owners and are hereby recognized as such.
Disclaimer Statement
Aztech Systems Ltd specifically disclaims all warranties, either expressed or implied, including but not limited to
implied warranties of merchantability and fitness for a particular purpose, with respect to the hardware, software,
and the accompanying written materials. Aztech Systems Ltd reserves the right to revise or make improvements to
its product at any time and without obligation to notify any person of such revisions or improvements.
In no event shall Aztech Systems Ltd be liable for any consequential or incidental damages, including any loss of
business profits or any other commercial damages, arising out of the use of its product.
This product incorporates copyright protection rights owned by Macrovision
Corporation and other rights owners. Use of this copyright protection technology
must be authorized by Macrovision Corporation, and is intended for home use and
other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
VGS3D-VID GRAPHICS CARD USER'SMANUAL
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
3
4
11
20
4
19
24
27
5
5
6
7
7
7
10
11
14
18
18
30
Table of Contents
Setting up Your Graphics Card -----------------------------------
1.1 Minimum System Requirements-----------------------------------
1.2 Safety Precaution ------------------------------------------------------
1.3 Installation Notes ------------------------------------------------------
1.4 Installation Procedure ------------------------------------------------
1.5 Upgrading Windows® 95 OSR2.0 to OSR2.1 ---------------
1.6 Upgrading Windows NT® 4.0 with Service Pack 3 ----------
1.7 Installing the Graphics Card ----------------------------------------
1.8 Connecting the Graphics Card-------------------------------------
Installing the Graphics Card Drivers ----------------------------
2.1 Installing the Drivers in Windows® 95 ---------------------------
2.2 Installing the Drivers in Windows® 98 ---------------------------
2.3 Installing DirectX 6.0 in Windows® 95/98 ------------------
2.4 Installing the Drivers in Windows NT® 4.0 --------------------
Testing the Graphics Card in Windows® 95/98 ------------
Adjusting the Graphics Card's Display Properties ----------
Frequently Asked Questions --------------------------------------
Technical Specifications---------------------------------------------
Card Layout ------------------------------------------------------------
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○
4
Setting up Your Graphics Card
Congratulations on your purchase of the VGS3D-VID Graphics 2D/3D
Accelerated Card!
Based on the Savage3D chipset from S3 Inc., the VGS3D-VID's powerful
and well-balanced 2D/3D graphics accelerator features high end capabilities
such as z-buffering, alpha blending, perspective correction and sophisticated
Tri-linear filtering. All these help to deliver the ultimate PC graphics
performance in today's graphics-intensive applications and games.
1.1 Minimum System Requirements
 PC-based computer with PentiumII®processor.
 AGP Bus slot.
 10MB hard disk space (system files and drivers only).
 CD-ROM drive.
 Windows®95 OSR 2.1, Windows®98 or Windows NT® 4.0 with Service
Pack 3.
 USB upgrade supplement if you are running Windows®95 OSR 2.0.
 Windows NT® Service Pack 3 or later if you are running Windows NT®
4.0.
CHAPTER 1  SETTING UP YOUR GRAPHICS CARD
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
5
1.2 Safety Precaution
 Do not remove your graphics card from its protective bag until you are
ready to install it.
 Always try to hold your graphics card by its edges. Avoid touching any
electronic components on your graphics card.
 Static electricity can cause permanent damage to your graphics card. To
prevent such damage, you must ground yourself while installing the
card. You can do this in either of two ways :
» Use a grounding strap, which is a coiled wire with a clip at one
end and an elastic strap at the other. Wear the strap around your
wrist and attach the clip to any non-painted metal surface of the
computers chassis.
» If you do not have a grounding strap, touch any non-painted
surface of the computer's chassis before you begin installation, and
again every minute or so until the installation is completed.
1.3 Installation Notes
 Computers vary in appearance and layout. Therefore, the installation
procedures in this chapter apply generally and you should compare the
illustrations here with your computer before you start the graphics card
installation.
 A Philips-type screwdriver is required for the graphics card installation.
 Your computers documentation should come in handy during the
graphics card installation. Have it ready by your side when you start
the graphics card installation.
 If you have an existing graphics card (that is non-Plug-and-Play-based)
installed in your computer, you must first un-install its drivers before
you remove the graphics card. Refer to your existing graphics card
documentation for more details on this.
CHAPTER 1  SETTING UP YOUR GRAPHICS CARD
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
6
1.4 Installation Procedure
To take advantage of all the features of the AGP graphics card,
please check that your system has Windows®95 OSR2.1 or later
versions and DirectX 6.0 installed. If you are running Windows
NT®4.0, make sure that it has been upgraded with Service Pack 3.
The following Installation Procedure is recommended:
1. If you are running Windows®95 OSR 2.0, upgrade it to Windows®95 OSR
2.1. If you are running Windows NT®4.0, upgrade it with Service Pack 3.
2. Install the graphics card.
3. Install the graphics card drivers from the Installation CD.
4. Install DirectX 6 (for Windows®95/98 only).
5. Set the colour palette from the Display Properties, Settings tab to 16-
bit or higher in order to reveal the S3 Gamma tab.
1a.
1b.
Windows
95 OSR2.1 or above?
Windows NT 4.0 upgraded
with Service
Pack 3?
®
®
2.
Install Gra phics Card
3. Ins tall Grap hics C ar d Drive rs
4. Install DirectX6 (for Windows 95/98)
®
5. Set colour palette to 16-bit colour or higher
a.
b.
Upgrade OSR2.0
to OSR2.1
Upgrade with
Service Pack
No
Ye s
CHAPTER 1  SETTING UP YOUR GRAPHICS CARD
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
7
1.5 Upgrading Windows®95 OSR2.0 to OSR2.1
To upgrade from OSR2.0 to OSR2.1, first make sure you have OSR2.0
installed. By installing the USB upgrade, Windows®95 OSR2.0 will be
upgraded to OSR2.1.
1.6 Upgrading Windows NT®4.0 with Service Pack 3
If you are using Windows NT®Service Pack 1 or 2, upgrade to Service Pack
3 before installing the card.
1.7 Installing the Graphics Card
You need to remove any existing graphics card installed in your
computer. Note that if the graphics card is non-plug-and-play-based,
you need to un-install it's drivers before you remove it. Check your
existing graphics card documentation for details on this.
Remember to switch off your computer and any connected
devices before starting with the installation of your graphics card.
1. Remove your computers
chassis cover and set it aside,
somewhere out of your way.
CHAPTER 1  SETTING UP YOUR GRAPHICS CARD
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
8
Graphics Card
Mounting Screw
AGP Bus Slot
Cover Plate
2. Remove the cover plate
of the AGP Bus slot.
Keep the mounting
screw to secure your
graphics card later.
3. Align your graphics
card with the AGP Bus
slot and firmly push it
into the slot. If the card
cannot be slide in, do
not force it. Make sure
the graphics card is
lined up properly and
try again.
CHAPTER 1  SETTING UP YOUR GRAPHICS CARD
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
9

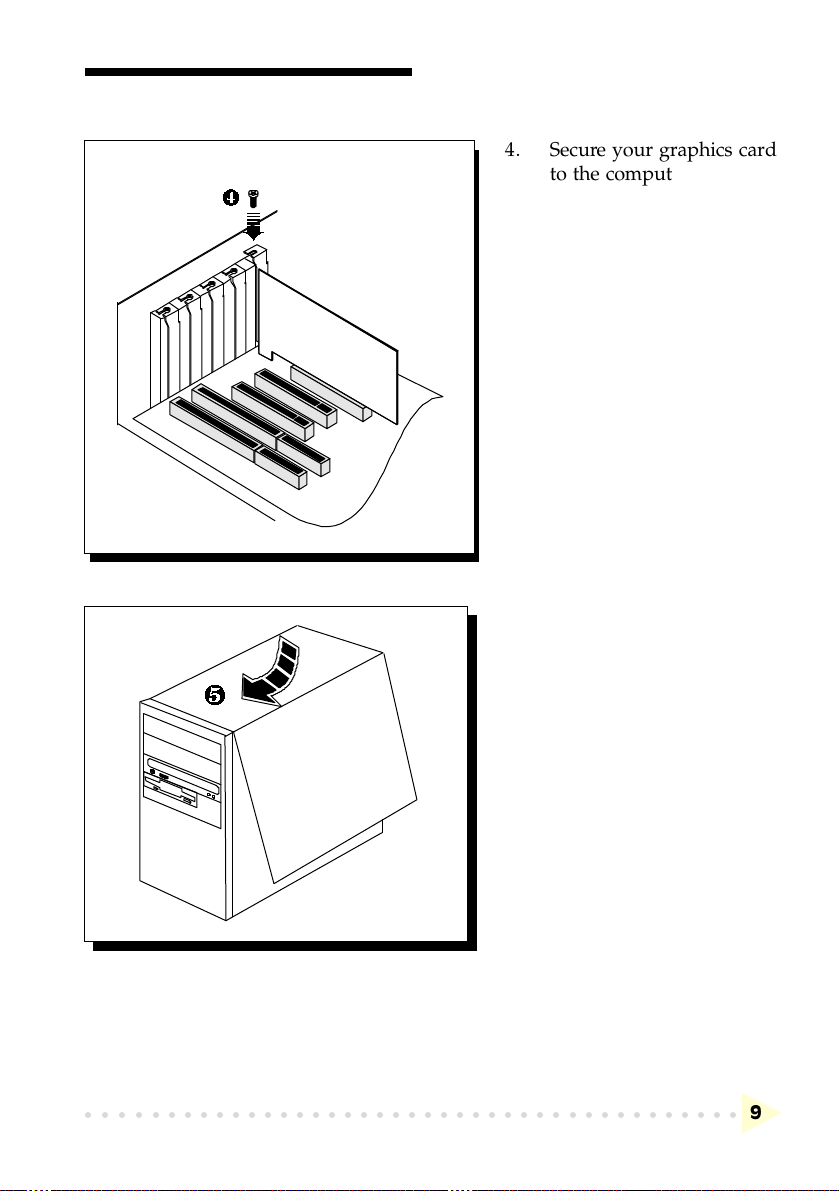

4. Secure your graphics card
to the computer chassis
with a mounting screw.
5. Replace your computers
chassis cover.
CHAPTER 1  SETTING UP YOUR GRAPHICS CARD
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
10
1.8 Connecting the Graphics Card
1. Plug your standard 15-pin male monitor cable into the VGA port.
The VGS3D-VID model supports both Composite Video (CVBS) and S-
Video (Y/C). If your TV is equipped with an S-Video Jack, it is
recommended that an S-video cable be connected for better resolution.
Connect one end of the S-Video cable to the S-Video Jack of the
graphics card and the other end to the S-Video In of a TV set.
Otherwise, connect one end of the RCA-type cable to the TV Out Jack
of the graphics card and the other end to the Video In of a TV.
VGA Port
VGS3D-VID
Graphics Card
S-Video Jack
TV Out Jack
