AZURO BP-50WS-C Instruction Manual

Directions for installation and maintenance

2
contents
1. Introduction ………………….…………………………….……..…………. p3
2. Caution…………………………………………………….………………….….. p3
3. Delivery control …………………………………………........................ p4
4. Technical description ……………………….………………………….. p4
Technical characteristics
Outside
Inside
BP-50WS-C explored view
Wire control operation
General diagram of the refrigerating circuit
Safety and control systems
Electric diagram
5. Installation ……………………….…………………………………....... p12
Rules of installation
Hydraulic connections
Electric connections
Procedure of use
6. Water flow and refrigerating circuit pressure........................ p16
7. Environment problem ………………………………………............ p17
8. Error messages and what to do ………………………………..… p18

3
1- Introduction
We thank you for having chosen our Heat pump.
This installation and maintenance notice contains the necessary
information to its installation (delivery control, the installation, the
connections) and to its repair. It is a complementary document to the
user’s manual which describes its instructions for use.
We invite you to read it first.
2- Caution
This document is an integral part of the product and it must stays in
the technical room.
This Heat pump is exclusively for heating swimming pools.
Any other use not in conformity and random will be considered as
dangerous and unsuitable.
The assembly, the electric connection and the start up must be
carried out by specialized and professional person.
When connect plug to socket (power supply), please
make sure that live wire, neutral wire, earth wire to
plug should be connected as right drawing.
It is essential to maintain the temperature in the swimming pool lower
than the recommended value by the swimming pool’s manufacturer.
Please make sure that minimum water flow speed is 3.0m³/h.
In a concern to a constant improvement, our products can be modified
without notice; the present pictures in this note or the characteristics
which are described are not contractual.
16A 250V~
(L ) (N
)

4
3- Delivery’s control
At the delivery time, check the condition of packing; in case of
damages, have reservation about them to the carrier, before 48 hours
and by registered letter with acknowledged receipt.
Before any manipulation, check the complete state of the machine.
4 - Technical description
Characteristics:
MODEL BP-50WS-C
Power supply 230V~, 50Hz
Heating consumption power * (kW) 0.9
Heating restored power *(kW) 4.6
Heating nominal intensity *(A) 4.3
Air flow (m3/H) 1400
Noise level (d(B)A) <48
Refrigerant gas R410a
Rate of average filling of gas (g) 550
Net weight of the unit (kg) 35
Overall sizes L x W x H (cm) 78 x 27 x 51
* Possible variations of value according to climatic conditions

5
Outside:
Inside:
(Front sheet cover and panel removed)
1 Fan protection grid ( blow side )
2 Metal cabinet
3 Top cover
4 Control panel
5 Fast connection for water outlet
6 Refrigerant pressure manometer
7 Wire connection for power supply
8 Fast connection for water intlet
9 Evaporator
10
Fan
11
Compressor
12
High and low pressure interruptor
13
Titanium heat exchanger
14
Temperature sensor of swimming pool water
15
Water flow switch
15

6

7

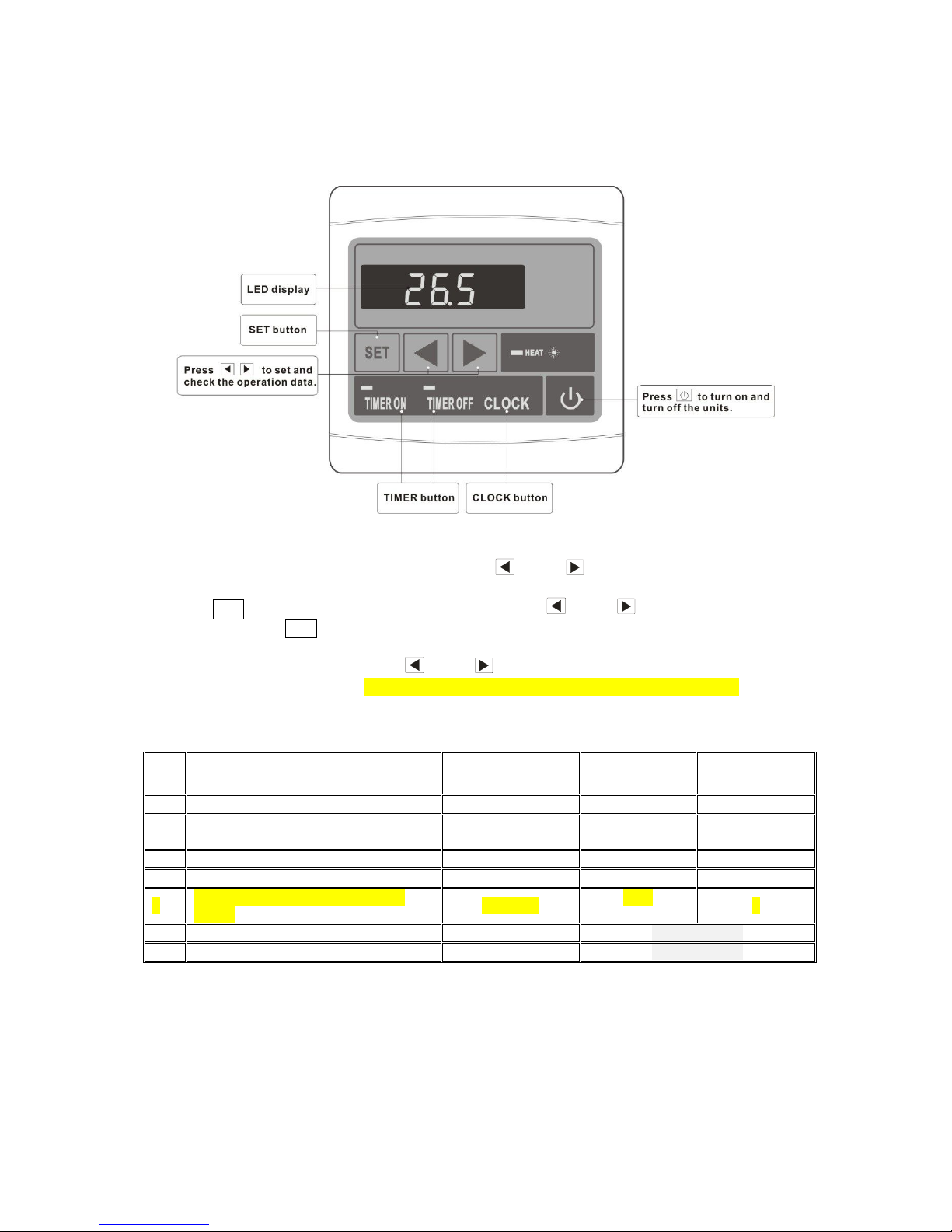

Wire control operation
The function of the LED display and control:

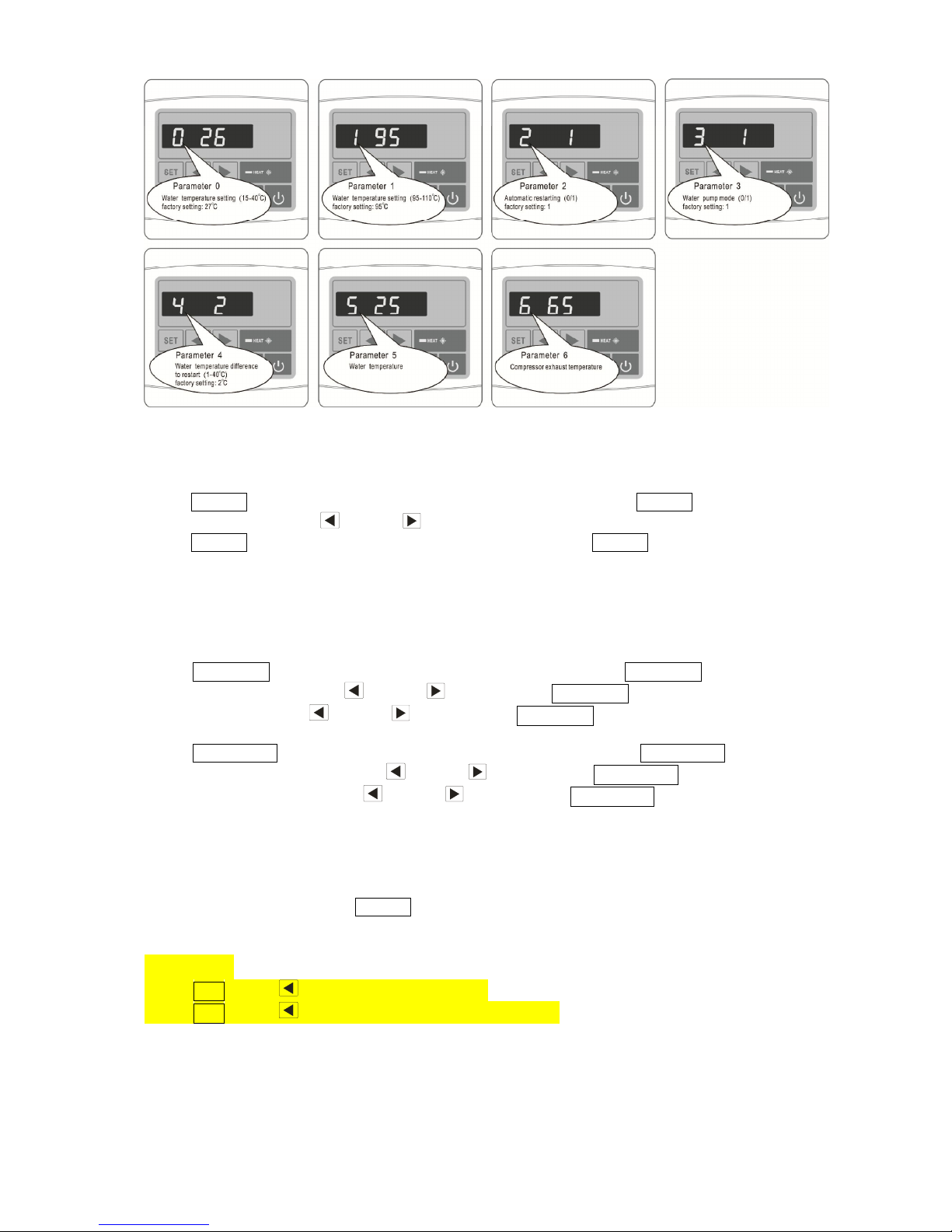

Set the operation parameter:
When the unit powered up but not running, press " " or " " to enter operation parameter
interface. (parameter from 0-5, see Operation Parameter Table).
◎Press "SET" to enter current parameter setting, press " " or " "to set data for
parameter, press "SET" again exit the current parameter setting.
◎No press in 8s, it will exit the setting interface.
◎If the heat pump is running, press " " or " "to enter operation parameter check interface,
But can’t change parameters (Except the parameter 0 for water temperature setting).
◎If the heat pump is running, the LED display shows current water temperature;
If the heat pump is turnoff, the LED display shows current time.
NO
Meaning Range
Change
Factory
setting
0 Water temperature setting 15 ~ 40°C YES 27°C
1 Compressor protection
Exhaust temperature 95 ~ 110°C YES 95°C
2 Automatic restart 0/1 YES 1
3 Water pump mode 0/1 NO 1
4 Water temperature difference to
restart 1 ~ 10°C YES 2
5 Water temperature -9 ~ 99°C Measured value
6 Compressor Exhaust temperature -9 ~ 125°C Measured value

8
Setting the time
press “CLOCK” botton to set the time. The time displayed blinks, press “CLOCK” botton again
and then use the arrow " " and " " to change the hour setting. To change the minutes,
press “CLOCK” botton again. Once the correct time is set. press “CLOCK” botton again the end.
The display returns to normal after 8 seconds.
Timer switch ON and Timer switch OFF:
Once the time has been set correctly, this function allows a machine start time and a machine stop
time to be programmedduring the day.
Press “TIMER ON” botton the time displayed and “ON” to blink, press “TIMER ON” botton again
Change the hour using the " " and " " keys. Press “TIMER ON” botton again to change
the minutes using the " " and " " keys. Press “TIMER ON” botton again the end.
Press “TIMER OFF” botton the time displayed and “OFF” to blink, press “TIMER OFF” botton
again Change the hour using the " " and " " keys. Press “TIMER OFF” botton again to
change the minutes using the " " and " " keys. Press “TIMER OFF” botton again the end.
The time setting is from 0 to 24 hours to recycle.
When the setting time for on and off is the same,the setting time is not available.
When the setting timer, Press “CLOCK” to deactivate TIMER.
Key lock:
Press "SET" and " " 5 seconds to set keylock.
Press "SET" and " " 5 seconds again to release keylock.

9
General diagram of the refrigerating circuit
Swimming-pool water’s heating mode:
The cold and liquid refrigerant fluid absorbs the heat contained in the air through the evaporator
(gilled radiator), in which it is vaporizing; it is then put up in pressure and in temperature by the
compressor which sends it in the condenser (exchanger) where it loses its heat (in giving it to the
water of swimming pool) and comes back in liquid state; it loses its pressure and still cools in the
expansion capillaries before turning back to the evaporator for a new cycle.
Hot water
Cold water
Hot
air
Cold air
Compressor
Condenser
(exchanger)
Pressure and gas
intake
E
vaporator
(gilled
radiator)
Expansion
capillary

10
Safety and control systems
The heat pump is fitted out:
Temperature control:
A temperature sensor placed on the exchanger, ensuring the cut of
the heat pump when the temperature of the water reaches the
required temperature. The normal cycle restarts when the
temperature in the exchanger goes down to a temperature lower of
2°C (factory settings) than this required.
With 4 safety systems:
A water flow detector placed at the exit of the exchanger
A high pressure gas circuit breaker, a low pressure gas circuit
breaker
An outlet compressor temperature sensor
If a defect occurs on one of these systems (defective system, off-line
or abnormal measured value) a message of defect appears on the
display screen; see the paragraph “Error codes and what to do” of this
note.
Caution: the removal or the shunt of one of the control or safety
systems involves the cancellation of the guarantee.

11
Electric diagram

12
5- Installation
Rules of installation:
Electric and hydraulic connections must be carried out according to standards
in effect (NF C 15 100, CE I 364).
The machine must be installed outside.
The machine must be posed on its ant vibratory studs, set and lying flat and on a
massive base (concrete slab); this base must have a sufficient height to prevent any
entry of water by the bottom of the machine. Height must be adjusted to fit the
connector collecting the condensates.
The obstacles such as wall and vegetation must be separated from the machine as
indicated on the diagram below.
Exhausting Blowing
side side
Do not to install the Heat pump in a confined place (the fan would recycle its air and
the Heat pump would be down performance).
The fan should not blow towards the windows or crossing point.
Safety distance between the swimming pool and the foot bath: the fitter must
imperatively refer to the standard C15-100 section 702; the machine should not be
installed in volume 1 surrounding the swimming pool but at least in volume 2 so at a
distance of 3 m minimum of the swimming pool and foot bath.
Other precautions of installation:
- Do not to install the machine near a way with circulation of car in order to avoid
mud projections.
- Avoid directing blowing against dominant winds.
- If the machine is intended to be used in winter, put it in a place protected from the
falls of snow.
- The machine must be able to be supervised in order that children do not play
around
2,5 m mini
0,5 m mini
0,3 m mini
0,5 m mini

Swimming-Pool
Technical room
Chemical treatment
Blowing
By
-
pass
Heat Pump
Drain of the
condensates: insert
the plastic elbow in
the hole of
evacuation of the
bottom and connect
the pipe if need.
Hydraulic connections: To
respect imperatively
Connection is carried out with a by-pass located on
the circuit of filtration, upstream appliances of the
chemical treatment of water.
Connect intake/outlet water PVC pipes DN50 to the
openings of the machine in following the inlet / outlet
indications (grease the worms before screwing)
Filter
13

16
Electric connections:
CAUTION: before connecting the machine, make sure that the feeder is
disconnected to the electrical network.
The electric installation must be carried out by an experienced electrician and the
supply must come from a severing equipment and differential protection; the whole
must be carried out according to standards' in force in the country where the
material is installed.
Characteristics of the electric supply:
- 230 V +/- 10%, single-phase current, 50 Hz
- Mode of neutral TT and TN.S; the circuit of heat pump must be connected to an
earth circuit.
Characteristic minimum of the protection:
- Protection must be of 16 A, by circuit breaker or fuse; it must protect the Heat
pump exclusively; the circuit breaker must be specified with curve D, the fuse must
be specified Am.
- Differential protection : 30 mA (the length of cable between the connector block of
the heat pump and the protection of should not exceed 12 m).
Control :
The heat pump is fitted out with a water flow detector which function is to apply
the signal to the electronic card when the water flow is sufficient.
We recommend when it is possible to control the heat pump to the filtration
pump (by contacting relay non supplied to insert in the feeding circuit of the heat
pump).
The remmonded water flow speed is 3m³/h.
Removed control panel:
An extension cord allows the removal of the panel in inserting it in a standard
electric box into the technical local; the option is supplied with a cover allowing to
seal the aperture let by the removal of the control panel.
14

16

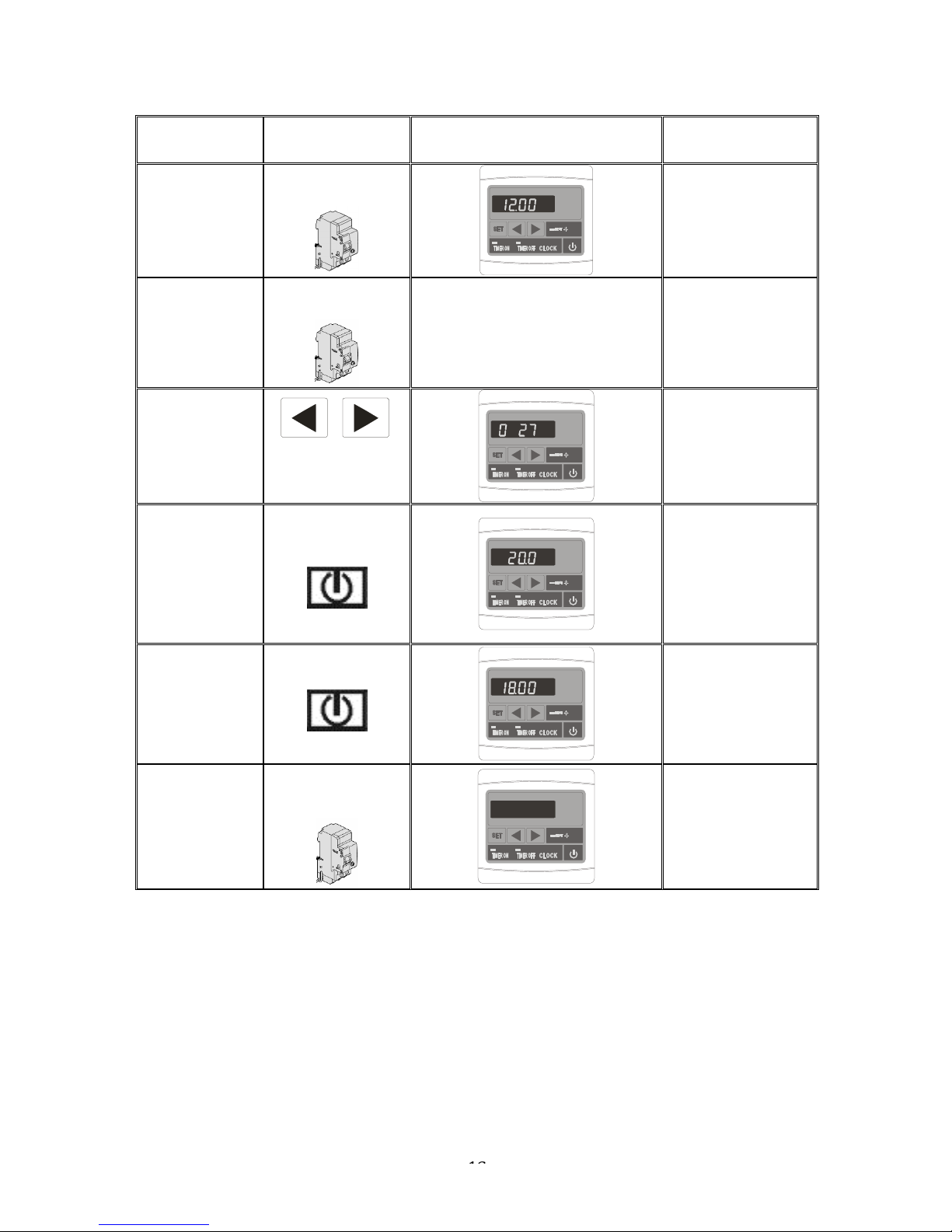

Procedure of use
Action
External
A
pp
liance
or Button of heat
pump Display Heat pump
answer
Put the heat pump
under tension
Engage the circuit
breaker of the heat
pump
Display current time
Put in circulation
the swimming
pool water into
the pipes
Engage the circuit
breaker of pump of
filtration
Set the water
temperature
into the
swimming pool
,
adjustable from
15°C to 40°C
The heat pump heats
until the required
temperature
(P7)
Start
Press the button
Start between 60 second
Stop
Press the button
Immediate stop
and wait
Switch off
Use the circuit
breaker of pump
of filtration,
and heat pump
Complete stop
15

16
6- Water Flow and refrigerating circuit pressure
After putting into service, do the settings of pressure of the refrigerant circuit
for having an optimal operating of the heat pump, following:
Stage 1:
Before starting the Heat Pump, ambient
temperature around 20°C, refrigerant meter
shows pressure from 14 to 16kg/cm².
Stage 2:
Close completely the by pass valve and open
large inlet and outlet valves of the Heat
Pump; in these conditions the totality of the
water flow goes by the Heat Pump.
Put into service the Heat Pump in heating mode, wait for the indicated
pressure being stabilized; the correct setting of the pressure is from 21 to 35
kg/cm²;
In most of cases (pump of filtration given a flow until 20m³/h) you do not have
to open the by pass valve.
If the stabilized pressure is under 21kg/cm², the progressive opening of the by
pass valve will allow rising this pressure.
The adjustment of the by pass valve done, you have in principle no reason to
modify it during the season. See the paragraph “Environment problem” too.

16
7 – Environment problem
Under certain external conditions the heat exchanges between the refrigerant and
the water on one hand and between the fluid and the air on the other hand are
insufficient; the consequence is that the refrigerating circuit runs up in pressure
and the compressor consumes more electricity.
The temperature sensors compressor outlet and the magnetic circuit breaker
on the compressor power supply protect the compressor from these extreme
conditions; the error messages EE 06 occur.
The condition causing this situation is as follows:
In heating mode:
- insufficient water flow:
close the by-pass valve for increasing the refrigerant exchange àwater
Note: these error codes are likely to occur if temperature of swimming pool water is
high and the ambient air is hot.
17

16
8 – Error codes and what to do:
This table explains the error codes caused by a defective
regulating component or by a security operation.
Screen and state
of the heat water
pump Component Possible Intervention Second reason if
the intervention
is without effect
PP 01
Compressor and fan
stopped
Water temperature
sensor
Sensor disconnected,
non supplied or
defective
Check the connections, the wires,
change it or replace the electronic card
PP 02
Compressor and fan
stopped
compressor
exhaust
temperature
sensor
Sensor disconnected,
non supplied or
defective
Check the connections, the wires,
change it or replace the electronic card
EE 01
Compressor and fan
stopped
High pressure,
Low pressure
protection
Insufficient water
flow Check the water flow
Pressure switch out
of order Replace the pressure switch Have
Too much refrigerant
gas present the heat pump checked by a refrigeration technician
EE 02
Compressor and fan
stopped
Low pressure
protection
Not enough
refrigerant gas Have the heat pump checked by a refrigeration technician
Leak in the cooling
conduits Have the heat pump checked by a refrigeration technician
EE 03
Compressor and fan
stopped Flow switch Flow switch
disconnected, non
supplied or defective
Check the connections, the wires,
change it or replace the electronic card
EE 04
The unit cannot be
started Emergency switch
Emergency switch
disconnected Check the connections and the wires
EE 06
Compressor and fan
stopped
compressor
exhaust
temperature
sensor
Compressor exhaust
temperature
detected up to 95°C
more than 3 times in
1HR
Environment problem
Refrigerant leakage
Capillary is half blocked
EE 08
The wire control
can't operated
Wire control
Communication
error
Signal cable of wire
Control is loose Check the connection of signal cable
18
