B-Air VANTAGE LGR 2200 User manual

VANTAGE
DEHUMIDIFER
LGR 2200
COMMERCIAL DEHUMIDIFIER
550 S. Ayon Avenue
Azusa, California 91702
Local: 626.385.3300
Fax: [phone]
877.800.BAIR
WATER DAMAGE RESTORATION DIVISION
VANTAGE LGR 2200
COMMERCIAL DEHUMIDIFIER
VANTAGE LGR 2200
LIMITED MANUFACTURER’S WARRANTY
The manufacturer warrants that goods sold to the original user shall be free from defects in material and workmanship as follows:
1-year parts and labor on the entire unit. 5-year parts and labor on sealed system (compressor, evaporator, and condenser).
DAY 1-15: A unit that fails within the first 15 days after the sale to an end-user may be eligible to be replaced with a new unit at
the sole discretion of the manufacturer. All transportation costs will be covered for the customer.
DAY 15-YEAR 1: A unit that fails between 15 and 365 days after sale will have parts and labor charges covered under warranty,
but transportation charges are to be paid by the customer. Transportation costs include travel charges by repair personnel, or
shipping charges to move the unit to and from a repair location.
The manufacturer will not be responsible for:
1. Useful filter life / replacement filters.
2. Damage due to failure to perform normal maintenance as outlined in the Instruction Manual.
3. Failure to start due to voltage conditions, blown fuses, open circuit breakers, or any other damages due to the inadequacy or
interruption of electrical services.
4. Damage or repairs needed as a consequence of any misapplication, abuse, neglect, unauthorized alteration, improper
servicing, or operation, including operation outside the voltage and frequency limitations as stated on the unit rating plate.
5. Damage as a result of flooding (immersion), fires, lightning, freezing of residual water, corrosive environment, or other
conditions beyond the control of the manufacturer.
6. Reimbursement for warrantable replacement parts not supplied by the manufacturer.
7. Shipping damage, or damage as a result of abuse in transporting the unit.
The manufacturer does not warrant that the goods sold are merchantable or fit for any particular purpose, and makes o
warranties other than as stated in this section.
All other warranties, guaranties, or representations, express or implied, by operation of law or otherwise, are expressly
disclaimed.
If circumstance warrants, the manufacturer may opt to refund the purchase price of such goods. Where applicable, as indicated
above, the manufacturer will pay return transportation charges on returned goods not exceeding the transportation
charges applicable to ship from original destination unless the returned goods are free from defect and conform to
specifications. Be sure to review this instruction booklet. Returned goods which are found by the manufacturer to be
free from defect and to conform to specifications shall be held for Purchaser’s shipping instructions, which shall
be furnished promptly upon request.
The manufacturer’s liability shall in no event extend beyond replacement, repair or refund of the purchase
price and shall not be liable under any circumstances for special, contingent, incidental or consequential
damages, nor for losses, damages, or expenses directly or indirectly arising from the use of the goods,
including without limitation, warehousing, labor, handling and service charges, die, equipment, or machine
breakage, nor for costs, lost profits or loss of good will. The use of substitute parts and/or filters in this
product voids all warranties and performance claims. The remedies set forth herein are exclusive.
Any replacement parts supplied under warranty will be warranted for the balance of the product’s
warranty.
Establishing the proof of purchase date for warranty purposes is the responsibility of the
end-use customer, failing which, the effective date will be based upon the date of manufac-
ture plus thirty (30) days. Retain your bill of sale as proof of purchase.
For warranty information and assistance contact B-Air® at 877.800.2247 or email
[e-mail]
C
M
Y
CM
MY
CY
CMY
K
LGR_2200_MANUAL.pdf 1 8/24/16 12:56 PM

COMMERCIAL DEHUMIDIFIER
B-AIR.COM | 877.800.BAIR | WATER DAMAGE RESTORATION DIVISION
VANTAGE LGR 2200
GENERAL INFORMATION
Packaging
Please DO NOT dispose of any packaging until you have checked the appliance is
operational.
After removing the packaging ensure the contents are intact and complete. In the
unlikely event of missing parts; contact B-Air®.
DO NOT leave children unattended with any of the packaging since it is a potential
source of danger. Disposal of all packaging must be carried out responsibly & safely
and in accordance with your local authority regulations.
ALWAYS recycle the packaging material when possible.
When using any electrically powered product, basic safety precautions should
always be followed.
PLEASE READ THE INSTRUCTIONS CAREFULLY AND IN FULL BEFORE USING
THE PRODUCT.
Important Instructions
WARNING - to reduce the risk of fire, electrical shock or injury to persons or property.
1. Always operate the product from a power source of the same voltage, frequency and
rating as indicated on the product identification plate.
2. Close supervision is necessary when any product is used by or near children
the elderly or the infirm. Do not allow children to use the appliance as a toy.
3. Do not operate this product with a damaged power cord plug. If the supply cord is
damaged it must be replaced by qualified personnel or other similar qualified persons in
order to avoid hazard.
4. To reduce the risk of electric shock, do not expose the unit or flexible cord to moisture
of any kind.
5. Switch off and unplug from the power socket when not in use, before assembling or
before cleaning.
6. Do not place objects on the product or allow objects to obstruct the inlet or outlet
openings, or operate in close proximity to walls or curtains, etc.
7. The use of attachments or accessories not recommended or sold by the product
distributor may cause injury to persons or damage to property.
8. This product is intended for normal light commercial use only.
9. Do not attempt to dismantle the appliance.
10. Do not operate the appliance on a metal surface.
11. Do not use the appliance in artificially hot or humid conditions or allow to be used in a
hazardous environment.
12. Do not clean the appliance with organic solvent.
13. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
14. Children should not be left unsupervised with the appliance .
15. This instruction manual is an integral part of the appliance and should be stored for
safe keeping and must always accompany the appliance in the event of ownership trans-
fer or for reference to by a service engineer.
READ AND SAVE THESE INSTRUCTIONS
2 3
C
M
Y
CM
MY
CY
CMY
K
LGR_2200_MANUAL.pdf 2 8/24/16 12:56 PM

COMMERCIAL DEHUMIDIFIER
B-AIR.COM | 877.800.BAIR | WATER DAMAGE RESTORATION DIVISION
VANTAGE LGR 2200
DO NOT OBSTRUCT THE AIR INLET OR OUTLET.

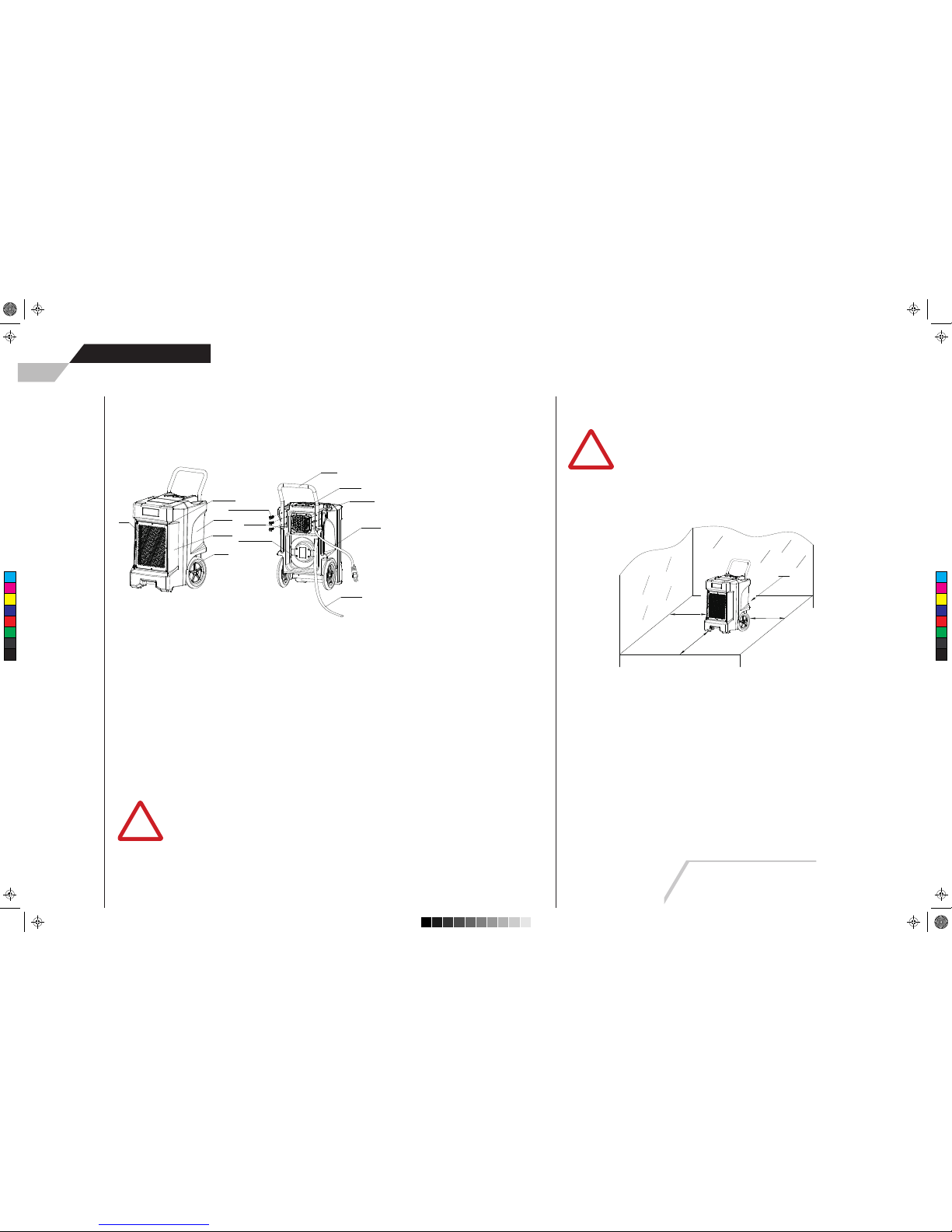

Setting Up InstructionsProduct Identification
Place dehumidifier in the upright position. When transporting a dehumidifier to site, allow
the dehumidifier to stand for 30 minutes before switching ON. This is necessary to allow
the refrigerant system to stabilize and avoid system damage.
Setting Up the Dehumidifier
Operate the dehumidifier in an enclosed area, as this creates a drying chamber. Close all
doors, windows or areas that open to external areas, to maximize the dehumidifier’s
water removal efficiency. Keep traffic through the drying chamber to minimum. Place the
dehumidifier in the center of the room away from walls and furnishings. DO NOT allow the
airflows to be obstructed.
Drainage
The dehumidifier pump connects to a plastic drainage hose. The hose is stored on the
back of the appliance. Uncoil the entire hose ensuring there are no kinks or restrictions
and place the unattached end to a water vessel or run to outdoors.
Ensure that water which runs to outdoors does NOT create a slip hazard.
Water vessels MUST be checked regularly where used.
Filter
Bolts for fixing the handle
Air inlet panel
Back panel
Front panel
Handle cover
Waterpipe supporter
Wheels
Handle
Control panel
Power cord
Wateroutlet
NOTE: Please install the handle by yourself (six bolts are for your installation).
Air outlet hood
≥
≥
≥
≥
20in
12in
32in
12in
IMPORTANT
4 5
C
M
Y
CM
MY
CY
CMY
K
LGR_2200_MANUAL.pdf 3 8/24/16 12:56 PM

DO NOT OBSTRUCT THE AIR INLET OR OUTLET.
COMMERCIAL DEHUMIDIFIER
B-AIR.COM | 877.800.BAIR | WATER DAMAGE RESTORATION DIVISION
VANTAGE LGR 2200

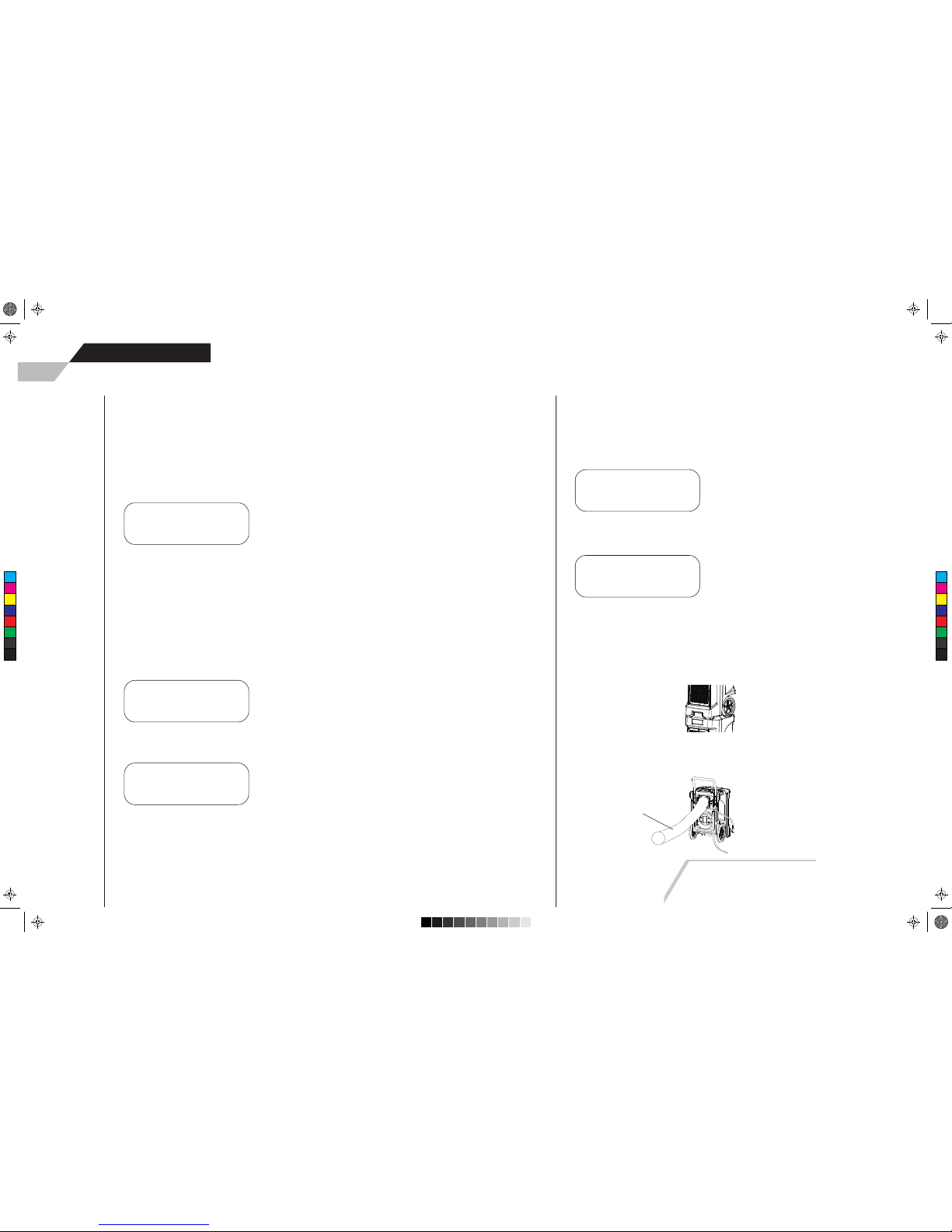

Control Panel OperationControl Panel
Function Keys
ON/OFF
Press once to turn the unit ON or OFF.
PURGE
Press the PURGE key to empty water from the pump reservoir. During normal operation
the pump purges automatically when the reservoir is full. Press “PURGE” key before
moving the aching to avoid water spillage. The pump will close automatically after
40 seconds continuous drainage.
MENU
Press the MENU key, the LCD will display “Humid” - “Timer” - “TempU” - Langu” - “R”.
Press OK key to select sub menu.
UP & DOWN
Press the UP & DOWN keys to set or adjust humidity in the range between 26% and
90%. When the environmental humidity is below 26% “CO” will be displayed.
The UP & DOWN keys are also used to adjust time.
OK
Press the OK key to confirm the operation.
Operation in General Use
1. Press the ON/OFF key to switch the dehumidifier ON. The unit will start working.
2. Press ON/OFF key again to switch the unit OFF. The water pump will work auto-
matically for 40 seconds to empty water from the pump reservoir.
DO NOT switch the power OFF by disconnecting at the main socket outlet. To avoid
water spillage, DO NOT move the dehumidifier for at least three minutes after turning
the power OFF.
Humidity Setting
The factory setting is “CO” mode. The humidity can be set in the following manner.
1. Press the MENU key. The screen will display:
2. Press the MENU key again and select “Humid.”
3. Press “OK” key and the screen will display:
4. Press the UP & DOWN key to set relative humidity between 26% and 90%.
5. Press OK key to confirm the setting.
6. Press MENU key to select “R” and press the OK key or wait 10 seconds to turn
back automatically. If you need to return to acquiescent “CO” mode, set relative
humidity below 26%.
ON/OFF Key
PURGE Key
UP & DOWN Key
OK Key
MENU Key
COMMERCIAL DEHUMIDIFIER
VANTAGE
LGR 2200
DEHUMIDIFIER
VANTAGE
LGR 2200
DEHUMIDIFIER
IMPORTANT
Humid Timer
TempU Langu R
Humid Settings
RX X %
6 7
C
M
Y
CM
MY
CY
CMY
K
LGR_2200_MANUAL.pdf 4 8/24/16 12:56 PM

COMMERCIAL DEHUMIDIFIER
B-AIR.COM | 877.800.BAIR | WATER DAMAGE RESTORATION DIVISION
VANTAGE LGR 2200
Control Panel OperationControl Panel Operation
Timer
1. Press the FUNCTION key. The screen will display: Humid, Time, Load, Langu
2. Press the FUNCTION key & select Timer
3. Press the ENTER key & the screen will display:
4. Press the FUNCTION key & select clock.
5. Press the ENTER key & the screen will display:
6. Press the UP & DOWN keys, select from 00 to 24.
7. Press the ENTER key to confirm.
8. The cursor turns to the next position automatically.
9. Press the UP & DOWN key to select minutes from 0 to 59.
10. Press the ENTER key to confirm the number.
11. The curser turn to the next position automatically.
12. Repeat process until the clock is completely set.
13. Once finished, move the cursor to ‘R’ and press the ENTER key to return to
normal operating mode. The screen will display wet time only.
In the event that date requires modifying; use the cursor to reset.
The new data will not become active until the ENTER key is pressed.
Humid Timer
TempU Langu R
T. On T. Off
T. I/O R
Timer On
00:00 Off R
Timer ON Setting
Ensure the clock is correct before setting the timer.
1. Press the FUNCTION key & the screed displays:
2. Press the FUNCTION key & select Timer.
3. Press the ENTER key & the screen will display:
4. Press the FUNCTION key & select T on.
5. Press the ENTER key & the screen will display:
6. Press the UP & DOWN keys, select from 00 to 24.
7. Press the ENTER key to confirm this number.
8. Press the FUNCTION key again & select minute position.
9. Press the UP & DOWN keys & select from 00 to 59.
10. Press ENTER key to confirm this number.
11. Press the FUNCTION key again & “Off” is displayed.
12. Press the ENTER key & ‘On’ is activated.
13. After setting is completed press the FUNCTION key again & move the cursor to
“R” and press the ENTER key. The display will return to normal.
To cancel the time display move the curse to the ‘On’ potion and press enter,
turning it to ‘Off.’ The function only performs once.
Humid Timer
TempU Langu R
T. On T. Off
T. I/O R
Timer On
00:00 Off R
8 9
C
M
Y
CM
MY
CY
CMY
K
LGR_2200_MANUAL.pdf 5 8/24/16 12:56 PM

COMMERCIAL DEHUMIDIFIER
B-AIR.COM | 877.800.BAIR | WATER DAMAGE RESTORATION DIVISION
VANTAGE LGR 2200
Control Panel OperationControl Panel Operation
Timer OFF Setting
Set the timer OFF in the same manner as time ON.
Cycle timer setting
The screen displays:
After setting the cycle times the dehumidifier will turn ON/OFF at the selected times.
Pressing ‘ON/OFF’ during the Cycle timer operation will not automatically cancel
the program.
The dehumidifier will not function if the timer ON and timer OFF times are the
same.
To cancel the time display, press the ENTER key to change OFF to ON.
Temperature Unit Exchanging:
1. Press the M key & screen displays:
2. Press the M key again & select “Tempu” flicker.
3. Press the OK key & screen displays:
4. Press M key again to exchange between Cº and ºF.
5. Press OK key to confirm.
Language Choosing
1. Press the M key & the screen displays:
2. Press the M key again & select “Langu” flicker.
3. Press the OK key & the screen displays:
4. Press the M key again & select your required language.
5. Press OK key to confirm.
Stack Function
For convenient freight, two units of this machine should be stacked, and the slot of
the wheel can help to stable and safe transportation.
Pipe Function
As to a much wetter space, use a plastic piece with diameter larger than 170mm, and
tie the pipe to hood, it will be much faster and more effective to dry.
Humid Timer
TempU Langu R
ENGLI DEUTS
SPANI FRENC R
On 00:00 Off
Off 00:00 R
Humid Timer
Tempu Langu R
Tempu Setting
ºC ON ºF OFF R
plastic pipe
10 11
C
M
Y
CM
MY
CY
CMY
K
LGR_2200_MANUAL.pdf 6 8/24/16 12:56 PM

COMMERCIAL DEHUMIDIFIER
B-AIR.COM | 877.800.BAIR | WATER DAMAGE RESTORATION DIVISION
VANTAGE LGR 2200
Trouble ShootingMaintenance
Cleaning the Air Filter
Ensure the dehumidifier is turned OFF and the plug removed from the power
socket before maintenance is carried out.
The working performance of the dehumidifier will be greatly reduced if the filters
become blocked.
1. Remove the filter as shown in the diagram above.
2. Vacuum any derbis from the filter using the vacuum hose and nozzle attachment.
3 Using luke-warm water and mild detergent wash the filter and allow to dry.
4. Once, dry, re-install the filter into the dehumidifier.
Fault Codes
The problems as below are probably real faults. Please check the machine according
to the tips.
filter
pull out from
the left side
WARNING
DO NOT attempt to rectify faults using unqualified personnel.
PROBLEM CAUSE SOLUTION
Unit does not operate
No power to appliance
Connect plug to power socket
and check the power
Switch not turned on Switch on
E4 error is displayed Try to manually drain the water
No water or very little water
Allow unit running more time
Filter is blocked
Insufficient working time
Indoor temperature is too low
Drain hose tied or deflated
Increase the indoor temperature
Clean the filter
Check drain hose
Doors or windows are open or
the bad hermetic house Seat up the room
Water leakage
The dehumidifying effect
is poor
Residual water has not ruled
out clean or overbank of the unit
Manually drain the water after
power is on
Hot air is exhausted from
the outlet The normal heat exchange Normal phenomenon
All keys have no effect
With the sound of flowing
water or data voice
Refrigerant flow sound or water
pump working sound
Normal phenomenon
Keys are locked
Press the upper and down key
for 2 seconds at the same time
12 13
C
M
Y
CM
MY
CY
CMY
K
LGR_2200_MANUAL.pdf 7 8/24/16 12:56 PM

COMMERCIAL DEHUMIDIFIER
B-AIR.COM | 877.800.BAIR | WATER DAMAGE RESTORATION DIVISION
VANTAGE LGR 2200
Specifications
WARNING
In the event of a fault code, contact your service agent. MODEL BPA
Power Source 115V / 60Hz
Water Removal AHAM (80ºF 60%RH) 130 pints/day
Water Removal Max (90ºF 90%RH) 225 pints/day
Rated Current 8.5 amps
Low Side Design Pressure 240 psig
High Side Design Pressure 480 psig
Refrigerant R410a / 26.8 oz.
Max Process Air 400 CFM
Drain Hose Length 30 ft
Dimensions (WxDxH) 21 x 20 x 32.25 inches
Net Weight 100 lbs.
Operating Range 32º - 115ºF
ERROR MESSAGE DISPLAY READING SOLUTION
E0 EEPROM error Blinking display in the first line Reset unit*
Reset unit: Turn unit off, then turn it back on.
E1 Communication error Blinking display in the first line Reset unit
E2 Coil sensor error
Every 30 seconds flashing
display for 2 seconds
The machine can
still work, but
will not detect
refrigerant error
E3 Air-outlet sensor error
Every 30 seconds flashing
display for 2 seconds
The machine can
still work, but
will not detect
refrigerant error
E4 Humidity sensor error
Every 30 seconds flashing
display for 2 seconds
Frequency
reduction,
reset unit
E5
Current protection for
main control plate
Blinking display in
the first line
Frequency
reduction,
reset unit
E6
Air-outlet temperature
protection
Blinking display in
the first line Reset unit
E7
Over-current protection
for compressor
Blinking display in
the first line Reset unit
E8 Water pump error
Blinking display in
the first line Reset unit
P0 IMP module error
Blinking display in
the first line
Frequency
reduction,
reset unit
P1 Voltage too high or too low
Blinking display in
the first line Reset unit
P2 Compressor stall
Blinking display in
the first line Reset unit
P3 Refrigerant lack
Blinking display in
the first line Reset unit
Trouble Shooting
CODE
15
C
M
Y
CM
MY
CY
CMY
K
LGR_2200_MANUAL.pdf 8 8/24/16 12:56 PM
