B-K Medical 8870 User manual

English
BB1980-B
June 2012 For Professional Users Only
User Guide
Type 8870
INSERT IMAGE
High Frequency Linear Array
Transducer

BK MEDICAL
Mileparken 34
2730 Herlev
Denmark
Tel.:[phone] / Fax:[phone]
www.bkmed.com
Email: [e-mail]
If you have comments about the user documentation, please write to us at the email address above. We
would like to hear from you.
BK Medical Customer Satisfaction
Input from our customers helps us improve our products and services. As part of our customer
satisfaction program, we contact a sample of our customers a few months after they receive their orders.
If you receive an email message from us asking for your feedback, we hope you will be willing to
answer some questions about your experience buying and using our products. Your opinions are
important to us. You are of course always welcome to contact us via your BK Medical representative or
by contacting us directly.
© 2012 BK Medical
Information in this document may be subject to change without notice.

3
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Scanning Plane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Caring for the Transducer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cleaning and Disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Starting Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting the Transducer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Changing Frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using a Transducer Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the Transducer Control Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Changing Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Puncture Facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
UA1251 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Performing Puncture and Biopsy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning after Puncture and Biopsy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
English source version
BB1980-B

4

8870 User Guide (BB1980-B)
Introduction
This is the user guide for High Frequency Linear Transducer Type 8870 and must be
used together with Care, Cleaning & Safety which contains important safety
information.
8870 is suitable for a wide range of small part and musculoskeletal studies and for
vascular examinations.
Figure 1. High Frequency Linear Array Transducer Type 8870.
Scanning Plane
Figure 2. Scanning plane of Type 8870.
General Information
Product specifications for this transducer can be found in the Product Data sheet that
accompanies this user guide.
Acoustic output data and data about EMC (electromagnetic compatibility) for
this transducer are on the Technical Data CD that accompanies this user guide.
A full explanation of acoustic output is given in your scanner user guide .

6 June 2012 8870 User Guide (BB1980-B)
Service and Repair
Caring for the Transducer
The transducer may be damaged during use or processing, so it must be checked
before use for cracks or irregularities in the surface. It should also be checked
thoroughly once a month following the procedure in Care, Cleaning & Safety
that accompanies this user guide .
Cleaning and Disinfection
To ensure the best results when using BK Medical equipment, it is important to
maintain a strict cleaning routine.
Full details of cleaning and disinfection procedures can be found in the Care,
Cleaning & Safety booklet that accompanies this user guide. A list of disinfectants
that the transducer can withstand are listed in the Product Data sheet that
accompanies this user guide.
Sterile covers are available. See the Product Data sheet for more details.
WARNING
f at any time the scanner malfunctions, or the image is severely distorted or degraded, or
you suspect in any way that the scanner is not functioning correctly:
• Remove all transducers from contact with the patient.
• Turn off the scanner. Unplug the scanner from the wall and make sure it cannot be
used until it has been checked.
• Do not remove the scanner cover.
Contact your BK Medical representative or hospital technician.
WARNING
Always keep the exposure level (the acoustic output level and the exposure time) as low
as possible.
WARNING
Service and repair of BK Medical electromedical equipment must be carried out only by
the manufacturer or its authorized representatives. BK Medical reserves the right to
disclaim all responsibility, including but not limited to responsibility for the operating
safety, reliability and performance of equipment serviced or repaired by other parties.
After service or repairs have been carried out, a qualified electrical engineer or hospital
technician should verify the safety of all equipment.
WARNING
Users of this equipment have an obligation and responsibility to provide the highest
degree of infection control possible to patients, co-workers and themselves. To avoid cross
contamination, follow all infection control policies for personnel and equipment that have
been established for your office, department, or hospital.

8870 User Guide (BB1980-B) 7
Caution:
Keep all plugs and sockets absolutely dry at all times.
Starting Scanning
All equipment must be cleaned and disinfected before use.
Connecting the Transducer
The transducer is connected to the scanner using the array Transducer Socket on the
scanner. To connect, the transducer plug’s locking lever should first be in a horizontal
position. Align the plug to the scanner socket and insert securely. Turn the locking
lever clockwise to lock in place.
When connected, the transducer complies with Type BF requirements of EN60601-1
(IEC 60601-1).
Changing Frequency
The Multi-Frequency Imaging (MFI) facility enables you to select the scanning
frequency. See the applicable scanner user guide for instructions. The selected
frequency is displayed at the top of the screen .
Using a Transducer Cover
The transducer should be enclosed in a transducer cover or a standard condom. See
the Product Data sheet for a list of available transducer covers.
Apply gel to the tip of the transducer. This improves the screen images by preventing
image artifacts caused by air bubbles.
Pull the transducer cover over the transducer.
Gel also creates a good acoustic contact between the skin and the transducer;
therefore, apply a small amount to the outside of the cover prior to scanning. Re-
apply the gel frequently to ensure good screen images .
WARNING
Keep all plugs and sockets absolutely dry at all times.
WARNING
Because of reports of severe allergic reactions to medical devices containing latex ( natural
rubber), FDA is advising health-care professionals to identify their latex-sensitive patients
and be prepared to treat allergic reactions promptly.

8 June 2012 8870 User Guide (BB1980-B)
Using the Transducer Control Button
The transducer has a control button that you can press to Start or Stop scanning
(freeze frame). Press the button for more than one second to make a copy of the
image.
Each time the button is pressed, a “beep” is emitted.
Changing Orientation
To change the orientation of the image on the monitor, refer to the applicable scanner
user guide for instructions.
Puncture Facilities
Puncture and biopsy is possible with Type 8870 transducer. The puncture attachment
is illustrated in the following pages with a brief description of its use and operating
instructions.
UA12 1
The puncture attachment (Figure 3) comprises a mounting bracket, which
secures the puncture attachment to the transducer handle, and a needle guide.
There are three screws marked A, B, and C in Figure 3 A is for securing the
puncture attachment to the transducer, B is to allow the needle guide to be
adjusted to three different angles of insertion, C is for holding the needle in
place.
To mount UA1251:
1 Mount the puncture attachment by fitting the metal mounting bracket on to the
transducer.
2 The metal raised knobs on either side of the transducer fit into the indentations
on the bracket. The ridge on the thin side of the transducer fits into the groove
on the bracket.
3 Tighten the screw (A) to secure the bracket to the transducer.
WARNING
Use only water-soluble agents or gels. Petroleum or mineral oil-based materials may harm
the cover materials.
WARNING
t is essential for the patient’s safety that only the correct puncture attachment is used with
Type 8870. Never use unauthorized combinations of transducers and puncture
attachments or other manufacturers puncture attachments.

8870 User Guide (BB1980-B) 9
Adjusting the angle of UA1251:
There are three different angles of insertion available; 30°, 45° and 60° with
respect to the transducer’s image axis.
1 Loosen screw B until the needle guide can move forward and backward.
2 Move the needle guide until it clicks into place in one of the three indentations
on the mounting bracket.
3 Tighten screw B until the needle guide is securely fixed.
Adjusting the needle guide:
The needle guide can accommodate needles from diameter 0.6mm to 3.4mm.
1 Loosen screw C.
2 Insert needle.
3 Tighten screw C until the needle is held firmly.
Figure 3. Puncture attachment UA1251.
All parts of the puncture attachment can be autoclaved or disinfected by
immersion in a suitable solution.
A
B
C

10 June 2012 8870 User Guide (BB1980-B)

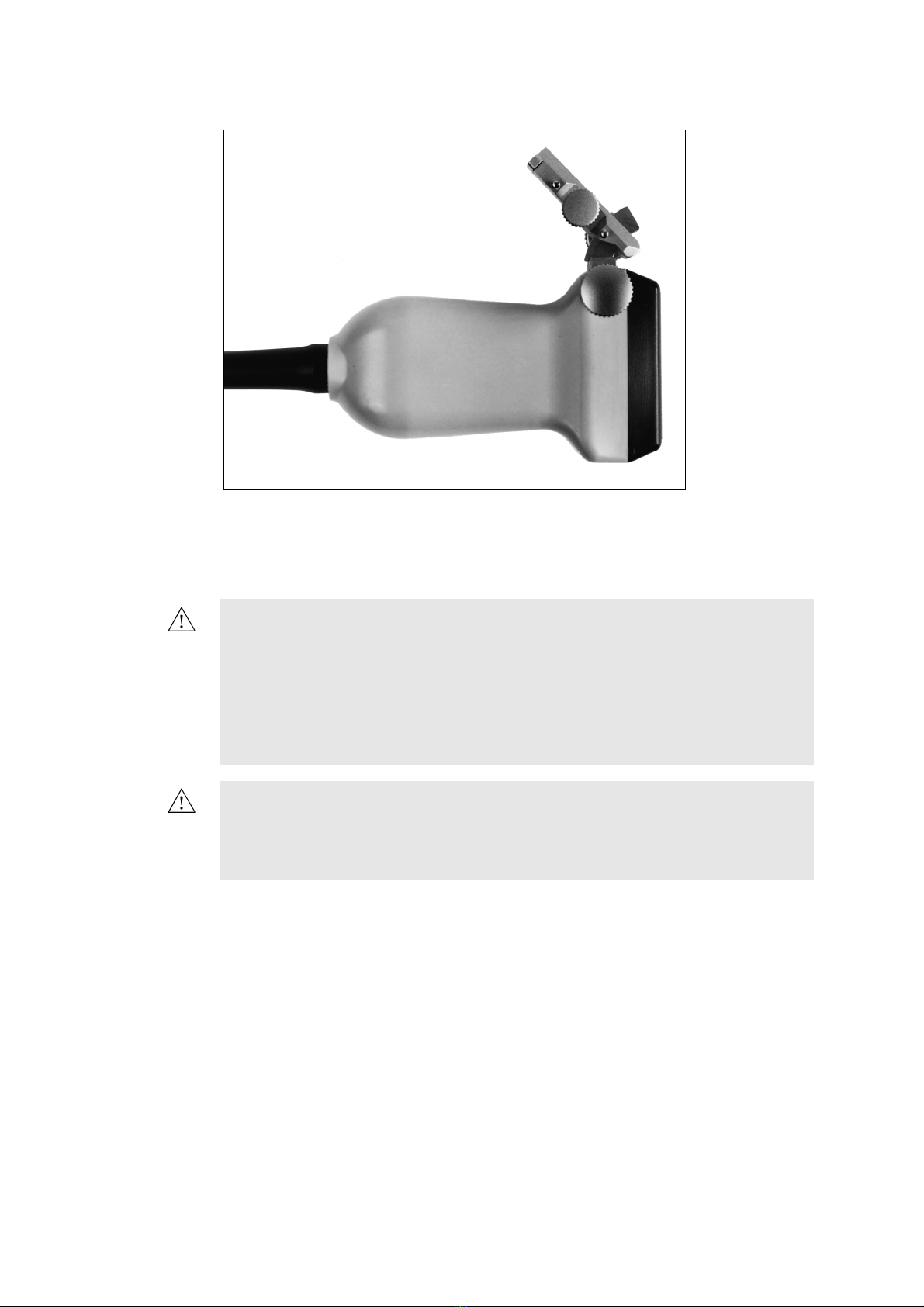

Figure 4. Type 8870 with puncture attachment UA1251 mounted.
Performing Puncture and Biopsy
Cover the transducer with a sterile transducer cover.
If the transducer cover is damaged when attaching the puncture attachment, replace
it with a new cover.
See the Product Data sheet for a list of available transducer covers.
Press the scanner Puncture or Biopsy control button to superimpose a puncture
line on the scan image.
If more than one puncture line is available, refer to the applicable scanner user guide
for instructions on how to change which one appears.
Move the transducer until the puncture line transects the target. Insert the needle and
monitor it as it moves along the puncture line to the target. The needle tip echo will
be seen as a bright dot on the screen.
WARNING
t is essential for the patient’s safety that only the correct puncture attachments, as
described in this guide, are used. Never use unauthorized combinations of transducers
and puncture attachments or other manufacturers puncture attachments.
Before beginning a puncture or biopsy procedure, always check that the type number of
the transducer and the type number or description of the puncture attachment match
exactly those displayed on the scanner monitor.
WARNING
The puncture line on the scan image is an indication of the expected needle path. The
needle tip echo should be monitored at all times so any deviation from the desired path
can be corrected.

8870 User Guide (BB1980-B) 11
To remove the puncture line from the image, refer to the applicable scanner user
guide for instructions.

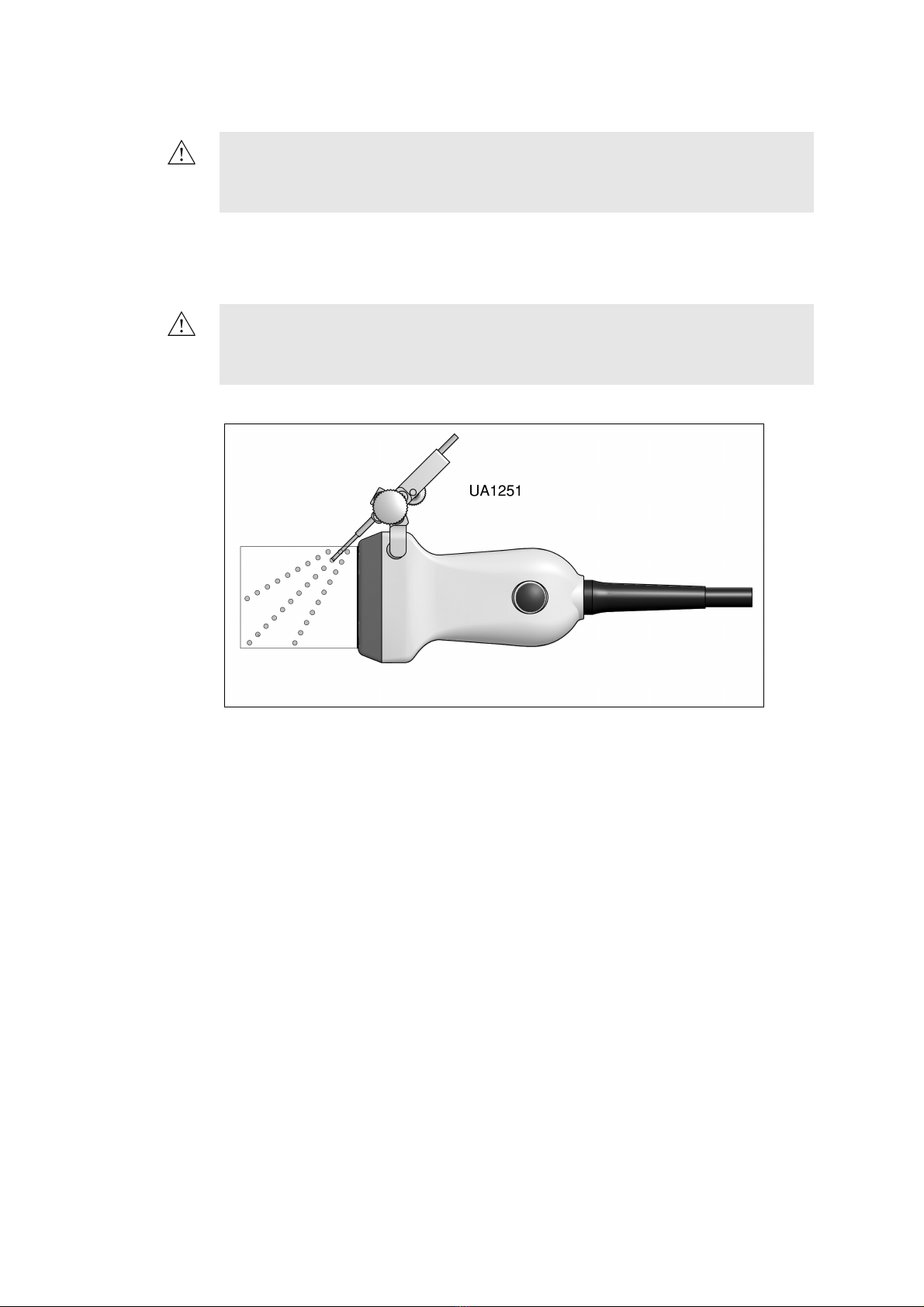

Figure 5. Puncture lines for UA1251 with Type 8870.
The transducer and puncture attachment can be removed without disturbing the
position of the needle during puncture.
Cleaning after Puncture and Biopsy
If biological materials are allowed to dry on the transducer, disinfection and
sterilization processes may not be effective. Therefore, you must clean transducers
immediately after use.
Use a suitable brush to make sure that biological material and gel are removed from
all channels and grooves. See Care, Cleaning & Safety for cleaning instructions.
Disposal
When the transducer is scrapped at the end of its life, national rules for the relevant
material in each individual land must be followed. Within the EU, when you discard
the transducer, you must send it to appropriate facilities for recovery and recycling.
See the applicable scanner user guide for further details.
WARNING
f the needle guide is detached from the transducer during interventional procedures,
cover the transducer with a new transducer cover.
WARNING
When performing a biopsy, always make sure that the needle is fully drawn back inside the
needle guide before moving the probe.

12 June 2012 8870 User Guide (BB1980-B)
WARNING
For contaminated disposals such as transducer covers or needle guides, follow disposal
control policies established for your office, department or hospital.

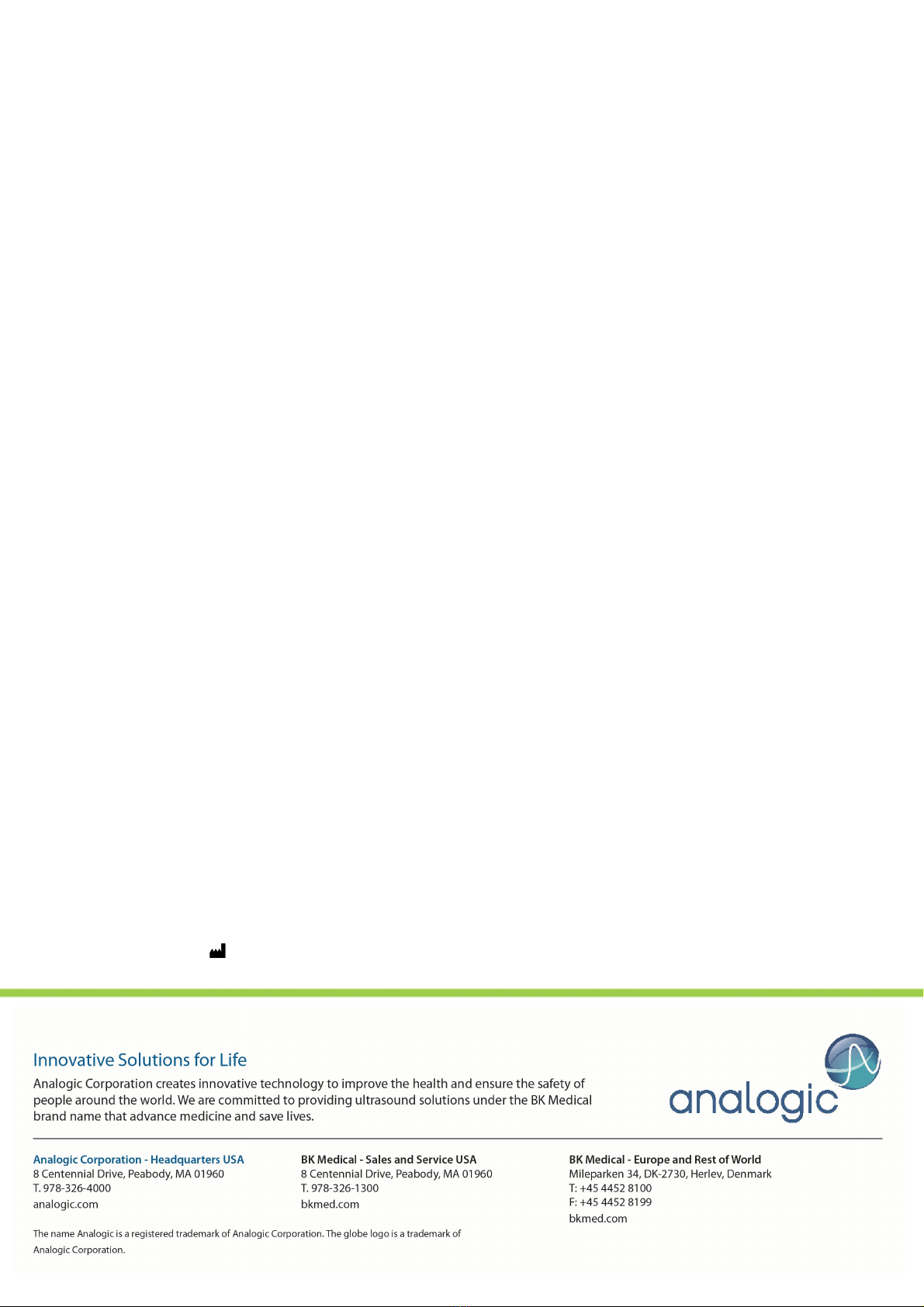

LEGAL MANUFACTURER : BK Me dic al ApS, Mileparken 34, 2730 Herlev, Denma rk. Tel.: [phone] Fax : [phone] E mail: [e-mail]
