B-K Medical 8848 User manual

English
BB1637-C
June 2012 For Professional Users Only
User Guide
Type 8848
Endocavity Biplane Transducer

BK MEDICAL
Mileparken 34
2730 Herlev
Denmark
Tel.:[phone] / Fax:[phone]
www.bkmed.com
Email: [e-mail]
If you have comments about the user documentation, please write to us at the email address
above. We would like to hear from you.
BK Medical Customer Satisfaction
Input from our customers helps us improve our products and services. As part of our customer
satisfaction program, we contact a sample of our customers a few months after they receive their
orders. If you receive an email message from us asking for your feedback, we hope you will be
willing to answer some questions about your experience buying and using our products. Your
opinions are important to us. You are of course always welcome to contact us via your BK
Medical representative or by contacting us directly.
© 2012 BK Medical
Information in this document may be subject to change without notice.

3
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Scanning Plane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Caring for the Transducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Service and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cleaning and Disinfection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Starting Scanning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting the Transducer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Changing Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using a Transducer Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Using the Transducer Control Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Changing Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Endorectal Scanning with 8848 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Adjusting Scan Area and Using Expanded Sector (Trapezoidal View) . . . . . 8
Puncture Facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
UA1232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Performing Puncture and Biopsy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Prostate Volume Determination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Radioactive Source Implantation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Cleaning after Puncture and Biopsy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4

8848 User Guide BB1637-C) 5
Introduction
This is the user guide for Endocavity Biplane Transducer Type 8848 and must
be used together with Care, Cleaning & Safety, which contains important safety
information.
8848 is suitable for transrectal scanning, transvaginal scanning, all
transperineal interventional procedures including brachytherapy and
cryotherapy treatments.
Type 8848 contains two arrays — a convex array for transverse (T) scanning,
and a linear array for sagittal (S) scanning. Both arrays can be used seperately or
they can be used simultaneously. When using the simultaneous biplane feature,
you are able to view two planes at once with a single transducer, and this helps
determine the true position of the needle and its tip during puncture and biopsy .

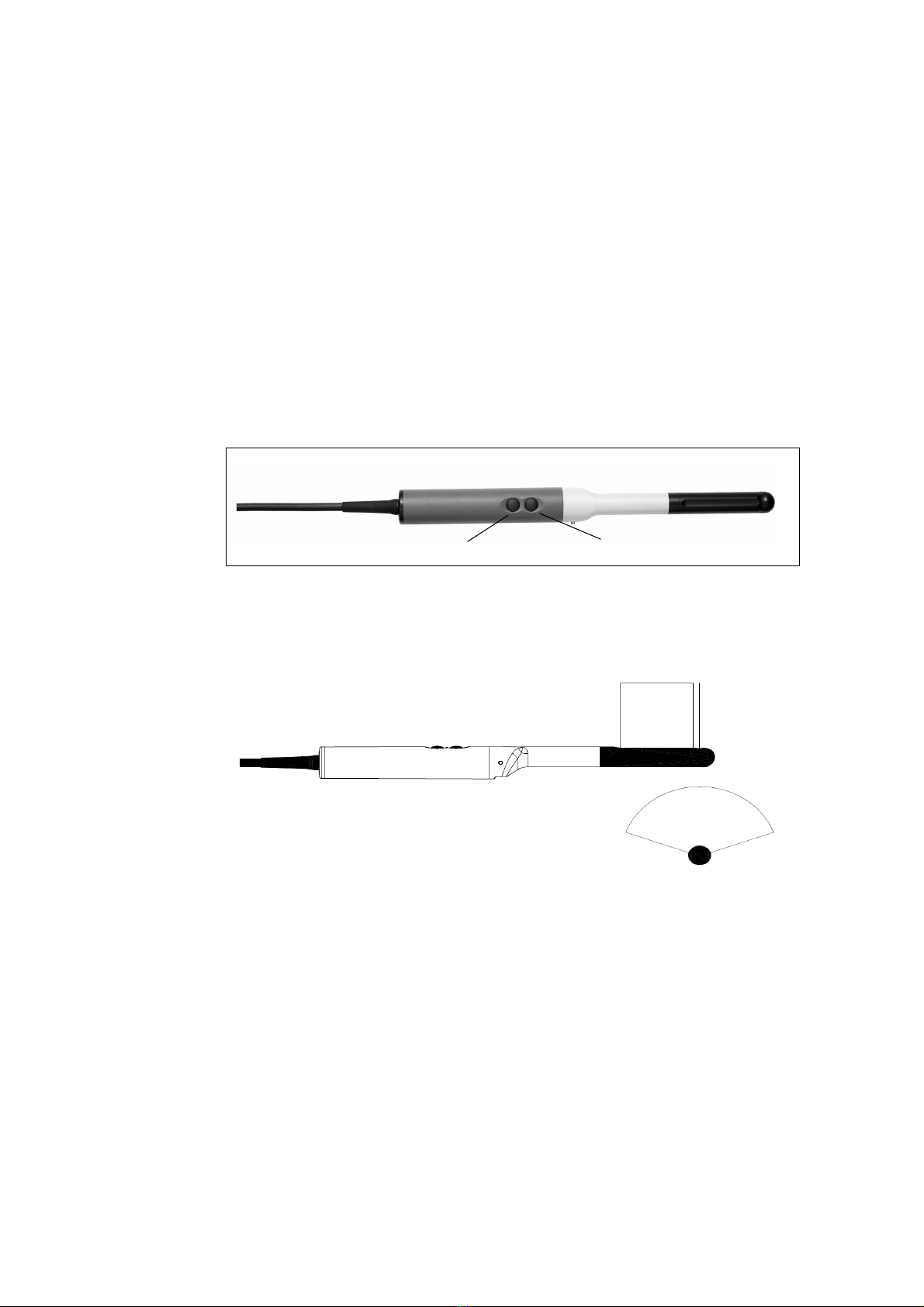

Figure 1. Transducer Type 8848.
Scanning Plane
Figure 2. Scanning plane for Type 8848.
General Information
Product specifications for this transducer can be found in the Product Data sheet that
accompanies this user guide.
Acoustic output data and data about EMC (electromagnetic compatibility) for this
transducer are on the Technical Data CD that accompanies this user guide. A full
explanation of acoustic output is given in your scanner user guide.
Transverse Button
Sagittal Button
I SERT scanning PLA E IMAGE
Sagittal Plane
Transverse Plane

6 June 2012 8848 User Guide BB1637-C)
Caring for the Transducer
The transducer may be damaged during use or processing, so it must be checked
before use for cracks or irregularities in the surface. It should also be checked
thoroughly once a month following the procedure in Care, Cleaning & Safety .
Service and Repair
Cleaning and Disinfection
To ensure the best results when using BK Medical equipment, it is important to
maintain a strict cleaning routine.
Full details of cleaning and disinfection procedures can be found in Care, Cleaning
& Safety that accompanies this user guide. A list of disinfectants and disinfection
methods that the transducer can withstand are listed in the Product Data sheet.
Sterile cover is available. See the Product Data sheet for more details.
WAR I G
If at any time the scanner malfunctions, or the image is severely distorted or degraded, or
you suspect in any way that the scanner is not functioning correctly:
• Remove all transducers from contact with the patient.
• Turn off the scanner. Unplug the scanner from the wall and make sure it cannot be
used until it has been checked.
• Do not remove the scanner cover.
• Contact your BK Medical representative or hospital technician.
WAR I G
Always keep the exposure level the acoustic output level and the exposure time) as low
as possible.
WAR I G
Service and repair of BK Medical electromedical equipment must be carried out only by
the manufacturer or its authorized representatives. BK Medical reserves the right to
disclaim all responsibility, including but not limited to responsibility for the operating
safety, reliability and performance of equipment serviced or repaired by other parties.
After service or repairs have been carried out, a qualified electrical engineer or hospital
technician should verify the safety of all equipment.
WAR I G
Users of this equipment have an obligation and responsibility to provide the highest
degree of infection control possible to patients, co-workers and themselves. To avoid cross
contamination, follow all infection control policies for personnel and equipment that have
been established for your office, department, or hospital.

8848 User Guide BB1637-C) 7
Caution:
Keep all plugs and sockets absolutely dry at all times.
Starting Scanning
All equipment must be cleaned and disinfected before use.
Connecting the Transducer
The transducer is connected to the scanner using the array Transducer Socket on the
scanner. To connect, the transducer plug’s locking lever should first be in a horizontal
position. Align the plug to the scanner socket and insert securely. Turn the locking
lever clockwise to lock in place.
When connected, the transducer complies with Type BF requirements of EN60601-1
(IEC 60601-1).
Changing Frequency
The Multi-Frequency Imaging (MFI) facility enables you to select the scanning
frequency. See the applicable scanner user guide for instructions. The selected
frequency is displayed at the top of the screen.
Using a Transducer Cover
The transducer should be enclosed in a transducer cover or a standard condom. See
the Product Data sheet for a list of available transducer covers.
Apply sterile gel to the tip of the transducer. This improves the screen images by
preventing image artifacts caused by air bubbles.
Pull the transducer cover over the transducer.
Gel also creates a good acoustic contact between the skin and the transducer;
therefore, apply a small amount to the outside of the cover prior to scanning. Re-
apply the gel frequently to ensure good screen images.
WAR I G
Keep all plugs and sockets absolutely dry at all times.
WAR I G
Because of reports of severe allergic reactions to medical devices containing latex natural
rubber), FDA is advising health-care professionals to identify their latex-sensitive patients
and be prepared to treat allergic reactions promptly.

8 June 2012 8848 User Guide BB1637-C)
Using the Transducer Control Button
The transducer has two control buttons, one for the sagittal array and one for the
transverse array (See Figure 1). Pressing the button activates (starts) or freezes
(stops) scanning in that plane. Press the button for more than one second to make a
copy of the image. Each time the button is pressed, a “beep” is emitted.
Changing Orientation
To change the orientation of the image on the monitor, refer to the applicable scanner
user guide for instructions.
Endorectal Scanning with 8848
Type 8848 is designed for simultaneous biplane scanning of the prostate.
Adjusting Scan Area and Using Expanded Sector (Trapezoidal View)
The width of the image area can be adjusted using the Width key on the
scanner’s control panel. See the applicable scanner user guide for instructions.
With the Expanded Sector feature and the 8848, you can increase the transverse
sector angle from a default width of 140° to 180°. And, you can increase the
default saggital view of 65mm to a trapezoidal view, which provides an
additional 15°on each side.
WAR I G
Use only water-soluble agents or gels. Petroleum or mineral oil-based materials may harm
the cover materials.
WAR I G
Do not use excessive force during insertion. Do not make excessive lateral
movements during or after insertion. Risk of injury or tissue damage to the
patient could occur under certain circumstances. A digital palpation of the
rectum may need to be carried out by a clinician prior to insertion or use of the
probe as a precautionary measure.

8848 User Guide BB1637-C) 9
Figure 3. Dotted lines indicating expanded sectors on transducer type 8848.
Puncture Facilities
Puncture and biopsy is possible with Type 8848 transducer. The appropriate puncture
attachments are illustrated in the following pages with a brief description of their
uses and operating instructions.
UA1232
This metal puncture attachment (see Figure 4) is designed for transperineal
puncture and biopsy. It consists of a needle guide and a mounting ring with a
lock screw. The needle guide comprises 9 parallel guide channels, spaced 5mm
apart, each with an internal diameter of 2.1mm, suitable for an 14 Gauge
needle.
WAR I G
It is essential for the patient’s safety that only the correct puncture attachment is
used with Type 8848. Never use unauthorized combinations of transducers and
puncture attachments or other manufacturers’ puncture attachments.

10 June 2012 8848 User Guide BB1637-C)
The guide channels are angled at 0° to the transducer’s longitudinal axis and
90° to the transverse scanning plane.
Note: The needle guide can be adjusted 90mm lengthwise with respect to the
mounting ring using the adjustment screw.
Figure 4. The puncture attachment UA 1232.
To mount the transperineal puncture attachment, loosen the lock screw and
slide the attachment over the tip of the transducer until the lock screw pressure-
pad meets the steel stud on the side of the transducer. The puncture attachment
should be correctly positioned (see Figure 5) before the lock screw is tightened.
No force should be used when attaching the puncture attachment to the
transducer.
Figure 5. Type 8848 with puncture attachment UA1232.
All parts of the puncture attachment can be autoclaved or disinfected by
immersion in a suitable solution.

8848 User Guide BB1637-C) 11
Performing Puncture and Biopsy
Cover the transducer with a sterile transducer cover.
If the transducer cover is damaged when attaching the puncture attachment, replace
it with a new cover.
See the Product Data sheet for a list of available transducer covers.
Press the scanner Puncture or Biopsy control button to superimpose a puncture
line on the scan image.
If more than one puncture line is available, refer to the applicable scanner user guide
for instructions on how to change which one appears.
Move the transducer until the puncture line transects the target. Insert the needle and
monitor it as it moves along the puncture line to the target. The needle tip echo will
be seen as a bright dot on the screen.
WAR I G
It is essential for the patient’s safety that only the correct puncture attachments, as
described in this guide, are used. Never use unauthorized combinations of transducers
and puncture attachments or other manufacturers puncture attachments.
Before beginning a puncture or biopsy procedure, always check that the type number of
the transducer and the type number or description of the puncture attachment match
exactly those displayed on the scanner monitor.
WAR I G
The puncture line on the scan image is an indication of the expected needle path. The
needle tip echo should be monitored at all times so any deviation from the desired path
can be corrected.
WAR I G
If the needle guide is detached from the transducer during interventional procedures,
cover the transducer with a new transducer cover.
WAR I G
When performing a biopsy, always make sure that the needle is fully drawn back inside the
needle guide before moving the probe.

12 June 2012 8848 User Guide BB1637-C)
To remove the puncture line from the scan image, refer to the applicable
scanner user guide for instructions.
Figure 6. Illustration of the puncture lines for puncture attachment UA1232.
Prostate Volume Determination
Refer to the Scanner User Guide for instructions on how to carry out a prostate
volume determination, and the best procedure to use.
Radioactive Source Implantation
Transducer Type 8848 can be used with the CMS AccuseedTM Brachystepper
System and with CIVCO AccuCare stepper units for radioactive seed
implantation.
Please consult the appropriate stepper documentation for instructions on Source
Implantation, including Preplanning, Needle Loading and Implantation.
The 8848 should be prepared for transrectal scanning and biopsy as described
earlier in this guide, and mounted and ’’locked’’ in the stepping unit.
The volume study of the prostate is performed, the radiation dose planned and
the needles loaded.
To superimpose the source matrix on to the monitor, refer to the scanner user
guide for further details.
Before starting source implantation, anchor the prostate to the matrix using
thread or needles to prevent it moving during needle placement.
Always place the needles individually, starting at the top of the matrix
according to the predetermined sequence.
WAR I G
Always place the cradle in the ’’locked’’ position before seed implantation.
When the cradle is in this position, the matrix on the stepping unit
corresponds with the matrix puncture pattern in the transverse plane on the
scanner’s monitor.

8848 User Guide BB1637-C) 13
Using a transverse view of the prostate, advance the needle. Change to the
sagittal plane to find the position of the needle on the screen and monitor it
during insertion.
When the needle is in place, the radioactive sources can be expelled into the
gland. The needle is then removed. The sagittal plane can be used to check the
position of the radioactive sources. Repeat this sequence until implantation is
complete. The anchors can then be removed.
Cleaning after Puncture and Biopsy
If biological materials are allowed to dry on the transducer, disinfection and
sterilization processes may not be effective. Therefore, you must clean transducers
immediately after use.
Use a suitable brush to make sure that biological material and gel are removed from
all channels and grooves. See Care, Cleaning & Safety for cleaning instructions.
Disposal
When the transducer is scrapped at the end of its life, national rules for the relevant
material in each individual land must be followed. Within the EU, when you discard
the transducer, you must send it to appropriate facilities for recovery and recycling.
See the applicable scanner user guide for further details.
WAR I G
For contaminated disposals such as transducer covers or needle guides, follow disposal
control policies established for your office, department or hospital.

14 June 2012 8848 User Guide BB1637-C)

LEGAL MA UFACTURER : BK Medic al ApS, Milepa rken 34, 2730 Herlev, Denmark. Tel.: [phone] Fax : [phone] Email: info@bkme d.dk
