B-K Medical N13C5 User manual

For Professional Users Only
16-01270-EN-06
November 2018
N13C5 Transducer
UserGuide

N13C5 = Ref. Type 9062
LEGAL MANUFACTURER
BK MEDICAL
Mileparken 34
2730 Herlev
Denmark
Tel.:[phone]/Fax:[phone]
www.bkmedical.com
Email: [email protected]
The serial number of a BK Medical product contains information about the year of manufacture.
To obtain the date of manufacture of a product, please contact your BK Medical representative or write
to us at the email address above, including the product’s serial number (SN number).
BK Medical Customer Satisfaction
Input from our customers helps us improve our products and services. Your opinions are important to
us. You are always welcome to contact us via your BK Medical representative or by contacting us
directly.
© 2018 BK Medical
Information in this document may be subject to change without notice.

3
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Indications for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Service and Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Caring for the Transducer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Reprocessing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Starting Imaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connecting the Transducer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Changing Frequency. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using a Transducer Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the Transducer Control Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Changing Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Neurosurgical Imaging with N13C5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Puncture and Biopsy Facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Single-Use Needle Guide UA1345 for N13C5 . . . . . . . . . . . . . . . . . . . . . . 10
Assembling and Mounting the Needle Guide. . . . . . . . . . . . . . . . . . . . . . . . 12
Attaching N13C5 and UA1345 to a LEYLA Arm . . . . . . . . . . . . . . . . . . . . 13

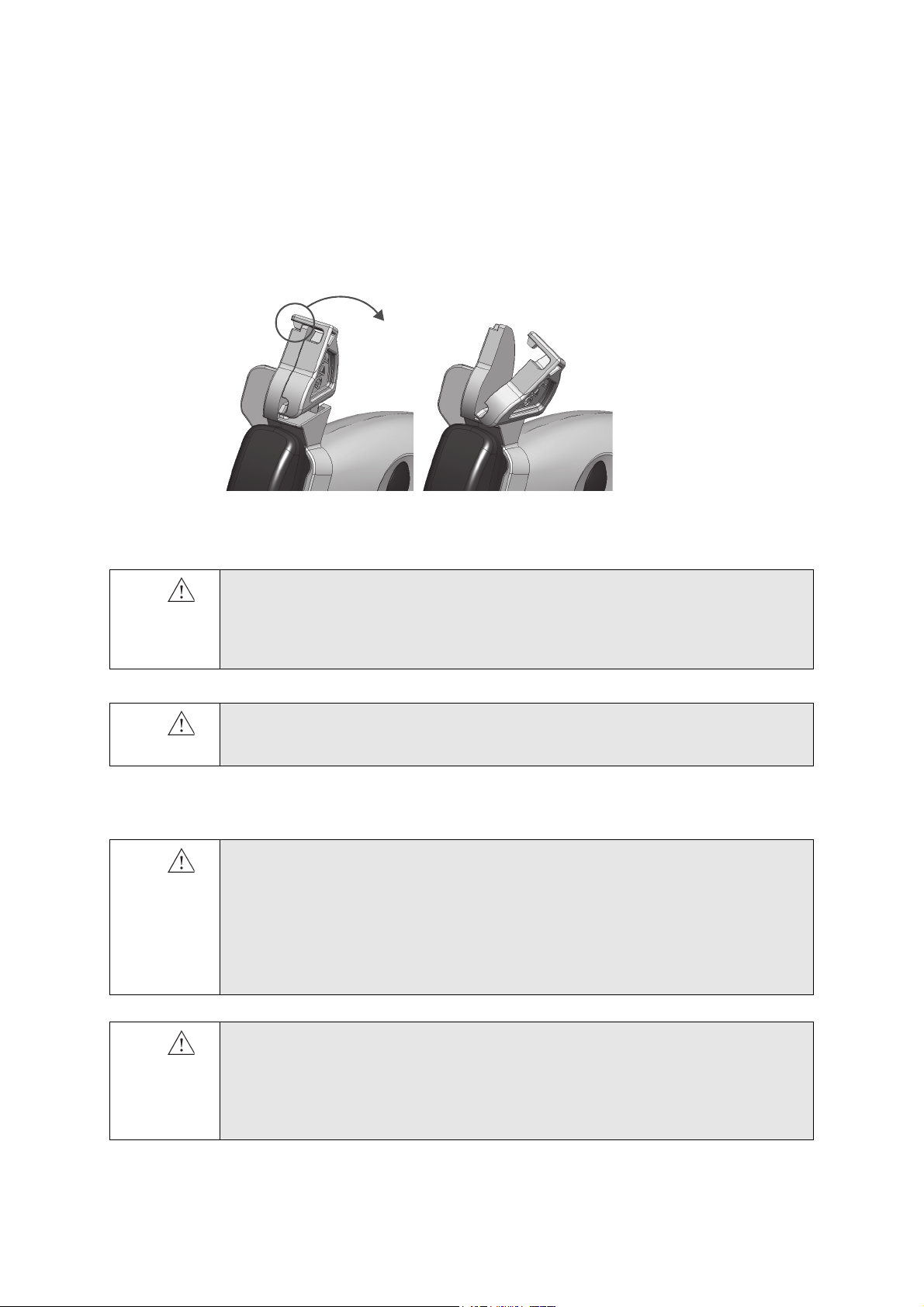

Releasing the Needle During Biopsy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Performing Puncture and Biopsy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cleaning after Puncture and Biopsy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
English Source Version
16-01270-EN-06

4

N13C5 User Guide (16-01270-EN-06) Introduction 5
Introduction
This is the user guide for the N13C5 transducer and it must be used together with the
Care and Cleaning user guide which contains important safety information.
Intended use
The transducer is intended for diagnostic ultrasound imaging or fluid flow
analysis of the human body.
Indications for Use
N13C5 is also suitable for elastography
1
. Needle guide UA1345 provides needle
guidance for biopsy and drainage (following craniotomy).
Patient Population
The patient population is neonates
2
, infants, children, adolescents and adults.
Physicians
only
Caution Rx-c1
United States law restricts this device to sale by or on the order of a physician.
System Indications for Use
bk3000, bk3500 • Neonatal cephalic imaging
• Pediatric imaging
bk5000
• Intraoperative (neuro) imaging
(neurosurgery)
• Neonatal cephalic imaging
• Intraoperative imaging
• Pediatric imaging
1. Use of N13C5 for elastography has not been CE-marked.
WARNING Cardio-w1
To avoid patient injury, do not use the transducer for applications where it may come in
direct conductive contact with the patient's heart.
2. Neonatal cephalic and pediatric imaging only.

6 November 2018 N13C5 User Guide (16-01270-EN-06)
Figure 1. N13C5 transducer
Contraindications
General Information
Product specifications, acoustic output data and data about EMC (electromagnetic
compatibility) for this transducer can be found in the Product Data Sheet and the
Technical Data (BZ2100) that accompany this user guide.
WARNING T-w6
To avoid causing injury to the eye, do not use this transducer for ophthalmic use, or any
application that causes the acoustic beam to pass through the eye.
WARNING GS-w2
If at any time the system malfunctions, or the image is severely distorted or degraded, or you
suspect in any way that the system is not functioning correctly:
• Remove all transducers from contact with the patient.
• Turn off the system. Unplug the system from the wall and make sure it cannot be used
until it has been checked.
• Do not try to repair the system yourself.
• Contact your BK service representative or hospital technician.
WARNING AO-w1
To avoid tissue damage, always keep the exposure level (the acoustic output level and the
exposure time) as low as possible.
Neonate or
fetus
WARNING AO-w3
To reduce the risk of thermal damage to tissues, be sure to keep the acoustic output as low
as possible when you expose the head, brain, or spine of any neonate or fetus to diagnostic
ultrasound.

N13C5 User Guide (16-01270-EN-06) Reprocessing 7
Service and Repair
Caring for the Transducer
The transducer may be damaged during use or reprocessing, so it must be checked
before use for cracks or irregularities in the surface, following the procedure in
Care
and Cleaning
. It should also be checked thoroughly once a month following the
same procedure.
Reprocessing
To ensure the best results when using BK Medical equipment, it is important to
maintain a strict cleaning routine.
Complete details and procedures can be found in Care and Cleaning that
accompanies this user guide. A list of reprocessing methods that the transducer
can withstand are listed in the Product Data Sheet.
Sterile covers are available. See the Product Data Sheet for more information.
Starting Imaging
Before use, all equipment must be reprocessed according to expected use.
WARNING SR-w1
Service and repair of BK electromedical equipment must be carried out only by the
manufacturer or its authorized representatives. BK Medical reserves the right to disclaim all
responsibility, including but not limited to responsibility for the operating safety, reliability
and performance of equipment serviced or repaired by other parties. After service or repairs
have been carried out, a qualified electrician or hospital technician should verify the safety
of all equipment.
WARNING Reproc-w2
Users of this equipment have an obligation and responsibility to provide the highest
possible degree of infection control to patients, co-workers and themselves. The
instructions in this book are meant as a guide. To avoid cross-contamination, follow all
infection control policies (including for reprocessing, packing and storage) for personnel
and equipment that have been established for your office, department or hospital.
WARNING T-w5
To prevent electrical shock and damage to the transducer, the connector pins in the
transducer plug must always be completely dry before you connect to a system.

8 November 2018 N13C5 User Guide (16-01270-EN-06)
Connecting the Transducer
The transducer is connected to the system using the array transducer socket on the
system. To connect, flip the system’s locking lever to the right. Align the transducer
plug to the system socket and insert securely. Flip the system’s locking lever to the
left to lock it.
When connected, the transducer complies with Type BF requirements of EN60601-1
(IEC 60601-1).
Changing Frequency
The multifrequency imaging (MFI) control enables you to select the imaging
frequency. See the applicable system user guide for instructions.
Using a Transducer Cover
BK recommends the use of a sterile transducer cover to reduce the risk of cross-
contamination. See the Product Data Sheet for a list of available transducer covers.
Follow local guidelines for the use of transducer covers in your area.
NOTE: In the United States of America, it is recommended to use transducer covers
that have been market cleared. In Canada, use only licensed transducer covers. In
Europe, transducer covers must be CE-marked.
WARNING GS-w4a
It is essential for the patient’s safety that only the correct equipment is used.
• Do not use other manufacturers’transducers with BK ultrasound systems.
• Do not use BK transducers with other manufacturers’ systems.
• Do not use unauthorized combinations of transducers and needle guides.
WARNING TC-w7
Use only approved non-pyrogenic, sterile transducer covers.This means that in the USA they
must be market cleared by the FDA and in Europe they must be CE-marked. In Canada, they
must be licensed by Health Canada.
WARNING TC-w1
Some transducer covers can contain latex. Because of reports of severe allergic reactions to
medical devices containing latex (natural rubber), the FDA advises health-care professionals
to identify their latex-sensitive patients and be prepared to treat allergic reactions promptly.
WARNING TC-w2
For neurosurgical applications, use only non-pyrogenic, sterile transducer covers that are
approved for neurosurgical use. This means that in the USA they must be market cleared by
the FDA and in Europe they must be CE-marked. In Canada, they must be licensed by Health
Canada.

N13C5 User Guide (16-01270-EN-06) Neurosurgical Imaging with N13C5 9
Apply sterile gel to the tip of the transducer or fill the cover with 1 to 2 ml of sterile
water. This improves screen imaging by preventing image artifacts caused by air
bubbles.
Pull the transducer cover over the transducer. Check for air bubbles between the
cover and the transducer and even out if necessary before proceeding.
For Intraoperative Applications:
• Irrigate the organ to be imaged with 0.9% sterile physiological saline solution
while imaging.
For Surface Use:
• Gel also creates a good acoustic contact between the skin and the transducer:
Therefor, apply a small amount to the outside of the cover prior to imaging and
reapply frequently.
Follow these precautions when putting sterile covers on a transducer:
• Wear sterile gloves.
• When using a puncture attachment, place it gently over the cover and secure it,
following the instructions for the puncture attachment.
• Verify that the cover has not been damaged in the process. If it has, repeat the
procedure with a new transducer cover.
Using the Transducer Control Button
The control button on the transducer controls the imaging.
Press the button to Start or Stop imaging (freeze frame). Press the button for more
than one second to make a copy of the image.
Changing Orientation
To change the orientation of the image on the monitor, refer to the applicable system
user guide for instructions.
Neurosurgical Imaging with N13C5
Caution T-c3
Use only water-based gel (sterile if you are using a sterile transducer cover). Products
containing parabens, petroleum, or mineral oils may harm the transducer or transducer
cover.
WARNING C-J-w1
Do not use a transducer for neurosurgical applications if the patient is suspected of having
Creutzfeldt-Jakob disease. If a neurosurgical transducer has been used on a patient
suspected of or diagnosed as being Creutzfeldt-Jakob positive, the transducer must be
destroyed, following approved procedures for your hospital.

10 November 2018 N13C5 User Guide (16-01270-EN-06)
Puncture and Biopsy Facilities
The N13C5 transducer can be used for puncture and biopsy. The appropriate
puncture attachments are illustrated on the following pages with a brief description
of their use and operating instructions.
Single-Use Needle Guide UA1345 for N13C5
Needle guide UA1345 is supplied sterile in peel packs and is for single-use only.
Contents are sterile only if the package is intact. The needle guide, inserts, and
palettes must be discarded after use.
The sterile-packed needle guide must be stored at a temperature range from +5 ºC
(+41 ºF) to +25 ºC (+77 ºF) and a storage humidity of 0% to 80%.
WARNING TC-w5
If the transducer cover is damaged during interventional procedures, follow the policies of
the hospital or clinic for treatment of the patient under such circumstances.
WARNING Sterile-w1
Single-use components are packaged sterile and are intended for single-use only.
Do not use if:
• Integrity of packaging is violated
• Expiration date has passed
• Package label is missing
WARNING Sterile-w2
Sterile-packed components must be stored in a safe environment and kept out of direct
sunlight. Large temperature changes during storage may cause condensation and violate
the integrity of the packaging.
WARNING D-w1
For disposal of contaminated items such as transducer covers or needle guides or other
disposable items, follow disposal control policies established for your office, department, or
hospital.

N13C5 User Guide (16-01270-EN-06) Puncture and Biopsy Facilities 11
Figure 2. Two needle-guide insert palettes together with needle guide UA1345.
Figure 3. Needle Guide UA1345 for N13C5; the numbered steps refer to the procedure on the
following pages describing how to mount the needle guide.
Single-use Needle Guide UA1345 (see Figure 3) is for use with N13C5 and is
supplied together with two needle guide insert palettes (see Figure 2). Each palette
contains a set of 9 needle guide inserts; one palette with 3-angle inserts and one
palette with free-angle inserts.
The 3-angle inserts each contain three channels. These channels allow the needle to
be positioned at 25°, 45°, or 65° to the image axis of N13C5.
The free-angle inserts are slotted to allow positioning of the needle at any angle
between 25° and 65° to the image axis of N13C5 while making sure that the needle
follows the plane of the image.
Palette with
3-angle inserts
Palette with
free-angle inserts
Needle guide
Needle guide
Needle guide insert
Needle
channels
Wedge-shaped
channel
These two ridges fit into the grooves at
the tip of the transducer
(step 5)
Slide the insert into the wedge-
shaped channel in the needle
guide until it clicks into place
(step 3)
The bracket
fits around
the tip of
the
transducer
(step 6)

12 November 2018 N13C5 User Guide (16-01270-EN-06)
Puncture
lines indicate
expected
needle path
The puncture line on the scan image is an indication of the expected needle path (see
Figure 7). The distance from the guide channel entrance of the puncture attachment
to the first dot on the scan image puncture line is approximately 7.5 mm (0.3 in) for
25°, 12 mm (0.5 in) for 45°, and 19 mm (0.7 in) for 65°. The distance between the
dots is 5 mm (0.2 in).
Assembling and Mounting the Needle Guide
To assemble and mount a needle guide on N13C5:
1 Apply a small amount of imaging gel to the tip of the transducer and carefully
cover the transducer with a sterile cover.
2 Select the required needle guide insert by breaking it off the palette (see Figure
2).
3 Find the wedge-shaped channel in the needle
guide, and slide the insert into the channel in
the needle guide until it clicks into place and
aligns with the needle guide.
4 Hold the assembled needle guide with the bracket pointing down.
5 Align the two grooves on the transducer with the two ridges on the needle guide.
6 Carefully smooth and stretch the
transducer cover along the face of the array
and apply pressure until the needle guide
clicks into place over the end of the
transducer.
Figure 4 below shows the needle guide
mounted on the transducer.

N13C5 User Guide (16-01270-EN-06) Puncture and Biopsy Facilities 13
Figure 4. UA1345 mounted on N13C5 (shown here without transducer cover).
7 Carefully insert the needle into the needle channel.
Attaching N13C5 and UA1345 to a LEYLA Arm
Needle guide UA1345 (for use with N13C5) has a tab that can be used to secure it to
a LEYLA arm (see Figure 5).
Figure 5. N13C5 transducer with needle guide can be attached to a LEYLA arm.
NOTE: Ensure that the transducer cable is secured so that it cannot move and pull the
transducer out of position.
WARNING P-w9
Ensure that the channel bracket and needle guide are correctly positioned. Never insert
the needle guide while the transducer is inside the patient.
Caution P-c1
To avoid contamination, do not let the needle scrape the inside of the needle
channel.
Use this tab to attach the
needle guide and
transducer to a LEYLA arm
Caution T-c4
Ensure that the transducer and needle guide are attached firmly to the LEYLA arm so that
they stay in position and do not fall off

14 November 2018 N13C5 User Guide (16-01270-EN-06)
Releasing the Needle During Biopsy
You can release the needle during biopsy so that the needle guide and transducer can
be removed from the patient, leaving only the needle in place.
How to release the needle guide on N13C5 :
1 Hold the transducer with your left hand. With your right hand, carefully push the
needle guide insert sideways until it opens up (see Figure 6).
Figure 6. Push to release the needle guide on the N13C5.
2 Carefully move the transducer and needle guide away from the needle.
Performing Puncture and Biopsy
If the transducer is not sterilized, cover it with a sterile transducer cover.
WARNING TC-w4
If you detach the needle guide during interventional procedures, the transducer cover could
be damaged. To avoid cross-contamination, cover the transducer with a new transducer
cover before reattaching the needle guide.
WARNING Exam-w5
Be careful not to lose any parts of the needle guide inside the patient.
WARNING P-w1
Before you start imaging, verify that the type number or name of the transducer and the
type number or description of the needle guide you are using match the number displayed
on the monitor. Also make sure that the needle guide is positioned correctly. If the numbers
do not match, or if the needle guide position is not correct, the puncture line on the monitor
may not correspond to the true puncture path in the tissue. In case of any inconsistency,
stop imaging, turn off the system, and contact your BK service representative.
WARNING P-w6
The puncture line on the image is an indication of the expected needle path. To avoid
harming the patient, the needle tip echo should be monitored at all times so any deviation
from the desired path can be corrected. You must take extra care when taking a freeangle
biopsy because the expected needle path is not shown.

N13C5 User Guide (16-01270-EN-06) Performing Puncture and Biopsy 15
If the transducer cover is damaged when attaching the puncture attachment, replace
it with a new cover.
See the Product Data Sheet for a list of available transducer covers.
Press the Puncture or Biopsy control on the system to superimpose a puncture line
on the scan image.
If more than one puncture line is available, refer to the applicable system user guide
for instructions on how to change which one appears.
Move the transducer until the puncture line transects the target. Insert the needle and
monitor as it moves along the puncture line to the target. The needle tip echo will be
seen as a bright dot on the screen.
To remove the puncture line from the scan image, refer to the applicable system user
guide for instructions.
Figure 7. Illustration of the puncture lines for single-use needle guide UA1345 when mounted
on N13C5 transducer. You must take extra care when taking a free-angle biopsy
because the expected needle path is not shown on the screen image.
Cleaning after Puncture and Biopsy
WARNING TC-w5
If the transducer cover is damaged during interventional procedures, follow the policies of
the hospital or clinic for treatment of the patient under such circumstances.
WARNING P-w5
Avoid unnecessary tissue damage. When performing a biopsy, always make sure that the
needle is fully drawn back inside the needle guide before moving the probe.
N13C5 & UA1345
WARNING Reproc-w3
Immediately after use, you must pre-clean the device until visually clean (including
device lumens if existing). Conduct the thorough cleaning process as soon as
possible after use in order to prevent bioburden drying on the surface. Dried
bioburden can lead to inefficient cleaning, disinfection and sterilization, causing a
risk of cross-contamination.
If pre- and thorough cleaning cannot be done immediately, keep the device moist until
cleaning.

16 November 2018 N13C5 User Guide (16-01270-EN-06)
Use a suitable brush to make sure that biological material and gel are removed from
all channels and grooves. See Care and Cleaning for cleaning instructions.
Disposal
When the transducer is scrapped at the end of its life, national rules for the relevant
material in each individual land must be followed. Within the EU, when you discard
the transducer, you must send it to appropriate facilities for recovery and recycling.
WARNING D-w1
For disposal of contaminated items such as transducer covers or needle guides or other
disposable items, follow disposal control policies established for your office, department, or
hospital.
