B-Link Video Doorbell User manual

Blink Video Doorbell Setup Guide

Thank you for purchasing Blink! The Blink Video Doorbell lets you see and hear
what’s happening at your front door and talk back through your smartphone with
its two-way talk feature. We want you to have your Blink Video Doorbell up and
running in no time, but in order to do so, please be sure to follow all instructions.
For even more information, please visit our support site at: support.blinkforhome.com
PLEASE FOLLOW ALL INSTRUCTIONS CAREFULLY AND READ THE
SAFETY INFORMATION ON PAGE 30. FAILURE TO DO SO MAY
RESULT IN FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY.
Getting started in your Blink Home Monitor App.
Position your doorbell.
Mount your doorbell.
What to expect when installing
your doorbell:
What you may need:
1.
2.
3.
Drill
Phillips head screwdriver no. 2
Hammer
1
1
1
Page |2 Page |3

Part 1: Getting started in your Blink
Home Monitor App
1.
2.
3.
Download and launch the Blink Home Monitor App and create an account or
log into your existing one.
If you created an account, in your app select “Add a System”. If you logged into
an existing account, select “Add a Blink Device”.
Follow the in app instructions to complete setup.
For even more information, please visit our support site at: support.blinkforhome.com
We recommend connecting your Blink Video Doorbell to existing doorbell wiring
to extend your battery life even longer!
Part 2: Position your doorbell
Turn o your powe
If exposing doorbell wiring, for your safety, turn o your doorbell’s power
source at your home’s breaker or fuse box. Press your doorbell to test if the
power is o and follow the proper safety precautions before proceeding. If you
are unsure about handling electrical wiring, consult a qualied electrician.
Determine your camera location
Activate your Blink Video Doorbell live view function to determine your
doorbell’s position. You can position your Blink Video Doorbell in place of your
existing doorbell or anywhere around your door. We recommend installing
your doorbell about 4 feet o the ground.
If you’re exposing doorbell wiring, but not connecting your Blink Video
Doorbell, wrap both individual wires separately with provided tape strips to
terminate wires.
Adjust the angle with a wedge (Optional)
Do you like the view from your Blink Video Doorbell? If not, adjust it using the
provided wedge set to angle your doorbell either left, right, up or down! See
gures A and Bon pages 6 and 7 for examples.
Note: You can t the wedge over your existing wiring if you would like to wire
your Blink Video Doorbell.
Select your trim cover (Optional)
Change your Blink Video Doorbell trim to better match your home using the
provided alternative trim color. Simply snap o and snap on!
1.
2.
3.
4.
Page |4 Page |5

Figure B (Optional)
Doorbell with
vertical angled
wedge.
Figure A (Optional)
Doorbell with horizontal
angled wedge.
Door
Page |6 Page |7

If you are mounting your Blink Video Doorbell to a brick, stucco or other mortar
surface, drill pilot holes and use the included anchors prior to mounting.
Based on how you positioned your doorbell in the last step, select the mounting
option below that best describes your setup. Go to the page number provided and
follow your instructions.
Regardless of the option you choose, please make sure that you have
inserted the two AA lithium batteries prior to mounting your doorbell.
Part 3: Mount your doorbell
A. Wires, No Wedge C. No Wires, Wedge D. Wires & WedgeB. No Wires, No Wedge
You want to connect your Blink
Video Doorbell to existing wiring
and you do not need a wedge.
Go to page 10
You do not want to connect to
existing wiring and want to run
on batteries only. You do not
need a wedge.
(Note: If you don’t use existing
wiring, the doorbell will not
sound your home’s existing
doorbell chime.)
Go to page 14
You do not plan to connect your
Blink Video Doorbell to existing
wiring and you want to use a
wedge to adjust your eld of
view.
(Note: If you don’t use existing
wiring, the doorbell will not
sound your home’s existing
doorbell chime.)
Go to page 18
You want to connect your Blink
Video Doorbell to existing wiring
and you want to use a wedge to
adjust the eld of view.
Go to page 22
Page |8 Page |9

Figure AFigure B
Wires
Mounting plate
Wires
Mounting plate
For even more information, please visit our support site at: support.blinkforhome.com
Position mounting template so that wires t through the designated “wiring”
hole on template. You can nd your removable mounting template on page 35.
Use the provided mounting template to either mark drill points or drill pilot
holes for designated “mounting plate” holes.
Remove mounting plate from Blink Video Doorbell unit if you haven’t already.

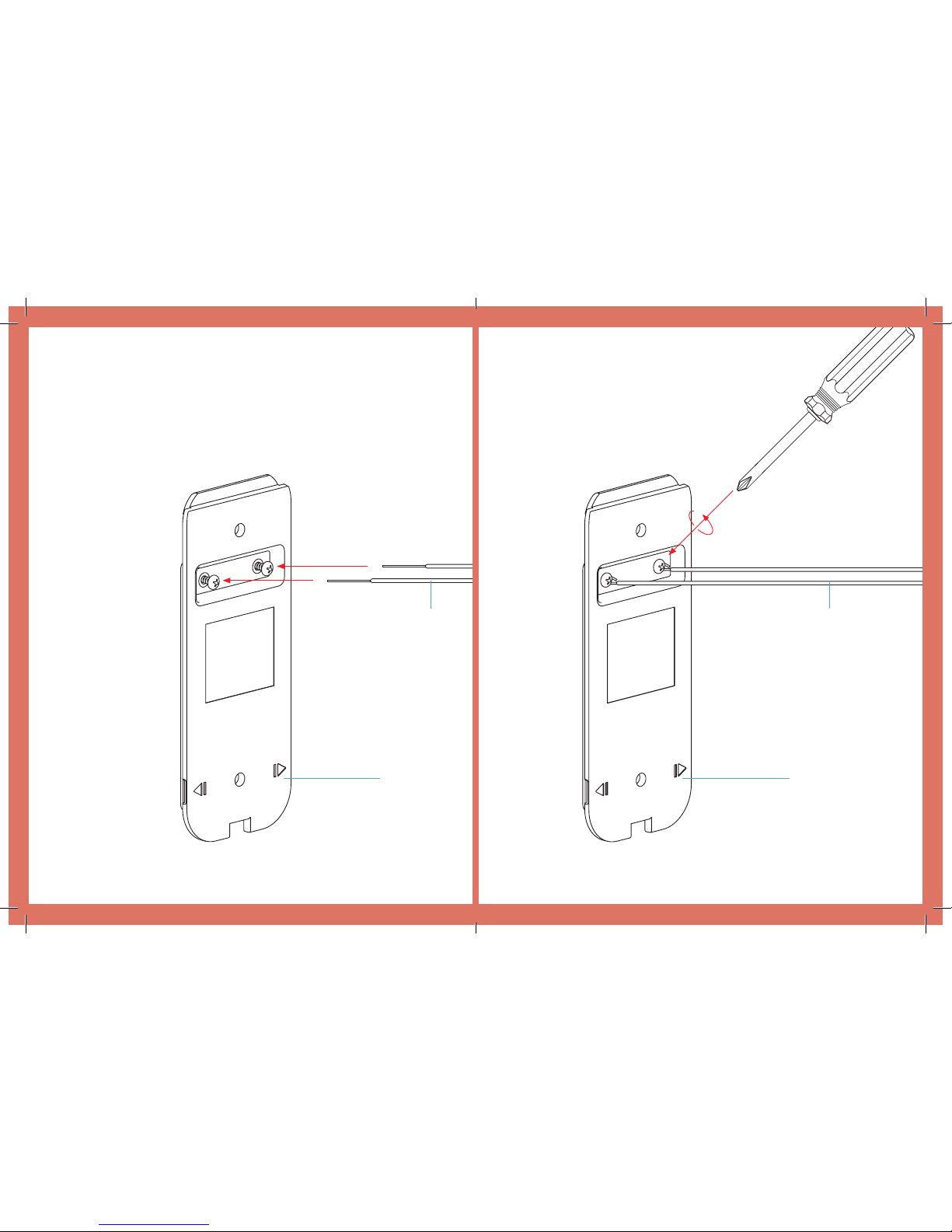

Loosen wire contact screws from mounting plate to allow space to
wrap wiring.
Wrap wires around loosened screws and tighten securely (color of wire does
not matter).
Continue on to the next page.
1.
2.
3.
4.
5.
A. Wires, no wedge
Page |10 Page |11

Attach Blink Video Doorbell unit to mounting plate and secure with screw using
provided hex wrench.
Turn power back on.
Test Blink Video Doorbell and check that your house chime works.
Congratulations, you have installed your doorbell!
7.
8.
9.
Figure D
Mounting plate
Hex wrench
Set screw
Blink Video Doorbell Blink Video Doorbell
Line up mounting plate with drilled holes and secure using provided mounting
screws.
6.
Figure C
Wires
Screw 3/4 inch
Screw 3/4 inch
Mounting plate
Rubber washer
Drill hole
Rubber washer
Drill hole
Page |12 Page |13

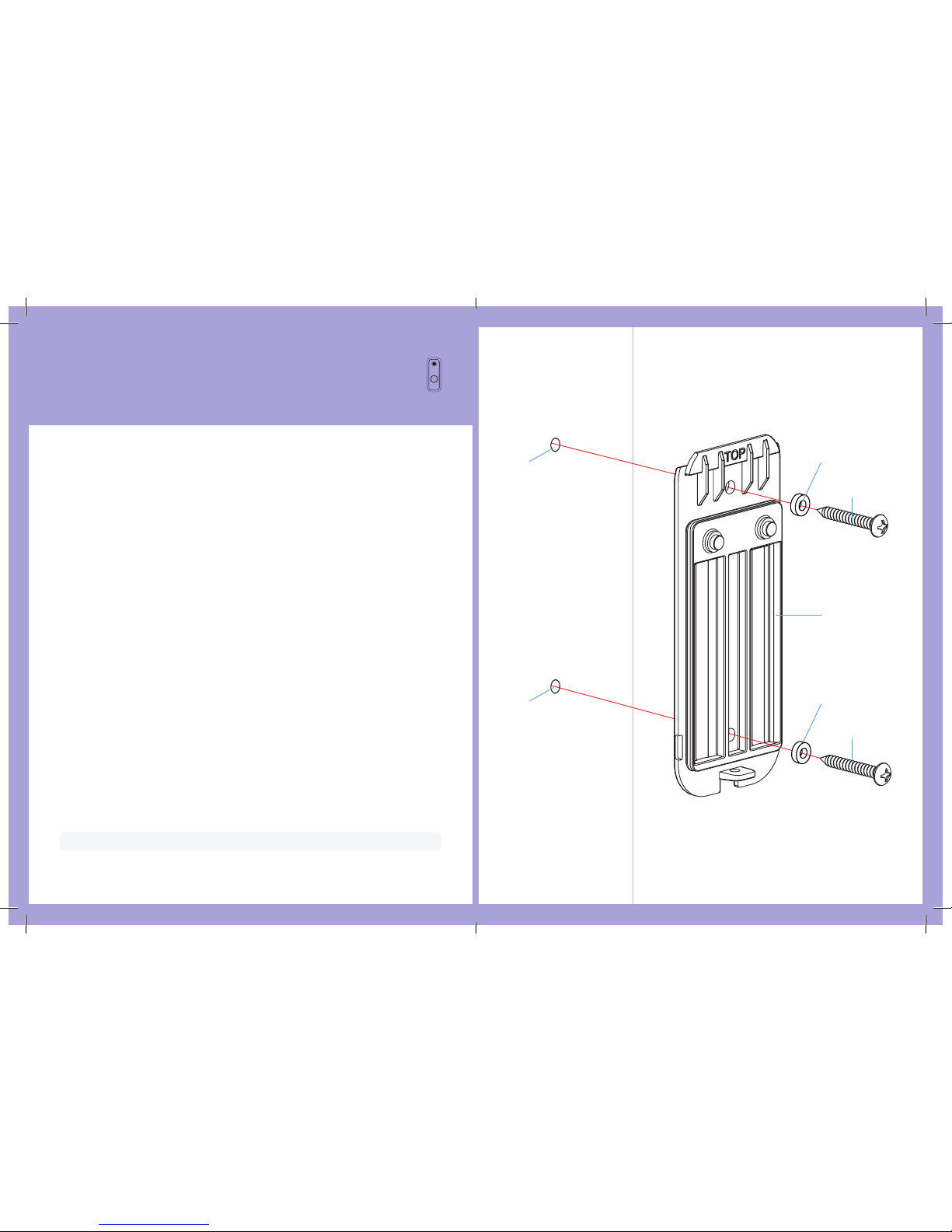

Figure A
Screw 3/4 inch
Screw 3/4 inch
Mounting plate
Rubber washer
Rubber washer
Drill holes
Drill holes
Use the provided mounting template to either mark drill points or drill pilot
holes for designated “mounting plate” holes. You can nd your removable
mounting template on page 35.
Remove mounting plate from Blink Video Doorbell unit if you haven’t already.
Screw mounting plate to wall using provided mounting screws.
Continue on to the next page.
1.
2.
3.
For even more information, please visit our support site at: support.blinkforhome.com
B. No wires, no wedge
Page |14 Page |15

Figure B
Attach Blink Video Doorbell unit to mounting plate and secure with screw using
provided hex wrench.
Turn power back on (if applicable).
Test Blink Video Doorbell.
Congratulations, you have installed your doorbell!
4.
5.
6.
Mounting plate
Hex wrench
Set screw
Blink Video Doorbell Blink Video Doorbell
Page |16 Page |17

Figure A
Screw 3/4 inch
Screw 3/4 inch
Wedge
Drill holes
Drill holes
Use the provided mounting template to either mark drill points or drill pilot
holes for designated “wedge” holes. You can nd your removable mounting
template on page 35.
Note: Vertical wedge installation is the same as horizontal wedge installation.
Secure wedge to wall using provided mounting screws.
Continue on to the next page.
1.
2.
For even more information, please visit our support site at: support.blinkforhome.com
C. No Wires, Wedge
Page |18 Page |19

Attach Blink Video Doorbell unit to mounting plate and secure with screw using
provided hex wrench.
Turn power back on (if applicable).
Test Blink Video Doorbell.
Congratulations, you have installed your doorbell!
5.
6.
7.

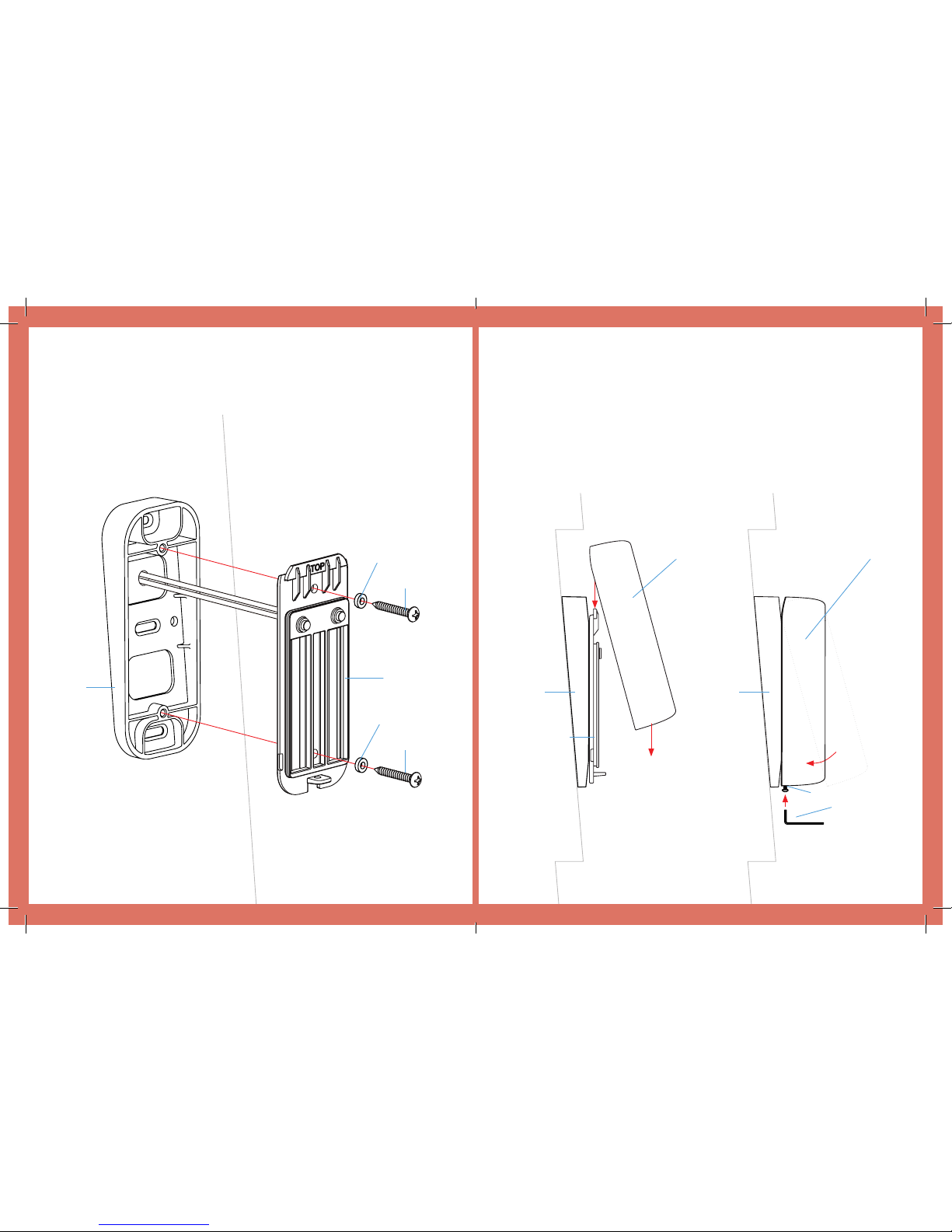

Figure C
Remove mounting plate from Blink Video Doorbell unit if you haven’t already.
Line up holes on mounting plate with small holes on wedge and secure with
provided mounting screws.
3.
4.
Figure B
Screw 3/8 inch
Screw 3/8 inch
Mounting plate
Rubber washer
Rubber washer
Wedge
Mounting plate
Wedge Wedge
Hex wrench
Set screw
Blink Video
Doorbell
Blink Video
Doorbell
Page |20 Page |21

Figure A

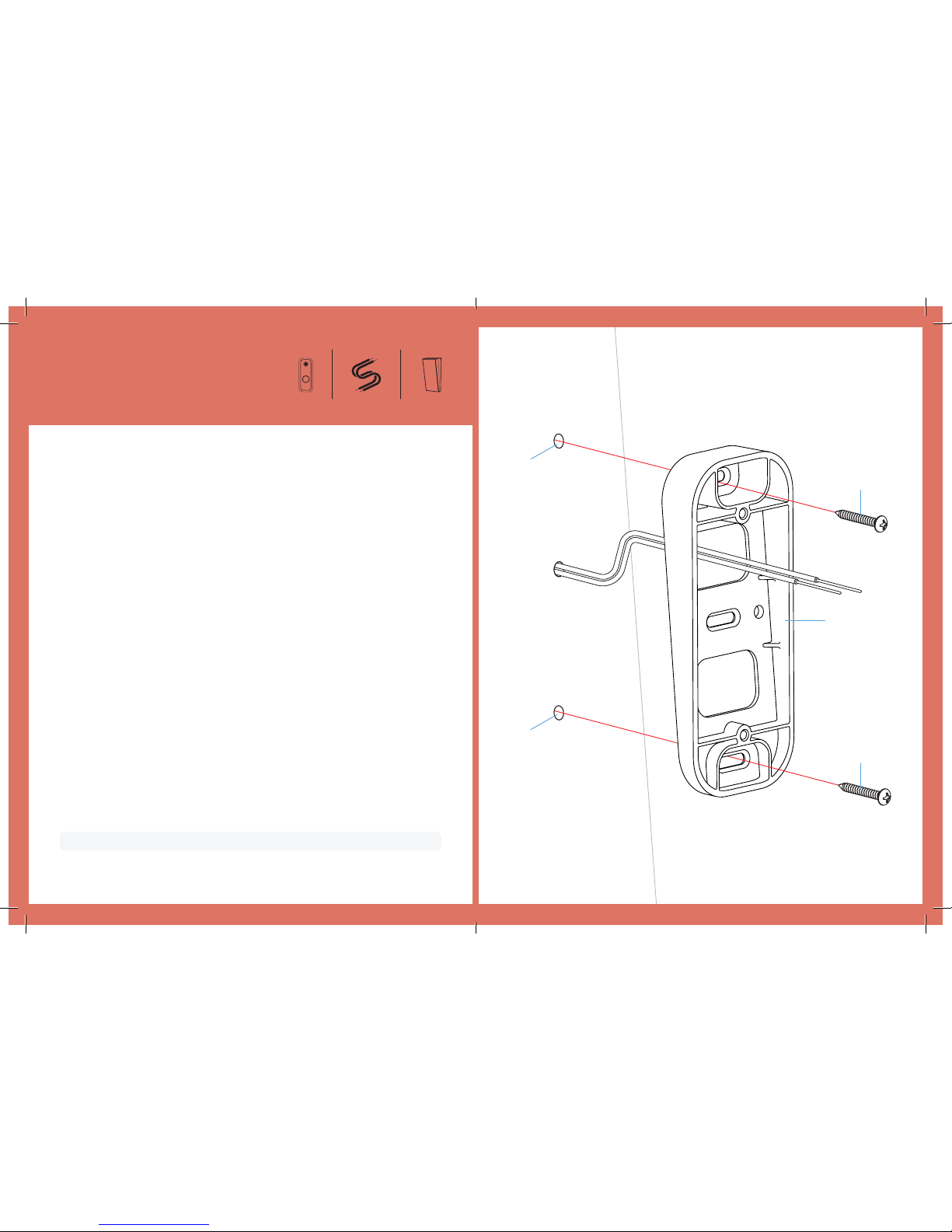

Position mounting template so that wires t through designated “wiring” hole
on template. You can nd your removable mounting template on page 35.
Note: Vertical wedge installation is the same as horizontal wedge installation.
Use the provided mounting template to either mark drill points or drill pilot
holes for designated “wedge” holes.
Pull wires through hole of wedge.
Secure wedge to wall using provided mounting screws.
Continue on to the next page.
1.
2.
3.
4.
For even more information, please visit our support site at: support.blinkforhome.com
D. Wires and wedge
Screw 3/4 inch
Screw 3/4 inch
Wedge
Drill holes
Drill holes
Page |22 Page |23

Wrap wires around loosened screws and tighten securely
(color of wire does not matter).
Continue on to the next page.
7.
Figure C
Wires
Mounting plate
Remove mounting plate from Blink Video Doorbell unit if you haven’t already.
Loosen wire contact screws from mounting plate to allow space to wrap wiring.
5.
6.
Figure B
Wires
Mounting plate
Page |24 Page |25

9.
10.
11.
Attach Blink Video Doorbell unit to mounting plate and secure with screw using
provided hex wrench.
Turn power back on.
Test Blink Video Doorbell and check that your house chime works.
Congratulations, you have installed your doorbell!
8. Line up holes on mounting plate with small holes on wedge and secure with
provided mounting screws.
Figure D
Screw 3/8 inch
Screw 3/8 inch
Mounting plate
Rubber washer
Rubber washer
Wedge
Mounting plate
Wedge Wedge
Hex wrench
Set screw
Blink Video
Doorbell
Blink Video
Doorbell
Figure E
Page |26 Page |27

Or need help with your Blink Video Doorbell or other Blink products, please visit
support.blinkforhome.com for systems instructions and videos, troubleshooting
information, and links to contact us directly for support. You can also visit our
Blink Community at www.community.blinkforhome.com to interact with other
Blink users and share your videos clips.
If you are experiencing trouble
Page |28 Page |29

When using electrical appliances, to reduce the risk of re, electric shock, and/or
injury to persons basic safety procedures should always be followed, including
the following:
FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT
IN FIRE, ELECTRIC SHOCK, OR OTHER INJURY OR DAMAGE.
Important Safeguards
Read all instructions carefully.
To protect against electric shock, do not place cord, plug or appliance in water
or other liquids.
For installations where a doorbell is already in place, always remember to
turn o your doorbell power source BEFORE removing the existing doorbell or
installing the Blink Video Doorbell so as to avoid re, electric shock, or other
injury or damage. You should turn o power at the circuit breaker or fuse and
test that power is o before wiring. More than one disconnect switch may be
required to de-energize the equipment before servicing. Call an electrician
in your area if you need help turning o your power or are uncomfortable
installing electrical devices.
This device and its features are not intended for use by children under the age
of 13. Adult supervision is recommended if used by children over the age of 13.
Do not use attachments that are not recommended by the manufacturer; they
may cause re, electric shock or injury.
Do not use Sync Module outdoors.
Do not use product for commercial purposes.
Do not use product for other than intended use.
1.
2.
3.
4.
5.
6.
7.
8.
BATTERY WARNING STATEMENT:
Keep batteries out of the reach of children.
Insert the batteries in the proper direction as indicated by positive (+) and
negative (-) markings in battery compartment.
It is highly recommended to use Lithium batteries with this product. Do
not mix old and new batteries or batteries of dierent types (for example,
Lithium and alkaline batteries).
Always remove old, weak, or worn-out batteries promptly and recycle or
dispose of them in accordance with Local and national disposal regulations.
If a battery leaks, remove all batteries and recycle or dispose of them in
accordance with battery manufacturer’s recommendations for cleanup.
Clean battery compartment with a damp paper towel or follow battery
manufacturer’s recommendations. If uid from the battery comes into
contact with skin or clothes, ush with water immediately.
•
•
•
•
•
The Lithium batteries accompanying this
device cannot be recharged. Do not open,
disassemble, bend, deform, puncture or shred
the battery. Do not modify, attempt to insert
foreign objects into the battery or immerse
or expose to water or other liquids. Do not
expose the battery to re, explosion or other
hazard.
Promptly dispose of used batteries in
accordance with applicable laws and
regulations. If dropped and you suspect
damage, take steps to prevent any ingestion or
direct contact of uids and any other materials
from the battery with skin or clothes.
Lithium Battery
Warning
Page |30 Page |31

Note:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Changes or modications to a Product by the user that are not expressly approved
by the party responsible for compliance could make the Product no longer comply
with the FCC Rules.
The Blink Video Doorbell meets the FCC Radio Frequency Emission Guidelines and
is certied with the FCC. Information on the Blink Video Doorbell is on le with the
FCC and can be found by inputting the device’s FCC ID into the FCC ID Search form
available at https://www.fcc.gov/oet/ea/fccid.
Important product information
Legal notices and other important information regarding your Blink device can be
found in the Blink Home Monitor App in Menu > About Blink.
Blink terms & policies
BEFORE USING THIS BLINK DEVICE, PLEASE READ THE TERMS LOCATED IN
YOUR BLINK HOME MONITOR APP IN MENU > ABOUT BLINK AND ALL RULES
AND POLICIES FOR THE BLINK DEVICE AND SERVICES RELATED TO THE DEVICE
(INCLUDING, BUT NOT LIMITED TO, THE BLINK PRIVACY NOTICE LOCATED AT
HTTPS://BLINKFORHOME.COM/LEGAL AND ANY RULES OR USEAGE PROVISIONS
ACCESSIBLE THROUGH THE BLINK WEBSITE OR APP (COLLECTIVELY, THE
“AGREEMENTS”). BY USING THIS BLINK DEVICE, YOU AGREE TO BE BOUND BY THE
AGREEMENTS.
Your Blink device is covered by a Limited Warranty. Details are available at
https://blinkforhome.com/legal, or view details by going to the “About Blink”
section in your Blink Home Monitor App.
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Page |32 Page |33

Mounting plate holes
Wedge holes*
*Select two wedge holes to drill
depending on placement.
Mounting Template
= Drill here
Wiring holes
Contact information:
For communications concerning the Agreements, you may contact Blink by writing
to Immedia Semiconductor, LLC, 100 Burtt Rd, Suite 100, Andover MA 01810, USA.
Copyright Immedia Semiconductor 2018. Blink and all related logos and motion
marks are trademarks of Amazon.com, Inc. or its aliates.
Brochure Printed in China.
Page |34 Page |35
