B-Link SQUARE SENSE User manual

I. Specifications
Instructions SQUARE SENSE
The Square Sense is a new product adopting the microwave sensor with high frequency electromagnetic waves (5.8Ghz),
gathering automatism, convenience, safety and energy saving in a smaller size. When someone enters its detection field,
it can start almost instantly and identify if its day or night.
It can detect through glass and thin walls.
NOTE: The installation must be done by a qualified professional, which follows this instructions rigorously.
Before using, read this instructions carefully.
The high-Frequency output is lower than 0.2Mw.
III. Installation
Switch off the power.

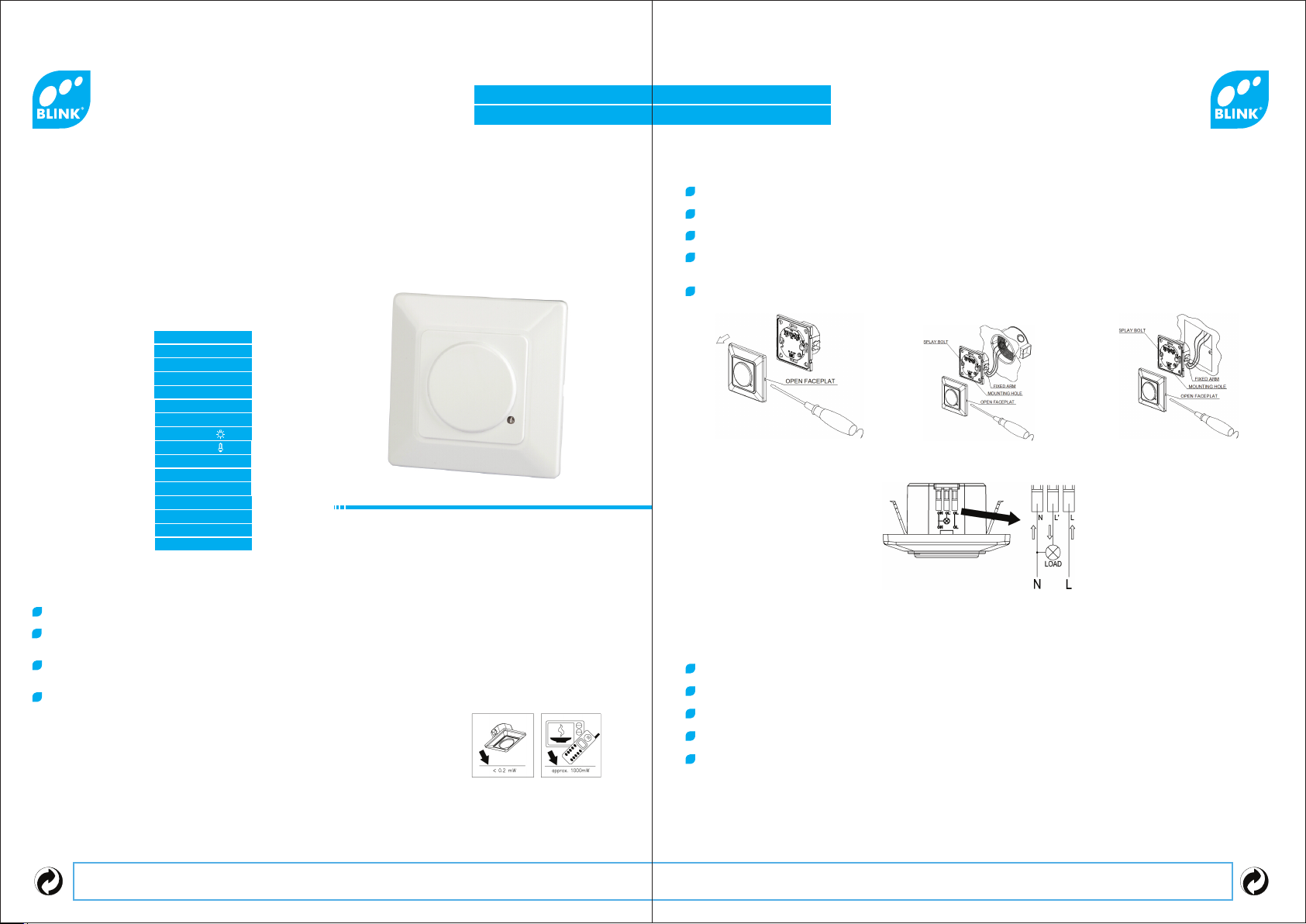

Open the Square Sense faceplate and adjust the time and Lux knob (figure 1).
Loosen the screws on the connection terminal and conect the power cables as shown in the diagram (figure 4).
The Square Sense can be set on two different time modes: Day and Night (explained in detail further on).
Time-Delay is added continually: When it receives the second induction signal within the time frame of the first, it will
add up from the first signal.
The time that the lamp stays on, can be set manually, being the minimum 10s and the maximum 12 min.
II. Functions
Sensibility adjustment, the Square Sense can set its detection range, changing it as the needs arise. If low sensitivity
is needed just set to 5 meters, otherwise change it to 15 meters.
The Square Sensor permits instalation in circular and square holes. Round holes put it in and splay bolt on both sides
for square holes, put it on the hole and fix the srews trough the mounting hole (figure 3).
Put back the faceplate, and switch on the power.
IV. Caution
Do not install the Square Sense on uneven or shaky surfaces.
Be sure there aren’t any object in front of the Square Sense, so the object doesn’t obstruct the sensor.
Do not install the Square Sense near metal or glass, so it doesn’t affect it.
For your safety, please don’t open the case if you‘re feeling itching after the installation.
Power Sourcing
Power Frequency
Detection Range
Detection Distance
Ambient light
Time Delay
Rated Load
Working Temperature
Working Humidity
Power Consumption
Installation Heigh
Detection Moving Speed
NOTE: When testing during daytime,turn the control dial towards the sun simbol otherwise the lamp won’t turn on.
HF System
Fig 1 Fig 2
Fig 3
Fig 4
To avoid damage to the Square Sense, please use a safety device, such as a fuse (6A) when installing the sensor.
All responsabilities for defects or damages are hereby rejected if caused by: incorrect assembling
of the product, incorrect supply, use of lamps not suitable for this product, external agents. BLI/209.EN
All responsabilities for defects or damages are hereby rejected if caused by: incorrect assembling
of the product, incorrect supply, use of lamps not suitable for this product, external agents. BLI/209.EN
EU Reg nº 003469376
www.blink.com.pt
EU Reg nº 003469376
www.blink.com.pt
220-240 V/AC
50Hz
180º
5-15m (<adj.)
-20~+40
<0.2mW
approx.0.9W
0.6-1.5m/s
Min. 10sec. 3sec.
3-2000LUX (adj.)
Max. 12min. 2min.
300W
Max. 1200W
1-1.8m
ISM band
5.8GHz CW radar
±
±

Set the LUX knob clockwise until the SUN symbol is reached, then turn the SENS knob clockwise until it reaches de
+ symbol, and for last turn the TIME knob anti-clockwise until the 10s symbol is reached.
The next step is to switch on the power, is everything is as mentioned above, the light will turn on imidiatly and after
10s +- 3 seconds the light should turn off.
The next time the Square Sense receives a signal it will work as normally. Once it receives the second signal the timer
starts fresh, which means that the lamp time will star from the beginning.
Turn the LUX anti-clockwise to the minimum (3). if the ambient light is less than 3 Lux (darkness) the lamp will turn
on.
V. Test
No Power:
Resolution: Check the load
Check if the indicator is turn on after the detection signal is sent? If so please check the load, if it is not turned
on, please check the Lux setting is correct.
Poor Sensitivity:
Resolution: Make sure there’s no objects that may obstruct. If the problem still remains check the heigh and the source of
the detection is in the detection field.
Can’t turn off the load:
Resolution: Check and see there’s an continuous signal. The timer is set on max.
VI. Troubleshooting
