Wyco Sure Speed 2.0 User manual

VBR-UM-02653-EN-05 (February 2020) User Manual
Flex Shaft Concrete Vibrators
Sure Speed 2.0 and 995

Flex Shaft Concrete Vibrators, Sure Speed 2.0 and 995
Page ii February 2020VBR-UM-02653-EN-05

CONTENTS
General Power Tool Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Work Area Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Electrical Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Personal Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power Tool Use and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Safety Symbol Explanations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Additional Safety Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Before Starting the Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Operating the Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

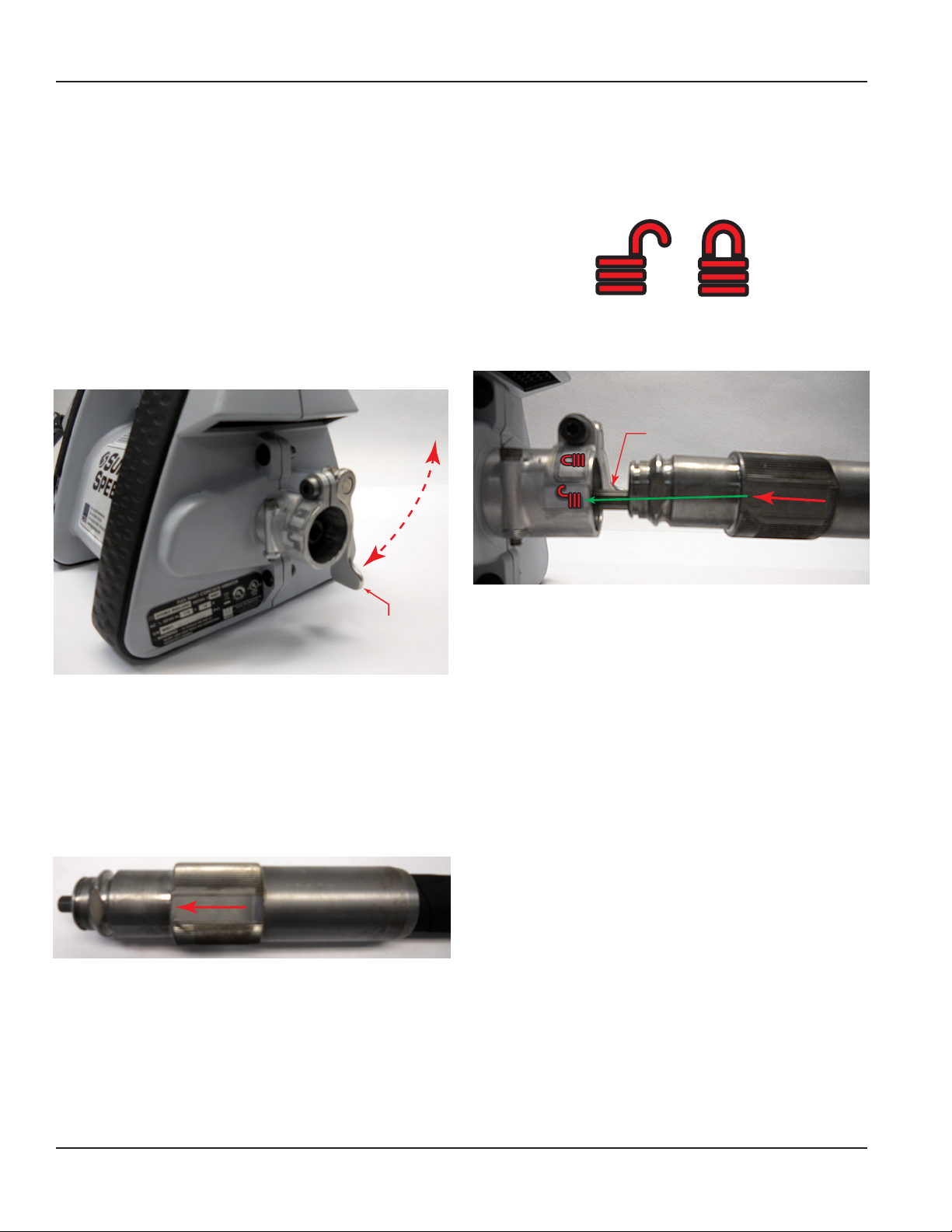

Connecting the Vibrating Casing
(Quick-Disconnect Connections) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Disconnecting the Vibrator Casing
(Quick-Disconnect) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connecting the Vibrating Casing
(Threaded Connections) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

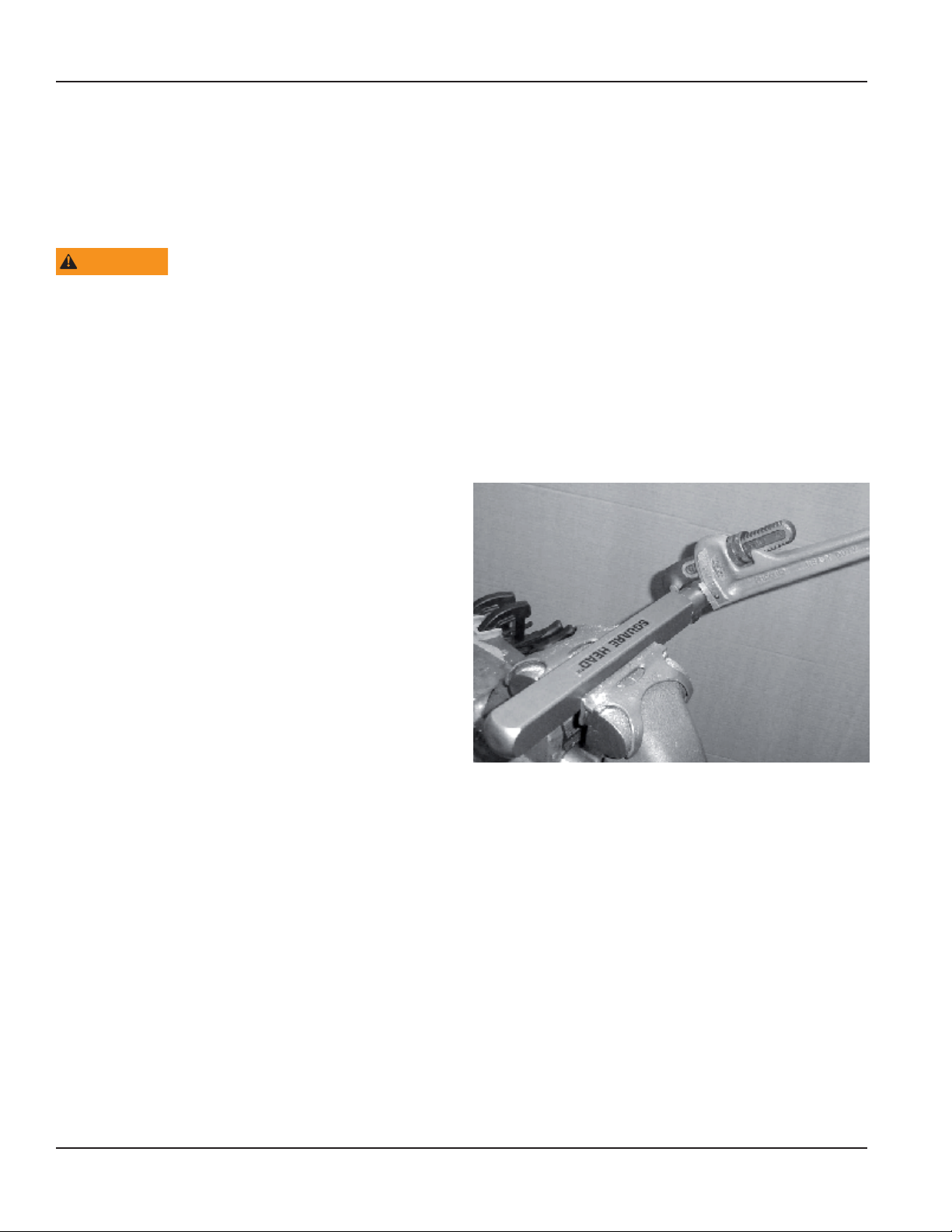

Disconnecting the Vibrator Casing
(Threaded Connector) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

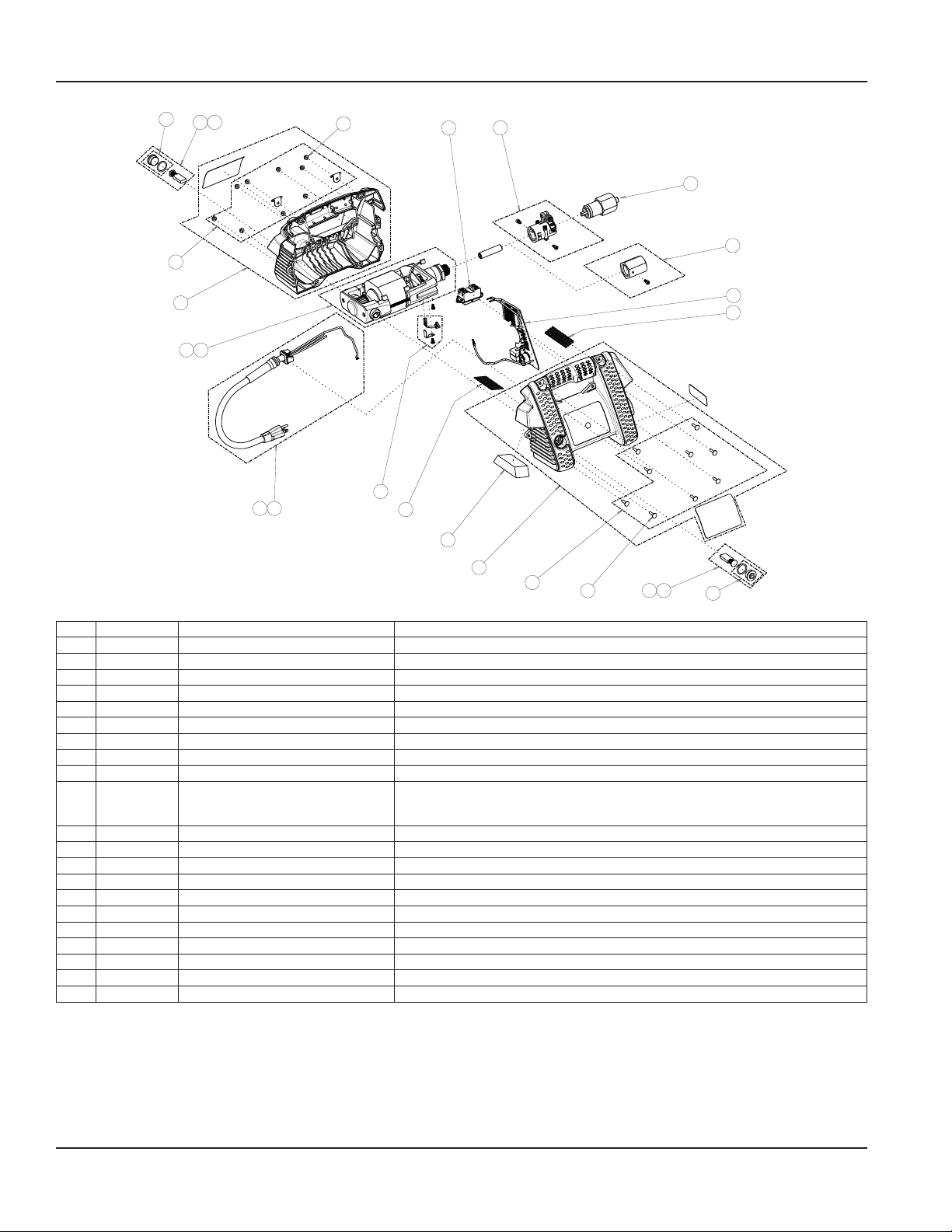

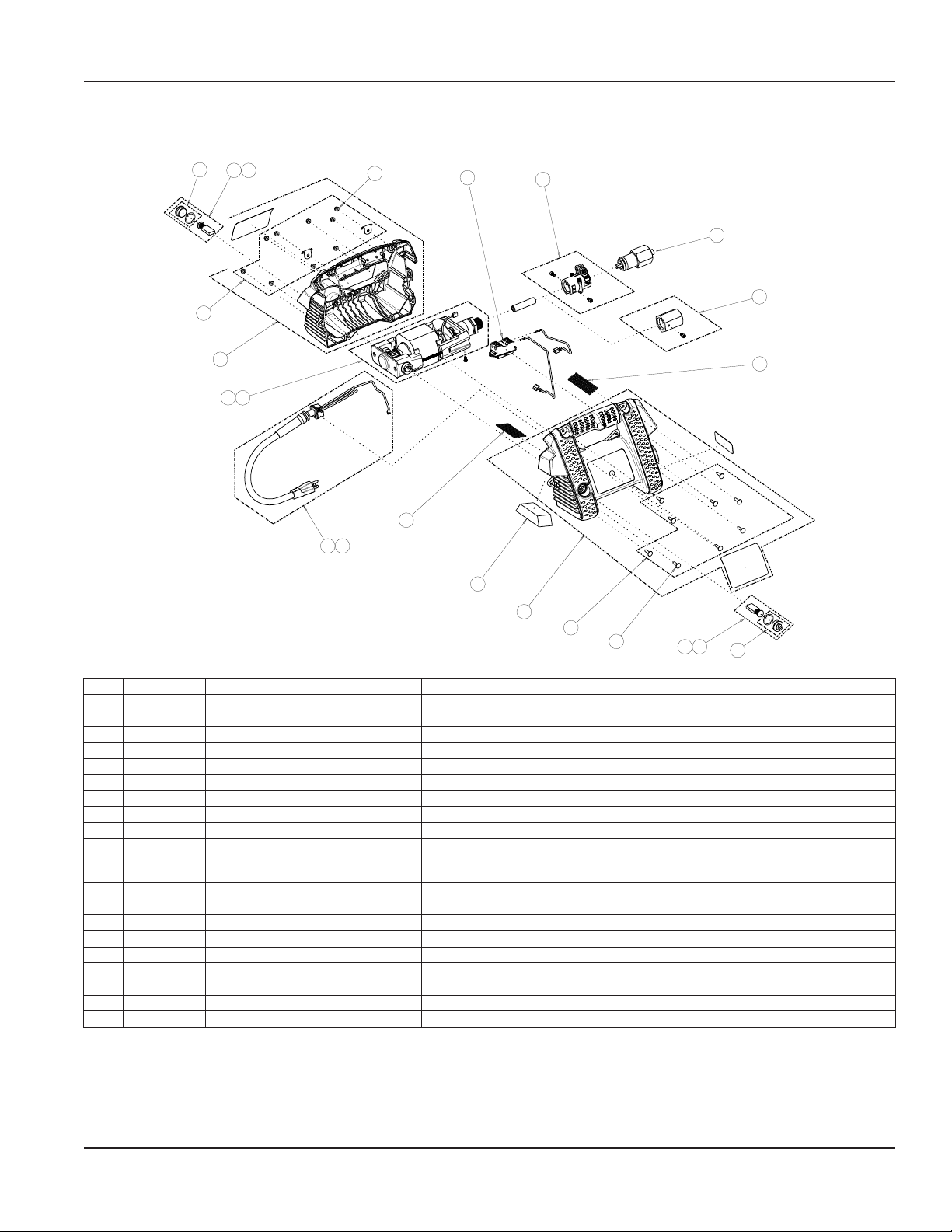

Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Preventive Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Brush Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Brush Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Filter Replacement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Electric Vibrator Head Service and Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Flexible Shaft Lubrication and Break-in. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Extension Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

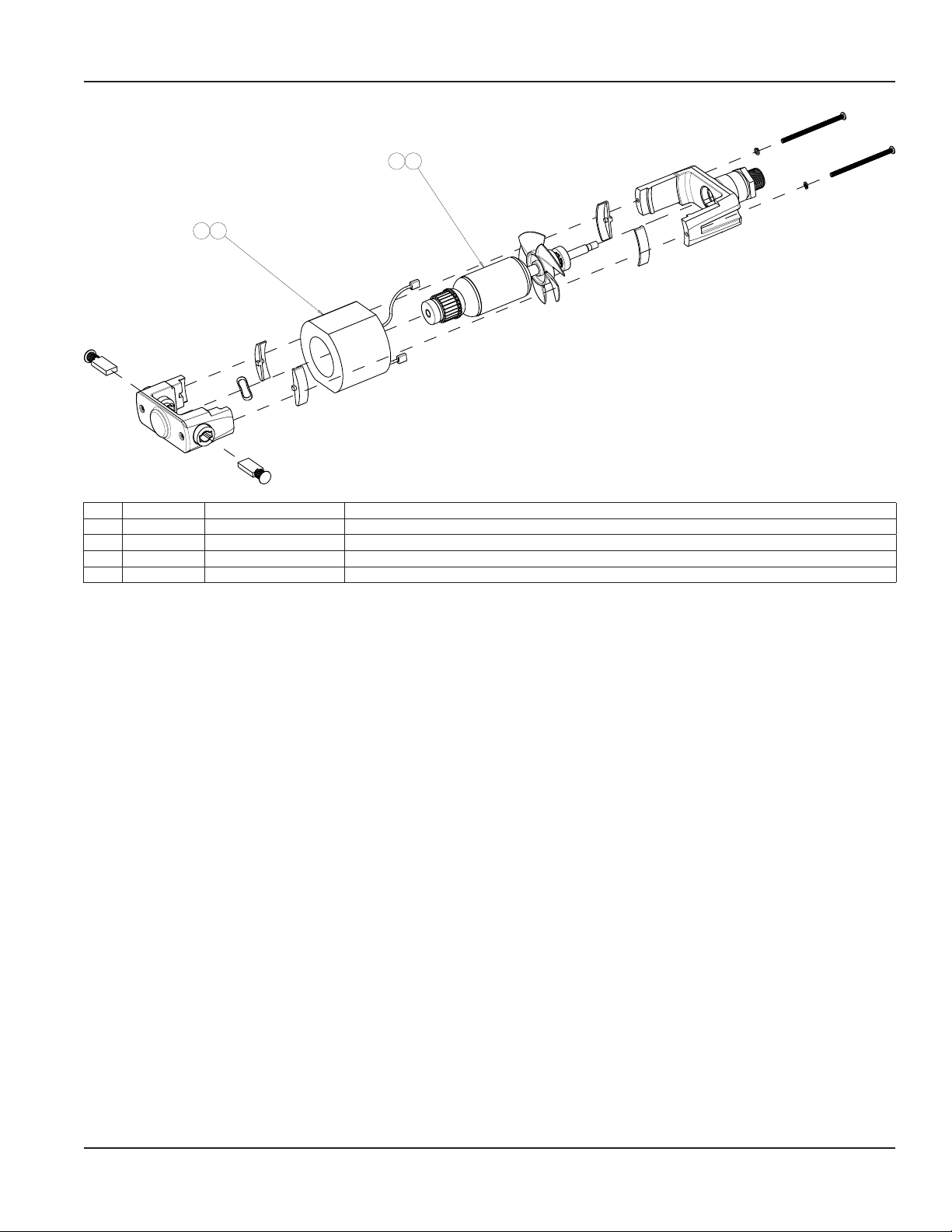

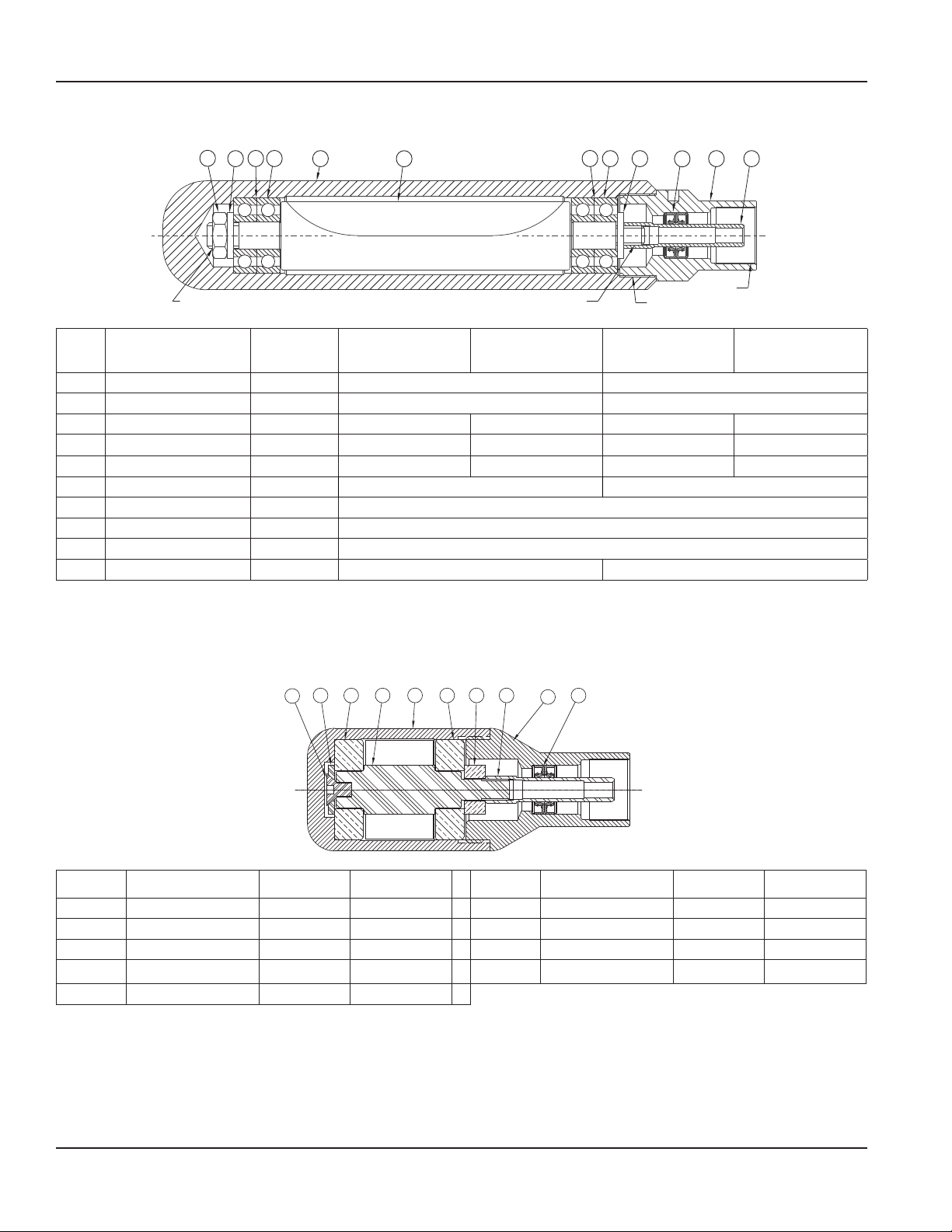

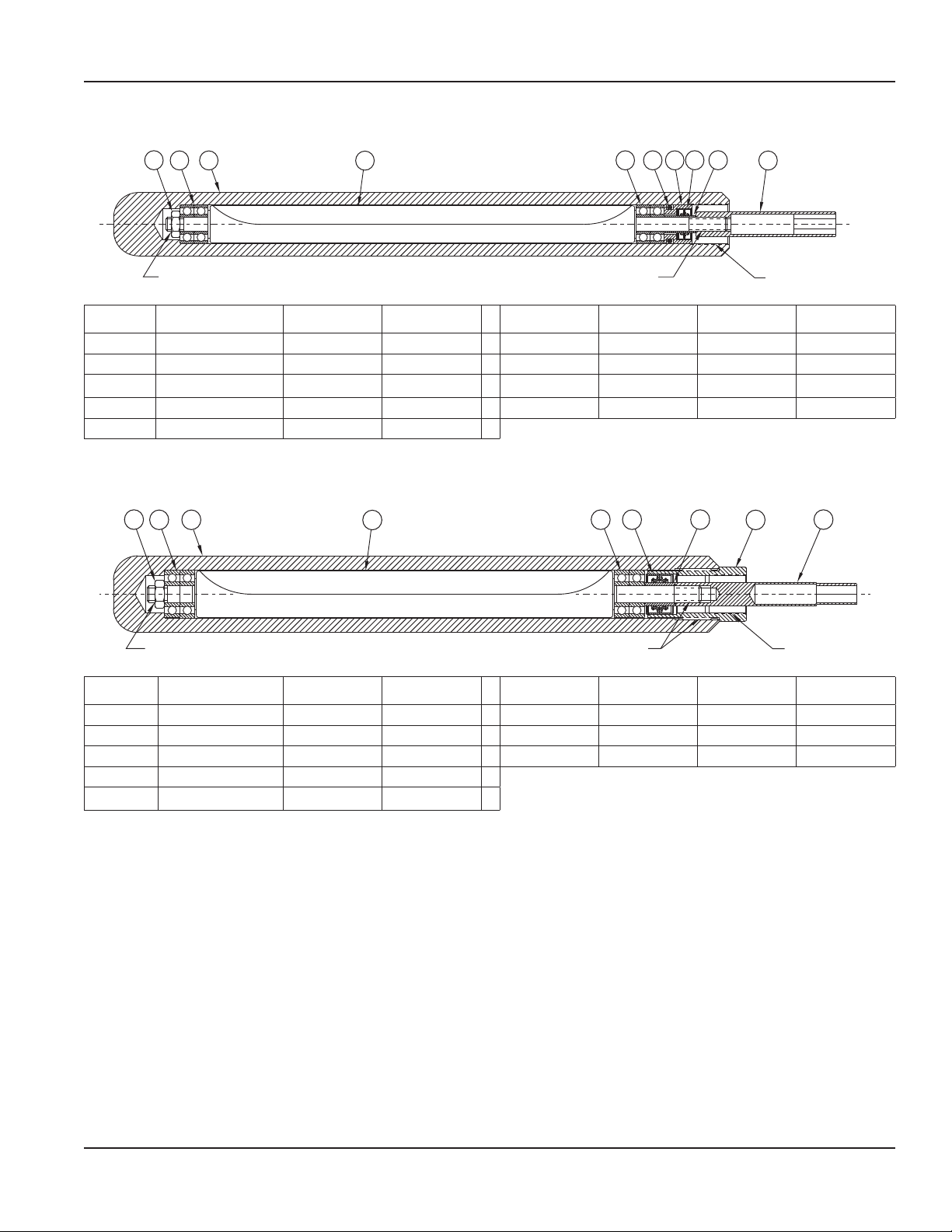

Electric Vibrator Head Assembly Drawings and Parts Lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Vibrator Head Model 750-D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Vibrator Head Model 750-EH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Vibrator Head Models 750-FI, 750-GI, 750-LI and 750-MI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Vibrator Head Model 750-SBI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
User Manual
Page iiiFebruary 2020 VBR-UM-02653-EN-05

Model Number
Serial Number
Date Purchased
Restrictions of Hazardous Substances (Rohs) Directive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Waste Electrical and Electronic Equipment (WEEE) Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Flex Shaft Concrete Vibrators, Sure Speed 2.0 and 995
Page iv February 2020VBR-UM-02653-EN-05

WARNING
READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS.
FAILURE TO FOLLOW THE WARNINGS AND
INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE
AND/OR SERIOUS INJURY.
GENERAL POWER TOOL SAFETY
WARNINGS
OTE:NSave all warnings and instructions for
future reference.
OTE:NThe term power tool in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
Work Area Safety
1. Keep work area clean and well lit.
2. Do not operate power tools in explosive atmospheres,
such as in the presence of ammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
3. Keep children and bystanders away while operating a
power tool.
Electrical Safety
1. Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed or grounded power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded surfaces
such as pipes, radiators, ranges, and refrigerators. There is
an increased risk of electric shock if your body is earthed
or grounded.
3. Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
4. Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
5. When operating a power tool outdoors, use an extension
cord suitable for outdoor use to reduce the risk of
electric shock.
6. If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply to reduce the risk of electric shock.
OTE:NThe term residual current device (RCD) may be
replaced by the term ground fault circuit interrupter
(GFCI) or earth leakage circuit breaker (ELCB).
Personal Safety
1. Do not use a power tool while you are tired or under the
inuence of drugs, alcohol or medication to avoid risk of
serious personal injury.
2. Always wear eye protection. Other protective equipment
such as dust mask, non-skid safety shoes, hard hat,
or hearing protection should be used in appropriate
conditions to reduce personal injuries.
3. Make sure the switch is in the OFF position before
connecting to power source and/or battery pack, picking
up or carrying the tool.
4. Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached
to a rotating part of the power tool may result in
personal injury.
5. Do not overreach. Keep proper footing and balance
at all times.
6. Do not wear loose clothing or jewelry. Keep your
hair, clothing and gloves away from moving parts.
Loose clothes, jewelry or long hair can be caught in
moving parts.
7. If devices are provided for the connection of dust
extraction and collection facilities, make sure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
Power Tool Use and Care
1. Do not force the power tool. Use the correct power tool
for your application.
2. Do not use the power tool if the switch does not turn
it on and o. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
3. Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools to reduce the risk of starting the power
tool accidentally.
4. Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool.
5. Maintain power tools. Check for misalignment or binding
of moving parts, breakage of parts and any other
condition that may aect operation. If damaged, have
the power tool repaired before use.
WARNING: This product can expose you to chemicals including lead, which are known to the State of California
to cause cancer, and Chromium, which are known to the State of California to cause birth defects and/or other
reproductive harm. For more information go to www.P65Warnings.ca.gov
General Power Tool Safety Warnings
Page 5February 2020 VBR-UM-02653-EN-05

6. Keep cutting tools sharp and clean.
7. Use the power tool, accessories, tool bits, and like
equipment in accordance with these instructions, taking
into account the working conditions and the work
to be performed.
Service
Have your power tool serviced by a qualified repair person
using only identical replacement parts to make sure the tool
is safe to use.
Emissions
1. Declared noise emission values:
K = 0.69 dB
LpA = 83.1 dB
LWA = 94.1 dB
OTE:NWear hearing protection.
2. Declared vibrator emissions:
Front Handle = 4.28 m/s2
K = 1.50 m/s2
Rear Handle = 2.41 m/s2
K = 1.50 m/s2
OTE:NThe declared vibration total value has been
measured in accordance with a standard test
method and may be used for comparing one tool
with another. The declared vibration total value may
also be used in a primary assessment of exposure.
WARNING
THE VIBRATION EMISSION DURING ACTUAL USE OF THE
POWER TOOL CAN DIFFER FROM THE DECLARED TOTAL
VALUE DEPENDING ON THE WAYS IN WHICH THE TOOL IS
USED.

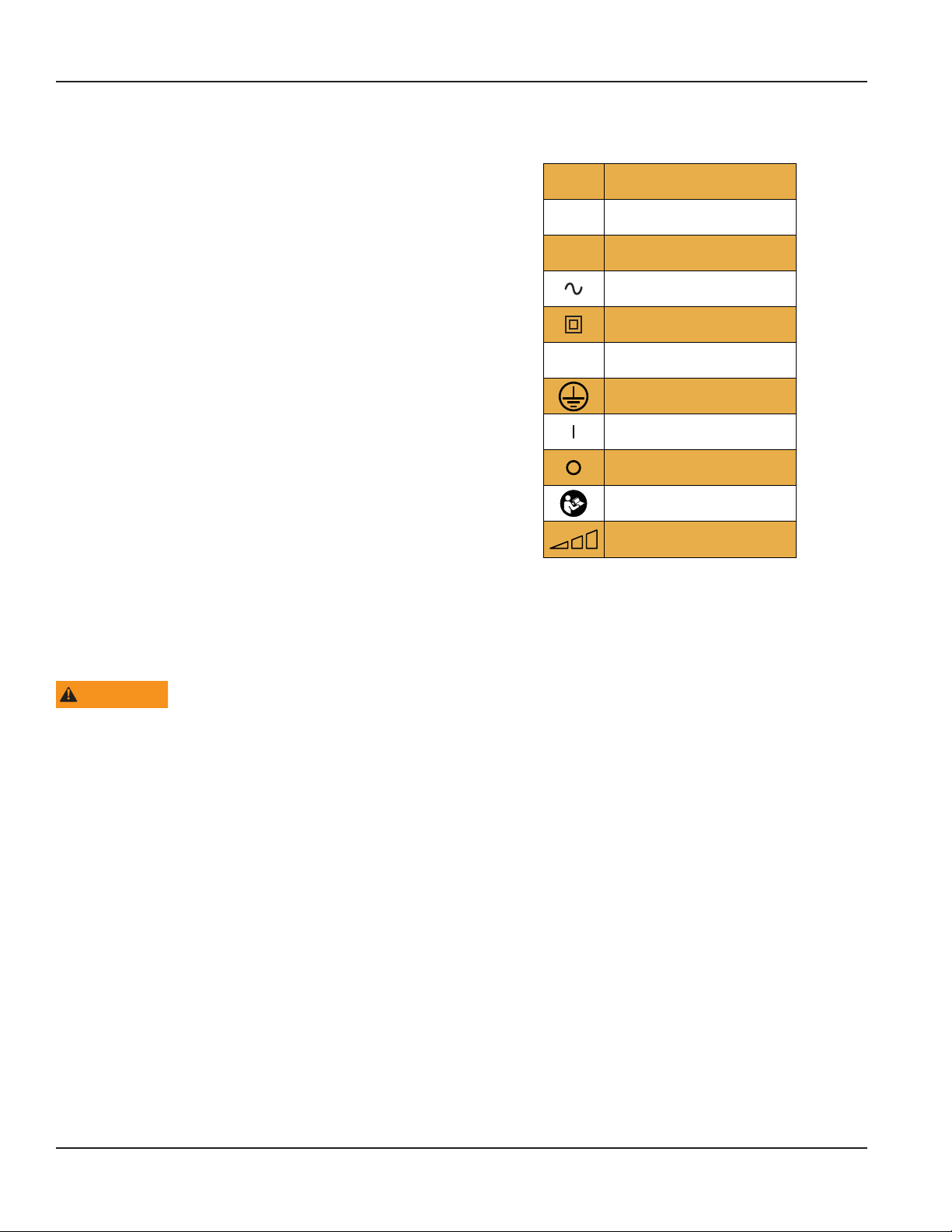

SAFETY SYMBOL EXPLANATIONS
Volts
Amperes
Hertz
Alternating Current
Class II Tool
IP Symbol
Ground Terminal (Protective Earthing)
ON
OFF
Refer to Instruction Manual
Variability in Steps
V
A
Hz
IPX4
Figure 1: Safety symbols
Additional Safety Note
Double insulated tools are equipped with a polarized plug
(one blade is wider than the other). This plug will fit in a
polarized outlet only one way. If the plug does not fit fully
in the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician to install a polarized outlet. Do not
change the plug in any way. Double insulation eliminates
the need for the three-wire grounded power cord and
grounded power supply system.
Safety Symbol Explanations
Page 6 February 2020VBR-UM-02653-EN-05

INTRODUCTION
This concrete vibrator motor is used to power concrete flex
shaft vibrators which provide vibration to consolidate freshly
poured concrete. The vibration is created by an eccentric (off
center) weight within the vibrator head. As the weight spins
it forces the head housing to move within the fresh concrete.
The continuous head movement agitates the concrete
mixture resulting in significantly reduced voids.
This motor can be used with any valid Wyco vibrator head
and shaft combination. See Table 1 for recommended
combinations. Shafts are available in lengths of 2, 5, 7, 10, 14,
20 and 30 feet (0.61, 1.52, 2.13, 3.05, 4.27, 6.1 and 9.14 m).
WARNING
DO NOT USE NON-APPROVED PARTS. THE USE OF
NON-APPROVED PARTS MAY CAUSE A HAZARDOUS
CONDITION FOR THE OPERATOR.
Vibrator Head Vibrator Shaft
Size in. (mm) Model No Length ft (m) CK Series
13/16 (4.76) 750-D 2…20 (0.61…6.1) 8900
1 (25.4) 750-EH
1-3/8 (34.92) 750-FI
2…20 (0.61…6.1) 9500
1-3/4 (44.45) 750-GI
2 (50.8) 750-LI
2-1/4 (57.15) 750-MI
2-1/2 (63.5) 750-SBI
1-3/8 (34.92) 750-FI 30 (9.14)
Table 1: Recommended Wyco head and shaft combinations
MPORTANTI
Third party approvals/certifications only apply when Product
is used solely with head and shaft models listed in Product’s
user manual.
OPERATION
Before Starting the Motor
DO NOT USE DAMAGED EQUIPMENT. INSPECT
THE VIBRATOR FOR DAMAGE BEFORE USING THIS
EQUIPMENT. READ, UNDERSTAND AND FOLLOW ALL
SAFETY AND MAINTENANCE INSTRUCTIONS IN THIS
MANUAL. CAREFULLY CHECK THAT THE POWER CORD
HAS NO CUTS OR EXPOSED WIRES. VERIFY MOTOR
HOUSING IS INTACT. CHECK ALL ACORN NUTS TO VERIFY
THEY ARE TIGHTENED.
DO NOT START THE MOTOR WITHOUT A SHAFT
CONNECTED. THE EXPOSED SHAFT CONNECTION
PRESENTS A SAFETY HAZARD AS IT ROTATES AT HIGH
SPEED. CLOTHING OR SKIN MAY BECOME ENTANGLED IN
THE SHAFT CONNECTION CAUSING INJURY.
Make sure that the motor, shaft and head are connected
securely. See“Setup” on page 8.
Make sure that the power plug is connected to the
appropriate power source.
Make sure that the motor is not immersed in concrete and
that any cord connections are not in water or fresh concrete.
Operating the Motor
1. Turn vibrator on by moving the rocker switch to I.
OTE:NThe SureSpeed has been designed with a soft start
and will ramp up to speed over a 1 second period.
2. Insert the vibrator head into the concrete to be
consolidated.
Do not run the vibrator head outside of fresh concrete
for an extended period of time. The vibrator depends on
moving concrete to cool the bearings.
Avoid sharp bends in the ex shaft during operation.
Sharp bends reduce shaft life.
3. Remove the vibrator head from concrete and turn the
rocker switch to O.
Introduction
Page 7February 2020 VBR-UM-02653-EN-05

SETUP
The motor has several options for connecting the core and
casing assembly to the motor housing. For all available
connections, see “Parts” on page 11.
Connecting the Vibrating Casing
(Quick-Disconnect Connections)
OTE:NThe casing must be fitted with a
quick-disconnect end.
1. Make sure the locking lever on the quick-disconnect
connector on the motor is in the up position. See
Figure 2.
Locking Lever
Figure 2: Quick-disconnect fitting
2. Locate the core and casing.
3. Identify the side of the casing that has the
connection arrow.
4. Position the casing with the arrow face to the left as
viewed from the vibrator head end. This side should face
to the left when the casing is held directly behind the
quick-disconnect. See Figure 3.
Figure 3: Casing arrow location
5. Align the end of the core with the driver inside the
quick-disconnect tting on the motor.
6. Align the arrows on the casing end with the unlock icon
on the quick-disconnect connector. The unlock and lock
positions are shown by the unlock and lock icons (see
Figure 4) on the side of the quick-disconnect tting.
See Figure 5.
UnLocked Locked
Figure 4: Unlock/Lock icons
Shaft
Figure 5: Core/Casing alignment
7. Insert the casing into the core.
8. Line up the shaft and driver so the shaft slides into
the driver.
9. Rotate the casing until the arrow lines up with the lock
icon on the quick-disconnect connector.
10. Push down on the locking lever to clamp the
casing into the quick-disconnect connector.
The locking lever bottoms out on the side of the
quick-disconnect connector.
Setup
Page 8 February 2020VBR-UM-02653-EN-05

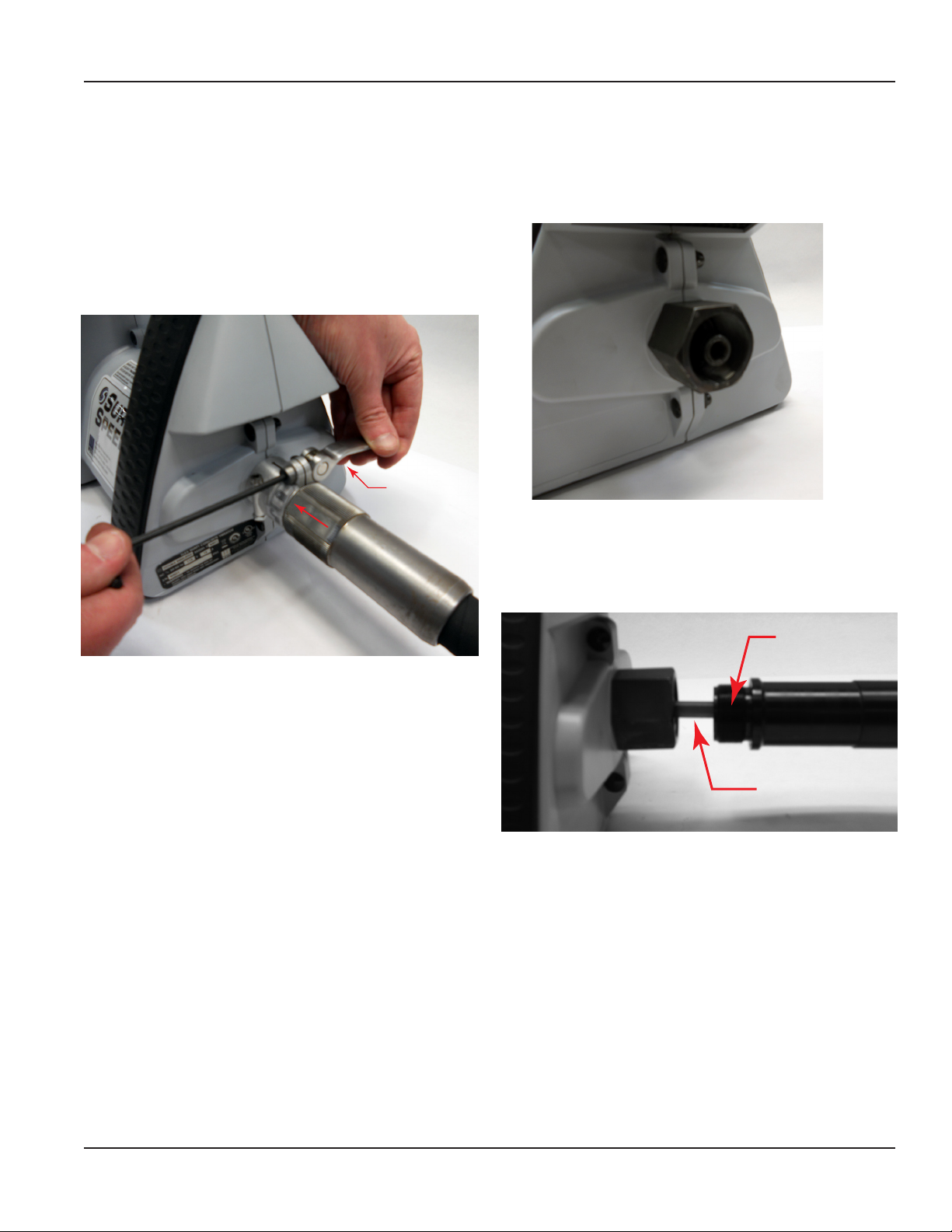

OTE:NIf the casing feels loose or too tight after pushing
down on the locking lever, raise the lever until the
lever is horizontal then rotate the hex head screw
with a #4 Allen wrench in either direction to tighten
or loosen. Be careful to not loosen the lever too
far or the lever bushing and screw will unthread
and could fall apart. After the adjustments are
completed, push lever back down to bottom out to
connector. This procedure may need to be repeated
to get desired tight or lose condition. See Figure 6.
Locking
Lever
Figure 6: Locking lever adjustment
Disconnecting the Vibrator Casing
(Quick-Disconnect)
1. Make sure the quick-disconnect locking lever on the
motor is in the up position.
2. Rotate the core and casing counterclockwise from the
lock position to the unlock position.
3. Pull the casing end straight out of the quick-disconnect
connector on the motor.
4. Make sure that the locking lever is in the down position
when storing the motor to avoid damage to the lever.
Connecting the Vibrating Casing
(Threaded Connections)
OTE:NThe casing must be fitted with a thread
connector end.
Figure 7: Threaded casing connector
1. Line up threads of the shaft with the threaded motor
connector. Hold the casing end rmly and rotate the
casing until it engages into the motor.
Shaft
Threads
Figure 8: Shaft insertion
Setup
Page 9February 2020 VBR-UM-02653-EN-05

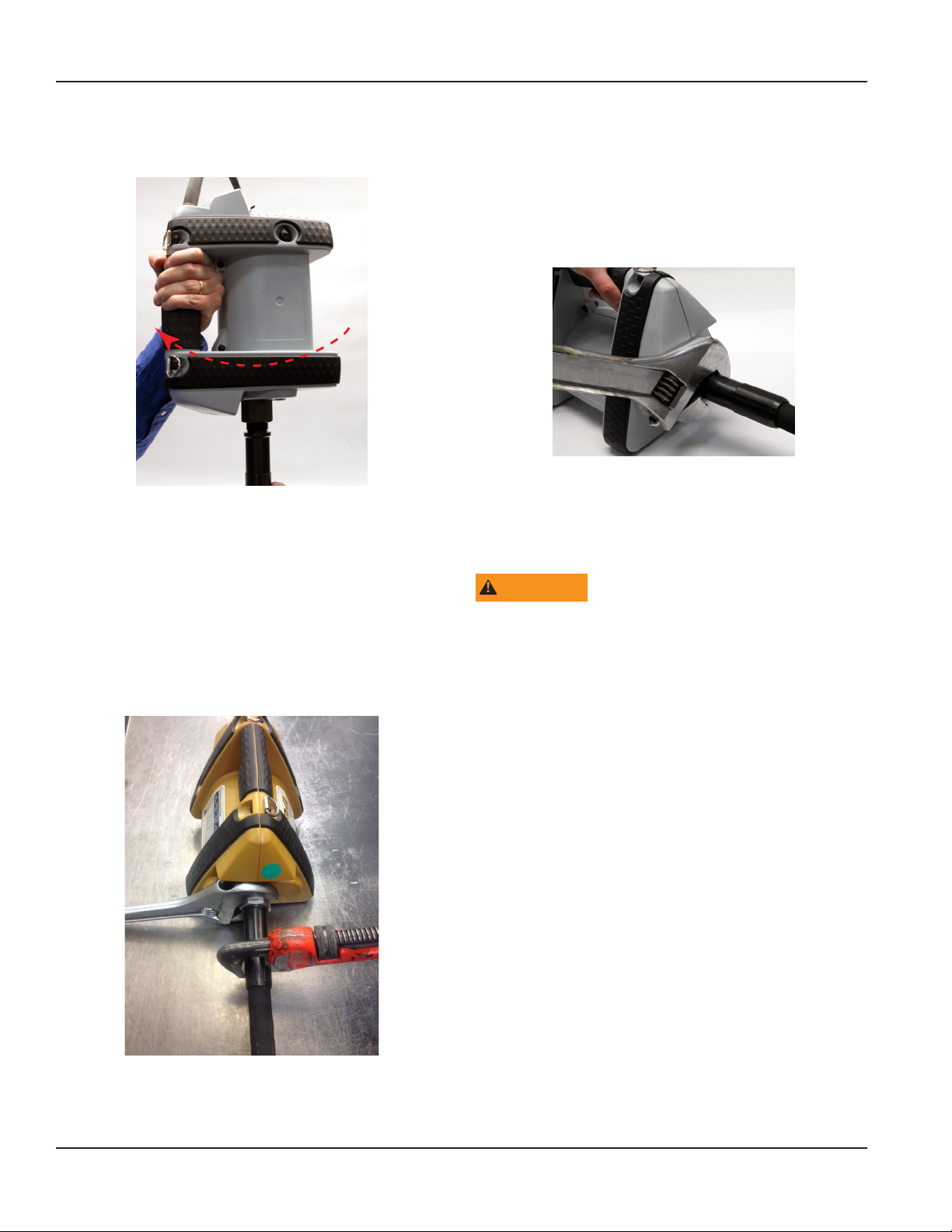

2. Hold the casing assembly in one hand while carefully
rotating the motor counterclockwise until motor is snug
to the shaft. See Figure 9.
R
o
t
a
t
i
o
n
Figure 9: Motor rotation
OTE:NThe motor may be taken off of the work surface,
allowing the motor housing to spin in the air while
holding onto the flex shaft with a hand or with vise.
Do not over tighten or reef as this may damage the
plastic motor housing.
3. Once threads are started, rotate motor assembly until the
motor assembly stops turning. See Figure 9.
4. Use a crescent wrench to hold the hex motor connector
and a pipe wrench on the ex shaft to tighten.
See Figure 10.
Figure 10: Crescent wrench and pipe wrench placement
5. The vibrator assembly is now ready to use.
Disconnecting the Vibrator Casing
(Threaded Connector)
1. Carefully loosen the hex motor connector, using a
crescent wrench on the motor and a pipe wrench on
the ex shaft assembly, until the motor assembly can be
rotated by hand in a counterclockwise direction.
See Figure 10.
Figure 11: Hex motor connection
2. Carefully rotate the motor until it and the casing separate
from one another. Do not pull the core end too far out
of the casing end or the head will have to be removed to
realign the core with the head driver.
WARNING
TIGHTENING OR TORQUING USING THE MOTOR HANDLE
CAN CAUSE DAMAGE TO MOTOR CASING.
The motor can accommodate any of the 750 series cores
and casings.
The motor is ordered as either a quick-disconnect
connection or a threaded connection version.
If the threaded version was ordered it cannot be used
with the quick-disconnect core and casing. If the
quick-disconnect version was ordered threaded core
and casings can be used with the addition of a thread to
quick-disconnect adapter. The configuration options are
shown in “Parts” on page 11.
Setup
Page 10 February 2020VBR-UM-02653-EN-05

PARTS
17
15 16
1
2
2
3
5
4
6
7
8
10
10
11 12
13 14
15 16
18
1
19
Item Kit Number Description Parts Included (Parts Quantity)
1W423114 Brush cap with O-ring, 115V Brush cap (2); O-ring, brush cap (2)
2W423144 Bolt and nut with D-ring kit (housing) Acorn nut, 10-32 unf, self locking (9); Carriage screw, 10-32 unf × 3/4 in. (9); D-ring(2)
3W423130 Intake screen (1)
4W423132 Intake filter (1)
5W423131 Exhaust screen (1)
6W423110 Rocker switch; 20 A 125-250V AC (1)
7W423140 Carriage screw, 10-32 unf × 3/4 in. (1)
8W423141 Acorn nut, 10-32 unf, self locking (1)
9W819013 Carrying strap (not shown) (1)
10 W423239 Housing replacement kit, gold
Acorn nut, 10-32 unf, self locking (9); Carriage screw, 10-32 unf x 3/4 in. (9); D-ring (2); label,
995 (1); Label, head chart (1); Left housing assembly, gold (1); Right housing assembly,
gold (1)
11 W423600 Motor assembly, 115 Volt1(1)
12 W423601 Motor assembly, 230 Volt2(1)
13 W423155 115 Volt 3-wire cord set kit1115V cord set, 3-wires with plug (1); Cord bend relief (1); Cord strain relief bushing (1)
14 W423157 230 Volt 3-wire cord set kit2230V cord set, 3-wires with plug (1); Cord bend relief (1); Cord strain relief bushing (1)
15 W423235 115 Volt brush, cap and O-ring kit1Brush cap (2); O-ring, brush cap (2); Brush and spring assembly, 115V (2)
16 W423236 230 Volt brush, cap and O-ring kit2Brush cap (2); O-ring, brush cap (2); Brush and spring assembly, 230V (2)
17 W423240 Q.D. Connector kit3Complete Q.D. Motor connector assembled with set screws
18 W423241 Threaded connector kit4Threaded hex motor connector with set screw
19 W423-500 Threaded to Quick-Disconnect Adapter (1)
1Available for Model Numbers W995G1Q and W995G1T
2Available for Model Numbers W995G2Q and W995G2T
3Available for Model Numbers W995G1Q and W995G2Q
4Available for Model Numbers W995G1T and W995G2T
Figure 12: Repair parts for 995
Parts
Page 11February 2020 VBR-UM-02653-EN-05

15 16
1
2
2
3
5
4
6
7
8
10
10
11 12
13 14
15 16
17
18
19
20
1
21
Item Kit Number Description Parts Included (Parts Quantity)
1W423114 Brush cap with O-ring, 115V Brush cap (2); O-ring, brush cap (2)
2W423144 Bolt and nut with D-ring kit (housing) Acorn nut, 10-32 unf, self locking (9); Carriage screw, 10-32 unf × 3/4 in. (9); D-ring(2)
3W423130 Intake screen (1)
4W423132 Intake filter (1)
5W423131 Exhaust screen (1)
6W423110 Rocker switch; 20 A 125-250V AC (1)
7W423140 Carriage screw, 10-32 unf × 3/4 in. (1)
8W423141 Acorn nut, 10-32 unf, self locking (1)
9W819013 Carrying strap (not shown) (1)
10 W423239 Housing replacement kit, black
Acorn nut, 10-32 unf, self locking (9); Carriage screw, 10-32 unf x 3/4 in. (9); D-ring (2);
label, Sure Speed 2.0 (1); Label, head chart (1); Left housing assembly, black (1); Right
housing assembly, black (1); Sure Speed soft start label (1)
11 W423600 Motor assembly, 115 Volt1(1)
12 W423601 Motor assembly, 230 Volt2(1)
13 W423155 115 Volt 3-wire cord set kit1115V cord set, 3-wires with plug (1); Cord bend relief (1); Cord strain relief bushing (1)
14 W423157 230 Volt 3-wire cord set kit2230V cord set, 3-wires with plug (1); Cord bend relief (1); Cord strain relief bushing (1)
15 W423235 115 Volt brush, cap and O-ring kit1Brush cap (2); O-ring, brush cap (2); Brush and spring assembly, 115V (2)
16 W423236 230 Volt brush, cap and O-ring kit2Brush cap (2); O-ring, brush cap (2); Brush and spring assembly, 230V (2)
17 W423240 Q.D. Connector kit3Complete Q.D. Motor connector assembled with set screws
18 W423241 Threaded connector kit4Threaded hex motor connector with set screw
19 W425500 Sure speed control board (1)
20 W423170 Hall effect sensor kit Hall effect sensor; Hall effect sensor guard; Screw, 8-32 w/tooth lock washer
21 W423-500 Threaded to Quick-Disconnect Adapter (1)
1Available for Model Numbers WSS2G1Q and WSS2G1T
2Available for Model Numbers WSS2G2Q and WSS2G2T
3Available for Model Numbers WSS2G1Q and WSS2G2Q
4Available for Model Numbers WSS2G1T and WSS2G2T
Figure 13: Repair parts for Sure Speed 2.0
Parts
Page 12 February 2020VBR-UM-02653-EN-05

1 2
3 4
Item Kit Number Description Parts Included (Parts Quantity)
1W423603 Field; 15 Amp; 115 Volt1(1)
2W423605 Field; 7.5 Amp; 230 Volt2(1)
3W423650 115 Volt armature kit1Assembly, armature, 115 Volt, with bearings, fan and magnet; 115V brush, cap and o-ring kit (not shown)
4W423651 230 Volt armature kit2Assembly, armature, 230 Volt, with bearings, fan and magnet; 230V brush, cap and o-ring kit (not shown)
1Available for Model Numbers W995G1Q, W995G1T, WSS2G1Q and WSS2G1T
2Available for Model Numbers W995G2Q, W995G2T, WSS2G2Q and WSS2G2T
Figure 14: Motor kits
Parts
Page 13February 2020 VBR-UM-02653-EN-05

PREVENTIVE MAINTENANCE
Wyco vibrator motors are designed to operate 50…100
hours between normal preventive maintenance intervals.
The service instructions below should be followed to
perform the preventive maintenance.
WARNING
THERE ARE NO USER SERVICEABLE PARTS CONTAINED
WITHIN THE MOTOR HOUSING. OPENING THE MOTOR
HOUSING MAY BE DANGEROUS AND WILL VOID THE
WARRANTY. ANY REPAIRS THAT REQUIRE OPENING
THE MOTOR HOUSING SHOULD BE PERFORMED AT
AN AUTHORIZED WYCO SERVICE CENTER OR AT THE
WYCO FACTORY. USE ONLY FACTORY AUTHORIZED
REPLACEMENTS PARTS.
Brush Removal
For the location of the parts used in the following
procedures see “Parts” on page 11.
1. Disconnect the line cord from the power source.
2. Lay the motor on its side with the brush cap (6) facing up.
3. Use a 1/2 in. 6-sided socket to unscrew the plastic brush
cap (6) from the motor half.
4. The brush spring (5) will pop out. Carefully remove the
brush spring by gently pulling on the spring.
5. Repeat these steps for the opposite side.
Brush Replacement
OTE:NBrushes should be replaced in pairs.
1. Inspect and replace damaged O-rings.
2. Lubricate the O-ring prior to cap installation
3. Align the new brush (5) with brush holder.
4. Insert the new brush.
5. Push the spring into the holder as you screw the brush
cap back into the housing.
OTE:NThe O-ring must be on the brush cap before you
screw the cap into the housing.
6. Torque the brush cap (6) to 35 in. lb.
7. Repeat these steps for the opposite side.
Filter Replacement
1. Pull the old lter down from the housing with
your ngers.
2. Place the new lter (2) in the housing, tapered side up.
See “Parts” on page 11.
ELECTRIC VIBRATOR HEAD
SERVICE AND MAINTENANCE
MPORTANTI
Service the vibrator head after every 50 hours of operation for
trouble-free running on the job.
When servicing, always replace the hex driver, seals and
bearings, or bushing for 750-D & 750-EH heads.
See“Electric Vibrator Head Assembly Drawings and Parts Lists”
on page 16.
All heads are equipped with seals at the flexible shaft end
and contain oil. The seals serve a double purpose; to keep
the oil in the head and to keep the grease from the flexible
shaft out of the head.
1. Hold the nose end in a vise and unscrew the end cap
counterclockwise with a chain wrench or a good pipe
wrench. See Figure 15.
Figure 15: End cap removal
Preventive Maintenance
Page 14 February 2020VBR-UM-02653-EN-05

2. Pull the eccentric rotor assembly out of the housing.
OTE:NIf the bearings are stuck and you have difficulty
removing them from the housing, screw the end
cap partly back into the housing and bounce the
head and cap down on a block of wood in order to
loosen the bearings from their seat, then pull out
the rotor assembly. See Figure 16.

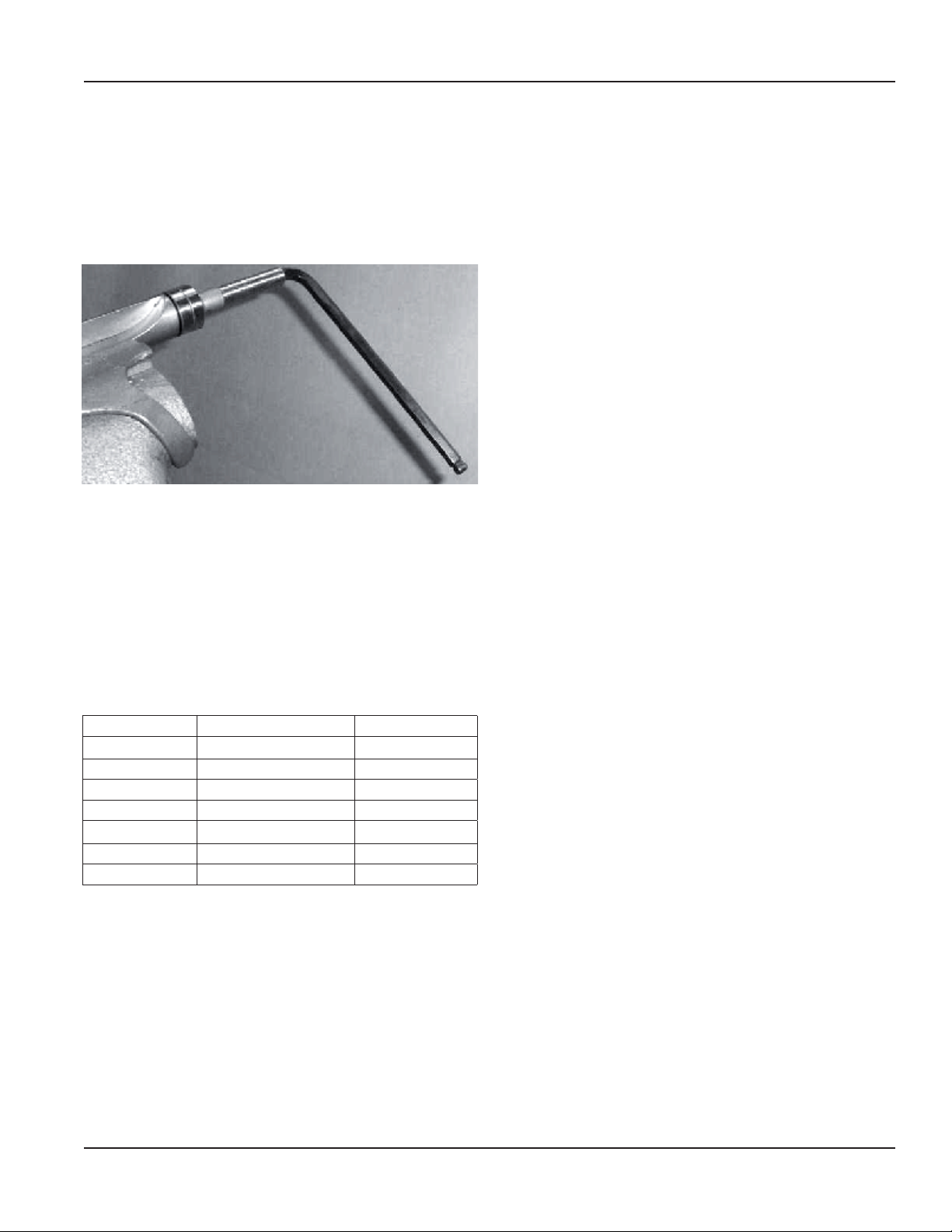

Figure 16: Bearing Removal
OTE:NThe hexagon driver has left hand threads.
3. Flush the rotor assembly and housing with solvent and
wipe all parts clean.
4. Replace bearings, seals and hex driver. Maintain
concentric alignment of the hex driver with respect to
the rotor shaft.
5. Rell with proper amount of Wyco non-foaming vibrator
oil. See Table 2.
6. Apply Loctite 545 adhesive/sealant or equivalent to
threads on both ends of rotor.
Head Model Head Size in. (mm) Oil Required
750-D 13/16 (20.64) Square 1/2 oz (14 g)
750-EH 1 (25.4) Square 3/4 oz (21 g)
750-FI 1-3/8 (34.93) Square 1 oz (28 g)
750-GI 1-3/4 (44.45) Square 1-1/4 oz (35 g)
750-LI 2 (50.8) Square 2 oz (57 g)
750-MI 2-1/4 (57.15) Square 3-1/2 oz (99 g)
750-SBI 2-1/2 (63.5) Round 1-1/4 oz (35 g)
Table 2: Head oil requirements
7. Replace the rotor assembly into the head housing.
8. Apply Loctite 545 adhesive/sealant or equivalent all
around the threads of the end cap.
9. Tighten and wipe o excess Loctite 545 adhesive/sealant.
Flexible Shaft Lubrication and Break-in
When vibrators are shipped completely assembled from the
factory, the shafts are lubricated and broken-in. If separate
cores and casings are shipped, they require the following
lubrication and break-in procedure. Core and casing
combinations should be checked for lubricant levels at least
every 50 hours.
Lubrication Procedure
To lubricate, lightly coat the core with grease (Wyco shaft
lubricant) while inserting it into the casing.
MPORTANTI
Do not over lubricate. Surplus lubricant may get past the seal
in the vibrator head. Over lubrication will also increase the
amount of torque required to operate the vibrator, resulting
in additional stress on the motor and possibly early core and
casing failure.
When adding lubricant on the job, after each 50 hours
of operation:
1. Loosen the casing from the motor.
2. Pull out the core about 15…18 in. (318… 457.2 mm).
3. Apply lubricant as above to the exposed section of core.
4. Reinstall the core, making sure that it engages with the
vibrator head. During operation, the grease will travel the
full length of the casing.
Break-in Procedure
A break-in procedure is required after the assembly of
separately shipped core and casing. To break it in, repeatedly
coil the flex shaft from the head to the motor while the
motor is running. The coiling and uncoiling should be
repeated at least three times for proper break-in.
OTE:NFor shorter core and casing combinations, coiling
is not possible. Break-in for short core and casings
requires bending into a U-shape instead of a coil.
Water is one of the greatest enemies of satisfactory
performance of vibrator heads. As the head is submerged in
the mix, water and cement can infiltrate into the head unless
precautions are taken. In addition to securely tightening the
head onto the flexible shaft, the threads on the head and
shaft must be coated with Permatex Form-A-Gasket
No. 2. This must be done each and every time that the head
is removed and reinstalled.
Electric Vibrator Head Service and Maintenance
Page 15February 2020 VBR-UM-02653-EN-05

Extension Cords
When selecting an extension cord for use with Wyco electric motor cord sets using a three-prong polarized plug, an
equivalent plug set must be used for the grounded or earthed version.
MPORTANTI
A grounded or earthed motor requires a grounded or earthed extension cord.
A two-prong extension cord may be used for the double insulated motor. Extension cords must be approved for outdoor use
and the wire gauge of the cord must be appropriate for the expected load. See Table 3.
Motor Type Voltage Rated Amps Minimum Wire Size Maximum Cord Length
WSS2G1Q
115V AC(±15V AC) 15 14 AWG 100 ft (30.48 m)WSS2G1T
W995G1Q
W995G1T 12 AWG 150 ft (45.72 m)
WSS2G2Q
230V AC (±30V AC) 7.5
16 AWG
100 ft (30.48 m)
WSS2G2T
W995G2Q 16 AWG
W995G2T
Table 3: Extension cord wire minimum size requirements
ELECTRIC VIBRATOR HEAD ASSEMBLY DRAWINGS AND PARTS LISTS
Vibrator Head Model Marking on End Cap Square Size
in. (mm) Assembly Part No
750-D D 3/16 (4.76) W877-520
750-EH EH 1 (25.4) W877-526
750-FI 1.38B 1-3/8 (34.92) W878-533
750-GI 1.75B 1-3/4 (44.45) W878-540
750-LI 2.00B 2 (50.8) W878-563
750-MI 2.25B 2-1/4 (57.15) W878-568
Table 4: Electric vibrator head models
OTE:NVibrator head model 750-SBI is a 2-1/2 in. (63.5 mm) round head with no end cap marking.
Assembly PN is # W877-512.
Electric Vibrator Head Assembly Drawings and Parts Lists
Page 16 February 2020VBR-UM-02653-EN-05

Vibrator Head Model 750-D
5
34
122689 7
LOCTITE 545 LOCTITE 545 PERMATEX #2
Item Description Quantity Part No. Item Description Quantity Part No.
1Nut, Hex Jam 1 W435638 6Holder, Seal 1 *
2Bearing, Ball 4 W097011 7Seal, Oil 2 *
3Housing, Square 1 W587320 8Bushing 1 *
4Rotor 1 W717340 9Driver, Hex 1 W382428
5O-Ring, Buna 1 * * All of these items available assembled in a kit, PN W747-540.
Figure 17: Model 750-D parts
Vibrator Head Model 750-EH
5
34
122 6 8
7
LOCTITE 545 LOCTITE 545 PERMATEX #2
Item Description Quantity Part No. Item Description Quantity Part No.
1Nut, Hex Jam 1 W432710 6Bushing 1 W177325
2Bearing, Ball 4 W097012 7End Cap 1 **
3Housing, Square 1 W587325 8Driver, Hex 1 W384447
4Rotor 1 W717345 ** End cap assembly with seals is PN W207-248.
(Order bushing separately.)
5Seal, Oil 2 **
Figure 18: Model 750-EH parts
Electric Vibrator Head Assembly Drawings and Parts Lists
Page 17February 2020 VBR-UM-02653-EN-05

Vibrator Head Models 750-FI, 750-GI, 750-LI and 750-MI
3 6 78 9
PERMATEX #2
LOCTITE 545 LOCTITE 545 LOCTITE 545
2310 10
45
1
Item Description Quantity Part No. for
750-FI (1.38B)
Part No. for
750-GI (1.75B)
Part No. for
750-LI (2.00B)
Part No. for
750-MI (2.25B)
1Nut, Hex Jam 1 W432708 W432707
2Washer, Flat 1 W887015 W887011
3Bearing, Ball 4 W096013 W096010 W096011 W096020
4Housing, Square 1 W588331 W588339 W588354 W588368
5Rotor 1 W718357 W718335 W717360 W718365
6Washer, Flat 1 W887015 W887016
7Seal, Oil 2 ***
8End Cap 1 ***
9Driver, Hex 1 W384446
10 Shim 2 W419701 N/A
*** Manufacturer suggests using end cap with pressed in seals: 1.38B - PN W208-231; 1.75B - PN W208-236; 2.00B - PN W208-261;
2.25B - PN W208-268. However, seal and end cap are available separately upon request.
Figure 19: Model 750-FI, GI, LI and MI parts
Vibrator Head Model 750-SBI
123456789
3
Item Description Quantity Part No. Item Description Quantity Part No.
1Screw, Hex Socket 1 W437510 6Washer, Spacer 1 W887018
2Washer, Flat 1 W887017 7Driver, Hex 1 W384446
3Bearing, Ball 2 W099910 8End Cap 1 W207268
4Rotor 1 W717310 9Seal, Oil 2 W747504
5Housing 1 W587310
Figure 20: Model 750-SBI parts
Electric Vibrator Head Assembly Drawings and Parts Lists
Page 18 February 2020VBR-UM-02653-EN-05

RESTRICTIONS OF HAZARDOUS SUBSTANCES ROHS DIRECTIVE
This product is compliant with the RoHS Directive identified on the Declaration of Conformity associated with this product.
This product does not contain lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls or polybrominated
diphenyl ethers in quantities exceeding the following maximum concentration value levels:
Lead 0.1% by weight in homogenous materials
Mercury 0.1% by weight in homogenous materials
Hexavalent Chromium 0.1% by weight in homogenous materials
Polybrominated Biphenyls (PBB) 0.1% by weight in homogenous materials
Polybrominated Diphenyl Ethers (PBDE) 0.1% by weight in homogenous materials
Cadmium 0.01% by weight in homogenous materials
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT WEEE DIRECTIVE
In the European Union, this label indicates that this product should not be disposed of with household
waste. It should be deposited at an appropriate facility to enable recovery and recycling.
For information on how to recycle this product responsibly in your country, please visit:
www.badgermeter.com
Restrictions of Hazardous Substances (Rohs) Directive
Page 19February 2020 VBR-UM-02653-EN-05

®
A S
C C
Flex Shaft Concrete Vibrators, Sure Speed 2.0 and 995
Trademarks appearing in this document are the property of their respective entities.
Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specications without notice, except to the
extent an outstanding contractual obligation exists. © 2020 Badger Meter, Inc. All rights reserved.
Wyco | 8635 Washington Avenue | Racine, WI 53406-3738 USA
[e-mail] | www.wycotool.com
Phone: [phone] | 800-233-9926 | Fax: [phone]
