B-Tech BT7165 Instruction Manual

B-TECH AUDIO VIDEO MOUNTS
www.btechavmounts.com
CONTENTS
INSTALLATION TOOLS REQUIRED
FEATURES
BT7165
AV COMPONENT GLASS SHELF
INSTALLATION GUIDE & PARTS LIST
This Pack Contains 1 Shelf
Crosshead
screwdriver
Installation Safety Notes.....................................................................................................................2
Parts List.............................................................................................................................................4
Installation Instructions.......................................................................................................................6
Sample Installations..........................................................................................................................18
Product Dimensions..........................................................................................................................19
B-Tech Contact Details.....................................................................................................................20
PLEASE KEEP THIS FOR FUTURE REFERENCE
CAUTION!! GLASS
This item contains glass -
Handle with care to avoid
damage or injury
●Designed for AV equipment up to 7.5kg (17lbs)
●Shelf dimensions-:
450mm (17.7”) x 320mm (12.6”)
●Fixes to BT8010 Flat screen wall unit and
BT8505 Flat screen trolley
●10mm (0.4”) thick tempered safety glass
●Meets British Standard BS6206

2
INSTALLATION SAFETY INSTRUCTIONS
CAUTION: This shelf is intended for use only with the maximum weights
indicated. Use with AV equipment heavier than the maximum indicated may
result in instability causing possible injury.
Do not attempt to install this product until all instructions and warnings have been read and
properly understood. Please keep these instructions for future reference.
B-Tech International Limited, its distributors and dealers are not liable or responsible for
damage or injury caused by improper installation, improper use or failure to observe these
safety instructions. In such cases, all guarantees will expire.
General
Great care must always be taken during installation as most AV equipment is of a fragile
nature, possibly heavy and easily damaged if dropped.
If you do not fully understand the instructions or are not sure how to install this product safely,
then please consult a professional for advice and/or to install this product for you. Failure to
mount this product correctly may cause serious injury or death both during installation and at
any time thereafter.
Do not mount any AV equipment that exceeds the specific weight limit of the product you are
installing. This weight limit will be clearly stated on each product and its packaging and will
vary from product to product.
Product location
Please pay careful attention to where this product is located. Some locations are not suitable
for installation.
If located in a public or frequently populated area ensure that the product is out of the
immediate reach of people.
Fixing hardware
It is highly recommended that all fixing screws be used where supplied and that the purpose of
all other fixing hardware is fully understood. In some cases more AV equipment fixing
hardware will be supplied to accommodate different models of equipment and set up
configurations.
The installer must be satisfied that any supplied fixing hardware is suitable for each specific
installation. If any fixing screws or included hardware are deemed not sufficient for a safe
installation then please consult a professional or your local hardware store.
Hazard limitation
When routing cables take advantage of any built in cable management features that the
product might provide and ensure that all cables are tidy and secure. Check to see that any
moving aspect of the product can do so unhindered by any cabling.
Some products have moving parts and the potential to cause injury through the crushing or
trapping of fingers or other body parts.
Particular attention to the nature of moving parts is required especially when assembling
installing and adjusting during set up.
Immediately after installations double-check that the work done is safe and secure. Double-
check all necessary fixings are present and are of ample tightness.
It is recommended that periodic inspections of the product and its fixing points are made as
frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV
installer or other suitably qualified person.

3
CS
Společnost B-Tech International Ltd. doporučuje provést instalaci tohoto produktu prostřednictvím odborného
instalátora AV či jinak způsobilé osoby. Společnost B-Tech International Ltd, její distributoři a prodejci nenesou
odpovědnost za škody nebo zranění způsobená nevhodnou instalací. Tento výrobek je nutno umístit do vhodné
konstrukce a používat jen po uvedenou maximální výšku.
DE
B-Tech International Ltd. empfiehlt, dass dieses Produkt durch einen qualifizierten AV-Techniker oder eine
andere Person mit geeigneter Qualifikation installiert wird. B-Tech International Ltd, ihre Distributoren und
Händler können nicht für durch fehlerhafte Montage verursachte Beschädigung oder Verletzung haftbar bzw.
verantwortlich gemacht werden. Dieses Produkt muss auf eine geeignetem Untergrund montiert werden und darf
nur bis zum angegebenen Höchstgewicht verwendet werden.
ES
B-Tech International Ltd. recomienda que un instalador de audio y video profesional u otra persona debidamente
cualificada instalen este producto. B-Tech International Ltd, sus distribuidores y concesionarios no se hacen
cargo ni se responsabilizan de ningún daño o lesión provocados por una instalación inapropiada. Este producto
se debe montar en una estructura adecuada y se debe utilizar soportando solamente hasta el peso máximo
indicado.
FR
B-Tech International Ltd. recommande de confier l’installation de ce produit à un installateur AV professionnel ou
à une autre personne dûment qualifiée. B-Tech International Ltd, ses distributeurs et ses revendeurs ne
sauraient être tenus responsables de tout dégât ou de toute blessure résultant d’une installation incorrecte. Ce
produit doit être monté sur un support approprié et utilisé dans la limite du poids maximum indiqué.
IT
B-Tech International Ltd. consiglia di affidare l’installazione di questo prodotto a un installatore specializzato o ad
altra persona adeguatamente qualificata. B-Tech International Ltd, i suoi distributori e rivenditori non accettano
alcuna responsabilità nei riguardi di eventuali danni o infortuni causati da un’errata installazione. Questo prodotto
deve essere fissato a una struttura idonea e utilizzato unicamente sino al peso massimo indicato.
NL
B-Tech International Ltd. adviseert om dit product te laten installeren door een professionele AV-installateur of
andere hiervoor gekwalificeerde persoon. B-Tech International Ltd, haar distributeurs en dealers zijn niet
aansprakelijk of verantwoordelijk voor schade of letsel die is veroorzaakt door onoordeelkundige installatie. Dit
product moet worden gemonteerd aan een geschikte constructie, waarbij het aangegeven maximum gewicht niet
mag worden overschreden.
PL
Firma B-Tech International Ltd. zaleca, aby ten produkt byłinstalowany przez profesjonalnych instalatorów AV
lub inny odpowiednio przeszkolony personel. Firma B-Tech International Ltd, jej dystrybutorzy i dealerzy nie
ponosząodpowiedzialności za uszkodzenia lub obrażenia ciała powstałe w wyniku nieprawidłowej instalacji.
Niniejszy produkt musi byćzamontowany na odpowiedniej powierzchni, a podczas użytkowania nie wolno
przekraczaćpodanego maksymalnego obciążenia.
PT
A
B-Tech International Ltd. recomenda que a instalação deste produto seja efectuada por um instalador de AV
profissional ou outra pessoa devidamente habilitada. A B-Tech International Ltd. e os seus distribuidores e
concessionários não são responsáveis por danos ou lesões causados por uma instalação incorrecta. Este
produto tem de ser montado numa estrutura adequada e utilizado somente até ao peso máximo indicado.
RU
Компания B-Tech International Ltd. рекомендует, чтобы установка данного изделия производилась
инженером по установке аудио-видеотехники или другим специалистом ссоответствующей
квалификацией. Компания B-Tech International Ltd., ее дистрибьюторы идилеры не несут ответственности
за повреждения или травмы, полученные врезультате неправильной установки. Данное изделие должно

BT7165
PARTS LIST
4
Suitable for loads
up to
7.5kg (17lbs)
2
4
3
1

5
PLEASE KEEP THIS FOR FUTURE REFERENCE
REF PART NAME QTY
1 GLASS SHELF 1
2 SHELF BASE 1
3 M5 x 12mm SCREW 2
4 M8 HANDWHEEL 2


6
INSTALLATION INSTRUCTIONS
Shelf Installations:
A) BT8010 FLAT SCREEN WALL MOUNT UNIT (page 7)
B) BT8505 FLAT SCREEN DISPLAY TROLLEY (page 13)
Fix the shelf base to either the wall unit or trolley.
A) BT8010 FLAT SCREEN WALL MOUNT UNIT (page 7).
B) BT8505 FLAT SCREEN DISPLAY TROLLEY (page 13).
WARNING
Attach shelf to wall unit or trolley before assembling the wall unit or trolley

7

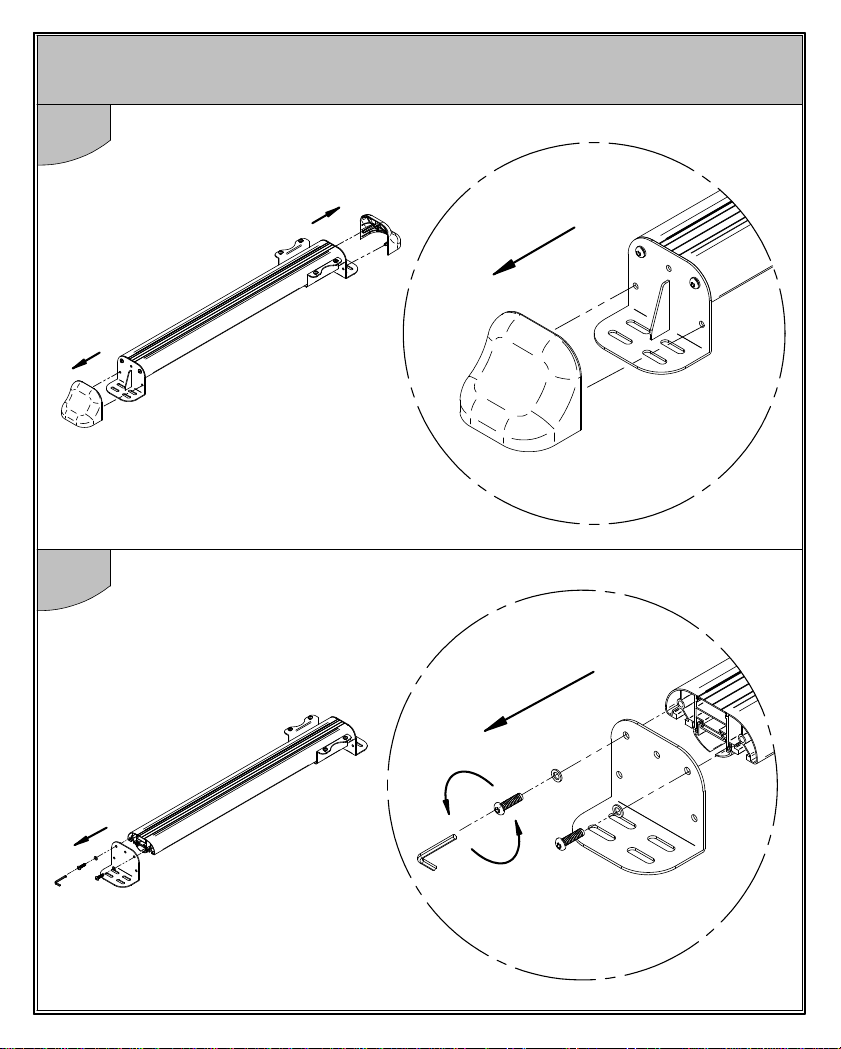

A1
BT8010 FLAT SCREEN WALL MOUNT UNIT
A2
Remove plastic covers.
Remove lower wall plate.

8

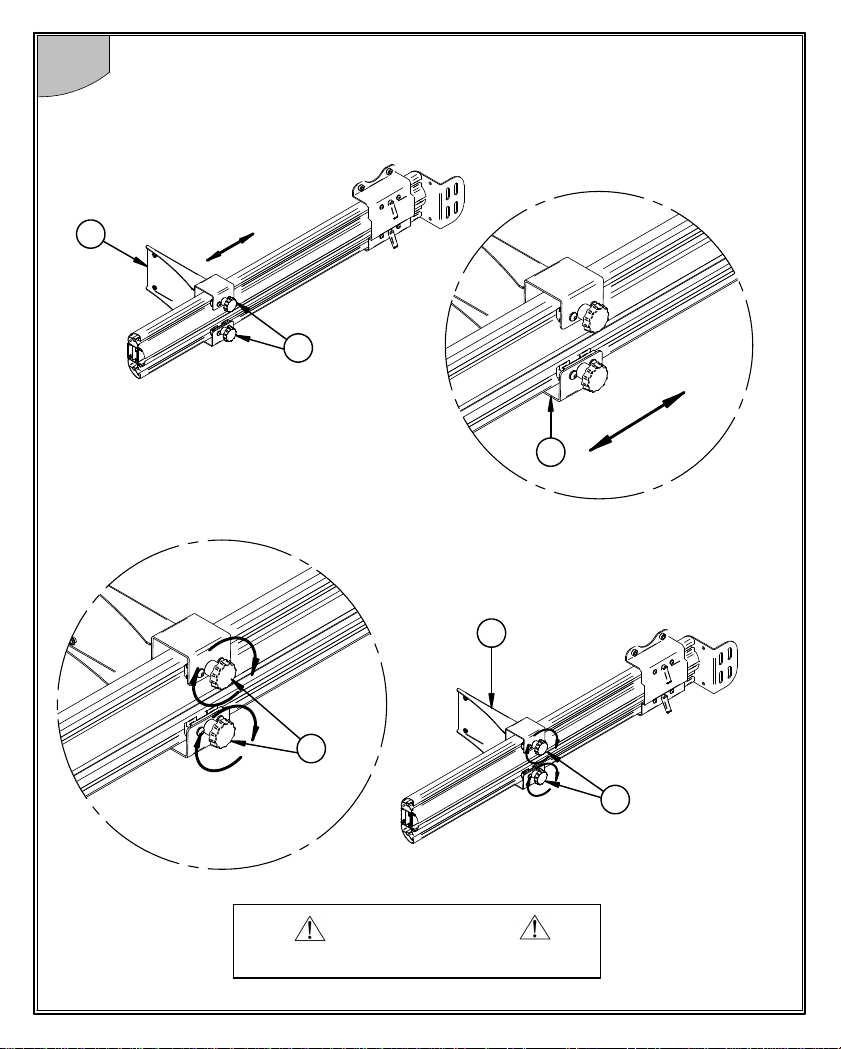

A3 Slide the shelf base onto the wall unit.
2
2

9
A4 Move shelf base to desired height then fix in place.
2
4
2
4
4
2
WARNING
Ensure handwheels are fully tightened.

10
A5 Re-Attach the lower wall plate to the wall unit.
2

11
A6
COMPLETE BT8010 MOUNTING BEFORE CONTINUING
WITH NEXT STEP.
i. Place on the glass shelf.
Place on the glass shelf and secure in place.
1
2

12
ii. Secure in place using part 3.
3
3
1
2
3
3

13

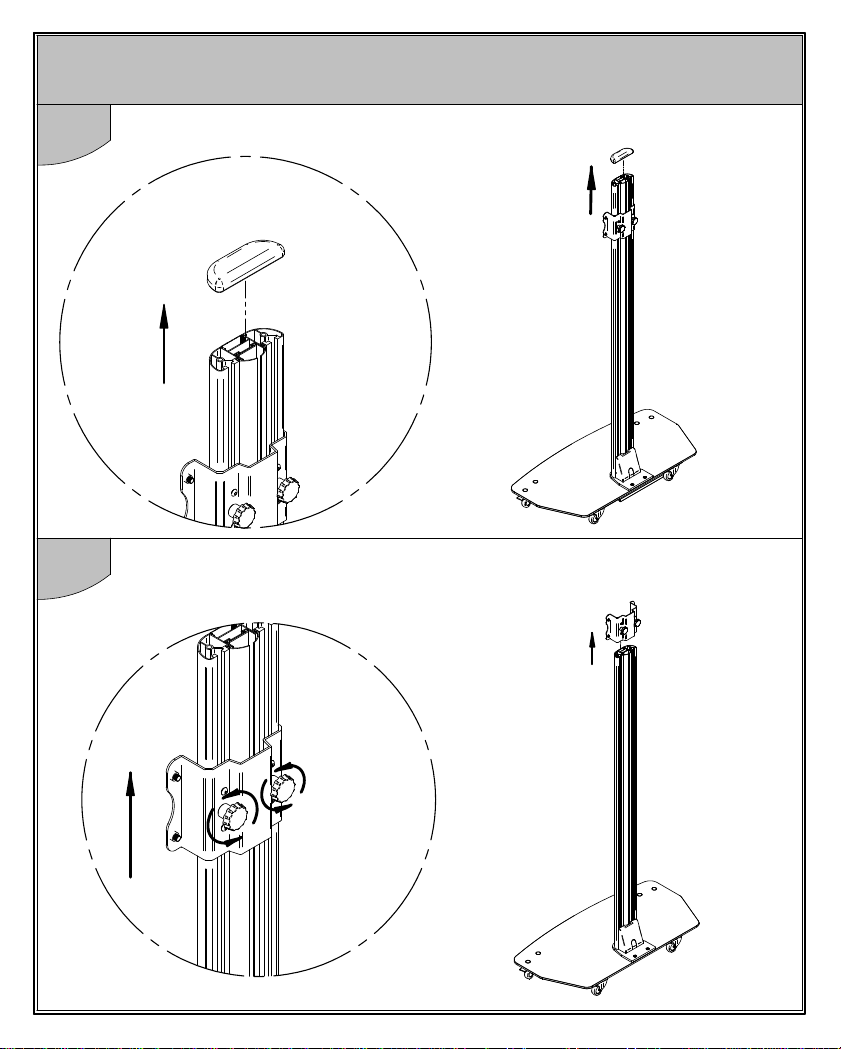

B1
BT8505 FLAT SCREEN DISPLAY TROLLEY
B2
Remove the plastic column cap.
Loosen the adaptor handwheels then slide the adaptor off the column.

14

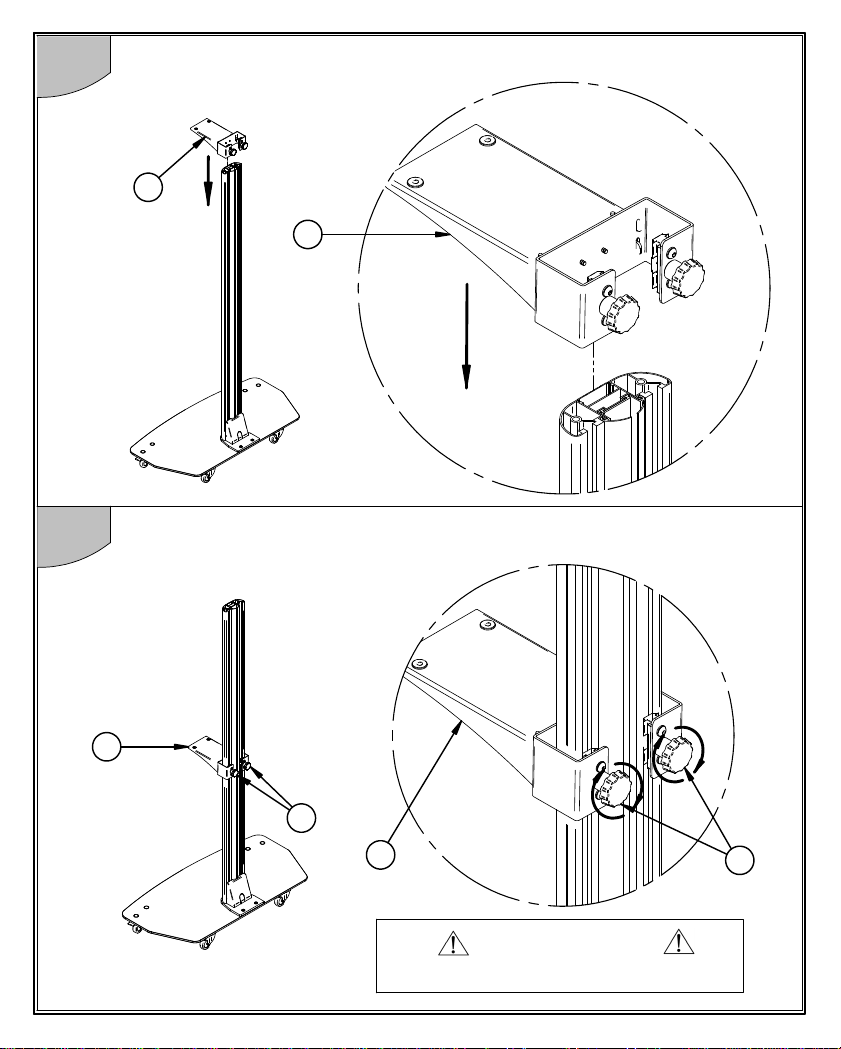

B3
B4
Slide the shelf base onto the trolley column.
Fix the shelf attachment in place by tightening the handwheels.
2
2
4
4
2
2
WARNING
Ensure handwheels are fully tightened.

15
B5
B6
Re-attach the adaptor plate onto the trolley column and then fix in place.
Re-attach the plastic column cap onto the top of the trolley.

16
B7
COMPLETE BT8505 ASSEMBLY BEFORE CONTINUING
WITH NEXT STEP.
i. Place on the glass shelf.
Place on the glass shelf and secure in place.
1
2

17
ii. Secure in place using part 3.
3
3
1
2
3
3

18
SAMPLE INSTALLATIONS
BLU-RAY
PLAYER
BLU-RAY
PLAYER
BT8505
BT8010
FLAT
SCREEN
FLAT
SCREEN
BT7165
BT7165

19
BT7165
PRODUCT DIMENSIONS
THESE INSTRUCTIONS ARE INTENDED AS A GUIDE ONLY AND B-TECH ACCEPTS NO
LIABILITY FOR THE ACCURACY OF THE INFORMATION CONTAINED IN THIS DOCUMENT.
10mm 0.4"
77mm 3"
450mm
17.7"
432mm 17"
320mm 12.6"
450mm
17.7"
100mm
3.9"
100mm
3.9"
174.5mm 6.9"
GLASS SHELF
290mm 11.4"

www.btechavmounts.com
B-TECH AUDIO VIDEO MOUNTS
HEAD OFFICE
Bennett House, Long March, Daventry, Northants NN11 4NR, UK
Email: [e-mail]
©2010 Bennett Technologies Limited. All rights reserved.
B-Tech Audio Video Mounts is a division of Bennett Technologies Limited.
B-Tech, Better By Design & Mountlogic are registered trademarks of Bennett Technologies Limited.
All other brands and product names are trademarks of their respective owners.
Photographs are for illustrative purposes only. E&OE.
EUROPE
Brixtonlaan 32, Zaventem 1930,
Brussels, Belgium
Email: inf[email protected]om
SINGAPORE
Ruby Industrial Complex,
Singapore 347740
Email: [e-mail]
NORTH AMERIC
A
203 Eggert Road,
Buffalo, NY 14215, USA
Email: [e-mail]
A
SIA PACIFIC
1503 Prosperity Millennia Plaza,
Quarry Bay, Hong Kong
Email: [e-mail]
IP-BT7165-V1-PROBX-270510-21 MADE IN CHINA
