Owner’s Manual
DANGER
WARNING
FIRE OR EXPLOSION HAZARD
If you smell gas:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, leave the area immediately.
After leaving the area, call your gas supplier
or fire department.
Failure to follow these instructions could
result in fire or explosion, which could cause
property damage, personal injury, or death.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance. An LP-cylinder not connected
for use shall not be stored in the vicinity of
this or any other appliance.
WARNING: If the information in this
manual is not followed exactly, a fire or
explosion may result causing property
damage, personal injury, or loss of life.
•
•
•
•
DANGER CARBON MONOXIDE HAZARD
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or
home.
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
or the gas supplier.
by a qualified installer, service agency,
Installation and service must be performed
WARNING:For Outdoor Use Only.
WARNING
service agency, or the gas supplier.
with this appliance. Installation and service must be performed by a qualified installer,
damage, personal injury or loss of life. Refer to the owner's information manual provided
Improper installation, adjustment, alteration, service or maintenance can cause property
Castle Rock Fire Column
Sku# 2595237
Item# 52106
Model# HYFP40205-107

Page 2
WARNING
Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so
may r

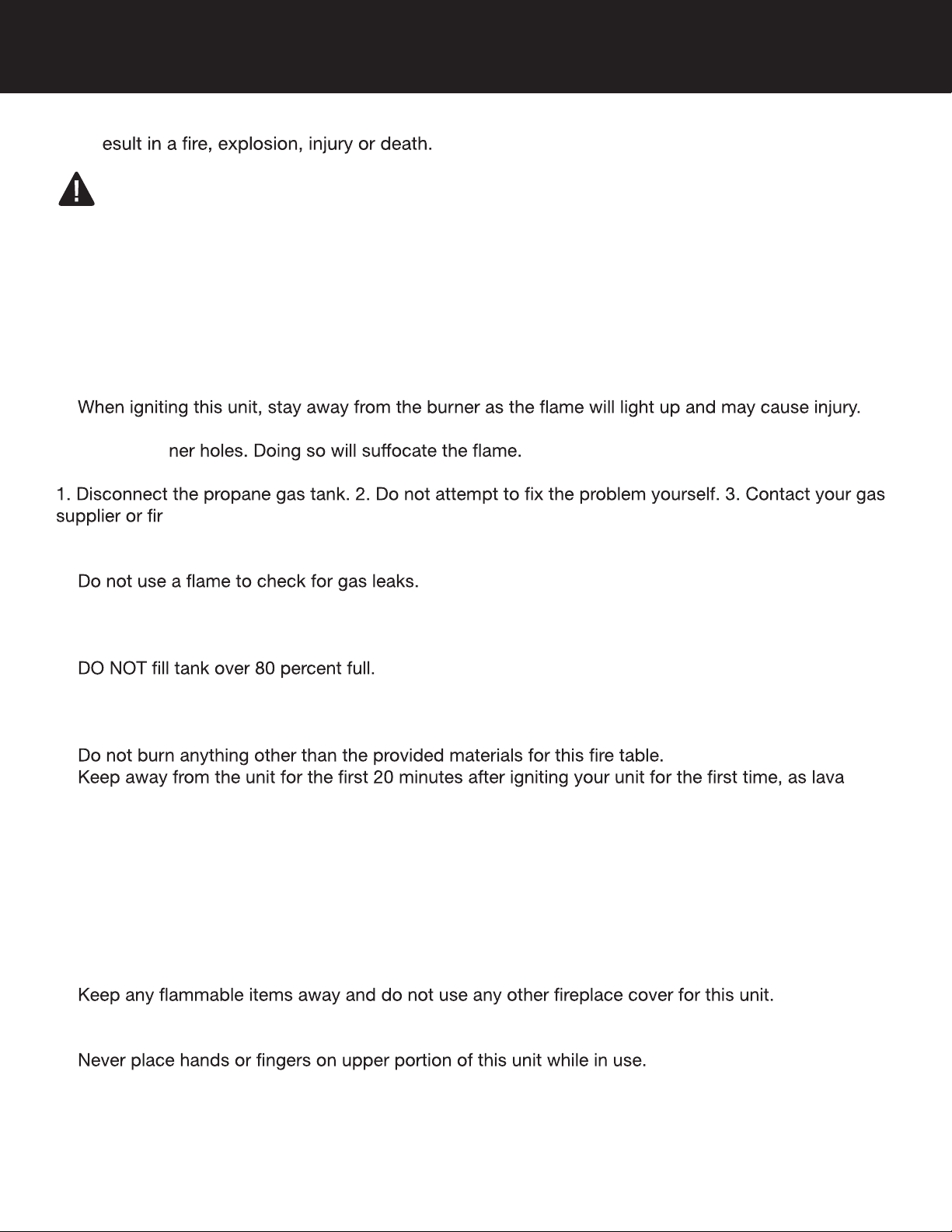

SAFETY INFORMATION
•
•THIS UNIT IS INTENDED FOR OUTDOOR USE ONLY! This product shall be used outdoors, in a
ventilated space and shall not be used in any enclosed area.
•This unit is to be used with propane gas only! (sold separately)
•Do not attach a remote gas supply to this unit.
•Only use propane gas for this unit.
•Solid fuels shall not be burned in this appliance.
•
•LP GAS WARNING: Do not use any more than 1/4in depth lava rocks/pumice stones/LavaGlass®
above the bur
•If the propane gas tank is leaking gas, you may hear, see, or smell a hiss. Do the following:
e department for help.
•Applying too much propane may result in gas pooling and will not burn. Allow fresh air into the unit
so that the remaining gas may escape.
•
•Manifold pressure: 11 inch w.c. (2.74kPa).
•
•You must use a propane tank that has a collar to protect the gas valve.
•
•The tank system must be set up for vapor withdrawal.
•Discontinue use if any part of the propane tank is damaged. Rust and dents may be hazardous and
should be inspected by a gas supplier.
•
•
rocks/pumice stones/LavaGlass®could pop out and cause injury. Should any rocks pop out, discard
them.
•Always ensure that lava rocks/pumice stones/LavaGlass®are completely dry before use. Failure to
do so will cause them to crack or pop.
•Do not operate unit until all parts are fully assembled.
•Do not paint or color any part of this heating unit.
•Unit may be hot while in use, do not attempt to move it while in use.
•Never leave this heating unit unattended while in use.
•This unit is not intended for cooking.
•
•Keep a safe distance to avoid burning skin or clothing.
•Do not sit or rest hands or feet on this heating unit.
•
•Keep all electrical cords and fuel supply hose away from heated surfaces.
Use LP propane tanks with the following dimensions: diameter 12 in, height 18 in - capacity 20 lbs.
The installation of this unit must adhere to local codes or Propane Storage and Handling Code,
CSA B149.2.
•Cover must be removed when burner is in operation.

Page 3
• Combustible material should not be within 60 inches of the top of the unit, or within 48 inches
around the entire unit.
• Keep the appliance area clear and free fr
vapors and liquids.
•
•Do not add water into the unit.
•Do not operate unit if any part has been under water. Immediately call a qualied service
technician to inspect the appliance and replace any part of the control system and any gas
control that has been under water.
•Do not disconnect any part while unit is in use.
•Do not store a spare propane tank on or near this unit.
•If the heating unit is indoors, detach the propane tank and leave outdoors.
•Always remove protective cover before operating (if applicable).
•Do not set the protective cover over the unit until it is turned off and completely cooled down.
•Check for leaks after not using the unit for long periods of time.
•Children should never operate this unit. Children must be supervised while near this unit.
•Keep gas tank at least 5 feet away from unit when lit. (if external tank)
•Maximum gas supply:250 psi; Min. gas supply:10 psi.
inspected annually and cleaned regularly.
•Inspect all elements of this heating unit before each use. If there is damage, the burner must be
replaced.
•Keep the hose out from any pathways to eliminate any accidental damage. (if external tank)
•Be aware of the hazards of high temperatures and stay away from the unit to avoid any burns or
injury.
of the U.S. Department of Transportation or the National Standard of Canada CAN/CSA-B339, LP gas
tanks, spheres and tubes for Transportation of Dangerous Goods; and Commission.
gas tank connection.
cks.
•Children and adults should be alerted to the hazards of high surface temperatures and should
stay away to avoid burns or clothing ignition.
•Young children should be carefully supervised when they are in the area of the appliance.
near the appliance.
•Any guard or other protective device removed for servicing the appliance shall be replaced
prior to operating the appliance.
may be required as necessary. It is imperative that the control compartment, burners and
circulating airways of the appliance are kept clean.
IF APPLICABLE:
•Allow heating item to cool completely before placing on lid.
•DO NOT use heating item while lid is installed. Always remove the lid while heating item is in use.
(CGA791) LP

Page 4
SAFETY INFORMATION
NOTE: You must follow all steps to properly assemble this heating item. Make sure the gas
valve is turned ‘OFF’ before assembling. Do NOT attempt to assemble without proper tools.
Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied
directly by manufacturer.
Inspect the burner before use of this unit. If the burner shows any kind of damage, do not operate
the appliance. For assistance with repair or replacement of the burner or any other parts, call
manufacturer at 1.877.447.4768.
Combustible materials should not be within 60
inches of the top of the unit, or within 48 inches
around the entire unit.
Always place this outdoor re pit on a hard, level,
non-combustible surfacesuch as concrete, rock or
stone.
DANGER
Min. Clearance
48 in. ( 121.9 cm )
Min. Clearance
60 in. (152.4cm )
Min. Clearance
48 in. ( 121.9 cm )

Page 5
CONTENTS
Item Description Qty
A Firebowl 1
B Body 1
C Door 1
D Burner (preassembled) 1
E Guard (preassembled) 1
F Lava Rocks 1 box
G Protective Cover 1
H Battery (AAA) 1
I Control Knob (preassembled) 1
J Electronic Igniter (preassembled) 1
K Feet (preassembled) 4
L Touch-up Pen 2
AD
B
E
I
J
C
F
GK
H
L

Page 6
ASSEMBLY INSTRUCTIONS
2. Remove door from body (B) and place propane
gas tank (not included) into the metal stand inside
of the body (B).
before starting any assembly.
supply system is turned to the 'OFF'position
1. Check that the control knob (I) for the gas
CYLINDER VALVE
PRESSURE
RELIEF VALVE
BLEED-OFF
VALVE
BLACK COUPLING NUT
REGULATOR
turn clockwise to connect
turn clockwise
to reseal
RUBBER O RING
WARNING
Please inspect the rubber O ring in the
propane tank valve to ensure it is not
worn before attaching regulator. Worn
rubber O ring can cause leaks, explosions
and serious injury by propane tank.
hand only.
securely and tighten connections by
clockwise. Make sure it is fastened
by turning the regulator coupling nut
from the body (B) to the cylinder valve
Attach the preassembled regulator
clockwise to close the propane tank.
3. Turn the cylinder valve on the tank
B
OFF
I

Page 7
4. Once the tank is attached to the regulator,
make sure the propane gas tank sits on the
metal stand inside body (B) completely. Turn the
preassembled wing screw on the outer part of
metal stand clockwise to secure the propane gas
tank tightly.
6. Remove the rubber cap on the electronic igniter
(J) by unscrewing and slide battery (H) into the
battery slot. Make sure the positive side of the
battery faces outwards. Screw the electronic
igniter cap (J) over the battery tightly.
5. Replace door (C) onto the body (B).
B
J
H
B
C

Page 8
ASSEMBLY INSTRUCTIONS
7.
To ensure proper function, the guard (E) on this
burner (D) should be free of lava rocks at all times.
WARNING
Always ensure that lava rocks/pumice stones/
LavaGlass® are completely dry before use. Failure
to do so will cause them to crack or pop.
Keep away from the unit and allow the unit to burn
F
A
E

Page 9
To Light
OPERATION
heating item.
Wait 50 minutes after extinguishing ame prior to placing a lid (if applicable) or protective cover on
20 minutes after igniting. Flame should be a yellow/blue color and between 2 - 10 inches in height.
strike somebody’s face during the process of lighting this unit; stand away from the unit for the first
you must replace the hose (if applicable). Pumice stones/lava rocks/LavaGlass®could pop up and
Do not use the heating unit without inspecting the gas hose. If there are signs of wear or abrasion
Close the cylinder valve on the propane gas tank if you don’t intend to use it for a long time.2.
thecontrol knob (I) to the 'OFF' position.
Turn control knob (I) clockwise to the 'LOW' position; let the knob pop up and continue turning1.
To Extinguish
between the 'LOW' and 'HIGH' positions.
Push and hold in the electronic ignit
r (J) to create sparks within the electrode, continue to hold.
4.
. Replace the door (C) on the body (B).3
counterclockwise.
Remove door (C) and slowly open the valve on the propane gas tank by turning the knob 2.
Make sure the control knob (I) is in the 'OFF' position.1.
WARNING
If the burner does not ignite with the burner
control valve open, gas will continue to flow
out of the burner and could accidentally ignite
causing injury or property damage.
OFF
LOW
IGNITER
HIGH
OFF
LOW
IGNITER
HIGH
Once the fire product is lit, the flame intensity may be controlled by turning the control knob (I)
7.
position. Wait for 5 minutes for gas to clear and then repeat the above lighting instructions.
If ignition doesn’t occur within a few seconds, release the control knob (I) and rotate to the 'OFF' 6. knob (I) to allow gas to flow for 15 seconds.
Push in the control knob (I) and turn to the 'LOW' position. Keep holding down the control5.
in.
10
25
1
2.5
cm.
in.
cm.
in.
10
25
2
5
cm
in.
cm
off, disconnect propane gas tank and do not use the appliance until the leak is repaired.
on any connection there may be a leak. If you smell gas or a leak is discovered turn the gas valve
position. Brush a soap and water mixture on all connections. Turn the gas supply on; if bubbles occur
area. Connect the propane gas tank to the regulator and turn the valve on the unit to the ‘OFF’
Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor

Page 10
MAINTENANCE
Envirostone®Surface Care
Our Envirostone®material has been sealed with a patented treatment to prevent staining and
moisture absorption, but it does require proper maintenance to ensure the integrity of the surface.
Please see below for recommendations on maintaining your Envirostone®surface for years of
pleasure:
• Clean any spills immediately to prevent permanent Envirostone®surface staining or damage.
Blot any liquid spills with a clean, dry cloth to avoid spreading of the spill to the rest of the table.
Clean your Envirostone®surface with a soft, clean cloth or sponge. Mix a solution of warm clean
water and mild dish soap to remove any surface dirt or mild spills. Rinse all soap solution off of the
tabletop and dry completely to avoid water spots. Regularly cleaning the Envirostone®surface will
aid in a longer lasting product.
• Do not use petroleum-based or abrasive cleaning products. Do not use any harsh brushes when
cleaning the Envirostone®surface.
• Do not slide products across the Envirostone®surface to avoid permanent scratching and
damage.
• Always use protective mats such as coasters or placemats when eating on an Envirostone®
surface. These protective products will help absorb sweating on cool beverages and will block
out any heat rings from appearing beneath a warm mug or plate. When placing hot dishes on an
Envirostone®surface, always use mats or hot pads.
• Envirostone®surface must be covered at all times when not in use. Cover your product with an
outdoor furniture cover when not in use to protect it from the elements. Store your product indoors
during winter months. Avoiding extreme cold temperatures will prevent cracking of the tabletop.
•Before performing any maintenance always disconnect propane gas tank.
•Keep the heating item free and clear from combustible materials.
•Visually inspect burner for obstructions and keep tank enclosure free and clear from debris.
•Use a soft brush to get rid of the mild stains, loose dirt and soil after the burner and pumice stones/
lava rocks/LavaGlass®are completely cooled down. Wipe down with a soft cloth.
•Harsh weather conditions may cause stubborn stains, discoloration and possibly rust pitting.
•Permanent damage may occur if powder or solvent comes in contact with painted or plastic
components on this heating unit.
•Keep the heating unit stored away from direct sunlight.
•If storing this unit inside, disconnect the propane gas tank from the gas valve.
•Not using manufacturer approved or supplied parts/accessories may result in a defective condition
and void the warranty of this heating unit.
• Always place lid (if applicable) or protective cover on heating item when not in use.
Store your product indoors during winter months. Avoiding extreme cold temperatures will
prevent from exposure damage.
•

Page 11
TROUBLESHOOTING
Problem Cause Solution
Igniter pin and burner are wet Dry off with a soft cloth
Igniter battery is incorrectly inserted Check which direction the battery is
inserted
Igniter pin is broken Contact Manufacturer for a replacement
part
Electrode wire is loose or disconnected Reconnect wire to the igniter box located
inside the unit behind the igniter box
Electrode wire is shorting between valve
and igniter pin
Contact Manufacturer for a replacement
part
No gas flow Check that the gas tank isn’t empty
Regulator isn’t connected securely to the
tank
Tighten regulator connection to the gas
tank
Gas flow is obstructed Check all hoses for kinks and bends
Burner ports are clogged Turn all gas flow connections off. Insert
an opened paperclip (or similar item) into
each of the burner ports to clear them
out.
Flame is obstructed at burner ports Check that all burner ports are free of any
small lava rocks/pumice stones/Lava-
Glass®pieces
Regulator hose is kinked Straighten hose of all bends or kinks
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
High or gusting winds
No gas flow Check that the gas tank isn’t empty
Excess flow safety valve has been
activated
See ‘sudden drop in gas flow’ above
Heating unit won’t light
Burner won’t light
while using a match
Heating unit emits a lot
of black smoke
Sudden drop in gas
flow
Flame blows out easily
Turn the control knob to the ‘OFF’ posi-
tion. Close the tank valve and disconnect
propane gas tank. Turn the control knob
to ‘HIGH’; wait 1 minute.
Turn the control
knob back to the ‘OFF’ position. Recon-
nect propane gas tank. Light the fire unit
as indicated in the ‘To Light’ section of
this manual.
Increase flame to ‘HIGH’

Page 12
WARRANTY
CONTACT
This product has a one-year warranty against manufacturing defects in workmanship, or materials.
The manufacturer warranty will be voided by, and manufacturer disclaims any responsibility for, the
following actions:
•
•Use of any component part not manufactured or approved by Manufacturer.
•Use and installation other than what is listed in this manual.
Please contact the manufacturer for replacement parts.
If you have any questions or concerns, please contact manufacturer at the below resources:
Website
1-877-447-4768 | Monday - Friday,
8:00 am - 4: 30 pm CST
[email protected]
www.ghpgroupinc.com
Email
Toll free phone
