Bad Boy GRAPPLE 48" User manual

TRACTOR IMPLEMENT
OWNER’S OPERATOR SERVICE MANUAL
For additional information, please see us at
www.badboymowers.com
©2020 12-4
48"•70" GRAPPLE

2
TABLE OF CONTENTS
SPECIFICATIONS………………………………………………………………………………………….3
GENERAL INFORMATION…………………………………………………………………………...3
SAFETY INFORMATION……………………………………………………………………………….4
MAINTENANCE & OPERATION……………………………………………………………………5-7
SAFETY DECAL LOCATION………………………………………………………………………….8-9
PARTS BREAKDOWN……………………………………………………………………………….10-11
TO THE DEALER
Assembly, initial lubrication, and verification of proper installation of this product is the responsibility of the Bad Boy
Implement dealer. Be familiar with the safety rules and instructions found in this manual.
TO THE OWNER
Note: Anyone who operates your Bad Boy Brush Grapple must first read this owner’s manual. Although this Brush
Grapple has been engineered with safety and reliability as the foremost concerns, there is no substitute for an
informed and cautious operator. This manual should be viewed as a part of the equipment itself. If this manual is
lost, destroyed, or otherwise rendered unreadable, obtain a duplicate immediately. A duplicate can be obtained
online at www.badboymowers.com.
As with all machinery, this Brush Grapple requires periodic maintenance and should be kept free of debris buildup.
Proper care will ensure many years of dependable service. Replacement parts should only be obtained from your
Bad Boy Brush Grapple dealer or through the website referenced above. Failure to utilize approved parts can be
dangerous and will void the warranty.
LEA EL INSTRUCTIVO!
Si no lee Ingles, pida ayuda a alguien que si lo lea para que le traduzca las medidas de seguridad.
Three terms are utilized throughout this manual and are present on the brush grapple’s safety decals:
DANGER:
Indicates a hazardous situation that, if not avoided will result in death or serious injury.
WARNING:
Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION:
Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
In order to better draw attention to these important safety messages, the above terms are
accompanied with the following pictorial:

3
SPECIFICATIONS
MODEL
48" 70"
Weight
255
lbs
375
lbs
Height
24.5”
24.5
Depth
30”
30”
Overall Width
48.5”
70”
Clamp Width
38.25
64.5
Spear Spacing
11.25
11.3
Clamp Opening
35.5”
35.5”
Number of Spears
4
6
HYDRAULIC CYLINDER SPECIFICATIONS
BORE
STROKE
ROD
WORKING PRESSURE
TEST PRESSURE
ø2.5”
4.0”
Ø1.125”
2500 PSI
3125 PSI
GENERAL INFORMATION
The purpose of this manual is to assist you in operating and maintaining your Brush Grapple. Read it carefully. It furnishes information
and instructions that will help you achieve years of dependable performance.
These instructions have been compiled from field experience and engineering data. Some information may be general in nature, due
to unknown and varying operating conditions. However, through experience and these instructions, you should be able to develop
procedures suitable to your particular situation.
The illustrations and data used in this manual were current at the time of printing. However, due to possible inline production changes,
your machine may vary slightly in detail. We reserve the right to redesign and change the machines as may be necessary without
notification. Throughout this manual, references are made to right and left direction. These are determined by standing behind the
tractor facing the direction of
forward travel.

4
SAFETY RULES
Note: (Safety instructions are important!! While these instructions may seem lengthy or redundant, they are presented
for your safety)
TRAINING:
•Almost all accidents arising from the use of equipment, such as this, that has resulted in injury or death would
have been avoided had the instructions been adhered to.
•If you do not understand any part of this manual, contact your dealer for assistance.
•Dangerous situations can arise quickly. Know your controls and how to stop the engine and the attachment in
an emergency. Fractions of a second can be extremely important.
•Do not allow anyone to operate the equipment without first requiring them to read this manual and giving
proper instruction.
•Never allow children (< 16 years of age) or untrained persons to operate the equipment.
PREPARATION:
•Check that all hardware is properly installed.
•Wear sturdy, rough-soled work shoes and protective equipment for eyes, hair, hands, hearing, and head.
Wear a respirator or filter mask where appropriate.
•Tractor must be equipped with Roll-Over Protective Structure (ROPS) or ROPS cab and seat belt. ALWAYS keep
seat belt securely fastened. Falling off the tractor can, and does, result in death. Keep foldable ROPS system in
“locked up” position at all times.
•Make sure attachment is properly secured, adjusted, and in good operating condition.
•A heavy load can cause instability in driving. Make sure the rear of the tractor is properly counter-balanced
with weights. Always drive slowly – especially around turns. An unstable power unit could steer badly and
possibly tip over, causing injury or death.
•Make sure all safety decals are installed and free from damage. Replace if damaged.
•Do not exceed the lift capacity of the front-end loader. See the loader specifications for your model of tractor
•Know your equipment’s operations, dimensions, and capabilities before operating.
•Visually inspect the equipment before operating. Make sure all latching and connecting devises are properly
installed and secure.
•Replace any damaged or worn parts.
•Check the hydraulic system. Refer to your loader operator’s manual to ensure oil and filter have been serviced
correctly.

5
OPERATION
•The operator is responsible for the safe operation of the Brush Grapple. The operator must be properly
trained. Operators should be familiar with the Brush Grapple, the tractor utilized, and all safety practices
before starting operation.
•Do not allow bystanders in the area when operating, attaching, removing, assembling, or servicing the Brush
Grapple.
•Do not operate or transport equipment while under the influence of alcohol or drugs. Consult your physician
about operating equipment while taking prescription medications.
•Operate only in daylight or good artificial light.
•Keep hands, feet, hair, and clothing away from equipment while engine is running. Stay clear of all moving
parts.
•Always comply with all state and local lighting and marking requirements.
•NEVER ALLOW RIDERS ON POWER UNIT OR EQUIPMENT!
•Always sit in the tractor seat when operating controls or starting engine. Securely fasten seat belt, place
transmission in neutral, engage brake, and ensure all other controls are disengaged before starting tractor
engine.
•Look down and to the rear and make sure area is clear of people, animals, property, or foreign objects before
operating in reverse. Children often do not understand the severity of the potential danger.
•Do not operate or transport on steep slopes.
•Do not stop, start, or change directions suddenly on slopes.
•Use extreme care and reduce ground speed on slopes and rough terrain.
•Watch for hidden hazards on the terrain during operation.
•Stop tractor unit and equipment immediately upon striking an obstruction. Turn off engine, remove key,
inspect, and repair any damage before operation resumes.
•Leak down or failure of mechanical or hydraulic system can cause equipment to drop.
•Make certain all movement of equipment components has stopped before exiting the tractor.
•Only operate during daylight or when sufficient artificial light is available.
•The power unit must be equipped with a ROPS system. Operate the machinery with the seatbelt securely
fastened.
•Use caution when working near fences, ditches, other obstructions or on hillsides.
•Center all loads on the Brush Grapple to maintain full stability.
•Stop the loader gradually when lifting or lowering a load.
•Before exiting the machine, set the Brush Grapple on the ground, engage the brake, stop the engine and
remove the key.

6
MAINTENANCE
•Do not allow bystanders in the area when operating, attaching, removing, assembling, or servicing
equipment.
•Keep all persons away from operator control area while performing adjustments, service, or maintenance.
•Do not modify or alter (or permit anyone else to modify or alter) the equipment or any of its components in
any way.
•Always wear relatively tight and belted clothing to avoid getting caught in moving parts. Wear sturdy, rough-
soled work shoes and protective equipment for eyes, hair, hands, hearing, and he
•Make certain all movement of equipment components has stopped before approaching for service.
•Frequently check spears. They should be sharp, free cracks, and securely fastened.
•Your dealer can supply genuine replacement spears.
•Do not work under a raised loader without properly supporting it. Use the proper materials to avoid a
collapse. Always preform maintenance on level ground.
•Never work underneath the equipment (lowered to the ground or raised) without the equipment being
properly secured. Hydraulic systems can bleed down causing serious injury or even death.
•Never service the equipment with the engine running.
•Keep all personnel away from operator controls while preforming service or maintenance.
Hydraulic fluid under pressure can penetrate the skin and cause serious injury or death.
•If a hydraulic leak is observed or even suspected, keep unprotected body parts such as face, eyes, and arms as
far away from the leak as possible. Flesh injected with hydraulic fluid may develop gangrene or other
permanent disabilities.
•If injured by fluid injection, see a doctor immediately!
•When searching for hydraulic leaks, wear protective clothing such as safety glasses, gloves, and sleeves. DO
NOT USE YOUR HAND TO CHECK FOR HYDRAULIC LEAKS! Use a piece of cardboard or something similar to
detect leaks.
CHILDREN
Extremely tragic accidents can, and do, occur if the operator is not continually alert to the presence of children.
Children are often attracted to machinery and the mowing activity. NEVER assume that children will remain where
you last saw them.
•Keep children out of the brush removal area and under the watchful care of responsible adult other than
the operator.
•Immediately turn the equipment off if a child enters the area.
•Never allow children to operate the equipment (<16 years of age).
•Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of
a child.

7
TRANSPORTATION
•Follow all state and local laws governing highway safety any lighting requirements.
•Never allow riders on the loader or attachment.
•Do not operate or transport on steep slopes.
•Reduce speed on slopes and rough terrain.
•Travel with the attachment as close to the ground as possible.
•Do not operate any equipment under the influence of drugs or alcohol. Consult your physician about
operating equipment while taking prescription medications.

8
SAFETY DECALS
1
2
4
3

9
STICKER LOCATION
1
1
2
3
4

10

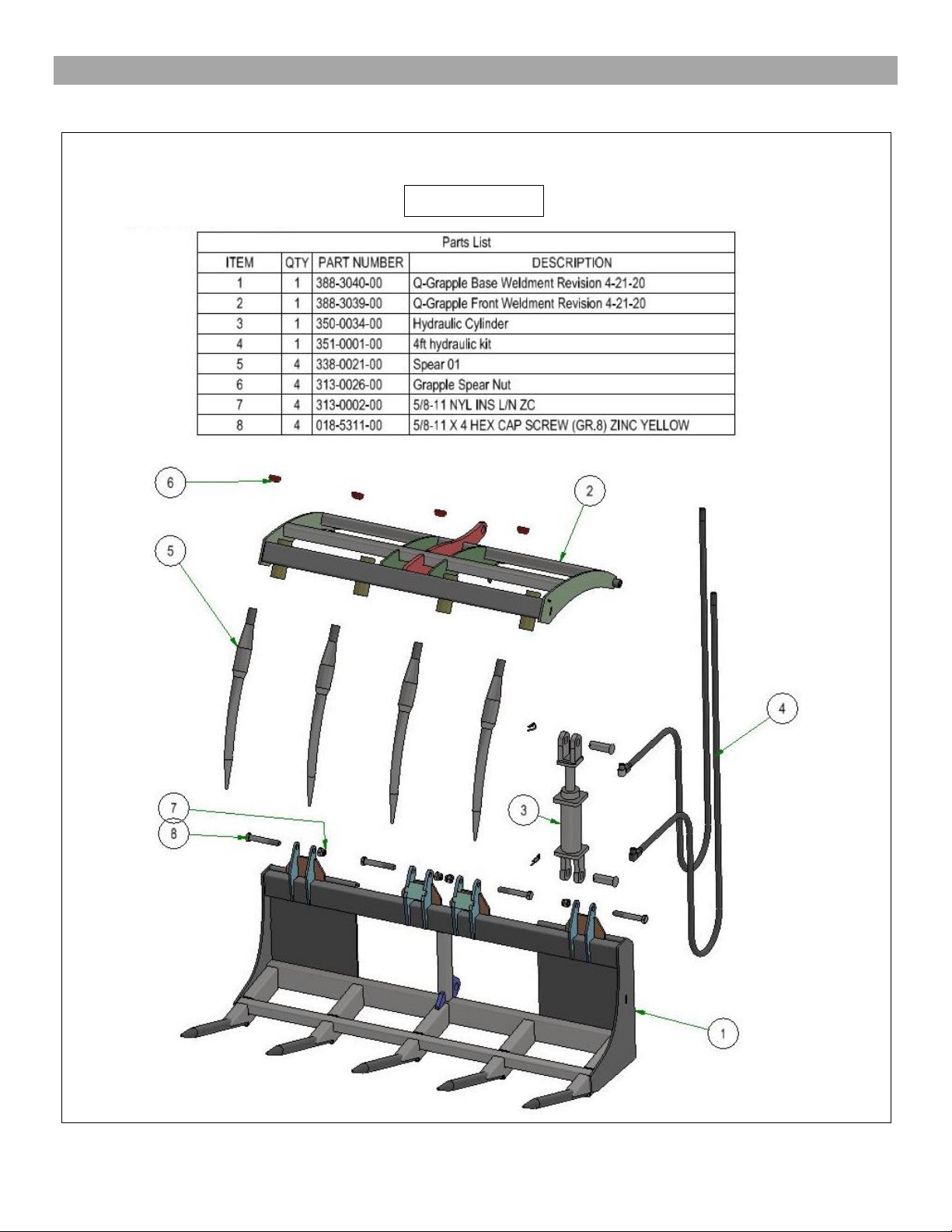

PARTS LIST
48" Brush Grapple

11
70" Brush Grapple
