BalanceBox 400 User manual

1
Installation manual
© COPYRIGHT – document number: 902944-00 – note: product specifications may change without prior notice.
BalanceBox®400
Floor Support
item number: 481A43001

2
BalanceBox®400 Floor Support
document number: 902944-00
General Warnings
Tools

3
BalanceBox®400 Floor Support
document number: 902944-00
Content of the box
(1x) T
(4x) K
(2x) L
(3x) M
(2x) N
(4x) O
(1x) S
(1x) Q
(1x)
(1x)
P
R
P

4
BalanceBox®400 Floor Support
document number: 902944-00
Content of the bag with screws [S]
[A]
12x
[B]
2x
[C]
4x
[D]
2x
[E]
12x
[F]
4x
[G]
8x
[1:1]
1Insert 2x bolt [A] in profile connector [N]
A
N
A
(4x)
A

5
BalanceBox®400 Floor Support
document number: 902944-00
2Connect 2x aluminum profile (K) with profile connector (N). Repeat 2x
3Insert 8x bolt (A) in the aluminum profiles (K)
K
K
N
N
K
K
A
A
(8x) A

6
BalanceBox®400 Floor Support
document number: 902944-00
4Remove all covers from wall bracket (M) (3x) Save the covers for later use
5Place 3x wall bracket (M) over the bolts (A)
M
M
M
P
P
R

7
BalanceBox®400 Floor Support
document number: 902944-00
6Adjust top and bottom wall bracket (M) by using the installation template (T)
7Tighten all 3 wall brackets (M) with 12x M8 nuts (E)
O.K.
T
M
T T
MM
NOT O.K.
Tighten:
20 Nm
14.8 ft-Lbs
E
E
(12x) E

8
BalanceBox®400 Floor Support
document number: 902944-00
9Insert 4x square nut [F] in the extrusion profiles. 2 square nuts in each profile.
(2x)
F
(2x)
F
(4x) F

9
BalanceBox®400 Floor Support
document number: 902944-00
8BalanceBox®400 / Universal VESA Bracket / 3rd Party VESA Bracket
For mounting the
BalanceBox®400 #480A1x
to the Floor Support
Go to page:
10
Step 10
For mounting the
Universal VESA Bracket #481A70
to the Floor Support
Go to page:
17
Step 21
For mounting a
3rd Party VESA Bracket
to the Floor Support
Go to page:
21
Step 28

10
BalanceBox®400 Floor Support
document number: 902944-00
10
Place 2 interface brackets [L] over the nuts [F] and mount each interface bracket with 2 screws [C].
Tighten the screws by hand. Make sure the triangle arrow points upwards.
The height setting of the BalanceBox®400 will follow.
11 Mount the end caps [O] on each end of the profile by using the fasteners [G]
Tap the fasteners in with a mallet.
L
C
C
C
C
L
(4x)
G
O
(8x) G
(4x) C
F
F
F
F

11
BalanceBox®400 Floor Support
document number: 902944-00
12
Place the floor support against the wall. If needed move the top and bottom wall bracket.
Mark at least 4 holes per wall bracket, 2 holes left and 2 holes right. Do this for all 3 wall brackets.
In case of a studded wall, locate the studs and mount on the studs.
Remove the floor support from the wall and drill the holes.
Mount the floor support to the wall using appropriate mounting hardware for the type of wall.
Min. 200 mm / 8”
Min. 1850 mm / 73”
24” / ± 61 cm
16” / ± 40,6 cm
≥ 2≥ 2

12
BalanceBox®400 Floor Support
document number: 902944-00
13 Mount 6x cover [P] over each wall bracket [M]
14 Mount 3x cover [R] over each wall bracket [M]
M
(6x)
P
R
R
R
(3x)

13
BalanceBox®400 Floor Support
document number: 902944-00
15
Define how high the BalanceBox®400 needs to be. Refer to the mounting template provided with the
BalanceBox®400 and determine the mounting height. The two interface brackets need to be mounted 500 mm
/ 19.7” from each other. If needed reposition the interface brackets. Loosen the nuts in order to adjust the height
of the interface brackets. After adjusting, level the interface brackets and tighten well.
500 mm / 19.7 in 544 mm / 21.4 in
Minimum height floor
to bottom bracket:
1055 mm / 41.5 in
19.7”
500 mm

14
BalanceBox®400 Floor Support
document number: 902944-00
16 Mount the bracket of the BalanceBox®400 on the top interface bracket [L] of the floor support.
Use 2x screw [D], level the bracket and tighten well.
17 Make sure the cover of the BalanceBox®400 is removed according manual 902852.
Mount the BalanceBox®400 onto the floor support.
(2x) D
902852
D
D
* Included with the BalanceBox®400
L

15
BalanceBox®400 Floor Support
document number: 902944-00
18 Secure the BalanceBox®400 at the top.
902852

16
BalanceBox®400 Floor Support
document number: 902944-00
19 Use 2x screw [B] to secure the BalanceBox®400 at the bottom.
(2x) B
B
B
20 For mounting the Universal VESA Bracket #481A70,
please follow manual 902916 902916

17
BalanceBox®400 Floor Support
document number: 902944-00
Mounting the Universal VESA Bracket #481A70 to the Floor Support
21
Place the horizontal brackets of the Universal VESA Bracket over the nuts [F].
Mount each horizontal bracket with 2x screw [C]. Tighten by hand.
The height adjustment of the Universal VESA Bracket will follow.
FC
C
F
F
C
C
F
(4x) C

18
BalanceBox®400 Floor Support
document number: 902944-00

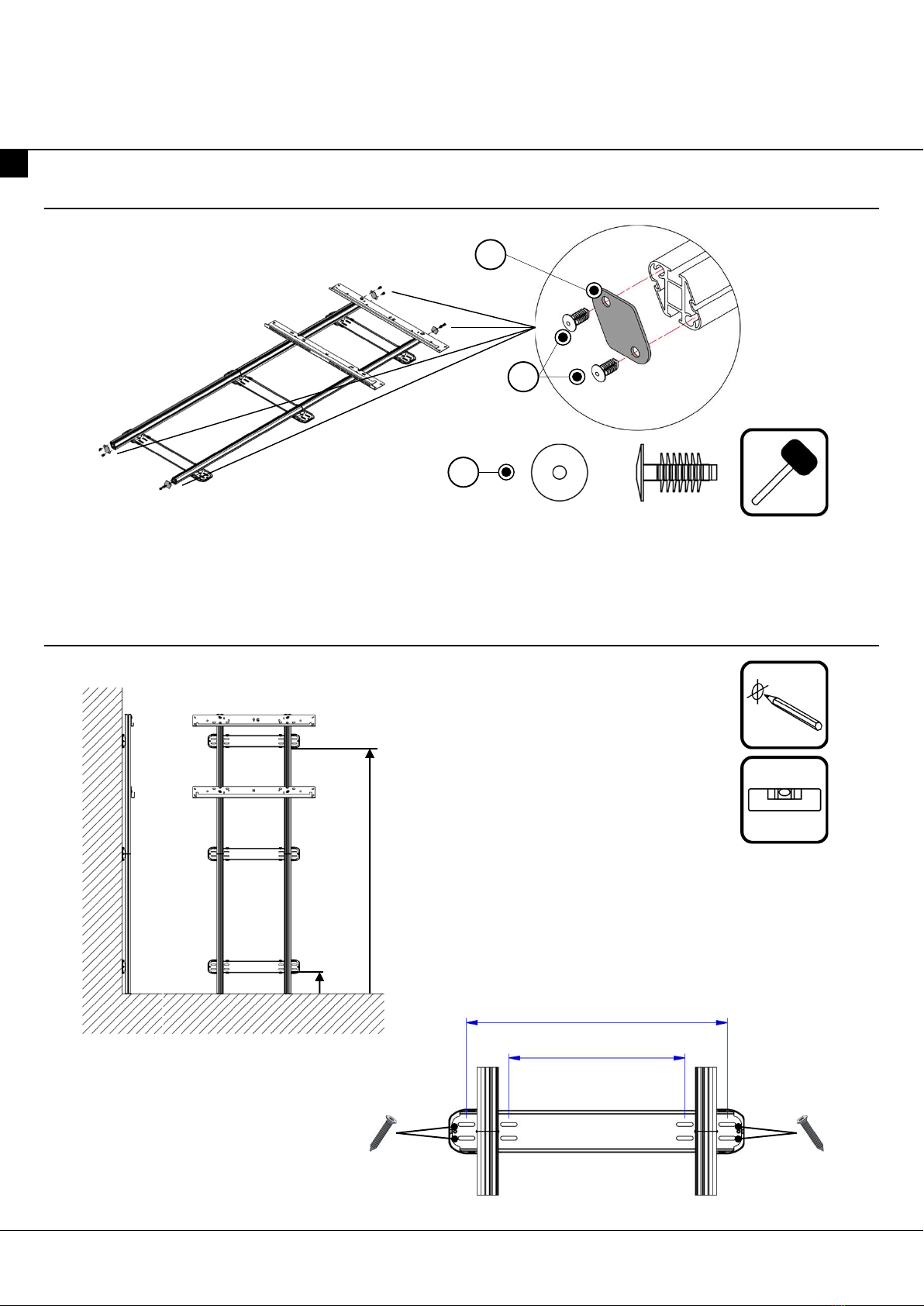

22 Mount the end caps [O] on each end of the profile by using the fasteners [G]
Tap the fasteners in with a mallet.
23
Place the floor support against the wall. If needed move the top and bottom wall bracket.
Mark at least 4 holes per wall bracket, 2 holes left and 2 holes right. Do this for all 3 wall brackets.
In case of a studded wall, locate the studs and mount on the studs.
Remove the floor support from the wall and drill the holes.
Mount the floor support to the wall using appropriate mounting hardware for the type of wall.
24” / ± 61 cm
16” / ± 40,6 cm
≥ 2≥ 2
Min. 200 mm / 8”
Min. 1850 mm / 73”
(4x)
G
O
(4x) G

19
BalanceBox®400 Floor Support
document number: 902944-00
24 Mount 6x cover [P] over each wall bracket [M]
25 Mount 3x cover [R] over each wall bracket [M]
M
(6x)
P
(3x)
M
R

20
BalanceBox®400 Floor Support
document number: 902944-00
26
Define how high the Universal VESA Bracket needs to be.
The two horizontal brackets need to be mounted 540 mm / 21.2” from each other. Use the vertical bracket as
distance guide. Loosen the nuts in order to adjust the height of the horizontal brackets.
After adjusting, level the horizontal brackets and tighten well.
27 Complete the installation by mounting the vertical bracket to the screen and following the next steps from
installation manual 902916 (included with Universal VESA Bracket)
902916
Floor to top hole VESA:
Max. 2210 mm / 87”
540 mm / 21.2”
