BALDR RC 01-U User manual

RF Remote Control Socket
We thank you for your purchase of Baldr Remote Control Outlet. It has been designed and
constructed using innovative components and techniques to enable the remote control function
to turn on or off the socket by a simple button press of the remote control.Please read the
instructions carefully to become familiar with the properties and functions before you use the unit.
USER MANUAL
For the start-up of this device you require: 2xAAA Batteries
MODEL: RC 01-U/RC 01-G

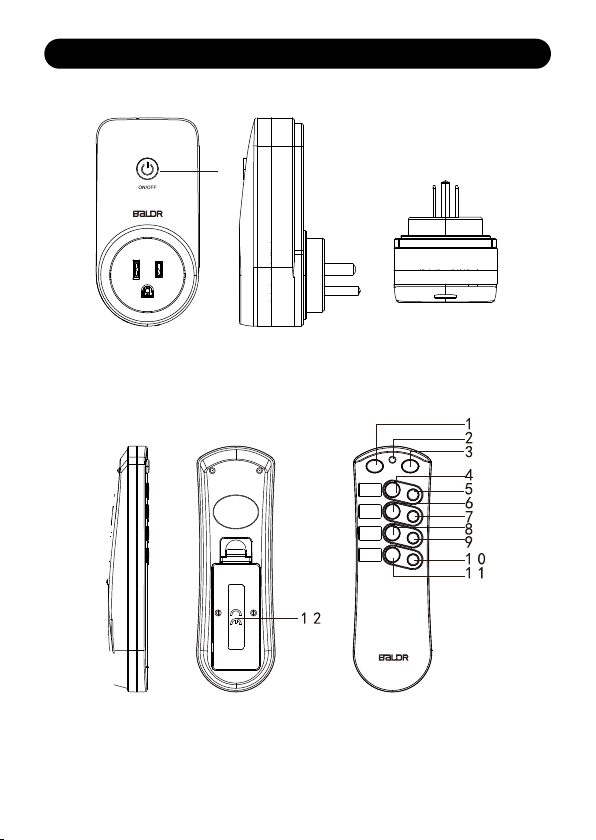

OVERVIEW
REMOTE SOCKET
REMOTE CONTROL
1. ON/OFF
1. ALL ON
2. INDICATOR LIGHT
3. ALL OFF
4. 1ON
1
5. 1OFF
6. 2ON
7. 2OFF
8. 3ON
9. 3OFF
10. 4ON
11. 4OFF
12. BATTERY COVER

PRODUCT FEATURES
GETTING STARTED:
CODE LEARNING:
CODE CLEARING
FEATURES
1. Each channel of remote control can match with max 5 sockets.
(Total 4 channels)
2. Each socket can be controlled by max 5 remote controls
3. Easy on/off control for the appliances plugged in .
4. Simple operation by code learning and matching.
5. Red indicator light for power on status.
GETTING STARTED
SETTING
1. Plug the socket into a powered outlet.
2. Insert 2xAAA batteries matching the polarity(+and-)
1. Plug in the remote controlled outlet into your AC outlet. Press the
button on the outlet, the red indicator light will turn on.
2. Hold down the outlet button for 3 seconds until light will flash slowly
（flashing frequency is about once per second.）
3. Press any desired “ON” button on the remote. The light on the outlet
will flash quickly（flashing frequency is about 3 times per second）
for 2 seconds. Your socket is now programmed to that channel on
your remote.
4. To turn on or off electronic devices that are plugged into the outlets,
simply press the on/off button of the programmed channel.
5. To activate all outlets, press the ALL OFF or ALL ON button on the
remote and all the outlets will be turned off or on at once.
A .Individual Outlet:
1. Press the ON/OFF button on the outlet for 5 seconds. The light on the
outlet will flash slowly then quickly and slowly again
2. This individual outlet is currently decoded. Press any desired ON/OFF
on the remote. And the light on the outlet will flash quickly for 2
seconds.

CODE CHANGING
TROUBLE SHOOTING
B. All Outlets:
1. Press the ”ALL OFF” button on the remote control for about 7
seconds, until the light on the outlets will flash slowly
2. All outlets are currently decoded.
If outlet sockets do not respond:
1) Try to go closer; you might be too far away.
2) Hold the button on the remote for at least 2 seconds.
3) Check if battery needs to be replaced.
WORKING PARAMETER
Working Voltage: 230Vac 50Hz (EU Plug) 120Vac 60Hz(US Plug)
Working Current:16A (EU Plug) 10A(US Plug)
Max power of Socket :3680W(EU Plug) 1200W(US Plug)
Socket Standby Power ≦50mW
Remote Control Distance:up to 30m(without any RF Disturbance)
Transmission Frequency :433.92MHZ
Working Temperature:-10℃to 50℃
Storage Temperature:-20℃to 70℃
Voltage of remote control:2xAAA
1. Press the ON/OFF button on the outlet for above 5 seconds. The light
on the outlet will flash slowly, then flash quickly for 2 seconds when
code cleared.
2. The outlet indicator light will flash slowly, press any desired ON/OFF
on the remote. The light on the outlet will flash quickly for 2 seconds,
your socket is now programmed to that channel on your remote.
3. More outlets can be programmed to the specific channel of a remote
as you desired, so they can be powered on/off by one press of certain
on/off button. Just repeat the code learning steps for setting.

Do not clean any part of the product with benzene, thinner or other
solvent chemicals. When necessary, clean it with a soft cloth.
Never immerse the product in water. This will damage the product.
Do not subject the product to extreme force, shock, or fluctuations in
temperature or humidity.
Do not tamper with the internal components.
Do not mix new and old batteries or batteries of different types.
Do not mix alkaline, standard or rechargeable batteries with this product.
Remove the batteries if storing this product for a long period of time.
Do not dispose of this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
PRECAUTIONS
BALDR provides a 1-year limited warranty on this product against
manufacturing defects in materials and workmanship.
Warranty service can only be performed by our authorized service center.
The original dated bill of sale must be presented upon request as proof
of purchase to us, or our authorized service center.
The warranty covers all defects in material and workmanship with the
following specified exceptions:(1) damage caused by accident,
unreasonable use or neglect (including the lack or reasonable and
necessary maintenance); (2) damage occurring during shipment (claims
must be presented to the carrier); (3) damage to, or deterioration of any
accessory or decorative surface;(4) damage resulting from failure to
follow instructions contained in your owner’s manual.
This warranty covers only actual defects within the product itself, and
does not cover the cost of installation or removal from a fixed installation,
normal set-up or adjustments, claims based on misrepresentation by the
seller or performance variations resulting from installation-related
circumstances.
To receive warranty service, the purchaser must contact with BALDR
nominated service center for the problem determination and service
procedure.
Thank you for your choice of BALDR products!
WARRANTY

www.baldr.com
