About this manual
This manual
– describes the assembly and disassembly of plugs and sockets with screw connections
of Bals Elektrotechnik GmbH & Co. KG
– is an integral part of the product and must be kept in safe custody during the product
service life
– must be read carefully and understood before use and any work.
Structure of the warnings
The following picture illustrates the structure of a sample warning.
1
1.1

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
4 / 16
Symbols used
General warning of a hazardous area
Warning – dangerously high voltage
Notice
Signal words used
All warnings in this manual are clearly highlighted. The following signal words are used for
warnings:
DANGER Warns of dangers which will lead to serious injuries or to death if the inst-
ructions are not followed.
WARNING Warns of dangers that may lead to serious injuries or to death and/or
cause considerable damage to property if the instructions are not followed.
CAUTION Warns of dangers that may lead to reversible injuries and/or considerable
damage to property if the instructions are not followed.
NOTICE Warns of dangers that may lead to operational disruptions and/or conside-
rable damage to property. Damage to the environment, too, may occur if
the instructions are not followed.
1.2
1.31.3

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
5 / 16
Intended use
The QUICK-CONNECT system is used as a screwless quick-connect system based on the
cage clamp principle in electrical plugs and sockets.
Plugs and sockets with QUICK-CONNECT are built for professional use. The installation and
the fixed connection to the mains supply should be carried out only by trained and qualified
experts.
Any use going beyond the intended use is considered to be improper. The manufacturer is
not liable for damages resulting from improper use. Any such risk shall be borne solely by
the user.
In case of unauthorised modifications or conversions, the CE conformity becomes null and
void, and thus, also all claims for warranty. Modifications may lead to risks for life and limb
as well as damage to the plugs and sockets or loads connected.
Factory-fitted labels and markings on the plugs and sockets should not be removed, modi-
fied or blurred.
Protect against foreign bodies and impact of weather
The plugs and sockets meet either the protection degree IP44, IP54 or IP67 in accordance
with DIN EN 60529 (VDE 0470-1), depending on the respective design. Each of these mean:
– Protection degree IP44:
– Protected against solid bodies with a diameter beyond 1.0 mm, e.g. a
wire
– Protection against water sprayed from all sides
– Protection degree IP54:
– Protected against dust in damaging quantity
– Complete protection against contact
– Protection against water sprayed from all sides
– Protection degree IP67:
– Dust-proof
– Complete protection against contact
– Protection against temporary immersion
2

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
6 / 16
Enviroment
The following operating temperatures apply for the safe operation of the product:
Standard version Military version
-25 °C ... +40 °C -33 °C ... +49 °C
General safety instructions
– Safe use is ensured only if this manual is followed completely.
– Before installation, commissioning or operation, read this manual thoroughly.
– The plugs and sockets must be installed, maintained and put into operation pro-
perly by qualified experts in accordance with the laws, ordinances and stan-
dards.
– Keep easily combustible and explosive materials away from the plugs and so-
ckets.
– Handle the cables with care
– by always pulling at the plug and not the cable when unplugging,
– by preventing the cable from getting damaged mechanically,
– by keeping intense heat away.
– Never use faulty products or products with dirty, scratched or damage contacts.
– Keep the contacts on the product clean.
– Avoid tripping hazards.
3

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
7 / 16
Packaging, transport and storage
Packaging
Packaging materials are valuable raw materials and can be reused. The packaging materials
should therefore be brought to an appropriate recycling facility. If this is not possible, dispo-
se of the packaging materials according to the locally applicable regulations.
Transport
Check the delivery for completeness and integrity. If you identify transit damage or if the de-
livery is incomplete, notify your dealer or supplier immediately.
Storage
The product must be stored in clean condition and protected from dust and humidity. The
original packaging is best suited for this purpose.
4
4.1
4.2
4.3

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
8 / 16
Design
Based on an example, the following figure illustrates the main components of the QUICK-
CONNECT plugs and sockets.
1 Front part with screwless quick-connect technique for all types of copper con-
ductor
2 Housing
3 Cable gland with MULTI-GRIP as integrated strain relief
Leiterquerschnitte
The following table displays the possible conductor cross-sections that can be connected to
QUICK-CONNECT plugs and sockets:
Version Possible conductor cross-section
16 A 1 mm2… 2,5 mm2
32 A 2,5 mm2… 10 mm2
Cable diameter
The following table displays the cable diameters that can be used for plugs and sockets with
MULTI-GRIP:
Ausführung Möglicher Kabeldurchmesser
16 A, 3- and 4-pole 8 mm … 18 mm
16 A, 5-pole 10 mm … 21 mm
32 A, 3- and 4-pole 11 mm … 23 mm
32 A, 5-pole 13 mm … 27 mm
5
2 13

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
9 / 16
Technical specifications
The technical specifications of the plugs and sockets depend on the design. You will find
them in our catalogue or on our website http://www.bals.com.

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
10 / 16
Montage und Demontage
Danger
Danger to life by electrical voltage
The supply cable may carry high electrical voltage that is fatal. Pay attention to the five sa-
fety rules of electricity:
1.De-energise
2.Secure the supply from being switched on again
3.Ensure the de-energised condition
4.Connect to earth and short circuit
5.Cover or cordon off adjacent live parts
Connecting a cable to a 16-A / 32-A plug or connectorg
Proceed as follows:
1. Make sure that the cable is de-energised.
2. Open the rotary lock in order to separate the front part (1) from the housing (2).
3. Push the cable about 50 cm wide through the cable gland and housing.
4. Strip the cable to the required length (16-A designs: 60 mm; 32-A designs: 70 mm).
5. Remove the insulation from the individual conductors (16-A designs: 9 mm; 32-A de-
signs: 12 mm). Twist the multi-strand copper conductors slightly by hand. Conductor
end sleeves are not necessary but may be used.
6. The terminals are open at the time of delivery. Guide the bare individual conductors
into the opening near the contact slide (5) and press the contact slide (4) in the di-
rection of the arrow to the side. The contact slide get latched and fixes the individual
conductor. Take care to see that only the bare individual conductor (without insulati-
on) is clamped. Pay attention to the marking of the terminals and ensure that the as-
signment of the individual conductors to the terminals is correct.
6
6.1

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
11 / 16
7. Check whether the individual conductors are seated tightly by pulling them lightly. If
this is not the case, open the terminal and repeat the previous step.
8. Connect the housing and the front part until the snap-on lock (6) latches.
9. Next, tighten the cable gland (3). The tightening torque must be between 4 Nm and
7 Nm for the 16-A designs and between 5 Nm and 9 Nm for the 32-A designs. Plea-
se refer to the embossing on the cable gland for the exact value of the respective de-
sign.
4
5
6

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
12 / 16

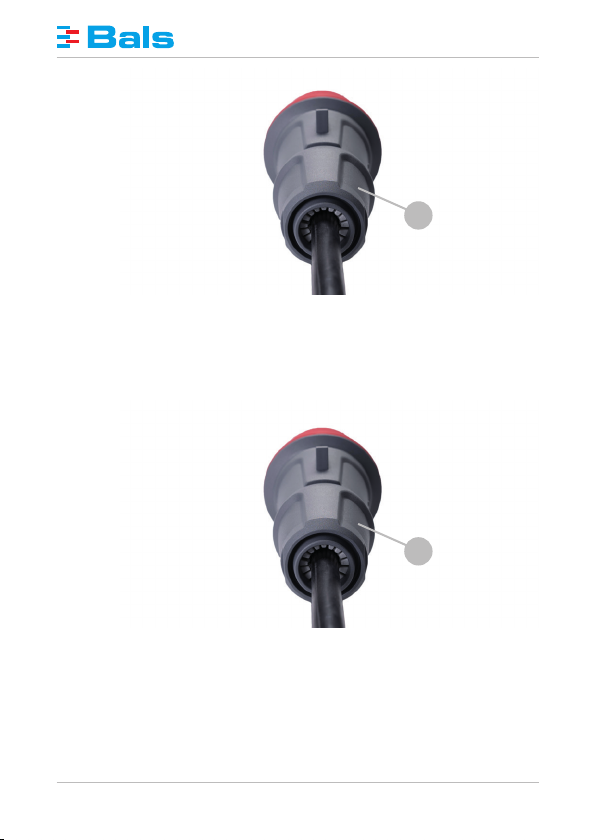

10. Check that the cable is seated tightly in the plug or connector.
Disconnecting a cable from a 16-A / 32-A plug or connector
1. Make sure that the cable is de-energised.
2. Lockern Sie die Kabelverschraubung (3).
3. Disconnect the joint between the housing (2) and the front part (1). Open the snap-on
lock (6) with a screwdriver and remove the housing from the front part by unscrewing it.
6.2
3
3

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
13 / 16
4. Push the housing and the cable gland back on the cable until the connections in the
front part are easily accessible.
5. Open the contact slide (4) by forcing it with a screwdriver and pull the individual con-
ductors from the terminals.
6. Pull the cable out of the housing and out of the cable gland.
4
6
2
1

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
14 / 16
Cleaning and care
It is recommended to clean the device as required. Use a dry cloth to clean the device. Use a
wet cloth if the device is very dirty.
7
DANGER
Electrical voltage
The device contains parts that carry hazardous voltage that may be fatal.
1. Pull out the plugs to the loads before cleaning them.
2. Make sure that the plug covers are closed.
3. Never use steam or water jet cleaners.
NOTICE

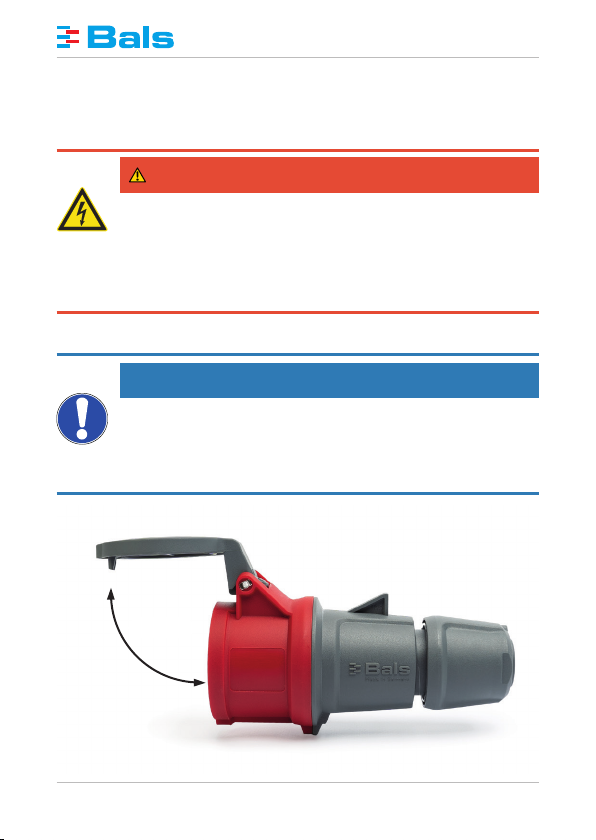

Pay attention to the maximum opening angle of the hinged lid (see sketch).
Damage to the plastic parts.
Corrosive cleaning agents may attack or destroy the plastic parts.
Use only a cloth moistened with water for cleaning.
90 - 120°

Installation manual plugs and connectors
INNOLINQ QUICK-CONNECT (16/32A)
(07.2020)
15 / 16
Decommissioning and disposal
Send the worn-out product for recycling or for proper disposal. Always make sure to observe
and follow the local regulations.
The product should not be disposed of in household waste. Environmental damage and risk
to personal health are avoided with proper disposal.
8

made
in
Germany
Bals Elektrotechnik GmbH & Co. KG
D-57399 Kirchhundem-Albaum
Telefon: [phone]
Fax: [phone]
E-mail: [email protected]
Internet: www.bals.com
60XXXX 09.20
Installation manuel in another language can be found on www.bals.com.
Subject to technical modifications and typographical errors
Disclosure to third parties only with the consent of
Bals Elektrotechnik GmbH & Co. KG. All rights reserved.
Only valid at the time of printing. Update when reused.
