Balt 27736 User manual

Balt Mobile 40-Tub

Storage Cart - 27736

Instruction Manual

1234567890123456789012345678901212345678901234567890123456789012123456789012

27736

Mobile 40 Tub Storage Cart

Assembly Instructions

P-1 Left Leg Welded 1 EA

P-2 Right Leg Welded 1 EA

P-3 Slotted End Panel 2 EA

P-4 Middle Panel 1 EA

P-5 Top Panel 1 EA

P-6 Bottom Panel 1 EA

P-7 Back Panel 1 EA

P-8 Shelf 9 EA

P-9 Left Door 1 EA

P-10 Right Door 1 EA

P-11 Caster Base 1 EA

Part Drawing Description Ctn. Qty Part Drawing Description Ctn. Qty

Hardware List

Mobile 40 Tub Storage Cart

27736

APhil Screw M6X15mm 16 EA

A1CS Phil Screw M6X50mm 18 EA

A2 Wood Screw M7x50mm 7 EA

A3 CS Wd Screw M3x12mm 12 EA

A4 Phil Pan Screw M4x12mm 4 EA

A5 Pan Wd Screw M4x18mm 6 EA

A6 Socket Screw M6x65mm 4 EA

A7 Small CS Screw 2 EA

C1 Cam Lock 2 EA

C2 Cam Post 2 EA

DLocking Caster 2 EA

ENon-Locking Caster 2 EA

FDoorHandle 2 EA

GWood Dowel 1 EA

H Magnet 2 EA

I Metal Plate 2 EA

(Door Knobs)

Part Drawing Description Ctn. Qty

JLock Catch 1 EA

K1 Lock Cylinder 2 EA

K2 Lock Washer 2 EA

K3 Lock Hex 2 EA

K4 Lock Retainer 2 EA

K5 ¼” Phil Head Lock Screw 2 EA

LKey 4 EA

NAllen Wrench 1 EA

O Small Tube Closure 4 EA

P Large Tube Closure 4 EA

Hardware List

NOTE: 27736 Mobile 40 Tub Storage Cart comes in two boxes

58468 Box 1

58469 Box 2 =

To Assemble:

Identify and Separate all the Parts and Hardware.

Install 2 each Cam Posts (C2) in the 2 threaded

insert nuts in the Top Panel (P5)

as shown in illustration #1.

Illustration # 1

P-5

Assembly Diagram

Be sure that arrow on

top of Camlock (C1)

aligns with centerline

of Edge Drilled hole.

Phillips

Screwdriver

Centerline

of Edge

Drilled hole.

Arrow

Install 2 Cam Locks (C1) into the 2

large holes in the Middle Panel (P4) as

shown in illustration #2

Illustration # 2

P-4

Install 1 Wood Dowel (G)

in the hole in the middle of the

Top Panel (P5)

Attach Middle Panel (P4) to the Top Panel

(P5) as shown in illustration #3. Secure by

turning the Cam Locks (C1) 1/4 Turn until

they lock.

Attach Bottom Panel (P6) to the Middle Panel (P-4)

using 2 Wood Screws (A2).

Illustration # 3

Illustration # 4

To Secure Cam Locks,

InsertLargePhillips

HeadScrewdriverand

turnCamLock1/4turn

(90 degrees) clockwise.

AttachRightLeg Welded (P2) to the Top

and Bottom Panels (P5 & P6) using

6 CS Phil Screws (A1) as shown in

illustration#4. Just start the CS Phillips

Screws (A1) at this point and do not

tighten.

P2 P5

Place a Slotted End Panel (P3), large

space at top, in the recess inside the

Right Leg Welded (P2). .

Slide 9 Shelves (P8) over

Middle Panel (P4) and into

slots in Slotted End Panel (P3)

as shown in illustration #5.

Illustration # 6

Place Slotted End Panel (P3)

over the end of 9 Shelves

(P8) as shown in

illustration #6.

Attach Left Leg Welded (P1)

to the Top and bottom Panels

(P5 & P6) using

6 CS Phil Screws (A1) .

10.

P5 P8

Illustration # 5

Illustration # 7

P10

Illustration # 8

Place the Left Door (P9) with the Predrilled (for Hinges) holes facing up and Insert 1 each

Lock Cylinder (K1) through the hole in the Left Door (P9) as shown in illustration # 7.

Secure Lock Cylinder (K1) using the Lock Washer (K2) and the Lock Hex (K3).

(FINGER TIGHTEN ONLY.)

Attach 1 Door Handle (F)

tothe RightDoor (P10)using

2Screws(A4).

Slide Lock Retainer (K4) over the square end of Lock Cylinder (K1).

Secure using the ¼” Phil Head Lock Screw (K5).

Attach 1 Door Handle (F)

to the Left Door (P9) using 2

Screws(A4).

17.

13.

14.

15.

16.Place the Right Door (P10) with the Predrilled holes facing

up and Insert 1 each Lock Cylinder (K1) through the hole in

the Right Door (P10). Secure Lock Cylinder (K1) using the

Lock Washer (K2) and the Lock Hex (K3).

(FINGER TIGHTEN ONLY.)

K3 K2

Slide Lock Retainer (K4) over the

square end of Lock Cylinder (K1).

Secure using the ¼” Phil Head Lock

Screw (K5).

18.

TOP

Door

Topof

Door

Illustration # 10

19. Attach Back Panel (P7) to

the Left Leg Welded (P1),

and the Right Leg Welded

(P2) using 6 screws (A1) as

showninillustration#9.

Secure Back Panel (P7) to

the Middle Panel (P4) and

the Bottom Panel (P6) using

4 Screws (A2).

22.

21.

P4 A2

20.

Attach Caster Base (P11) to the

Welded Legs (P1 & P2) using 4

each screws (A6) as shown in

illustration #10. Tighten these 4

Screws using Allen Wrench (R).

Attach 2 locking Casters (D) and

2Inline Casters (E) to metalbase

(P-1)using16screws (A).

Tighten Screws Allen Wrench

(N)asshowninillustration#10.

P11

P2 D

Illustration # 9

22a. Install fourLargeTube Closures (P)

intothe Base (P-11)as shown.

Illustration # 11

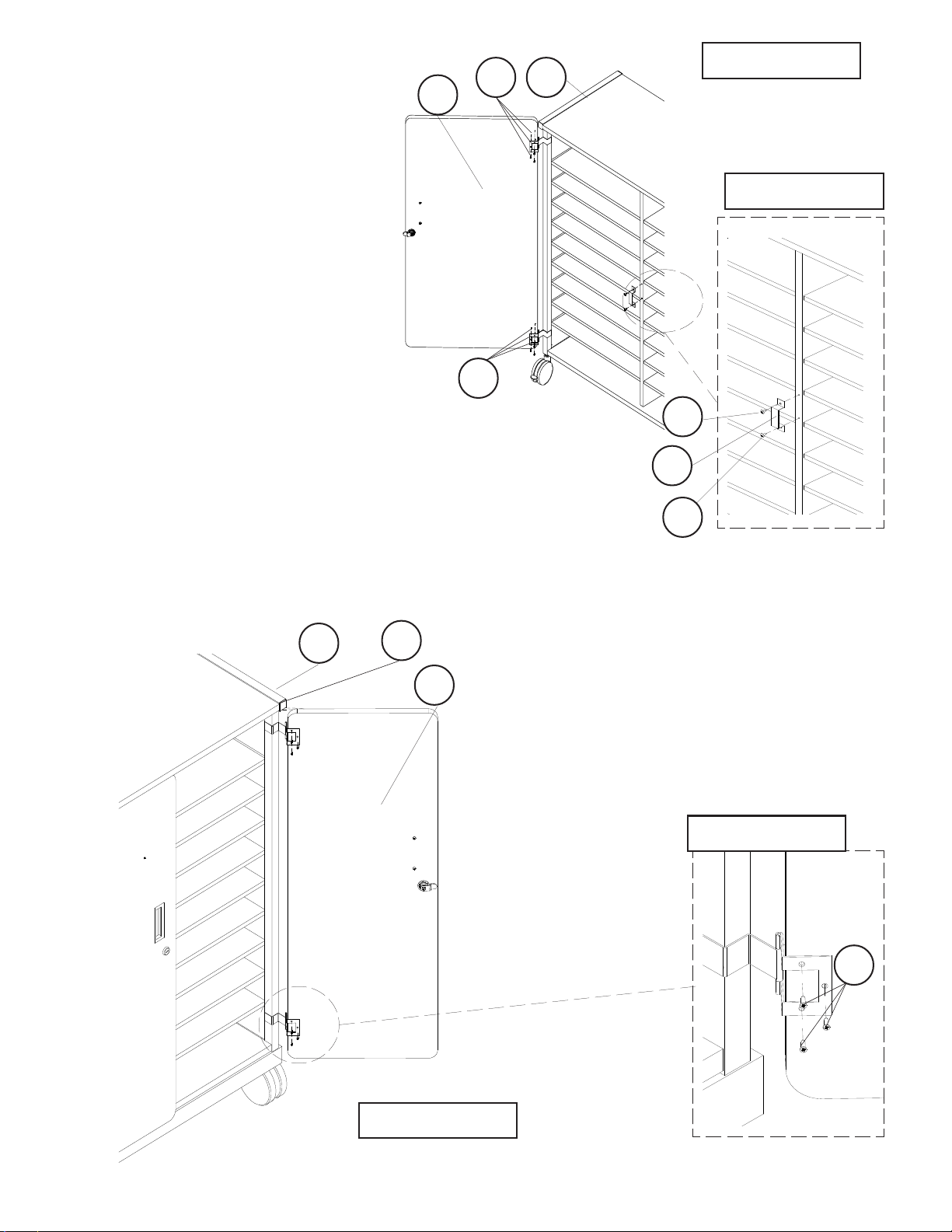

Attach Left Door (P9) to

Left Leg welded (P1)

using 6 screw (A3) as

shown inillustration#11

and Detail #11A.

Attach Lock Catch (J) to

Middle Panel (P4) using

2 screw (A5) . See

Detail #15A.

Attach Right Door (P10) to

Right Leg Welded (P2)

using 6 screw (A3) as

showninillustration

#12 &12A.

23.

24.

25.

Detail # 12A

Before tightening the Lock

Hex (K3) on either door,

insert the Key (L) and turn

lock. Be sure that Lock

Retainer (K4) turns 90

degrees and rotates behind

Door Stop (J).

TIGHTEN LOCK HEX (K3). SEE

ILLUSTRATION # 7 & # 8.

26.

P9 P1

Detail # 11A

P10

Illustration # 12

O26a. InstallfourSmallTubeClosures(O)

intotheends of the top Legtubes.

Illustration # 13

27. AttachMagnet (H) on the backatthe top of eachLeg Weld assembly using two

Screws(A5)andintothe punchedholes. AttachaMetalPlate (I)tothefrontof

each Door using a CS Screw (A7) as shown in illustration #13.

56 1/2”

45 1/4”

19 1/4”

Tub Space 21 1/4” W

X 14 3/4” D

X 4 1/2” T

49 1/2”

22 1/2”

27736

Mobile 40 Tub Storage Cart

27736_02-29-16

WWW.MYBINDING.COM
