Balt 27754 User manual

Balt Mobile 20-Tub

Storage Cart - 27754

Instruction Manual

1234567890123456789012345678901212345678901234567890123456789012123456789012

27754

Mobile 20 Tub Storage Cart

Assembly Instructions

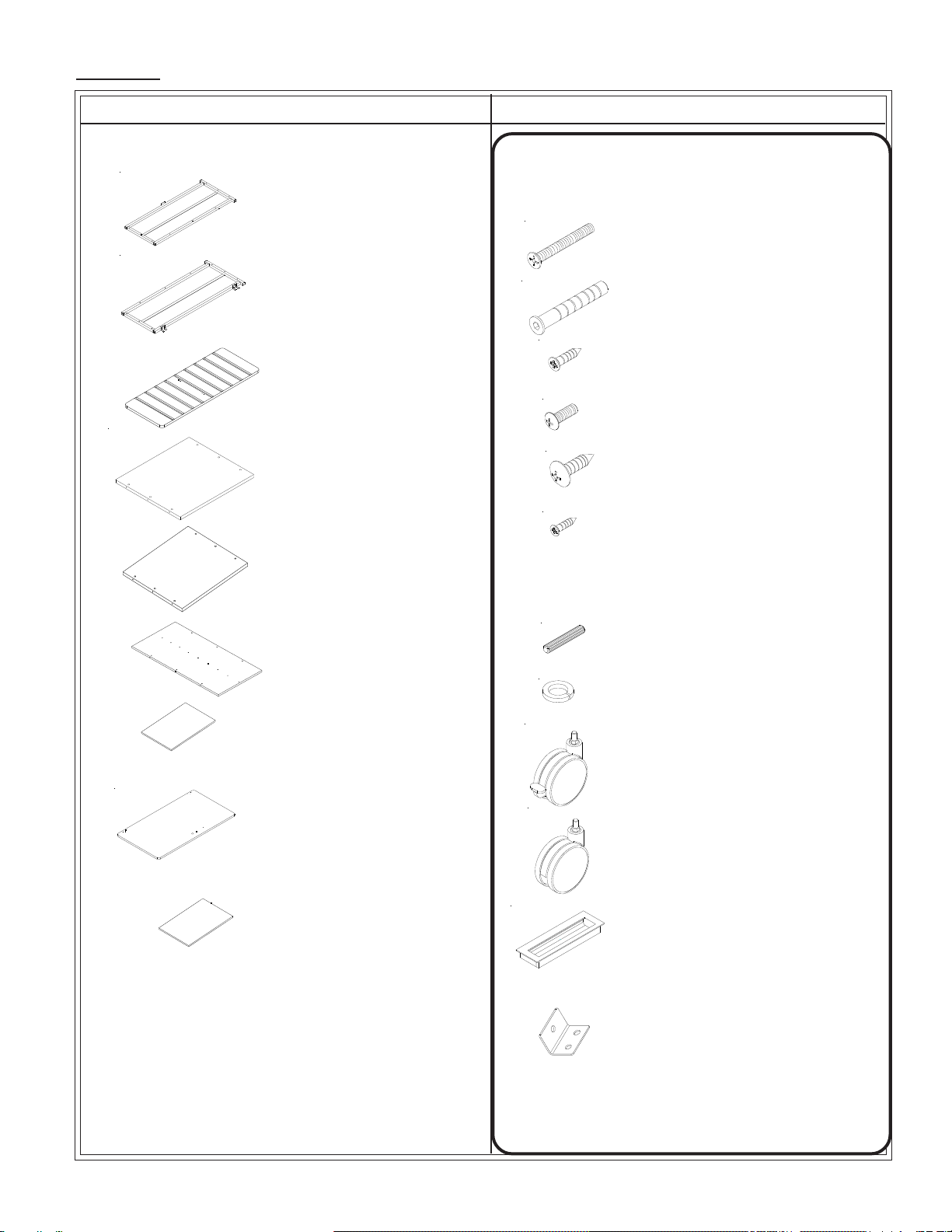

Part Drawing Description Qty Part Drawing Description Qty

Hardware List

#27754

A1CS Phil Screw M6X50mm 18 EA

A2 Wood Screw M7x50mm 1 EA

A3 CS Wd Screw M3x12mm 6 EA

A4 Phil Pan Screw M4x12mm 2 EA

A5 Pan Hd Screw M4x18mm 8 EA

A6 CS Wood Screw M3x8mm 1 EA

CLock Washer-Casters 4 EA

D4” Locking Caster 2 EA

E4” Caster 2 EA

FDoorHandle 1 EA

(Door Handle)

P-1 Left Leg Welded 1 EA

P-2 Right Leg Welded 1 EA

P-3 Slotted End Panel 2 EA

P-4 Top Panel 1 EA

P-5 Bottom Panel 1 EA

P-6 Back Panel 1 EA

P-7 Shelf 8EA

P-8 Door 1 EA

Middle Shelf 1 EA

JMiddle Shelf Bracket 2 EA

B-1 Wood Dowel 9 EA

P-9

Mobile 20 Tub Storage Cart

Part Drawing Description Qty

K1 Lock Cylinder 1 EA

K2 Lock Washer 1 EA

K3 Lock Hex 1 EA

K4 Lock Retainer 1 EA

K5 ¼” Phil Head Lock Screw 1 EA

LKey 2 EA

NCaster Wrench 1 EA

PAllen Wrench 1 EA

Q Tube Closure 4 EA

R Magnet 1 EA

S Metal Plate 1 EA

Hardware List

To Assemble:

Identify and Separate all the Parts and Hardware. Illustration # 1

Assembly Diagram

Attach Right Leg Welded (P2) to the Top and

bottom Panels (P4 & P5) using 6 screws (A1)

as shown in illustration #1.

Attach Back Panel (P6) to the Right Leg

Welded (P2)using 3 screws (A1) as shown in

illustration #1.

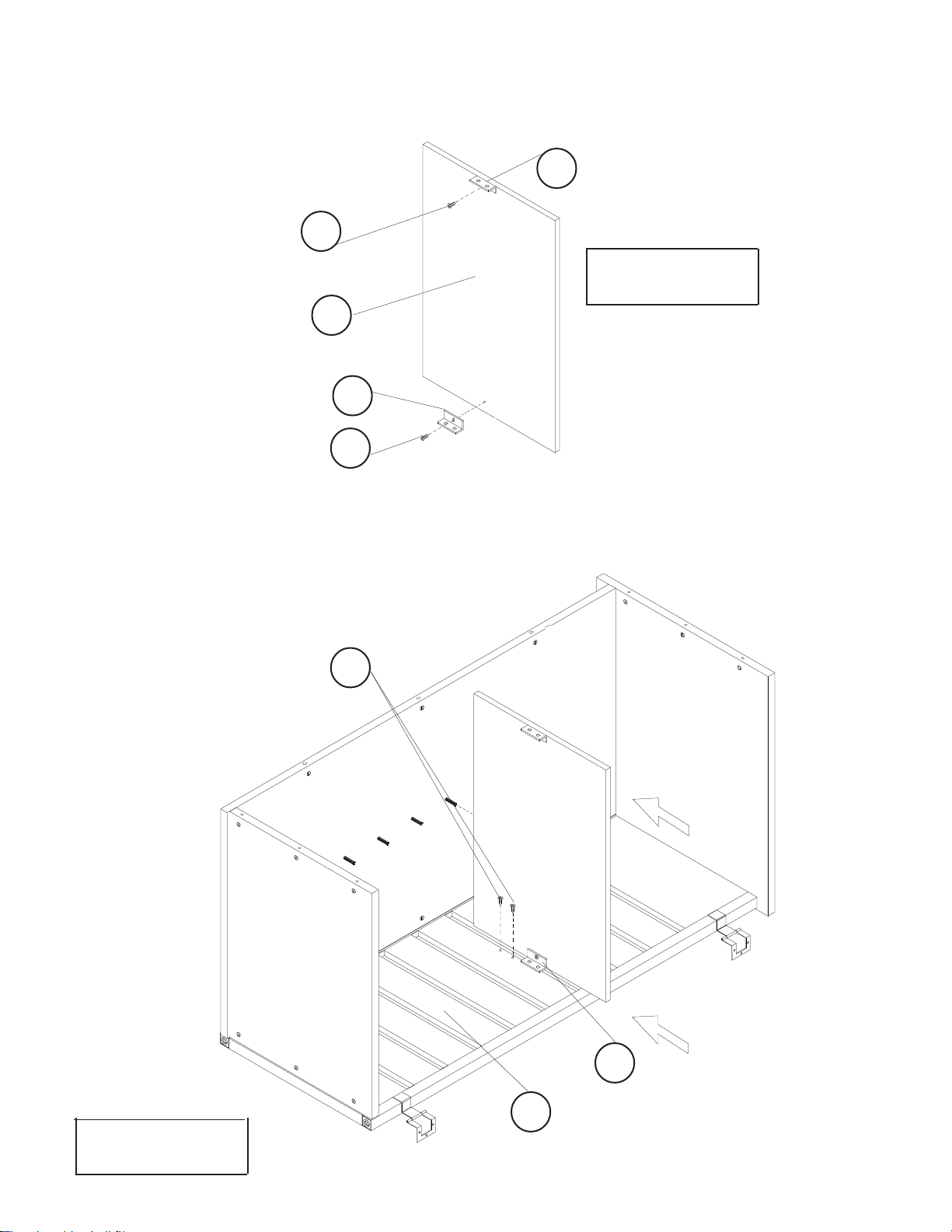

P4 Illustration # 2

Illustration # 3

P6 B1

4. AttachtheBackPanelP6)to

theBottomPanel(P5)

usingoneScrew(A2).

Insert Slotted End Panel (P3) in

the Right Leg Welded as

showninillustration#3. Make

surethefourpredrilled holes are

underthefifth slotfromthetop.

Insert9WoodDowels(B1)in

holes in the Back Panel (P6).

P2 A2

TOP

Illustration # 4A

AttachtwoMiddleShelfBrackets(J)to thebottomsides

of the Middle Shelf (P11) using 2 CS Wood Screws (A5)

asshowninillustration #4A.

P11

Illustration # 4B

PlaceMiddleShelfassembly,fromStep8, inthe fourth slot downfromththetopof Slotted End

Panel(P3). Use 2 CS Screws (A5) to attach through the Middle Shelf Bracket (J) and into the

SlottedEndPanel’s(P3)predrilledholes as shown inillustration#4B.

Slide 8 Shelves (P7) over

Dowels (B1) and into slots in

Slotted End Panel (P3) as

shown in illustration # 4C.

Illustration # 4C

Illustration # 5

Place Slotted End Panel

(P3) over the end of 9

Shelves (P7) as shown in

illustration #5.

Attach Left Leg Welded (P1)

to the Top and bottom

Panels (P4 & P5) using

6 screws (A1) .

Attach the Left Leg Welded

(P1) to the Back Panel (P6)

using 3 screws (A1) as

shown in illustration #5.

11.

12.

10.

Illustration # 6

Illustration # 7

Attach 1 Door Handle (F)

to the Door (P8) using

2 Screws (A4).

18.

15.

16.

17.

Place the Right Door (P8) with the

Predrilled holes (for hinges) facing up

and Insert 1 each Lock Cylinder (K1)

through the hole in the Door (P8) as

shown in illustration #7.

Secure Lock Cylinder (K1) using the

Lock Washer (K2) and the Lock Hex

(K3). (FINGER TIGHTEN ONLY.)

Slide Lock Retainer (K4) over the

square end of Lock Cylinder (K1).

Secure using the ¼” Phil Head Lock

Screw (K5).

Attach 2 Locking Casters (D), and 2 Lock Washers (C) to

the front of Welded Legs (P1 & P2).

Attach 2 Casters (E) and 2 Lock Washers (C)

to the back of Welded Legs (P1 & P2).

Tighten all Casters using

Caster Wrench (N). Attach Bracket (J) that

is under Middle Shelf (P11) to left (P3) End

Panel using 2 CS Screws (A5) as shown in

detail.

P11

DETAIL

P11

13.

14.

Before tightening the Lock Hex

(K3), Insert the Key (L) and turn

lock. Be sure that Lock Retainer

(K4) turns 90 degrees and rotates

behind Door Stop on the Left Leg

Welded (P1).

TIGHTEN LOCK HEX (K3).

P10

Illustration # 8b

19.

20.

Illustration # 8c

Attach the Right Door (P10) to the Right Leg Welded (P2) using three CS Wood

Screws(A3)througheachDoor Hinge as showninillustration#8b.

AttachtheMetal Plate (S) to the front of the Door (P8) using one CS Wood Screw (A6) in the

predrilledholeintheDoor. AttachtheMagnet(R) to the Right Leg Welded(P2)using

twoScrews(A5)intothepredrilledholesnearthetopofthe Leg. See illustration # 9.

21.

Illustration # 9

27754_12-21-15

22. PushinfourTubeClosures(Q)intothetoptubes of the Right andLeftLegs. See illustration #9

27754

Mobile 20 Tub Storage Cart

23 5/8” 19 1/4”

54 3/4”

49 1/2”

23 1/4”

21 3/4”W X

14 5/8”D X

43/8”T

27754_1-21-16
