Balt Cpu-rack User manual

1234567890123456789012345678901212345678901234567890123

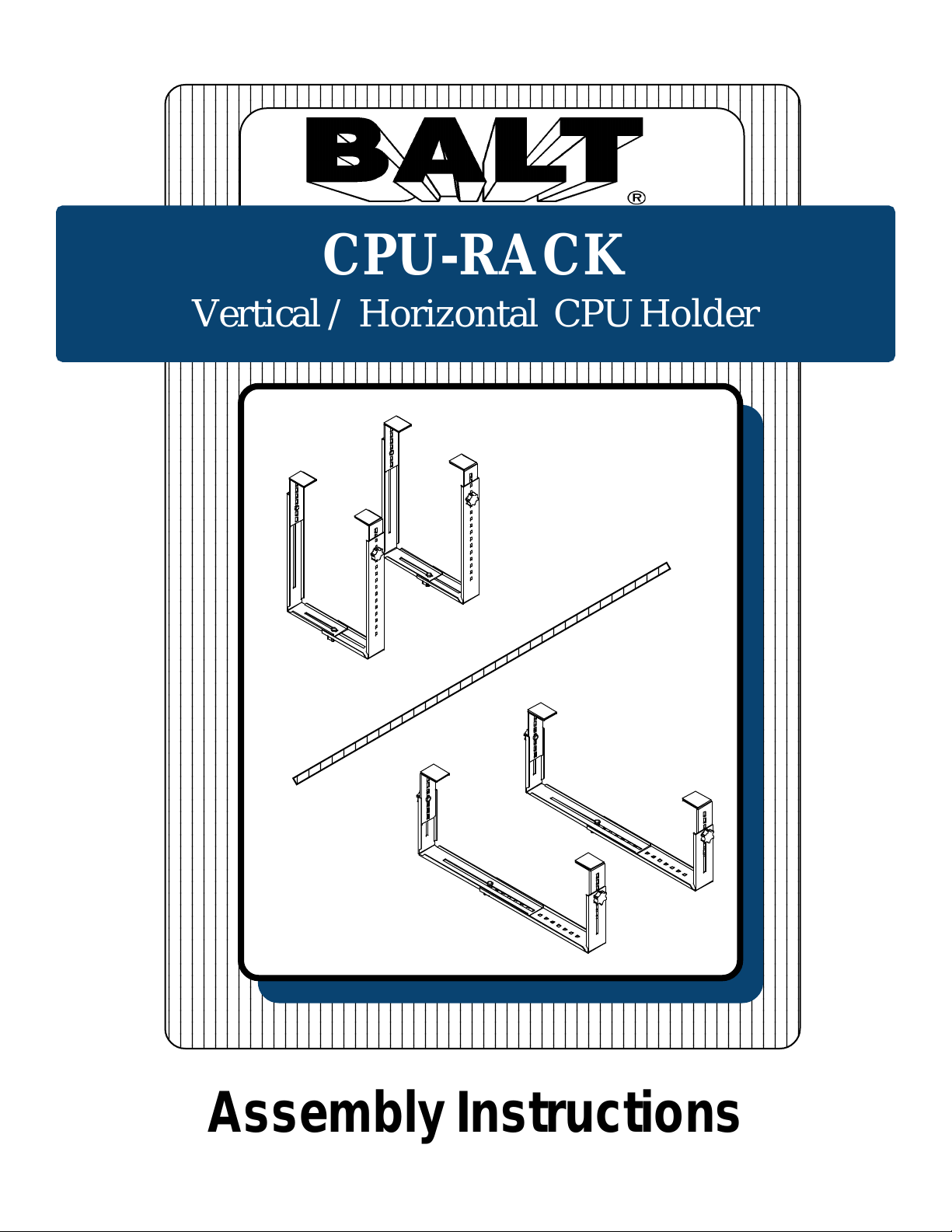

CPU-RACK

Vertical / Horizontal CPU Holder

Assembly Instructions

123456789012345678901234567890121

A1 Short Wood Screw 12 EA

A2 Shoulder Bolt 6 EA

B Flat Washer 6 EA

C Knob 6 EA

D Adhesive Pad 4 EA

Part Drawing Description Qty Part Drawing Description Qty

WOW

CPU-RACK

P1 Outer Slide 2 EA

P2 Inner Slide 2 EA

P3 Mounting Bracket 4 EA

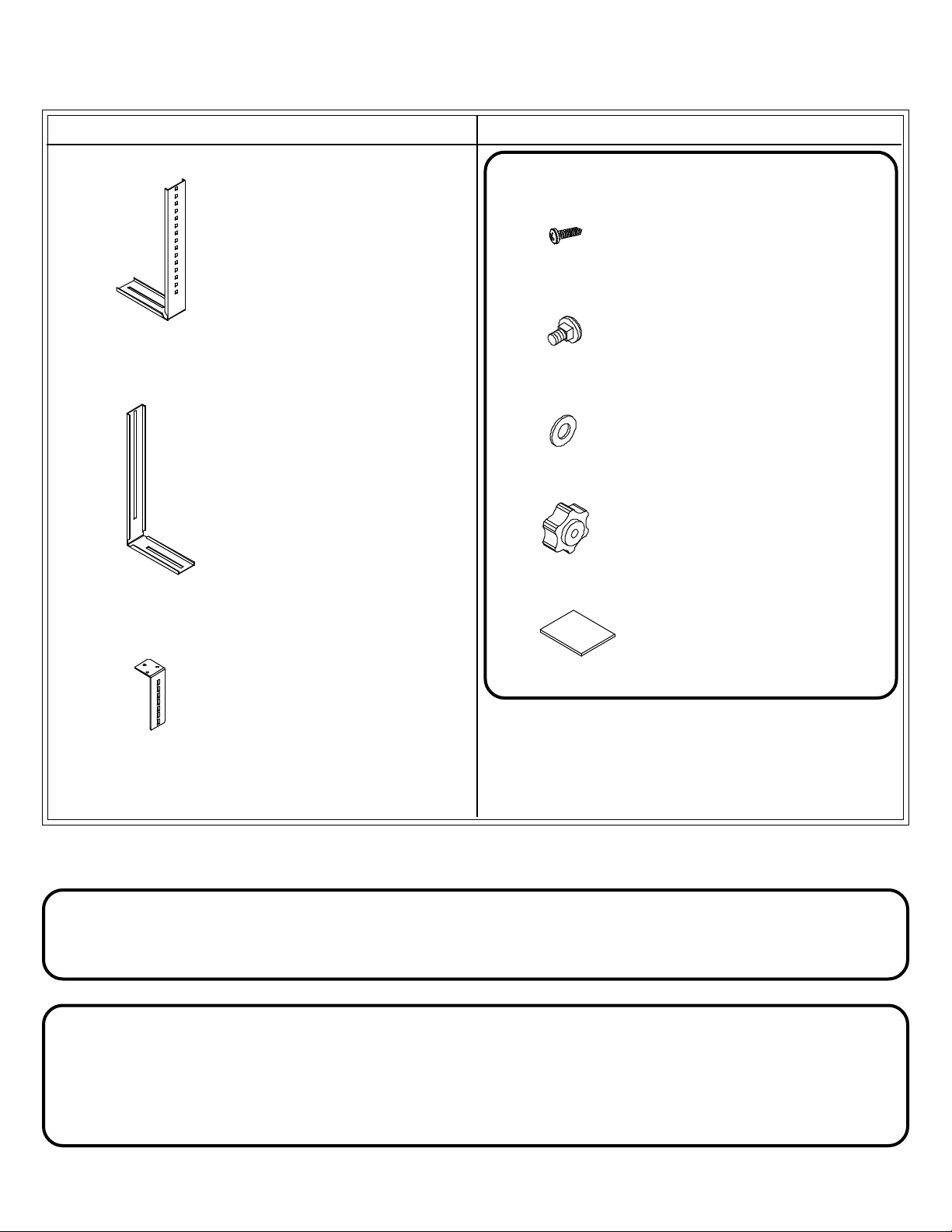

Hardware List

Should you require assistance during assembly, please call our Customer Service Department

Monday - Friday 8 a.m. - 5 p.m. Central Standard Time

Toll-FreeCustomerService

1-800-749-2258

ToolsRequired: Phillips HeadScrew Driver

( Power Screw Driver Preferred )

Do not use unless all screws are tight. At least every six months, check all screws to be sure

they are tight. If parts are missing, broken, damaged, or worn, stop use of the product until

repairs are made by your dealer using factory authorized parts.

Vertical / Horizontal CPU Holder

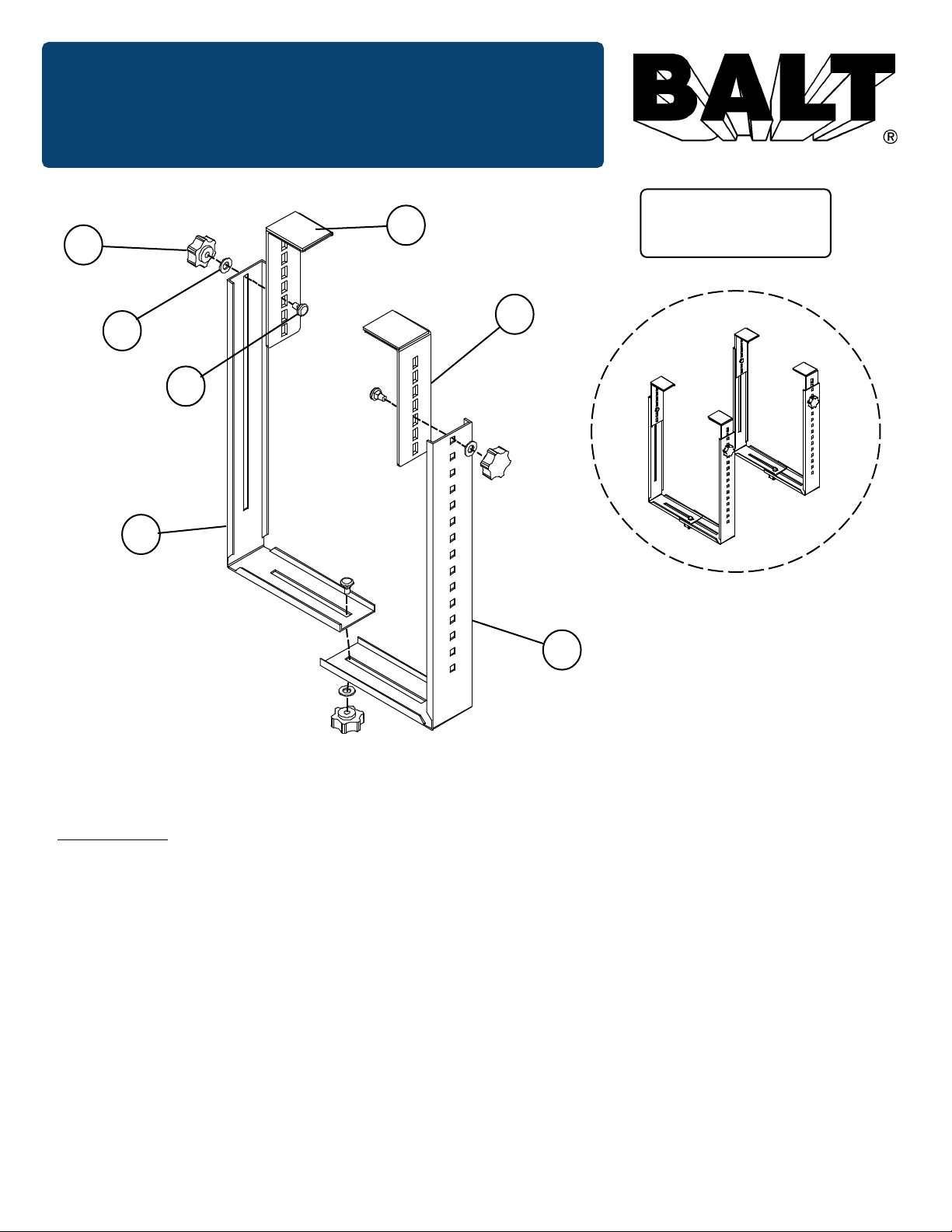

CPU-RACK (Vertical)

AssemblyDiagram

To Assemble: ( FollowIllustration # 1 for VERTICAL or Illustration #2 for HORIZONTAL)

1. IdentifyandSeparateall the Parts and Hardware.

2. Assemble 1 Outer Slide (P1), 1 Inner Slide (P2), and 2 Mounting Brackets (P3)

using 3 Shoulder Bolts (A2), 3 Flat Washers (B), and 3 Knobs (C)

as shown in illustration # 1 ( or # 2 for Horizonatal ).

Do not tighten all the way.

Repeattheprocess using the otherOuterslide, Inner slide, andMountingBrackets.

3. Adjustthewidth and height oftheseassemblies accoring to thesizeof your CPU, andtighten

the Knobs. Remove the paper from one side of 4 Adhesive pads (D) and stick these on the

Mounting Brackets (P3) as shown in illustration. Rempve paper from the other side and stick these

assemblies at the desired location.

CDIllustration # 1

for Vertical CPUs

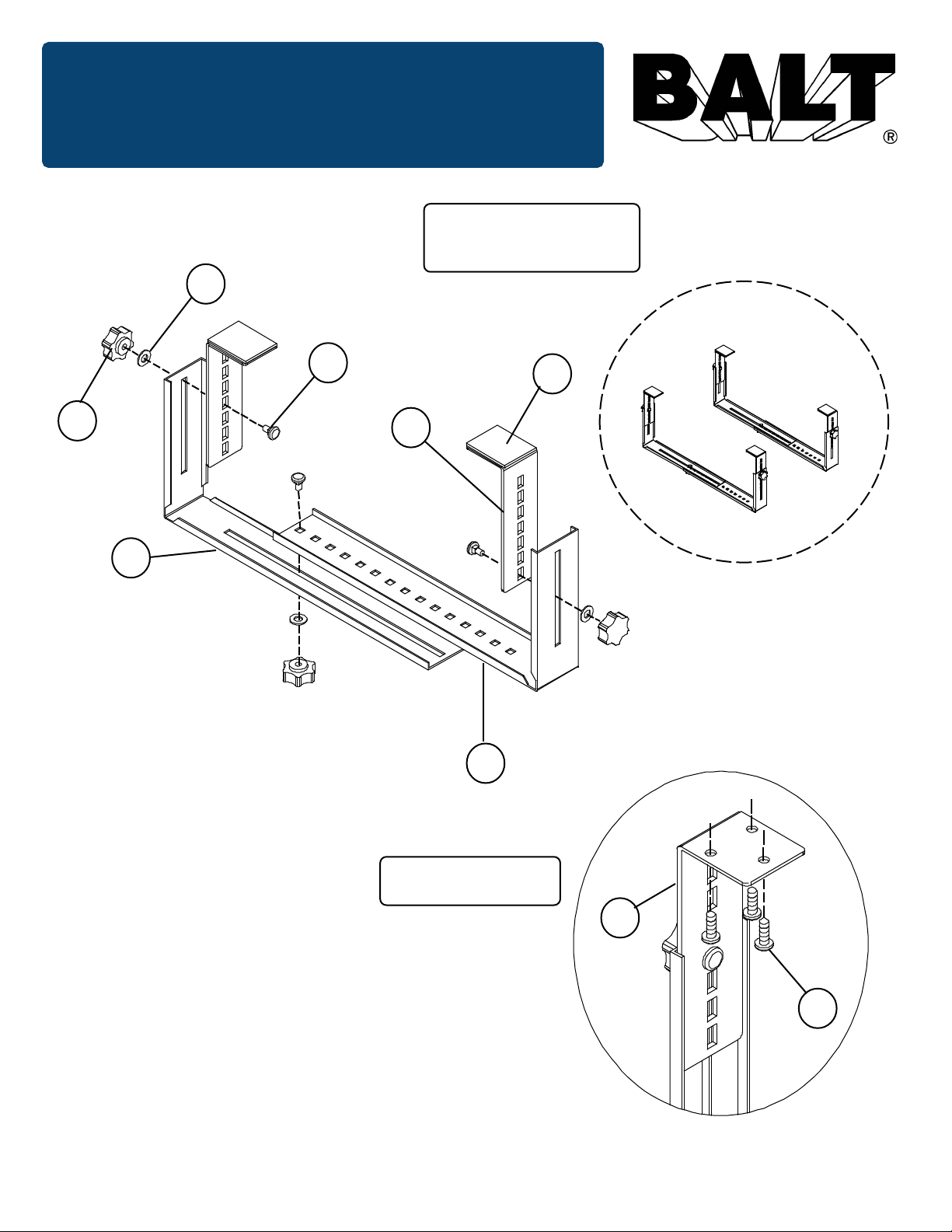

CPU-RACK(Horizontal)

AssemblyDiagram

4. Attach 4 Mounting brackets (P3) to

the bottom side of the Work surface

using 12 wood screws (A1)

as shown in illustration # 3.

Adhesive Pad (D) not shown

on Illustration # 3.

CPURACK_asm-03/24/00

Illustration # 2

for Horizontal CPUs

Illustration # 3

Formoreinformation

1-800-749-2258

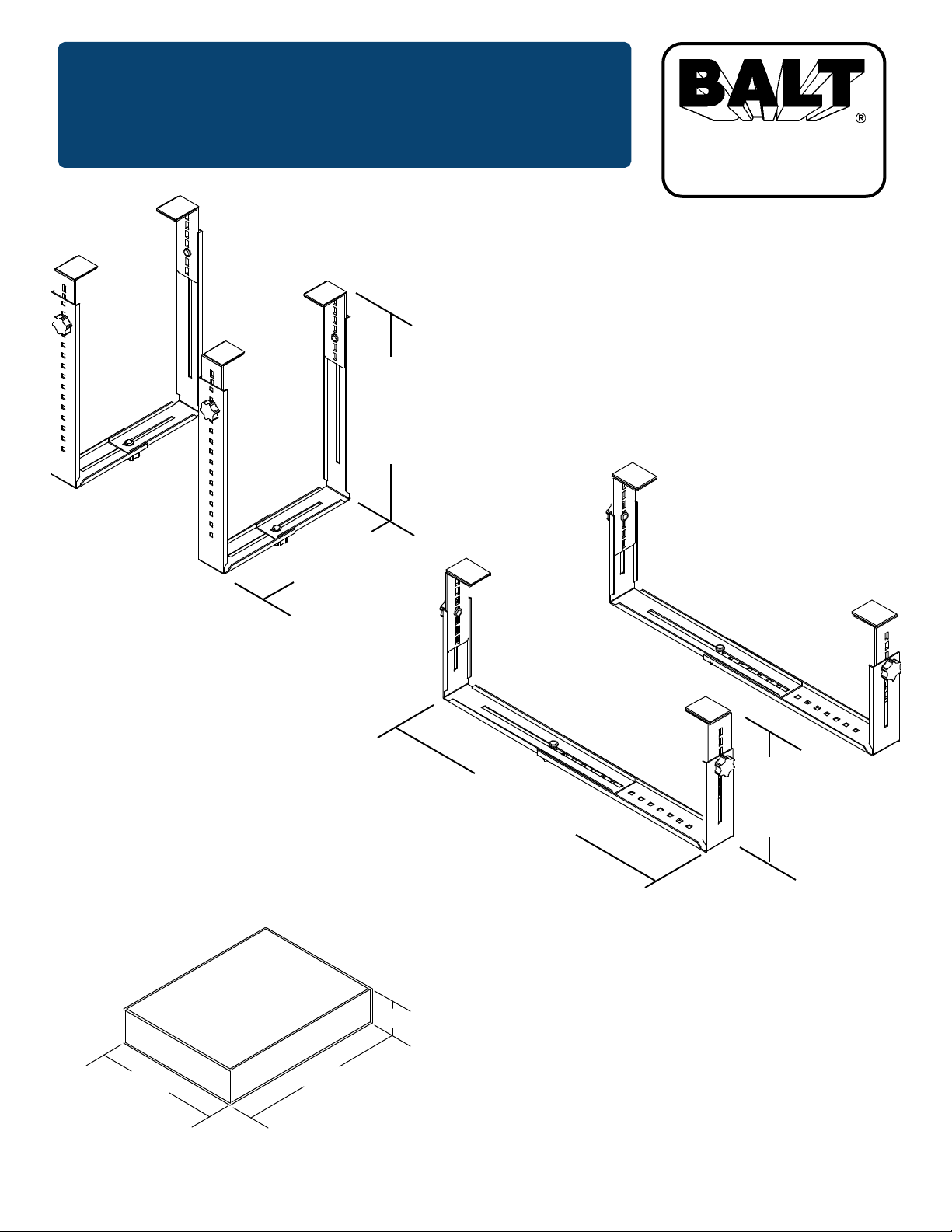

ShippingInformation

0.2 Cubic Feet

5 lbs.

15”

8”

3”

Used for fastening CPU underneath the desk

Vertically or Horizontally.

Black color, all Metal frames

ShipsUPS.

CPURACK_asm.pm6 - 6/13/00

CPU-RACK

Vertical / Horizontal CPU Holder

13¼ - 25¾”

5¼ - 9¾”

13¼ - 17¾”

5½ - 10”
