BanCon BC-B399 User manual

MAGNETIC BELT
DRIVE INDOOR
CYCLING BIKE
IMPORTANT! Please retain owner’s manual for maintenance and adjustment
instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN
UNTIL YOU HAVE CONTACTED US: [e-mail]
www.onebancon.com
BC-B399
USER MANUAL

1. IMPORTANT SAFETY INFORMATION
2. EXPLODED DIAGRAM
3. PARTS LIST
4. HARDWARE PACKAGE
5. ASSEMBLY INSTRUCTIONS
6. BATTERY INSTALLATION & REPLACEMENT
7. ADJUSTMENTS & USAGE GUIDE
8. MAINTENANCE INSTRUCTIONS
9. EXERCISE METER
10. SPECIFICATIONS
1
2
3
5
6
10
11
14
15
16
CONTENTS

- 1 -
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe and
effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your
responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have any
medical or physical conditions that could put your health and safety at risk or prevent you from using
the equipment properly. Your physician’s advice is essential if you are taking medication that affects
your heart rate, blood pressure, or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop exercising
if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat,
shortness of breath, lightheadedness, dizziness, or feelings of nausea. If you do experience any of these
conditions, you should consult your physician before continuing with your exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure
safety, the equipment should have at least 2 feet (60 CM) of free space all around it.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during exercise,
discontinue use of the equipment immediately and do not use until the problem has been rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 242 pounds (110 KG).
10. The equipment is not suitable for therapeutic use.
11. To avoid bodily injury and/or damage to the product or property, proper lifting and moving are required.
12. Your product is intended for use in cool and dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13. This equipment is designed for indoor and home use only; it is not intended for commercial use.
14. Put your foot in the toe clip on the pedal and fasten the strap when exercising. The bike is safe with
built-in flywheel design. Do not dismount the bike until Pedals have come to a complete stop. Please push
down on the red resistance adjustment handle to enforce the brake and stop the bike immediately.

- 2 -
EXPLODED DIAGRAM

- 3 -
PARTS LIST
NO.
1 1Main Frame
2 1Front Stabilizer
3 1Rear Stabilizer
4 1
Adjustable
Handlebar Tube
5
6 1
1Handlebar
Adjustable Seat Tube
7 1Seat Slider
8 1Seat Slider Fixed Plate
9 1Magnet Base
10 1Spring Fixed Plate
11 1Connection Plate 53*14*t2.0
12 1Crank Cover θ260*20-5
13L 1Left Crank 199.5*31*35
13R 1Right Crank 199.5*31*35
14L 1Left Pedal
14R 1Right Pedal
15 1 Seat Cushion
16 1Belt
18 1 Woolen Felt 32*30*8
19 1Plum Knob θ53*20-M10*29
20 2
Adjustment Knob θ57*M16-1.5P
21 1Tension Spring 16*θ8*θ1
22 1Bearing Axle θ20*165*M10-1.25P
23 1Spacer θ25*θ20.1*6
24 2Bearing 6004-ZZ
25 1Flywheel θ430*63.5，6.5kg
26 2Bearing 6300-2RS
17 3
High-intensity
Magnet 25*12*6
QtyDescription Spec. NO.
27 1Flywheel Axle
28 1Flywheel Spacer
29 2Bushing
30 4
Bottom Upright
Cover Fixed Base
31 4
Top Upright Cover
Fixed Base
32 1
Magnetic Snap-fit
Base
33 1Column Reed Switch
34 1Potentiometer
θ10*107*2-M10*1.0P
θ15*θ10.1*40.6
30*30*20
θ15*14
θ17*9
θ6*38
35 1Spring Wire 400mm
36 2Copper Nut Stud 13mm
589*576.7*61.237 1
Left Protective
Cover
38 1
Right Protective
Cover 589*576.7*61.2
39 1
Left Decorative
Cover 800.5*427.3*80
40 1
Right Decorative
Cover 800.5*427.3*80
θ109.6*3.6
42 1Rubber Cap 83*53.6*6.7
41 1
Crank Decorative
Cover
44 1
Cable Hanging
Wheel θ30*40
11.5*10*40*M6
θ5*195
θ12*θ6.1*25
169.6*56.5*15.5
50*25*t1.5
45 1Hexagon Sleeve
46 1Wire
47 1
Magnetic Base
Rotation Sleeve
48 1Rubber Spacer
49 2Round Cap
50 2Bolt Cap θ20.5*5 Red
43 1
Resistance
Adjustment Handle 89.5*60.2*13.4
QtyDescription Spec.

- 4 -
NO.
51 2Bolt Cap θ20.5*5 Black
80*45*48.7
5PIN 450mm
57*51.5*11.5
5#
θ65*23-θ8
θ43*17-M8*20
PU+Q235A
52 4Adjustment Foot Pad
53 4End Cap
54 1Console
55 1Console Wire
56 1Battery Cover
57 2Battery
58 2Transportation Wheel
59 2Flange Ball Cap
60 4
Pan Hexagon Socket
Bolt M8*55
M4*10
θ8.4*θ16*t1.6
θ8.1*θ12.3*t2.1
61 9Washer
62 8Spring Washer
63 4
Pan Hexagon Socket
Bolt M8*15
64 2Washer θ6.4*θ18*t1.6
65 2Spring Washer θ6.1*θ9.3*t1.6
66 2Hexagon Socket Bolt M6*15
67 2Wave Washer θ20.7*θ27.1*t0.3
68 1C-clip
QtyDescription Spec. NO.
69 4
Pan Hexagon
Socket Bolt M10*15
70 2
Hexagon Flange
Nut M10*1.25P*9H
71 1C-clip
72 1Hexagon Nut M8*35
73 1Hexagon Lock Nut M8
74 1Hexagon Socket Nut M6*72
75 1Hexagon Lock Nut M6
76 1Flat Phillips Screw M6*10
77 3Hexagon Nut M6
78 2Chain Screw Set M6*42*Φ10.2
79 2Hexagon Flange Nut M10*1.0P*9H
80 2Hexagon Thin Nut M10*1.0P*5H
81 2Flat Washer θ10.2*θ17*t1.5
82 15
Flat Phillips Slef
Tapping Screw ST4.2*15
83 24
Flat Phillips Slef
Tapping Screw ST4.2*15
84 6
Pan Phillips Slef
Tapping Screw
86 4Hexagon Nut
87 2Nut
88 4Flat Phillips Screw
ST4.2*10
M4*10
M8
M8
M5*15
85 1Pan Phillips Screw
QtyDescription Spec.

- 5 -

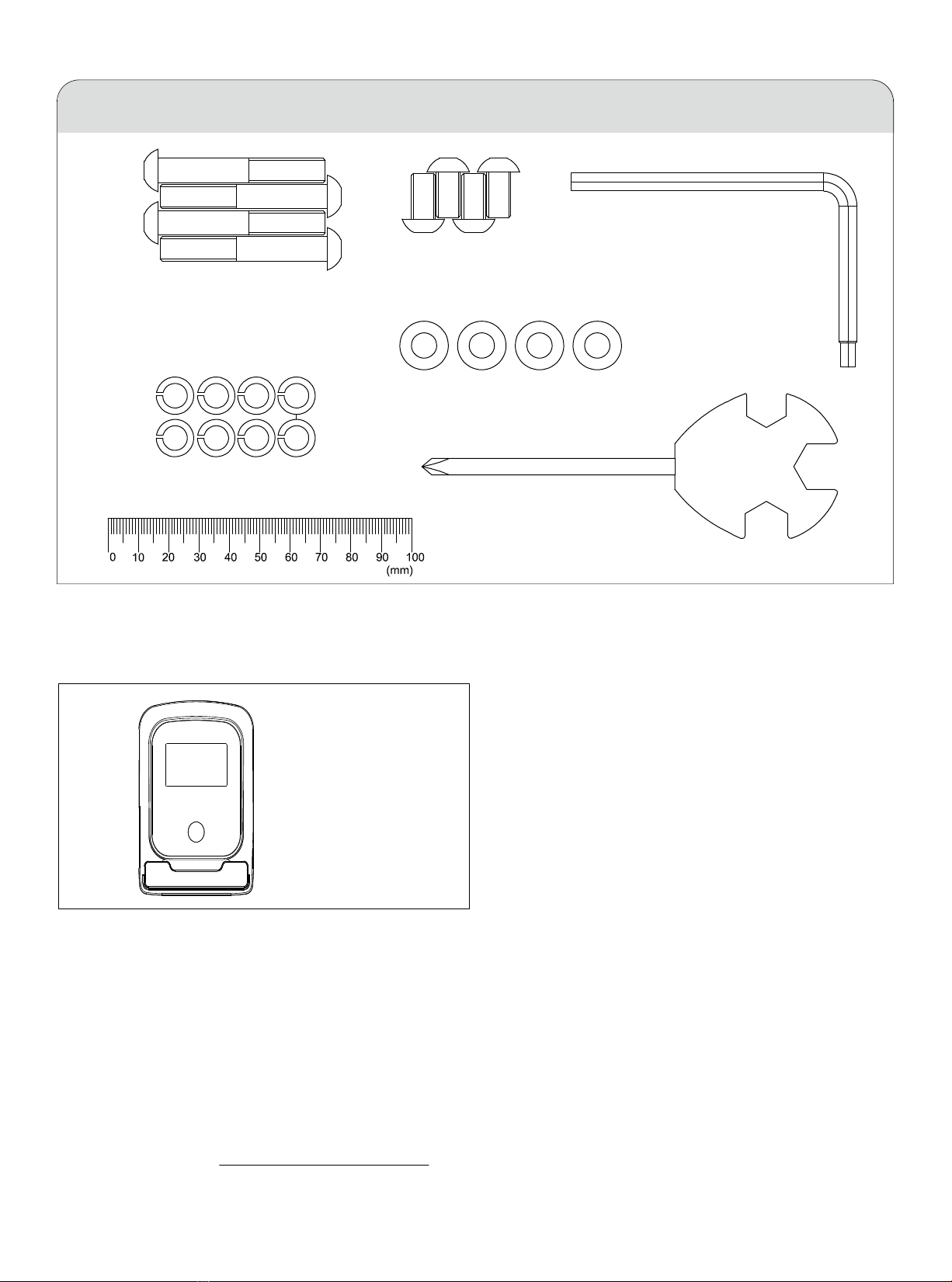

HARDWARE PACKAGE
NOTE: #8（NO. 60）is number 8 in "HARDWARE PACKAGE" refers to number 60 in "PARTS LIST" and "EXPLOD-
ED DIAGRAM". The rest may be deduced in the same manner.
#8 (NO. 60)
M8*55 4PCS
#11 (NO. 62)
θ8.1*θ12.3*t2.1 8PCS
#9 (NO. 63)
M8*15 4PCS
#10 (NO. 61)
θ8.4*θ16*t1.6 4PCS
#Spanner
S13-S14-S15 1PC
#Allen Wrench
S5-S6 1PC
#Console
#54 1PC
Ordering Replacement Parts
Please provide the following information in order for us to accurately identify the part(s) needed:
√ The model number (found on cover of manual)
√ The product name (found on cover of manual)
√ The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front of the
manual)
Please contact us at [e-mail]

- 6 -
ASSEMBLY INSTRUCTIONS
We value your experience using Bancon Health and Fitness products. For assistance with parts or trouble-
shooting, please contact us at [e-mail].
NOTE: We recommend having 2 people to assemble the product.
NOTE: #8 (NO. 60) is number 8 in “HARDWARE PACKAGE” refers to number 60 in the “PARTS LIST” and
“EXPLODED DIAGRAM”. The rest may be deduced in the same manner.
STEP 2

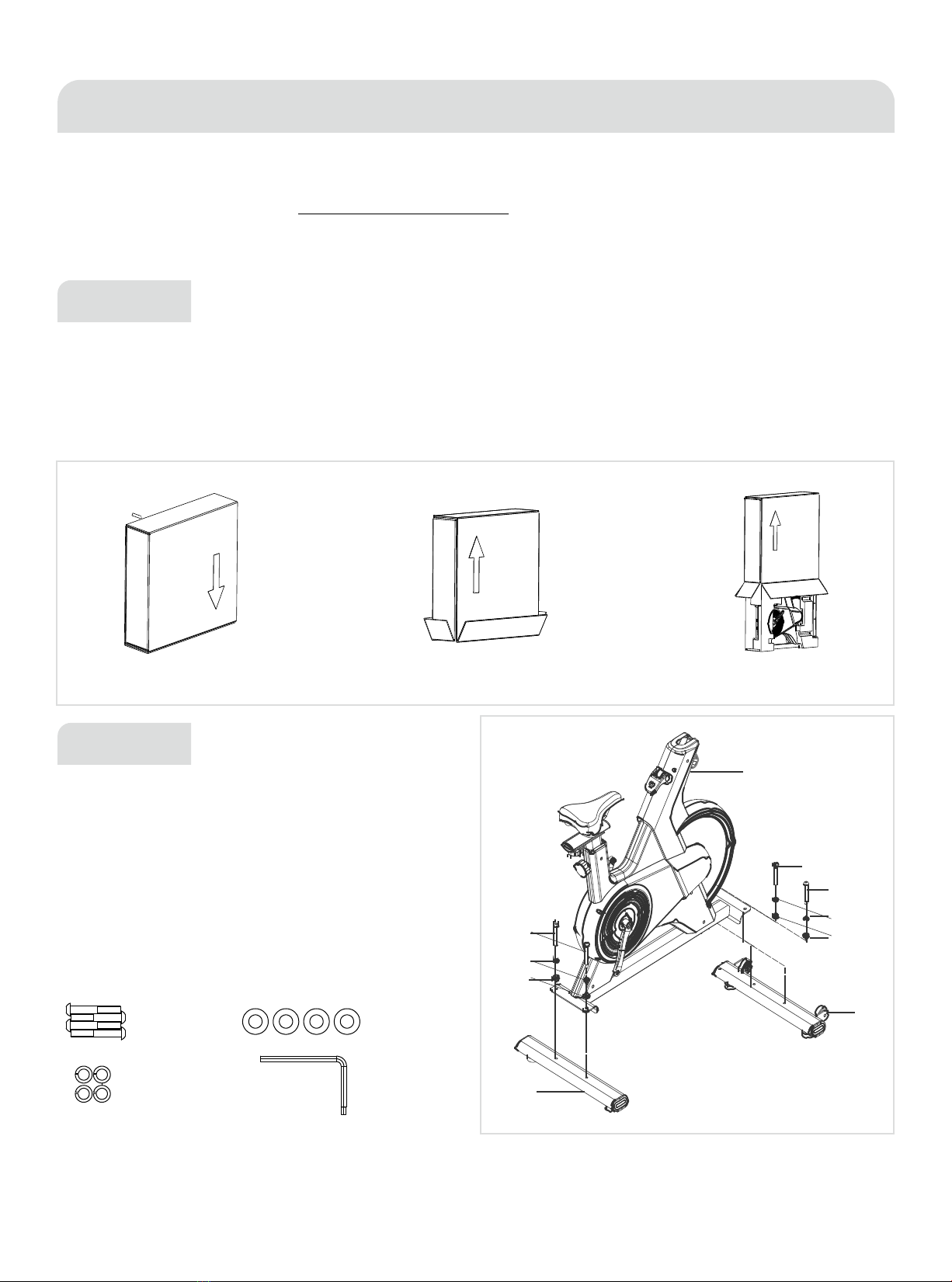

Attach Front & Rear Stabilizer (NO. 2 & NO. 3) to
Main Frame (NO. 1) using 4 Pan Hexagon Socket
Bolts (NO. 60), 4 Washers (NO. 61) and 4 Spring
Washers (NO. 62) as shown in the diagram. Make
sure the bolts have been tightly fastened. Tighten
with Allen Wrench.
STEP 1
1. Place the box on 2 square meters of free space to assemble the equipment.
2. Turn the box upside down and open flaps. As shown in Figure Ⅰ.
3. Keeping the flaps open, turn the box right side up as shown in FigureⅡ.
4. Pull the box up and take out all the parts of box as shown in Figure Ⅲ.
Figure Ⅰ Figure Ⅱ Figure Ⅲ
01
02
61
62
60
60
03
61
62
60
#8 (NO. 60)
M8*55 4PCS
#11 (NO. 62)
θ8.1*θ12.3 4PCS
#10 (NO. 61)
θ8.4*θ16 4PCS
#Allen Wrench
1PC

- 7 -
STEP 3

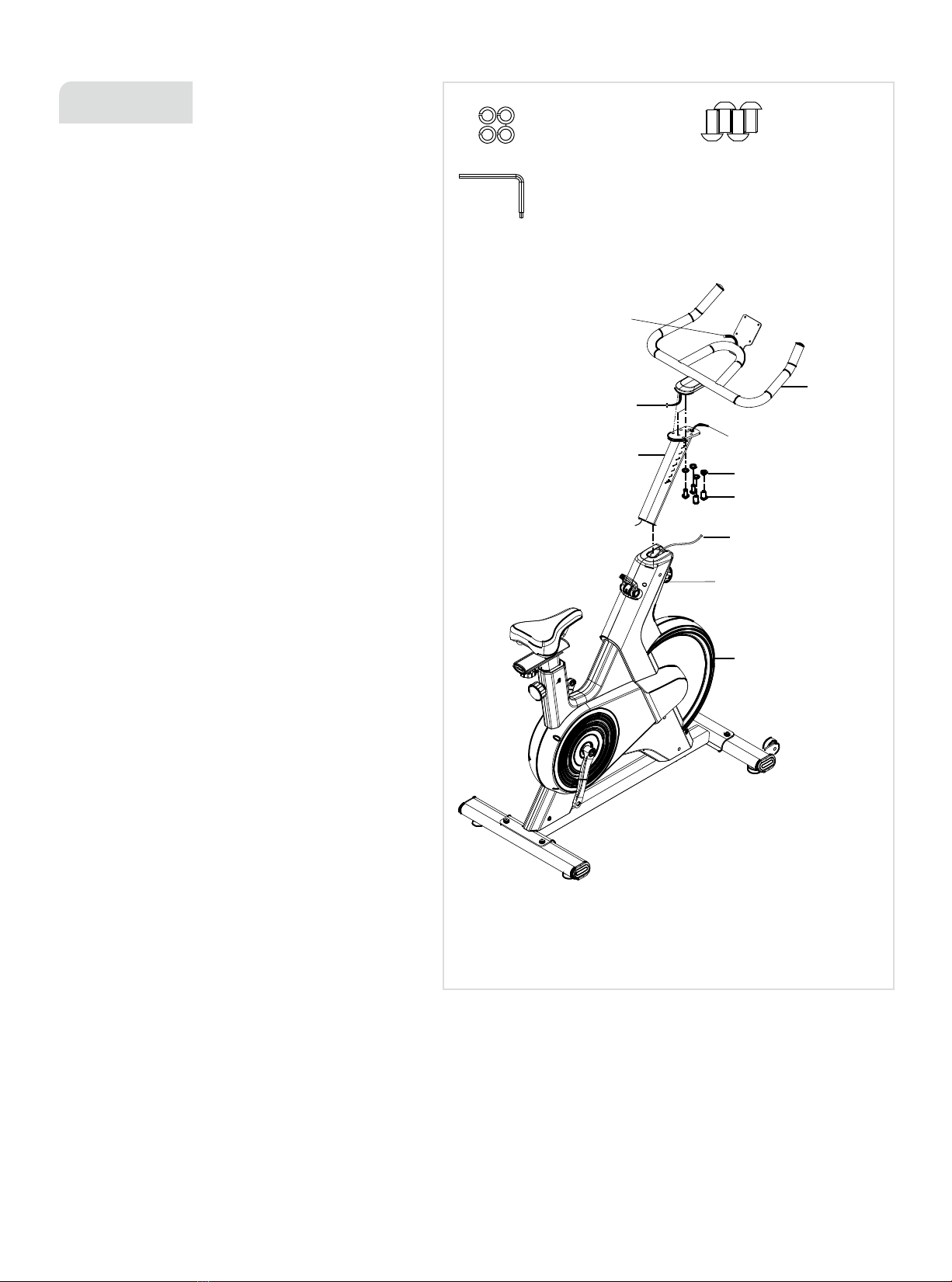

Let the Communication Wire A from Main
Frame (NO. 1) through Adjustable Handlebar
Tube (NO. 4) by tying L-Shaped Wire. Loosen
and pull out Adjustment Knob (NO. 20), insert
Adjustable Handlebar Tube (NO. 4) into Main
Frame (NO. 1) and adjust to desired height.
Secure it in place by reinserting and tightening
the Adjustment Knob (NO. 20). Be sure not to
pinch the Communication Wire A.
Connect Communication Wire A with Commu-
nication Wire B on Handlebar (NO. 5) and put
the wires into Adjustable Handlebar Tube
(NO. 4).
Attach Handlebar (NO. 5) onto Adjustable Han-
dlebar Tube (NO. 4) with 4 Pan Hexagon Socket
Bolts (NO. 63) and 4 Spring Washers (NO. 62).
Secure and tighten with Allen Wrench.
NOTE: Do not pull out Communication Wire A
with force while assembling, Communication
Wire C should not be put in Adjustable Handle-
bar Tube (NO. 4). Pay attention to the direction
when connecting wires. Be sure not to pinch Com-
munication Wire A and connector should be
placed in Adjustable Handlebar Tube (NO. 4).
01
04
05
62
63
20
L-Shaped Wire
Communication
Wire A
Communication
Wire B
Communication
Wire C
NOTE: #11 (NO. 62) is number 11 in “HARDWARE PACKAGE” refers to number 62 in the “PARTS LIST” and
“EXPLODED DIAGRAM”. The rest may be deduced in the same manner.
#11 (NO. 62)
θ8.1*θ12.3 4PCS
# 9 (NO. 63)
M8*15 4PCS
#Allen Wrench 1PC

- 8 -
STEP 4

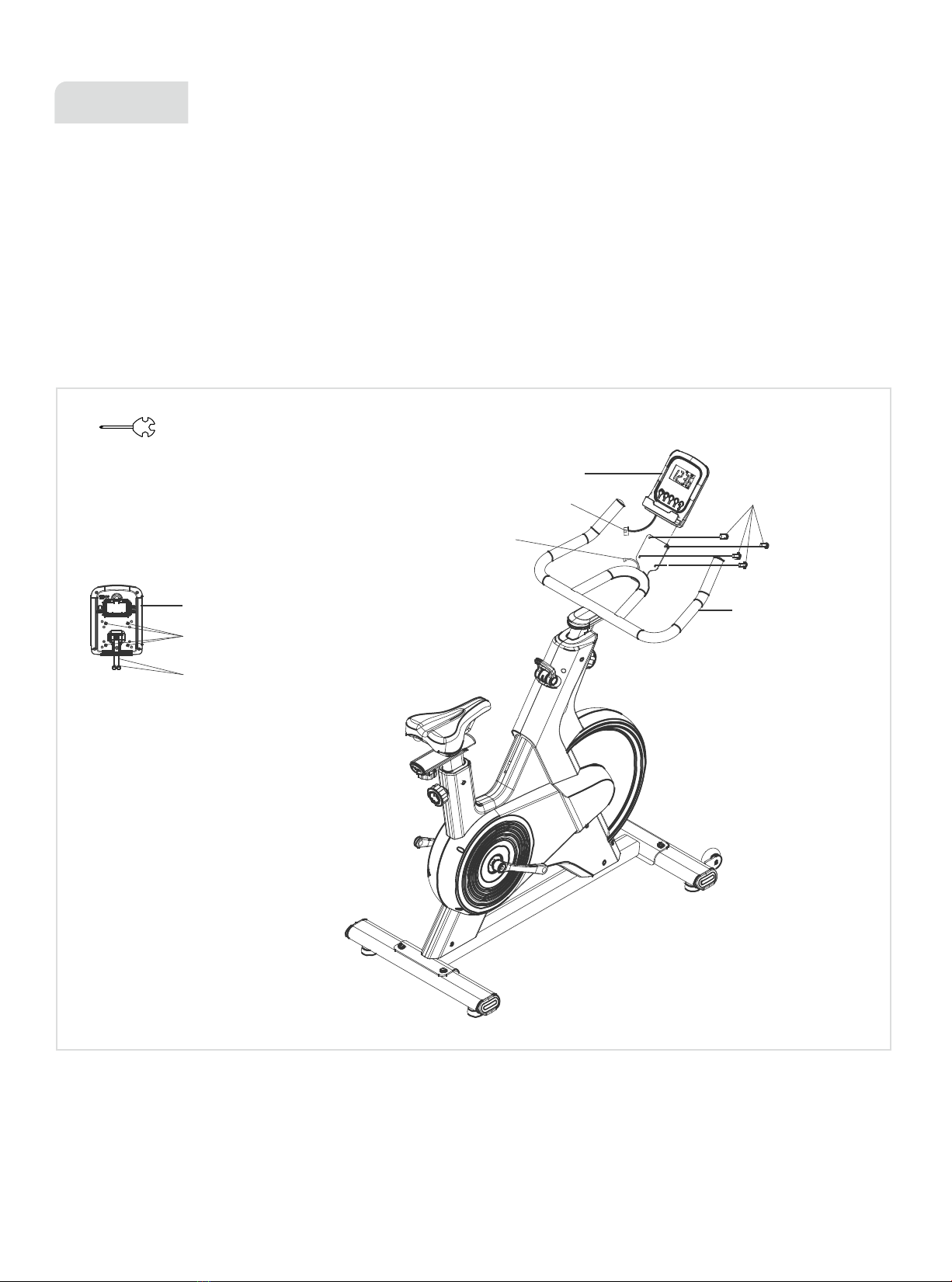

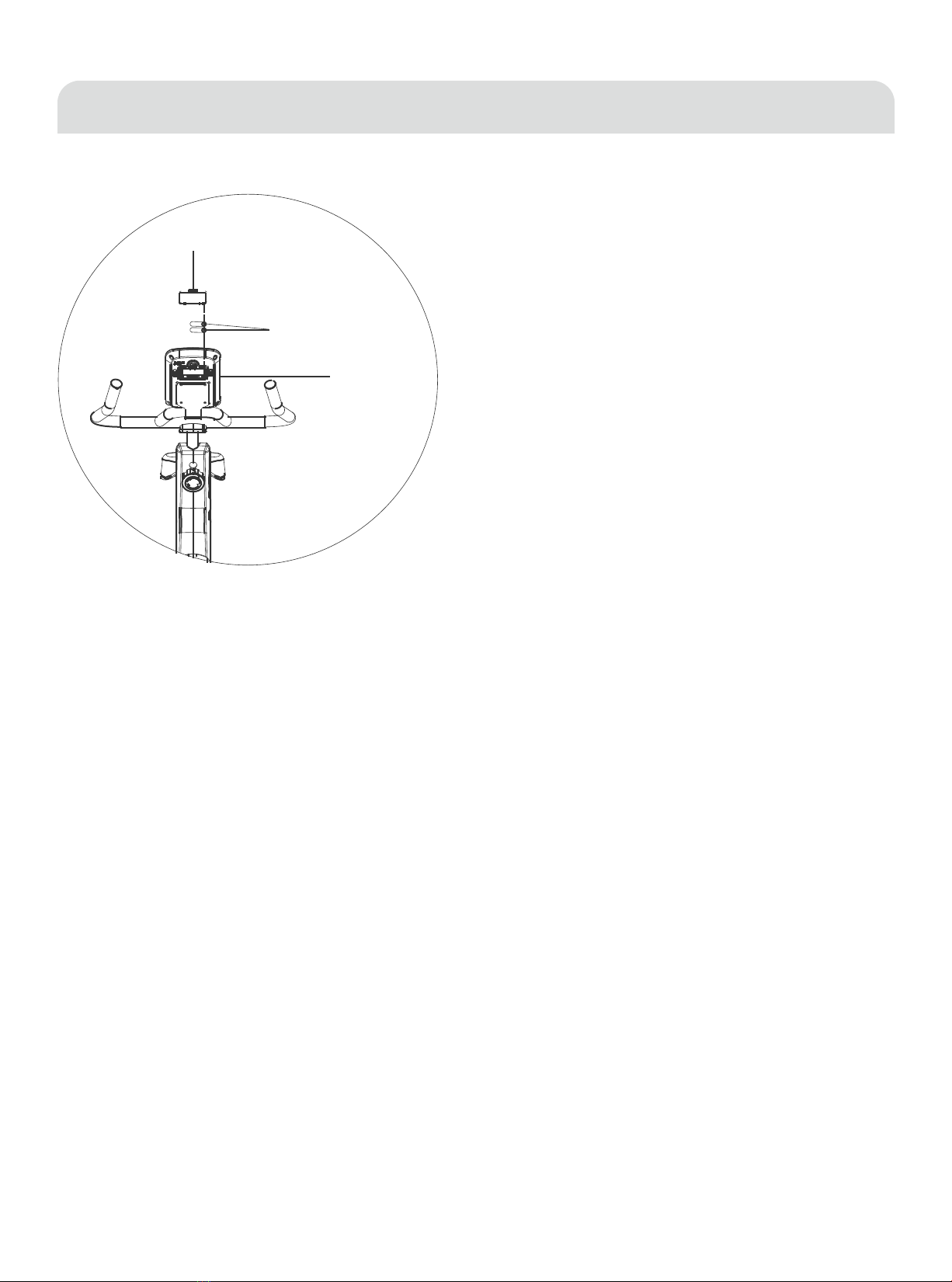

Use Spanner to remove 4 Pan Phillips Bolts on the Console (NO. 54), the Bolts should be kept in good
condition.
Connect Communication Wire D from Console (NO. 54) with Communication Wire C on Handlebar (NO.
5), insert the connected wires into the Handlebar (NO. 5).
Secure the Console (NO. 54) to Handlebar (NO. 5) using 4 Pan Phillips Bolts that were removed, tighten
with Spanner.
Communication
Wire D
54
Pan Phillips Bolt
54
Communication
Wire D
Communication
Wire C
Pan Phillips Bolt
5
#Spanner 1PC

- 9 -
STEP 5
WARNING! Read instructions carefully as
improper assembly may cause permanent
damage to your bike.
NOTE: The Pedals (NO. 14L & NO. 14R) are
marked “L” and “R” for Left and Right.
Connect the Left & Right Pedal (NO. 14L &
NO. 14R) onto the Left & Right Crank (NO.
13L & 13R).
Left Pedal: Align the Left Pedal (NO. 14L)
with the Left Crank (NO. 13L) at 90 degrees
and gently insert the pedal into the crank
arm. Turn the pedal counter-clockwise as
tightly as you can with your hand. Secure
with Spanner.
Right Pedal: Align the Right Pedal (NO. 14R)
with the Right Crank (NO. 13R) at 90
degrees and gently insert the pedal into the
crank arm. Turn the pedal clockwise as tight-
ly as you can with your hand. Secure with
Spanner.
The assembly is complete!
14L
14R
13R
13L
01
S15
#Spanner 1PC

- 10 -
BATTERY INSTALLATION & REPLACEMENT
BATTERY REPLACEMENT:
1. When the display becomes dim or illegible, press the buckle of Battery Cover (NO. 56) on the back of
the Console (NO. 54), then remove the Battery Cover (NO. 56).
2. Remove the 2 old AA batteries in the battery case and install 2 new AA batteries into the battery case on
the back of the Console (No. 54). Pay attention to the battery + and -ends before installing.
3. Press the buckle of Battery Cover (NO. 56), then put the Battery Cover (NO. 56) back to the back of
the Console (No. 54).
The replacement is complete!
NOTE:
· Always change both batteries at the same time. Do not mix battery types and do not mix old and new
batteries.
· Be sure to remove the batteries to prevent corrosion damage if you are not going to use the machine for
an extended period of time.
· Dispose batteries according to your state and regional guidelines. Please do not throw it into fire or use
as a toy for children.
BATTERY INSTALLATION:
1. Take out 2 AA batteries from the plastic bag for
manual.
2. Press the buckle of Battery Cover (NO. 56) on the
back of Console (NO. 54), then remove the Battery
Cover (NO. 56).
3. Install 2 AA Batteries into the battery case on the
back of the Console (NO. 54). Pay attention to the
battery + and - ends before installing.
4. Press the buckle of Battery Cover (NO. 56), then
put the Battery Cover (NO. 56) to the back of Con-
sole (NO. 54).
The installation is complete!
Battery Cover
Battery
54

ADJUSTING THE BALANCE
In order to achieve a smooth and comfortable
ride, you must ensure that the stability of the
bike is secured. If you notice that the bike is
unbalanced during use, adjust the Adjust-
ment Foot Pad (No. 52), located beneath the
Front & Rear Stabilizers (No. 2 & No. 3) of
the bike. To do so, use Spanner to loosen
Hexagon Nut (No. 86) by turning it clock-
wise. With the nut loosened, rotate the
Adjustment Foot Pad (No. 52) until it sits
level with the surface that the bike is on.
When you have finished adjusting the Adjust-
ment Foot Pad (No. 52), re-tighten the Hexa-
gon Nut (No. 86) by turning it counter-clock-
wise to complete the balance adjustment of
the bike. If needed, repeat this process to
adjust the remaining adjustment foot pad.
ADJUSTING THE RESISTANCE
& EMERGENCY STOP
Adjusting Resistance Adjustment Handle
(NO. 43) Upwards to decrease the level of resis-
tance. Adjusting Resistance Adjustment
Handle (NO. 43) Downwards to increase the
level of resistance. Pushing down on the Resis-
tance Adjustment Handle (NO. 43) to enforce
the brake and stop the bike immediately.
- 11 -
ADJUSTMENTS & USAGE GUIDE
86 52
43

- 12 -
ADJUSTING THE SEAT CUSHION
The seat of this bike is fully adjustable as it moves Up,
Down, Fore (forward), Aft (backward).
To adjust the height of Adjustable Seat Tube (NO.
6), loosen and pull the Adjustment Knob (NO. 20)
outward, then raise or lower the seat to the desired
height. Once adjusted, re-insert and tighten the
Adjustment Knob (NO. 20) to secure the Adjust-
able Seat Tube (NO. 6) in place.
To adjust the seat back and forth, loosen and pull the
Plum Knob (NO. 19) outward, then slide the Seat
Slider (No. 7) to desired position. Once positioned,
re-insert and tighten the Plum Knob (NO. 19) to
secure the Seat Slider (No. 7) in place.
Note: When adjusting, you will see height mark and a
STOP on the Adjustable Seat Tube (NO. 6). The
height mark is for reference only. Do not lift the tube
passed the STOP mark. Always check the Adjust-
ment Knob (NO. 20) and Plum Knob (NO. 19) to
ensure that it is fully secured when you finish making
an adjustment.
20 7
6
19
PEDAL STRAP ADJUSTMENT
Your feet should be secured in the toe clips during
exercise. Place your feet as far forward into the toe
clips as you can. With your feet in place, turn the
crank to bring one foot to within arm’s reach, grasp
the pedal strap and pull it upward to tighten the toe
clip cage. Then insert the strap back into the hoop of
the toe clip. Repeat this process to secure your other
foot.

- 13 -
ADJUSTING THE HANDLEBAR
It is important that the handlebar and seat are both
set to the correct height to your body. To adjust the
handlebar height, loosen and pull the Adjustment
Knob (NO. 20) outward, then slide the Adjustable
Handlebar Tube (NO. 4) up or down to the desired
height. Once adjusted, re-insert and tighten the
Adjustment Knob (No. 20) to secure the handlebar in
place.
Note: When adjusting, you will see number 1-7 and
STOP mark. Set the Adjustable Handlebar Tube (NO.
4) to correct height according to your body. Do not lift
the tube passed the STOP mark.
20
4
TRANSPORTING THE BIKE
To move the bike, first ensure that the Handlebar
(NO. 5) is properly secured. If the handlebar is loose,
tighten the Adjustment Knob (No. 20) to secure it.
Next, stand at the front of the bike so that you’re
directly in front of the handlebar. Firmly grasp and
hold each side of the Handlebar (NO. 5), place one
foot on the Front Stabilizer (No. 2), and tilt the bike
towards you until the transportation wheels on the
Front Stabilizer (No. 2) touch the ground. With the
transportation wheels on the ground, you can trans-
port the bike to the desired location with ease.
Note: Always use caution when moving the bike.
Unexpected impact, such as dropping the bike, may
cause injury and affect the bike’s operation.
2
20 5

- 14 -
MAINTENANCE INSTRUCTIONS
Read all maintenance instructions fully before you start any repair work. In some conditions, an assistant
is required to do the necessary tasks.
Before each use, examine the exercise machine for loose, broken, damaged, or worn parts. Do not
use if found in this condition. Repair or replace all parts at the first sign of wear or damage. Make sure
adjustment knobs are tight. Tighten as necessary. After each workout, use a damp cloth to wipe your
machine and Console free of moisture.
NOTICE: If necessary, only use a mild dish soap with a soft cloth to clean the Console. Do not clean
with a petroleum based solvent, automotive cleaner, or any product that contains ammonia. Do not
clean the Console in direct sunlight or at high temperatures. Be sure to keep the Console free of
moisture.
Daily
Clean the machine to remove any dust, dirt, or grime from the surfaces.
Check for smooth seat operation. If needed, sparingly apply a thin coating of silicone lube to ease
operation.
Silicone lubricant is not intended for human consumption. Keep out of reach of children. Store in
a safe place.
Note: Do not use petroleum based products.
Weekly
Check pedals and crank arms and tighten as necessary. Make sure all bolts and screws are tight.
Tighten as necessary.
Check the drive belt tension.
Monthly or after 20 hours

- 15 -
EXERCISE METER
FUNCTIONS
SCAN: Press MODE button until “SCAN” appear, meter will rotate through all the functions: SCAN, TIME,
SPEED, DISTANCE, CALORIES, RPM, LEVEL. Each display will be hold for 6 seconds.
TIME: Count the time from exercise start to the end. When the exercise pauses, the TIME will stop.
SPEED: Displays the current speed being obtained.
DISTANCE: Counts the total distance of an exercise from start to finish.
CALORIES: Counts the total number of calories burned during an exercise from start to finish.(The data is
a rough guide which can not be used in medical treatment.)
RPM: Displays the frequency per minute from 0 to 999.
LEVEL: Displays the current level of resistance.
SLEEP MODE：Without any signal of exercise or operation for 1 minute, the power will automatically shut
off. Meter will power on when you press button or when you start to pedal.
Note:
1. If the meter display is abnormal, please re-install the batteries and try again.
2. Battery Spec: 1.5V UM-3 or AA (2PCS).
3. The batteries must be removed from the appliance before it is disposed.
FUNCTION BUTTON
MODE:
Press this button to changeover display or
choose function (SCAN, TIME, SPEED,
DISTANCE, CALORIES, RPM, LEVEL). Hold it for
3 seconds to reset all the values.
SCAN
TIME DISTANCE RPM
SPEED CALORIES LEVEL

- 16 -
SPECIFICATIONS
FUNCTION
SCAN
TIME
SPEED
DISTANCE
CALORIES
RPM
LEVEL
BATTERY TYPE
OPERATING TEMPERATURE
STORAGE TEMPERATURE
2 pcs of SIZE -AA
0℃ ~ +40℃
-10℃ ~ +60℃
Every 6 seconds
0:00 ~ 99:59 MIN:SEC
0 ~ 99.9 MPH
0 ~ 999.9 MILE
0 ~ 9999 KCAL
0 ~ 999 R/MIN
1 ~ 8

CONNECT WITH US
WWW.ONEBANCON.COM
FOR FITNESS ARTICLES, VIDEOS & WORKOUTS
@BANCON @BANCONFITNESS@BANCONFITNESS @BANCONFITNESS @BANCONFITNESS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Warning: changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment
The devices has been evaluated to meet general RF exposure requirement，the device can be
used in portable exposure condition without estriction
