PRODUCT INFORMATION B&B ELECTRONICS
Ethernet Media Converter
& Rack Chassis
100BaseFX Connections:
The Tx (transmit) port of device 1
is connected to the Rx (receive)
port of device 2, and the Rx
(receive) port of device 1 to the Tx
(transmit) port of device 2.
Description
The media converter provides one channel for media conversion
between 10/100BaseTX and 100BaseFX. It can be used as a stand-
alone device or with a standard 19 inch chassis as shown below.
Features
yOne-channel media conversion: 10/100BaseTX & 100BaseFX
yFiber media:
Multi-mode fiber using SC or ST connectors
Single-mode fiber using SC connectors
yAuto negotiation of speed and duplex mode on TX port
yAuto MDIX on TX port
yDIP switch configuration for:
Link-fault-pass-through
Fixed speed
Half/full duplex
yStore-and-forward mechanism
yNon-blocking full wire-speed forwarding rate
ySupports broadcast storm filtering
yBack-pressure & IEEE802.3x compliant flow control
yFront panel status LEDs
yExternal AC to DC power adapter (included)
yUsed as a stand-alone device or with a chassis
yHot-swappable when used with a chassis
10/100BaseTX and 100BaseFX Connectors
10/100BaseTX Connections:
Pin Regular Ports Uplink Port
1 Receive Data + (input) Transmit Data + (output)
2 Receive Data – (input) Transmit Data – (output)
3 Transmit Data + (output) Receive Data + (input)
4 NC NC
5 NC NC
6 Transmit Data – (output) Receive Data – (input)
7 NC NC
8 NC NC
LED’s and DIP Switch
LED Status:
LEDs State Indication
Steady Power on (PWR stands for POWER) PWR Off Power off
Steady 100Mbps network connection100 Off 10Mbps network connection
Steady Network connection established(LNK stands for LINK)
Flashing Transmitting or receiving data(ACT stands for ACTIVITY)
LNK/ACT
Off Neither a network connection established nor
transmitting/receiving data
Steady Connection in full duplex mode(FDX stands for FULL-DUPLEX)
Flashing Collision occurred(COL stands for COLLISION)
FDX/COL
Off Connection in half-duplex mode
DIP Switch Settings:
Pos. DOWN (0) UP (1)
1 Enable Link-fault-pass-through Disable Link-fault-pass-through
2 RJ45 Auto Negotiation Enabled RJ45 Forced Mode
3 RJ45 Forced to 100Mbps RJ45 Forced to 10Mbps
4 RJ45 Forced to Full Duplex RJ45 Forced to Half Duplex
5 Fiber Forced to Full Duplex Fiber Forced to Half Duplex
6
This quick installation guide describes how to install and
use the Ethernet Media Converter and optional Rack
Chassis.

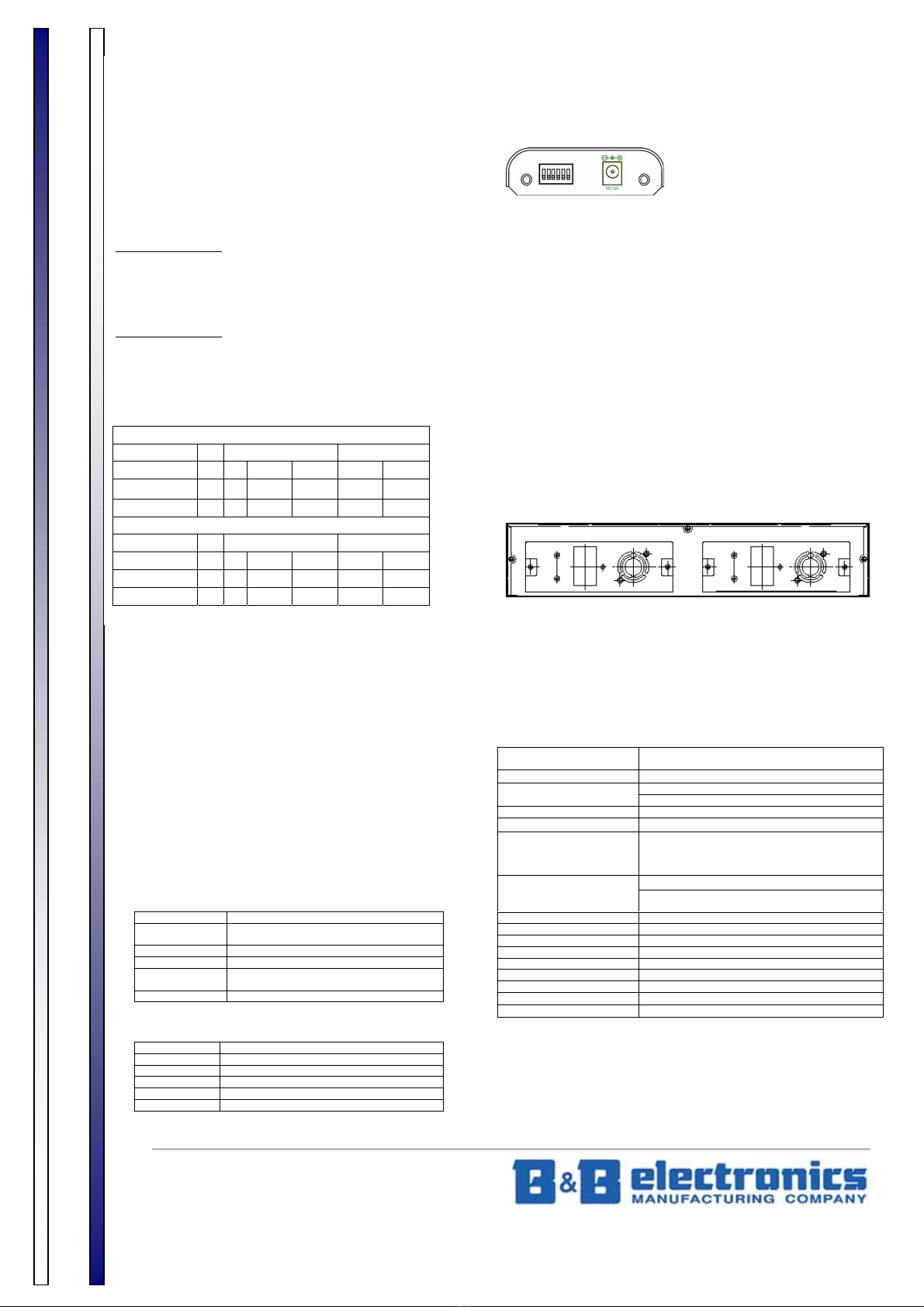

EIS Series-1406 - 2/2
International Headquarters: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA
815-433-5100 Fax [phone] www.bb-elec.com [e-mail] [email protected]
European Headquarters: Westlink Commercial Park Oranmore Co. Galway Ireland
[phone] Fax [phone] www.bb-europe.com [email protected]om [email protected]
PRODUCT INFORMATION B&B ELECTRONICS
Link-fault-pass-through
Link-Fault-Pass-Through Overview:
When two Media Converters are connected via their fiber
ports
Link Fault of the FX port:
A Link Fault condition will be sensed on the RJ45 port
whenever the media converter detects a Link Fault condition
on the Fiber port. (The 100, LNK/ACT, and FDX/COL LED’s
will be off.)
Link Fault of the TX port:
Media Converter A: A Link Fault condition will be sensed on
the Fiber port whenever the media converter detects a Link
Fault condition on the RJ45 port. Thus, the 100, LNK/ACT,
and FDX/COL LEDs of the RJ45 port of the Media Converter
A would be off.
Media Converter B: A Link Fault condition will be informed to
the Fiber port of the Media Converter B. Then a Link Fault
condition will be sensed on the RJ45 port of the Media
Converter B whenever the Media Converter B detects a Link
Fault condition on the Fiber port. Thus, the 100, LNK/ACT,
and FDX/COL LEDs of the Media Converter B would be off.
Link Fault of the FX port
TX Port FX Port
LEDs PWR 100 LNK/ACT FDX/COL LNK/ACT FDX/COL
Media Converter A ON OFF OFF OFF OFF OFF
Media Converter B ON OFF OFF OFF OFF OFF
Link Fault of the TX port
TX Port FX Port
LEDs PWR 100 LNK/ACT FDX/COL LNK/ACT FDX/COL
Media Converter A ON OFF OFF OFF ON ON
Media Converter B ON OFF OFF OFF OFF OFF
Rack Chassis Specifications
Features:
• House up to 16 media converters
• Front panel LED’s for power status
• Standard 19 inch Rack, 2U size
• Hot-swappable: Media converters and Power supplies
• Cooling fans for ventilation - one on right & left sides of chassis
• Ventilation holes on each side
• Load sharing mechanism:
If one power supply fails, the other takes over immediately
• Each converter bay is electrically isolated from each other
• Over current protection
Fuses on PCB for each converter bay
Fuses on each power supply
Chassis Specifications:
Capacity Houses up to 16 media converters
Power One power supply included, second optional
hot-swappable
Cooling One fan on the left and right side of the chassis
LED Indicators One LED for each power supply’s power status)
Dimensions 17.3 x 10.9 x 3.5 in (44 x 27.6 x 9 cm)
Standard 19 inch, 2U size
Net Weight 8.5kg approx. (with sixteen media converters)
Power Supply Specifications:
Power Input 110 to 240VAC, 50/60Hz
Power Output 12VDC, 84W max.
Load 7A max.
Operating Temp 0°C to 40° C (32°F to 104°F)
Storage Temp -25°C to 70°C (-13°F to 158°F)
Emissions FCC Part 15 Class A; CE Class A
Installation
Connecting Power:
The media converter is a plug-and-play device, so simply plug the
power supply into the converter and then the AC outlet.
Installing the Media Converter into the Chassis:
The media converter fits into any of the chassis expansion slots.
yFirst, remove one of the expansion slot carriers
yThen, install the converter onto the carrier
yNext, insert the carrier onto the guide rails of the expansion slot
yCarefully slide the carrier unit in, until it firmly fits the chassis
yReinstall the screw that locks the carrier to the chassis
Installing the Power Supply into the Chassis:
The power supply fits into either of the two power supply bays on
the back of the rack chassis.
yFirst, remove the cover plate
yThen, insert the power supply into the guide rails of the bay
yCarefully slide the power supply in until it firmly fits in the chassis
yTighten the thumb screws provided on the power supply
Media Converter Specifications
Media Converter Specifications:
Applicable Standards IEEE 802.3 10BaseT,
IEEE 802.3u 100BaseTX & 100BaseFX
Fixed Ports (1) TX port, (1) FX port
10/20Mbps for half/full-duplexSpeed 10BaseT
100BaseTX/FX
100/200Mbps for half/full-duplex
Switching Method Store-and-Forward
Forwarding rate 14,880/148,800pps for 10/100Mbps
Cable
10BaseT
100BaseTX
100BaseFX
2-pair UTP/STP Cat. 3, 4, 5 up to 100m
2-pair UTP/STP Cat. 5 up to 100m
MMF (50 or 62.5µm), SMF (9 or 10µm)
Per Unit - PWR1, PWR2, FAULT, LFPLED Indicators Per Port - TX: LNK/ACT, FDX/COL, 100
FX: LNK/ACT, FDX/COL
Dimensions 4.3 x 3.2 x 0.9 in. (10.9 x 8 x 2.4 cm)
Weight 0.15 Kg
Power External Power Supply 12VDC @ 280mA
Power Consumption 3.4W
Operating Temperature 0°C to 50°C
Storage Temperature -25°C to 70°C
Humidity 10 to 90%, non-condensing
Emissions FCC Part 15, Class A; CE
Safety UL/CUL 60950, EN60950, IEC 60950, IEC61000-6-2
