BANDELIN SONOREX TECHNIK UT16 User manual

23776 GB/2021-06
valid for:
Air circulation dryers UT 16, UT 40, UT 75
3 4
Air Circulation Dryer UT
Operating Manual
Translation of Operating Manual

2 / 18 23776 GB/2021-06
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
Copyright & limitation of liability
This document may not be reproduced, whether in full or in part, without the prior approval of BANDELIN electronic GmbH & Co.
KG, hereinafter "BANDELIN".
The German language original is the binding version of this document. Any differences in the translation are not binding and
have no legal effect. In case of any discrepancies between the translation and the original of this document, the original version
will take precedence.
BANDELIN accepts no responsibility or liability for damage caused by improper handling or usage contrary to the
intended purpose.
The documentation has been prepared with great care. All liability is excluded for any direct or indirect losses resulting from
incomplete or erroneous information contained in this documentation, or in its presentation or usage.
Subject to technical alterations. Measurements are subject to manufacturing tolerances.
All illustrations are provided as examples and are not true to size. Decorative elements are not included in the scope of delivery.
© 2021
1 2 GmbH & Co. KG, Heinrichstraße 3 – 4, Germany, 12207 Berlin,
Tel.: [phone] - 0, Fax: [phone], [email protected]

23776 GB/2021-06 3 / 18
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
General information
The device and the accessories are to be used in accordance with the operating
manual and/or the product information.
The manual forms part of the scope of delivery and is to be stored in the vicinity
of the device for later reference. This also applies if possession of the device is
transferred elsewhere.
This manual is part of the technical documentation for the device in accordance
with the EC Machinery Directive.
This document complies with Directive 2006/42/EC of the European Parliament and of
the Council, on the approximation of the laws, regulations and administrative provisions
of the Member States relating to machinery ("Machinery Directive"), Annex I, point 1.7.4.
Before the device is put into service, this manual must be read carefully and completely
to familiarise the user with all of the device functions.
Follow the warnings and safety instructions (chapter 1) at all times while using
the device.
The manufacturer will not assume any responsibility for the device's safety or functional
ability in the event of improper handling or usage contrary to the intended purpose.
Unauthorised alterations/modifications will render both the warranty claim and
the CE conformity null and void.
If service is required, please contact the authorised dealer or the manufacturer.
Symbols used:
Symbol Meaning Explanation
Danger Identifies information which, if not observed, could pose a risk
to life and limb, especially as a result of electric shock.
Caution
Identifies information that must be observed and complied
with in order to prevent damage to the device or injury to
the user.
Caution An uncontrolled start-up of the device poses a risk of death
and injury
Warning Warning of hot surface.
Important Identifies information that is important for execution.
Note Identifies explanatory information.
Wear protective gloves Identifies information that, if not observed, could pose a risk to
life and limb, especially due to heat.
Instructions Identifies instructions that must be carried out in the described
sequence.

4 / 18 23776 GB/2021-06
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
Table of Contents
1 Warnings and safety instructions .................................................................................6
2 Product description ......................................................................................................8
2.1 Mode of operation ........................................................................................................9
2.2 Intended purpose .........................................................................................................9
2.3 CE conformity ...............................................................................................................9
2.4 Technical data, general ..............................................................................................10
3 Preparation .................................................................................................................12
3.1 Scope of delivery ........................................................................................................12
3.2 Setup / assembly ........................................................................................................12
3.3 Commissioning ...........................................................................................................13
4 Operation ...................................................................................................................13
4.1 Operating elements ....................................................................................................13
5 Application ..................................................................................................................14
5.1 Instructions for use .....................................................................................................14
5.2 General use ................................................................................................................14
6 Maintenance and cleaning .........................................................................................15
6.1 Cleaning and care ......................................................................................................15
6.2 Warehousing / storage ...............................................................................................15

23776 GB/2021-06 5 / 18
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
7 Service and repair ......................................................................................................16
7.1 Service .......................................................................................................................16
7.2 Troubleshooting ..........................................................................................................16
7.3 Customer service .......................................................................................................17
7.3.1 Repairs and service ...................................................................................................17
7.3.2 Certificate of Decontamination ...................................................................................17
8 Decommissioning .......................................................................................................18
System
Original operating manual, blower

6 / 18 23776 GB/2021-06
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
1 Warnings and safety instructions
Hazards due to electrical energy
Electrical energy poses risks of death and injury. Work on the electrical components
may only be performed by authorised personnel. Inspect the electrical components
in accordance with the service schedule. Switch on the device only if the inspection of
the electrical components shows no defects. Inform your supervisor if the inspection of
the electrical components reveals any defects.
Hazards due to mechanical energy
Mechanical energy poses risks of death and injury. Work on the mechanical
components may only be performed by authorised personnel. Inspect the mechanical
components in accordance with the service schedule. Switch on the device only if
the inspection of the mechanical components shows no defects. Inform your supervisor
if the inspection of the mechanical components reveals any defects.
Hazards due to thermal energy
Thermal energy poses risks of death and injury. Work on the thermal components
may only be performed by authorised personnel. Protect yourself with suitable
personal protective equipment (protective gloves). Inspect the thermal components in
accordance with the service schedule. Switch on the device only if the inspection of
the thermal components shows no defects. Inform your supervisor if the inspection of
the thermal components reveals any defects.
Hazards due to noise emissions
The continuous sound pressure level emitted by the device is < 75 dB(A).
Operating noise poses a risk of injury to the sense of hearing. Protect yourself
with suitable personal protective equipment (hearing protection). Inspect the overall
condition of the device in accordance with the service schedule. Switch on the
device only if the inspection of the overall condition of the device shows no defects.
Inform your supervisor if the inspection of the overall condition of the device reveals
any defects.
Additional notes
Local accident prevention regulations apply to all work performed on the device.
Please also observe the
• Recognised technical rules for safe and professional working conduct
• Existing environmental protection regulations
• Applicable binding accident prevention regulations
• Other applicable regulations
Safety training for personnel must be repeated once a year.

23776 GB/2021-06 7 / 18
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
General
• Keep the surface of the air circulation dryer and operating elements clean and dry.
• Do not expose the air circulation dryer to corrosive influences.
• Warranty is void in the event of damage to the device caused by using unsuitable
cleaning chemicals.
• The air circulation dryer complies with prescribed EMC limit values, so it can be
assumed that the electromagnetic radiation emanating from the device is harmless
to humans. A binding statement for wearers of implants can only be made at the
place of work together with the implant manufacturer. In case of doubt, information
regarding the allowable electromagnetic exposure level should be obtained from
the implant manufacturer.
• Use only the connection materials supplied.
• If the air circulation dryer changes ownership, the operating manual and safety
instructions must also be passed on to the new owner.
Operation and transport
• Place the air circulation dryer upright on a dry and solid foundation. Pay attention to
the ambient conditions (chapter 2.4).
• The remaining liquid may not contain any solvents that could produce an explosive
and/or toxic atmosphere.
• Only plug the air circulation dryer into an outlet with a grounded socket.
• Do not operate the air circulation dryer while unsupervised.
• The air circulation dryer is equipped with handles for transport.
Damages and defects
• Disconnect immediately from mains power in the event of a defect. Then, allow
the device to cool down.
• In the case of defects, the air circulation dryer may only be repaired by authorised
technical personnel or the manufacturer.
• Replace defective parts only with SONOREX original parts or parts of
the same quality!
• Replace a defective mains cable completely.

8 / 18 23776 GB/2021-06
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
2 Product description
SONOREX TECHNIK UT 16, UT 40 or UT 75 air circulation dryers.
The exact type specification and serial number are found on the identification plate on
the back.
Product features:
• Stainless steel tank (1)
• Stainless steel housing (2)
• Handles (3)
• Outlet (4) for hose socket
• Feet (5) for secure positioning
• Timer (6) for 1 - 15 min and continuous operation
• Heating (7) from 45 to 140 °C.
• Floor drain (8) for drainage of dripping water
• Incoming air openings (9)
• Intake opening (10)
SONOREX TECHNIK UT 40 9108
2
6
1
4
3
57

23776 GB/2021-06 9 / 18
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
2.1 Mode of operation
The device dries parts through evaporation of water.
The drying is performed by moving air.
This process air can be heated.
The air circulation dryer is used to dry workpieces that are cleaned and rinsed,
and wet or damp.
The air that is warmed up by heating elements is directed via the air ducts to
the objects to be dried, in order to achieve a fast drying.
A small amount of circulating air throughput is replaced via the top-open device.
This preserves the ability of the circulating air to absorb moisture.
The desired drying temperature and operating time are set through the controllers
on the front.
If the basket cannot be used, the shelf can be used as an option. The shelf is placed
on the dryer's tank bottom. The dried items are then placed directly on the shelf.
2.2 Intended purpose
The device is designed to remove aqueous residual liquid from objects made of solid,
non-flammable materials. The parts to be dried must be placed in a basket provided
for this purpose, in the air circulation dryer.
The device is intended for commercial use.
The device can be used as a tabletop unit.
Important:
Due to its own weight, the load-bearing capacity of the table must be taken into account
when necessary.
2.3 CE conformity
The device satisfies the CE-marking criteria of the European Union:
- Electromagnetic Compatibility Directive
- Machinery Directive
- RoHS Directive
in their currently valid versions.
The declaration of conformity is enclosed with the delivery.

10 / 18 23776 GB/2021-06
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
2.4 Technical data, general
The air circulation dryer is interference-free and CE-marked.
Safety: 2006/42/EC
EMC: EN 61000
Mains supply: 400 V 3N~ (± 10%) 50/60 Hz, cable length 2 m
Tank: Stainless steel 1.4404, 2 mm, welded
Serial number: See type plate on rear of device
Degree of protection: IP 21 pursuant to DIN EN 60529
Protected against access to
dangerous parts with fingers
Protected against solid
foreign bodies with
a diameter of 12 mm
or larger
Protected from
dripping water
Type UT 16 UT 40 UT 75
External dimensions
(L × W × H) mm 365 × 480 × 390 540 × 480 × 495 640 × 640 × 550
Internal dimensions
(L × W × D) mm 325 × 300 × 195 500 × 300 × 295 600 × 500 × 295
Outlet G ½ G ½ G ¾
Heating power W 4000 4000 5000
Fuse A 16 16 16
Current consumption A 8.7 8.7 10.9
Weight (net) kg 30 45 60
Code No. 8380 8381 8382

23776 GB/2021-06 11 / 18
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
Ambient conditions
Overvoltage category: II
Degree of contamination: 1
Permissible ambient temperature: - 20 to 40 °C
Permissible relative humidity to 31 °C: 65%
Permissible relative humidity to 40 °C: 65%
Permissible air pressure: 800 to 1050 mbar
No dewing.
For indoor operation only.
Electromagnetic compatibility (EMC)
The device has been tested for electromagnetic compatibility (EMC) and meets
the requirements for Class B devices in accordance with EN 55011.
It is suitable for use in institutions and other areas that are directly connected to
a public low-voltage power supply, e.g., medical laboratory facilities.

12 / 18 23776 GB/2021-06
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
3 Preparation
Carefully unpack the air circulation dryer and accessories and inspect them for
completeness or possible transportation damages. Any identified damage or defects
must be communicated immediately and in writing to the transportation company and
to the supplier.
Before startup, the air circulation dryer should stand for 2 hours at its operating location
so that it can adjust to the ambient conditions.
3.1 Scope of delivery
1 Air circulation dryer, see delivery note
1 Shelf
1 Operating manual
1 Declaration of conformity
Additional accessories as ordered – see delivery note
3.2 Setup / assembly
Installation must be performed on solid ground. The installation surface should be level
and horizontal. When setting the device up on the tank rack, make sure that the device
feet are positioned in the designated footprints; in the process
- Pay attention to the maximum weight, including items to be dried.
For net weight, see the technical data (chapter 2.4).
- Do not obstruct the air supply below the air circulation dryer.
Set-up
Fully remove transportation aids (pallets, transport safety devices).
Set up the air circulation dryer in a dry room.
Place a drip tray (provided on site) under the outlet, or connect the outlet to a drain
using a hose.
When setting up, minimum distances on all sides must be observed: 15 cm.
The intake openings of the fans on the underside, and the ventilation slots on
the outside of the dryer may not be covered, as this would hinder cooling inside
the device.

23776 GB/2021-06 13 / 18
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
3.3 Commissioning
Check that the outlet is connected to the drain.
Check for any foreign objects in the device that could be sucked in.
Check for any parts in the device that are not sufficiently temperature-resistant.
4 Operation

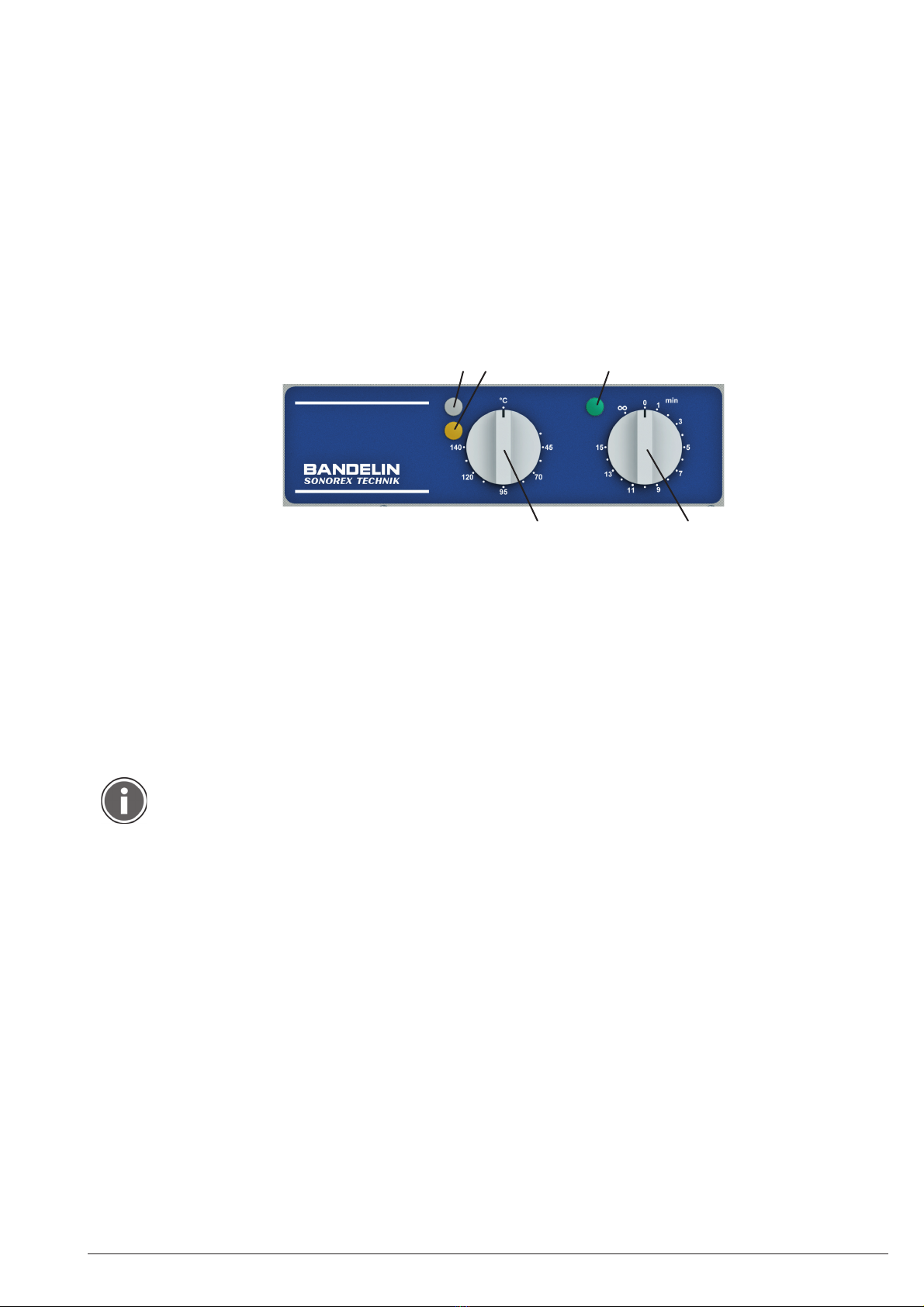

4.1 Operating elements
The device is operated from the front:
• The desired temperature can be selected via the turning knob (1) for heating.
• The desired duration can be set with the turning knob (2) for the time preselection.
Notes:
• The heating is only released when the fan is switched on simultaneously via the time
preselection.
This is also a safety circuit – the heating remains cold without the fan.
• When switched off, the air circulation dryer can remain connected to the mains.
It can be disconnected by pulling the mains plug.
1 Turning knob for Heating ON / OFF incl. adjustment control
2 Turning knob for time preselection
3 White control light (heating is activated)
4 Yellow control light (heating is in operation)
5 Green control light (device is in operation)
34 5
12

14 / 18 23776 GB/2021-06
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
5 Application
Safety instructions
An uncontrolled start-up of the device poses a risk of injury. Stored energy can cause
a risk of burns. Secure the device against an uncontrolled start-up. Disconnect
the power supply when not in use. Do not reach into the danger zone, or only if
you are authorised to do so.
Operation may cause the surfaces of the air circulation dryer to heat up.
5.1 Instructions for use
Before placing the basket and/or dried items in the air circulation dryer, the parts should
drip off. The tank has an outlet that emerges from the side. The fan compartment below
the dryer tank also has an outlet. After loading the device with the items to be dried,
the operator sets the desired temperature and duration. The drying process starts
when the process time is set.
5.2 General use
Step 1: Preparation
Check that the hose at the outlet is not kinked on its way to the drain.
If the hose is kinked, the liquid cannot drain.
Place the items to be dried in the air circulation dryer.
Step 2 : Switching on
Activate the blower with the turning knob for the time preselection
Activate the heating by setting the temperature at the turning knob
Step 3 : Switch offthe air circulation dryer
Air circulation dryer to zero (0) by turning the rotary handles.
Remove the items to be dried from the air circulation dryer.
Caution
Depending on the set temperature or drying time, baskets and dried items may be hot!

23776 GB/2021-06 15 / 18
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
6 Maintenance and cleaning
Safety instructions
Residual energy poses risks of death and injury. Only carry out those activities that
you are authorised to perform. Turn to your supervisor if you have any questions.
Unauthorised modifications pose risks of death and injury. Do not make
any unauthorised modifications to the device without the prior approval of
BANDELIN electronic GmbH & Co. KG.
To achieve an optimum lifespan for the air circulation dryer, cleaning and maintenance
should be conducted regularly. To do so, allow the device to cool sufficiently.
CAUTION!
Disconnect the air circulation dryer from the mains before each cleaning / maintenance.
Do not hose down and do not expose to splash water.
6.1 Cleaning and care
• Do not use abrasive cleaners, only use commercially-available care products
without scouring agents.
• Wipe the housing only from the outside with a moist cloth; if needed, use a suitable
surface disinfectant, then allow to dry or rub dry.
6.2 Warehousing / storage
During longer periods of non-use, cover the air circulation dryer and store it in a cool,
frost-free, dry location.

16 / 18 23776 GB/2021-06
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
7 Service and repair
7.1 Service
Keep the air circulation dryer clean and dry, see also chapter 6.
The air circulation dryer is maintenance-free.
7.2 Troubleshooting
The air circulation dryer has been robustly constructed and designed to offer
high reliability.
Nevertheless, the possibility of a malfunction due to a defective component can
never be ruled out entirely.
Caution !
Repairs may only be performed by authorised, qualified personnel!
Unauthorised repairs will void the warranty!
Seq.
No.:
Malfunction Possible cause(s) / measure
1 Air circulation dryer does not
heat up or does not become
truly hot
- One or more heating elements
have malfunctioned
- Setting of the thermostat is
defective (target temperature
above actual temperature)
- Timer defective
- Heating defective
- Air circulation dryer too hot
Allow to cool
2 Blower does not switch on - Mains voltage defective
- Blower fan defective
- Activate the motor protection switch
(rotary knob must be vertical)
3 Heating runs without pause - Temperature sensor defective
4 Other - Mains voltage defective
- Motor protection switch defective
- Allow technical personnel to determine
the reason for the fault

23776 GB/2021-06 17 / 18
1electronic GmbH & Co. KG • Heinrichstraße 3-4 • 12207 Berlin • Deutschland • [email protected]
7.3 Customer service
If service is required, please contact your specialist dealer or BANDELIN electronic to
order spare parts or before sending in the defective air circulation dryer.
7.3.1 Repairs and service
If faults or defects have been discovered and cannot be rectified, the air circulation
dryer can no longer be used. If this occurs, please contact the supplier or
the manufacturer:
BANDELIN electronic GmbH & Co. KG
Heinrichstrasse 3-4
12207 Berlin
Repair service: E-mail:
Tel.: [phone] [email protected]
Fax: [phone]
In the event of returns, the General Terms and Conditions for Delivery and Payment of
BANDELIN electronic GmbH & Co. KG apply.
In addition, the air circulation dryer must be cleaned and decontaminated (if necessary),
see the following chapter.
7.3.2 Certificate of Decontamination
If the air circulation dryer is returned to the manufacturer for repair (with accessories,
as the case may be), the form "Certificate of Decontamination" must be completed and
affixed to the packaging in a visible place.
If this form has not been filled out, we reserve the right to refuse receipt of the package
in order to protect our employees.
The form can be downloaded as a PDF file from our website:
www.bandelin.com – Downloads ...

8 Decommissioning
The device must be disposed of appropriately, not with household waste.
Disposal must be conducted in accordance with the Waste, Electrical
and Electronic Equipment Directive 2012/19/EU.
Any supplementary/deviating national regulations must be observed.
• The device must be decontaminated before disposal. It can then be disposed of
as electronic waste. If decontamination is incomplete/cannot be correctly performed,
a material safety data sheet noting the liquids used must be affixed to each device.
• Metal accessories such as the lid or basket should be decontaminated and disposed
of as metal waste.
• The packaging is recyclable.
BANDELIN electronic GmbH & Co. KG
Heinrichstraße 3 – 4
12207 Berlin
Deutschland
www.bandelin.com
[email protected]
[phone]
[phone]
Zertifiziert nach
ISO 9001
ISO 13485
