About this manual
This manual is a reference guide for operating the B&G Zeus Touch systems. It assumes that all
equipment is installed and configured, and that the system is ready to use.
The manual assumes that the user has basic knowledge of navigation, nautical terminology
and practices.
The manual does not cover basic background information about how equipment such as
radars, echo sounders and AIS work. Such information is available from our web site:
www.bandg.com
Important text that requires special attention from the reader is emphasized as follows:
¼Note: Used to draw the reader’s attention to a comment or some important information.
Warning: Used when it is necessary to warn personnel that they
should proceed carefully to prevent risk of injury and/or damage to
equipment/personnel.

2 | Preface | Zeus Touch Operator Manual
The software
This manual is written for B&G Zeus Touch Release to Market 1 (RTM1). Please check web site
for details on release version.
GOTO
PAGES
¼Note: The About dialog above is an example only and may not match the software installed
on your unit!
The manual will be continuously updated to match new software releases. The latest available
manual version can be downloaded from www.bandg.com.

| 3
Contents | Zeus Touch Operator Manual
Contents
7 Introduction
7 The Zeus Touch front panel and keys
8 The Zeus Touch screen
10 PDF viewer
11 Basic operation
11 The power key
11 Using the touch screen
11 Pages and panels
12 The menus
12 Dialog boxes
13 Placing the cursor
13 Positioning a Man Over Board mark
13 Screen capture
14 Charts
14 The chart panel
14 Chart scale
14 Panning the chart
14 The vessel symbol
15 Using the cursor on the chart panel
16 Positioning the chart on the panel
16 The chart settings panel
18 Chart overlay
18 Selecting chart type
19 Insight chart options
20 Navionics chart options
23 Waypoints, routes & tracks
23 Waypoints
24 Routes
24 Tracks
25 The waypoints, route and tracks panels
26 Navigating with the Zeus Touch
26 The Goto menu
26 Navigating on the chart
27 Navigating with Autopilot
27 Navigation settings panel
28 Navigation panels
30 SailSteer screen
33 Using the Autopilot
33 Safe operation with the Autopilot
33 Activating the Autopilot
34 The Autopilot panel
34 Selecting Autopilot modes
34 Autopilot mode overview
36 Controlling steering performance in automatic modes
36 Using the Autopilot in standby mode
36 Power steering (NFU)
36 Follow-up steering (FU)
36 AUTO mode (auto compass)

4 | Contents | Zeus Touch Operator Manual
40 NoDrift mode
40 Navigating with the Zeus Touch
41 Sailing with the Autopilot
43 Wind steering and navigation
43 Using the Zeus Touch in an AP24/AP28 system
43 Using the Autopilot in an EVC system
44 The Autopilot settings panel
47 Using the radar
47 The radar panel
47 The radar operational modes
47 Using the cursor on the radar panel
48 Optimizing the radar image
48 Positioning the radar center
49 Measuring range and bearing to a target
50 Setting a guard zone around your vessel
51 Radar options
52 MARPA targets
54 Radar overlay
54 Radar settings panel
54 Mast rotation
55 The echosounder
55 Setting up the echosounder panel
56 Zooming
57 Adjusting color and gain settings
57 Using the cursor on the echosounder panel
58 Placing a mark on an echosounder image
58 Measuring distance
58 Pausing the echosounder
58 Recording the echosounder data
59 Echo options
60 StructureScan™ overlay
60 The echosounder settings panel
62 StructureScan™
62 Setting up the StructureScan™ image
63 Zooming
64 Adjusting the color settings
64 Using the cursor on the StructureScan™ panel
64 Placing a mark on a StructureScan™ image
65 Measuring distance
65 Pausing StructureScan™
65 Recording the StructureScan™ data
65 Structure options
66 StructureMap ™
66 Activating Structure overlay
67 StructureMap sources
67 StructureMap tips
68 Recording StructureScan data
68 Using StructureMap with mapping cards
69 Structure options

| 5
Contents | Zeus Touch Operator Manual
70 The Instruments panels
70 The dashboards
70 Customizing the Instrument panel
71 Data History
73 Using AIS
73 Target symbols
74 Viewing information about AIS targets
74 Vessel alarms
75 The vessel settings panel
76 AIS SART - Search And Rescue Transponder
77 Audio
77 Enabling audio
77 The audio media bar
78 Setting up the SonicHub speakers
78 Operating the audio source
79 Audio playback
79 Using the FM/AM radio
80 Using Sirius radio
81 Weather
81 GRIB Weather
84 SiriusXM™ weather (North America only)
87 Using Video
87 The video panel
87 Setting up the video panel
89 BEP CZone
89 The BEP CZone panel
89 CZone modes
90 CZone system overview options
90 The CZone info panel
91 The alarm system
91 Type of messages
91 Acknowledging a message
92 The alarms dialog
93 The Tools page
93 Vessels
93 Alarms
93 Satellites
94 Find
94 Waypoints/routes/tracks
94 Trip Log
94 Sun/moon
94 Tides
96 GoFree™ wireless
99 Operating the Zeus Touch with the wireless device

6 | Contents | Zeus Touch Operator Manual
101 Customizing your system
101 Page overview
101 Create favorite pages
102 Setting the appearance of the instrument bar
102 Changing system settings
104 Using the simulator
104 Simulator mode
104 Demo mode
104 Selecting simulator source files
104 Advanced simulator settings
105 Maintenance
105 Preventive maintenance
105 Simple maintenance procedures
105 Software upgrades
106 Trouble shooting
106 Backing up your system data
107 Menu and dialog overview
107 Panel menus
108 Goto menu
108 Settings dialogs
110 Index

| 7
Introduction | Zeus Touch Operator Manual
Introduction
The Zeus Touch front panel and keys
MARK
MOB
GOTO
MENU PAGES
STBY
IN
MOB
OUT
AUTO
P
U
S
H
T
O
E
N
T
E
R
1 2 2 3
4
5
6
7
8
9
10
1 Touch screen
2 Card reader door
3 Micro-SD Card reader
Used for optional Navionics or InsightHD chart data, software updates, transfer of user data
and system backup.
4 STBY / AUTO key
Used for Autopilot operation.
5 MARK / MENU key
A short press displays the active panel’s menu.
A double press displays the Settings menu.
A long press places a waypoint at the vessel’s position.
6 X key
Used to exit dialogs, to return to previous menu level and to remove the cursor from the
screen on chart, radar and echosounder panels.
7 Rotary knob
Used for zooming chart and for scrolling through menus. Press rotary knob to confirm
selection.
8 GO TO / PAGES key
A short press displays the Pages overview panel (Home page). Repeated short presses
toggles between Pages overview, Tools and Settings panels.
A long press displays the Goto menu.
9 IN / OUT / MOB key
Zoom key for chart, radar and echosounder panels. A simultaneous press on both key ends
will position a Man Over Board (MOB) mark at vessel’s position.
10Power key
A long press turns the unit ON/OFF.
A short press brings up the backlight and radar standby control dialog. Repeated short
presses toggles between preset brightness levels.
1

8 | Introduction | Zeus Touch Operator Manual
The Zeus Touch screen
4 5 6
21 3
7 8
1 Instrument bar
Navigation and sensor info can be viewed in a user configurable instrument bar on top of
your pages.
2 Panel button
You can tap the text on this area to end an ongoing operation, e.g. to remove the cursor from
the screen, to end route editing and to stop measuring distance.
3 Dialogs
Dialogs are used for user input or for presenting information to the user.
A dialog may be presented in full-screen or as a popup dialog in the centre of the screen.
Depending on type of information or entry, different keys are used to confirm, cancel and
close the dialog.
A dialog can always be closed by tapping the in the upper right corner or by pressing the
Xkey.
4 Menus
Different menus are available to select options and to configure your system. A menu is
displayed by pressing the MENU key, by tapping the MENU panel button, or by tapping and
holding on the touchscreen.
5 Application panels
Each application connected to the system is presented on panels, and you can have several
panels depending on screen size:
• T7 2 panels
• T8 and T12: 4 panels
1-panel page 2-panels page 3-panels page 4-panels page

| 9
Introduction | Zeus Touch Operator Manual
The system includes the following page groups, which each have a pre-configured
combination of panels:
Icon Description Main page
Instruments with configurable live data
from system internal, and external sources
such as engines
Instruments
Echosounder Echosounder
Live video Video
Navigation information Steering
Insight or Navionics charts, depending on
region Chart
Radar Radar
The main page in each group is a full size panel. All pre-configured pages, except the main
page for the group, can be modified by the user.
In addition to these panels the following applications can be connected and displayed on
other panels:
Panel Description
AIS AIS information as overlay on chart and radar panels
Weather Sirius (North America only) weather graphics and data as overlay on
chart panel
Audio Satellite radio (North America only) and SonicHub functions as a panel
along the bottom of a page
StructureMap Overlays sidescan images over the chart
6 MENU panel button
Tapping this panel button will display the menu for active panel. Same function as pressing
the MENU key.
7 Alarm message
The system will continuously check for dangerous situations and system faults while the
system is running. When an alarm situation occurs, an Alarm dialog will pop up.
If you have enabled the siren, an audible alarm will be activated when an alarm situation
occurs.
8 The Control pages
The Control pages give access to page selection, tools and settings.
The Pages overview panel (Home) is displayed by pressing the PAGES key. Repeated presses
on this key will toggle between the control panels.
You can also switch between the control panels by dragging your finger horizontally on the
screen.

10 | Introduction | Zeus Touch Operator Manual
All control panels and sub-panels are always full screen, and they will open on top of your
previous page. When you close one of these panels the display will return to last active page.
Pages overview (Home page) Tools Settings
Pages overview
The pages overview panel is accessed from any operational mode by pressing the PAGES
key.
The panel includes 6 page group icons together with shortcuts to the Autopilot panel, to a
combined chart/echo panel, and to the SailSteer panel.
¼Note: To see an Autopilot panel an Autopilot computer must be connected to the system.
Similarly a StructureScan module must be available on the network to use StructureScan.
Tools
The tools panel include options that are not specific to any panel e.g. status regarding vessels,
alarms, satellites, sun/moon and tides. Also included are waypoints, routes and tracks library,
trip log, find function and files.
If a CZone system is connected, this function is accessed from the Tools panel.
Settings
The Settings panel gives access to system and vessel setup, application settings, and to the
simulator.
PDF viewer
Use the PDF viewer to read manuals and other PDF files on the Zeus Touch display. The
manuals can be read from an inserted Micro-SD card or copied to the unit’s internal memory
and read from there.
Zeus Touch manuals can be downloaded from www.bandg.com.
Use the keys and softkeys to maneuver in the pdf file as below:
Search, Page Up/Down Tap the relevant softkeys
Scroll pages Turn the rotary key
Panning on page Tap and drag finger on screen in any direction
Zoom In/Out Press IN/OUT keys
Exit the pdf viewer Press the Xkey

| 11
Basic operation | Zeus Touch Operator Manual

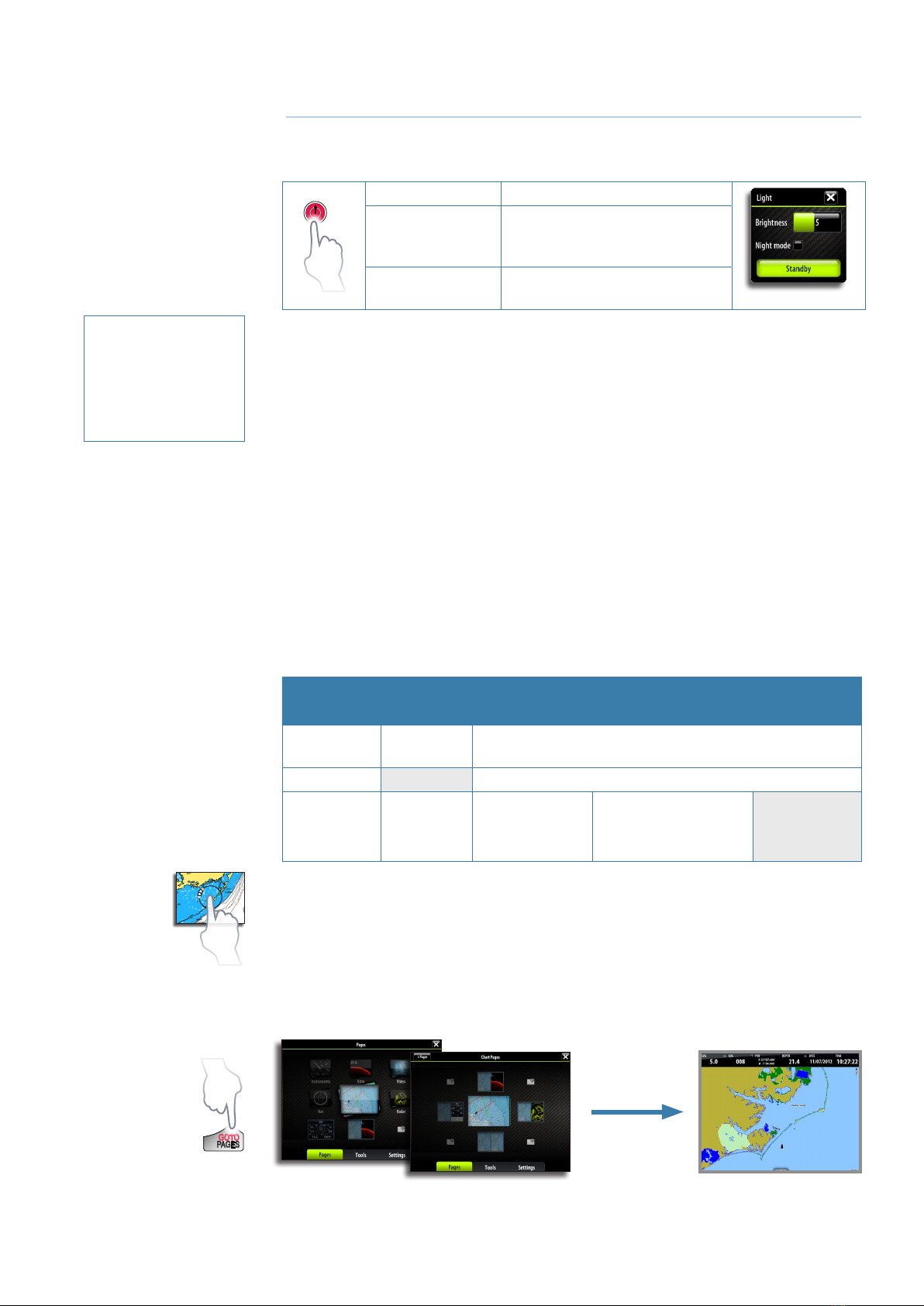

Basic operation
The power key
• Press and hold: Turn unit on/off
• Single press:
Display dialog for light adjustment,
standby mode and radar standby/
transmit
• Repeated
presses:
Toggle preset brightness levels (10
- 6 - 3- 1)
¼Note: If the power key is released before shut-down is completed, the power off is cancelled.
A night mode which optimizes the color palette for low light conditions, is included.
¼Note: Details on the chart may be less visible when the Night mode is selected!
When in Standby mode, the backlight for touch screen and keys are turned off to save power.
The system will continue to run in the background and will notify you if an alarm situation
should occur.
You return from Standby mode to normal operation by pressing the power key.
If the radar is transmitting you can set it to standby mode from within the Light dialog.
Using the touch screen
Basic touchscreen operation on the different panels is shown in the table below.
The panel sections later in this manual have more information about panel specific touch
screen operation.
Operation Menu/
Dialogs
Panels
Chart Echo Radar
Tap Select/
toggle item Place cursor
Tap and hold Display menu for active panel
Drag
Adjust slider
value
Scroll dialog
Pan chart
(any direction)
Pan echo history
(horizontal movement)
¼Note: When tapping and holding, a circle will spin around the tap point. Hold till action circle
has completed or until the action is confirmed by a second beep.
Pages and panels
Select pages
You access a page group and then select the page to display from the PAGES panel.
2
Advanced power control
The Zeus Touch can be wired
and congured to control
the power of displays and
compatible devices. See
the Zeus Touch Installation
manual for more information.
GOTO
PAGES

12 | Basic operation | Zeus Touch Operator Manual

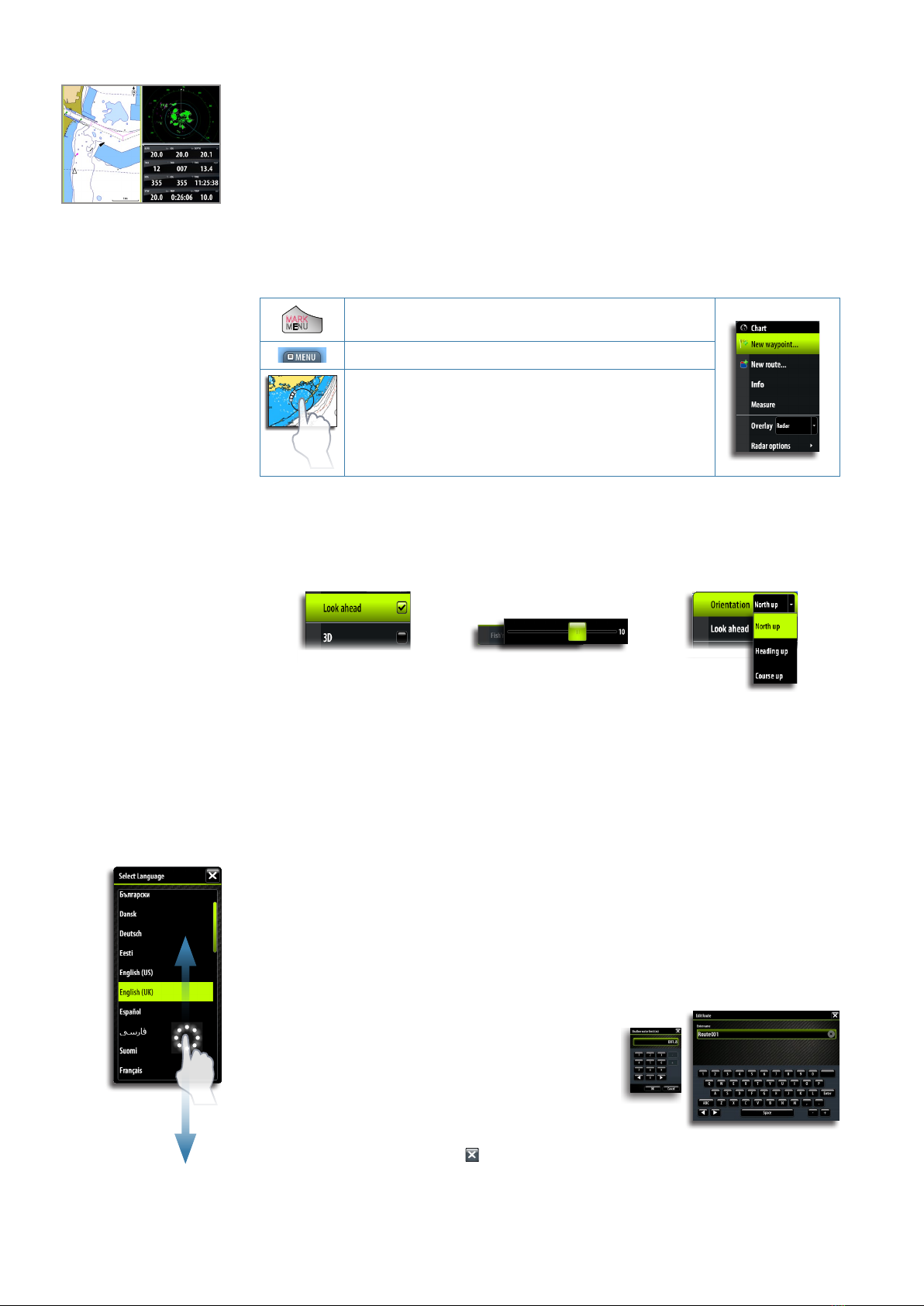

Select active panel
In a split screen you have multiple panels, but only one panel can be active at a time. You will
only be able to access the context menu of the active panel. The active panel is outlined with
a coloured border.
You can switch between active panels by tapping the required panel.
The menus
Menus are used to operate the system and to adjust settings.
You display a menu by:
MARK
MENU
• Pressing the MENU key
• Tapping the MENU panel button
• Pressing and holding on active panel
• You select a menu item and toggle on/off menu check boxes by tapping selected item.
• You adjust slide bar values by tapping the item and then dragging your finger on the slide
bar. The value can also be adjusted by turning the rotary knob.
• Drop-down listings are selected by tapping the item and then the selected value.
Check box Slide bar Drop-down listing
You can also operate a menu by using the rotary knob to select menu item, and then pressing
the knob to confirm your selection.
By pressing the Xkey the menu will return to previous menu level, and then exit. You can also
close a menu by tapping the screen outside the menu area.
Dialog boxes
You select entry fields and keys in a dialog box by tapping the screen or by using the rotary
knob. You can only enter information when a field is selected and highlighted.
Some dialog listings might extend beyond the screen area. These dialogs will include a scroll
indicator, and you scroll by dragging the list or turning the rotary knob.
Numeric and alphanumeric keyboards will
automatically be displayed when required for entering
user information in dialogs.
A virtual keyboard is operated by tapping the virtual
keys.
A dialog is closed by tapping the in the upper right corner or by pressing the Xkey.

| 13
Basic operation | Zeus Touch Operator Manual
Placing the cursor
The cursor is by default not shown on any panel.
You tap the screen to place the cursor on a Chart, Radar,
StructureScan or Echosounder panel. The cursor information
window will show position coordinates at the cursor position,
and range and bearing to the vessel.
On an Echosounder panel, the cursor information window will include the depth at cursor
position.
Further use of the cursor is described in the Chart, Radar and Echosounder sections.
To remove the cursor and cursor window from the panel, press the Xkey or tap the Clear
cursor panel button.
Positioning a Man Over Board mark
If an emergency man over board situation should occur, you can position a Man Over Board
mark at the vessel’s current position by pressing the two MOB keys simultaneously.
When you activate the MOB function the following actions are automatically performed:
• a MOB mark is positioned at the vessel’s position
• the display switches to a zoomed chart panel, centered on vessel position
• the Zeus Touch creates an active route to the MOB mark
+
MOB
IN
MOB
OUT
Cancel navigation
The Zeus Touch will continue navigating towards the MOB point until the waypoint is reached
or until you select to stop this navigation.
Positioning multiple Man Over Board marks
Once the MOB function has been initialized, pressing the MOB keys again will place a new
MOB waypoint on the chart. Continued presses of the MOB keys will place more MOB
waypoints.
¼Note: The vessel will always continue to navigate towards the initial MOB mark until the
waypoint is reached, or until you stop the navigation. Navigation to subsequent MOB marks
will need to be done manually. (See navigating on the chart section for more details).
Delete a MOB mark
A MOB mark is deleted by selecting the MOB mark and then activating the menu.
A MOB can also be deleted as described in page 23 .
Screen capture
Simultaneously press and hold the GOTO/PAGES and power keys to take a screenshot.
By default, screen captures are saved to internal memory. From the internal memory they can
be copied to another folder or Micro-SD card via the Files menu.
MARK
MOB
MENU
STBY
IN
MOB
OUT
AUTO
P
U
S
H
T
O
E
N
T
E
R
GOTO
PAGES

14 | Charts | Zeus Touch Operator Manual
Charts
The chart function displays your vessel’s position relative to land and other chart objects.
On the panel you can plan and navigate routes, place waypoints, overlay a radar image or
weather information, and display AIS targets.
The Zeus Touch has different embedded cartography depending on region. Units sold
in America will include Insight cartography, while units sold in other regions will have
embedded Navionics coastal (Silver) cartography split by region. All units will support
Navionics Platinum Plus and TurboView via Micro-SD Card slot accessible from the front of the
unit.
Charts are shared over the network, so only one chart card per boat is required.
The first part of this section describes how to use the charts, and is common to both Insight
and Navionics. Chart options depend on which cartography is in use on the unit. These are
covered in a separate section.
The chart panel
Grid lines *
Extension line *
Range rings *
Track *
Route *
Vessel
Chart range scale
Range rings
interval *
North indicator
Waypoint *
* Optional chart items
¼Note: You turn the optional images on/off individually. See “The chart settings panel” on
page 16.
Chart scale
You zoom in and out on the chart by using the IN/OUT keys or by
using the rotary knob.
Chart range scale and range rings interval (when turned on) will be
shown in the lower right corner of the chart panel.
Panning the chart
You can move the chart in any direction by tapping the screen
and dragging your finger in the selected direction.
Pressing Xkey will remove the cursor from the panel, and the
chart center will be positioned at the vessel.
The vessel symbol
Position and orientation
When a GPS and a suitable heading sensor are connected to the system, the vessel symbol
indicates vessel position and heading.
Without a heading sensor fitted, the vessel icon will orientate itself using COG (Course over
Ground). If no GPS is available the vessel symbol will include a question mark.
3
or
MOB
IN
MOB
OUT

| 15
Charts | Zeus Touch Operator Manual
Using the cursor on the chart panel
The cursor is by default not shown on the chart panel.
When you tap the screen, the cursor will become visible and the cursor position window will
be activated. When the cursor is active, the chart will not pan or rotate to follow the vessel.
To remove the cursor and cursor window from the panel, press the X key or tap the Clear
cursor panel key.
Pressing the X key repeatedly will toggle the chart center between the vessel and the cursor
position.
Displaying information about chart and chart objects
When you tap a chart item, a waypoint, a route or a
target, basic information for the selected item will
be displayed.
By tapping and holding or by pressing the rotary
knob when a chart item is selected, all available
information for that item will be shown.
The information can also be displayed by using the
menu.
¼Note: Popup information has to be enabled to see
basic item information.
If the cursor is not active, available information for
objects close to the vessel can be displayed.
If no information is available, the info menu item
will not be shown.
Placing waypoints
You place a waypoint by tapping the chart panel on
the selected position and then activating the menu.
Creating routes
You can quickly create routes by tapping the chart panel.
1. Activate the menu
2. Tap the screen to position the first routepoint, and then continue tapping the screen to place
the remaining routepoints
3. Save the route by tapping the Finish editing panel button or by activating the menu
Dragging waypoints
1. Tap the waypoint to make it active
2. Drag the waypoint to the new position
The waypoint position will be automatically saved.
Measuring distance
The cursor can be used to measure the distance between your vessel and a selected position,
or between 2 points on the chart panel.
1. Tap the screen on the place to where you want to measure the
distance from the vessel
2. Start the measure function from the menu
• A line will be drawn from the vessel center to the cursor position
and a marker will be placed at each end of the measuring line.
The distance will be listed in the Cursor Information window.
¼Note: You can reposition the measuring line by moving either of the markers on the chart by
dragging them to a new position.

16 | Charts | Zeus Touch Operator Manual
Positioning the chart on the panel
Chart orientation
Several options are available for how the chart is rotated in the panel. The chart orientation
symbol in the panel’s upper right corner indicates the north direction.
North up Heading up Course up
North up
Displays the chart with the north direction upward. Corresponds to the usual orientation of
nautical charts.
Heading up
Displays the chart with the vessel’s heading directly up on the chart image. Heading
information is received from a compass. If heading is not available, then the COG from the
GPS will be used.
Course up
Rotates the chart in the direction of the next waypoint when in navigation mode. This option
works only when there’s an active route. If no route is active the heading up orientation will
be used until a route is made active.
Look ahead
This option centres the chart slightly forward of your vessel so that you can maximize your
view ahead.
The chart settings panel
Settings and display options made in the Chart settings page are common for all chart panels.
For optional chart panel settings, refer the illustration on page 14.
3D boat selection
Determines which icon to use on 3D charts. See “The chart panel”on page 14
Range Rings
Turns on/off range rings on the chart.
The range rings can be used to present the distance from your vessel to other chart objects.
The range scale is set automatically by the system to suit the chart scale.
The vessels’ extension lines
Sets the length of the extension lines for your vessel and for
other vessels shown as AIS targets.
The length of the extension lines are either set as a fixed
distance, or to indicate the distance the vessel will move in the
selected time period.
Own vessel heading is based on information from the active
heading sensor and COG from active GPS sensor.
For other vessels COG data is included in the message received from the AIS system.
COG
Heading

| 17
Charts | Zeus Touch Operator Manual
Laylines
When navigating to a waypoint you can configure laylines on the chart to aid navigation.
These lines can be set from the vessel, waypoint or both. The laylines convey the vessels
present laylines varying with wind, tide and tacking angle.
To configure the laylines go to the laylines dialog.
Laylines
Layline Options
Boat Layline from vessel. The length can be set to 1, 10 or 100 miles.
Mark Layline from mark/waypoint. The length can be set at 1, 10 or
100 miles.
Tidal Flow Correction Tidal flow correction will calculate the tidal flow and offset the
laylines accordingly.
Overlapped When selected the laylines will extend beyond the tack/gybe
intersection.
True Wind Angle There are 3 sources available for true wind angle (TWA). You can
choose between Polar, Actual or Manual.
Polar Takes the target TWA from your polar table. (Polar table is
available in Hercules Performance and Hercules Performance
Motion only).
Actual Takes the current value of true wind angle (TWA).
Manual Manually input the upwind and downwind numbers into the
dialogue boxes.
Limits When selected will show a dotted line indicating the minimum
and maximum tack/gybe time period either side of the layline.
This can be set from 5 to 30 minutes.
Synchronize 2D/3D chart
Links the position shown on one chart with the position shown on the other chart when a 2D
and a 3D chart are shown side by side.
Pop-up information
Selects whether basic information for chart items shall be displayed
when you tap the item.
Grid lines
Turns on/off viewing of longitude and latitude grid lines on the
chart.
Course Highway
Turn course highway on/off
Waypoints, Routes, Tracks
Turns on/off displaying of these items on chart panels.

18 | Charts | Zeus Touch Operator Manual
Chart overlay
Radar, structureMap and weather information can be displayed as overlay on your chart
panel.
When an overlay is selected, the chart context menu will be expanded to include basic
function for the selected overlay.
Radar, weather, StructureScan functions are described in separate sections in this manual.
Selecting chart type
Chart type is selected from the chart options menu, and the selection is set individually for
each chart panel.
If you have Navionics charts available in the Micro-SD card slot, you can show Navionics and
Insight charts simultaneously in a split screen.
Chart data
The Zeus Touch can use Navionics Platinum Plus and TurboView via Micro-SD Card Slot
accessible from the front of the unit.
Charts are shared over the network, so only one chart card per boat is required.
¼Note: The system will not automatically switch to embedded cartography if the micro-SD
card is removed. A low-resolution chart will be displayed until you re-insert the micro-SD card
or manually switch back to embedded cartography.
3D charts
There are two 3D view options available:
• Rotate - default view keeping the boat in center on the chart panel
• Pan - allows you to move the 3D chart view away from the vessel
Toggle between these two options by tapping the pan and rotate icons. The active option is
indicated with the coloured icon.
Return to default Rotate view by tapping the Return to vessel panel button.

| 19
Charts | Zeus Touch Operator Manual
Rotating the 3D chart
In rotate view mode the camera position is fixed, and the camera can only be rotated and
tilted.
By default the vessel’s position will be in the center of the view, or towards the bottom if Look
Ahead is enabled. The camera angle is as seen from your eye position, looking toward the
vessel. The vessel’s rotation on the chart is defined by the chart orientation settings.
You can change the camera’s tilt angle by dragging your finger on the screen with vertical
motions. You rotate the camera around its own vertical axis by dragging your finger
horizontally on the screen.
¼Note: You can only rotate the camera if you have panned away from default vessel position,
that is when the Return to vessel panel button is available.
Panning
The Pan option allows you to view the entire 3D chart, regardless of vessel position.
Move the camera away from the vessel and around in the chart by dragging your finger on
the screen. When you remove your finger from the screen the view will remain in the selected
position.
The camera’s tilt angle is as set in Rotate view.
Zooming
Zoom in and out on a 3D chart by using the IN/OUT keys or the rotary knob.
Insight chart options
Chart orientation
See page 16.
Look ahead
This option centres the chart slightly forward of your vessel so that you can maximize your
view ahead.
3D
See page 1620, 3D charts.
Chart imagery style
The charts can be displayed in two different imagery styles, either as 2D basic mapping style,
or with shaded relief presenting chart including terrain imaging.
2D Shaded relief
