Bang & Olufsen BeoVision?8-40? User manual

BeoVision 8-40
Downloaded From TV-Manual.com Manuals

Downloaded From TV-Manual.com Manuals

This Getting Started contains information about the daily use of your Bang&
Olufsen product and connected equipment. We expect your retailer to deliver,
install and set up your product.
Your television offers more features and functions than described in this Getting
Started. Among other things; Timer functions and auto standby, editing and
naming channels. These and other features are described in more detail in a Guide.
The Guides are found on www.bang-olufsen.com/guides
DVB functions are described in a separate Guide. The Guides are kept up to date if
new software introduces new or modied features and functions in your television.
On www.bang-olufsen.com you can also nd further information and relevant
FAQs about your product.
Your Bang& Olufsen retailer is your rst stop for all your service queries.
To nd your nearest retailer, visit our website…
www.bang-olufsen.com
Dear Customer
3510594 1006
Technical specications, features and the use
thereof are subject to change without notice.
Downloaded From TV-Manual.com Manuals

Cautions
– Ensure that the television is positioned, set up
and connected in accordance with the
instructions in this Getting Started.
– Place your television on a rm, stable surface.
To prevent injury, use Bang & Olufsen approved
stands and wall brackets only!
– Do not place any items on top of your television.
– Do not subject the television to rain, high
humidity or sources of heat.
– The television is developed for indoor use in dry,
domestic environments only. Use within a
temperature range of 10–40°C (50–105°F), and
at an altitude of no more than 1,500m
(5,000ft).
– Do not place the television in direct sunlight, as
this may reduce the sensitivity of the remote
control receiver.
– Leave enough space around the television for
adequate ventilation.
– Connect all cables before connecting or
reconnecting any of the products in your system
to the mains.
– No naked ame sources, such as lighted candles
should be placed on the apparatus.
– Do not attempt to open the television. Leave
such operations to qualied service personnel.
– Do not strike the glass with hard or pointed
items.
– The television can only be switched off
completely by disconnecting it from the wall
socket.
– The supplied mains cord and plug are specially
designed for the television. If you change the
plug or in any way damage the mains cord, it
can affect the TV performance.
WARNING: To reduce the risk of fire or
electric shock, do not expose this
appliance to rain or moisture. Do not
expose this equip ment to dripping or
splashing and ensure that no objects
filled with liquids, such as vases, are
placed on the equipment.
To completely disconnect this equipment
from the AC Mains, disconnect the mains
plug from the wall socket. The disconnect
device shall remain readily operable.
The lightning flash with arrowhead
symbol within an equilateral triangle,
is intended to alert the user to the
presence of un insulated “dangerous
voltage” within the product’s en-
closure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equi-
lateral triangle is intended to alert the
user to the presence of important
operating and main tenance (servicing)
instructions in the literature
accompanying the product.
Downloaded From TV-Manual.com Manuals

Daily use
Contents
Daily use
6 How to use your remote control
8 Introduction
10 Watch television
12 Look up teletext
14 Watch television via the DVB module
16 Change sound type and picture format
Installation
18 Set up your television
20 Connection panels
22 First-time setup of your television
Downloaded From TV-Manual.com Manuals

TV LIGHT RADIO
DTV DVD CD
V.MEM TEXT A.MEM
7 8 9
4 5 6
LIST 0 MENU
1 2 3
STOP PLAY
BACK

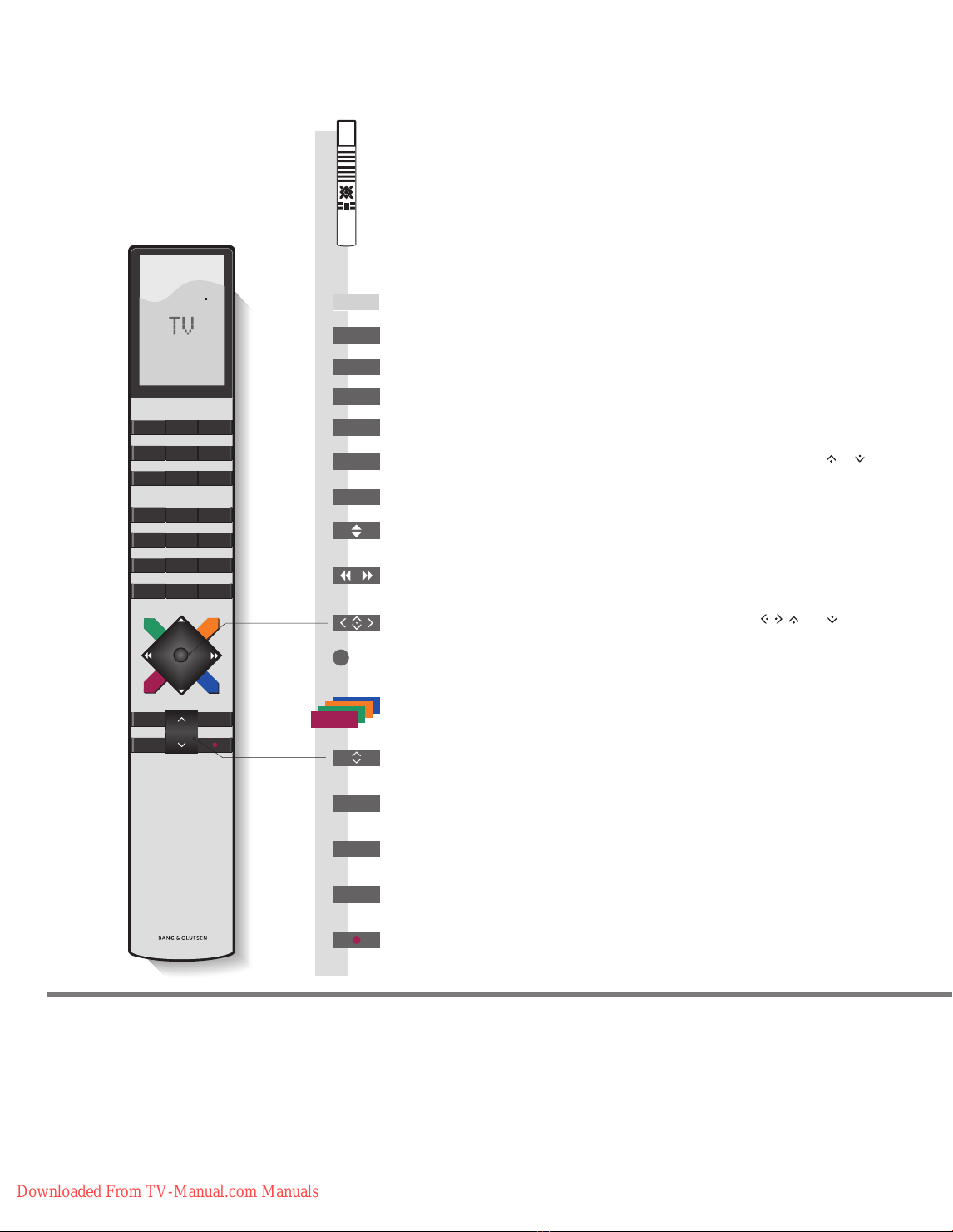

How to use your remote control
Important – for more information: www.bang-olufsen.com
Select colour specic functions
Adjust volume
To mute, press the middle of the button
The Beo4 display shows you the activated source or function
Navigation and centre button; move left, right, up and down , , and – move in
menus by pressing the button in the direction you need
Centre button is used for selecting and accepting
Rewind or wind, search backwards or forwards
Start playback of a DVD, CD or recording
Switch on the DVB module and watch digital television
Standby
Bring up the main menu of the active source
Pause and stop playback or recording
Switch on the TV*1
Select channels and enter information in on-screen menus
Step through channels
Hold for continuous step
Move backwards through menus and the Beo4 list. Long press to exit menus
completely
Beo4 operation
Your television can be operated with the Beo4 remote control.
Switch on teletext
Display extra “buttons” for functions or sources in the Beo4 display. Use or to
step in the list
Some buttons can be recongured during the setup process. See the Guide for further information.
NOTE! For general information about remote control operation, see the Guide enclosed with your remote
control.
1*Beo4 buttons
TV
PLAY
TV
DTV
0 – 9
STOP
MENU
BACK
TEXT
LIST
6
Downloaded From TV-Manual.com Manuals

STOP
PLAY
BACK
Living Room
TV V.MEM RADIO
DTV N.MUSIC N.RADIO
PC DVD CD
Daily use
2*About buttons
3*Coloured buttons
Actual zone
Soft buttons on Beo5
Light grey buttons indicate that you have to press a text in the display. Dark grey buttons indicate that you have to
press a hard button.
Press the wheel next to the colour to activate a coloured button.
Indicates the actual zone on Beo5 as it was named during the setup process.
Depending on the activated source, different soft buttons appear on the screen. Touch the screen to activate the
function.
Start playback of a DVD, CD or recording
Step through channels or recordings
Hold for continuous step
Navigation button left, right, up and down – move in menus by pressing the
button in the direction you need
Standby
Rewind or wind, search backwards or forwards
Pause and stop playback or recording
Soft button, touch screen to select*2
Switch on a source or select a function
Centre button is used for selecting and accepting
Turn to adjust volume
To mute, turn quickly counter-clockwise
Bring up SCENE buttons, such as Zones or Speaker
Press again to return
Select colour specic functions*3
Press volume wheel next to the colour
Bring up digits to select for example channels
Press again to return
Back up through Beo5 displays
Move backwards through menus. Long press to exit menus completely
Beo5 operation
You can also operate your television with a Beo5. When Beo5
operation is different from Beo4 operation, it is described separately.
PLAY
STOP
TV
BACK
+
7
Downloaded From TV-Manual.com Manuals

Navigate in menus and select settings using your remote control. Pressing menu
brings up the menus for the selected source*1.
Information about the selected source is shown at
the top of the screen. On-screen menus allow you
to adjust settings.
Display and menus
Introduction
Show menu*1 Switch on TV Switch on connected equipment
or
Important
In the OPTIONS menu, you can bring up the BEO4 SETTING menu. In this menu you must set up your
television to be operated with a Beo4 with or without a navigation button. Remember to set your Beo4
remote control to the correct mode. See the Beo4 Guide or contact your Bang& Olufsen retailer for
further information.
If you have disabled the TV tuner, you must press MENU twice to bring up the TV SETUP menu.
BEO4 SETTING menu
1*TV SETUP menu
TV SETUP
TUNING
SLEEP TIMER
PLAY TIMER
OPTIONS
select
TV V MEM MENU
8
Menu name
Menu options
Information eld
Example of on-screen menu
Downloaded From TV-Manual.com Manuals

Daily use
When a menu is on the screen, you can move
between menu options, reveal settings or enter
data.
Navigate in menus
Select option/
setting
Enter data Bring up sub-
menu/store
setting
Select option Move
backwards
through menus
Remote control On the rst pages in this Getting Started, you will nd an overview of the buttons on Beo4 and Beo5.
For general information about remote control operation, see the Guide enclosed with your remote
control.
or
Press and hold to
exit menus
0 – 9 BACK BACK
9
Downloaded From TV-Manual.com Manuals

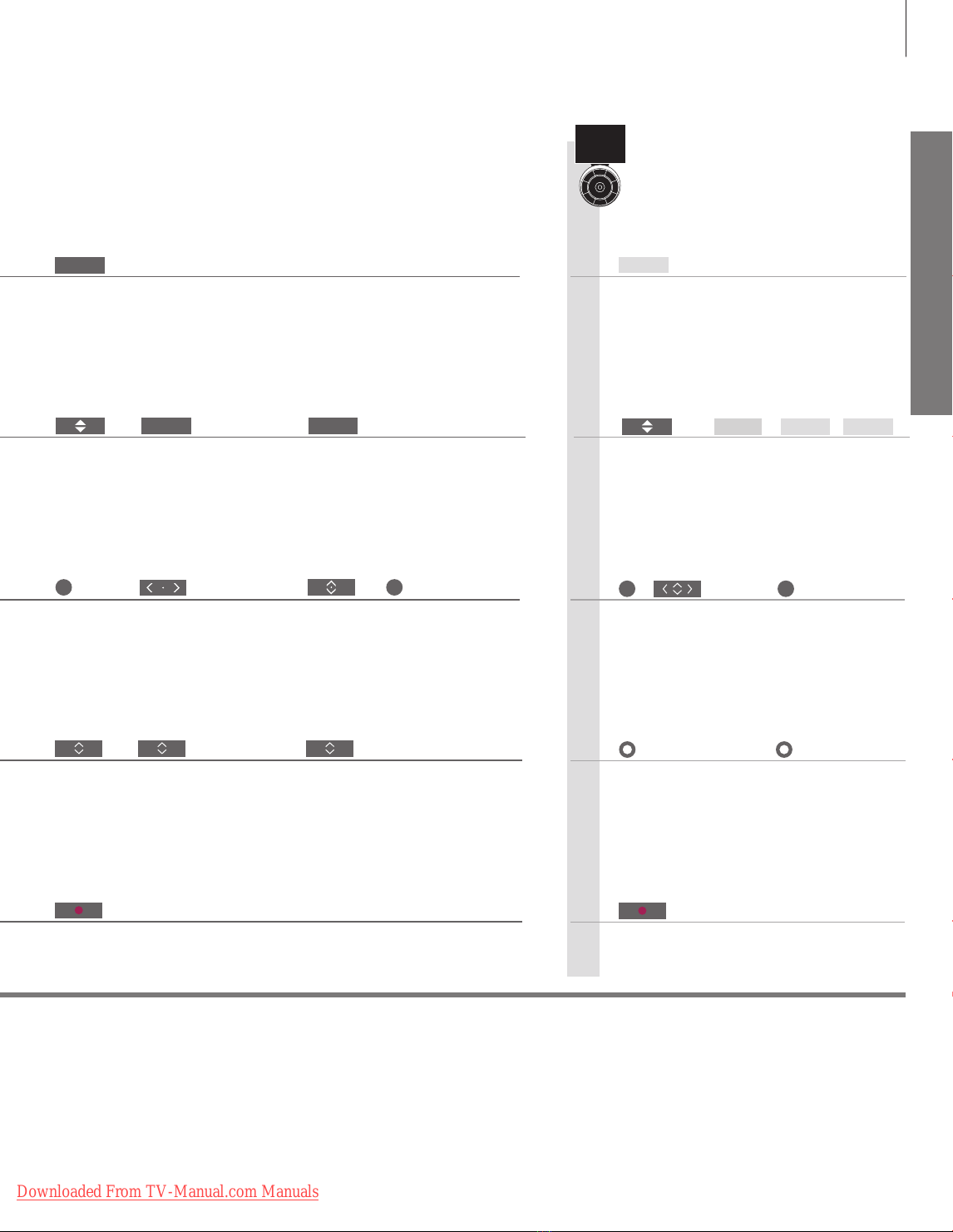

Watch television
Select a TV channel by its number or switch to another
channel. Adjust the sound volume. Beo4 operation
Activate the TV source to use these functions Switch on the TV
Select a TV channel
Adjust the volume
Bring up a channel list
Switch off the TV
TV CHANNEL LIST
CNN 1
… 2
DISCOVER 3
CWNBC 4
BBCWORLD 5
… 6
… 7
… 8
SUPER CH 9
… 10
CRIME TV 11
CINEMA 12
… 13
MOVIE NW 14
… 15
… 16
… 17
… 18
more select
10
Channel name
Channel number
Indicates that more channels are available
Downloaded From TV-Manual.com Manuals

Daily use
Beo5 operation
Press
Select Select channel Select previous channel
Press
Hold for
channel list
Select page Select
channel Accept
Adjust volume
up or down
Press in the middle to mute
sound
Press to bring sound back
Press
Press
Select Activate numbers and
select channel
Previous
channel
or
Hold for channel list and
select page or channel
Accept
Adjust volume. To mute,
turn quickly counter-
clockwise
Turn either way to
bring back sound
TV
TV
or 0–9
0–9 Previous 0
or
+
11
Downloaded From TV-Manual.com Manuals

Look up teletext
Operate teletext through the menu bar at the top of the
teletext page or the arrow buttons on your remote control. Beo4 operation
Activate teletext to use these functions Start teletext
Move to page
Stop subpages from turning
Enlarge teletext page
MEMO pages
Exit teletext
Useful hints
MEMO pages
Dual screen
REVEAL
For quick access, store a teletext page as a MEMO page. See the Guide for further information.
When teletext is activated, pressing TEXT swaps between dual screen and full screen mode.
To reveal hidden text on a teletext page, move to REVEAL and press the centre button.
Access the start page of teletext.
Access teletext pages you wish to see.
MEMO is only available, when memo pages are stored.
PAGE MEMO HALT LARGE REVEAL SETUP
P100 BBC S100 Wed 13 Oct 12:39:34
12
Stop subpage
turning
Reveal hidden text on
REVEAL and make settings
on SETUP
Current page
Enlarge teletext pages
Downloaded From TV-Manual.com Manuals

Daily use
Press repeatedly to change screen mode
Select page Move to PAGE and step Go to index pages (100,
200, 300…)
Stop turning Move to HALT Select subpage Restart
turning
Move to LARGE Press to switch between upper and lower half of page
and normal viewing
Press repeatedly to change screen mode
Select page Move to PAGE and step
Stop turning Select subpage
Move to
LARGE
Switch between upper and lower
half and normal viewing
Switch
between
MEMO pages
Press
Press
Press
Press to switch between
MEMO pages
Teletext subtitles If you would like available subtitles to appear automatically for a particular channel, store the teletext
subtitles page as MEMO page9.
Restart
turning
Step up or
down in
pages
Beo5 operation
Move to MEMO and switch between stored MEMO
pages
Move to MEMO and switch between
pages
Step up or
down in
pages
TextTEXT
0–9
0–9
STOP 0–9
BACK
STOP
BACK
0–9
13
or or
or or
or
or
or or
or
Downloaded From TV-Manual.com Manuals

Watch television via the DVB module
Useful hints
DVB Guide
1*Activate DVB module
For more extensive and updated information, please look up the DVB Guide on www.bang-olufsen.com/guides.
If the TV tuner is deactivated, use the TV button to switch on the DVB module. See the Guide for further information.
When your television is equipped with the DVB module,
you can receive digital terrestrial, cable and satellite
programmes depending on your module options.
Beo4 operation
Switch on the TV and the DVB module*1
Select a DTV channel
Bring up and use the menu overlay*2
Step between groups
Bring up a channel or station list
Switch off the TV
Activate the DTV source to use these functions
GUIDE
MENU
TEXT
INFO
WIDE
1
2
3
4
5
14
DVB function
Beo4 button
Downloaded From TV-Manual.com Manuals

Daily use
Select Select channel
or
Press
Press
Activate the desired function
Step between groups
Hold for
channel list
Select page Select channel Accept
Press
Press
Select Activate numbers and select
channel
Use the designated buttons in the display
Step between groups
Hold for channel list,
select page or
channel
Accept
Press
Beo5 operation
2*NOTE! Press MENU twice to bring up the TV
SETUP menu.
0–9
DTV
MENU 0–9
DTV
0–9
Menu
Groups+ Groups-
+
15
or
or
or
Downloaded From TV-Manual.com Manuals

1*LIST menu
2*Optimise
3*Move picture up or down
4*Variation
In order to display SOUND and FORMAT on Beo4, you must rst add it to the Beo4 list of functions.
The picture format is optimised, if you press the centre button on Beo4. On Beo5, press Optimise.
The picture can only be moved up or down in FORMAT 1 and 2.
In FORMAT 1, you can select variations of the format. On Beo5, press Variation.
Sound type and picture format
While you watch TV through the TV tuner, you can switch between available sound
types and adjust the picture format.
Change sound type or language
Switch between available sound types and
languages.
Bring up SOUND in your Beo4
display*1Press repeatedly to
switch between
available sound types
Useful hints
Select picture format
The TV automatically adapts the picture to ll out
as much of the screen as possible when you select
a source, but you can select a format yourself.
Bring up FORMAT in your Beo4
display*1Select format*2 Move picture up or down*3 or
select variation*4
The picture is
adjusted vertically
For a genuine
16:9 widescreen
For panoramic
view or 4:3
The bars can be
removed and the
picture is shown
in a 16:9 format
Extended Wide Zoom Standard*4
FORMAT 1 FORMAT 2 FORMAT 3 FORMAT 4
or
1–4
16
Downloaded From TV-Manual.com Manuals

Installation and setting up
18 Set up your television
20 Connection panels
22 First-time setup of your television
Contents – Installation and setting up 17
Downloaded From TV-Manual.com Manuals

Set up your television
Important
Ventilation
Follow the guidelines for placement and connection described on this and the
following pages.
Placement options
Place the TV on a rm and stable surface. The
standard placement allows you to tilt the TV, for
example to facilitate viewing at a low placement.
To tilt the TV pull at the bottom of the TV.
To ensure proper ventilation, allow enough space around the screen. Do not cover the fans. At over-
heating (ashing standby indicator and an on-screen warning), switch the TV to standby, not off, in
order for the TV to cool down. You cannot operate the TV during this time.
If you are going to place the TV on either the oor
stand or the wall bracket, you must remove the
two standard ‘feet’ from the TV. Follow the
instructions in the guide enclosed with these
optional accessories.
To remove the two covers for the main connection
panel, rst pull out, then pull down at the bottom
– also if the TV is placed on a stand.
Always remove cover 1 before removing cover 2.
When you have made all the connections and
fastened the cables, mount the cable covers again.
Overview
1 2
18
Downloaded From TV-Manual.com Manuals

Installation and setting up
Cleaning
For safety reasons the mains supply cable must be
fastened to the cable strip (A). All cables must be
fastened to the cable strip (B). However, if your
setup includes a VGA connection, do not run the
VGA cable through the cable strip (B). Instead, use
the two screws in the VGA plug to fasten it to the
socket.
If you are going to connect any other equipment
to the TV, do not connect it to the mains yet!
Run cables
Maintenance
Screen and cabinet
Never alcohol
Regular maintenance, such as cleaning, is the responsibility of the user.
Wipe dust off the surfaces using a dry, soft cloth. To remove stains or dirt, use a soft, damp cloth and
water without leaving streaks or traces. Some micro-bre cloths may harm the optical coating due to
their strong abrasive effect.
Never use alcohol or other solvents to clean any parts of the TV.
Remove the cover to access the CA module. To
remove the cover, use your nger or place a plastic
card in the second groove from the right and you
can easily ip off the cover.
The CA module is a ‘card reader’ for your Smart
Card which decodes the coded signals sent out
by the programme provider. See the Guide for
further information.
Smart Card and CA module
AB
BACKSIDE
5 V 0.5 A
CHIPSIDE
CA
SMARTCARD
19
Downloaded From TV-Manual.com Manuals

Connection panels
Any equipment you connect to the main connection panel must be registered in
the CONNECTIONS menu.
Useful hints
~ – Mains supply
Connection to the mains supply.
HDMI IN (A–B, and C on some models)
For High Denition Multimedia Interface video
source or PC. The sources can be registered to any
of the AV socket groups. To expand the number
of HDMI sockets, connect an HDMI Expander to
the HDMIC socket, when available, otherwise to
the HDMIB socket.
SPDIF (1–2)
Digital audio input socket, e.g. DVD player. You
can use the socket in conjunction with an AV
socket.
PUC (1–4)
For IR control signals to external equipment
connected to an AV socket.
AV (1–2)
21-pin sockets for connection of additional video
equipment, such as a DVD player, set-top box, a
decoder or video recorder.
VGA (AV3)
For connection of a PC to receive analogue
graphics.
AV3 (video, L, R)
For audio connection (right and left sound
channel respectively) and video signals from an
external source.
Y – Pb – Pr (AV2–4, 6)
For video signals from an external source, e.g.
HDTV source. You can use the socket in
conjunction with an AV socket or a digital audio
socket.
AERIAL
Aerial input socket for an analogue TV signal.
Mains cord and plug The supplied plug and mains cord are specially designed for the product. Do not change the plug and if the mains
cord is damaged, you must buy a new one from your Bang& Olufsen retailer. Connect the ~socket on the main
connection panel of your TV to the wall outlet. The IR-receiver lights up in red and the TV is in standby mode and
ready to be used.
5V 50 mA
DVB-T/C
DVB-S 14/18V
400 mA
20
System Module sockets (optional) DVB Module sockets (optional)
Surround Sound Module sockets
Standard sockets
Downloaded From TV-Manual.com Manuals
