BeoVision 7
Guide

The Guide and the Reference book
This Guide contains information about the daily use of your Bang & Olufsen
product. The Reference book contains information about connecting and operating
external equipment.
We expect your Bang & Olufsen retailer to deliver, install and set up your products.
However, the information required to install and set them up is included in the
Reference book. This is useful if you move your products or expand your system at
a later date.
Index
The Reference book also contains an index which refers to this Guide and the
Reference book. It can help you find the specific subject you want to know more
about.

Introducing your Bang & Olufsen television, 4
Find out how to use your remote control and bring up the menus on the screen.
Watch TV, 8
Find out how to operate the daily functions of your television.

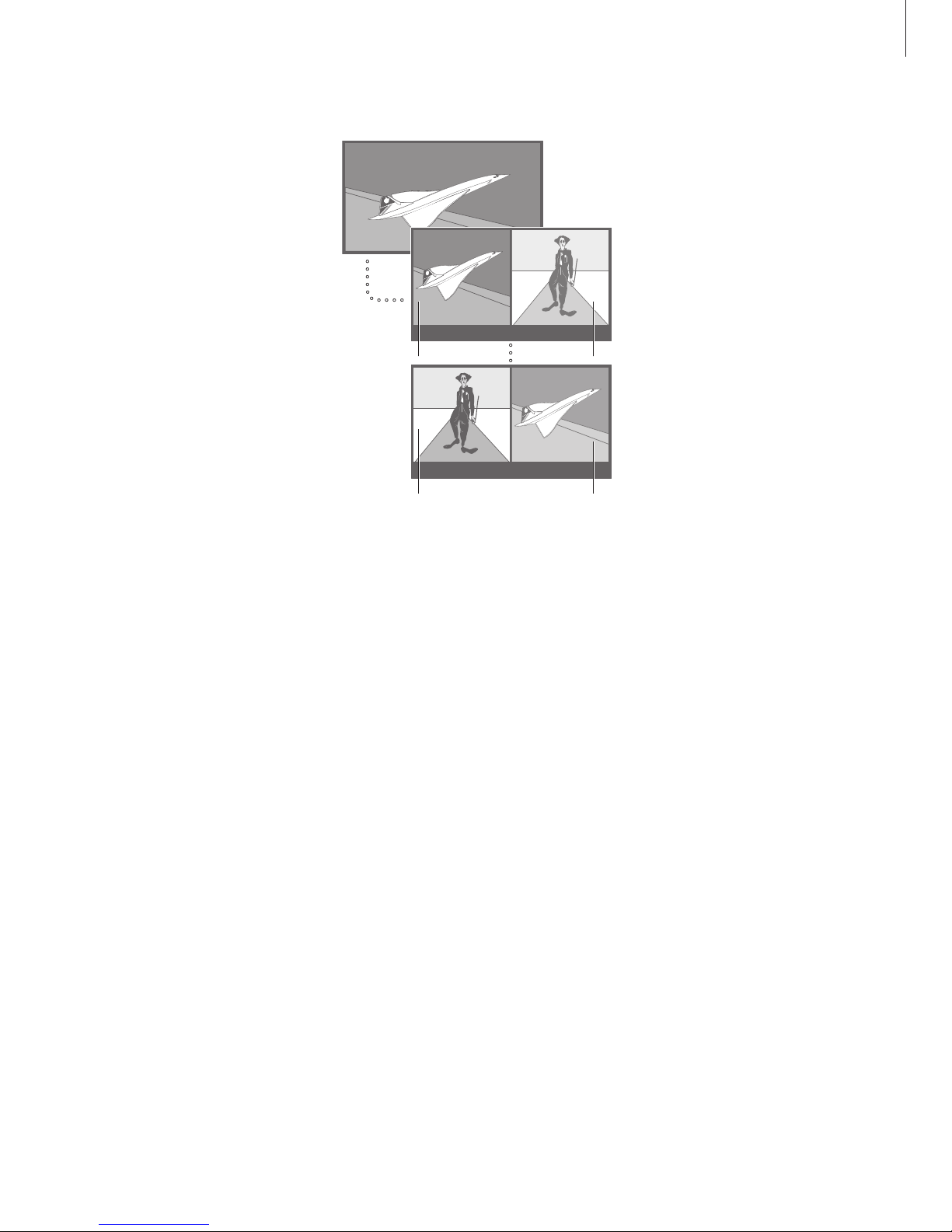

See two sources at the same time, 11
Find out how to use the dual-screen function of your television.
Surround sound and Home cinema, 12
How to use your television as a Home cinema.
Teletext, 14
How to use the teletext functions of your television, for example MEMO pages.
Use the DVD player, 16
How to operate the daily functions of the DVD player and call up on-screen menus.
The pincode system, 20
How to utilise the pincode system.
Maintenance, 22
How to clean your television and your remote control.
Contents 3

Introducing your BeoVision and remote control
Beo5
A Beo5 remote control has a characteristic
display with scene, source and control
buttons. When you press one button, you
reveal a new display screen with buttons that
allow you to access more functions, until you
have reached the last layer of buttons. In this
display you also bring up number buttons.
Under the Beo5 display, you have a ball with
buttons for generic source operation and
menu operation.
Beo5 sources and functions
Select zone …
In the ZONES screen you select the area in which
your television is placed.
View your sources …
When you have selected a zone, the audio and
video sources available in this zone appear as
buttons on the screen. Select a source and
activate it by a press.
Activate source controls …
Once a source is activated, the functions related
to this source appear as buttons on the screen. If
you select TV for example, you will be able to
activate functions such as TEXT or MENU.
Displays digits to select for example a television
channel. Press again to return to the previous
Beo5 screen.
Backs up through Beo5 display screens.
Accesses buttons to ‘set the scene’ around your
Bang & Olufsen setup, for example to control
speakers and stand positions – and to select zone.
Press again to return to the previous Beo5 screen.
To use the coloured buttons press the volume
wheel next to the specific colours.
Your Bang & Olufsen remote control
gives you access to all functions of
your television.
The instructions in this Guide and the
Reference book are based on the
Beo5 remote control. To ease
operation of the television with a
Beo4 remote control Beo4 based
instructions are inserted in
parentheses, when it is needed.
For generel information about remote
control operation, refer to the Guide
enclosed with your remote control.
Remote control
STOP
PLAY
BACK
4

Beo4

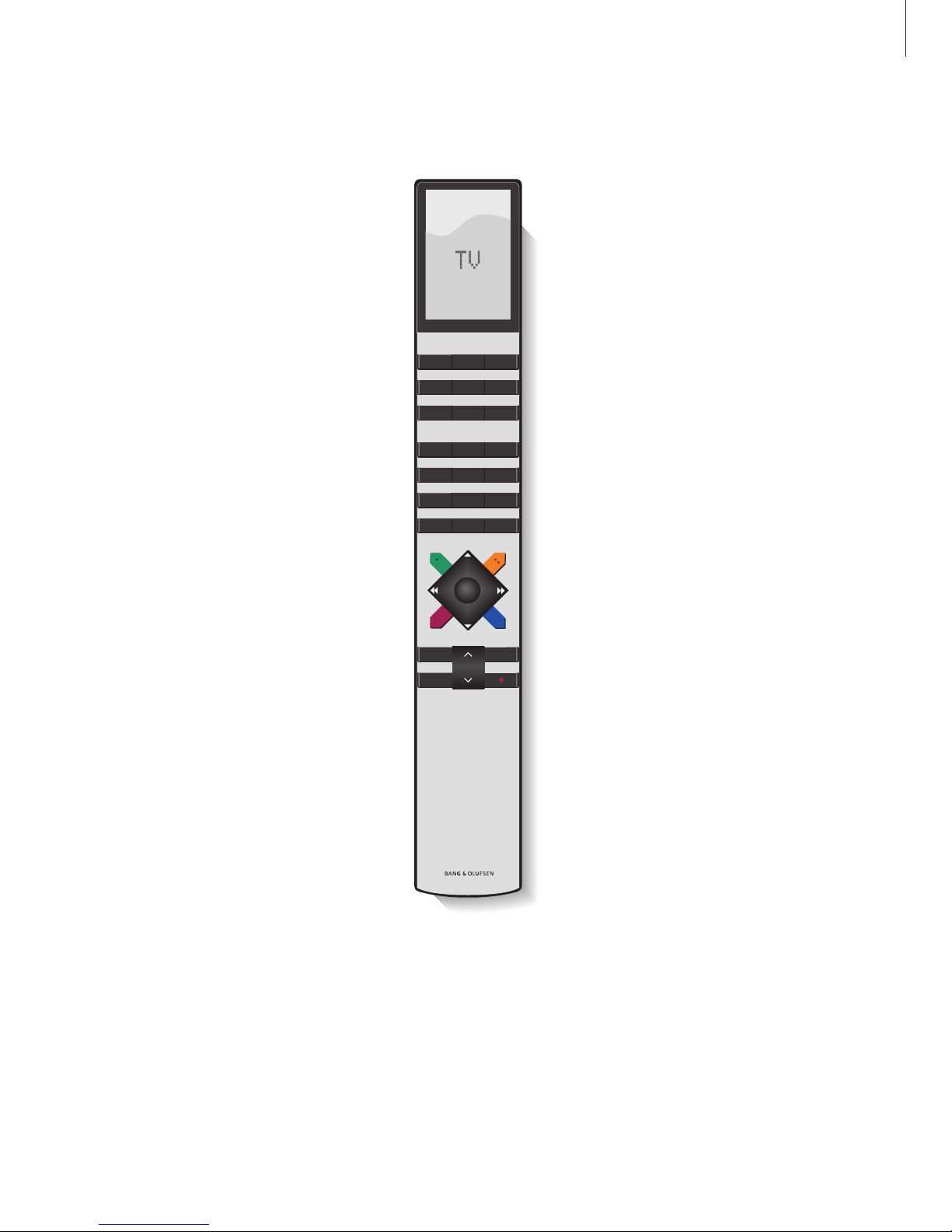

A Beo4 remote control is a long, slim remote
control with a small display on the top. Groups
of buttons are found under the display
starting with source buttons, number buttons
and then buttons for generic source operation
at the bottom.
Source buttons …
The source buttons are used for switching on your
Bang & Olufsen audio and video products, other
audio/video integrated systems and the Bang &
Olufsen light control. Some externally connected
products may have to be switched on via the LIST
button and subsequent relevant “buttons” or cues
shown in the Beo4 display.
Additional sources and source controls …
Pressing LIST repeatedly displays extra “buttons”
for functions or sources in the Beo4 display.
Control buttons within the star-shaped
button …
The arrow buttons, the GO button and the coloured
buttons are used for generic source operation and
menu operation.
TV LIGHT RADIO
DTV DVD CD
V MEM RECORD A MEM
7 8 9
4 5 6
TEXT 0MENU
1 2 3
LIST EXIT
STOP
GO
5

>> Introducing your BeoVision and remote control
Beo5 and Beo4
Beo5 and Beo4 operation of your television
resemble each other. However, there are a few
main differences to take into consideration.
For more information about remote control buttons,
refer to the Guide enclosed with your remote
control.
Beo5
The centre button and PLAY …
The centre button is used to accept and store
settings. PLAY is used to start playback of, for
example, a DVD.
STOP and BACK …
STOP is used to pause and stop playback of, for
example, a DVD and to back up through menus.
BACK is used to exit menus.
Source control and scene display …
In the source control and scene displays
different functions are available to control
sources and set the scene.
Arrow buttons …
Beo5 has two sets of arrow buttons. With the
outer arrow buttons you cue, rewind and step
through programmes, tracks and recordings.
With the inner arrow buttons you move around
in menus.
Source control display …
Functions related to built-in or connected
equipment, such as the built-in DVD player or a
set-top box, are displayed in the source control
display.
Beo4
GO …
GO is used to accept and store settings. It is also
used to start playback of, for example, a DVD.
STOP and EXIT …
STOP is used to pause and stop playback and to
go back to the previous on-screen menu. EXIT
on Beo4 is used to exit all menus.
LIST …
In LIST different functions are available to
control sources and set the scene. In most cases
you must press GO on Beo4 to enter or accept
the function you have found.
Arrow buttons …
Beo4 has one set of arrow buttons, which you
use to cue, rewind and step through
programmes, tracks and recordings and to
move around in menus.
Menu overlay …
You can bring up a menu overlay on the tele-
vision screen, if you press MENU. This menu
overlay provides you with shortcuts to different
functions.
6

Information about the selected source is
shown in the televisions display. On-screen
menus allow you to adjust settings.
How to use on-screen menus with Beo5 …
> Press a zone button, such as TV Area, to bring
up the source buttons in the zone where your
television is placed.
> Press TV to switch on the television.
> Press Menu to bring up the TV SETUP menu.
> Press or to move between the different
menu options.
> Press or to reveal different settings.
> Press the centre button to bring up a menu or
store a setting you have made.
> Press STOP to step back through previous
menus.
> Press BACK to exit all menus.
How to use on-screen menus with Beo4 …
> Press TV to switch on the television.
> Press MENU to bring up the TV SETUP menu.
> Press or to move between the different
menu options.
> Press or to reveal different settings.
> Press GO to bring up a menu or store a setting
you have made.
> Press STOP to step back through previous menus.
> Press EXIT to exit all menus.
Displayed information and menus
E
U
R
O
S
P
O
R
TV SETUP
select GO
PROGRAM GROUPS
TUNING
TIMER RECORDING
PLAY TIMER
OPTIONS
STAND POSITIONS
EDIT PROGRAM
ADD PROGRAM
AUTO TUNING
TV TUNING
select GO
EDIT PROGRAMS
ADD PROGRAM
AUTO TUNING
MANUAL TUNING
LINK FREQUENCY
1 DR1
2 TV2
3 . . . . . . . .
7
Menu name
Menu options
Information field
Option contents

Watch TV
Choose a TV channel by its number
and switch to another channel or
source. Bring up a list of TV channels
on the screen, adjust the sound
volume or change the sound type or
language.
Select a TV channel
When you switch the television on, the last
channel viewed appears on the screen.
> Press TV to switch on the television.
> Press then a number button to go directly to
a channel. (Beo4: Press a number button).
> Press or to change channels one by one.
> Press • to switch the television to standby.
Pressing PREVIOUS swaps between the current TV
channel and previous TV channel. (Beo4: Press 0).
Bring up a channel list
All your TV channels appear on a list, which
you can bring up on the screen. The list
contains channel numbers and names, and
can contain up to 99 TV channels.
> Press TV to switch on the television.
> Press the centre button to bring up a channel
list on the screen. (Beo4: Press and hold GO).
> Press or to step between ‘pages’ in the
channel list. (Beo4: Press or ).
> To select a channel, press then a number
button, or press or until the desired channel
is highlighted and press the centre button to
switch on the chosen channel. (Beo4: Press a
number button or or then GO).
> Press BACK to leave the menu. (Beo4: Press EXIT).
8

The channel list for TV is now called up. It provides
you with an overview of all your TV channels.
Adjust or mute the sound
You can adjust or mute the sound at any time.
> Turn the volume wheel clockwise or counter-
clockwise to adjust the volume up or down.
(Beo4: Press or ).
> Turn quickly counter-clockwise to mute the
sound. (Beo4: Press in the middle of the or
button).
> Turn either way to bring the sound back.
(Beo4: Press or ).
Prolonged listening at high volume levels can
cause hearing damage!
Change sound type or language
While you are watching TV, you can switch
between the types of sound that are
available.
> Press Sound to bring up the current sound type
on the display. (Beo4: Press LIST repeatedly to
display SOUND and press GO).
> Press sound repeatedly to switch to another
sound type or language in a multi-language
programme. (Beo4: Press GO repeatedly).
> Press BACK to leave the SOUND function.
(Beo4: Press EXIT).
You can store your favourite sound type when
tuning in your TV channels. For further information,
refer to the chapter ‘Edit tuned TV channels’ on
page 38 in the Reference book.
TV CHANNEL LIST
1 CNN
2
3 DISCOVER
4 CWNBC
5 BBCWORLD
6
7
8
9 SUPER CH
10
11 CRIME TV
12 CINEMA
13
14 MOVIE NW
15
16
17
18
more select GO
9

For further information about how to preset
positions for TV viewing, refer to the chapter ‘Set
positions for the television to turn to’ on page 44
in the Reference book.
You can turn the television using your remote
control.*
> Press to bring up the SCENE display on Beo5,
then press Stand to bring up the STAND display.
(Beo4: Press LIST repeatedly to display STAND).
> Press Turn or Turn to turn the television to
the left or the right, or press Position 1 – 9 to
choose a pre-defined position; Position
1 represents the far left position, Position
9 represents the far right position. (Beo4: Press
or or a number button. 1 represents the far
left position, 9 represents the far right position).
> If your television is equipped with a stand or
wall bracket with motorised tilt function, press
Tilt to bring up the Tilt display then press Tilt
or Tilt to tilt the television up or down.
(Beo4: Press or ).
*Note: You cannot use the motorised stand or wall
bracket before you have completed the calibration
of the built-in stand. Please refer to the chapter
‘First time setup’ on page 26 in the Reference
book.
>> Watch TV
Turn the television
10

See two sources at the same time
Your remote control gives you access
to a dual-screen function for viewing
two video sources at the same time.
For example, you can view a video
tape playback and a TV programme
at the same time, provided that the
selected sources are available in your
system.
While watching a programme or
recording, you can divide the screen
between the current programme or
recording (picture A in the second
illustration) and a new programme or
recording (picture B). You can also
swap the two pictures at any time.
Volume adjustment always affects picture A,
while other operations, such as selecting channels,
affect picture B. Choosing a new source cancels
dual-screen viewing.
You can view two HDMI (High Definition
Multimedia Interface) sources at the same time,
but only if one of the sources is connected to
either the HDMI A or HDMI B socket, and the
other source is connected to either the HDMI C or
HDMI D socket. For further information about the
HDMI sockets, refer to the chapter ‘Connection
panels’ on page 20 in the Reference book.
While watching, for example, TV …
> Press P-and-P to bring up the P-and-P display
on Beo5. (Beo4: Press LIST repeatedly to display
P-AND-P).
> Press, for example, DVD to select the source to
view on the right side of the screen (B).
> Press Swap to swap the left picture and right
picture. (Beo4: Press 0).
To leave the dual-screen function …
> Press Exit to leave the function and return to
normal viewing of the source on the left side of
the screen (A)
Pressing Text while the function is active brings up
teletext on the right hand side of the screen for
the source shown in picture B. If there is no
teletext service available for this source, the screen
turns black.
To bring up V.TUNER on the right hand side of the
screen, you must press P-and-P, then TV. (Beo4:
Press LIST repeatedly to display P-AND-P, then
press TV). To bring up hard disc recordings on the
right hand side of the screen, you must press P-
and-P, then VMEM. (Beo4: Press LIST repeatedly
to display P-AND-P, then press VMEM).
A B
A B
11
NOTE! If you have a Beo4, press LIST repeatedly
until P-V.AUX is shown in the Beo4 display, to
view a source registered in the CONNECTIONS
menu as V.AUX, such as a set-top box.

Surround sound and Home cinema
You can extend your television into a
surround sound system by adding
Bang & Olufsen loudspeakers and up
to two BeoLab 2 subwoofers.
When you switch on one of the
sources, speakers in a surround
sound system can be cut in or out,
depending on what kind of sound
suits the source you are using.
If you connect a projector, you can
turn your television into a Home
cinema. When you switch to the
Home cinema setup, the television
switches the picture from its own
screen to the projector screen and
activates the appropriate speakers.
For further information about how to
connect speakers to the television,
refer to the chapter ‘Set up the tele-
vision’ on page 16 in the Reference
book.
Select speakers for movie sound
You can select the speaker combination that
suits the source you are using, provided that
the various speaker modes are available in
your television.
> Press to bring up the Scene display on Beo5,
then press Speaker to bring up the Speaker
display on Beo5. (Beo4: Press LIST repeatedly to
display SPEAKER).
> Press the centre button, if you want to optimise
the sound, or press Mode 1 – 5 to select the
speaker combination you want. The selected
speakers cut in automatically. (Beo4: Press GO
or 1 – 5).
> Press to remove the Speaker display from the
Beo5 screen and return to the source you were
using. (Beo4: Press EXIT).
Speaker combinations
SPEAKER 1 … Sound in the centre speaker only.
SPEAKER 2 … Stereo sound in the front speakers.
Subwoofers are active.
SPEAKER 3 … The centre speaker, front speakers
and subwoofers are active.
SPEAKER 4 … The front speakers, surround
speakers, and subwoofers are active.
SPEAKER 5 … Surround sound from all speakers
and subwoofers. For programmes encoded in
Surround Sound.
If you have added only two front speakers to the
television, you will only be able to choose
SPEAKER 1–3.
12

Picture format
Your television always ensures you the best
possible picture. It automatically adapts the
picture so that it fills out as much of the
screen as possible. However, you can always
choose the format you prefer. When you
select a format yourself, the automatic format
selection is deactivated, until you switch to a
different channel or change source.
> Press to bring up the Scene display on Beo5,
then press Picture to bring up the Picture display
on Beo5. (Beo4: Press LIST repeatedly to display
FORMAT).
> Press Optimise if you want to optimise the
picture, or press the name of the desired picture
format, for example Standard. (Beo4: Press GO
or 1– 3).
If you have chosen Standard …
> Press Variation to switch between variations of
this format. (Beo4: Press or ).
If you have chosen Standard or Zoom …
> Press or on the Beo5 display to move the
picture up and down. (Beo4: Press or ).
> Press to leave the Picture function. (Beo4:
Press EXIT).
Picture formats to choose from
Standard (Beo4: FORMAT 1) … For standard TV
pictures. Two variations are available: Panoramic
view (for the largest picture) and 4:3.
Zoom (Beo4: FORMAT 2) … For Zoom pictures.
When you select Zoom, the picture is
automatically adjusted vertically. This ensures
that channel names or subtitles – if these appear
in the broadcasted picture – can be seen.
Wide (Beo4: FORMAT 3) … For genuine 16:9
wide-screen pictures.
Switch to Home cinema
If a projector is connected, you can use your
remote control and move the picture from
the television screen onto a projector screen
for a special occasion or movie.
> Press to bring up the Scene display on Beo5,
then press Cinema to bring up the Cinema
display on Beo5. (Beo4: Press LIST repeatedly to
display FORMAT).
> Press Cinema to switch between Home cinema
mode and ordinary TV mode. (Beo4: Press 0).
> Press to leave the function. (Beo4: Press
EXIT).
13

Teletext
If you select a channel and the broad-
caster offers a teletext service, the
television gives you access to teletext
pages and any subpages linked to the
pages.
The arrow buttons on your remote
control and the menu bar at the top
of the screen, help you move to the
page you want. When you get there,
you can pause the turning of
subpages to read them at your own
pace.
The television can remember your
favourite pages, reveal hidden
messages or help you switch to
another channel’s teletext service. To
make your favourite teletext pages
appear first when you bring up
teletext, store them as MEMO pages.
NOTE! If your television is linked via a
BeoLink cable to another television,
stored MEMO pages are not shared
among these televisions. MEMO pages
must be stored manually on each linked
television.
Navigate through teletext pages by using the
menu bar at the top of the teletext page.
> Press Text to gain access to teletext and BACK
to leave teletext. (Beo4: Press TEXT and EXIT).
To move to a new page …
> Enter the number of the page you wish to see,
or …
> … press to move the highlighted cursor to
PAGE. (Beo4: Press ).
> Press or to step between pages, and hold
to step faster.
> Pressing the centre button steps to index pages
(100, 200, 300…). (Beo4: Press GO).
To move to another teletext service …
> Press to move the highlighted cursor to
CHANNEL. (Beo4: Press ). If MEMO pages
have been created, MEMO is highlighted when
you switch on teletext. Press or while
MEMO is highlighted to find CHANNEL.
> Press the centre button to bring up a channel
list. (Beo4: Press GO).
> Press or to find a desired channel. (Beo4:
Press or ).
> Press the centre button to switch to another
teletext service. (Beo4: Press GO).
To stop subpages from turning …
> Press STOP to stop subpages from turning, or …
> … move the cursor to HALT and press the
centre button. HALT is replaced by a set of four
digits. (Beo4: Move to HALT and press GO).
> Use and to step to the subpage you wish
to see, or …
> … enter its number using the number buttons.
> Press the centre button to restart page turning.
(Beo4: Press GO).
To reveal hidden messages and the like …
> Press to move the highlighted cursor to
REVEAL. (Beo4: Press ).
> Press the centre button to reveal hidden text
on the current page. (Beo4: Press GO).
Basic teletext functions
PAGE CHANNEL HALT REC SETUP REVEAL
P100 BBC S100 Wed 13 Oct 12:39:34
PAGE CHANNEL HALT REC SETUP REVEAL
P100 BBC S100 Wed 13 Oct 12:39:34
14

Store favourite teletext pages
Nine MEMO pages are available for each
television channel’s teletext service.
To create a MEMO page …
> Bring up a page you view often.
> Press or to move the cursor along the menu
bar to SETUP and press the centre button. The
9 available MEMO slots are shown by number.
The first is highlighted. (Beo4: Press or and
GO).
> Press the centre button to store the current
page. The cursor moves to the next available
MEMO slot. (Beo4: Press GO).
> Use the number buttons to select the next
teletext page you wish to store.
> Repeat the procedure for each page you wish to
store.
> To leave the MEMO setup, press or to move
the cursor to BACK and press the centre
button. (Beo4: Press or and GO).
> Press BACK to leave teletext. (Beo4: Press
EXIT).
Day-to-day use of MEMO pages
Store a teletext page as a MEMO page to be able
to access it quickly. If you would like available tele-
text subtitles to appear automatically for a
particular channel, store the teletext subtitles
page as MEMO page 9.
You may wish to refer to your teletext MEMO
pages quickly, for example, if you are leaving
for work and wish to check traffic
information on a teletext service.
To view MEMO pages …
> Press Text to bring up teletext.
> Press or to move between MEMO pages.
> Press BACK to leave teletext. (Beo4: Press
EXIT).
To delete a MEMO page …
> Press or to move the cursor to SETUP and
press the centre button. (Beo4: Press or
and GO).
> Move the cursor to the MEMO page you wish to
delete and press the yellow button.
> Press the yellow button again to confirm.
First time use of teletext
The very first time teletext is activated, it
starts in dual-screen mode. You can then
choose full-screen instead. The teletext mode
is remembered the next time you switch on
teletext.
To change viewing mode …
> Press Text to bring up teletext.
> Press Text again to switch between full-screen
and dual-screen.
> Press BACK to leave teletext.
PAGE MEMO1 HALT REC SETUP REVEAL
P100 BBC S100 Wed 13 Oct 12:39:34
PAGE MEMO2 HALT REC SETUP REVEAL
P100 BBC S100 Wed 13 Oct 12:39:34
PAGE PROGRAM HALT REC SETUP REVEAL
P100 BBC S100 Wed 18 SEP 12:39:32
PAGE PROGRAM HALT REC SETUP REVEAL
P100 BBC S100 Wed 13 Oct 12:39:34
15

Use the DVD player
You can start and stop playback, step
between chapters and tracks and cue
back and forth on a disc. Bring up
the DVD menus to change, for
example, audio or subtitle language.
Use the DVD main menu to make
your own settings for DVD playback.
You can always resume playback of
the loaded DVD at the point where
you left off provided that you have
just stopped playback of the DVD by
pressing STOP twice, not three times.
When playing an audio CD, the
television screen is blank.
If you have a Beo4 remote control, note that
some discs do not register, whether the DVD
player is in “play mode” or “menu mode”
when being operated. In these few cases, you
must press the yellow button before sending a
command to the player; In menus, for example,
you must press the yellow button and then
GO, to store a selection.
Place a disc in the loader with the label facing
upwards. Eight centimetre discs may only be
loaded provided with a suitable adaptor. Discs of
other shapes cannot be played.
To load a disc, press the load bar below the
television screen.
To load a disc and begin playback …
> Press the load bar below the screen. The loader
slides out, and the display prompts you to load
a disc.
> Place a disc in the loader as described to the left.
> Press and hold the load bar. The loader retracts,
DVD is activated and playback begins
automatically.*
To load a DVD while watching TV, for example,
for playback at a later point in time, press the load
bar shortly. The loader retracts and playback
does not begin.
If you restart playback of a loaded disc after an
interruption, playback resumes at the point of
interruption.
Load and play a disc
16
*NOTE! If the DVD player cannot recognise the
format of a loaded disc, the disc is ejected and
DVD LOAD is shown in the display window. This
may be due to disc faults such as dust, dirt, finger-
prints or scratches, or because the DVD is from an
incompatible region. For more information about
handling DVDs, refer to the chapter ‘Maintenance
of your television’ on page 22.
Load bar

Play and change chapters or tracks on a disc …
> Press DVD to start playing a DVD or CD.
> Press or to step between chapters or
tracks.
> Press or repeatedly to jump to another
chapter or track on the disc.
> Press and enter the chapter number to step
directly to a chapter or track.
> Press or to cue backwards or forwards
during playback.
> Press PLAY to resume playback. (Beo4: Press
GO).
Pause, slow playback or stop playback of a
disc …
> Press STOP to pause playback.
> Press or for playback in slow-motion either
forwards or backwards (DVD only).
> Press STOP again to stop playback completely*,
or press PLAY to resume playback, or press
STOP a third time to return to the beginning of
the disc. (Beo4: Press GO instead of PLAY).
Some video CDs and super VCDs have playback
control menus, to bring up this menu press the
yellow button, then STOP.
*If you stop playback like this, the player remembers
where you left off on the last five discs, and resumes
playback, when you restart.
To play other disc formats
Your television is designed to play back
different disc formats. Supported formats are:
– DVD-Video
– Audio CD
– Video CD
– CD-R/RW
– DVD-R/RW, provided that these are
recorded using the DVD Video format and
the disc is finalised.
– Discs containing mp3 files are supported, if
the sampling frequency is set to either 32,
44.1 or 48 Khz.
– WMA (Windows Media Audio), except
when protected with DRM (Digital Rights
Management).
When playing discs with mp3 or WMA files,
use and to step between tracks, and
and to wind.
Press the blue button to bring up a list of
the disc content and browse in the content.
Press BACK to remove the list.
– JPEG files up to a resolution of 3072 x 2048.
When playing discs with JPEG files, use the
yellow button, then and , and to
rotate the picture.
– DivX versions 3, 4, 5 and DivX VOD are
supported.
In general, playback of data generated files is
only possible if the files are recorded onto a
CD-R/RW or a DVD-R/RW.
17
NOTE! Some DVDs offer special features which are
temporarily available during playback, such as
additional film sequences. In such situations, press
the yellow button then PLAY to select this special
feature. (Beo4: Press the yellow button then GO).

>> Use the DVD player
Beo5 display buttons for the built-in DVD player.
The menu overlay helps you remember the DVD
functions, however, you can call up the functions
without calling up the overlay first.
DVD menus
With a Beo5 …
When you activate the DVD player the DVD
menus and functions are shown in the Beo5
display.
> Press DVD to switch on DVD.
> Press the button that activates the function you
want.
With a Beo4 …
If you have a Beo4, you can bring up an overlay
on the television screen to get a quick overview of
the DVD menus.
> Press DVD to switch on DVD.
> Press MENU to bring up the DVD menu overlay.
> Press one of the coloured buttons to activate a
function, or …
> … press the number button that activates the
function you want.
Use on-screen menus …
> Press Sound to bring up the audio language
menu*. Press Sound repeatedly to switch
between the available options. When you have
made your selection, the menu disappears.
(Beo4: Use the red button).
> Press Subtitles to bring up the subtitle
language menu*. Press Subtitles repeatedly to
switch between the available options. When
you have made your selection, the menu
disappears. (Beo4: Use the green button).
> Press Disc Menu to bring up the disc menu.
(Beo4: Use the blue button).
> Press , , and to move between options in
the menus. (Beo4: Press , , and ).
> Press the centre button to enter your choice or
setting. (Beo4: Press GO).
*Not all discs have separate subtitle and audio
language menus, in those cases you must use the
main or disc menu.
AUD I O
SUBTITLE
SHIFT
DISC MENU
TOP M EN U
DISPLAY
DVD SETUP
ZO OM
ANGLE
1
2
3
4
5
AUDIO
SUBTITLE
SHIFT
DISC MENU
TO P M E N U
DISPLAY
DVD SETUP
ZOOM
ANGLE
1
2
3
4
5
DVD
Audio
Subtitles
Disc Menu DVD Setup Display
Angle Top Menu Zoom
• •
18
NOTE! When DVD is selected as source, press
MENU twice to bring up the television’s main
menu.

While DVD is selected …
> Press Top Menu to bring up the disc’s own top
menu*. (Beo4: Press the yellow button then 1).
> Press and to move between options in
the menus. (Beo4: Press , , and ).
> Press the centre button to enter your choice or
setting.
> Press Display to bring up the on-screen status
display menu. Press again to change to the next
on-screen display. Press a third time to remove
the on-screen status display. (Beo4: Press the
yellow button then 2).
> Press Menu to bring up the DVD main menu.
This is described to the right. (Beo4: Press the
yellow button then 3).
> Press Zoom to zoom in on the picture. Press
again to increase the zoom factor. Press a third
time to exit the zoom feature. (Beo4: Press the
yellow button then 4).
> Press Angle to bring up the camera angle
menu. Press again to switch between the
available options. (Beo4: Press the yellow
button then 5). When you have made your
selection the menu disappears. However, if you
have switched on the angle indicator in the disc
setup menu, the icon remains on the screen.
*Not all discs contain a top menu.
How to use the DVD menus …
> Press Menu to bring up the DVD main menu.
(Beo4: Press the yellow button then 3).
> Press or to move to the menu you wish to
enter and press the centre button. (Beo4: Press
or and GO).
> Use the arrow keys; , , and to move
between menus and settings. (Beo4: Press ,
, and ).
> Press the centre button to store your choice.
(Beo4: Press GO).
> Press BACK to leave on-screen menus. (Beo4:
Press EXIT).
What’s on the Disc Navigator menu …
The Disc Navigator menu allows you to quickly step
to specific titles or chapters on a disc.
For information about the Play Mode menu and
Initial Settings menu, refer to ‘Settings and
preferences for the DVD player’ on page 47 in the
Reference book.
Play Mode Disc Navigator
Initial Settings
Disc Navigator
Title
Chapter
19
NOTE! This DVD player is set for the appropriate
region from the factory. Discs from incompatible
regions will not play on this player.
The Disc Navigator menu.

The pincode system
The pincode system is intended to
make normal use of your television
impossible for someone who does
not know the pincode. You choose
whether or not to activate the
pincode system.
When the pincode system is activated
and the television has been
disconnected from the mains for 15–
30 minutes, the pincode system goes
into effect.
When reconnected and switched on,
the television automatically switches
itself off after four minutes. Entering
the pincode returns the television to
normal.
Note: If you change your pincode more than
five times within a three-hour period, the
PINCODE menu becomes inaccessible for three
hours, assuming that the television is not
disconnected from the mains. Disconnecting
the television resets the three-hour period.
Activate the pincode system
If you wish to deactivate the pincode system,
you can do so by deleting your pincode.
To activate the pincode system …
> Press Menu to bring up the TV SETUP menu.
> Press twice, followed by STOP. The PINCODE
menu appears on the screen.
> Press and use the number buttons on Beo5
to enter the four digits of your code. (Beo4: Use
the number buttons).
> Press the centre button after the last digit is
found. (Beo4: Press GO).
> Re-enter your code to confirm it and press the
centre button again. If the two codes are not
identical, the input fields are cleared and you
must enter the code again. (Beo4: Press GO).
To change or delete your pincode …
> Press Menu to bring up the TV SETUP menu.
> Press twice, followed by STOP. The PINCODE
menu appears on the screen.
> Enter the correct pincode and press the centre
button. DELETE PINCODE is highlighted. (Beo4:
Press GO).
> To delete your code, press the centre button.
(Beo4: Press GO).
> To change your code, press to highlight
NEW PINCODE and press the centre button.
(Beo4: Press and GO). Press , enter the
new code using the number buttons and press
the centre button. (Beo4: Use the number
buttons and press GO). Re-enter the new code
to confirm it.
If you inadvertently press a wrong button while
entering a code, press STOP. The entry is
cancelled and the input fields are cleared.
PINCODE
next
accept GO
PINCODE 0. . .
CONFIRM PINCODE . . . .
PINCODE
select GO
DELETE PINCODE
NEW PINCODE
20
