Bang & Olufsen BeoVision 7 User manual

BeoVision 7
Guide

Cautions
– Do not place the television in direct sunlight or
direct articial light, such as a spotlight, as this
may reduce the sensitivity of the remote control
receiver. Also if the screen is overheated, black
spots may appear in the picture. These spots
disappear again, once the television cools down
to normal temperature.
– Ensure that the television is positioned, set up
and connected in accordance with the
instructions in this Guide. To prevent injury, use
Bang & Olufsen stands or wall brackets only.
– The television is developed for indoor use in dry,
domestic environments only. Use within a
temperature range of 10–40°C (50–105°F).
– Do not place any items on top of the television.
– Place your television on a rm, stable surface.
– Do not attempt to open the television. Leave
such operations to qualied service personnel.
– Leave enough space around the television for
adequate ventilation.
– The disconnect device shall remain readily
operable.
– The supplied mains cord and plug are specially
designed for the television. If you change the
plug or in any way damage the mains cord, it
can affect the TV performance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING: To reduce the risk of re or
electric shock, do not expose this
appliance to rain or moisture. Do not
expose this equipment to dripping or
splashing and ensure that no objects
lled with liquids, such as vases, are
placed on the equipment. To completely
disconnect this equipment from the AC
Mains, disconnect the mains plug from
the wall socket. The disconnect device
shall remain readily operable.
The lightning flash with arrowhead
symbol within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the product.
CAUTION: To reduce the risk of
electric shock, do not remove cover
(or back).
No User-serviceable parts inside.
Refer servicing to qualied service
personnel.

This Guide contains information about the daily use of your
Bang & Olufsen product and connected equipment. We expect
your retailer to deliver, install and set up your product.
On www.bang-olufsen.com you can nd further information and
relevant FAQs about your product.
Your Bang & Olufsen retailer is your rst stop for all your service
queries.
To nd your nearest retailer or contact Bang & Olufsen Customer
Service, visit our website …
www.bang-olufsen.com
or write to: Bang & Olufsen a/s
BeoCare
Peter Bangs Vej 15
DK–7600 Struer
Dear Customer
3500550 0908
Technical specications, features and the use
thereof are subject to change without notice.
Contents
4 Watch television
6Teletext
8Use the Blu-ray player
11 BeoLink
21 Advanced use
33 Installation - setup

STOP
PLAY
BACK
Living Room
TV V.MEM RADIO
DTV N.MUSIC N.RADIO
PC DVD CD
TV LIGHT RADIO
DTV DVD CD
V MEM RECORD A MEM
789
456
TEXT 0MENU
123
LIST EXIT
STOP
GO
How to use your remote control
You can operate your television with
Beo5 or Beo4. The instructions in this
Guide are mainly based on Beo5.
Useful hints
1*About buttons
Soft buttons
2*Coloured buttons
Actual zone
Light grey buttons indicate that you have to press a text in the display. Dark grey buttons
indicate that you have to press a hard button.
Depending on the activated source, different soft buttons appear on the screen. Touch the
screen to activate the function.
Press the wheel next to the colour to activate a coloured button.
Indicates the actual zone as it was named during the setup process.
3*Marked buttons can be recongured during the setup process. See p. 37.
My reconguration:
Start playback
Step through channels
Hold for continuous step
Step through screen menus
Standby
Search backwards or forwards
Back up through menus or press once to pause
playback and press again to stop
Soft button, touch screen to select*1
Switch on a source or select a function
Press centre button to accept and store settings
Turn to adjust volume
To mute, turn quickly counter-clockwise
Bring up SCENE buttons such as Zones or Speaker
Press again to return
Select colour specic functions*2
Press volume wheel next to the colour
Bring up digits to select channel and enter
information in on-screen menus
Press again to return
Back up through Beo5 displays
Select colour specic functions
Adjust volume
To mute, press the middle of the button
The Beo4 display shows you the activated source or function
Accept and store settings and start playback
Search backwards or forwards or move in menus
Back up through menus or press once to pause playback and
press again to stop

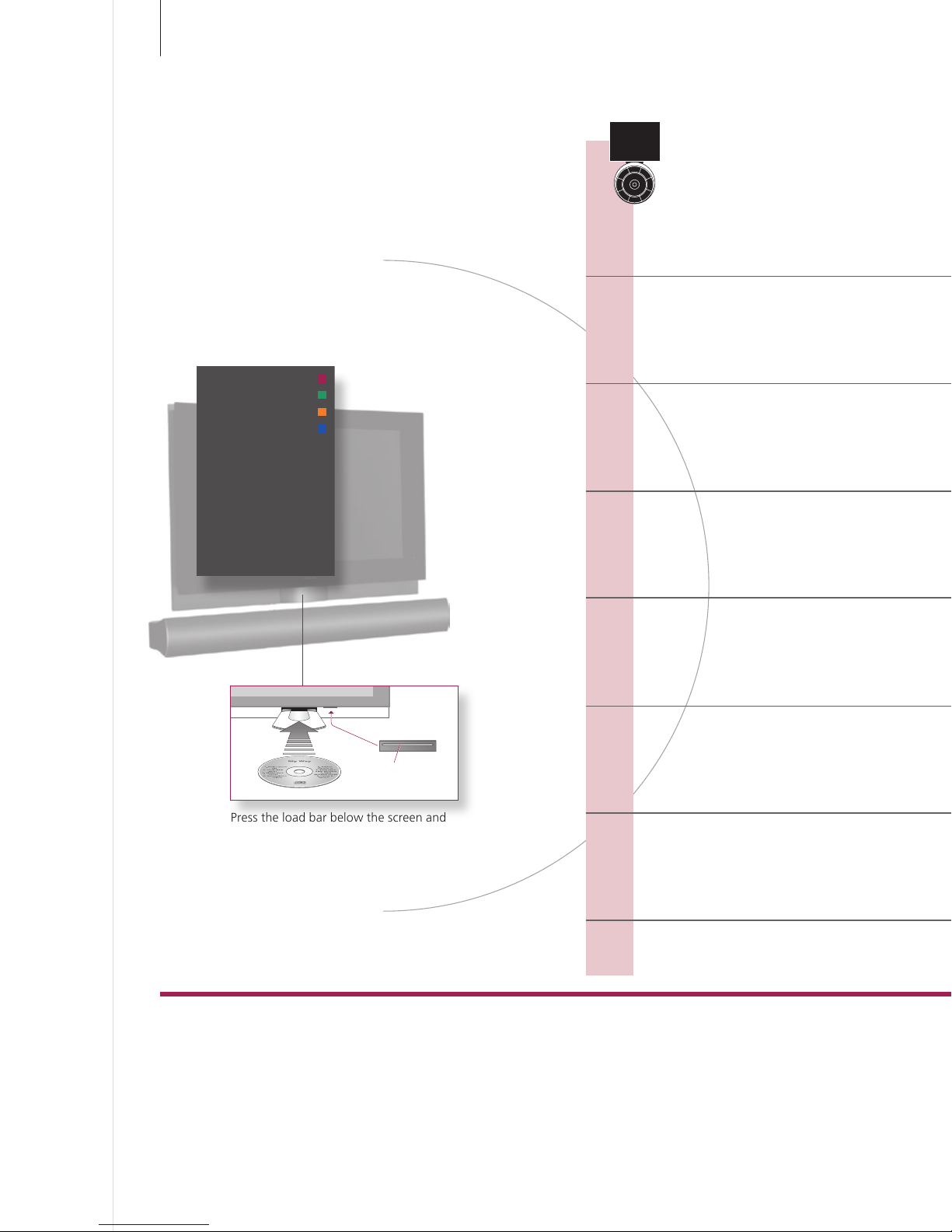

Switch on the optional Blu-ray player
Standby
Select channels and enter information in on-screen menus
Step through channels or move in menus
Hold for continuous step
Display extra ‘buttons’ on Beo4
Press repeatedly to change ‘buttons’
Switch on the TV*3
Exit menus completely
Switch on teletext
Bring up the main menu of the active source
Exit menus
NOTE! For general information about
remote control operation, see the Guide
enclosed with your remote control.
Beo4 operationBeo5 operation
TV
GO
STOP
TV
0 – 9
LIST
PL AY
STOP
TV
GO
BACK
TEXT
MENU
EXIT
TV
DTV
DVD
+

Watch television • Teletext • Use the Blu-ray player Easy use
Navigate in menus and select settings using your remote control. On
page 50 you will nd an overview of the menus in your television.
Information about the selected source is
shown in the display window to the right.
On-screen menus allow you to adjust
settings.
Display and menus
Introduction
Show menu Select TV’s
zone
Switch on TV Switch on
optional
Blu-ray player
or
When a menu is on the screen, you can
move between menu options, reveal
settings or enter data.
Navigate in menus
Important – for more information: www.bang-olufsen.com
Remote control The instructions in this Guide are mainly based on the Beo5 remote control, but you can also
operate the TV with Beo4. On the fold-out page in this Guide, you will nd an overview of
the buttons on Beo5 and Beo4. For general information about remote control operation, see
the Guide enclosed with your remote control.
Example of on-screen menu.
Select option/
setting
Enter data Bring up sub-
menu/store
setting
Select option Exit menus
or
Move
backwards
through
menus
… TV Menu
TV SETUP
TUNING
PLAY TIMER
OPTIONS
STAND POSITIONS
select
DVD
GO
0 – 9 EXIT STOP
3
Menu name
Menu options
Information eld

Watch television
Choose a TV channel by its number or switch to another
channel or source. Adjust the sound volume, change the
sound type or language and turn the TV.
Useful hints
1*Second source
Beo5 operation
Turn the TV
Switch on the TV
Switch off the TV
Activate the TV source
to use these functions
Adjust the volume
See second source
Divide the screen to watch two sources at the
same time.*1
Bring up a channel list
Select a TV channel
You can bring up two video sources. With Swap you can make the left and right pictures
switch places. The sound will come from the left picture while you change channels in the
right picture. With BACK you leave the function and go to the source on the left. You can
also just select the source you wish to go to. See also p. 40 for information about HDMI
sources.
TV CHANNEL LIST
CNN 1
… 2
DISCOVER 3
CWNBC 4
BBCWORLD 5
… 6
… 7
… 8
SUPER CH 9
… 10
CRIME TV 11
CINEMA 12
… 13
MOVIE NW 14
… 15
… 16
… 17
… 18
more select
4
Channel name
Channel number
Indicates more channels available

2*TV positions Position 1 is the far left position and Position 9 is the far right.
Beo4 operation
Press Select
‘STAND’
Adjust volume. To mute, turn quickly
counter-clockwise
Adjust
volume
To mute, press in the middle
of the button
Select
‘P-AND-P’
Press Swap pictures Select
source
Select source
Press
PressPress
Hold for
channel list
Select
channel
Select page Accept
Activate
numbers
Select Select channel Select Select
channel
Hold to
activate
Select page or channel and
accept
Bring back the sound by turning the
wheel either way.
Press Turn TV Turn TV
Swap pictures
Select position*2Select
position*2
Select previous channel Select
previous
channel
NOTE!
To use the stand function, you have
to calibrate the stand rst, see p. 45. To
preset positions for the TV to turn to, see
p. 48.
Press
or
or or
or or or
or
Activate numbers
TV TV
+
0–9
+
0–9
Stand Turn Turn
Position
1…9 LIST
0–9
1–9
DVD Swap LIST DVD 0
Previous 0
P-and-P
5

Teletext
Operate teletext through the menu bar at the top of the
teletext page or the arrow buttons on your Beo5.
Useful hints
1*Teletext service
MEMO pages
Large teletext
Each channel provides its own teletext service. Change easily between teletext pages of different channels.
For quick access, store a teletext page as a MEMO page.
To enlarge the size of the teletext page, bring up teletext, move to ‘LARGE’ in the menu bar and press the
centre button repeatedly to switch between the upper and lower half of the page and normal page size.
Activate teletext
to use these functions
View a MEMO page
Create MEMO pages
Reveal hidden messages
Start teletext
Exit teletext
Stop subpages from turning
Delete a MEMO page
Change teletext service*1
Access teletext pages of other broadcasters.
… and the like.
Access the start page of teletext.
Nine MEMO pages are available for each
channel’s teletext service.*2
Move to pages
Access teletext pages you wish to see.
Beo5 operation
‘MEMO’ is only available if you have stored
MEMO pages.
PAGE CHANNEL LARGE HALT REC SETUP
P100 BBC S100 Wed 13 Oct 12:39:34
6
Change broadcaster
Current page
Stop subpage turning
The arrow indicates that more options
are available. Make settings on ‘SETUP’.
and reveal hidden text on ‘REVEAL’

2*Teletext subtitles
Dual screen
If you would like available teletext subtitles to appear
automatically for a particular channel, store the teletext
subtitles page as MEMO page 9.
When teletext is activated, press ‘Text’ to swap between dual
screen and full screen mode.
NOTE! If your TV is linked via a Master Link
cable to another TV, stored MEMO pages
are not shared among these TVs. MEMO
pages must be stored manually on each
linked TV.
Stop turning Stop turning
Move to
‘REVEAL’
Move to
‘REVEAL’
Move to
‘SETUP’
Accept Accept
Press repeatedly to change screen modePress repeatedly to change screen mode
PressPress
Move to ‘CHANNEL’ or
‘MEMO’ then ‘CHANNEL’
Bring up
channel list
Accept
Move to
‘PAGE’
Select page Select page Select page Move to ‘PAGE’
and select
Move to ‘CHANNEL’ or
‘MEMO’ then
‘CHAN NEL’
Move to
‘HALT’
Move to
‘SETUP’ Accept then
store
Press, select
channel and
accept
Go to index pages (100, 200, 300 …) Index
pages
Select
channel
Press Select subpage Restart
turning
Select subpage and restart
turning
AcceptSelect page Store
current
page
Move to
‘BACK’
Accept Select page
Move to
‘SETUP’
Accept Select
MEMO
page
Press Delete Move to
‘SETUP’
Press Select
page
Press
twice
Beo4 operation
Move to ‘CHANNEL’ or
‘MEMO’
Select
MEMO
page
Move to ‘CHANNEL’ or
‘MEMO’
Select MEMO
page
or or
or or or
Text TEXT
0–9 0–9
STOP 0–9 STOP 0–9
0–9
BACK EXIT
0–9
7

Use the Blu-ray player
If your TV is equipped with the optional Blu-ray player, you
can watch both Blu-ray discs and DVDs. With Blu-ray discs
the menu uses blue colours and with DVDs the menu uses
red colours.
Useful hints
‘ANGLE’ and ‘BONUS VIEW’ menus are displayed if ‘PLAYBACK
STATUS’ is set to ‘EXTENDED’ in the ‘SETUP’ menu and the
information is available.
Use the main menu to make your own settings for playback.
Slow playback backwards is not possible.
Activate the source of the Blu-ray
player to use these functions
‘ANGLE’ and ‘BONUS
VIEW’ menus
‘SETUP’ menu
1*Slow playback
Press the load bar below the screen and
place the disc in the loader with the label
facing upwards. Hold the load bar to
begin playback automatically.
Important! Do not use disc adaptors.
NOTE! On Beo4 you must press the yellow
button rst to activate the Blu-ray player’s
functions, e.g. resume playback.
Beo5 operation
Switch on the Blu-ray player
Select a function
Bring up different menus, e.g. INFO menu to move to
specic title/chapter or point in time. Change audio/
subtitle language or angle.
Switch off the Blu-ray player
Pause or stop playback
Play a disc
Pause or stop playback of a disc.
Not all Blu-ray discs support the resume function.
Change chapters or tracks
Step in chapters/tracks on a disc.
Slow playback
Playback in slowmotion.*1
SHIFT
INFO 1
DISC MENU 2
POPUP/TITLE 3
AUDIO 4
SUBTITLES 5
REPEAT 6
BONUS VIEW 7
DVD SETUP 8
8
Load bar

On Beo4 press MENU twice to bring up the TV’s main menu, when
DVD is selected as source.
If a loaded disc is not recognised, it is ejected and ‘LOAD’ is shown in
the display window. Check for disc faults such as ngerprints or
scratches. The disc may also have an incompatible format.
NOTE! If you are asked to press a coloured
button, press the specic button twice, if
you have a Beo4.
TV menu
Handling discs
Beo4 operation
Press
or
Step in chapters/tracks. Cue during
playback
Resume playback
or
Start playback
Resume playback
Press
Once to pause, press again to stop.
Third to return to beginning of disc
Resume playback
Pause
playback
Slow
playback
Step in frames
Press
Step or cue Resume
playback
Start playback
Pause
playback
Resume
playback
Once to pause, press again to stop.
Third to return to beginning of disc
Slow playback or step in
frames
Resume
playback
Press
Select function Bring up menu overlay
or
Select function
or
or
STOP
TV
PLAY
DVD
PLAY
PLAYSTOP
TV
DVD
STOP
STOP
… MENU 1–8
PLAY
9

10

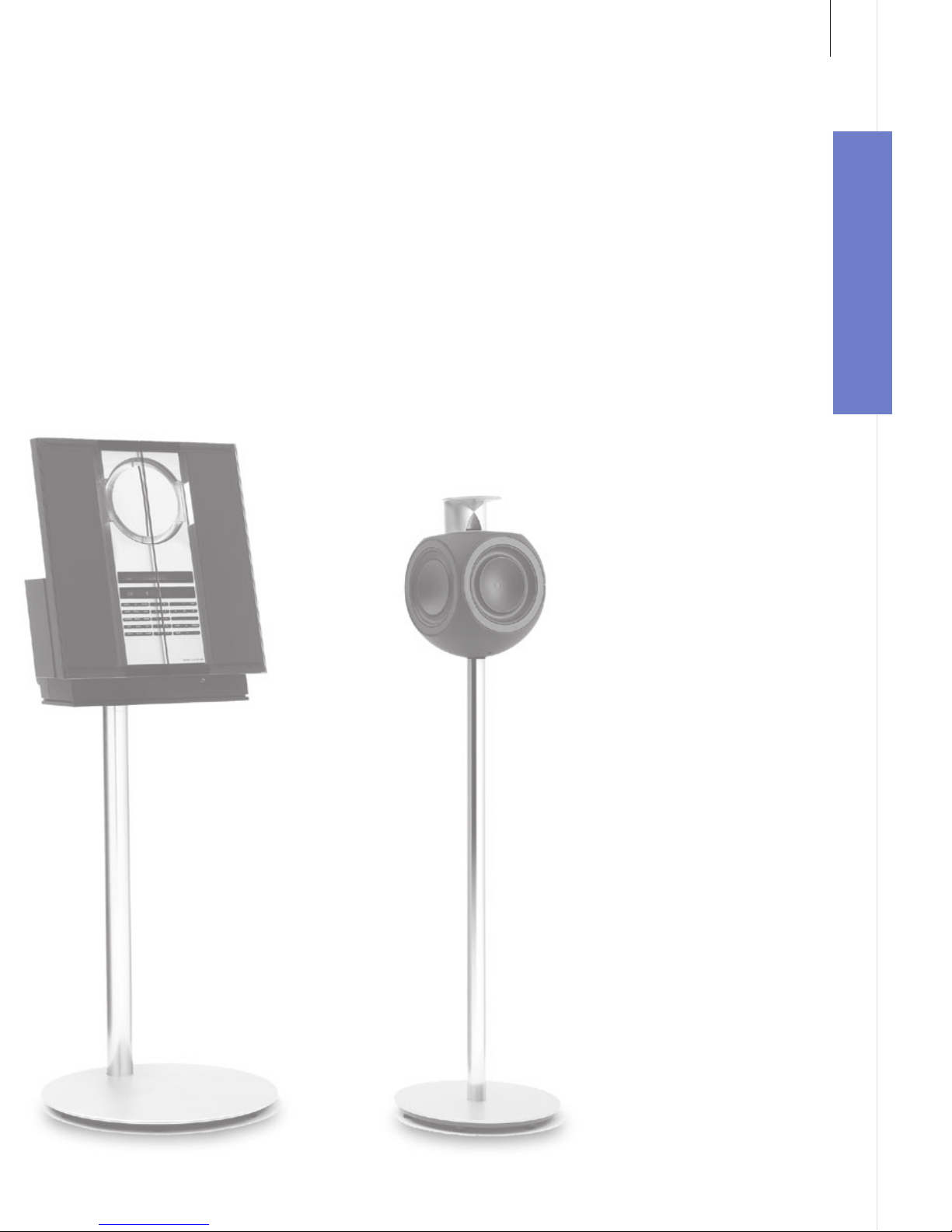

BeoLink system • Connect and set up an audio system • Connect and set up a BeoLink system …
Contents – BeoLink
12 BeoLink system
14 Connect and set up an audio system
16 Connect and set up a BeoLink system
17 Your television in a link room
18 Two televisions in the same room
BeoLink
11

BeoLink system
If you have a BeoLink system, you can operate all connected
sources from both the main room and link rooms.
Useful hints
Options
Main room source
Link room source
Audio system
To use all functions properly, the products must be set to the correct options. See p. 14.
This is the central source from which you can distribute sound and pictures to link room sources.
This source is placed in the link room and through the source you can receive sound and pictures from connected main
room sources.
Only Bang & Olufsen audio systems with Master Link support integration with the TV.
Use a main room source
Use a link room source
TV sound on the audio speakers
Activate main or link room sources
Listen to audio sound on the speakers connected
to the TV.
Activate a main room source from a link room
even if you have the same source in the link room,
for example, a TV.
Listen to sound from a TV source on your audio
system speakers.
Audio sound on the TV speakers
Activate a link room source, for example, a TV in a
link room when you also have a TV in the main
room.
Beo5 operation
Use a source present in one room
Activate a main or link room source from the same
link room. The source type, for example an audio
product, is only present in one of the rooms.
12
Link room
Main room

Changes in link
room setup
If you move your link room products to other rooms, remember to have
your Beo5 remote control recongured by your Bang & Olufsen retailer.
Select audio speaker
zone
Press Select source
Select video source
Select LINK Select source
Select audio sourceSelect TV speaker zone
Beo4 operation
Select source Operate source as usual Select source Operate source as usual
Select source Operate source as usual Select source Operate source as usual
Operate source as usual Operate source
as usual
Select video source*1
Select audio source*1
1*NOTE! If you have an option 1-1, you have
to select AV rst. In order to display AV on
Beo4, you must rst add it to the Beo4 list of
functions. See the Guide enclosed with your
Beo4.
Link
… TV TV
TV LIST TV
… CD CD
RADIO RADIO
TV TV
13

Useful hints
TV and audio speakers
Choice of options
Play a CD on your audio system using speakers connected to the TV, or select TV channel and
send the sound to your audio system speakers.
If you have a Beo4 remote control, options for the TV can be 1, 2, or 4 in a main room and 5
or 6 in a link room. Options for the audio system can be 0, 1, 2, 4, 5, 6. See also p. 17.
Connect and set up an audio system
To obtain the benets of an integrated audio/video system, connect a
compatible Bang & Olufsen audio system to the TV using a Master Link
cable.
If your TV has been set up in an audio/video
system, set it to the correct option. First,
switch the entire system to standby and then
stand in front of the TV.
2. Set option for TV
Connect the available sockets marked
MASTER LINK on the TV and the audio
system using a Master Link cable.
1. Connect the audio system
Set the audio system to the correct option.
First, switch the entire system to standby and
stand in front of the audio system.
3. Set option for audio system
Press Select zone in which TV
is placed
Select OPTION? and
accept
Select
V.OPT
Select
Option
Hold
and
Press
and
Hold Press
Press Select zone in which
audio system is placed
Select OPTION? and
accept
Select
A.OPT
Select
Option
Hold
and
Press
and
Hold Press
LIST
…
LIST LIST 0–9
LIST
…
LIST LIST 0–9
Option
pgm
Option
pgm
MASTER LINK
MASTER LINK
14

NOTE! Not all Bang & Olufsen audio systems
support integration with the TV. For more
information, contact your Bang & Olufsen
retailer.
Options For information about Option 4, 5 and 6, see pp. 17–18.
Your audio/video system can be placed together in one room, or in two
rooms with the TV in one and the audio system with a set of speakers in
another.
Select options
To set the correct options with Beo5, select
the zone in which your product is placed, see
p. 14. This page provides an overview of the
options available when using the Beo4
remote control.
The TV with or without additional speakers
and an audio system with a connected set of
speakers are set up in one room.
Set the TV to Option 1 and the audio system
to Option 1.
The TV and audio system are set up in one
room with all speakers connected to the TV.
Set the TV to Option 2 and the audio system
to Option 0.
The audio system is set up in one room and
the TV with or without additional speakers in
another.
Set the TV to Option 2 and the audio system
to Option 2.
Option 0Option 2
Option 1Option 1
Option 2Option 2
15

Useful hints
NOTE! HDMI, VGA and Y – Pb – Pr signals
cannot be distributed from a main room TV
to the link room system.
1*Connected
equipment
2*Link frequency
If an audio system is already connected to the MASTER LINK socket and
you wish to connect more equipment, the Master Link cable must be
split in two and joined with the cable from the link room using a special
junction box. Contact your Bang & Olufsen retailer for assistance.
When you change the link frequency in the main room TV, make sure
that the link frequency in the link room corresponds to it.

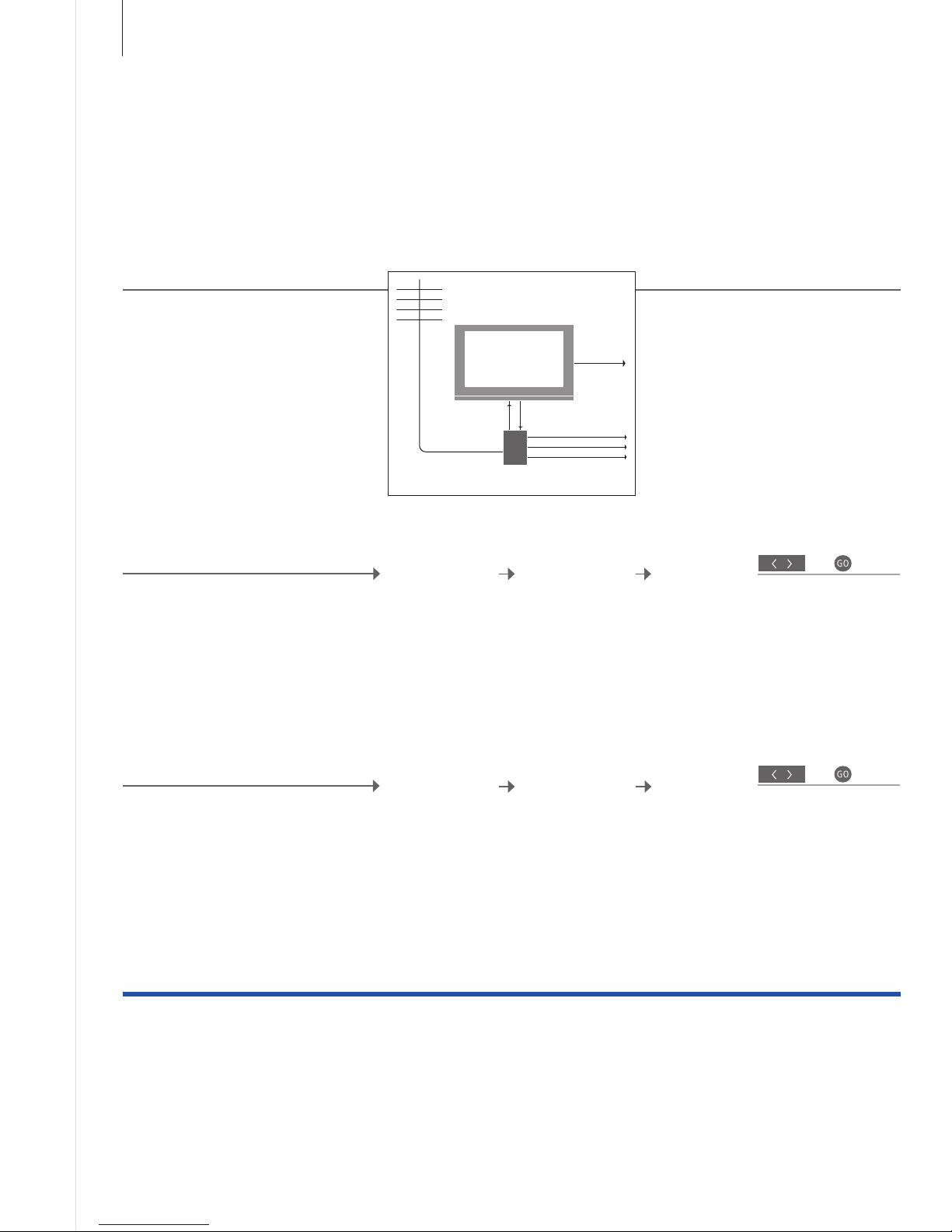

Connect and set up a BeoLink system
Connect and set up a BeoLink system to see pictures and hear sound in link
rooms. You can, for example, connect the living room TV to another video
system or to a set of speakers in another room.
If you have an audio setup, such as a
BeoLink Active/Passive, and you set up a non-
linkable TV in the same room, you must set
the system modulator to ‘ON’. The factory
setting is ‘AUTO’, which must be used if you
are using a linkable Bang & Olufsen TV.
Switch on the system modulator
To distribute video signals to link rooms, it
is necessary to connect an RF Link
Amplier to the main room TV and a link
room TV.*1
Make link connections
If, e.g., a TV channel in your area is
broadcasted on the same frequency as the
factory setting for the BeoLink system;
599 MHz, you must tune the system
modulator to an unoccupied frequency.*2
Change the link frequency
Connect the Master Link cable to the available
socket marked MASTER LINK on the TV.
To distribute video signals to link rooms,
connect an ordinary aerial cable to the socket
marked LINK TV on the main connection
panel. Then run the aerial cable to the RF Link
Amplier and the Master Link cable to the
link room. Follow the instructions enclosed
with the link room equipment.
Select ‘LINK’ in
‘CONNECTIONS‘
menu
Select ‘OPTIONS’ in
‘TV SETUP’ menu Reveal ‘ON’ Accept
Select ‘LINK’ in
‘CONNECTIONS‘
menu
Select ‘OPTIONS’ in
‘TV SETUP’ menu Find unused
frequency
Accept
Select
‘FREQUENCY’
Select
‘MODULATOR’
MASTER
LINK
RF Link
Amplifier
LINK TVTV
16

1*NOTE!
If you have a Beo4 and you connect
the TV for use in a link room where other link
systems are already connected, such as
speakers, you must set the TV to Option 5
instead.
Timer programming Program a Play Timer on the TV in the main room, see p. 25.
Your television in a link room
If you have a BeoLink system, operate all connected systems through the TV
in a link room.
Follow the procedure described here when
you connect your TV for use in a link room.
Connect link room TV
For your entire system to function properly, it
is essential that the TV in the link room is set
to the correct option before you connect it to
the system in the main room. Stand in front
of the link room TV.
Set option for a link room TV
Press Select zone in which TV
is placed
Select OPTION? and
accept
Select V.OPT Select
Option 6*1
Hold
and
Press
and
Hold Press
Option
pgm
LIST
…
LIST LIST 6
17
1 Connect the link room TV to the mains
supply.
2Use your remote control to program the
link room TV to the correct option.
3 Disconnect the link room TV from the
mains.
4 Make the necessary connections.
5 Reconnect the link room TV to the
mains supply.

Useful hints
1*NOTE! For information about choice of
zone, contact your Bang & Olufsen retailer.
Two televisions in the same room
If you have two TVs in the same room and one remote control for both TVs,
it is essential that the TVs are set to the correct options, for them to
function properly.
If you place your TV in a room where you
already have a Bang & Olufsen TV, you must
change the option of the secondary TV to
prevent simultaneous activation of both TVs.
Stand in front of the secondary TV.
Select the correct option
Teletext with
Option 4
In order to use teletext on a TV set to Option 4, you must set up Beo4
to VIDEO 3. This limits the Beo4 functions that can be used with TVs
set to other options. For more information, see the Guide enclosed with
your Beo4.
Press Select zone in which TV
is placed*1
Select OPTION? and
accept
Select V.OPT Select
Option 4
Hold
and
Press
and
Hold Press
Select zone for the
TV you wish to use
Select source
Normally, if you have a Beo5, you can
activate a source simply by pressing the
relevant source button. But if you have two
TVs in the same room, you must remember
rst to select the zone of the TV you wish to
use.
Beo5 – operate the TVs
LIST
…
LIST LIST 4
…
Option
pgm
BeoVision 7
Zone ‘A’
Zone ‘B’
TV
Zone ‘A’
TV
BeoVision 7
Zone ‘B
’
TV
18
