Bang & Olufsen BeoVision 5 User manual

BeoVision 5
Guide

Should you loose or damage the BeoVision 5
CD-rom, the information can also be found on
the Bang & Olufsen web-site;
www.bang-olufsen.com
or you can contact your retailer.
Guide
BeoVisionAvant
An explanation of symbols in the
guides
The illustration below shows what a
button, source or status display looks like in
the instruction sequences used in the
guides.
Buttons on the Beo4
remote control
Displays on the Beo4
remote control
Displays on the
BeoVision 5
TV
LIST
▲
▼
STORE
P-IN-P
TV 12
UPDATE
The User’s guides
This Guide contains information about daily use, more advanced operations as
well as basic setup and maintenance of your product.
The CD-rom Reference book contains information about connecting
loudspeakers, adjusting loudspeaker setup, connecting external equipment,
connecting an audio system and setting up and operating a BeoLink system. It also
contains an overview of on-screen menus.
Both guides contain an index which can help you find the specific subject, you
want to know more about.
We expect that your Bang & Olufsen retailer delivers the product to your home,
installs it and makes all necessary connections as well as the initial setting-up.
However, the information required to install and set up the product is included in
the guides in case you need it at a later date if e.g. you move your products or
expand your system.
The Reference book is a file in PDF-format on the enclosed CD-rom. To read this PDF-file, the Acrobat
Reader program must be installed on your computer. If you do not have the program, it can be installed
from the CD-rom. Then select the file with the language you want, and the Reference book opens.

Contents 3
Daily use, 4
Find out how to use BeoVision 5 and the Beo4 remote control, watch and select
channels, adjust sound, look up Teletext information, and finally how to turn your
BeoVision 5 into a Home theatre for watching movies.
Advanced operations, 12
All you need to know about using BeoVision 5 beyond daily use; advanced Teletext
functions, timed play and timed standby, specific sound operations and presets,
view two sources at the same time, operate connected video equipment with
Beo4, and play and copy Camcorder recordings.
Setting up and socket overview, 22
Find out how to handle and place BeoVision 5, what can be connected to
BeoVision 5, where to connect it, and how to register additional video equipment.
Tuning and preference settings, 30
Find out how to tune in, name or delete channels and decide the order in which
they appear. This chapter also contains information about setting the time, date,
picture and sound.
Maintenance, 40
Find out how to take care of your BeoVision 5 and how to use the built-in
PIN-code system.
Index, 44
Find the specific subject you want to know more about.

Introducing BeoVision 5 and Beo4
4
TV LIGHT RADIO
SAT DVD CD
V TAPE RECORD A TAPE
789
456
TEXT 0MENU
123
LIST EXIT
STOP
GO
The Beo4 display shows the source you have
selected, or extra functions available when
you press the LIST button, e.g. FORMAT
Switch on radio, CD or audio tape recorder*
Adjust the room lights*
Call up the main menu for access to channel
list, timer play and timer standby menus, as
well as setup options
Step between channels, chapters on a DVD or
CD tracks*
Rewind or fast forward a videotape*
Accept and store instructions or settings
Exit all on-screen menus
Switch BeoVision 5 to standby
Switch on the television
Switch on e.g. a set-top box*
Switch on a DVD player*
Switch on a video tape recorder*
Press twice to start recording here and now*
Select channels or tracks*
Switch on Teletext
The coloured buttons give you access to
different functions, depending on the source
you have selected
Reveal additional functions in the Beo4
display**
Press to stop playback of a videotape or disc;
press to stop recording*
Adjust sound volume; press the middle to
mute the sound
TV
FORMAT
RADIO
CD
A TAPE
LIGHT
MENU
▲
▼
ss tt
GO
EXIT
•
TV
SAT
DVD
V TAPE
RECORD
0 –9
TEXT
LIST
STOP
∧
∨
Using the Beo4 remote control
Look through the basic principles of the Beo4
remote control and try them out. Each button
on Beo4 is explained below.
*To use these functions, the appropriate products
and features must be available in your system.
**Refer to Beo4’s own Guide for information
about how to add extra functions to those
shown in the Beo4 display window.

5
Displayed information and menus
Information about selected sources is
displayed at the top of the screen. In addition,
on-screen menus allow you to set or adjust
additional functions.
To call up the menu system…
Press MENU while the television
is switched on
How to use option menus…
Press to move through the
option menu, or…
…press the number keys on
Beo4 to select a numbered
option on a list
Press to enter your choice
How to use fill-in menus…
Press
▲ or ▼ to view your
choices for a single setting in a
fill-in menu, or
ss and tt to move
from setting to setting
Press the number keys on Beo4
to enter settings
Press to enter your choice
In both option and fill-in menus, you can press
STOP to go back to a previous menu, or EXIT to
leave all menus.
1 Timer play
2 TV list
3 Setup
Menu
VOL 30
TV 12
Source Pr Start Stop Date
TV 1 13:30 - 14:30 27 Oct OK
Press MENU for Timer index
On-screen menus will give you either a vertical list
of options to choose from or a horizontal list of
settings to fill in.
You can choose if you want the navigation
cues in the menus to be shown. Factory
setting of the function is On, but you can
choose to deactivate it. Call up ‘Menu’ from
the ‘Setup’ menu and choose ‘On’ to activate
navigation cues or ‘Off’ to deactivate them.
The selected source and channel are shown
briefly when you select e.g. TV or change
channels. Volume level is shown while you
adjust it, and disappears after a few seconds.
Source Pr Start Stop Date
TV 1 13:30 - 14:30 27 Oct OK
Press MENU for Timer index
Menu
1 Timer play
2 TV list
3 Setup
Source Pr Start Stop Date
TV 1 13:30 - 14:30 27 Oct OK
Press MENU for Timer index
Option menu
Fill-in menu
MENU
▲ ▼
1 –9
GO
▲ ▼
ss tt
0 –9
GO

6
The functions shown on this page
are often used on a daily basis:
– Choose a TV channel by its
number;
– Switch to another channel or
source;
– Call a channel list up on the
screen;
– Adjust the sound volume;
– Turn BeoVision 5 so that it faces
your viewing position. This requires
that your BeoVision 5 is equipped
with a motorised stand.
All of these functions can be
performed with the Beo4 remote
control.
Watch television
Select a TV channel
To watch TV, press the appropriate button on
Beo4. BeoVision 5 switches on the last channel
you watched.
Press to switch on the television.
The last channel viewed appears
on the screen
Press a channel number to go
directly to that channel
Press to step through channels
one by one
Press another source button at
any time to switch to that
source, e.g. DVD
Press to switch BeoVision 5 to
standby
See the channel list
All your TV channels appear on a list, which
you can call up on the screen. The list contains
channel numbers and names, and can contain
99 TV channels.
Press to switch on the television
Press and hold to call up the
channel list on the screen
Press to view the previous or
following page of the channel
list
To select a channel to watch,
press the channel number on
Beo4 or press the arrow keys
until the cursor highlights the
desired channel
To switch on the chosen channel,
press GO, or press EXIT to leave
the menu
You can also call up the channel list by pressing
MENU to call up the main menu, and then
pressing 2 to select the TV list.
TV
GO
ss tt
0 –9
▲
▼
GO
EXIT
TV
TV 2
0 –9
▲
▼
DVD
•

7
Adjust or mute the sound volume
You can adjust or mute television sound at
any time while you are using a source.
Press either end of the button to
adjust the volume up or down
Press the middle of the button to
mute the sound
Press either end of the button to
bring the sound back
Turn the television
If your BeoVision 5 is equipped with the
motorised stand, you can turn the television
to the left or right with the Beo4 remote
control.
Press repeatedly until STAND is
shown in the Beo4 display
Press to turn BeoVision 5 to the
left or right, or…
…press 0, 1 or 2 if you have
preset viewing positions for your
television
Refer to Set positions for viewing and standby on
page 39 for further information about how to
preset positions for TV viewing.
∧
∨
∧
∨
LIST
STAND
ss tt
0
1
2
1 BBC 1
2 BBC 2
3 ITV
4 Super Ch
5 SKÝ
6 ZDF
7 Children
8 CNN
9 . . . . . . . .
10 . . . . . . . .
11 . . . . . . . .
12 Eurosprt
13 . . . . . . . .
14 . . . . . . . .
15 MTV
16
17
18
19
The TV channel list. Dotted lines indicate that a
channel has been stored, but not named. An
empty slot in the list indicates that no channel has
been stored.

8
You can extend your system into a
fully equipped Home theatre system
by connecting four Bang & Olufsen
loudspeakers and a BeoLab 2
subwoofer*.
When you switch on BeoVision 5 or
one of the sources connected to it,
the speakers which you may have in
a surround sound system can be cut
in or out, depending on what kind of
sound suits the source you are using.
BeoVision 5 may switch on a speaker
combination automatically. This
happens if e.g. a broadcasted
programme or DVD contains
information about the number of
speakers to be switched on. You are
still free to choose the speaker
combination you prefer.

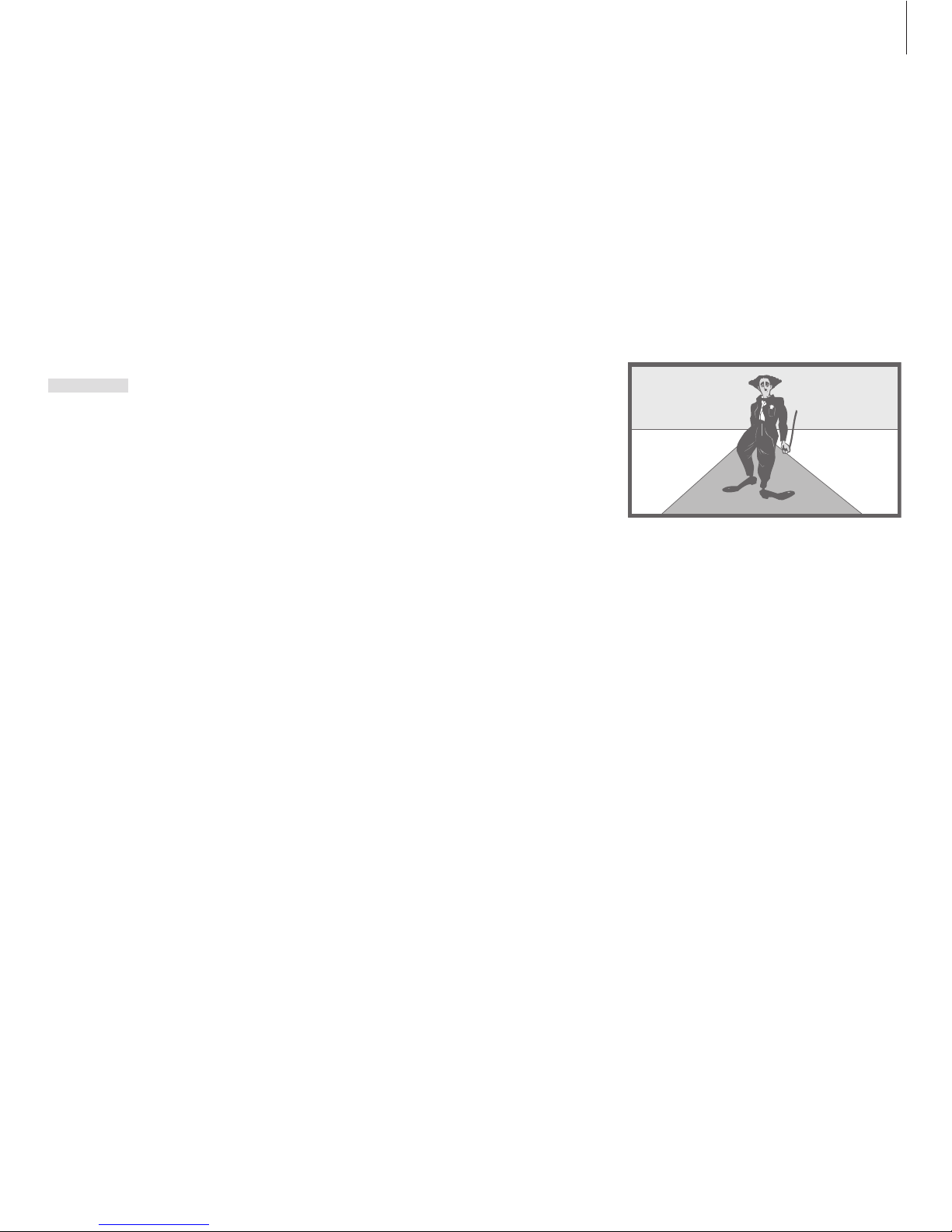

You can also adjust the picture
dimensions to fill out the screen and
complete the Home theatre
experience.
Home theatre viewing with BeoVision 5
*NOTE! Refer to the BeoVision 5 CD-rom and
the chapter Loudspeaker setup – surround sound
for further information.

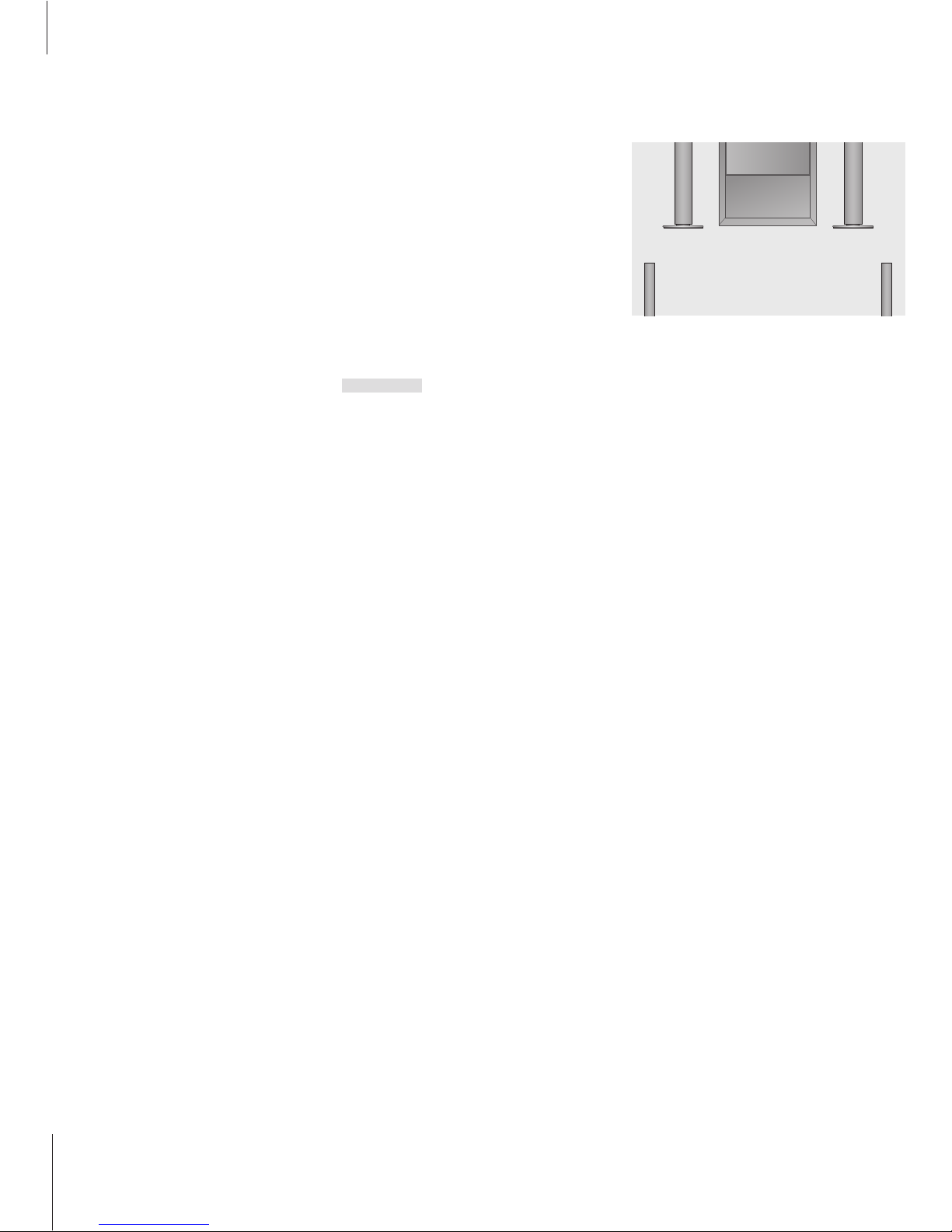

Select speakers for movie sound
While you are watching a movie or
programme, you can choose the speaker
combination you wish to switch on, provided
that the various sound modes are available in
your system.
Press repeatedly until SPEAKER is
shown in the Beo4 display
Press the number of the speaker
option you want. The speakers
selected will cut in automatically
If you want to adjust the sound
balance for the programme you
are watching, press
▲ or ▼ to
adjust the balance between the
external front and rear speakers,
and press
ss or tt to adjust the
balance between the left and
right speakers
Press EXIT to remove SPEAKER
from the Beo4 display and to
return to the source you were
using
LIST
SPEAKER
1 –5
▲
▼
ss tt
EXIT
Speaker combinations
SPEAKER 1
Sound in the television speakers only. For
programmes with dialogue, e.g. TV news.
SPEAKER 2
Stereo sound in the two external front speakers.
The BeoLab 2 subwoofer is active. For music
CDs.
SPEAKER 3
The television speakers, external front speakers
and the BeoLab 2 subwoofer are active. For TV
programmes in stereo.
SPEAKER 4
Enhanced stereo sound in the external front and
rear speakers. The BeoLab 2 subwoofer is
active. For music CDs or tapes.
SPEAKER 5
Surround sound from all speakers including the
BeoLab 2 subwoofer. For programmes encoded
in Surround Sound.
If you have connected only two external front
speakers to the television, you will only be able to
choose SPEAKER 1–3.

9
Make the picture fill out the screen
BeoVision 5 always ensures you the best
possible picture. It automatically adapts the
picture so that it fills out as much of the
screen as possible. However, you can still
choose a preferred format for Home theatre
viewing.
Press repeatedly until FORMAT is
shown in the Beo4 display
Press if you want BeoVision 5 to
optimise the picture, otherwise…
…press the number of the
desired picture format
If you have chosen Format 1,
press
▲ or ▼ to select variations
of this format
If you have chosen Format 2,
press
▲ or ▼ to move the
picture up and down
Press to leave the FORMAT
function
In format 1 BeoVision 5 automatically chooses the
largest picture (panoramic view).
LIST
FORMAT
GO
1 –3
▲
▼
▲
▼
EXIT
Picture formats to choose from
FORMAT 1
For standard TV pictures, as shown to the right.
Two variations are available: Panoramic view (for
the largest picture) and 4:3 (for standard picture
format).
FORMAT 2
For letter-box pictures.
FORMAT 3
For genuine 16:9 wide-screen pictures. FORMAT
3 will usually be selected automatically. If this is
not the case, you can select it yourself.

10
If you select a channel and the
broadcaster offers a Teletext service,
BeoVision 5 gives you access to
Teletext pages, any subpages linked
to that page, and also four memory
pages for storage of your most
frequently viewed Teletext pages.
Stored memory pages are the first to
appear when you call up Teletext on
the screen, and Beo4 makes it easy
to move quickly from page to page.
If you save the Teletext subtitles page
as memory page number four, you
can activate subtitles for that
particular channel automatically.

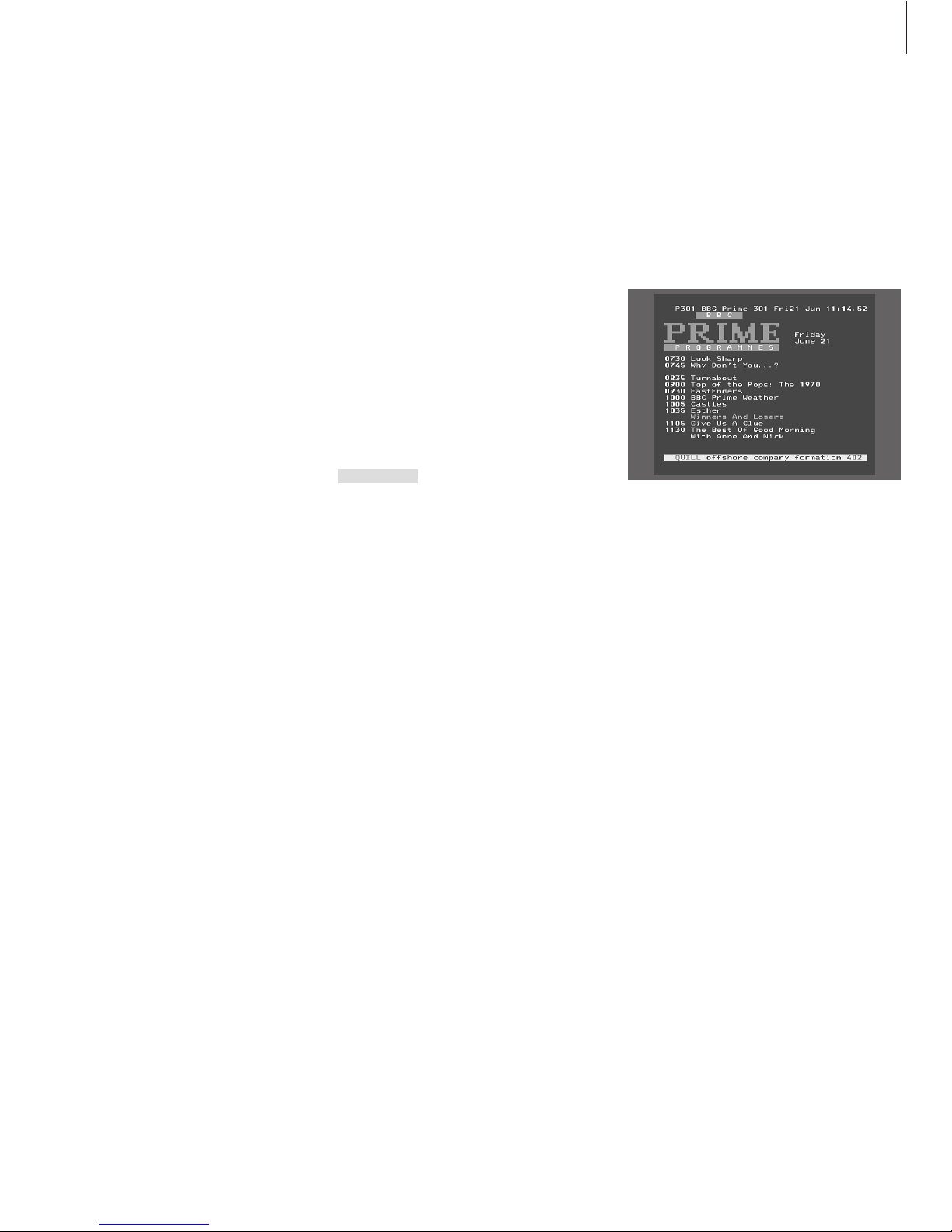

Teletext
NOTE! If your BeoVision 5 is linked via a BeoLink
cable to another television, stored memory pages
will not be shared among linked televisions.
Memory pages must be stored manually on all
linked televisions.
Main Teletext functions
You can find information on Teletext pages in
three steps: switch on the Teletext service,
read the index page to find the desired page
number, and call up the desired page.
Press to call up the Teletext index
page
Press the number of a Teletext
page you want to see
Press to move to the previous or
following page
If the current page contains
subpages, you can press STOP to
pause subpage turning
To view a particular subpage,
enter the four-digit number of
the desired page, or press
▲ or
▼ to step to the page
Press STOP again to resume
subpage turning
Press to leave Teletext and return
to the source you were using
TEXT
0 –9
▲
▼
STOP
0 –9
▲
▼
STOP
EXIT

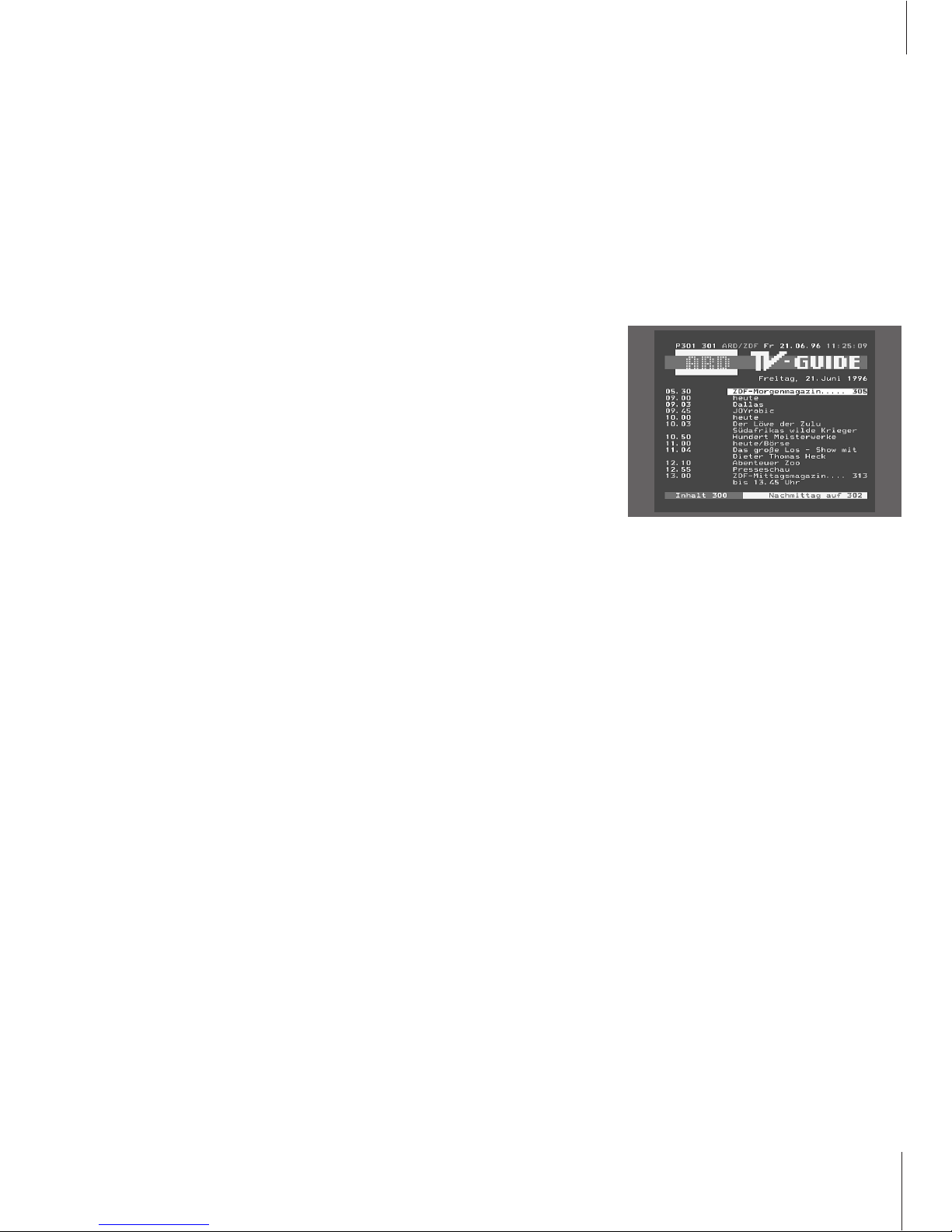

Store frequently read pages
Store your favourite Teletext pages as memory
pages so when you call up Teletext on the
screen, these pages appear first.
Press to call up Teletext
Press the number keys or
▲▼
on Beo4 to go to a page you
refer to often
Press repeatedly until STORE is
shown in the Beo4 display
Press to select the current page
for storing
Enter the number of the memory
page to be used
Press to store the page as a
memory page, or…
…press to exit the STORE
function and return to Teletext
without storing
Please note that set-top box Teletext pages can be
viewed, but not stored as memory pages!
TEXT
0 –9
▲
▼
LIST
STORE
GO
1 –4
GO
EXIT
