Bang & Olufsen BeoVision 1 User manual

BeoVision 1 (Update III)
BeoCenter 1 (Update II)
Type 863x
Type 852x
On-site service guide
English, German, French, Italian, Spanish, Danish, Dutch
This On-site service guide must be
returned with the defective parts/
back-up suitcase !
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Contents
1.1 Contents
2.1 English
3.1 Deutsch
4.1 Français
5.1 Italiano
6.1 Español
7.1 Dansk
8.1 Nederlands
9.1 Illustrations
10.1 Disassembly/Assembly
11.1 Main chassis in serviceposition
12.1 Replacement of main chassis
13.1 Replacement of PCB10 (BV1) / Sound/DVD chassis (BC1)
14.1 Replacement of other modules
15.1 Survey of modules
Caution:
Do not under any circumstances, place the BeoVision 1/BeoCenter 1 lying
on the contrast screen.
Instead, place it as illustrated below.
1.1
There is no Brief operation guide in this On-site service guide.
Instead an english version of the user guide is enclosed the
back-up suitcase.
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Contents, English 2.1
#1 Introduction
#2 Repair of BeoVision 1/BeoCenter 1
#3 Fault flow chart
#4 Removal of the cloth front
#5 Removal of the contrast screen and cleaning the television
#6 Adjustments after replacement of main chassis
#7 Check after replacement of main chassis or modules
#8 Service Mode and Flash-programming
9.1 Illustrations
10.1 Disassembly/Assembly
11.1 Main chassis in serviceposition
12.1 Replacement of main chassis
13.1 Replacement of PCB10 (BV1) / Sound/DVD chassis (BC1)
14.1 Replacement of other modules
15.1 Survey of modules
Survey of symbols:
Make a shortcircuit between the marked points, usually for discharging
e.g. a picture tube
Push with finger, in arrow direction
Disconnect internal plug
Connect internal plug
Disconnect mains plug
Connect mains plug
Disconnect aeriel or other external plug
Connect aeriel or other external plug
Loosen/remove or fasten/install screw
Dashed arrow. Push/pull e.g. PCB, chassis etc. in arrow’s direction
Filled arrow. Refer to page/chapter for more information, e.g. 14.1 PCB20,
if mounted:
Turn to 14.1 PCB20 and remove or install PCB if such is mounted
ABO-CENTER v/HENRIKSENS ELEKTRONIK

2.2 Introduction, English
Warning
Static electricity may destroy the product!
A static-protective field service kit must always be used when replacecement of the
modules takes place. Follow the instructions in the guide and use the ESD mat
area for both the new and old modules.
Please note:
When mains voltage on the TV is required, remove the connection from the TV to
the ESD mat.
#1 Introduction
This On-site service guide explains how to service the BeoVision 1/BeoCenter 1 by
replacing the modules. In the following you will find repair tips, description of how
to replace the different parts and a description of how to adjust after servicing.
When the following symbol occurs; ➢it is a cross-reference to a photo or an
illustration in the back of this On-site service guide.
The chapters in the On-site service guide are named for example #2 Repair of
BeoVision 1/BeoCenter 1. They are listed numerically.
Please note:
This On-Site Service guide must always be returned with the defective parts.
#2 Repair of BeoVision 1/BeoCenter 1
Before troubleshooting is initiated, let the customer explain and demonstrate the
fault, if possible.
Afterwards, check:
- that all cables are plugged in correctly
- that the mains voltage is connected, and switched on
- that an aerial signal is connected
- that all external sources such as VTR, DVD etc. are connected correctly and
switched on. Use the enclosed IR-blaster if necessary in order to check IR-signals to
the external sources.
When troubleshooting is initiated, please refer to #3 Fault flow chart. The fault
should fit into one of the 5 main groups.
- System functionality
- DVD/CD (BeoCenter 1 only) / Camcorder
- Picture
- Sound
Follow the arrows from each box, answering YES or NO, to locate the fault. The
back cover may have to be removed and the main chassis placed in service position.
See 10.1 Disassembly/assembly and 11.1 Main chassis in service position for
further information.
If measurements are needed, please refer to the chapter measurements, placed
behind #3 Fault flow chart.
When a voltage specification is given in the fault flow chart, a value within ±10-20%
of this is OK.
STATIC ELECTRICITY
MAY DESTROY THE
PRODUCT
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Introduction, English 2.3
If nothing else is mentioned, the fault flow chart applies for both BeoVision 1 (BV1)
and BeoCenter 1 (BC1).
When replacing a module, remember to disconnect the mains voltage. Carry out
the replacement, and reconnect the mains voltage. Then check if the fault is
rectified.
When replacing the main chassis remember to transfer optional modules, such as
Modulator etc. to the new main chassis. Please do also remember carefully
remove the EEPROM 6IC6 (by using IC-pliers (3629145)) from the defective chassis
and place it in the new chassis.
An extra help in troubleshooting is reading out the error codes.
Please refer to #8 Survey of Error Codes for further information.
After repair of BeoVision 1/BeoCenter 1, always remember to follow #6 Adjustments
after replacement of main chassis and/or #7 Check after replacement of main
chassis or modules.
Important note concerning theft protection, if activated:
Before servicing the product, please ask the customer to deactivate the theft
protection, if possible.
- If the theft protection is active during service, please note that exchanged modules
must always be returned to Bang & Olufsen for service. The exchanged modules
will immediately, after mains on, be registred to this product and this registration
can only be changed at Bang & Olufsen, Struer DK.
- If the back-up suitcase is not being returned to Bang & Olufsen after use, but
refilled by e.g. the dealer or workshop with new modules, please read the following
instruction.
When exchanging modules to see whether they are defective or not, it is important
to use the Service code, to avoid registration of the modules for this specific product.
When the TV is turned on, use Service code, pressing lfor 3 seconds.
A Mastercode menu appears, and the Service code, which is 11111, must be
entered.
It is then possible to exchange modules to see whether they are defective or not.
If not, the registration of the module will not take place until for 12 hours, time
enough to replace with the old module again.
ABO-CENTER v/HENRIKSENS ELEKTRONIK

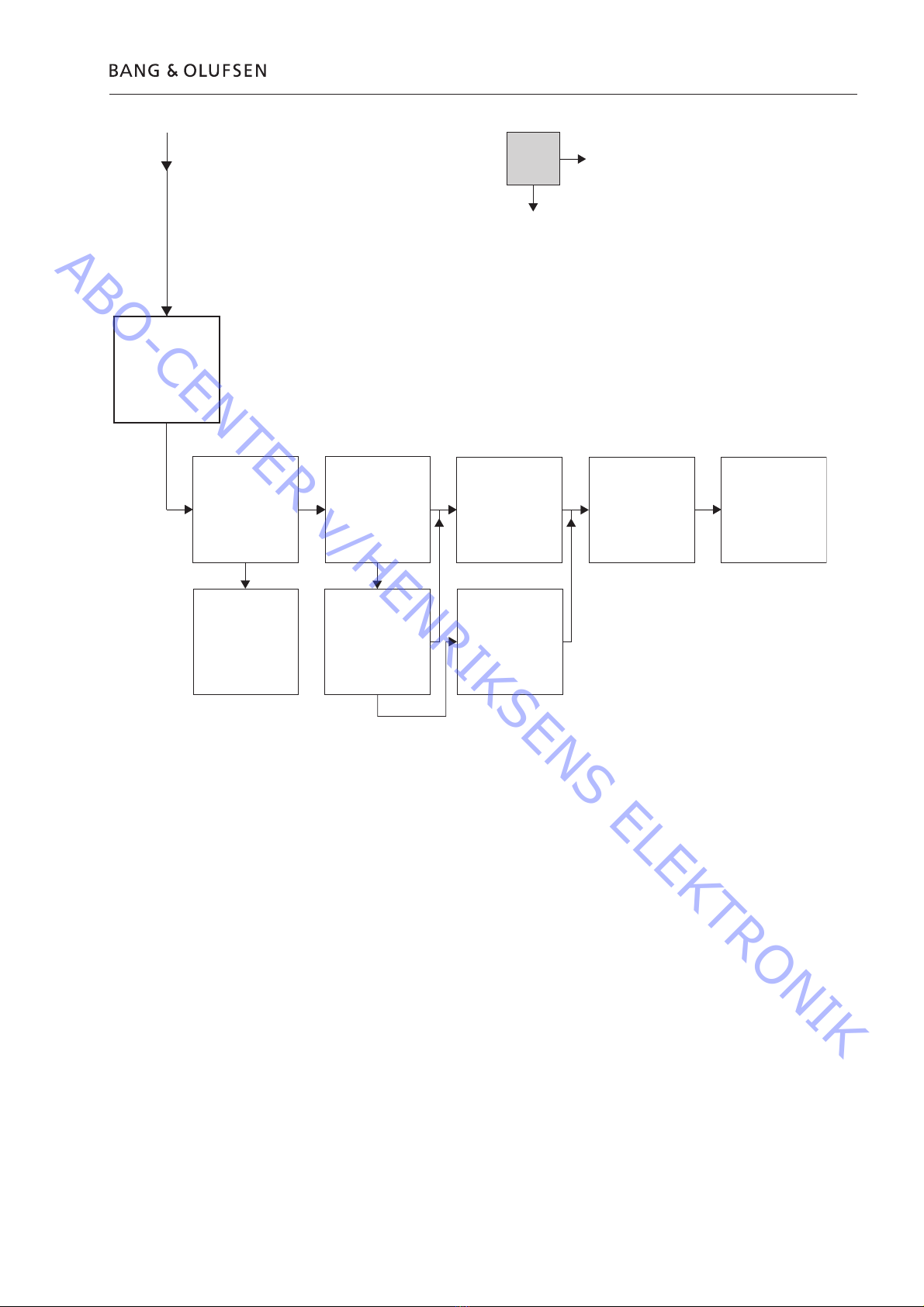

2.4 Fault flow chart, English
Remote Control
Try with a new
Beo4
OK?
Replace main
chassis
OK?
Replace PCB11/
PCB58 (BC1)
Replace batteries in
old Beo4
OK?
Replace Beo4
No standby light
Check mains
voltage. Check if
mains switch on
the TV is on
OK?
Turn on mains
voltage or turn
mains switch on
the TV on
Replace main
chassis
OK?
Replace PCB11/
PCB58 (BC1)
Stand function
Check settings of
stand
OK?
Change to correct
settings
Replace PCB92
OK?
Replace main
chassis
System-
functionality
No
Yes

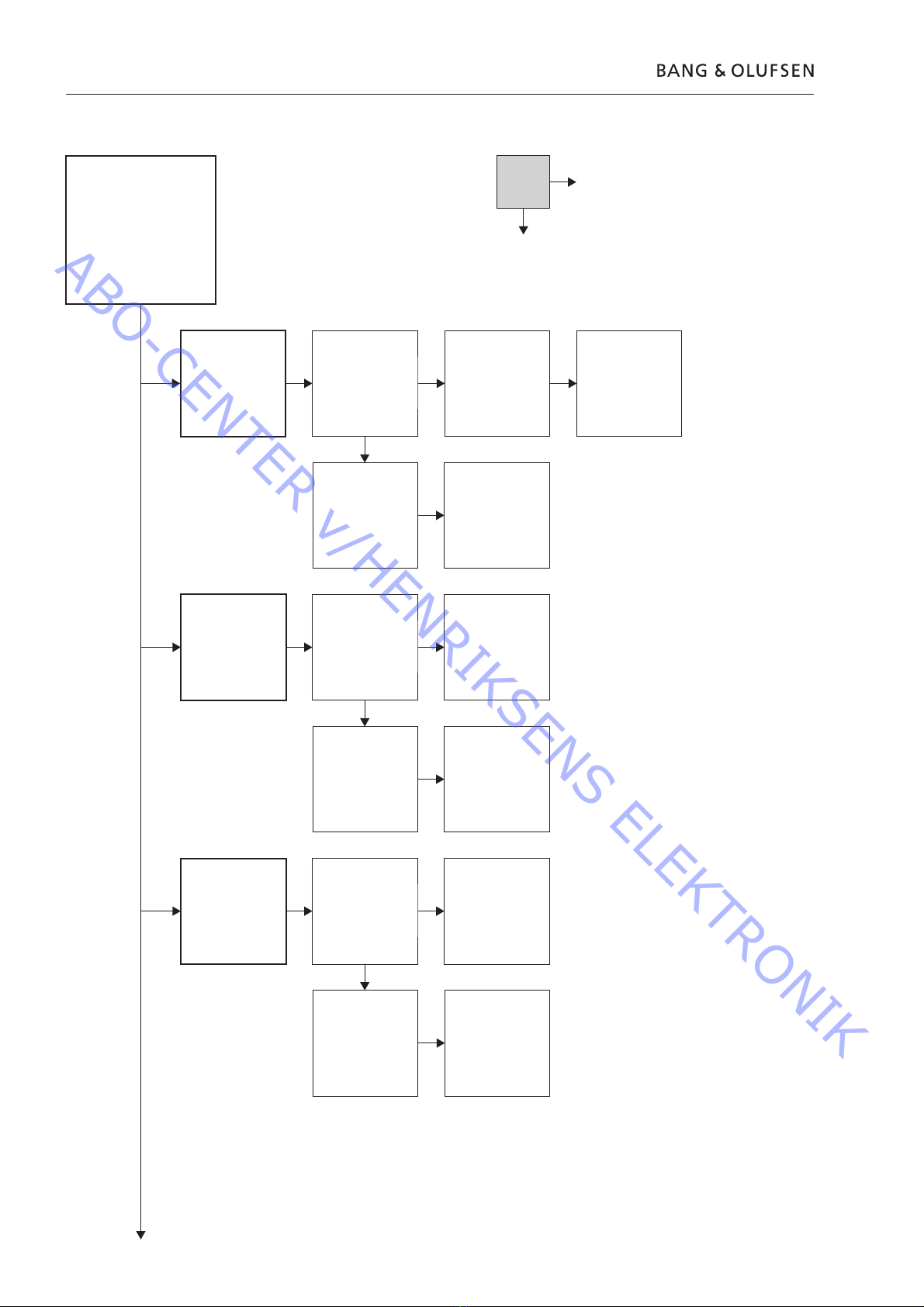

#3 Fault flow chart
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Fault flow chart, English 2.5
Connect, if
possible, a new
ML-cable between
the products
OK?
Check last ML error
in service menu. Is
the statement NO?
Replace
main chassis
OK?
The TV should be
taken to a
workshop for repair
Replace the
ML-cable
OK?
Switch off both
audio- and video
products. Wait one
minute and then
switch on. Check
for correct
“options” OK?
MasterLink
problem
check if possible
that ML-audio
master and/or ML-
link products are
ok
No
Yes
Leave the TV on for
10 minutes. If error
recurs, replace
PCB51
OK?
Replace
PCB51
OK?
ABO-CENTER v/HENRIKSENS ELEKTRONIK

2.6 Fault flow chart, English
DVD/CD
(BeoCenter 1
only)
Camcorder
Fault on DVD
picture and/or
sound
Replace
sound/DVD
chassis
OK?
Replace main
chassis
OK?
The TV should be
taken to a
workshop for repair
No eject/load of
DVD/CD
Touch LOAD and
measure approx.
0V DC between
1P10p14 and 1P8
(GND) when load
OK?
Replace PCB58
Replace
sound/DVD
chassis
OK?
Replace main
chassis
OK?
The TV should be
taken to a
workshop for repair
No playback of
DVD/CD
Measure approx.
5V DC between
72P500p7 and
72P500p5
OK?
Replace main
chassis
OK?
Replace
sound/DVD
chassis
OK?
Replace main
chassis
OK?
The TV should be
taken to a
workshop for repair
No camcorder
sound and/or
Check connections
to camcorder
OK?
Replace the
defective
connection
Replace PCB11/
PCB58 (BC1)
OK?
Replace main
chassis
OK?
No
Yes
Replace
sound/DVD
chassis
OK?
Replace sound/DVD
chassis (BC1) or bring
the TV to a workshop
for repair
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Fault flow chart, English 2.7
No
Yes
Can focus be
adjusted on focus
potentiometer until
OK?
#6
Poor focus
Adjust the TV by
means of
adjustment guide
OK?
#6
Replace main
chassis
Readjust focus
OK?
The TV should be
taken to a
workshop for
repair
Picture tube may
be defective
Leave the TV on for
10 min. If error
reoccurs, replace
main chassis
OK?
Can picture be
obtained by
adjusting
G2-potentiometer?
#6
No picture
Adjust the TV by
means of
adjustment guide
OK?
#6
Replace main
chassis
OK?
The TV should be
taken to a
workshop for repair
Picture tube may
be defective
Leave the TV on for
10 min. If error
reoccurs, replace
main chassis
OK?
Change to correct
settings
Check colour
settings in service
mode
OK?
No colour(s)
Replace main
chassis
OK?
The TV should be
taken to a
servicecenter for
repair
Picture tube may be
defective
Check aerial connection
ABO-CENTER v/HENRIKSENS ELEKTRONIK

2.8 Fault flow chart, English
No
Yes
Noise in picture
(TV)
Replace main
chassis
Poor geometry
Can picture be
adjusted by means
of the adjustment/
check guide?
#6
Replace main
chassis
OK?
The TV should be
taken to a
workshop for
repair.
Picture tube may
be defective
Leave the TV on for
10 min. If error
reoccurs, replace
main chassis
OK?
Replace main
chassis
No teletext
No auto contrast
Replace main
chassis
OK?
Replace PCB11/
PCB58 (BC1)
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Fault flow chart, English 2.9
No
Yes
Sound
Check aerial connection
No sound in
internal
loudspeakers
Are both left/right
without sound?
Find channel in
speakertable and
measure.
Measurement OK?
Replace speakerbox
Replace PCB10 /
Sound/DVD
chassis (BC1)
OK?
Replace main
chassis
Disconnect 10P32
OK?
Replace main
chassis
OK?
The TV should be
taken to a
workshop for repair
Replace PCB59
Replace PCB10 /
Sound/DVD
chassis (BC1)
OK?
Replace main
chassis
OK?
Replace speakerbox
No bass
or
no treble
Are both left/right
without bass or
without treble?
Find speakerunit in
speakertable and
measure.
Speakerunit OK?
Replace
speakerunit or
speakerbox
Replace PCB10 /
Sound/DVD
chassis (BC1)
OK?
Replace speakerbox
Replace PCB10 /
Sound/DVD
chassis (BC1)
OK?
Replace speakerbox
Reconnect 10P32.
Disconnect 10P30.
Measure approx.
+ 21V between
4P21p1 and
4P21p3 and
approx. -21V
between
4P21p2 and
4P21p4
OK?
ABO-CENTER v/HENRIKSENS ELEKTRONIK

2.10 Fault flow chart, English
No
Yes
Noise in sound, TV
Check channel
settings. Check
system settings
OK?
Change to correct
settings
Replace main
chassis
OK?
Replace PCB10 /
Sound/DVD
chassis (BC1)
Ensure that the source is ok. Check that all
connections to the speaker are ok. Check that
the speaker is ok, by swopping left/right
connection. Check settings for speakers in
sound setup
OK?
The defective unit
should be replaced
or setting should
be set ok
Replace
main chassis
OK?
The TV should
be taken to a
workshop
for repair
Noise in sound,
Radio (BC1)
Check channel
settings. Check
system settings
OK?
Change to correct
settings
Replace
sound /DVD
chassis
OK?
Replace main
chassis
Error in external
loudspeaker(s)
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Measurements, English 2.11
Placement of measuring points, described in the fault flow chart
These tables are used in connection with fault-finding on BeoVision 1 / (BeoCenter 1)
No bass or no treble
- Find the channel and symptom in the table and measure on the pins
described, with multimeter in ohm’s position. Resistence should be about
0 to 3 ohms. If not the speakerunit should be replaced by a new one.
Channel Bass or Treble 10P31 pin no.
Left Bass 5 - 2 (4 - 2, BC1)
Left Treble 1 - 2 (1 - 2, BC1)
Right Bass 3 - 6 (3 - 5, BC1)
Right Treble 7 - 6 (6 - 5, BC1)
No sound
- Find the channel and measure on the pins described, with multimeter in
ohm’s position. Resistence should be approx. 0 ohm. If not the speaker box
should be replaced.
Channel 10P31 pin no.
Left 2 - 5 (2 - 4, BC1)
Right 6 - 3 (5 - 4, BC1)

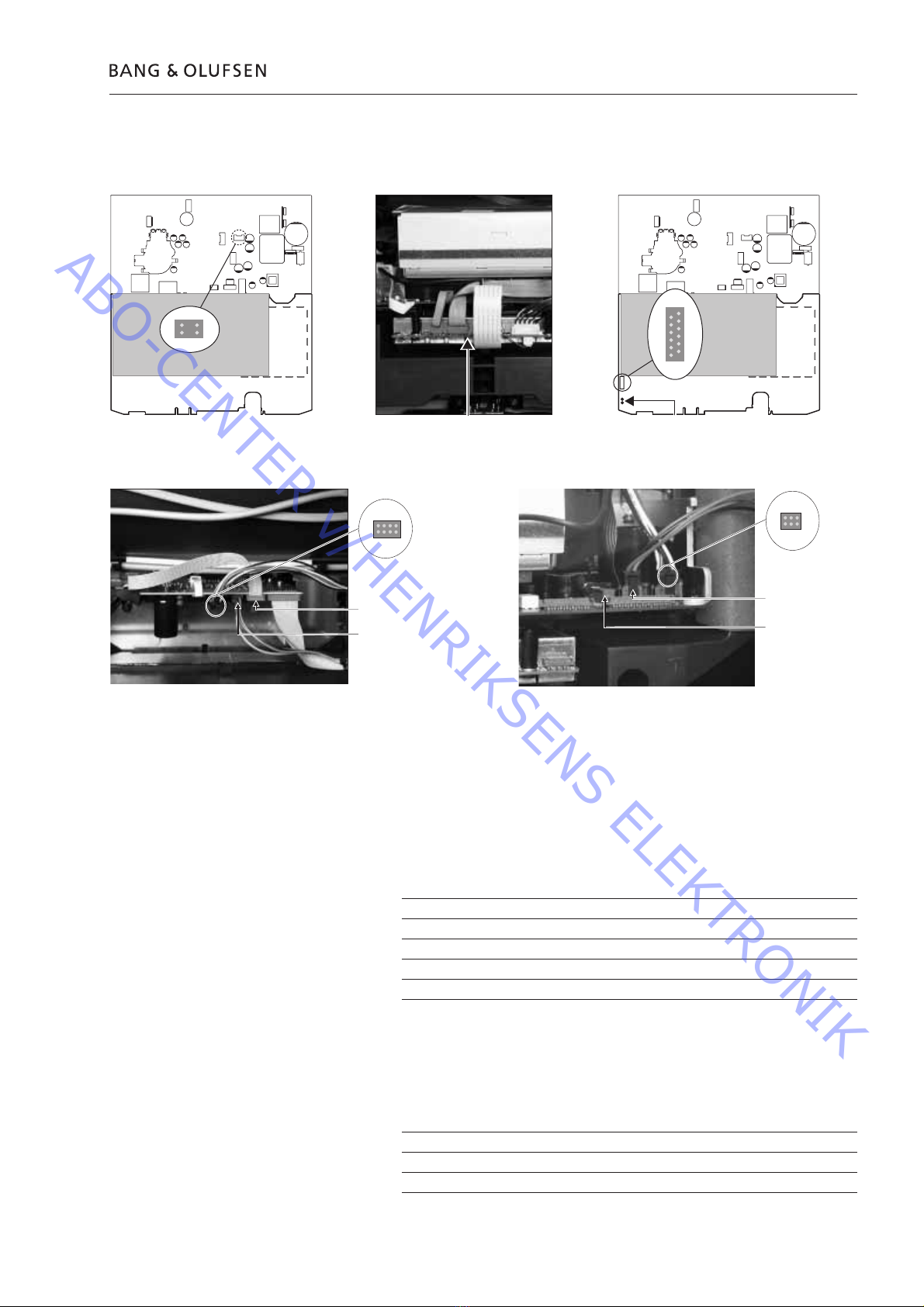

P1P11
P2
P12
10P31
p1
p5 p8
p4
10P32
10P30
10P31
p1
p4 p6
p3
10P30
10P32
72P500p1 1P8 (GND)
72P500 (BC1) 1P10 (BC1) 4P21
BeoVision 1 BeoCenter 1
P1P3
P2
P4
4P21
1P10
ABO-CENTER v/HENRIKSENS ELEKTRONIK

2.12 Disassembly, English
#4 Removal of the cloth front
Remove the cloth front
- Use the white gloves to avoid smudging the cloth front. Remove the cloth front by
carefully pulling out at each corner and at the same time pull it downwards
(see ➢1).
Mount the cloth front
- Use the white gloves to avoid smudging the cloth front. Reinstall the cloth front,
by holding it at the corners, and then push it towards the TV and upwards. You
can easily feel if the cloth front is not in the right place.
#5 Removal of the contrast screen and cleaning the television
Remove the contrast screen
- Use the white gloves to avoid smudging the contrast screen. See ➢2 – ➢5.
Clean the picture tube and the contrast screen
- To clean the picture tube and the contrast screen use a mild window cleaning
fluid. Make sure no streaks or traces of the cleaning fluid are left on the screen.
Clean the product
- Wipe dust of the surfaces of the television using a dry, soft cloth. If necassery,
remove grease stains or more persistent dirt with a firmly wrung lint-free cloth
which you have dipped in a solution of water containing a few drops of a mild
detergent.
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Adjustments, English 2.13
#6 Adjustments after replacement of main chassis
Disconnect the ESD mat from the main chassis
- Remove the alligator clip from the aerial input on the main chassis.
Connect the mains voltage
Turn on the TV
Set settings for VTR
- A VTR must be used for adjustment to take place.
- If the customer has a video tape recorder (VTR), then this can be used. If not,
another VTR has to be used. If the customer does not have a VTR: Select OPTIONS in
SETUP. Select CONNECTIONS. Set V.TAPE to V.TAPE. Remember to set V.TAPE to
NONE, when adjustment of the TV is finished, (not if the customer’s VTR has been
used).
Access to Service Mode
Select a SETUP menu.
Beo4: Press 0 0 GO within 3 seconds.
Select ordinary menu operation to leave Service Mode.
Operation in Service Mode.
Beo4 Activity
EXIT Removes the menus
GO - Selects the sub menu to the menu line where the cursor is placed
- Stores the selected values and returns to the SERVICE MENU
- Deletes error codes in the MONITOR INFORMATION menu and
returns to the SERVICE MENU
mMoves the cursor up and returns to the previous menu
pMoves the cursor down and selects a sub menu in special occations
lnSelects new values in the menus and selects a sub menu in special
occations
Stand (Only TV’s with motorised stand)
To be adjusted when the gear box with the motor stand control PCB92 has been
mounted in the TV, or if any part of the electrical chassis that contains PCB6 with
the EEPROM 6IC6 has been replaced.
- Enter Service Mode and select the STAND line.
- Press GO, when CALIBRATION OK is displayed the centre position of the motorized
stand has been found.
Focus
- Adjust to optimum focusing of the vertical lines as viewed approx. 10cm/4” from
the edge of the screen by means of the FOCUS potentiometer in the EHT
transformer (see ➢6).
ABO-CENTER v/HENRIKSENS ELEKTRONIK

2.14 Adjustments, English
Picture adjustments
Picture adjustments shall only be done in format 1 (4:3) and must be done in a
dark room.
- Select PICTURE in the OPTIONS menu and set the values for BRIGHTNESS,
CONTRAST and COLOUR to the mid position. Press GO to store.
- Enter Service Mode and select the MONITOR line.
- Select the PICTURE ADJUSTMENTS line.
- Check that BRIGHTNESS, CONTRAST and COLOUR in CURRENT VALUES must
show 32.
Some of the adjustments are fixed and should not be adjusted:
- OFFSETS REGULATIONS:
- BRIGHTNESS 18
CONTRAST 25
COLOUR 7
SOFT CLIP 0
PWL 10
- Adjust R-DR, G-DR and B-DR to correct white level.
- Adjust BLACK OFFSET R and BLACK OFFSET G to correct grey level.
G2 Adjustment (see ➢6).
H-CENTER in GEOMETRY ADJUSTMENTS must be made before G2 adjustment.
- Select the G2 ADJUSTMENT line in the PICTURE ADJUSTMENTS menu by pressing n.
BeoCenter 1
The TV screen now turns black and the status display below the TV screen will
show G2 HIGH, G2 OK or G2 LOW. Adjust by means of the SCREEN potentiometer
in the EHT transformer until the display shows G2 OK. Then press GO to select the
MONITOR INFORMATION menu then press GO to return to the PICTURE
ADJUSTMENTS menu.
BeoVision 1
The screen now turns black. Adjust by means of the SCREEN potentiometer in the
EHT transformer until the Stand By LED turns green (red = G2 too high, yellow = G2
too low, green = G2 ok). Then press GO to return to the PICTURE ADJUSTMENTS
menu.
Geometry adjustments
Geometry adjustments have to be done in format 1 (4:3) and format 2 (16:9).
- Enter Service Mode select MONITOR and select GEOMETRY ADJUSTMENTS.
Some of the adjustments are fixed and should not be adjusted:
Vertical S-Correction (V-SC) 35 Format 1 32 Format 2
Horizontal sensitivity (EHT) 0 Format 1 & 2
Vertical Zoom (V-ZO) 25 Format 1 & 2
Vertical Scroll (VSCR) 31 Format 1 & 2
Vertical Wait (V-WA 15 Format 1 & 2
The adjustments must be done first in format 1 (4:3).
- Press V.TAPE to get a black picture.
- Adjust the SCREEN potentiometer in the EHT transformer until the picture turns
grey.
- Enter Service Mode and select the MONITOR line.
- Select the GEOMETRY ADJUSTMENTS line.
- Place the cursor on a line by means of mand pPress GO to select the line. Now a
small menu appears on the screen. It is possible to switch between the small
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Adjustments, English 2.15
menus by means of mand pbuttons.
- Select the H-AM (Horizontal AMplitude) line and adjust until the picture is inside
the phosphor edge in both sides of the picture. Select the H-CENTER (Horizontal
Centering) line and adjust until the grey picture is just outside the phosphor edge
in the right hand side of the picture and 6mm inside the picture in the left hand
side.
Select the H-AM line and adjust to correct picture width.
- Make the G2 adjustment as described in PICTURE ADJUSTMENTS.
Vertical Shift (V-SH)
- Set BLANKING to 1. Adjust V-SH until the blanking is at the vertical centre of the
screen (i.e. 184mm from the top of the picture). Set BLANKING to 0.
Vertical Amplitude (V-AM)
- Adjust V-AM so that the picture fits at the top (i.e. 7mm from the top of the picture
to the top of the circle).
Vertical Slope (V-SL)
- Adjust V-SL so that the picture fits at the bottom (i.e. 7mm from the bottom of the
picture to the bottom of the circle).
Horizontal Phase (H-PH)
- Adjust H-PH to the correct centering of the picture.
Horizontal Amplitude (H-AM)
- Adjust H-AM to the correct width of the picture.
East/West Parabola (EW-P)
- Adjust EW-P to the correct geometry at the sides. The middle part of the vertical
lines must be as straight as possible.
East/West Upper Corner (EWUC)
- Adjust EWUC to the correct geometry at the upper corners.
East/West Lower Corner (EWLC)
- Adjust EWLC to the correct geometry at the lower corners.
East/West Trapezium (EW-T)
- Adjust EW-T to the correct geometry.
Horizontal PArallelogram (H-PA)
- Adjust H-PA to the correct geometry.
Horizontal BOW (BOW)
- Adjust BOW until the vertical line at the center of the picture is straight.
It may be necessary to repeat some of the adjustments.
- Write down the values for H-PH, EWLC, BOW, H-CT and V-SH.
- Press GO to store the adjustments.
Exit Service Mode.
ABO-CENTER v/HENRIKSENS ELEKTRONIK

2.16 Adjustments, English
Geometry adjustments in format 2 (16:9)
Only the adjustments mentioned has to be done.
- Switch the TV ON.
- Toggle on LIST until the Beo4 display shows FORMAT, then press GO and 2to
select FORMAT 2.
- Enter Service Mode and select the MONITOR line.
- Select the GEOMETRY ADJUSTMENTS line.
When selecting an adjustment item the picture must change to 16:9.
- Adjust H-PH, EWLC, BOW, H-CT and V-SH to the values from format 1 and check
the fixed values for format 2, see previous page.
Vertical Amplitude (V-AM)
- Adjust V-AM so that the picture fits at the top (i.e. 8mm from the top of the picture
to the top of the circle).
Vertical Slope (V-SL)
- Adjust V-SL until there is 99mm from the bottom of the circle to the bottom of the
visible screen.
Horizontal Amplitude (H-AM)
- Adjust H-AM to the correct width of the picture.
Horizontal Phase (H-PH)
- Adjust H-PH to the correct centering of the picture.
East/West Parabola (EW-P)
- Adjust EW-P to the correct geometry at the sides. The middle part of the vertical
lines must be as straight as possible.
East/West Upper Corner (EWUC)
- Adjust EWUC to the correct geometry at the upper corners.
East/West Trapezium (EW-T)
- Adjust EW-T to the correct geometry.
Horizontal PArallelogram (H-PA)
- Adjust H-PA to the correct geometry.
It may be necessary to repeat some of the adjustments.
- Press GO to store the adjustments.
Exit Service Mode.
Adjust Tuner takeover, IF adjust and FM sound adjust
- The values (A) written on the label placed on PCB1, have to be written into the
EEPROM (6IC6) (see ➢7).
- Enter SETUP, select SERVICEMODE with 0, 0, GO. Press the button combination
within 3 seconds. Highlight TV-TUNER, select with GO. Change the settings by
means of land nuntil they match the values on the label. Then press GO to
store the settings.
Exit Service Mode.
ABO-CENTER v/HENRIKSENS ELEKTRONIK

Adjustments, English 2.17
Finish the on-site service
- If a non-customer VTR has been used V.TAPE must be set to NONE. Select OPTIONS
in SETUP. Select CONNECTIONS and set V.TAPE to NONE. Press GO to exit SETUP.
- See #7 Check after replacement of main chassis or modules, for finishing the
on-site service.
#7 Check after replacement of main chassis or modules
Disconnect the ESD mat from the main chassis
- Remove the alligator clip from the aerial input on the main chassis.
Mount back cover
- The back cover can now be mounted. Fasten the screws (Please see 10.1
Disassembly/Assembly).
- Place the TV in its original stand and place and connect all the cables.
- Check that picture on all internal and external sources works correctly.
- Check if teletext works correctly.
- Check geometry of both format 4:3 and format 16:9. Adjust if neccesary.
Sound
- Check that sound on all sources works correctly. Remember satellite and
videotaperecorder, if these are present.
Other
- If a videotaperecorder is connected to the TV, check whether the record and
playback functions work correctly.
- If the TV is mounted with a motor stand, this should be calibrated. Enter SETUP,
select SERVICEMODE with 0, 0, GO. Press the button combination within 3
seconds. Select STAND with GO. Press GO to calibrate the television. When done
and CALIBRATION OK is displayed, press GO to exit. Then check if the stand works
correctly.
Check that the surfaces of the TV are clean, if not they should be cleaned
- See #5 Removal of the contrast screen and cleaning the television for more
information.
ABO-CENTER v/HENRIKSENS ELEKTRONIK

2.18 Service Mode, English
#8 Service Mode
Reading the error code
To read an error code from the television you must access the Service Mode. Then
select MONITOR -> MONITOR INFORMATION. If the television has registered an
error, the error code will be shown in this menu under ERROR.
Access to Service Mode
Select TV SETUP menu
Beo4: Press 0 0 GO within 3 seconds
SERVICE MENU
The STAND line is only shown if the TV is fitted with motorized stand. The function
is described in the section on adjustments.
MONITOR SERVICE MENU
The PICTURE ADJUSTMENTS and GEOMETRY ADJUSTMENTS lines are described in
the section on adjustments.
MONITOR INFORMATION
- Software version numbers
The “STB SW 1.0” line is only shown if the M2 Processor, 1IC200 SDA6000, is
fitted with set top box controller software.
The “STB TABLE 1.0” line shows the version of conversion of set top box remote
control codes into Beo4 codes.
- Type, item and serial numbers
- Theft protection status. Shows if the Master code is correctly entered (STORED/
NOT STORED)
- Option programming
- Latest five TV errors
- Latest ML error
- Latest AVL error from the V.TAPE and AV sockets
OPTION SETTING
Option 0 = The IR receiver of the TV is disconnected.
Option 1 = The TV and the Audio system (BeoLink system) are placed in the same
room.
Option 2 = The TV and the Audio system (BeoLink system) are placed in different
rooms.
Option 5 = The TV and the Audio system (BeoLink system) are placed in the same
link room.
Option 6 = The TV is the only product in the link room.
ERROR:TV
The TV is able to detect certain types of error and display them on the screen.
The five latest TV errors are shown as error codes and displayed with the month/
date (four digits) as provided by the system clock. The most recent error is
displayed at the top. As the TV has no hardware clock the displayed month/date
will not be correct, but can be used to see if more errors have occurred at the
same date.
ABO-CENTER v/HENRIKSENS ELEKTRONIK
