Bante810 Benchtop Dissolved Oxygen Meter
Instruction Manual
BANTE INSTRUMENTS LIMITED

Bante810 Benchtop Dissolved Oxygen Meter
1
Introduction
Thank you for selecting the Bante810 benchtop dissolved oxygen meter. This manual provides a step-by-step guide to help you operate the meter, please
carefully read the following instructions before use. The following list describes the standard accessories of the meter. After the unpacking, please check all
accessories are complete. If any are damaged or missing, please contact nearest distributor.

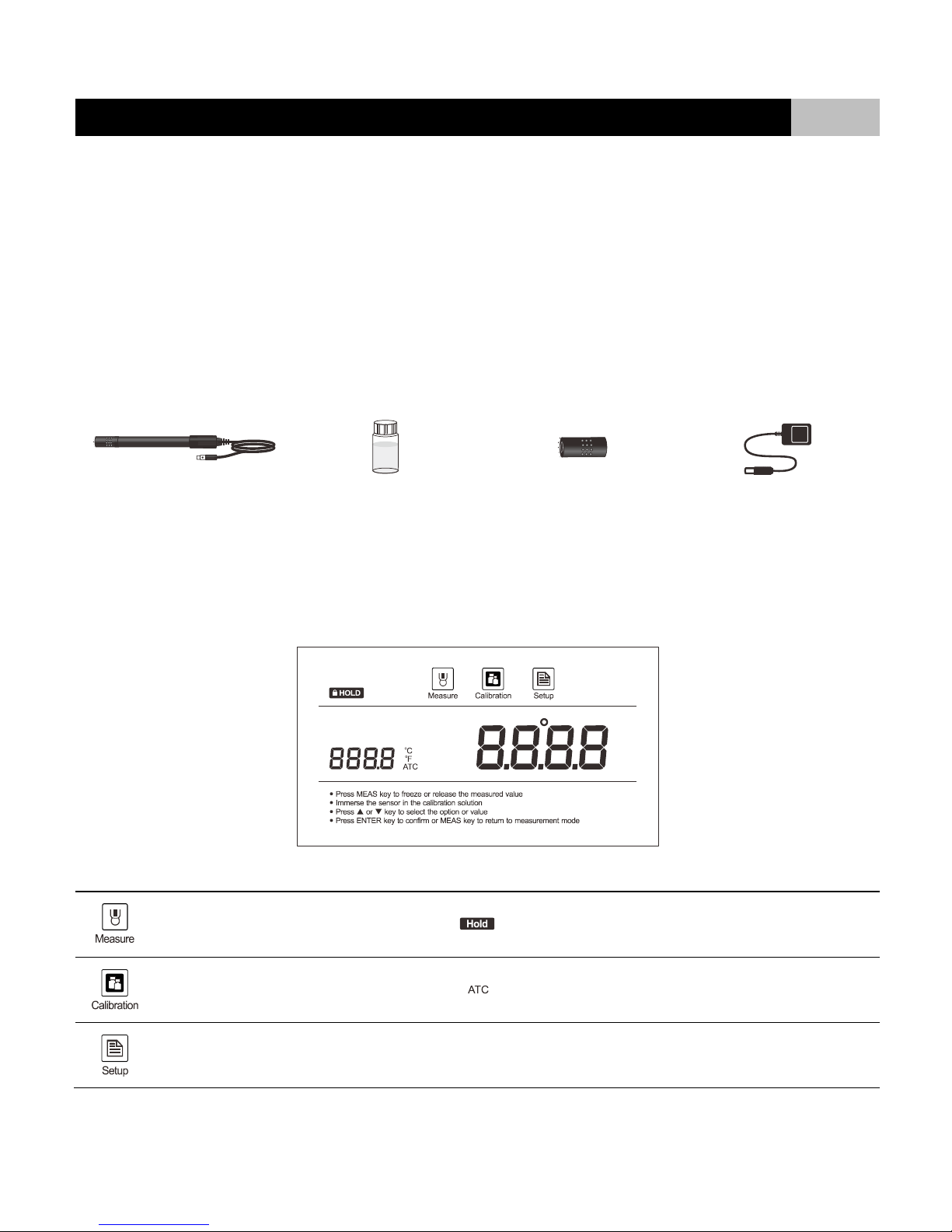

ACCESSORIES:
●Dissolved Oxygen Probe
●Electrolyte Solution
●Membrane Cap
●DC9V Power Adapter
Dissolved Oxygen Probe
Electrolyte Solution
Membrane Cap
DC9V Power Adapter
Display
Bante810 benchtop dissolved oxygen meter is equipped with a clear and bright LCD display that used to show measured value and mode indicators. The
following table describes the meaning of each indicator.
INDEX:
Measurement mode indicator:
Indicates meter is in the measurement mode
Hold indicator:
Indicates the displayed value has been frozen
Calibration mode indicator:
Indicates meter is in the calibration mode
Automatic Temperature Compensation:
Indicates meter is in the temperature compensation mode
Setup mode indicator:
Indicates meter is in SETUP mode
DO
Electrolyte
Solution
ppm
ppt
mg/L
%

Bante810 Benchtop Dissolved Oxygen Meter
2
Keypad
The meter includes 7 multifunction keys, names and symbols describe each function key controls.
KEY
FUNCTIONS
MEAS|
●Power the meter ON/OFF.
●Freezes the measured value on the display, press the key again to resume measuring.
●In the calibration or temperature setting mode, exits current mode and returns to measurement.
MODE
●Toggles between % saturation and concentration modes.
CAL|
●Press the key to enter the calibration mode.
●Press and hold the key to enter the setup menu.
oC
●Press the key to set the temperature or enter the temperature calibration mode.

●Press the key to increase setting value.

●Press the key to decrease setting value.
ENTER
●Confirms the calibration, setting value or displayed option.
Connecting the Electrode Holder
Bante810 benchtop dissolved oxygen meter comes with an easy-to-use holder for mounting the DO probe. If necessary, follow the steps below to install the
electrode holder.
1. The base of the electrode holder with an irregular round hole.
2. The electrode arm has a plastic rod.
Plastic Rod

Bante810 Benchtop Dissolved Oxygen Meter
3
3. Insert the plastic rod into the irregular round hole and swivel the electrode arm 90o. Electrode holder is now ready to swing into desired position.
ADJUSTMENT OF ELECTRODE ARM:
After installation, if the electrode arm automatically rises or falls, you need to adjust the screws until arm locate at any position.
1. Remove the plastic cover from the electrode arm.
2. Use the screwdriver to tighten the screw moderately.
3. Insert the plastic cover to previous position. Installation is completed.
Connectors
The meter provides 2 connectors for connecting the various types of sensors. Listed in the below table are the details of these connectors.
INDEX:
NO.
CONNECTOR
FUNCTION
1
DO
For connecting the dissolved oxygen probe
2
For connecting the DC9V power adapter
COND ATCpH/ISE DOREF
Screws
1
2
Invalid connectors

Bante810 Benchtop Dissolved Oxygen Meter
4
Refilling Electrolyte Solution for DO Probe
1. Take out the DO probe from the packaging. Unscrew the membrane cap from the probe.
2. Fill the membrane cap halfway with electrolyte solution.
3. Screw the membrane cap onto the probe, excess electrolyte will drain out.
4. Be sure the cathode of probe makes contact with membrane cap, the electrolyte solution in membrane cap should be without an air bubble.
Connecting the DO Probe
1. Place the DO probe into left or right sides of the electrode arm.
2. Insert the 6-pin connector into corresponding connector socket, ensure that the connector is fully seated. After connection is completed, DO NOT
pull on the sensor cord. Always make sure that the connector is clean and dry.
Cathode
A. Insert the electrode
B. Hook up the cord
C. Hook up the cord

Bante810 Benchtop Dissolved Oxygen Meter
5
Connecting the Power Adapter
1. Before plugging in the power adapter, ensure the voltage of power adapter matches your local main voltage.
2. Insert the connector of power adapter into the meter power socket, the meter is now ready for use.
Prior to Use
Turn on the meter 10 to 15 minutes and wait for the probe to polarize.
Power On/Off
●Press MEAS key to turn on the meter, the display shows measured value.
●Press and hold the MEAS key for 5 seconds, the meter will turn off.
●If you do not press any key for 3 hours, the meter will turn off automatically.
To disable the auto-off function, please read the SETUP MENU section.

Bante810 Benchtop Dissolved Oxygen Meter
6
Setup Menu
The meter contains an integrated setup menu that allows you to customize each displayed option to meet measurement requirements.
PARAMETER
DESCRIPTION
OPTIONS
DESCRIPTION
DEFAULT
Salinity Coefficient
Setting Range: 0~35ppt
0.0
Barometric Pressure Coefficient
Setting Range: 450~850mmHg
760
Calibration Point
1 point
●
2 points
Measurement Unit
mg/L
Concentration Unit
●
ppm
Concentration Unit
%
% saturation
Degrees Celsius
●
Degrees Fahrenheit
Auto-Hold
Automatically freezes a stable reading
Disable
●
Auto-Off
Automatically turn off the meter
Disable
●
Reset
Restore factory settings
Disable
●
Setting the Default Parameters
1. Press and hold the key for 3 seconds to enter setup menu, the meter shows selected salinity coefficient.
2. Press or key to set the parameter, press ENTER key to confirm. The meter goes to barometric pressure option, the display shows 760mmHg.

Bante810 Benchtop Dissolved Oxygen Meter
7
3. Press or key to set the barometric pressure value, press ENTER key to confirm. The meter goes to calibration point selection mode, the
display shows 1 point calibration.
4. Press or key to select the number of calibration points, press ENTER key to confirm. The display shows concentration unit “mg/L”.
5. Press or key to select the measurement units, press ENTER key to confirm. The meter shows “HOLD/NO” indicating that the auto-hold
function is disabled.
If the auto-hold function is enabled, the meter will automatically sense a stable endpoint reading and freeze it. If you disable this function, the meter
allows you to freeze the reading by pressing the HOLD key.
6. Press or key to enable or disable the auto-hold function, press ENTER key to confirm. The meter shows “OFF/NO” indicating that the auto-off
function is disabled.
When the auto-off function is enabled, if you do not press any keys within 3 hours, the meter will automatically turn off.
Setup
 Press or key to select the option or value 
 Press ENTER key to confirm or MEAS key to return to measurement mode
Setup
 Press or key to select the option or value 
 Press ENTER key to confirm or MEAS key to return to measurement mode

Bante810 Benchtop Dissolved Oxygen Meter
8
7. Press or key to enable or disable the auto-off function, press ENTER key to confirm. The meter shows “RST/NO” indicating that the meter
should not be reset.
WARNING:
Reset function will restore the meter back to factory default parameters, all calibration values and selected system parameters will be lost or reset.
8. Press or key to enable or disable the reset function, press ENTER key to confirm. The meter returns to measurement mode. Setting is
completed.
EXIT THE SETUP MENU:
During the setup mode, press MEAS key, the meter returns to measurement mode immediately.
Setup
 Press or key to select the option or value 
 Press ENTER key to confirm or MEAS key to return to measurement mode

Bante810 Benchtop Dissolved Oxygen Meter
9

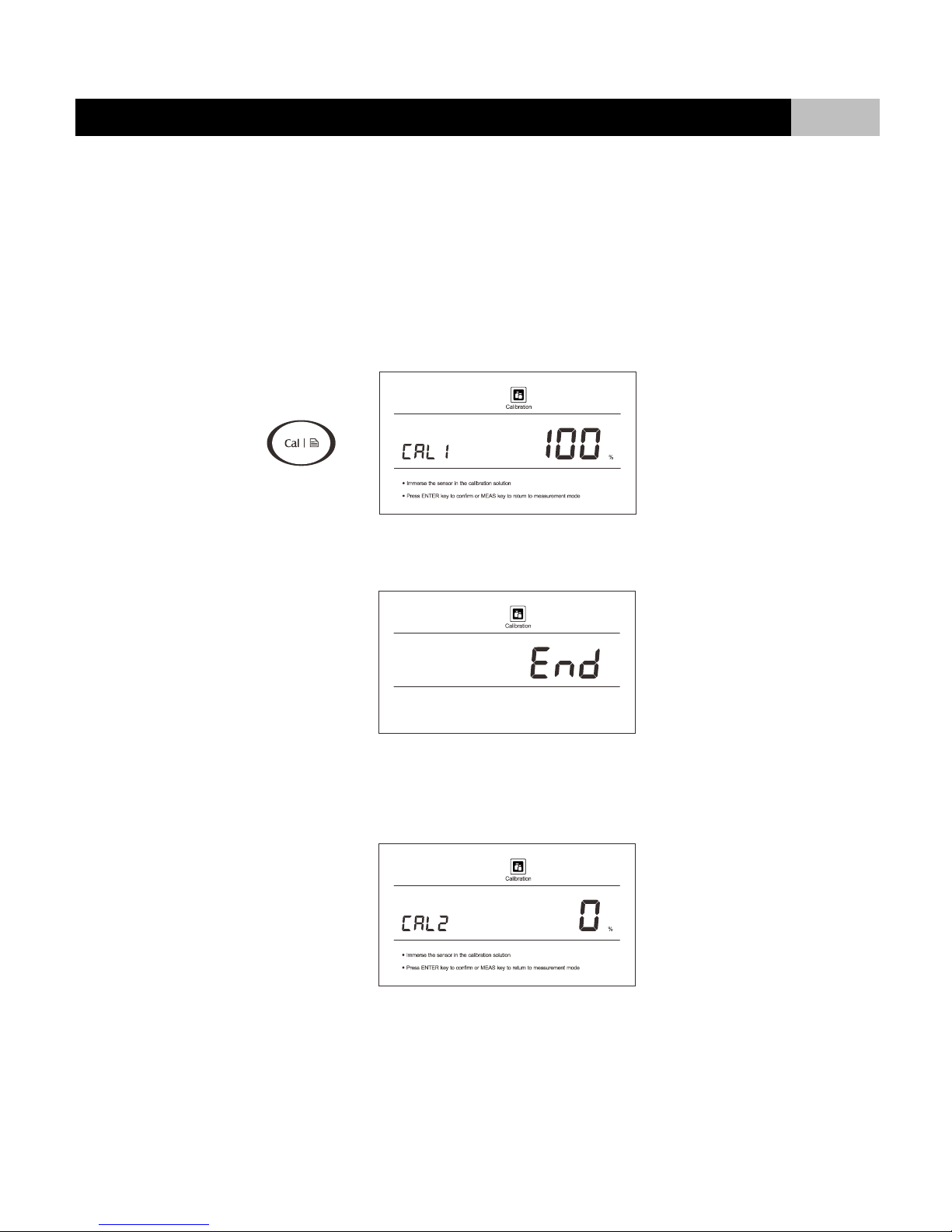

DO Calibration in % Saturation Mode
Bante810 benchtop dissolved oxygen meter can be calibrated quickly in air. In the percentage saturation mode, the meter is able to perform either 1 or 2
points calibration. For single point calibration, we recommend that you perform 100% saturation calibration in the air. For the 2 points calibration, you need
to use zero oxygen solution.
100% SATURATION CALIBRATION:
1.1 Make sure that you have selected 1 point calibration in the setup menu.
1.2 After the DO probe connected with the meter, turn the meter on 10 to 15 minutes to polarize the sensor.
1.3 Press CAL key, the meter shows “CAL1/100%”.
1.4 Hold the DO probe in the air or place the sensor into air-saturated water for 3 to 5 minutes. Press ENTER key to confirm. Wait for the measured
value to stabilize, the display shows “END”. Single point calibration is completed.
2 POINTS CALIBRATION:
2.1 Make sure that you have selected 2 points calibration in the setup menu.
2.2 Repeat steps 1.2 to 1.4 above. When the first calibration point is done, the display shows “CAL2/0%”. The meter prompts you to continue with
second point calibration.
2.3 Submerse probe in the zero oxygen solution, stir the sensor gently.
2.4 Press ENTER key to confirm. Wait for the reading to stabilize (this can often take more than 10 minutes), the display shows “END”. The meter
returns to measurement mode. Calibration is completed.
Performing a percentage saturation calibration will simultaneously calibrate the corresponding mg/L ( or ppm ) concentration value. Therefore,
additional mg/L calibration isn’t required in most circumstances.

Bante810 Benchtop Dissolved Oxygen Meter
10
Temperature Calibration
During the measurement, if the temperature reading displayed differs from that of an accurate thermometer, you need to calibrate the meter.
1. Press oC key to enter the temperature calibration mode, the meter shows current temperature reading.
2. Press or key to set temperature value.
3. Press ENTER key to confirm. Calibration is completed.
Measurement
Bante810 benchtop dissolved oxygen meter is suitable for measuring the water, wastewater, brine and other liquids. If you use meter to measure seawater
or other water containing large amounts of salt, please set the salinity coefficient before use.
Some gas and steam such as chloride, sulfur dioxide, sulfureted hydrogen, ammonium, carbon dioxide and iodin can permeate the membrane via diffusion. So
their existence will influence the measurement of dissolved oxygen.
If the sample contains solvent, grease, sulfide and alga, the membrane will be blocked, damaged or eroded.
1. Press MEAS key to turn on the meter, wait for 15 minutes to polarize the probe.
2. If necessary, to set the barometric pressure and salinity coefficient in the setup menu (Refer to “SETUP MENU” section).
3. Submerse probe in the sample solution, make sure the temperature sensor on the probe is fully immersed.
4. Stir the probe gently, wait for the reading to stabilize, record the measured value on the display.
Hold Function
Bante810 benchtop dissolved oxygen meter contains two data hold modes. When the Auto-Hold function is enabled, the meter will automatically sense a
stable endpoint reading and freeze it, “HOLD” indicator appears on the display. If the Auto-Hold function is disabled, press key, the meter will immediately
freeze currently displayed value. Press the key again to release the measured reading, you can continue to take measurement.
Setup
oC
ATC
 Press or key to select the option or value 
 Press ENTER key to confirm or MEAS key to return to measurement mode
Measure
oC
ATC
Press MEAS key to freeze or release the measured value
mg/L
Temperature Sensor

Bante810 Benchtop Dissolved Oxygen Meter
11

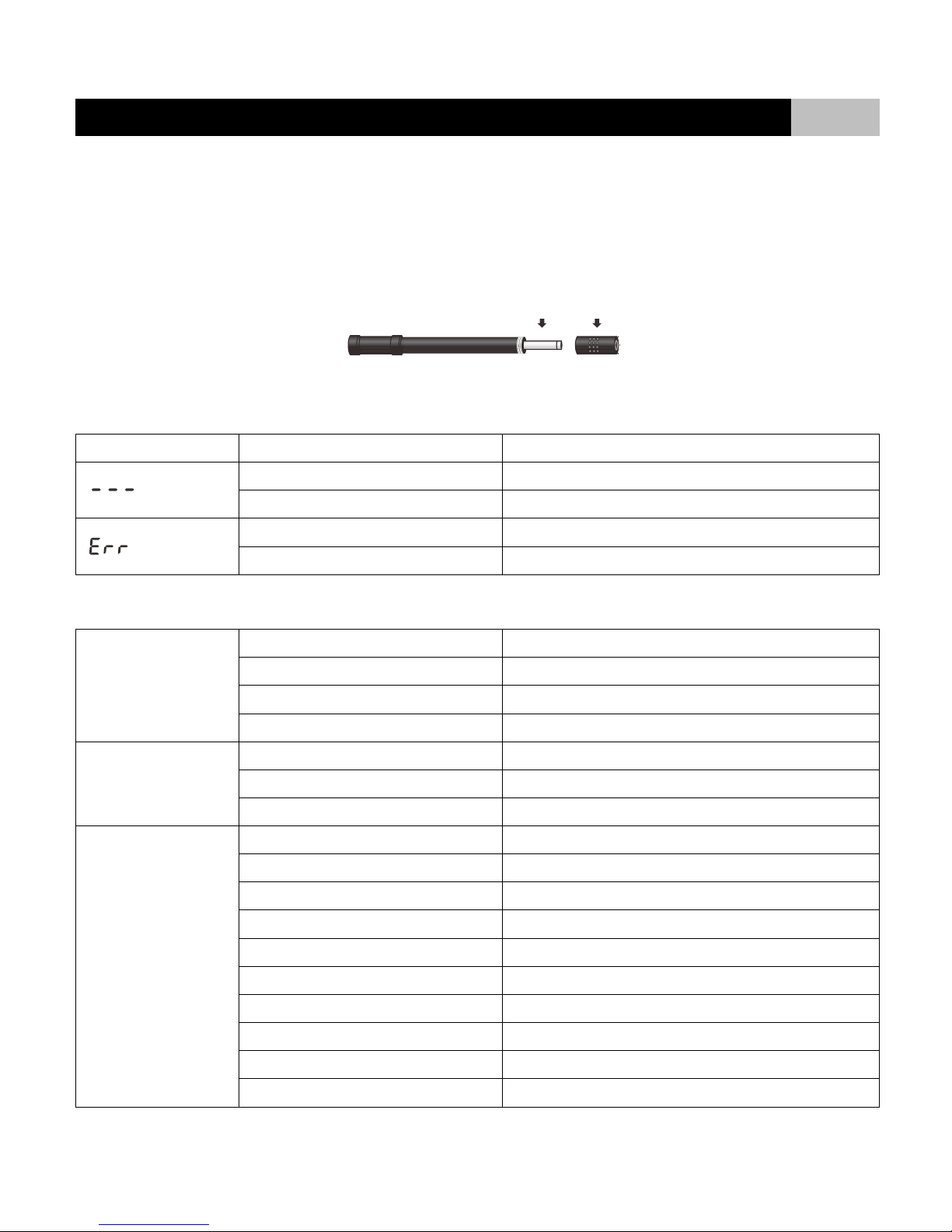

DO Probe Care and Maintenance
●Please always keep probe’s membrane moist.
●If you do not use the dissolved oxygen probe for long periods, please screw off membrane cap and rinse the probe's cathode, anode and the
membrane with deionized water, then soak up residual water on them with filter paper, and install the probe.
Troubleshooting
LCD DISPLAY
CAUSE
CORRECTIVE ACTION
DO probe does not connect to meter
Check the connector of sensor
Measured value is out of range
Check the DO membrane whether clogged, dirty or broken
Electrolyte solution is depleted
Refilling electrolyte solution
Zero oxygen solution is contaminated
Replace the calibration solution
Specifications
Dissolved Oxygen
Model
Bante810
Range
0.0~20.0mg/L (or ppm)
Accuracy
± 0.5mg/L
Resolution
0.1mg/L
% Saturation of Oxygen
Range
0.0~200.0%
Accuracy
± 10% F.S
Resolution
0.1%
Others
Temperature Compensation
0~40°C, 32~104°F
Barometric Pressure Correction
60.0~112.5kPa, 450~850mmHg
Salinity Correction
0~35g/L
Power Requirements
DC9V, using AC adapters, 220VAC/50Hz
Hold Function
Manual or Automatic
Power Off
Manual or Automatic (180 minutes after last key pressed)
Connector
6-pin Mini Plug
Power Requirements
DC9V, using AC adapters, 220VAC/50Hz
Dimensions
210(L)× 205(W)× 75(H)mm
Weight
1.5kg
Cathode and Anode
Membrane cap

Bante810 Benchtop Dissolved Oxygen Meter
12
Addendum 1: Pressure VS Altitude Table
ALTITUDE (m)
kPa
mmHg
0
101.3
760
100
100.1
750
200
98.8
741
300
97.6
732
400
96.4
723
500
95.2
714
600
94.0
705
700
92.8
696
800
91.7
688
900
90.5
679
1000
89.4
671
1100
88.3
662
1200
87.2
654
1300
86.1
646
1400
85.0
638
1500
84.0
630
1600
82.9
622
1700
81.9
614
1800
80.9
607
1900
79.9
599
2000
78.9
592
Addendum 2: How to prepare the zero oxygen solution
Dissolve 500mg of sodium sulfite reagent and a small amount of cobalt(II) chloride hexahydrate (CoCl2 ●6H2O) in the 250mL distilled water, mix the
solution until reagent is completely dissolved.

Hazardous Substance Statement
Bante Instruments Limited is committed to the reduction and eventual elimination of all hazardous substances in both the manufacturing process and finished
products we supply. We have an active manufacturing and procurement program to minimize and eliminate the use of harmful heavy metals such as cadmium,
lead, mercury and the like. New technologies and design parameters are also promoting these efforts and we expect to have little or no such materials in our
product in the coming years. We welcome our customer suggestions on how to speed up these efforts.
Warranty
The warranty period for meter is one year from the date of shipment. Above warranty does not cover sensor and electrolyte solution. Out of warranty
products will be repaired on a charged basis. The warranty on your meter shall not apply to defects resulting from:
●Improper or inadequate maintenance by customer.
●Unauthorized modification or misuse.
●Operation outside of the environment specifications of the products.
For more information, please contact the nearest authorized distributor.
BANTE INSTRUMENTS LIMITED
E-mail: [e-mail]
Phone: [phone]
Website: www.bante-china.com
The information in this document is subject to change without notice. Copyright © Bante Instruments Limited, 2015. All rights reserved.
