BAOJIE BJ-218 User manual

• Please do not put vehicle transceiver under the sun overtime, and do
not put in beside the heating equipment.
• Please do not put the vehicle transceiver in the place where is dusty
and moist, and do not put in one the uneven flat.
• If there is smell or smog from vehicle transceivers, please turn off
the power and contact the dealer.
• Using vehicle transceiver when driving may violate traffic rules, please
obey local traffic rules.
Unpacking and Inspection:
elcome to use radio. Beforeusing,
we suggest you:
• Please check the packaging
of this product if there is damage.
• Please carefully open the
box checking whether the
products are as following
listed table.
• If there is any damzage
or lost of product and its
accessories during
transportation, please
contact deale immediately.
Standad Configuration
ITEMS QTY
Machine body 1
Hnd microphone 1
Assembly
supporting rack 1
Power line 1
j Screws 1
Instructions 1
1

1 .Hand microphone/Frequency
writing connection hole
2.Display screen
3.Quit/locking key
4.Radio button
5. orking mode switch
Display screen
6.Upper and lower
frequency switching
7.Volume down
8.Power switch/function button
9.Up
10.Down 11.Volume up
Picture Instruction
hen transm itting,the screen indicates transm itting
signalvvstrength and when receiving, the screen in
dicates receiving signal strength.
;38 In channel mode, channel serial number is shown
under the frequency and channel nam e. hen setting
the m enu,screen shows the current menu number.
1 4 6 5 5 0 3
435.85025 Indicating receiving and transm itting frequency, FM
frequency, menu, menu value and other status.
2

Picture Instruction
hThis symbol is undefined.
CT Indicating CTCSS, when it shows during transmitting, it
indicates CTCSS is during transmitting.
aIndicating the scrambler function is opening.
DCS Indicating digital sound, when it shows during transmitting,
it indicated DCS is during transmitting.
IS Indicating com panding function is opening.
+hen this symbol shows under the frequency mode,
it indicatesv the transm itting frequency is receiving
frequency plus a slip frequency.
-
hen this symbol shows under the frequency mode, it
indicates transmitting frequency is receiving frequency
minus a slip frequency.
BDR This symbol shows when repeater function is opening.
VOX This symbol is undefined
©The receiving and transm itting frequency is reversed
when in frequency and channel mode.
NThis sym bol show s w hen channe l w orkin g in
na rro w ban d way.
ИThis sym bol is undefined.
eThis sym bol is undefined.
3

Picture Instruction
ттгО This sym bol shows when keyboard is locked, and
it will be relived when long pressing “ E X IT”.
HInd icating the current tran sm itting freque n cy is a
high freq uency.
LIndicating the current transm itting frequency is a low
frequency.(The m iddle frequency will not indicate)
4Indicating the current working frequency of transmitting,
receiving and standby.
and microphone
1. [PTT]:Transmitting
2. [A A /B ]:A /B channel switch,
character “ A ”
3. [B v/M]: orking mode switch,
character “ В ”
4. [С MENU]:Function key, character “ C”
5. [D EXIT]:Exit key, character “ D”
6. [ t ]:Frequency, channel and menu up
7. [ I ]:Frequency, channel and menu down
8. Number key:Number “ 0-9,*,#"
9. Microphone:Press[PTT], talk to microphone
10. Transmitting indicator:Transmitting indicator
4

and microphone shortcut key operation instruction
Function Operation process
Frequency
adjusting P ress[A д /В ] f / i key to adjust frequency -* or input fre quency needed d irectly by keyboard.
orking
mode selecting
Press[B v/M ],(once the key pressed, the working mode
is circulated in frequency mode — channel frequency+
channel number — channel name+channel number)
FM radio [C M ENU] [1FM] — t (channel selection) — 1
(chzannel sele ction),press[D EXITjto exit.
Frequency
scanning
[C MENU] [2SCN], press t / 1 can change up scanning
or down scanning — [C MENU] (stop in current channel) or
[D EXIT](stop in current scanning channel)
Reverse
frequency setting [C M EN U] [3R E V ], start re c e iving /transm itting
exchanging and re living: sam e m ovem ent
Transmitting
frequency
adjusting [C MENU] ^ [4H/L] - t (up)/ 1 (down) - [C MENU]exit.
Channel working
bandwidth [C MENU] ^ [5 /N] - f (u p )/, (down) - [C MENU]exit.
Companding
function [C MENU] - [6CMP] - t (up)/(down) - [C MENU]exit.
Encryption
function [C MENU] [7SRMR] - t (up)/1 (down) - [C MENU]exit.
Slip frequency
direction [C MENU] - [8SFT] - t (up)/ 1 (down) - [C MENU]exit.
5

Function Operation process
Step frequency
setting [C MENU] - [9STEP] -* + (up)/ i (down)(2.5K, 5.OK.
6.25K, 10.OK, 12.5K, 25.ОК. 5 0 K )- [C MENU]exit.
SQL adju stin g [C MENU] — [OSQL] — t / i key(SQ0~SQ9) - [C MENU]
exit.(SQ0 is SQL opening, there is rustle in the background,
SQ1 is the most sensitive one, and SQ9 is the lowes one)
Menu function setting operation
Menu setting step:[MENU key]-*[MENU key]-^[CH+ key]or[CH- key]
to select^ [MENU key]enter to select items^[CH+ key]or[CH- key]
to adjust parameters-^[MENU key] to storage-^[EXIT keyjexit.
The right number in the screen is the item number:
Menu Character Function
description
Second level
menu displaying
character
Second level menu
setting description
01 R-CTC Receive
CTCSS OFF No CTCSS
67.0-254.1 Hz CTCSS standard series
02 R-DCSN
Receive digital
sound positive
code
OFF No CTCSS
D023N-D754N Digital sound correcting
code standard series
03 R-DCSI
Receive digital
sound inverse
code
OFF No CTCSS
D023I-D754I Receive digital sound
radix-minus-one complement
standard series •
6

Menu Charaeisr
«•spbyhg Function
description
Second level
menu cSspiaying
character
Second level menu
setting description
04 R-MOD
The horn
opening
method
QT The horn opens when
CTCSS frequency matches.
QT+ANI
The hom opens when CTCSS
frequency and credential code
both can be matched.
05 T-CTC Transmit
CTCSS
OFF No CTCSS
67.0-254.1 Hz CTCSS standard series
06 T-DCSN
Transmit
digitalsound
positive code
OFF No CTCSS
D023N-D754N D ig ita l sound p os itiv e
code stan d ard series
07 T-DCSI
Transmit digital
sound inverse
code
OFF No CTCSS
D023I-D754I D ig ita l sound inverse
code stand ard series
08 T-DTM1
Press PTT to
transmit dual
tone muzltiple
frequency
OFF Press PTT to stop transmit
code
DTMF1-8 Press PTT to transmit DTMF
code
D1-8+ANI Press PTT to transmit DTMF
and ANI code
ANI Press PTT to transmit ANI
code
7

Menu Character
displaying Function description
Second level
menu displaying
character
Second level menu
setting description
09 T-DTM2
Loose PTT to
transmit dual
tone multiple
frequencyz
OFF Loose PTT to stop
tran sm it code
DTMF1-8 Loose PTT to transmit
DTMF code
D1-8+ANI Loose PTT to transmit
DTMF and ANI code
ANI Loose PTT to tran sm it
ANI code
10 PO ER
Set
transmitting
frequency
HIGH Transmit with high frequency
MIG Transmit with middle frequency
LO Transmit with low frequency
11 /NA Select
bandwidth
IDE ide band w ork ing
NARR Narrow band working
12 COMP Voice
companding
OFF No com panding function
ON
Open companding function
(improving communication
clarity)
13 SRMR Voice
encryption
OFF No voice encryption function
ON Open voice encryption function
(to make voice encryption on
communication)
8

Menu Character
cfisptaying Function
description
Secondlevet
menu displaying
character
Second level menu
setting description
14 SFT
Slip
frequency
direction
OFF
In the frequency mode,
transmitting frequency and
receiving frequency have
not slip frequency
+
In the frequency mode,
transmitting frequency is
receiving frequency plus
slip frequency
-
In the frequ ency m ode,
tra n s m ittin g mode is
receiving frequen cy
m inus slip freq u ency
15 OFFSET Slip
frequency 00.0000-90.0000
In the frequency mode, the
slip frequency between
transmitting and receiving
frequency
16 STE Stepped
frequency
2.50K
. .. 5.00K „
6.25K
10.00K
12.50K
25K
50.00K
In the frequency mode,
press UPand DO N to
change frequencystep
value
17 CH-MEM Channel
store 000-127 hen storing channel, it
indicates the storage
channel number
18 CH-DEL Channel
delete 000-127 hen deleting channel, it
indicates the deleting
channel number
9

1МШм menu cispfaying
cfi3f3cter
Second level menu
selling description

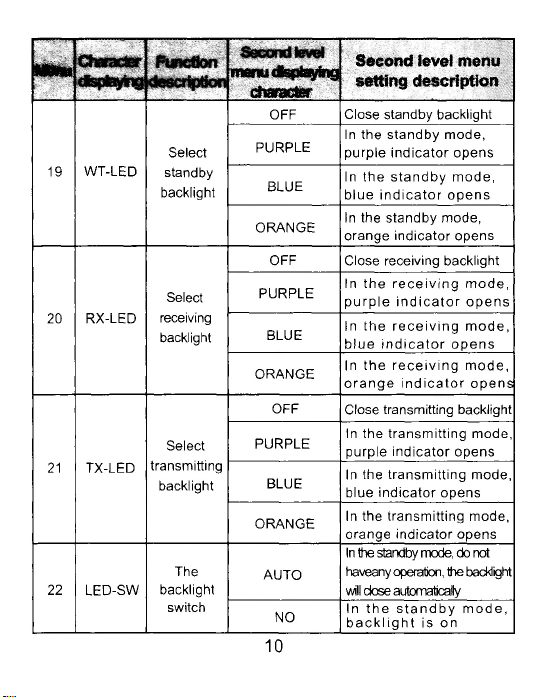

19 T-LED Select
standby
backlight
OFF Close standby backlight
PURPLE In the standby mode,
purple indicator opens
BLUE In the standby m ode,
blue indicator opens
ORANGE In the standby mode,
orange indicator opens
20 RX-LED
Select
receiving
backlight
OFF Close receiving backlight
PURPLE In the re ce iving m ode,
purple ind ica to r opens
BLUE In the re ceiving m ode,
blue ind ica to r opens
ORANGE In the rece iving m ode,
orang e in d icato r opens
21 TX-LED
Select
transmitting
backlight
OFF Close transmitting backlight
PURPLE In the transm itting mode,
purple indicator opens
BLUE In the transm itting mode,
blue indicator opens
ORANGE In the transm itting mode,
orange indicator opens
22 LED-S The
backlight
switch
AUTO
In the standby mode, do not
haveany operation, the backlight
will dose automatically
NO In the sta nd b y m ode,
b ac k lig h t is on
10

Menu Character
cisplaying Function
description
Second level
menu displaying
character
Second level menu
sotting description
23 BEEP arning
tone
OFF Close operation warning tone
NO Open operation warning tone
24 RING Ringing time
OFF Close calling warning tone
1~9S
hen receiving matched
signal,machine sends out
voice, when the voice times
out, the horn will be opened
25 BCL Busy lock OFF hen the channel is
occup ied .it’s allowed to
transm it
ON hen the channel is occupied
it’s not allowed to transmit
26 TOT Transmitting
time limit
OFF There is not time limit when
continuous transmitting
30S-600
hen pressing PTT key,
the transmitting time is the
longest
27 TONE Pilot frequency
1000Hz
hen transmitting, press
EXIT key to adjust frequency
and active relay station
1450Hz hen transmitting, press
EXIT key to adjust frequency
and active relay station
1750Hz hen transmitting, press
EXIT key to adjust frequency
and active relay station
11

М&ш displaying descriptionmenu displaying
. -
Second level menu
setting description

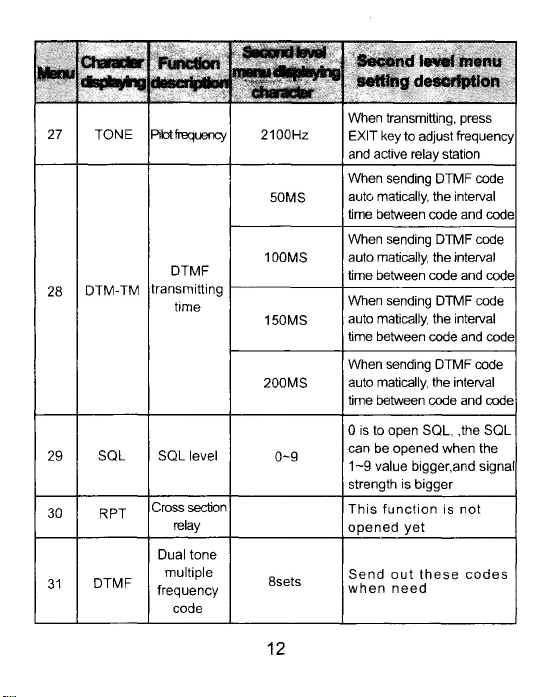

27 TONE Riot frequency 2100Hz hen transmitting, press
EXIT key to adjust frequency
and active relay station
50MS hen sending DTMF code
auto matically, the interval
time between code and code
28 DTM-TM DTMF
transmitting
time
100MS hen sending DTMF code
auto matically, the interval
time between code and code
150MS hen sending DTMF code
auto matically, the interval
time between code and code
200MS hen sending DTMF code
auto matically, the interval
time between code and code
29 SQL SQL level 0-9
0 is to open SQL, ,the SQL
can be opened when the
1-9 value bigger,and signal
strength is bigger
30 RPT Cross section
relay This function is not
opened yet
31 DTMF
Dual tone
multiple
frequency
code
8sets Send out th ese codes
when need
12

Menu Character
tfspbtfine fu n c tio n description
Second le el
menucfispiaying
character
Second le el menu
setting description
32 A NIJD Individual
code
Its to observe machine’s
setting (only can be written
by frequency writing program)
33 RESET Initialization RS-NO Do not use menu initialization
RS-YES Menu initialization
Selected calling team calling and group calling
This machine equipped with function of sending and editing personal
code as well as DTMF decoding. To achieve selected calling and group
calling without using other equipment.
Note: hen using any other radio in the group, should edit different
individual code.
Following parameters should be set when using this function:
1. Set horn opening method(function menu no.4) isQT+ANI
(CTCSS+individual code).
2. Set ringing tim e (fu nction menu no .24).
Group calling function
Press[PTT]key to transmit, input[*]key from keyboard.(input[*] digits
is same asmachine’s ID code).
For example: If the ID code of called party is [12345], then press
[PTT] key to transmit, input five [*] key from keyboard. All thecalled
party who have same digits will have ring.
13

Team calling function
Press [PTT] key to transmit, input[team number] + [*]key.
(input digits is sameas machine’s ID code)
For example: if the ID code of called party has [12345],[12789],
[23888],then press[PTT] key to transmit, then input[12]+[***]key. All
the called party who have [12] in the beginning will have ring, called
party who has [23] in the beginning will not have ring.
Selected calling function
Press [PTT] key to transmit, input the called party’s individual code
from keyboard.
For example: if the called party’s ID code has [12345], thenpress
[PTT] key to transmit, input[12345]key. All selected radio willhave
ring.
Remote control function
Before using remote control function, the machine should be
active, at the same time, should set radio’s ID code that is main
master code. All the setting only can be done by frequency writing
program.
1. Open frequency w riting program .
2. Vehicle transceiver connects with PC through frequency
writing cable. (8 needle crystal head insert to hand microp
one port)
The precondition of using remote controlfunctionis to set IDcode.
Different remote control functionshould set different control code.
14

As following picture:(following value is for zreference)
• In the above table, the longest
control code has 7 digits, the
shortest has 1 digit. The length
of control code should within
3-5 digits.
• The control code in the above
only can beset by frequency
writingprogram provided by
our company.
• The opening code, stunning code,
shaking code and monitoring code
should begin with
• Master ID code should be set the same with machine ID code.
• If don’t want to be controlled, the control code is not need to input.
Remote stunning(prohibit to be transmitted by
controlled party)
Press PTT+#33(stunning code)+12345(master control ID code),then
loose PTT.
If the stunning code of controlled party is same as master ID code,
the remote stunning function is prohibited.
Remote shaking code(the controlled party is
prohibited to receiving and transmitting)
Press PTT+#44(shaking code)+12345(master ID code), then
loose PTT.
15
ANI code : 112345
Master control. I 0 *
IDcode -1123 4 d
Alarm: | 1 19
Identity display. |“^
Revive: [#77
Stun: | #33
Kill: [#44
Monitor: j #22
Current status : j norm al

If controlled party’s shaking code is same as master’s ID code, the
remote shaking function is prohibited.
Remote monitoring(monitor the controlled
party’s environment voice)
Press PTT+#22(monitoring code)+12345(master ID code), then
loose PTT.
If the controlled party’s monitoring code is same as master’s ID
code, then the controlled party will transmit automatically and start
monitoring function.(monitoring time is 7 seconds)
Remote reliving stunning and
Press PTT+#77(opening code)+12345(master ID code), then
loose PTT.
If the controlled party’s opening code is same as master’s ID code,
then the function will be relived.
Alarm
Press PTT+119(alarming code),then loose PTT.
If the controlled party’s alarming code is same the sending one,
then the controlled starts alarm.
If adding master’s ID code or others in the end of alarm code,then
the controlled party will display master’s ID code and others after
starts alarm,so that the controlled party can know which party
starts alarm.
16

Specification
orking frequency
scope
A model: VHF1: 136.000MHz - 174 OOOMHz
В model: VHF2: 220.000MHz - 248 OOOMHz
С model: UHF 1: 400.000MHz - 470.000MHz
System F3E (FM)
Antenna impedance 50 Q
Frequency stability ±2.5ppm @ -10°C ~ +60 "C
orking environment
temperature -20°C - +60°C (-4° F - +140° F)
Input voltage Direct current 13.8V(±15%) , negative grounding
Output power High power: ^ 25 ; middle power: ^10 ;
low power: ^5
Output power
(custom made) High power: ^1 0 ; middle power: sS6 ;
low power: ^3
Max. Frequency
deviation ±5KHz
Noise radiation ^-60dB
Flexibility s?0.2uV(12dBSINAD)
Max. Audio output 2 a 8 Q 5% distortion
orking current Receive 0.3A (SQL)
Transmit 5A(Max.)
Dimension 105 X 30 X 106mm (width X hight X depth not
including the outparts)
eight about 0.5 kg
Declaration
This manual has been sought during the preparation of accurate and
complete, but for the errors and omissions that may appear on the
text, the company is not responsible. The company has right to
change product’s design and specifications without prior notice.
17

Instructions for Dual Band Vehicle Transceiver
- Remind: ---------------------------------------------------------
Purchase and use of this equipment belongs to set up using the radio
(station) behavior, we must apply the law to establish the station approval
procedures to obtain a radio station license. hen using the machine, it
should work in accordance with the station license approved projects.
Arbitrarily set using a radio (station), interference of radio semces, not
according to the approved project work and other violationsof radio regulations
by the radio management organizations subject to administrative penalties.
Thank you very much for purchasing our products. Our company
devotes to supply the best quality and expeditionary vehicle transceiver.
e believe that you would be satisfied with our products.
Note:
Please obey following rules, so that can avoid fire, the harm on person
or damage on vehicle transceiver.
• hen you are driving, please do not try to setting the vehicle
transceiver, otherwise it will lead to dangerous consequences.
• This vehicle transceiver should be connected to 13.8V DC power
supply! Do not use 24V power supply to operate this vehicle
transceiver
• Please do not transmit by high power for a long time, otherwise the
vehicle transceiver will be over-heated and the lifespan will be shortened.
