1. Introduction
1. INTRODUCTION
Purpose of the CompactLink
The CompactLink allows to have a bigger distance between the digitizer and the LEDwall or between to parts of a LEDwall. Two
CompactLinks are available, 50 m and 100 m.
1.1 Overview of the different kits
The order numbers of the kits
Order number Description
R9853320 CompactLink 50 (complete kit)
R9853330 CompactLink 100 (complete kit)
R9853340 CompactLink cable interface kit
R9853323 CompactLink 50 without cables
R9853333 CompactLink 100 without cables
1.2 CompactLink 50 and CompactLink 100
Overview R9853320
Article
number Description Quantity Image reference
R9853323 CompactLink 50 1image 1-1
Z3499464 CableDVI-DVI600mm 2image 1-4
Z3499461 Cable DVI - MDR 26 Compact 600 mm 2
Z3499463 Cable DVI - MDR 26 Waterproof input 600 mm 1image 1-2
Z3499462 Cable MDR 26 waterproof output - DVI 600mm 1image 1-3
Water resistant housing 4image 1-5
Cable sealing 8image 1-6
Wire tire 8
Overview R9853330
Article
number Description Quantity Image reference
R9853333 CompactLink 100 1image 1-1
Z3499464 CableDVI-DVI600mm 2image 1-4
Z3499461 Cable DVI - MDR 26 Compact 600 mm 2
Z3499463 Cable DVI - MDR 26 Waterproof input 600 mm 1image 1-2
Z3499462 Cable MDR 26 waterproof output - DVI 600mm 1image 1-3
Water resistant housing 4image 1-5
Cable sealing 8image 1-6
Wire tire 8
R5976867 COMPACTLINK 03/03/2005 1

1. Introduction
Image 1-1
CompactLink cable 50 or 100 m Image 1-2 Cable DVI - MDR Waterproof input 600mm Image 1-3 Cable DVI - MDR Waterproof output 600mm
Image 1-4
Cable DVI - DVI 600mm
Image 1-5
Waterproof housing
Image 1-6
Cable sealing part
1.3 Cable interface kit R9853340
Overview
Article
number Description Quantity Image reference
Z3499464 CableDVI-DVI600mm 2image 1-4
Z3499461 Cable DVI - MDR 26 Non-Waterproof 600 mm 2
Z3499463 Cable DVI - MDR 26 Waterproof input 600 mm 1image 1-2
Z3499462 Cable MDR 26 waterproof output - DVI 600mm 1image 1-3
2R5976867 COMPACTLINK 03/03/2005

2. Configuration diagrams
2. CONFIGURATION DIAGRAMS

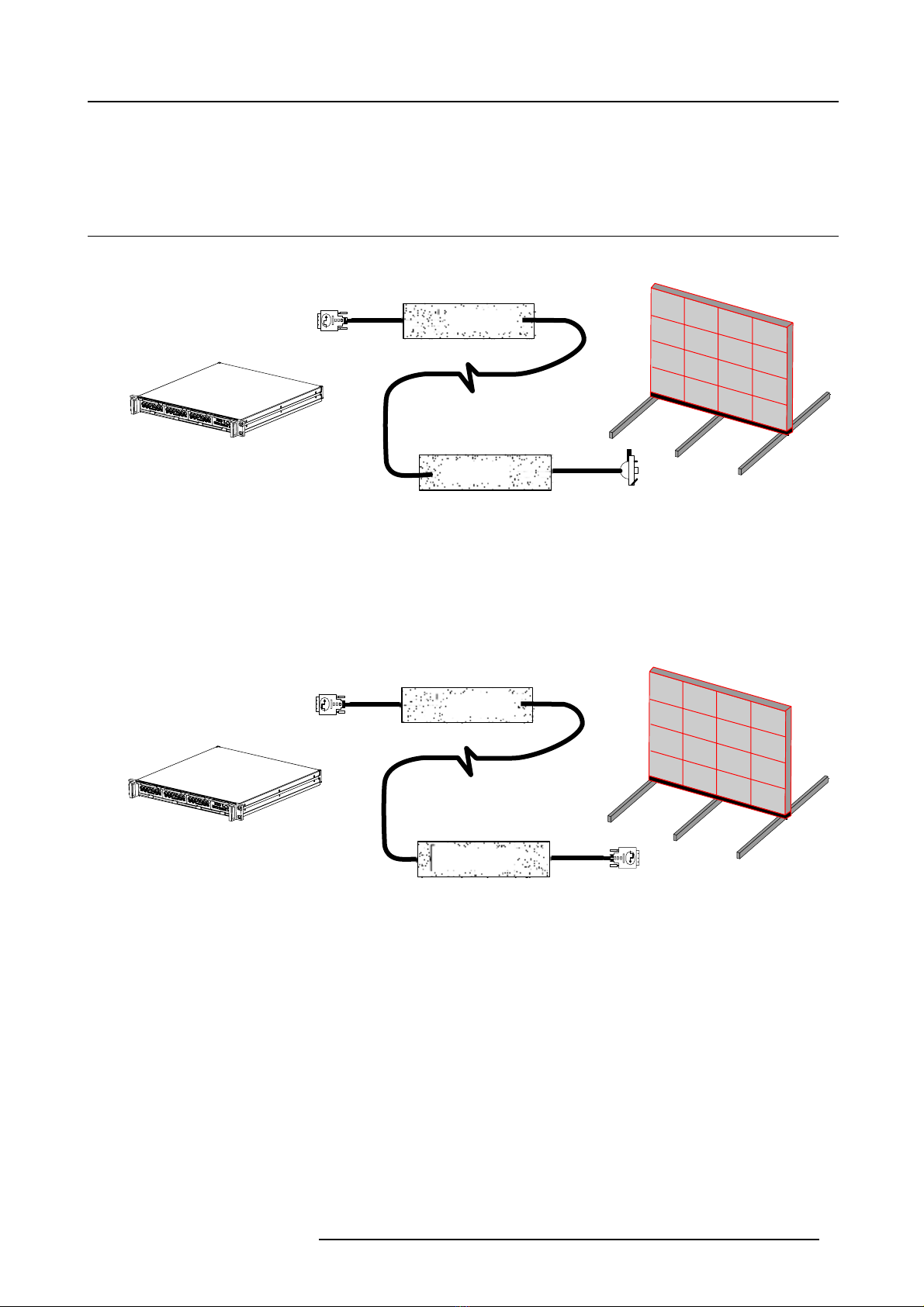

2.1 Overview
Between Digitizer and outdoor LEDwall
Transmitter
Receiver
A
BCD
CE
F
Image 2-1
Digitizer - CompactLink - Outdoor ledwall
A Digitizer
B DVI - DVI 600mm cable
C Waterproof housing
D CompactLink 50 or 100
E DVI – MDR 26 waterproof input cable
F Outdoor LEDwall (DLite, SLite, OLite)
Between Digitizer and indoor LEDwall
Transmitter
A
BCD
CE
F
Receiver
Image 2-2
Digitizer - CompactLink - Indoor ledwall
A Digitizer
B DVI - DVI 600mm cable
C Waterproof housing
D CompactLink 50 or 100
E DVI – DVI cable 600mm
F Indoor LEDwall (ILite)
R5976867 COMPACTLINK 03/03/2005 3

2. Configuration diagrams
Between outdoor LEDwall and an outdoor LEDwall
A
BCD
CE
F
Transmitter
Receiver
Image 2-3
Outdoor ledwall - CompactLink - Outdoor ledwall
A Outdoor LEDwall (DLite, SLite, OLite)
B MDR 26- DVI 600mm output cable
C Waterproof housing
D CompactLink 50 or 100
E DVI – MDR 26 waterproof input cable
F Outdoor LEDwall (DLite, SLite, OLite)
Between indoor LEDwall and an indoor LEDwall
Transmitter
A
BCD
CE
F
Receiver
Image 2-4
Digitizer - CompactLink - Indoor ledwall
A Indoor LEDwall (ILite)
B DVI - DVI 600mm cable
C Waterproof housing
D CompactLink 50 or 100
E DVI – DVI cable 600mm
F Indoor LEDwall (ILite)
When a MiPIX wall is used in one of the configurations, use the DVI - MDR 26 non waterproof cable to connect
to the CompactLink.
4R5976867 COMPACTLINK 03/03/2005

3. Installation
3. INSTALLATION

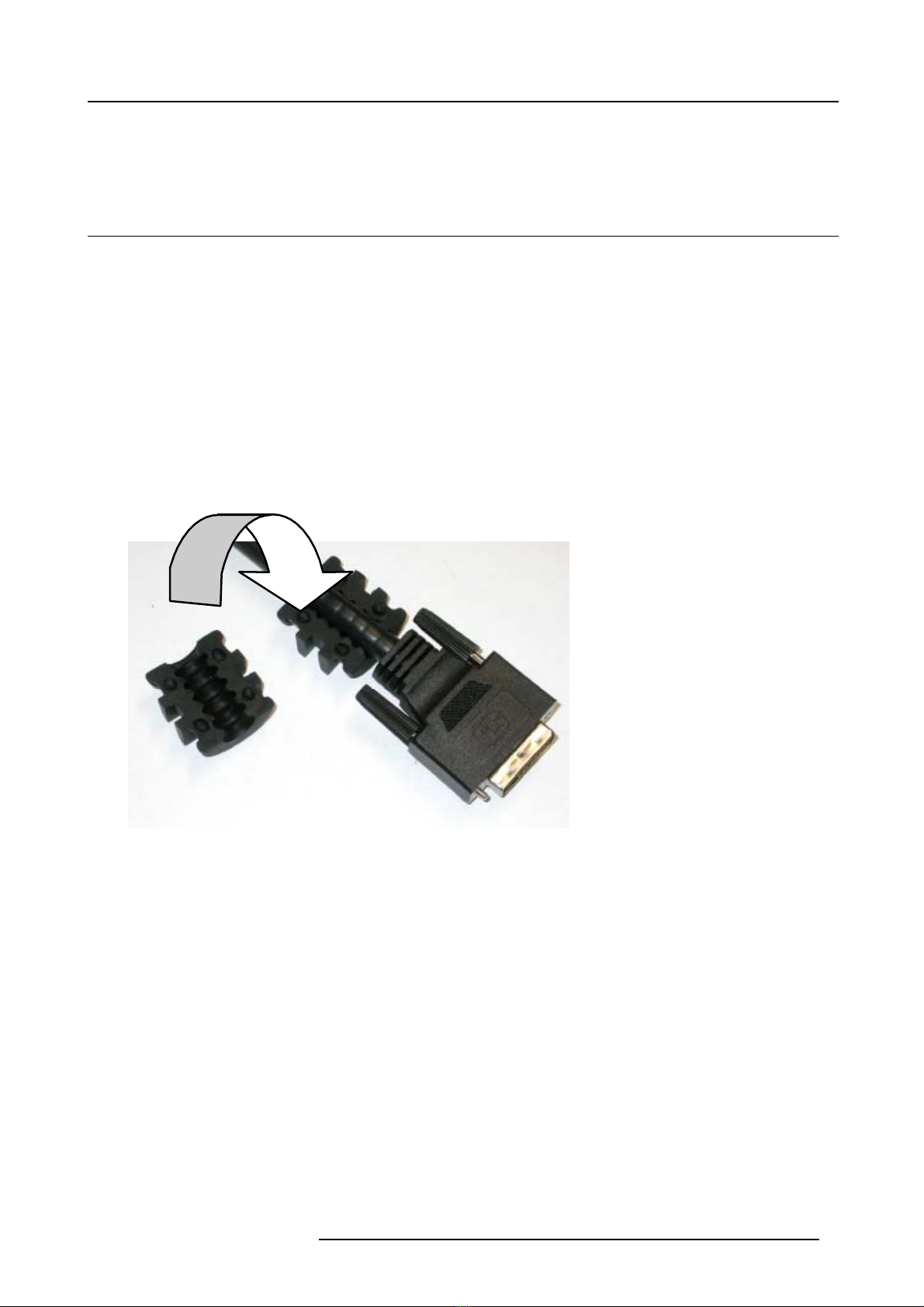

3.1 Mounting the waterproof housing
How to mount ?
1. Put one part of the cable sealing around the cable (1).
2. Place a second cable sealing part on the first one (2). (image 3-1)
3. Closethesealingwith2wireties.(image3-2)
Tip: Try to place the junction of the wire tie somewhere at the side. It makes the closing of the housing easier.
4. Repeat those actions for the other cable end.
5. Make the connection. Plug in and secure with the hand screws. (image 3-3)
6. Insert both sides of the connection into the waterproof housing. Be aware that the grooves in the sealing matches the opening
in the waterproof housing. (image 3-4)
7. Place the second part of the housing on the first part and pull until the housing is completely closed.
8. Secure by turning the hand screws (on both sides of the housing) a quarter turn anti clockwise. (image 3-5, image 3-6)
Tip: Use the velcro strip to make a loop so that the housing can be attached somewhere.
(1)
(2)
Image 3-1
Mount cable sealing
R5976867 COMPACTLINK 03/03/2005 5

3. Installation
Image 3-2
Close sealing
Image 3-3
Make connection
6R5976867 COMPACTLINK 03/03/2005

3. Installation

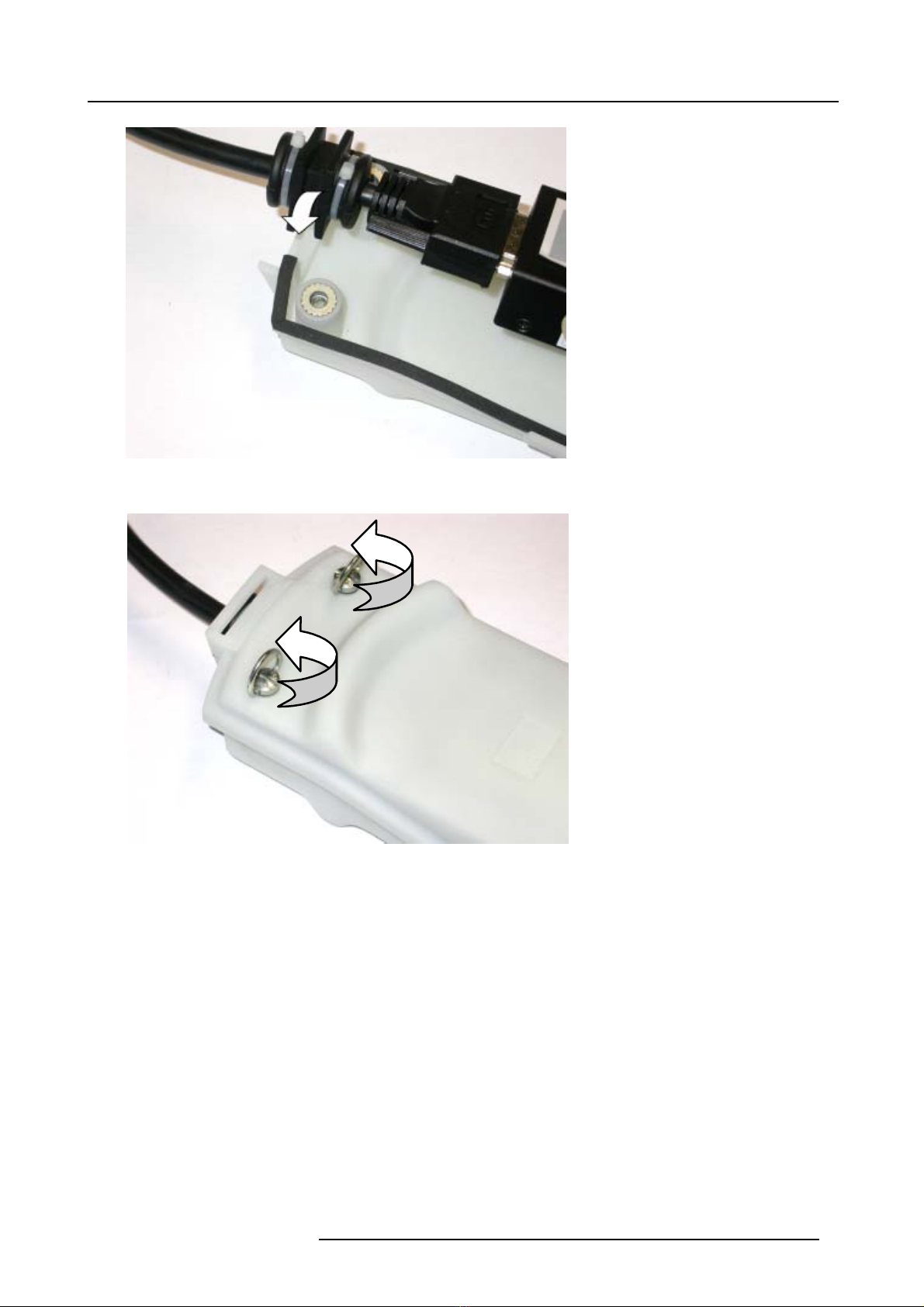

Image 3-4
Insert connection into housing
Image 3-5
Close top cover
R5976867 COMPACTLINK 03/03/2005 7

3. Installation
Image 3-6
Housing closed
