1. Safety instructions
1. SAFETY INSTRUCTIONS
1.1 Safety during kit installation
WARNING:The procedures below may only be performed by Barco trained and qualified technicians.
WARNING:Power down the projector and remove the power cord form the wall outlet before removing any
of the projector covers.
WARNING:The projector must be cooled down before removing any of the projector covers: wait for the cool
down cycle to finish after switching the projector to standby (the sound of the fans comes to a very low level)
and wait for 15 more minutes before starting any of the procedures below.
CAUTION:Wear a wrist band which is connected to the ground while handling the electrostatic discharge
sensitive parts.
CAUTION:Do not touch any of the glass parts!
R59770591 ENGINE KIT 26/08/2010 3

1. Safety instructions
4R59770591 ENGINE KIT 26/08/2010

2. Kit description
2. KIT DESCRIPTION
Overview
• Kit information
• Kit content
For the latest updates of this manual, browse to www.barco.com (public) or https://my.barco.com (secured)
or intranet (Barco employees only).
Overview
The engine unit consists of the following parts:
Image 2-1
• light pipe — makes the light beam homogeneous and sets the correct aspect ratio to the light beam
• prism and formatters — the prism splits up the homogeneous white light into red, green and blue light beams and directs them
to the DMD’s. Next, this prism merges the processed light beams into one full color video image, which is projected via the
projector lens onto the screen
• cooling circuit — keeps the temperature of the engine within its limits
2.1 Kit information
Scope
The projector type determines the kit to be used:
Projector type Type of display Kit number Description
NH-12, Galaxy NH-12, iD LH-12 HDTV R850601K Engine
NW-12, Galaxy NW-12, Galaxy NW-7 WUXGA R8506011K Engine
R59770591 ENGINE KIT 26/08/2010 5

2. Kit description
2.2 Kit content
Kit overview
Kit number Content Article number Quantity
Engine R850601 1
Wooden board R732622 1
Hexagon head screw B360192 2
Washer V3673776 4
Nut G116900 2
R850686 — thickness: 0.1MM 1
R8506861 — thickness: 0.2MM 1
R8506862 — thickness: 0.3MM 1
Sheet metals (shims)
R8506863 — thickness: 0.5MM 1
R850601K
Installation manual R59770591 1
Engine R8506011 1
Wooden board R732622 1
Hexagon head screw B360192 2
Washer V3673776 4
Nut G116900 2
R850686 — thickness: 0.1MM 1
R8506861 — thickness: 0.2MM 1
R8506862 — thickness: 0.3MM 1
Sheet metals (shims)
R8506863 — thickness: 0.5MM 1
R8506011K
Installation manual R59770591 1
6R59770591 ENGINE KIT 26/08/2010

3. Engine replacement
3. ENGINE REPLACEMENT
Overview
• Preparing the projector
• Removing the engine
• Replacing with the new engine
• Alignment procedure
3.1 Preparing the projector
3.1.1 How to prepare the projector before replacing?
Overview
1. Shift the lens holder to nominal position. See "Shifting the lens holder to nominal position", page 7.
2. Leave the projector to cool down
3. Power down the projector
4. Unplug the power cord from the wall outlet
3.1.2 Shifting the lens holder to nominal position
Overview
• Removing the cable basket
• Removing the rear cover
• Removing the top cover
• Procedure to shift the lens holder to nominal position
Description
The nominal position of the lens holder is the position of no vertical shift and no horizontal shift. This is on-axis projection where the
projection lens center is coincident with the image center.
The lens need to be shifted to nominal position in order to reach the screws fixing the engine to the lens holder.
Steps to follow:
1. remove the cable basket
2. remove the rear cover
3. remove the top cover
4. shift the lens holder
3.1.2.1 Removing the cable basket
Necessary tools
No tools.
How to remove the cable basket?
1. Push the metal joggle to the front side of the projector
R59770591 ENGINE KIT 26/08/2010 7

3. Engine replacement
Image 3-1
Cable basket: push the joggle
2. First lift the cable basket, then bring it forward to remove it
Image 3-2
Cable basket: lift, then pull to remove it
3.1.2.2 Removing the rear cover
Necessary tools
Phillips Ph2
How to remove the rear cover?
1. Remove the fixing screw
Image 3-3
Rear cover: fixing screw
2. Lift the back side of the rear cover and pull it backward to remove it
8R59770591 ENGINE KIT 26/08/2010

3. Engine replacement

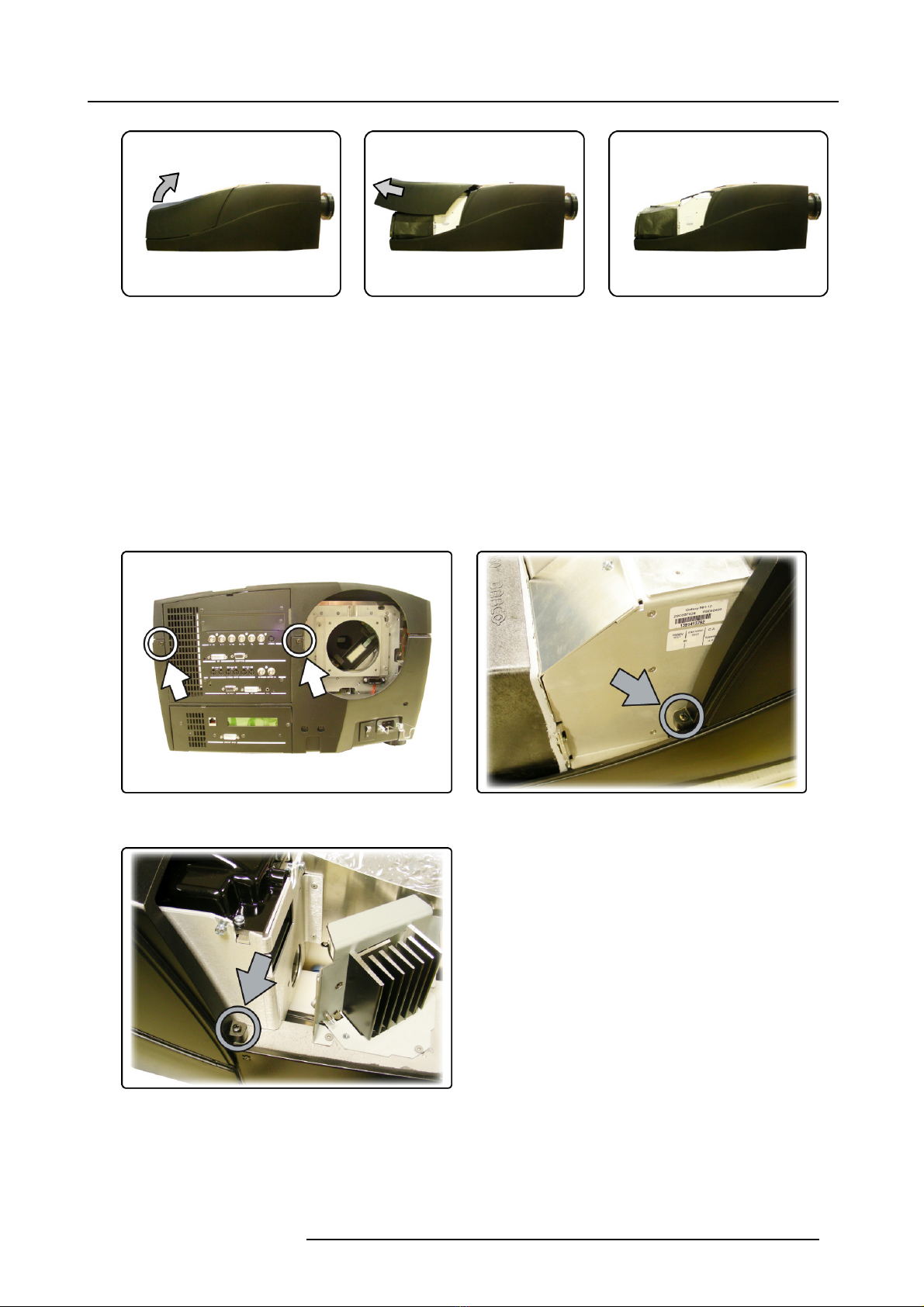

Image 3-4
Tilt the back side of the rear cover
Image 3-5
Pull the rear cover backward
Image 3-6
Rear cover removed
3.1.2.3 Removing the top cover
Necessary tools
Phillips screwdriver Ph2
How to remove the top cover?
1. Remove the four fixing screws
- two at the front side of the projector
- one at the left side
- one at the right side
Image 3-7
Top cover: front screws
Image 3-8
Top cover: left screw
Image 3-9
Top cover: right screw
2. Lift the top cover to remove it
R59770591 ENGINE KIT 26/08/2010 9

3. Engine replacement

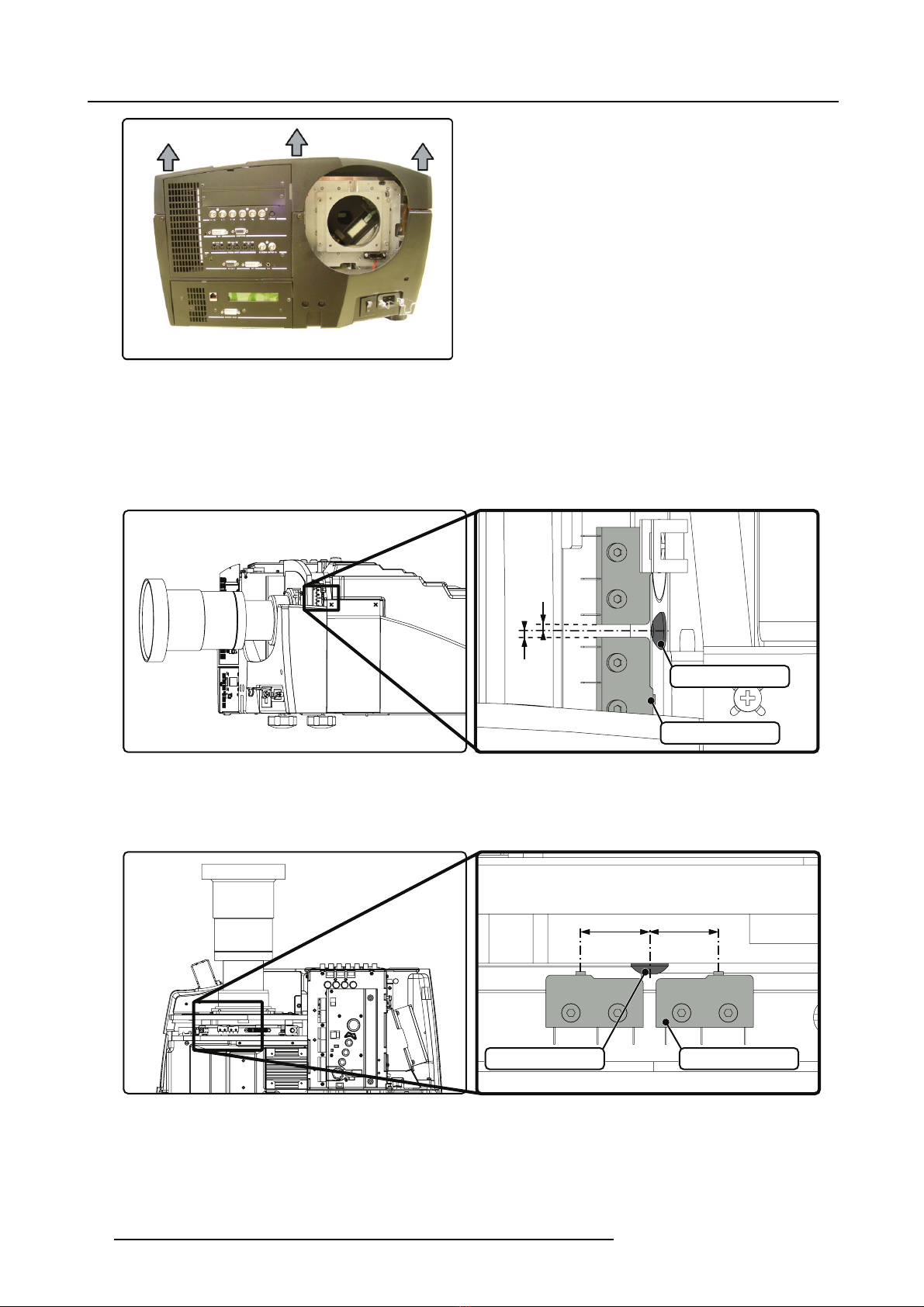

Image 3-10
Top cover: lift to remove
3.1.2.4 Procedure to shift the lens holder to nominal position
How to shift the lens holder to nominal position?
1. Shift up or down until screw head Vis centered between both end of course switches at the side of the lens holder
Y
End of course switch
Reference point V
Y
Image 3-11
Vertical shift: nominal position
2. Shift left or right until screw head His centered between both end of course switches at the top of the lens holder
XX
XX
End of course switch
Reference point H
Image 3-12
Horizontal shift: nominal position
10 R59770591 ENGINE KIT 26/08/2010

3. Engine replacement
3.2 Removing the engine
Overview
You need to perform all of the following procedures in the same order to remove the engine of the projector.
1. Remove the engine fan cover 1
2. Remove the engine fan cover 2
3. Remove the engine controller frame assembly
4. Remove fan unit 2
5. Remove the engine
3.2.1 Removing engine fan cover 1
Necessary tools
Torx screwdriver T20
How to remove the engine fan cover 1?
1. Remove the fixing screws (7x)
Image 3-13
Engine fan cover 1: fixing screws
2. Lift the engine fan cover 1 to remove it
Image 3-14
Engine fan cover: lift to remove
3.2.2 Removing the engine fan cover 2
To make it possible to remove or install the engine fan cover 2, make sure the engine fan cover 1 has been
removed first!
R59770591 ENGINE KIT 26/08/2010 11

3. Engine replacement
Necessary tools
Torx screwdriver T20
How to remove the engine fan cover 2?
1. Remove the four fixing screws
Image 3-15
Engine fan cover 2: fixing screws
2. Lift the engine fan cover 2 to remove it
3.2.3 Removing the engine controller frame assembly
Necessary tools
Torx screwdriver T20
How to remove the engine controller frame assembly?
1. Unplug the connectors of the engine controller:
- J5: I2C from the PMP
- J30: from DMD temperature switch
- J101: power and pulses from fan LPS vertical
- J102: power and pulses from fan LPS top
- J104: power to the cooling pump
- J110: fan supply to the X-fan supply
- J120: fan pulses towards the power box
- J130: +12V from the power box
- J220: from the lens shift safety switch
- J230: signals from the CLO/LFR sensor
- J400: to the LFR light feedback board
- J402: I2C to the LPS
- J403: data from the lamp info receiver
2. Unplug the fan cold mirror connector: J512 on the X-fan supply
3. Release the screws fixing the engine controller frame assembly
Tip: Do not remove these screws, just unscrew them a single revolution
12 R59770591 ENGINE KIT 26/08/2010

3. Engine replacement
Image 3-16
Engine controller frame assembly: fixing screws
4. Slide out the engine controller frame unit by lifting it
3.2.4 Removing fan unit 2
Overview
The fan engine top and fan engine bottom — the assembly of those two fans is called FAN unit 2.
Necessary tools
Torx screwdriver T20
How to remove fan unit 2?
1. Unplug both fan engine top and fan engine bottom:
- connector J400 on the X-fan supply (blue wire)
- connector J401 on the X-fan supply (red wire)
2. Remove the screws fixing fan unit 2
Image 3-17
Fan unit 2: fixing screws
3. Lift and tilt fan unit 2 to remove it
3.2.5 Removing the engine
Necessary tools
Torx screwdriver T20
How to remove the engine?
1. Remove both screws fixing the engine to the lens holder
R59770591 ENGINE KIT 26/08/2010 13

3. Engine replacement
Image 3-18
Screws fixing the engine to the lens holder
Note: In the drawing above, the lens holder has been lifted for visibility. In reality, the lens holder can stay in the projector.
2. Remove both screws fixing the engine to the projector frame
Image 3-19
Engine: location of the fixing screws 1 and 2 (top view)
14 R59770591 ENGINE KIT 26/08/2010

3. Engine replacement
Image 3-20
Engine: fixing screw 1 (3D view)
Image 3-21
Engine: fixing screw 2 (3D view)
3. Unplug the connectors on the preformatter board:
- 6 signal cables
o2 signals cables going to the red formatter
o2 signal cables going to the green formatter
o2 signal cables going to the blue formatter
- 3 power cables
o1 cable to the green formatter
o1 cable to the red formatter
o1 cable to the blue formatter
GREEN
BLUE
POWER
G R B
RED
Image 3-22
Engine: connectors
4. Release the screws fixing the grounding wires next to the connectors mentioned in the previous step:
- 3 grounding wires (signal)
- grounding wires (power)
5. Unplug the additional power wires on each of the formatter boards if they are present
R59770591 ENGINE KIT 26/08/2010 15

3. Engine replacement
Image 3-23
Power cables connected to the preformatter board
Image 3-24
R: Power cable connected to the Red formatter board
G: Power cable connected to the Green formatter board
B: Power cable connected to the Blue formatter board
6. Fix the handle to the engine (if available)
7. Gently lift the engine to remove it
3.3 Replacing with the new engine
Overview
• Installing the new engine
• Installing the fan unit 2
• Installing the engine controller frame assembly
• Installing the engine fan cover 2
• Installing the engine fan cover 1
• Installing the top cover
• Installing the rear cover
16 R59770591 ENGINE KIT 26/08/2010
