Barco WePresent WiPG-1000 User manual

1
WiPG-1000 User’s Manual
WiPG-1000
User's Manual
Version: 07

2
WiPG-1000 User’s Manual
Table of Contents
1Overview .................................................................................................................................3
2Package Contents .................................................................................................................4
3Physical Details ......................................................................................................................4
4What You Might Need...........................................................................................................7
5Hardware Installation ...........................................................................................................7
6Standby Screen of the Projector/Display .........................................................................9
7Web Management ...............................................................................................................12
7.1 Home Page ...........................................................................................................................12
7.2 Download..............................................................................................................................13
7.3 Conference Control............................................................................................................13
7.4 WebSlides..............................................................................................................................15
7.5 HTTPS self-signed certificate ...........................................................................................15
7.6 Admin.....................................................................................................................................19
7.6.1 System Status ..................................................................................................................19
7.6.2 Device Setup....................................................................................................................20
7.6.3 Network Setup ................................................................................................................22
7.6.4 SNMP Setup .....................................................................................................................24
7.6.5 OSD (On-Screen Display) Setup ..................................................................................25
7.6.6 Change Passwords .........................................................................................................26
7.6.7 Reset to Default ..............................................................................................................27
7.6.8 Firmware Update ............................................................................................................28
7.6.9 WebSlides Setup..............................................................................................................30
7.6.10 Reboot System ...........................................................................................................31
7.6.11 Logout ..........................................................................................................................32
8Using MirrorOp (Sender) to Start Projection..................................................................33
8.1 Start the MirrorOp application.....................................................................................33
8.2 Main User Interface of MirrorOp (Sender) .................................................................36
8.3 A Complete User’s Guide on MirrorOp (Sender) ......................................................37
9Use the SidePad Function with MirrorOp Receiver ......................................................38
10 Launch WebSlides ...............................................................................................................45
11 Wall-Mount Kit.....................................................................................................................48
12 Frequently Asked Questions .............................................................................................49
13 Disposal Information ..........................................................................................................52
14 Open-Source and Third-Party Software Used in WiPG-1000 ...................................53

3
WiPG-1000 User’s Manual
1Overview
wePresent WiPG-1000 is a professional wireless presentation gateway. With
the revolutionary “interactive” and “wireless” features, wePresent
WiPG-1000 enables users to deliver presentations wirelessly from a PC, Mac,
iPad, iPhone or any Android device to a projector, to use a tablet or
smartphone to control the projecting PC/Mac, and to view the presenting
slides!
Basic Features
Wireless screen and audio projection
Remote desktop control
Support Windows: 7 / 8 / 10
Support macOS: 10.9 and above
Plug and show! You can create your own USB Plug & Show token
(USB drive). Just plug the token into your PC/Mac, and a
presentation can be started in seconds (no software installation is
required).
The MirrorOp Presenter app supports iOS/Android mobile devices
High-speed projection (up to 30 fps)
4-to-1 split screen projection (turn one projector into four; increase
meeting productivity right away)
Conference control (allow moderators to streamline meetings)
Provide session security login, wireless WEP/WPA/WPA2 key and
gatekeeper functions to protect presentation contents and maintain
office network security
Web management (including the software download and device
settings)
Support the WiFi AP-Client mode

4
WiPG-1000 User’s Manual
2Package Contents
wePresent WiPG-1000 Base Unit
Power Adapter (DC +5V, 2.6A)
Two Detachable WiFi Antennas
Quick Installation Guide
Warranty Card
CE DoC and Warning Statement
3Physical Details

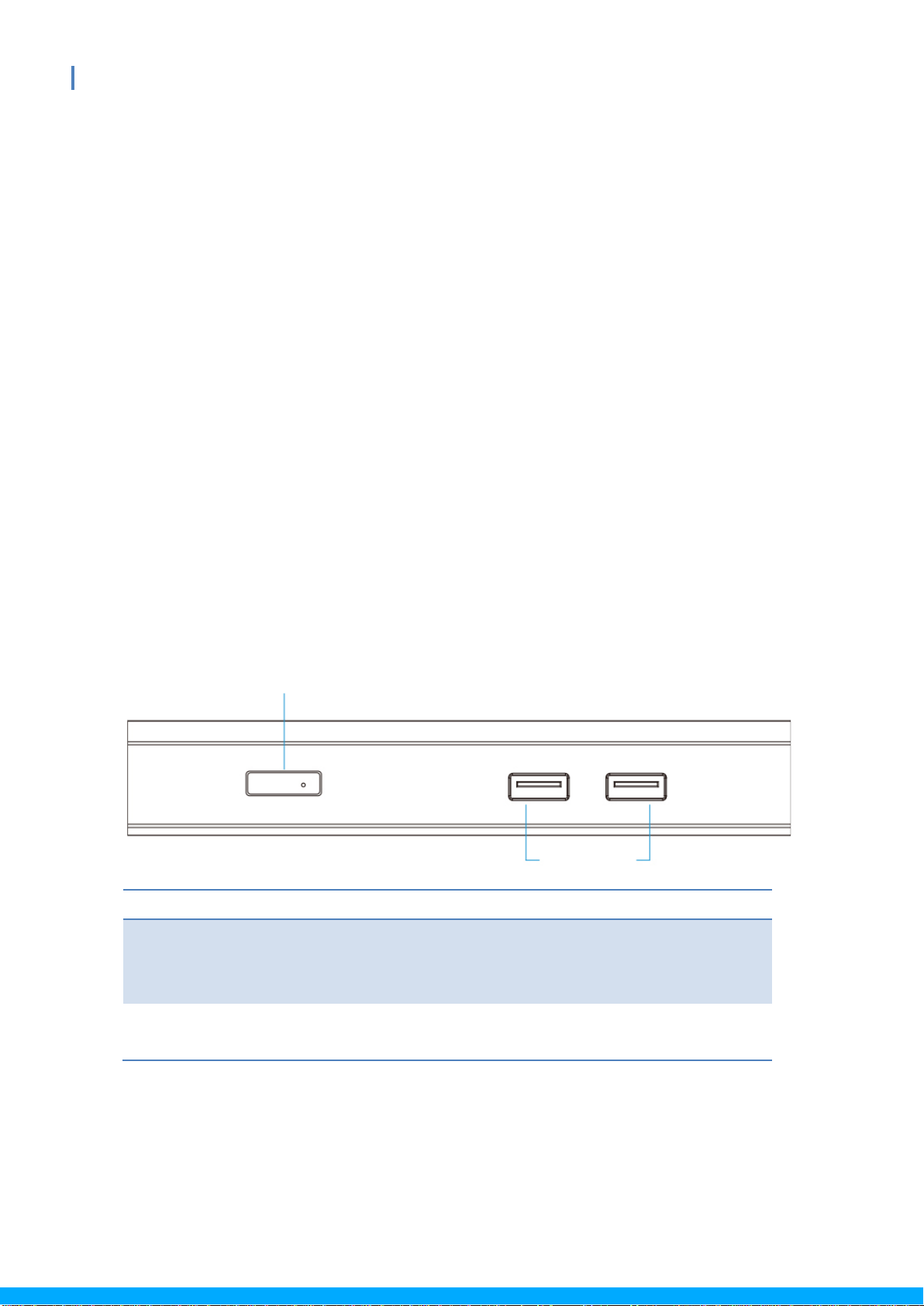

Front Panel
Description
Power Button and LED
Indicator
Power on/off button.
LED indicator: red - system loading,
green - system ready
USB Port (Front)
2 USB ports for USB mouse/keyboard/thumb
drive
Power Button/LED Indicator
USB Port

5
WiPG-1000 User’s Manual

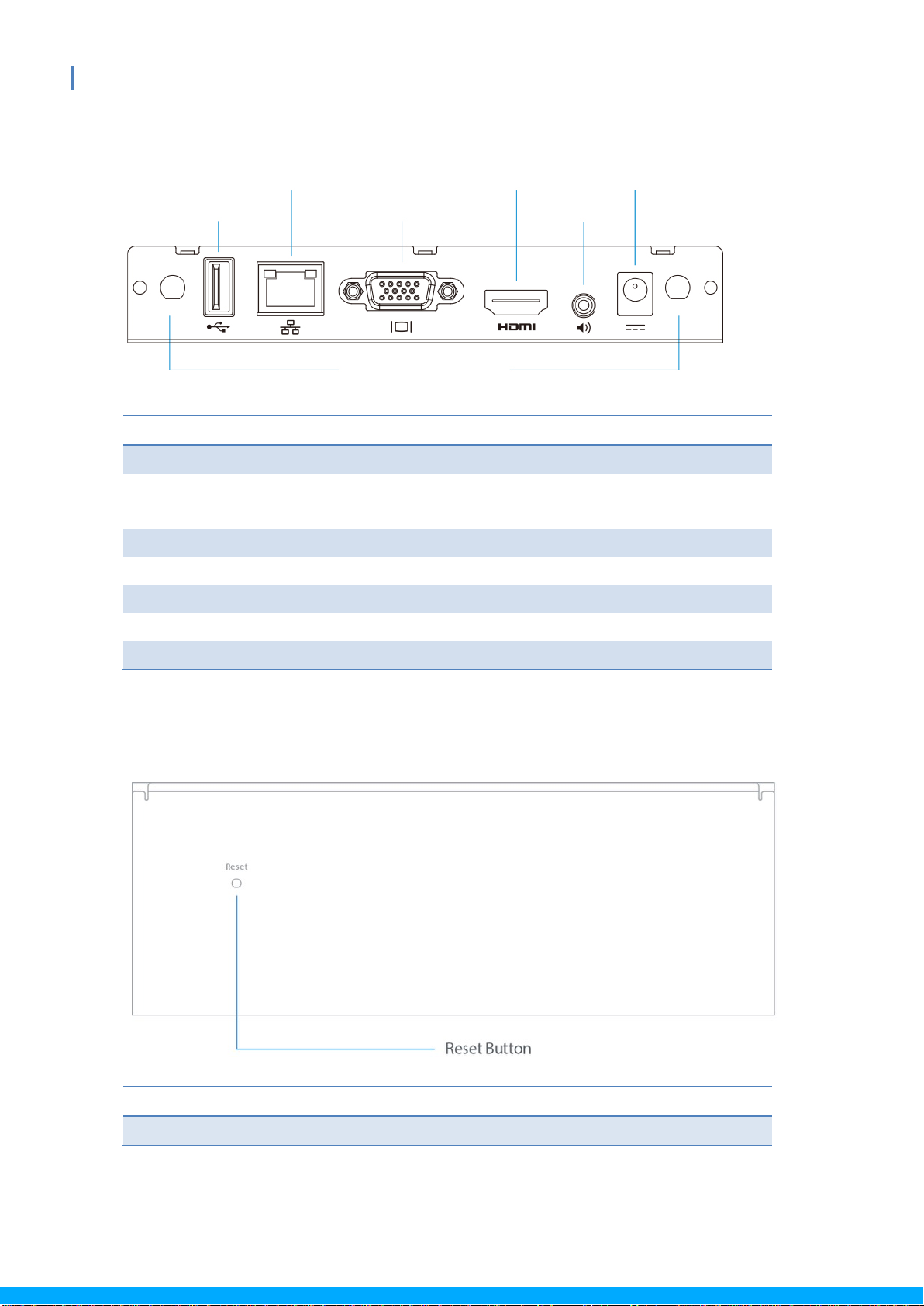

Rear Panel
Description
WiFi Antennas
2 detachable antennas for better WiFi performance
USB Port (Rear)
USB port for USB mouse/keyboard/thumb
drive/IWB device (HID type)
Ethernet Port
10/100M RJ-45 port
VGA Port
For VGA projector/display
HDMI Port
For HDMI projector/display
Audio Jack (3.5mm)
For speaker
Power Jack
DC 5V in
Bottom Side
Description
Reset Button
For hard reset
WiFi Antennas
USB Port
Ethernet Port
VGA Port
HDMI Port
Audio Jack
Power Jack

6
WiPG-1000 User’s Manual
* * *To perform a hard reset to restore your WiPG-1000 device to the factory
default settings, please follow the below procedures:
1. Long press the reset button and hold.
2. Turn on the WiPG-1000 and wait for over 10 seconds until the LED
indicator turns green.
3. Release the reset button.
4. The WiPG-1000 will be restored to the factory default settings.

7
WiPG-1000 User’s Manual
4What You Might Need
Projector/display with VGA/HDMI interface (Required)
Ethernet cable (Required if you want to disable the WiFi of the
WiPG-1000)
Windows or Mac computer
Apple iPhone, iPad or iPod touch
Android phone or tablet
Speaker
USB mouse/keyboard
USB HID IWB device
5Hardware Installation
1) Connect the WiPG-1000 to the projector/display through the VGA/HDMI
port and turn on the projector/display power.
2) Connect the power adapter to the WiPG-1000 and press the power
button to turn on the device. The system is ready when the LED indicator
turns green.
The default standby screen as shown below will be displayed when
the system is ready.

8
WiPG-1000 User’s Manual
3) If you disable the WiFi of the WiPG-1000, you need to connect the device
to an existing IT network through an Ethernet cable.
4) Insert the speaker cable to the WiPG-1000 audio jack for audio output. (A
speaker is required for audio output when using VGA.)
5) Insert the USB mouse/keyboard/IWB device to the WiPG-1000 front/rear
USB port for OSD (On-Screen Display) control or remote control.

9
WiPG-1000 User’s Manual
6Standby Screen of the Projector/Display

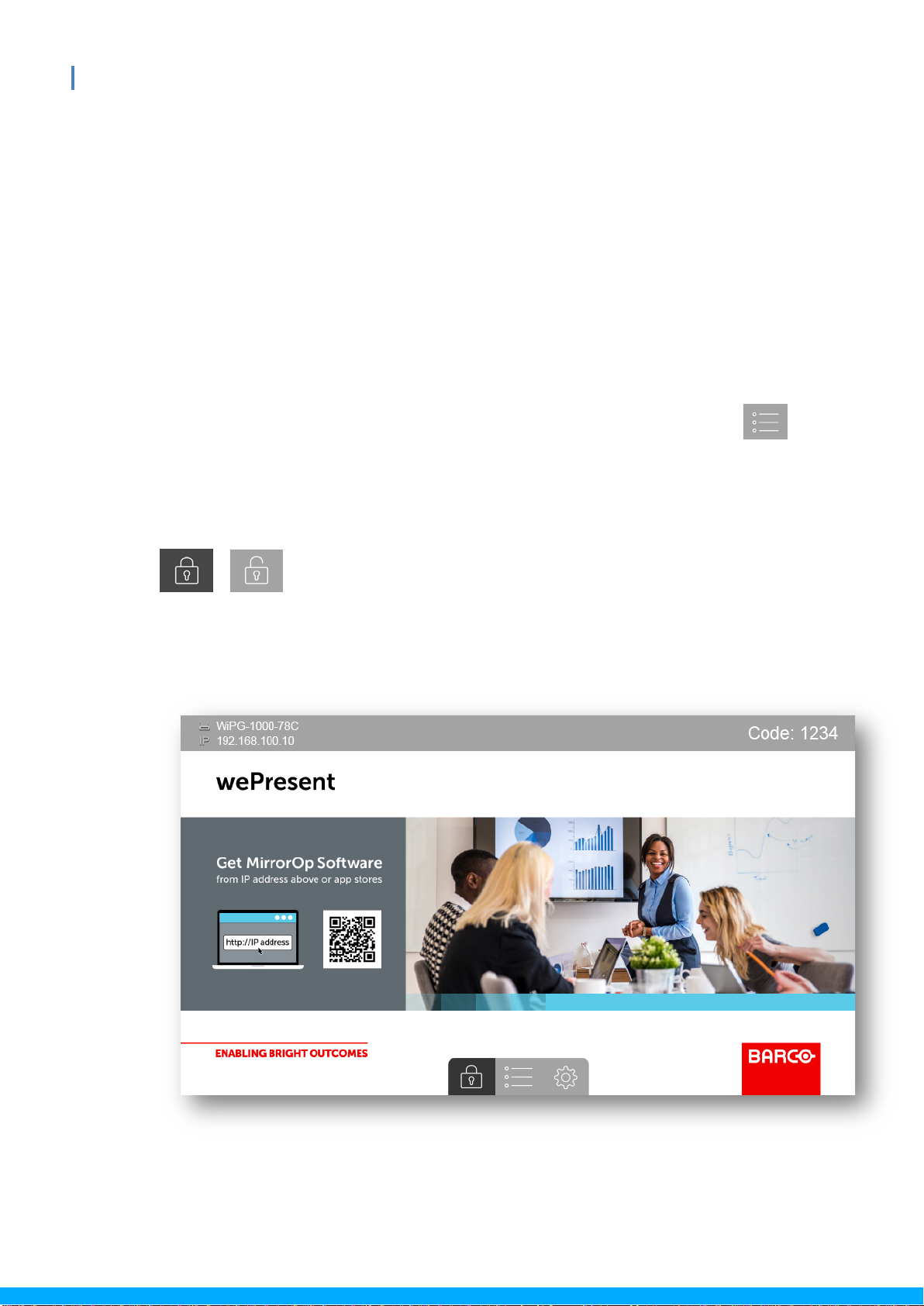

1) The following information will be shown on the standby screen: (a)
software download instructions; (b) WiFi network name or SSID [default
SSID is WiPG-1000-xxx (xxx are the last three numbers of the MAC ID
shown on the bottom side of the WiPG-1000 device)]; (c) IP address
[default IP address is 192.168.100.10]; (d) login code.
2) If there is any sender device connected to the WiPG-1000, click on
and a list of connected sender devices will be shown on the standby
screen. The conference moderator can use the USB mouse/keyboard to
select which device to use and control it remotely.
3) / (enable/disable the “Conference Control” mode): When
the “Conference Control” mode is on, only the moderator can decide
which user to project his/her screen to the projector/display. That is to
say, users are not allowed to project their screens freely.
4) If you need more advanced information, please click the “Setup” icon

10
WiPG-1000 User’s Manual
and you can: (a) find the FW version, resolution, and WiFi security
information; (b) make a Plug & Show USB token (click on the “Make PnS
Token” to copy the Plug & Show MirrorOp application for Windows and
Mac to the attached USB drive).
Note:
Just plug the token (USB drive) into your PC/Mac, and a presentation
can be started in seconds (no software installation is required).
The difference between the portable version and installed version of
the MirrorOp Sender app lies in the following:
(a) The installed version of the MirrorOp Sender app supports the UoIP
(USB over IP) and SidePad features of the connected WiPG-1000
device, but the portable version does not. [These differences only
apply to Windows users.]
•The UoIP feature of the WiPG-1000 allows users to remotely
control the projecting PC from the display using “special” hand
gestures. (Special hand gestures are used in some game apps and
interactive whiteboard apps.)
•Please be aware that UoIP needs to be enabled in the settings of
the MirrorOp Sender app before you use this function. [MirrorOp
Sender -> -> Preferences -> Advanced -> (Remote USB
Support) -> Simulate as local USB]
(b) The portable version of the MirrorOp Sender app can locate and
connect to the target WiPG-1000 device automatically (if your
PC/Mac and the WiPG-1000 are on the same intranet). Guest users are
recommended to download the portable version as they can start a
presentation without any application installation or device discovery.
(c) Internal users are suggested to install the full version of MirrorOp
Sender if there are a number of WiPG-1000 devices deployed on their
company/school networks and they need to connect to different
WiPG-1000 devices from time to time. If they use the portable version,
the MirrorOp Sender app will automatically locate the original
WiPG-1000 device (via which the MirrorOp Sender app was
downloaded) and they may need to search for their target device
manually.
