1. Safety
1. SAFETY
1.1 Important Safety Instructions
Instructions:
• Read this instructions.
• Keep these instructions.
• Heed all warnings.
• Make sure that the power box is properly grounded.
• For protection against electrocution, a disconnect device must be provided in the beginning of the main power line to the power
box.
• Measure the outgoing voltage on the power output connectors before connecting any devices with the power box.
• Protect the power cords from being walked on or pinched particularly at plugs, convenience receptacles, and the point where
they enter or exit the power box.
• Refer all servicing to qualified service technicians/personnel only.
• Do not use this power box with an IT power distribution network. A neutral conductor must be provided.
1.2 Important Warnings
Important warnings:
• Risk of electrical shock:

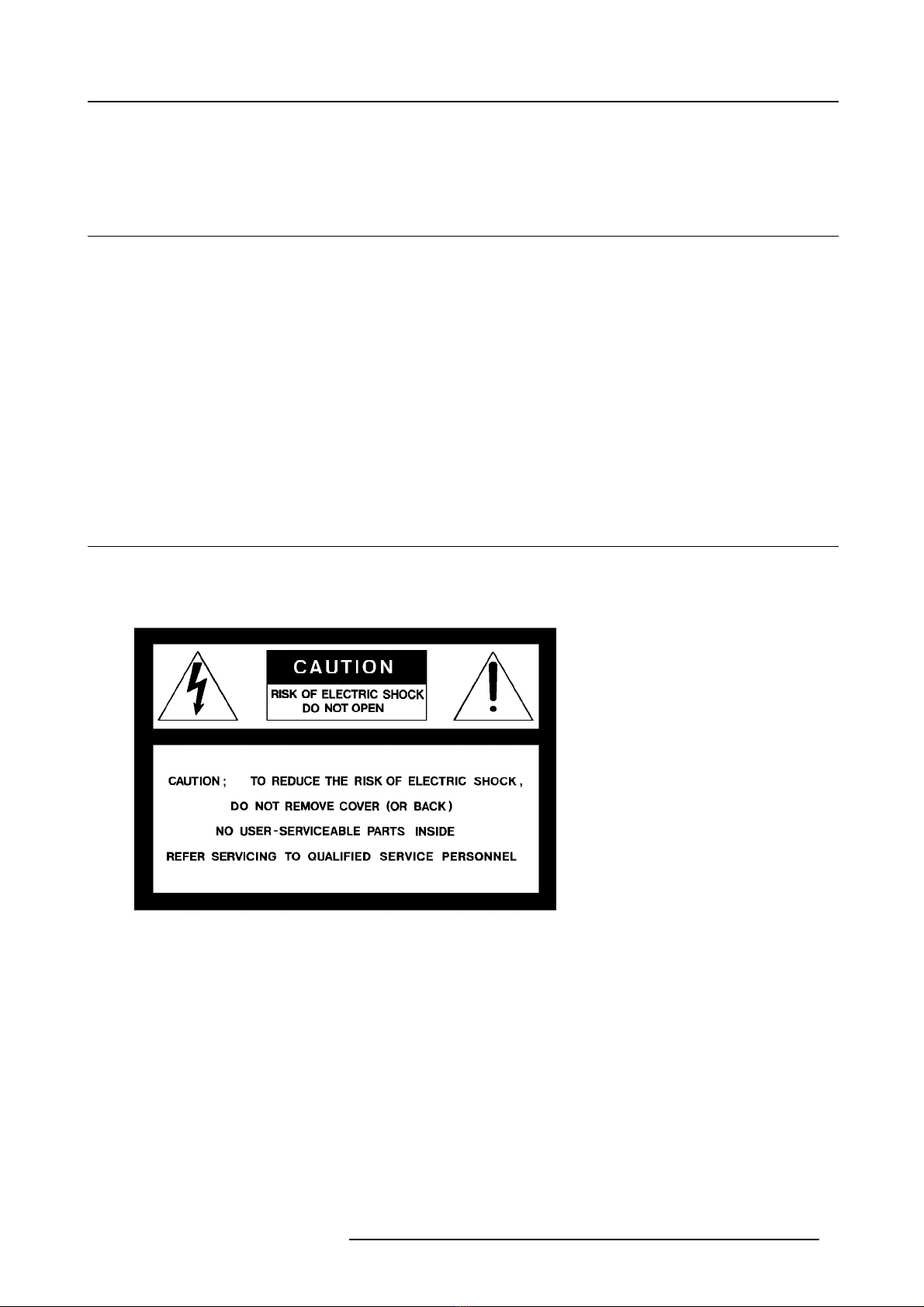

Image 1-1
Risk of electric shock. Do not open. To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable
parts inside. Refer servicing to qualified service personnel.
The lightning flash with an arrowhead within a triangle is intended to tell the user that parts inside this product may cause a risk
of electrical shock to persons.
The exclamation point within a triangle is intended to tell the user that important operating and/or servicing instructions are
included in the technical documentation for this equipment.
R5976620 CUSTOM POWER BOX 05/06/04 3

1. Safety
4R5976620 CUSTOM POWER BOX 05/06/04

2. Custom Power Box
2. CUSTOM POWER BOX
2.1 Custom Power Box Functionality
Overview:
The Custom Power Boxes provides power (230VAC) to run the full range of Barco LED Display systems (i.e. DLite, ILite, SLite).
There is a range of adapted Custom Power Boxes with a various of special outputs (multi pole connector), going from two up to ten.
Those special outputs are not suitable for direct connection with the tiles, but one output can be split up into six outputs by using a
Spider Connector. Each output of a Spider Connector can provide several tiles with power. Every custom power box includes also
a multi-purpose power outlet.
Custom Power Box
(A)
Multi power cable
(B)
Spider
output
(D)
Spider
connector
(C)

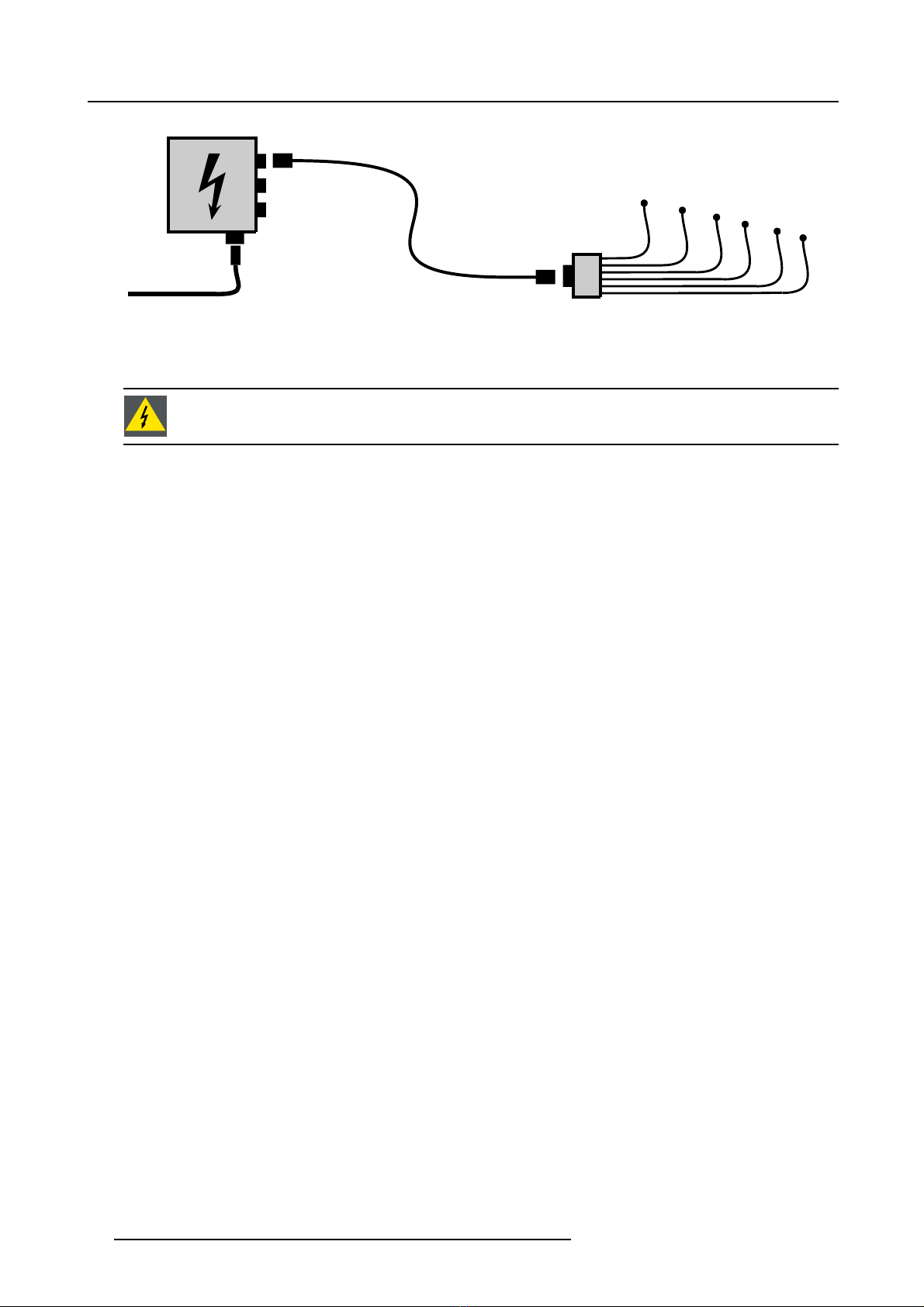

Image 2-1
Custom Power Box with Spider Connector.
A Custom Power Box.
B Multi power cable.
C Spider connector.
D Spider output.
2.2 Order info Custom Power Box
Order info:
Article No. Description
R9851240 Custom Power Box 3 phase 230VAC — 2 multi-pole output connectors and 1 auxiliary outlet.
R9851241 Custom Power Box 3 phase 230VAC — 3 multi-pole output connectors and 1 auxiliary outlet.
R9851242 Custom Power Box 3 phase 230VAC — 4 multi-pole output connectors and 1 auxiliary outlet.
R9851243 Custom Power Box 3 phase 230VAC — 5 multi-pole output connectors and 1 auxiliary outlet.
R9851244 Custom Power Box 3 phase 230VAC — 6 multi-pole output connectors and 1 auxiliary outlet.
R9851245 Custom Power Box 3 phase 230VAC — 7 multi-pole output connectors and 1 auxiliary outlet.
R9851246 Custom Power Box 3 phase 230VAC — 8 multi-pole output connectors and 1 auxiliary outlet.
R9851247 Custom Power Box 3 phase 230VAC — 9 multi-pole output connectors and 1 auxiliary outlet.
R9851248 Custom Power Box 3 phase 230VAC — 10 multi-pole output connectors and 1 auxiliary outlet.
R9851250 Custom Power Box 3 phase 400VAC — 2 multi-pole output connectors and 1 auxiliary outlet.
R9851251 Custom Power Box 3 phase 400VAC — 3 multi-pole output connectors and 1 auxiliary outlet.
R9851252 Custom Power Box 3 phase 400VAC — 4 multi-pole output connectors and 1 auxiliary outlet.
R5976620 CUSTOM POWER BOX 05/06/04 5

2. Custom Power Box
Article No. Description
R9851253 Custom Power Box 3 phase 400VAC — 5 multi-pole output connectors and 1 auxiliary outlet.
R9851254 Custom Power Box 3 phase 400VAC — 6 multi-pole output connectors and 1 auxiliary outlet.
R9851255 Custom Power Box 3 phase 400VAC — 7 multi-pole output connectors and 1 auxiliary outlet.
R9851256 Custom Power Box 3 phase 400VAC — 8 multi-pole output connectors and 1 auxiliary outlet.
R9851257 Custom Power Box 3 phase 400VAC — 9 multi-pole output connectors and 1 auxiliary outlet.
R9851258 Custom Power Box 3 phase 400VAC — 10 multi-pole output connectors and 1 auxiliary outlet.
2.3 Technical summary
Summary:
Type Value
Main circuit breaker 3 phase plus neutral (N)
Power boxes with less then four multi pole output connectors are provided with
a ground fault current interrupter of 300 mA. Power boxes with four or more
multi pole output connectors are provided with a ground fault current interrupter
adjustable between 30 mA and 10 mA.
Multi-pole output connectors 19 pins circular multi-pole connectors with each 6 circuits. Each circuit is protected
with a 16 A switch fuse (20 kA short circuit rating).
Auxiliary connector 2 phase, plus protective earth, auxiliary connectors (CEE-form) protected with a 16
A switch fuse (20 kA short circuit rating).
Input voltage 230VAC 3 phase plus neutral or 400VAC 3 phase plus neutral.
Suitable power nets TT, TN-S and TN-C power distribution systems. Do not use this power box on an
IT power distribution system.
Output voltage 230V on each output circuit (multi-pole and auxiliary)
Maximum output current 6 different circuits of 16 A per multi-pole connector.
16 A on the auxiliary connector.
Ruggedness IP66 when all output multi pole connectors are occupied.
Weight (max) Roughly 60 kg.
Dimensions (max) 600 x 300 x 1200 (W x D x H)
Regulation compliance CE.
6R5976620 CUSTOM POWER BOX 05/06/04

3. Cables used with the custom power box
3. CABLES USED WITH THE CUSTOM POWER BOX
Cables
This chapter only enumerates and describes power cables used between the custom power box and the Barco LED-wall. Power
cables used between tiles are listed in the installation manual of the concerned tile.
Some power cables can be used as well indoor as outdoor. Other may only be used indoor. The use of indoor or outdoor cables
depend on the type of LED display.
3.1 Order info power cables
Order info:
Article No. Description Image
R9851260 Multi power cable of 10 meter. For indoor and outdoor use.
Used to distribute power between custom power box and spider connector.
R9851261 Multi power cable of 20 meter. For indoor and outdoor use.
Used to distribute power between custom power box and spider connector.
R9851262 Multi power cable of 30 meter. For indoor and outdoor use.
Used to distribute power between custom power box and spider connector.
R9851263 Multi power cable of 50 meter. For indoor and outdoor use.
Used to distribute power between custom power box and spider connector.
R9851264 Multi power cable with custom length. For indoor and outdoor use.
Used to distribute power between custom power box and spider connector.
image 3-1
image 3-2
R9851660 Waterproof spider connector, for outdoor use, with 6 power outputs (C19) with different
length.
Spider support bracket included.
Used to subdivide power from a multi power cable to a group of tiles.
image 3-3
image 3-6
R9851661 Waterproof spider connector, for outdoor use, with 6 power outputs (C19) withsame
length.
Spider support bracket included.
Used to subdivide power from a multi power cable to a group of tiles.
image 3-4
R9851662 Waterproof spider connector, for outdoor use, with 6 power outputs (C19) with custom
length.
Spider support bracket included.
Used to subdivide power from a multi power cable to a group of tiles.
R9851670 Spider connector, for indoor use, with 6 power outputs (C19) with different length.
Spider support bracket included.
Used to subdivide power from a multi power cable to a group of tiles.
R9851671 Spider connector, for indoor use, with 6 power outputs (C19) with same length.
Spider support bracket included.
Used to subdivide power from a multi power cable to a group of tiles.
image 3-5
R9851672 Spider connector, for indoor use, with 6 power outputs (C19) with custom length.
Spider support bracket included.
Used to subdivide power from a multi power cable to a group of tiles.
R5976620 CUSTOM POWER BOX 05/06/04 7

3. Cables used with the custom power box

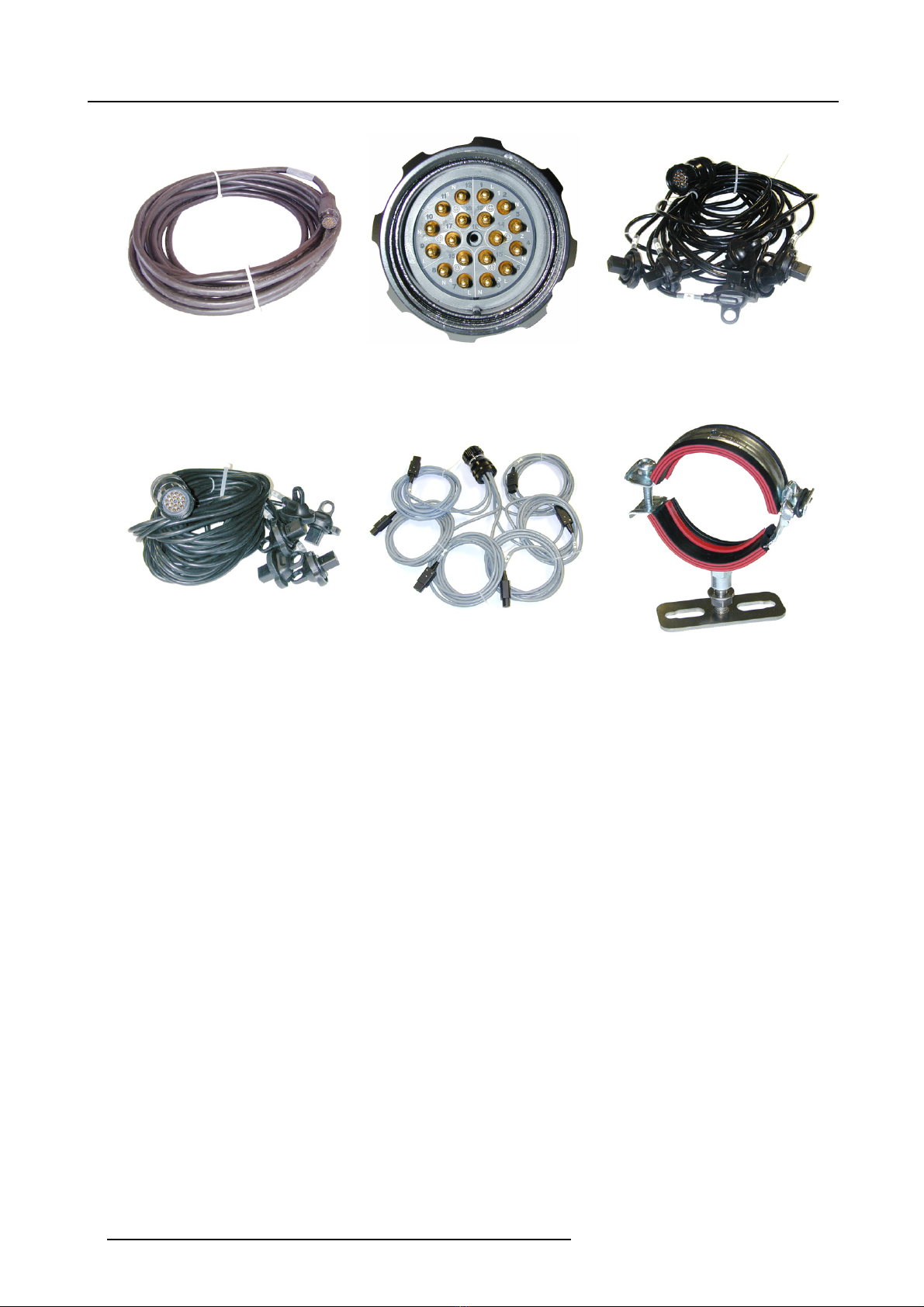

Image 3-1
Multi power cable.
Image 3-2
Detail of a multi-pole connector plug. Image 3-3
Waterproof spider connector (output cables with different
length).
Image 3-4
Waterproof spider connector (output cables with same
length).
Image 3-5
Spider connector for indoor use (output cables with same
length).
Image 3-6
Spider support bracket.
8R5976620 CUSTOM POWER BOX 05/06/04

4. Physical installation
4. PHYSICAL INSTALLATION
4.1 Components of a Custom Power Box
Connectors
The multi-pole power output connectors and the auxiliary outlet are located at the side of the power box. There is also a control
lamp provided to indicate that the main circuit breaker is switched on.
Image 4-1
A Control lamp “MAIN BREAKER ON"
B Auxiliary outlet.
C Multi-pole power output connector
D Multi-pole power output connector
E Multi-pole power output connector
F Multi-pole power output connector
G Door key.
Circuit breakers
There are 6 circuit breakers provided per multi-pole output connector. The circuit breakers are marked with a letter which correspond
to the letter indication on the power connectors.
R5976620 CUSTOM POWER BOX 05/06/04 9

4. Physical installation

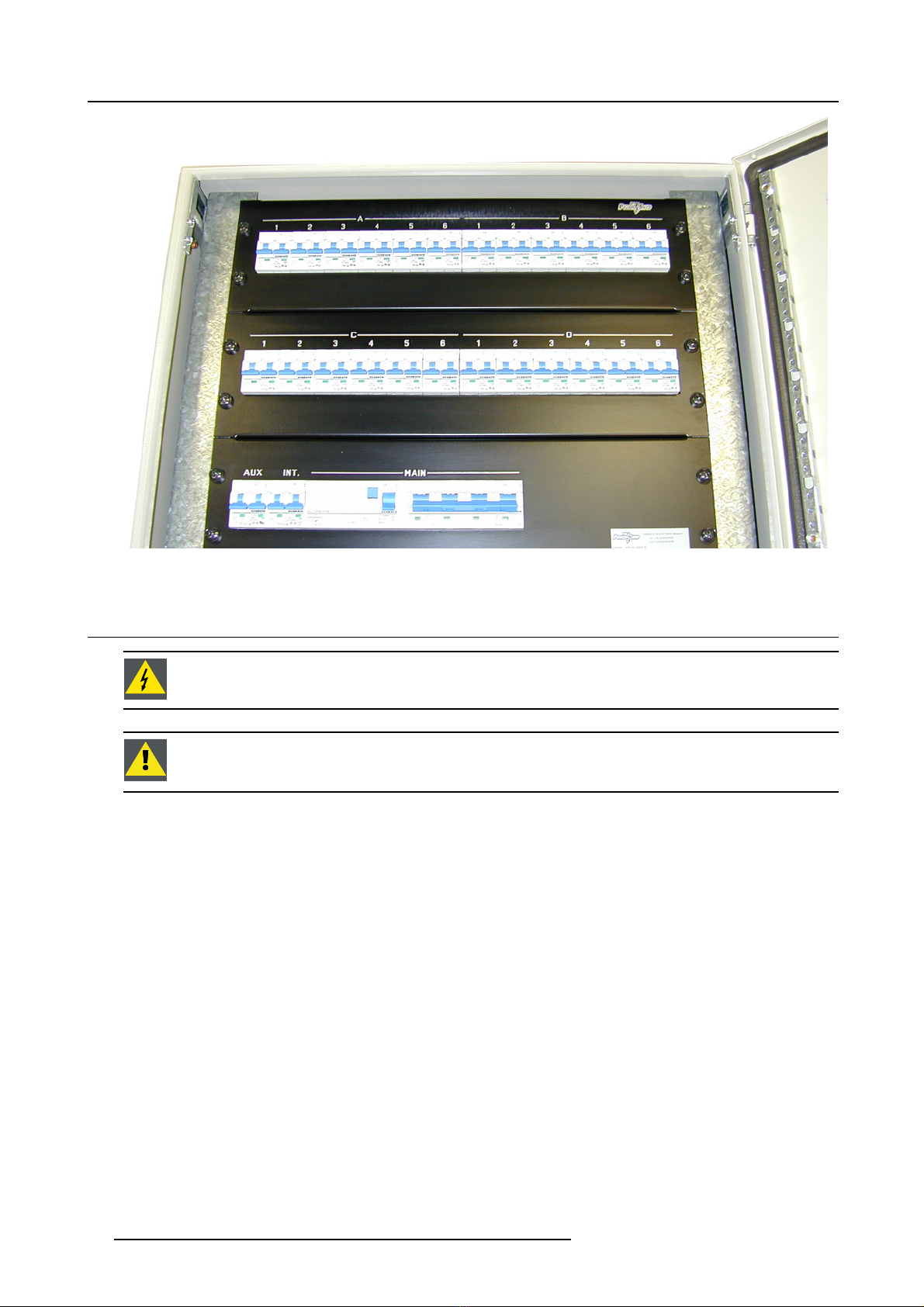

Image 4-2
4.2 Installation
WARNING:The following procedure must be performed by authorized an qualified technical personnel only.
CAUTION:Make sure that the local power supply voltage correspond with the required input voltage of the
Custom Power Box. Wrong input voltage can cause damage to the power box and the equipment connected
to it.
Necessary tools
• Wrench13mm.
• Crosshead screwdriver.
• Volt meter.
Necessary parts
Four bolts M8 x 20.
Installation procedure
1. Instal the Custom Power Box on a safe location, which is only accessible by authorized persons. There is no need to disassemble
the Custom Power Box for installation. Each corner on the backside of the Custom Power Box is provided with a fixed M8 nut.
Use for every nut a M8 x 25 mm bolt for fastening the Custom Power Box. (image 4-3)
2. Open the door of the Custom Power Box and place all the circuit breakers in the OFF position.
3. Remove the lower cover plate inside the Custom Power Box by releasing four crosshead screws.
4. Guide the incoming power cable through the cable seal at the bottom of the Custom Power Box and insert the wires into the cor-
responding pins of the main connector. Make sure the wires are fastened and the cable seal is tightened. (image 4-4, image 4-5)
Warning: Make sure the power cable is powerless while handling.
Caution: The characteristics of the incoming power cable must comply with the local regulations regarding such installations.
5. Place the lower cover plate back inside the Custom Power Box.
10 R5976620 CUSTOM POWER BOX 05/06/04

4. Physical installation
6. Power up the Custom Power Box.
Tip: Measure the outgoing voltage on the power output connectors before connecting any devices with the power box.
7. Close and lock the Custom Power Box.
Image 4-3
Fixation nut on the backside of the Custom Power Box.
Image 4-4
Removed lower cover plate.
Image 4-5
Connector for power input.
4.3 Connections between custom power box and LED-wall
General
The custom power box is provided with multi-pole power output connectors. One multi-pole connector contains six (6) power circuits,
each protected with a 16 ampere rated circuit breaker.
A multi power cable is used to transport the power from the multi-pole connector to a spider connector. This spider connector
subdivide the power circuits into individual power source cables. Each power source cable of the spider connector leads to a group
of tiles. See installation manual of the involved tiles to know the maximum amount of tiles connected in parallel with the same power
source cable.
R5976620 CUSTOM POWER BOX 05/06/04 11

4. Physical installation
C
D
A
B
Image 4-6
A Power box.
B Multi power cable.
C Spider connector.
D Power source cable (spider output cable).
WARNING:To protect against risk of fire by overloading of power cables, the amount of tiles per power source
cable is limited. Never connect more tiles than allowed. See installation manual of theinvolvedtilestoknow
the maximum amount of tiles connected in parallel with the same power source cable.
Necessary parts
• Multi power cables
• Spider connectors
• Spider support brackets
• Power source cables
How to realize the connections between the custom power box and the LED-wall ?
1. Install a spider support bracket at the rear side of the LED-wall. Choose a place where all output cables of the spider connector
will easily connect to the start point of a power branch.
2. Fasten the multi-pole plug of a spider connector inside the spider support bracket.
Warning: Always use waterproof spider connectors in case of an outdoor LED-wall application.
3. Connect a single power source cable of the spider connector with the start point of a power branch of tiles in the LED-wall.
4. Repeat step 3 until all six power source cables of the spider connector are connected with the LED-wall.
5. Connect a multi power cable with the spider connector. Ensure to fasten the locking cap of the spider connector.
6. Connect the other side of the multi power cable with one of the multi-pole sockets on the custom power box. Ensure to fasten
the locking cap of the multi-pole plug.
Warning: Ensure the custom power box is switched off.
7. Repeat from step 1 until all multi-pole sockets of the custom power box are used.
12 R5976620 CUSTOM POWER BOX 05/06/04

5. Addendum
5. ADDENDUM
5.1 Identification system of a power distribution network according IEC1364
TT, IT, TN-C and TN-S
The first character indicates the position of the neutral conductor:
• T : Directly connected with the protective earth.
• I : Isolated from the protective earth or connected through an impedance.
The second character indicates the grounding manner of electrical equipment:
• T : Directly connected with the protective earth.
• N : Connected with the neutral conductor of the power source.
The third character indicates the situation of the neutral (N) conductor and the protective earth (PE) conductor:
• C : Common conductor for neutral and protective earth.
• S : Separated conductors for neutral and protective earth.
1. International Electro-technical Commission
R5976620 CUSTOM POWER BOX 05/06/04 13

5. Addendum
14 R5976620 CUSTOM POWER BOX 05/06/04

Index
INDEX
A
Addendum 13
C
Cables 7
Components 9
Connections 11
Power box 11
Custom Power Box 5–6
Technical summary 6
F
Functionality 5
I
IEC 364 13
Installation 9–10
O
Order info 5, 7
P
Power box 11
Connections 11
S
Safety 3
Important Safety Instructions 3
Important Warnings 3
T
Technical summary 6
R5976620 CUSTOM POWER BOX 05/06/04 15
Table of contents
