Ultra-High Resolution, High Brightness
Digital Light Cannon Projector
BARCOREALITY 9300
Versatile Source Compatibility
The BARCOREALITY 9300 offers exceptional source
compatibility wich enables it to display brilliant, high
resolution images from virtually any computer or
workstation, as well as any digital and analog or data
video sources:
• NTSC Video sources: VHS, S-VHS, Component
(Y, R-Y, B-Y) and RGB format
• DVD players, satellite receivers and laserdiscs
• Computers and workstations with a resolution of up to
2000 x 1280 pixels
• Built-in Serial Digital Input (SDI / 4:2:2)
Exceptional Video and Graphics Performance
The BARCOREALITY 9300 delivers superb large screen
picture quality from all video and graphics sources
thanks to several advanced features:
• High light output of 6,600 lumen full white
• Three active matrix 5.8” high aperture S-XGA LCD
panels with a resolution of 1280 x 1024 pixels
• Powerful 1800 Watt metal-halide lamp
• BARCO’s advanced TCRPlus feature transforms
ordinary video signals into brilliant images with
vibrant colors and amazing color depth
• BARCO’s Patented Pixel Map Processor guarantees
very legible characters and the greatest amount of
picture detail possible
The BARCOREALITY 9300 combines
exceptional resolution and very
high brightness
with advanced
signal processing to deliver a
remarkable break-through in
performance for large screen
video and graphics applications.
Equipped with high aperture
ratio S-XGA panels and an 1,800
Watt metal-halide lamp, the unit
delivers a powerful light output
of 6,600 lumens. The BARCOREALITY
9300 is ideally suited for the most
demanding applications ranging
from auditoriums, conference
room and rental & staging
applications to CAD/CAM
imaging, process control and
virtual reality centers.

TCR Plus – The Power to Reinforce
Color and Detail
BARCO’s TCRPlus Technology
TCRPlus utilizes BARCO’s True Color
Reproduction feature which
provides true-to-life colorimetry
and superior color uniformity
over the entire screen. Special
image enhancement features
enable perfect color tracking and
superb gamma correction. The
result are razor-sharp graphics
pictures and rich, well saturated
video images with amazing color
depth and clarity.
BARCO’s MOCA (Motorized
Convergence Adjustment
System) was designed especially
for special applications such as
On-axis or Dual/Triple projection .
MOCA allows precise convergence
adjustments on the projected
image by means of an Infrared
Remote Control.
BARCOREALITY 9300 projectors can
be mounted and suspended in
BARCO’s rugged, Multifunctional
frame. Solid fixation points are
provided for rigging safety
chains. Powerful features such
as an Adjustable Lens Shift, an
SDI digital video input and
BARCO’s Windows Control
Software offer further
flexibility.
loop through
loop through
1x SDI
Digital Source
Ready for the Road
A wide range of special features and accessories make the
projector ideally suited for Rental and Staging applications:
Sharper Picture Display
State-of-the-art processing
algorithms dramatically
improve both sharpness and
detail for high-resolution
graphics and video images.
Dynamic Color Depth
Superior picture quality is
achieved for all sources
by digitally analyzing,
and controlling the color
contrast of each image
pixel in real time.
Noise Reduction
An advanced Digital
Noise Reduction System
reduces noise in video
pictures and increases the
stability of graphics
images without inducing
motion artifacts.
The digital input
facility allows the
direct connection
of digital sources.
An active loop-
through is provided
for monitoring or
for double and
triple stacked
applications.
Programmable
Blanking
This feature allows
the user to create
complex blanking
patterns using an
external PC and
special software.

Light Output
6,600 lumen full white
5,500 ANSI lumen
Brightness uniformity:
> 80% for the total screen area
LCD Panels
3 active matrix high aperture
S-XGA LCD panels (5.8” diagonal),
with a resolution of 1280 x 1024
pixels. LCD panels are selected for
a minimum of pixel defects(1)
Lamp
1800 Watts metal-halide lamp
Typical lifetime: 1,000 hours with
a brightness maintenance of 80 %
Available Lenses
• Fixed focal length lenses are
available with a throw ratio of
1.2, 2.2, 3.3, 4.0, 5.0, 7.0 or 10.0:1.
• Variable focus lens:
- throw distance = 1.5 - 3 times
the screen width
• Lens with a very short throw
ratio of 0.9:1, for on-axis
projection applications
• Ultra-high resolution QHD
lenses are available
Lens Type Order No.
QHD (1.2:1) R9829760
QHD (2.2:1) R9829770
QHD (4.0:1) R9829080
QHD (10.0:1) R9829840
QHD (1.5-3:1) (zoom) R9829780
HD (3.3:1) R9829075
HD (5:1) R9829180
HD (7:1) R9829090
HD (0.9:1)(2) R9829550
Screen Sizes
Min.: 3.3’ x 2.5’/ 1m x 0.75 m
Max.: 50’ x37.5’/ 15m x 11.25m
Contrast Ratio
>250:1 (on 5x4 B/W checkerboard)
>500:1 (full white/full black)
Remote Control
All controls are accessible through
a soft-touch panel, a user-friendly
backlit infrared remote control or
BARCO’s Windows Control Software
• Source switching
• User settings per source
• Installation and service
adjustments
Technical Specifications
Inputs
Built-in input facilities:
• RGB analog input with standard
sync (BNC connectors), sync on
green or separate sync
• Multifunctional 5-Cable input
for the connection of
- RGB analog signals with
standard sync (BNC connectors)
or tri-level sync, sync on green
or separate sync
- Standard Video signals
- S-VHS signals
• RS232 and RS422 (software
switchable) loop-through input
(D9-connector) for PC based
projector control
• Communication input (D9-
connector) for peripherals
• SDI input (Serial Digital Input)
• 3 pins male XLR connector for
communication input
Furthermore, the projector has
two modular inputs. Five different
types of input modules are
available:
• Video / S-Video Input:
Video on BNC, S-Video on 4-pin
mini-DIN connector
• Component Video Input
(Y, R-Y, B-Y, S) on 4 BNC
connectors
• RGB analog input with standard
sync (BNC connectors), sync on
green or separate sync
• RGB analog input with tri-level
sync (BNC connectors), sync on
green or separate sync
• 5-Cable input
Input Modules Order No.
Video/S-Video R9827900
RGB analog (standard sync)
R9827910
RGB analog (tri-level sync)
R9827920
Component Video R9827930
5-Cable Input R9828660
Compatibility
The BARCOREALITY 9300 is
compatible with:
• All current NTSC Video sources in
Composite, S-VHS, RGB or
Component or digital formats
• All currently proposed HDTV,
extended and improved
television standards (Eureka 95,
Hi-Vision, ACTV, IDTV, EDTV,...)
• All computer graphics formats
from VGA (640x480), S-VGA
(800x600), XGA (1024x768),
S-XGA (1280x 1024 pixels) up to
electronic workstations with a
resolution up to 2000 x 1280
pixels ( pixel clock up to 200 MHz)
• Most Macintosh computers
Special Features
• Built-in MOCA motorized
convergence adjustments via
remote control
• Built-in Adjustable Lens Holder
ideal for dual and triple stacked
configurations
• Extensive geometry adjustments
(Image Size, Shift, Keystone,...),
also addressable through RS232
communication port
• Built-in Freeze facility
• Internal test patterns
(crosshatch, color bars, greyscale,...)
• External auto-diagnostics with
2 x 7 segment LED display
• Built-in help menus
• Intuitive on-screen display:
Installation and service screens,
barscale display of user settings,
on-screen display of selected source
• Easy upgradable projector software
from PC via RS232 input
• Adjustable leveling feet
• Calibrated color temperature
selections (3200K, 5400K,
6500K, 9300K or custom)
• Optional light shutter blanks
image when paused
• An optional multifunctional
frame facilitates carrying the
projector and protects it against
impacts. It also allows quick and
easy set-up of the projector for
Dual or Triple stacked applications
• New Removable covers allows
easy servicing in Double and
Triple stacked configurations
• PC Control possible with BARCO’s
Windows Communication Software
• Computer controlled
programmable blanking allows
projection in a user-defined
shape ranging from circles,
squares and lines
(1) Further information is available on request.
(2) Requires an 0n-Axis kit p.n. R769886K

(3) Without lens or modular inputs. Lenses and
modular inputs are sold separately.
(4) With QHD(4.0:1) lens. Dimensions for other
lenses are available on a separate data sheet
BARCO Projection Systems
is an ISO9001 registered
company.
The information and data given are typical for the
equipment described. However any individual
item is subject to change without any notice.
Ref. no. R599491 - 01- June ‘99 - Printed in Belgium
BARCO Projection Systems Head Office
Noordlaan 5 8520 Kuurne, Belgium
Tel: [phone] Fax: [phone]
E-mail: [email protected]
Visit BARCO on the web: http://www.barco.com
Safety Regulations
The BARCOREALITY 9300 complies
with UL1950 and EN60950
Electromagnetic Interference
The BARCOREALITY 9300 complies
with FCC Rules & Regulations,
part 15 Class A and CE EN55022
Class A
Warm-up Time
Less than 3 minutes to meet full
specifications
AC Power
Power factor pre-regulated SMPS,
240 VAC±10%/50-60 Hz
Power Consumption
Max. 2,300 watts [230 VAC/10 A]
Dissipation: Max. 7,900 BTU/hr
Weight(3)
Net weight 207 lbs./ 94 kg
Shipping weight 273 lbs./124 kg
Accessories Included
• Infrared Remote Control
• Owner’s & Installation Manual
•
Power Cord with CEE (7) VII Plug
Order Information
BARCOREALITY 9300(3)
with MOCA R9001560
RCVDS 05 Source Selector
230 V R9828700
Remote Infrared Receiver
R9827516
Windows Communication
Software R9829670
Multifunctional Frame R9829651
Vertical Mirror for Multifunctional
Frame R9829680
Flight Case for projector + Frame
R9829720
Ceiling Mount 5/8/9000
• With Pulley System R9829620
• Without Pulley SystemR9829621
1800 W Metal-Halide Lamp
R9829715
Service Tool Kit R9829241
Light Shutter R9829270

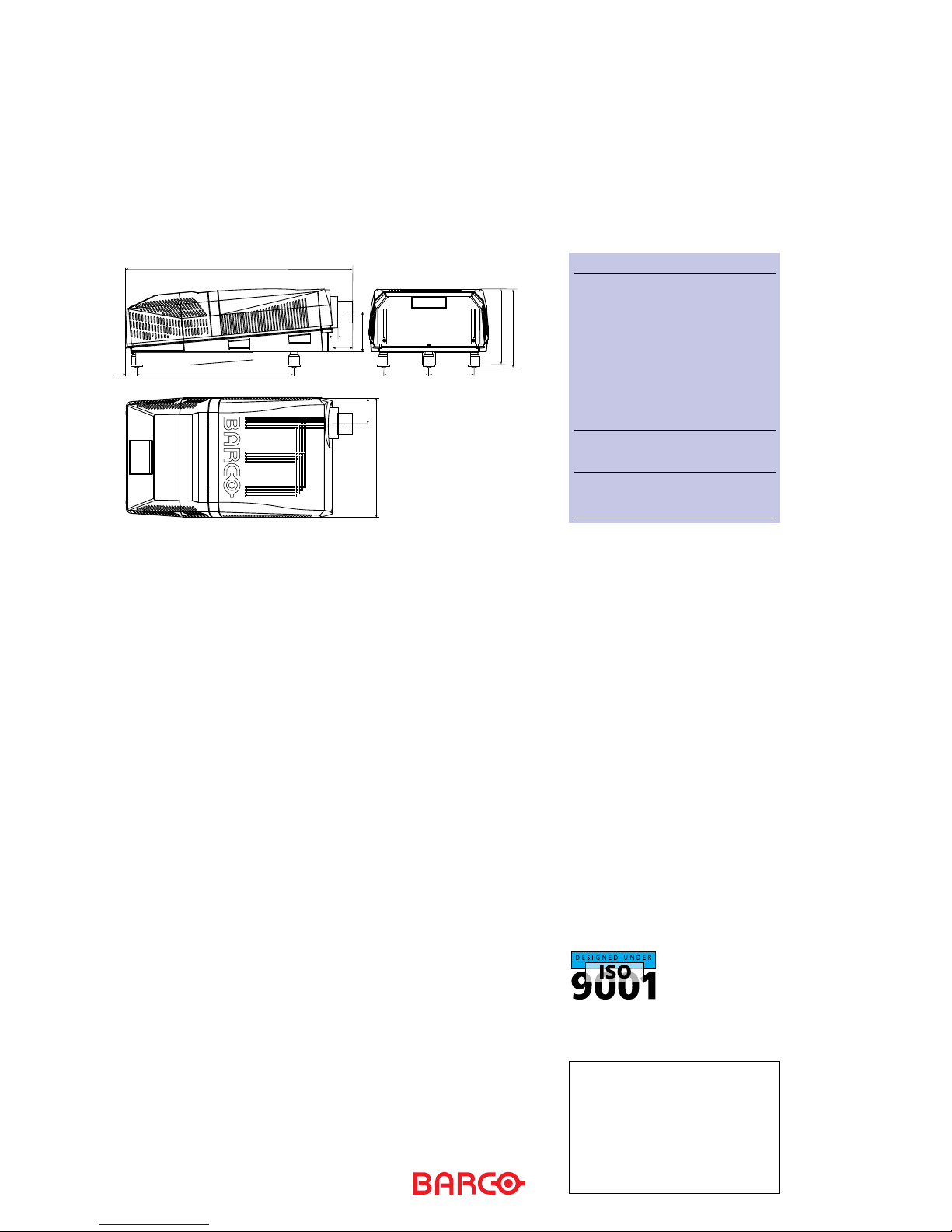

Dimensions inch mm
L1(4) 47.60-49.57 1,209-1,259
L2 27.64 702
L3 1.65 42
L4(4) 4.33-6.30 110-160
L5 1.06 27
W1 24.80 630
W2 5.31 135
W3 11.18 284
H1 16.61 422
H2 15.71 399
H3 8.23 209
Shipping
Dimensions inch mm
L 53.15 1,350
W 24.80 950
H 26.77 680
W1 W2
H1
H3
L4
L5
L1
W3 W3
H2
L2L3
