Barco R9828120 User manual

BARCO PROJECTION SYSTEMS
JVH29.04.97
WARNING
As the plug on the power supply cord serves as the disconnect device, the socket-
outlet shall be installed near the equipment and shall be easily accessible.
* Trademark are the rights of their respective
BARCO
MAGIK Interface
R9828120 (230 VAC)
R9828129 (120 VAC)
R5975366 rev. 02

POWER REQUIREMENTS
Power requirements for electrical equipment differ from area to area. Please ensure that your
apparatus meets the power requirements in your area.
SAFETY
If the Power cord of the Interface is equipped with a ANSI 73.11 PLUG,
Factory preset Power Voltage for this interface is 120 VAC 60mA 50/60Hz.
If the Power cord of the Interface is equipped with a CEE 7 PLUG,
Factory preset Power Voltage for this interface is 230 VAC 40mA 50/60Hz.
If in doubt, consult a
QUALIFIED TECHNICIAN for voltage conversion.
POWER ADAPTATION
To adapt the power voltage of the
interface, please proceed as follows :
Warning: unplug the power cord be-
fore proceeding with the power volt-
age adaptation of the interface.
1. Remove the top cover to access the
interface module.
-remove the screw caps
-remove the screws
-separate bottom from top cover
WARNING
TO PREVENT FIRE OR ELEC-
TRICAL SHOCK, DO NOT
EXPOSE THIS
INTERFACE TO RAIN OR
MOISTURE
274.DRW
screw caps
2

Power cord with CEE 7 plug
The wires of the power cord are colored
in accordance with the following code
CEE 7 plug
Green-and-yellow: Earth (safety earth)
Blue: Neutral
Brown: Line (Live)
230VACoperation
line fuse
T80mA
230V
link
Fig. a
3
2. For nominal 120VAC operation,
proceed as follows:
-changethelinefusetoa160mA
slow blow type fuse
-remove the 230V soldered link
on the module (Fig. a).
-solder two links provided for
120V operation (Fig. b).
-cut the existing wall plug off the
power cord and strip the wires
back to attach the appropriate
power plug, ANSI 73.11
Power cord with ANSI 73.11 plug
The wires of the power cord are colored
in accordance with the following code
ANSI 73.11 plug
Green/yellow: Ground
White: Neutral
Black: Line (Live)
120VACoperation
line fuse
T160mA
120V links
Fig. b
2. For nominal 230VAC operation,
proceed as follows:
-change the line fuse to a 80mA
slow blow type fuse
-remove the two 120V soldered
links on the module (Fig. b).
-solder one link provided for
230V operation (Fig. a).
-cut the existing wall plug off the
power cord and strip the wires
back to attach the appropriate
power plug, CEE 7

THE BARCO MULTIFUNCTIONAL ANALOG GRAPHICS
INTERFACE KIT
4
Contents of the kit.
- MAGIK interface
- VGA input cable + VGA output cable R9828250
- MAC input cable + MAC output cable R9828240
- 13W3 input cable + 13W3 output cable R9828230
- 5x BNC to BNC cable 60 cm R9828260
- 5x BNC to BNC cable 5 m R9828262
- Adapter Power PC for VGA R9828430
All cables (input/output cables in set of two) can be ordered separately with the
order number mentionned beside the cable.
Optional cables :
- 5 BNC to BNC cable 150 cm R9828261
- 5 BNC to BNC cable 15 m R9828263
R9828430

Application
For interfacing the BARCO projectors to any IBM PC (or compatible PC), MAC or
workstation up to resolutions of 2500 at 2000 pixels.
Bandwidth to projector : 265 MHz for 0.7 Vpp input and 0.7 Vpp output.
Bandwidth to monitor : 270 MHz for 0.7 Vpp input and 0.7 Vpp output.

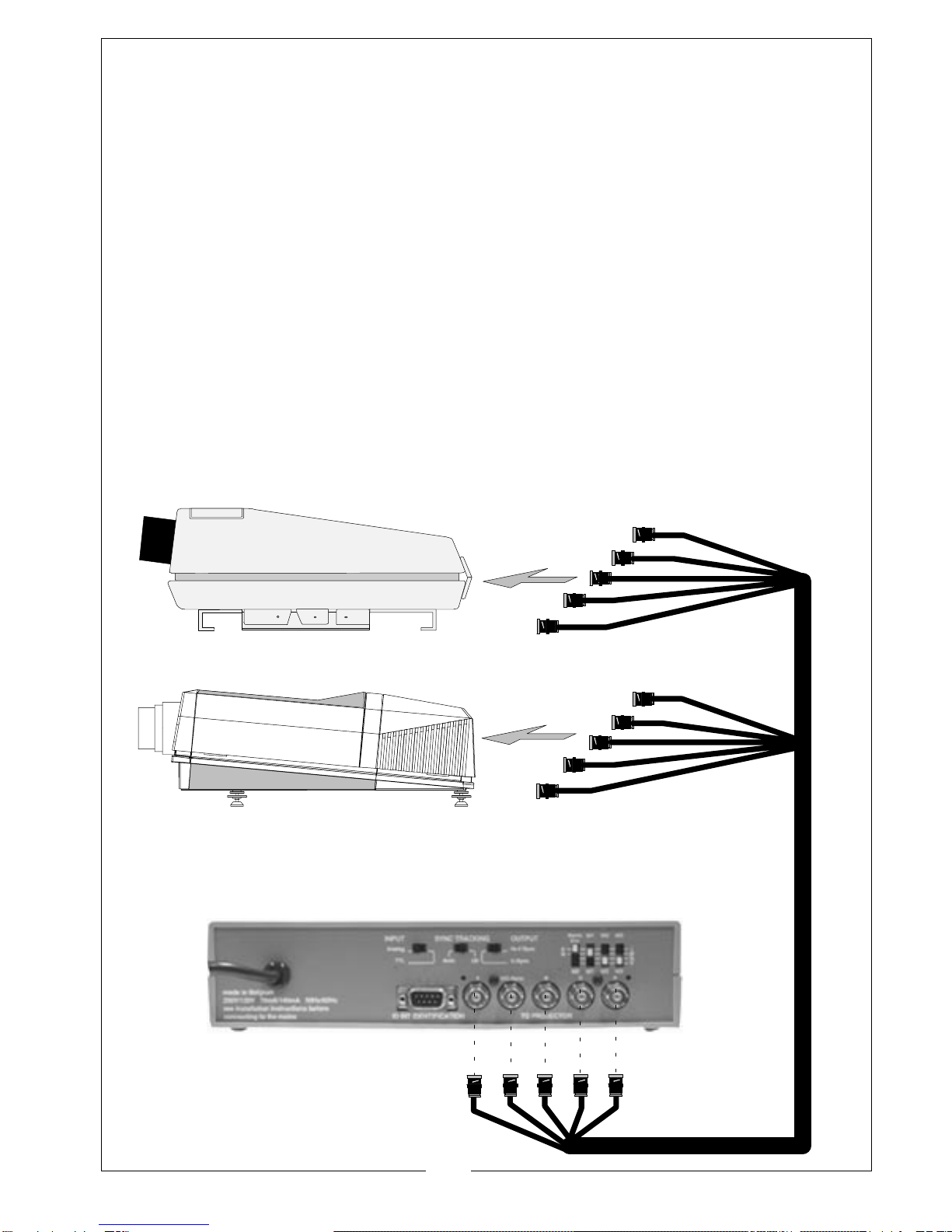

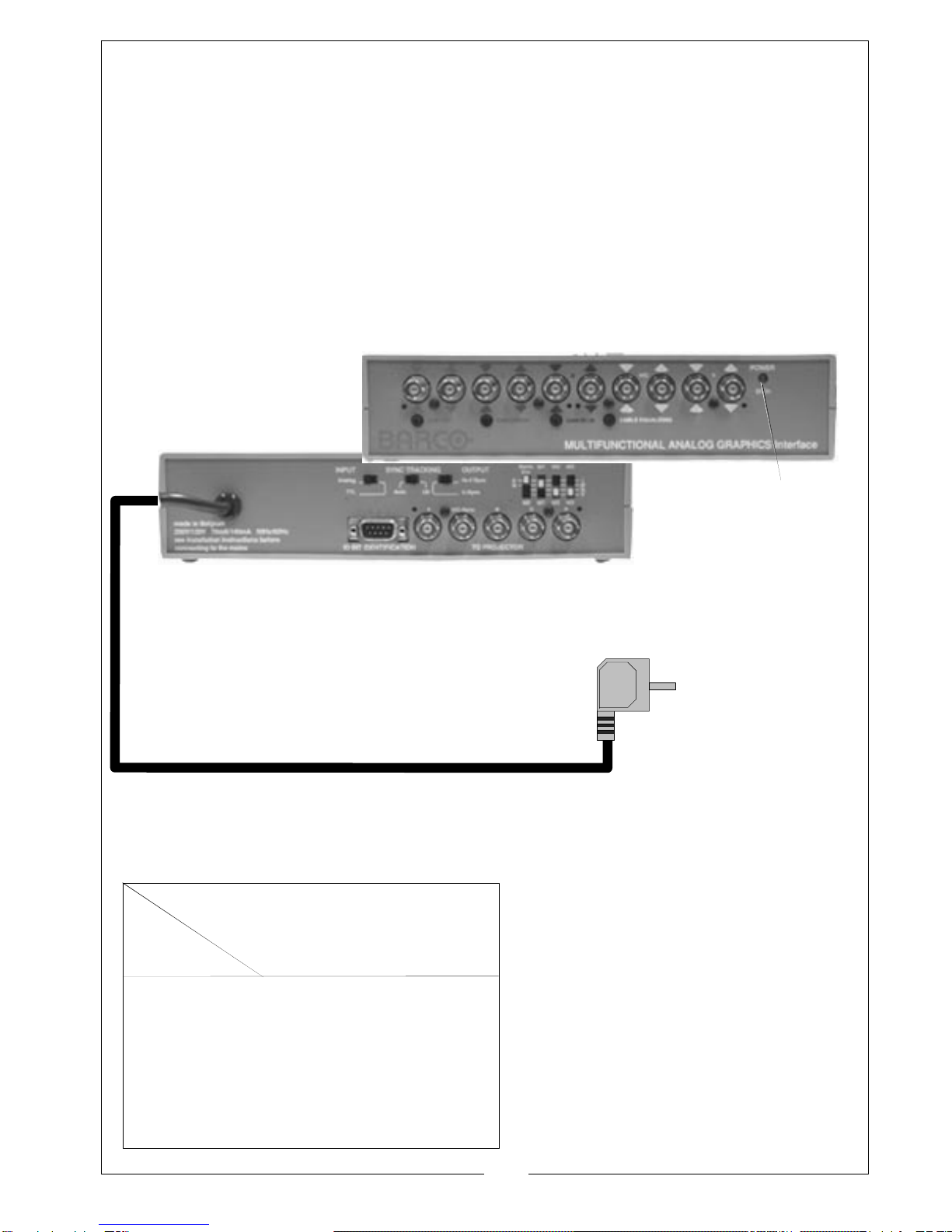

Interface application drawing
Power connection
Power indication lamp
to wall outlet
BNC color reference for in- output cables.
VGA 13W3
BNC-BNC MAC
Signal (5 BNC's) (6 BNC's)
RED red red
GREEN green green
BLUE blue blue
HOR sync black black
VERT sync grey white
Comp. sync - grey
Cable
type
5

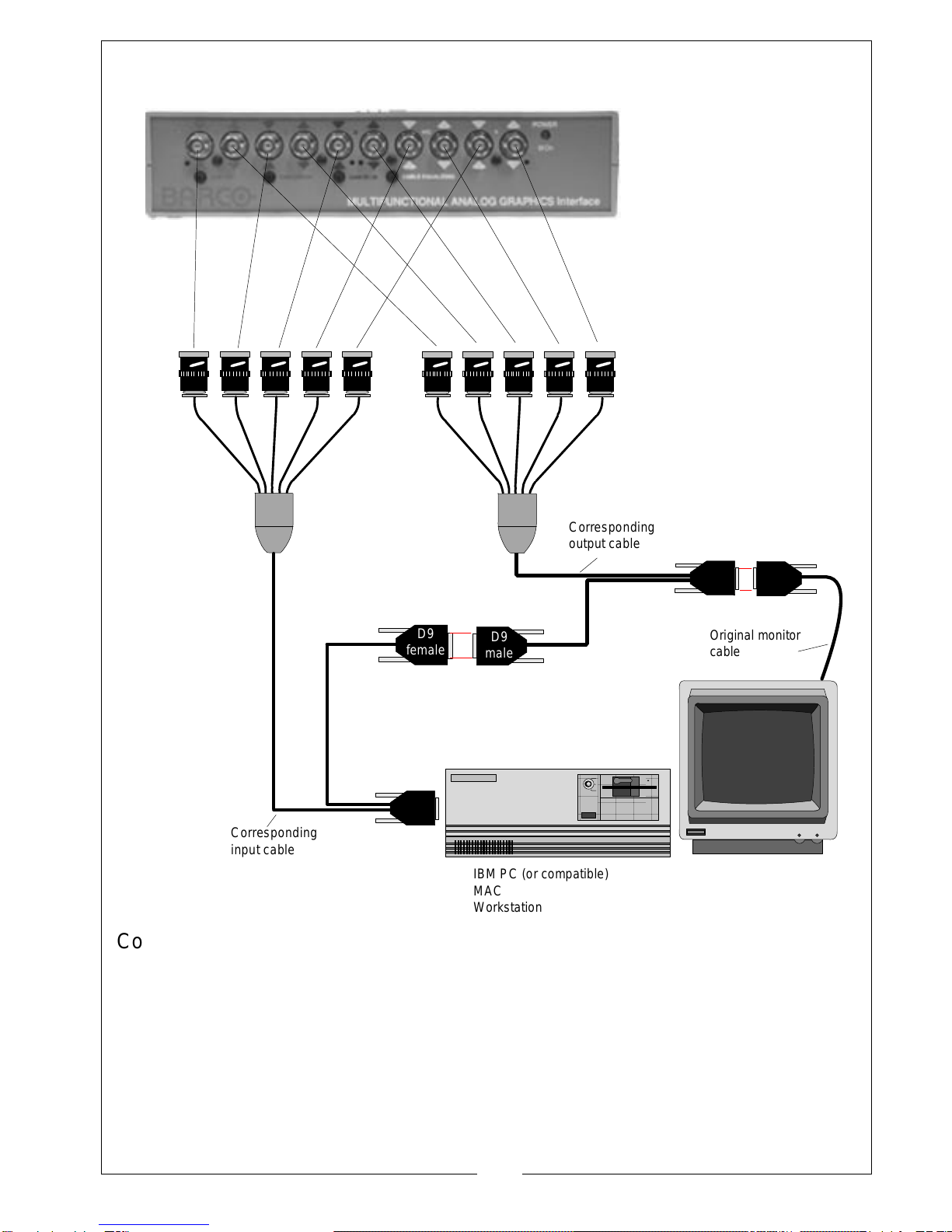

Interconnection Interface/Computer with monitor
(monitor without BNC connectors)
AAAA
A
AAA
A
AAA
A
AAA
A
AAA
A
AAA
A
AAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAA
AA
A
AA
A
AA
A
AA
A
AA
A
AA
A
AAA
AA
AA
D9
female D9
male
IBM PC (or compatible)
MAC
Workstation
Corresponding
input cable
Corresponding
output cable
Original monitor
cable
Connect the corresponding input cable to the computer (DD15 or DB15 or 13W3
connector).
Connect the BNC connectors of the input cable to the BNC input connectors of
theMAGIKinterface.
Connect the D9 female connector (ID identification)to the D9 male of the output
connector.
Connect the BNC connectors of the output cable to the BNC output connectors of
theMAGIKinterface.
Connect the connector DD15 or DB15 or 13W3 to the original monitor cable.
6

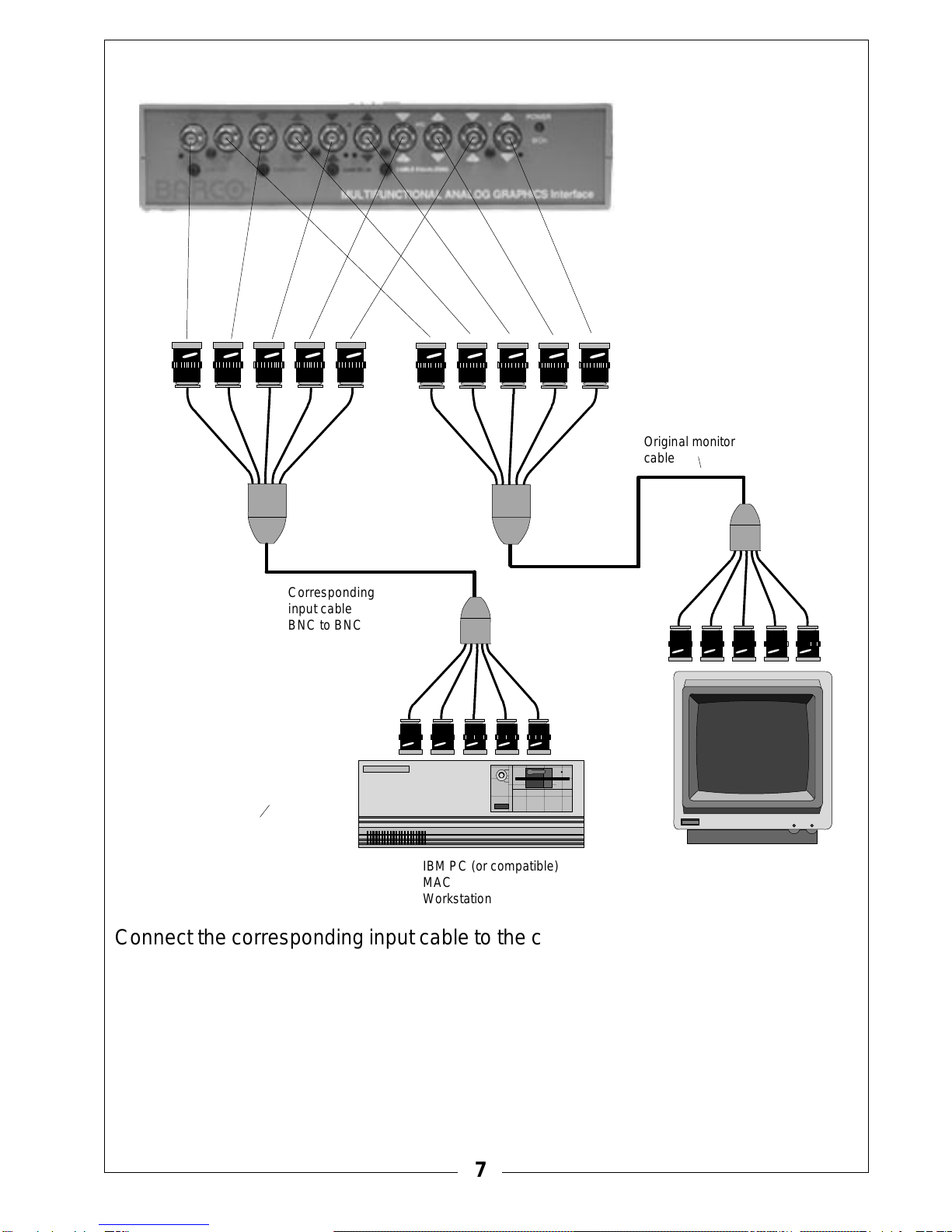

Interconnection Interface/Computer with monitor
(monitor with BNC connectors)
AAAA
A
AAA
A
AAA
A
AAA
A
AAA
A
AAA
A
AAA
A
AAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAA
AA
A
AA
A
AA
A
AA
A
AA
A
AA
A
AA
A
AAA
AA
AA
IBM PC (or compatible)
MAC
Workstation
Corresponding
input cable
BNC to BNC
Original monitor
cable
7
Connect the corresponding input cable to the computer (BNC to BNC).
Connect the BNC connectors of the input cable to the BNC input connectors of
theMAGIKinterface.
Connect the original monitor cable (BNC connectors) to the output connectors of
theMAGIKinterface.

Interconnection Interface/Computer without monitor
AAAA
A
AAA
A
AAA
A
AAA
A
AAA
A
AAA
A
AAA
A
AAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
AAA
AA
A
AA
A
AA
A
AA
A
AA
A
AA
A
AA
A
AAA
AA
AA
D9
female
IBM PC (or compatible)
MAC
Workstation
Corresponding
input cable
Connect the corresponding input cable to the computer (DD15 or DB15 or 13W3
connector).
Connect the BNC connectors of the input cable to the BNC input connectors of
theMAGIKinterface.
Connect the D9 female connector (ID identification) to the D9 male input, labelled
"ID BIT IDENTIFICATION" of the MAGIC interface.
Select with the four switches the correct ID code (see table on next pages)
8

ID Bit Combinations
VGAdisplays Id3 Id2 Id1 Id0
IBM12 Monochrome 12" VGA 1 1 0 1
IBM14L8 Color 14" XGA 1 0 1 0
IBM14L10 Color 14" XGA 1 0 1 0
IBM14V Color 14" XGA 1 0 1 0
IBM14P/14X/14XG Color 14" XGA 1 0 1 0
IBM14PT/14XT Color 14" XGA 1 0 1 0
IBM15V Color 15" XGA 1 0 1 0
IBM15P/15X/15XG Color 15" XGA 1 0 1 0
IBM15PT/15XT Color 15" XGA 1 0 0 1
IBM17V /17SColor 17" XGA 1 0 1 0
IBM17P/17X/17XG Color 17" SXGA 1 0 0 1
IBM17PT/17XT Color 17" SXGA 1 1 0 1
IBM21P/21X/21XG Color 21" PXGA 1 0 0 1
IBM21PT/21XT Color 21" PXGA 1 1 0 1
IBMPS/Valuepoint 6312 Color 14" Color 1 0 1 0
IBMPS/Valuepoint 6314 Color 14" XGA 1 0 1 0
IBMPS/Valuepoint 6317 Color 17" XGA 1 0 1 0
IBMPS/Valuepoint 6318 Color 14" XGA 1 0 1 0
IBMPS/Valuepoint 6319 Color 15" XGA 1 0 1 0
IBM PS/2 8503 monochrome 12" 1 1 0 1
IBM PS/2 8504 monochrome 12" 1 1 0 1
IBM PS/2 8506 monochrome 17" Portrait 0 1 0 1
IBM PS/2 8507 monochrome 19" XGA 1 0 0 1
IBM PS/2 8508 monochrome 19" 0 1 1 0
IBM PS/2 8511 Color 14" VGA 1 1 1 0
IBM PS/2 8512 Color 14" VGA 1 1 1 0
IBM PS/2 8513 Color 12" VGA 1 1 1 0
IBM PS/2 8514 Color 16" XGA 1 0 1 0
IBM PS/2 8515 Color 14" XGA 1 0 1 1
IBM PS/2 8516 Color 14" XGA 1 0 1 1
IBM PS/2 8517 Color 17" H 0 1 0
IBM PS/2 8518 Color 14" VGA 1 1 1 0
IBM 9504 monochrome 21" 0 1 0 H
IBM 9507 LCD VGA 10" Color 0 1 1 0
IBM PS/2 9515 Color 14" XGA 1 H 1 1
IBM PS/2 9517 Color 14" XGA H H 1 0
IBM PS/2 9518 Color 14" VGA75 1 H 1 0
IBM PS/2 6091-016 Color 16" V 1 1 0
IBM PS/2 6091-19i Color 20" V 1 0 0
For other monitors or VGA cards, consult the delivered manual for the correct ID bit setting.
9
Used abbreviations :
H = hor. sync
V = Vert. sync
N = normal code
E = extended code

10
MACdisplays Id3 Id2 Id1 Id0
N/E
Apple 21" Color 0 0 0 N
Apple Portrait 0 0 1 N
12" Apple RGB 0 1 0 N
Apple 2-P Mono 0 1 1 N
NTSC Underscan 1 0 0 N
NTSC Overscan 1 0 0 N
12" Monochrome 1 1 0 N
13" Apple RGB 1 1 0 N
14" Apple RGB 1 1 0 N
16" Color (E-Machine) 0 1 0 E
PAL Opt. 1 Underscan 0 0 0 E
PAL Opt. 1 Overscan 0 0 0 E
VGA 0 0 1 E
SVGA 0 0 1 E
19" Color 1 0 0 E
Interconnection Interface output/display device

Cable
equalisation
Cable equalisation
Adjustment
50%
min max
C-sync
Input sync TTL --> Buffered loop through
Input sync Analog --> Wired loop through
Sync tracking
Auto Off
Sync tracking auto :
Hsync out = 1/13 of the line time.
Vsync out = 3 to 4 lines.
View before cable
equalisation View after cable
equalisation
R, G, B input : 0.4 - 2.5 Vpp
adjust gain for 0.7 Vpp output on 75 Ωload
Hor. sync and Vert. sync input :
TTL level on 20KΩload or
Analog 0.3 to 5 Vpp
11
GREEN RED BLUE
Gain adjustment
GAIN Adjustment
1/1
min max
Input
Sync selection Output Sync selection
H+V-sync
Analog TTL
Displaycontrols

Sync table
Sync in Sync out Sync tracking switch
Comp. Sync Comp. Sync inactive
H+V sync Comp. Sync active, switchable between AUTO and OFF
H+V sync H+V sync active, switchable between AUTO and OFF

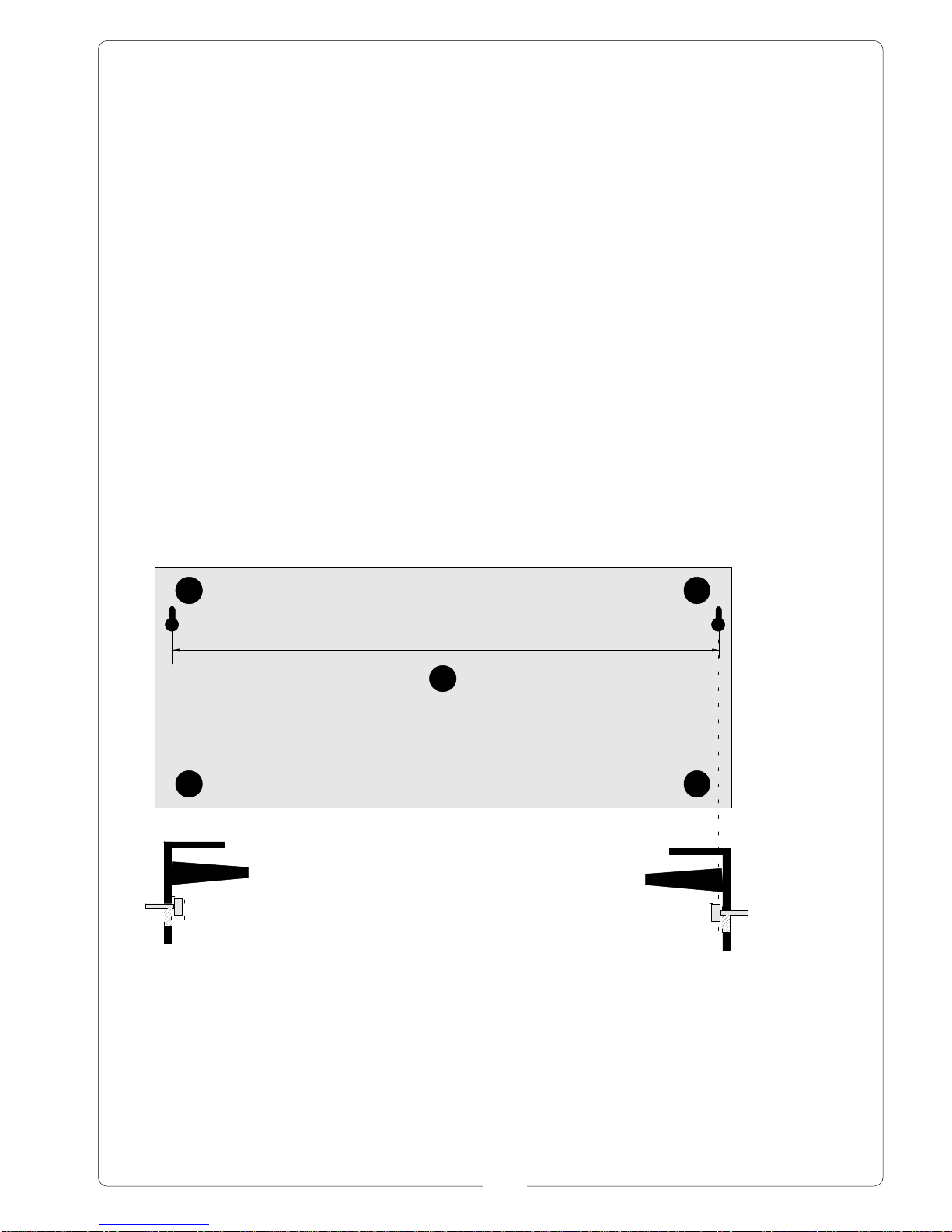

WALL MOUNTING
The interface is provided with two holes on the bottom cover to allow
wallmounting.
229 mm
BARCO NV / Projection Systems
Noordlaan 5 B-8520 Kuurne
Belgium
Printed in Belgium 12
