WALL MOUNTED PACKAGED
AIR CONDITIONER
Models:
INSTALLATION INSTRUCTIONS
W17A2-A
W18A2-A
W24A2-A
W24A2-B
W24A2-C
W24A2-D
W24A2-F
W30A2-A
W30A2-B
W30A2-C
W30A2-D
W30A2-F
W36A2-A
W36A2-B
W36A2-C
W36A2-D
W36A2-E
W36A2-F
W42A2-A
W42A2-B
W42A2-C
W42A2-E
W42A2-F
Bard Manufacturing Company, Inc.
Bryan, Ohio 43506
www.bardhvac.com
Manual: 2100-581D
Supersedes: 2100-581C
Date: 7-21-16
W17L2-A
W18L2-A
W24L2-A
W24L2-B
W24L2-F
W30L2-A
W30L2-B
W30L2-C
W36L2-A
W36L2-B
W36L2-C
W36L2-F
W42L2-A
W42L2-B
W42L2-C
W42L2-F
W48L2-A
W48L2-B
W48L2-C
W48L2-F
W60L2-A
W60L2-B
W60L2-C
W60L2-F
W70L2-A
W70L2-B
W70L2-C
W70L2-F
W48A2-A
W48A2-B
W48A2-C
W48A2-E
W48A2-F
W60A2-A
W60A2-B
W60A2-C
W60A2-E
W60A2-F
W70A2-A
W70A2-B
W70A2-C
W70A2-F
W30A2DA
W30A2DB
W30A2DC
W36A2DA
W36A2DB
W36A2DC
W42A2DA
W42A2DB
W42A2DC
W48A2DA
W48A2DB
W48A2DC
W60A2DA
W60A2DB
W60A2DC

Manual 2100-581D
Page 2 of 26
CONTENTS
Figures
Figure 1 Fresh Air Damper Assembly.................... 5
Figure 2 Unit Dimensions ................................... 7
Figure 3A

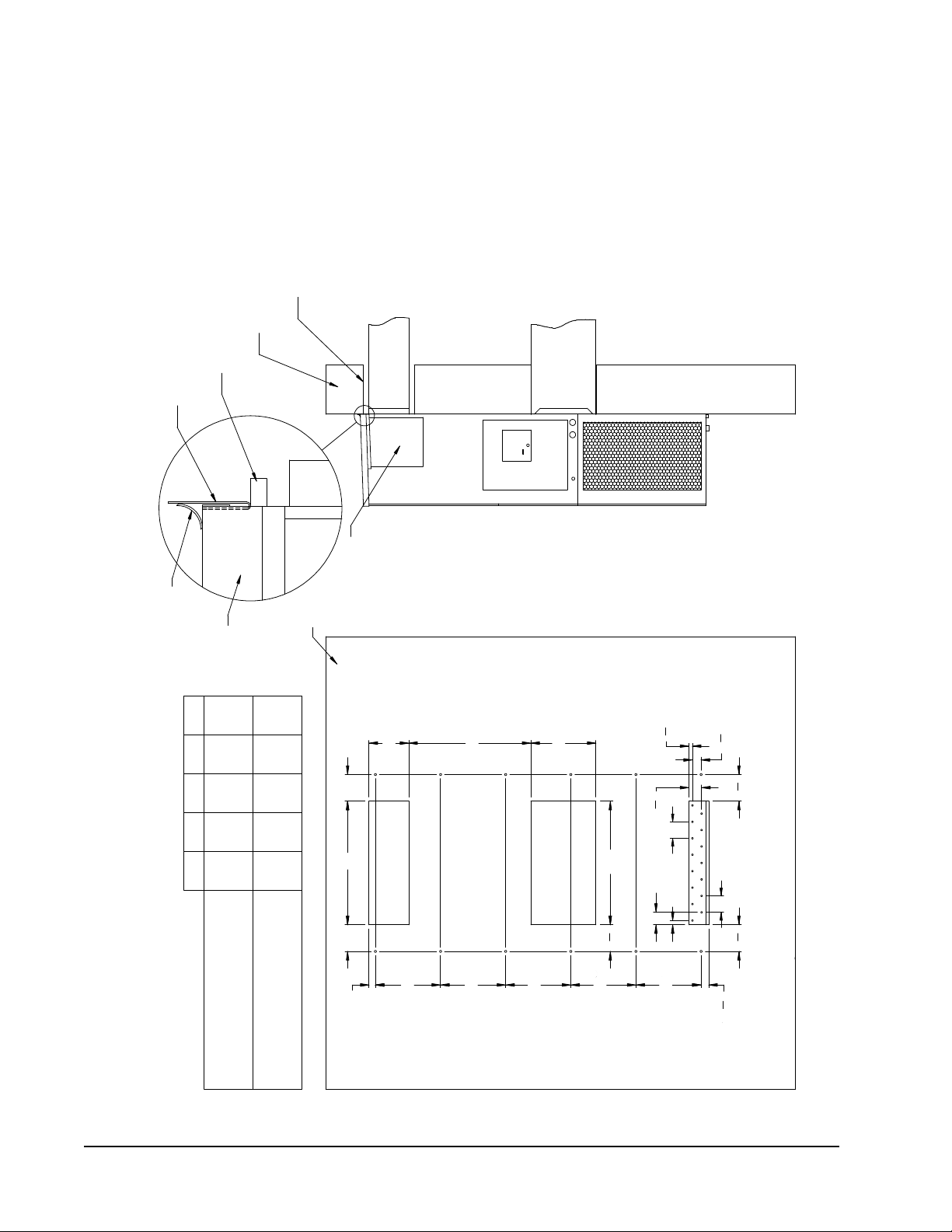

Mounting Instructions – W17, 18, 24.......... 8

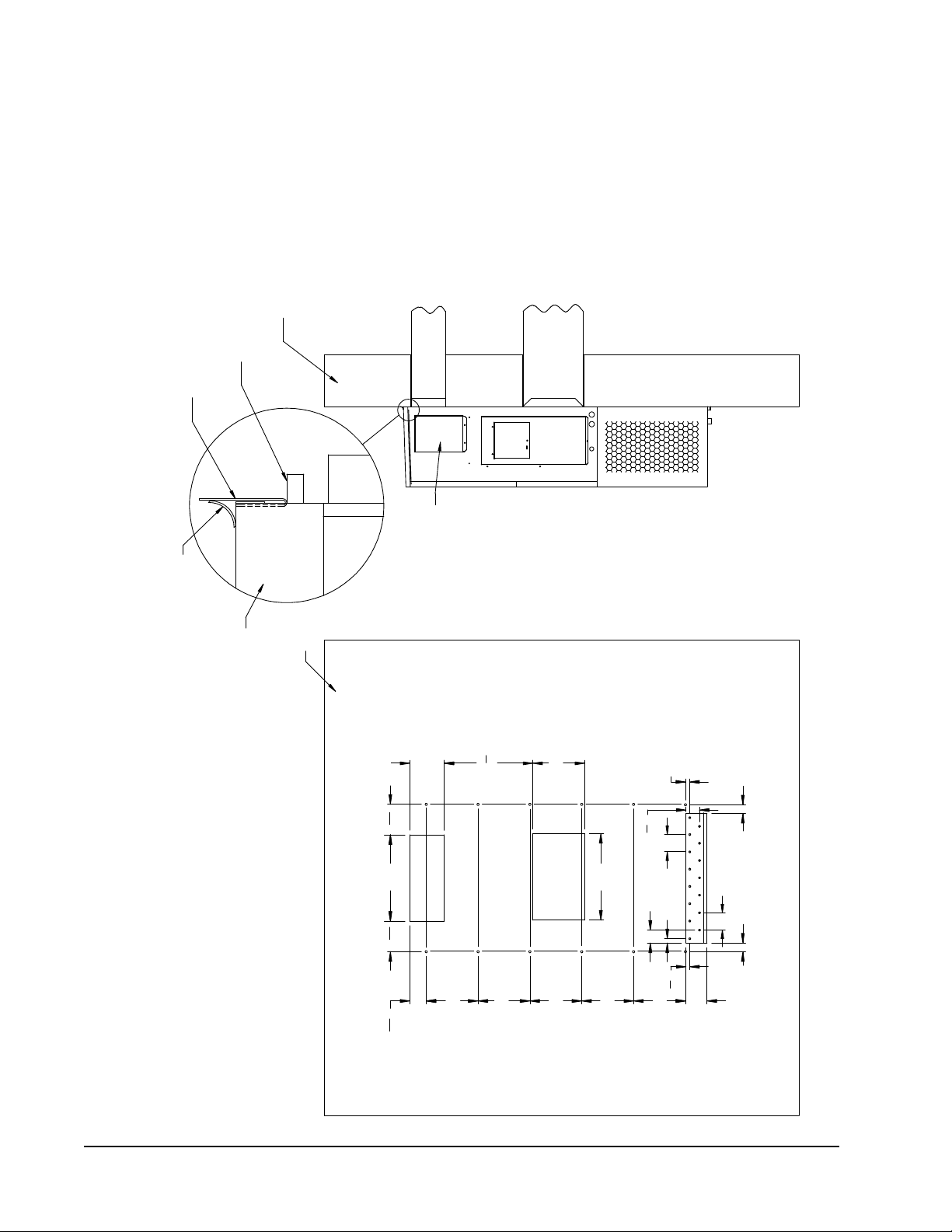

Figure 3B Mounting Instructions – W30, 36 ............... 9
Figure 3C Mounting Instructions – W42, 48, 60, 70 ..10
Figure 4 Electric Heat Clearance ....................... 11

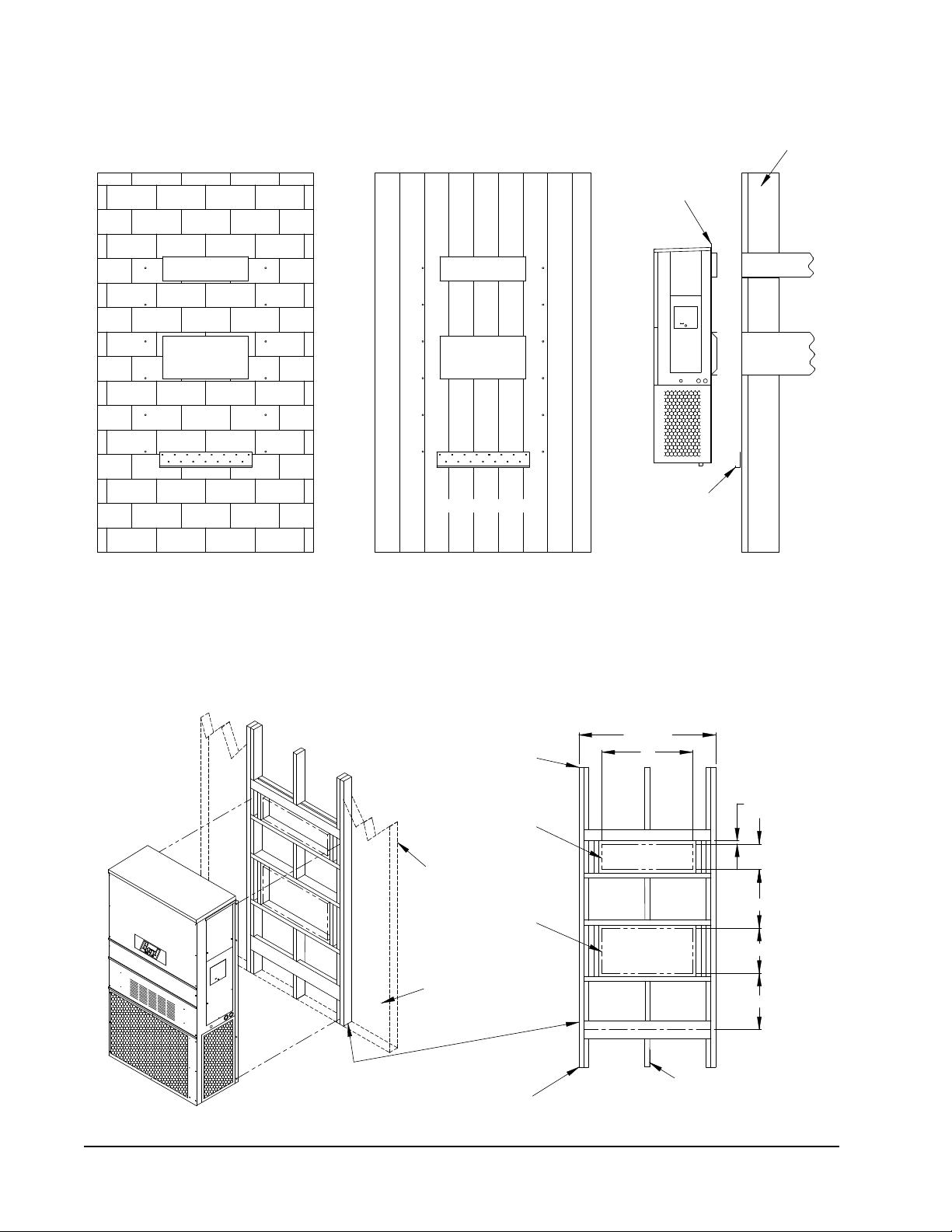

Figure 5 Wall Mounting Instructions .................. 12
Figure 6 Wall Mounting Instructions .................. 12
Figure 7 Common Wall Mounting Installations .... 13
Figure 8 Fan Blade Setting ............................... 18
Tables
Table 1 Fan Blade Dimensions......................... 18
Table 2 Cooling Pressure ................................. 19
Table 3 Electrical Specifications W**A ............. 20
Table 4 Electrical Specifications W**L.............. 21
Table 5 Recommended Airflow ......................... 22
Table 6 Indoor Blower Performance .................. 22
Table 7 Maximum ESP Electric Heat Only......... 22
Table 8 Electric Heat ...................................... 23
Table 9A Optional Accessories –Right Hand ....... 24
Table 9B Optional Accessories –Left Hand .............25
Table 10 Vent and Control Options .........................26
Getting Other Information and Publications .... 3
Wall Mount General Information ......................... 4
Air Conditioner Wall Mount Model Nomenclature..... 4
Shipping Damage ................................................. 4
General ............................................................... 4
Duct Work ........................................................... 5
Filters ................................................................. 5
Fresh Air Intake ................................................... 5
Condensate Drain ................................................ 5
Installation ............................................................... 6
Wall Mounting Information .................................... 6
Mounting the Unit ................................................ 6
Clearances Required............................................. 6
Minimum Clearances ............................................ 6
Wiring – Main Power........................................... 14
Wiring – Low Voltage........................................... 14
Start Up ................................................................... 15
General ............................................................. 15
Topping Off System Charge ................................. 15
Safety Practices ................................................. 15
Important Installer Note...................................... 16
High Pressure Switch.......................................... 16
Three Phase Scroll Compressor............................ 16
Phase Monitor.................................................... 16
Condenser Fan Operation .................................... 16
Service Hints ..................................................... 16
Sequence of Operation........................................ 16
Compressor Control Module................................. 17
Pressure Service Ports ........................................ 17
Service ..................................................................... 18
Fan Blade Setting Dimensions ............................. 18
R-410A Refrigerant Charge ................................. 18
Removal of Fan Shroud....................................... 18

Manual 2100-581D
Page 3 of 26
GETTING OTHER INFORMATION AND PUBLICATIONS
These publications can help when installing the
furnace. They can usually be found at the local library
or purchased directly from the publisher. Be sure to
consult the current edition of each standard.
National Electrical Code ......................ANSI/NFPA 70
Standard for the Installation ..............ANSI/NFPA 90A
of Air Conditioning and Ventilating Systems
Standard for Warm Air.......................ANSI/NFPA 90B
Heating and Air Conditioning Systems
Load Calculation for ......................... ACCA Manual J
Residential Winter and Summer Air Conditioning
Duct Design for Residential ............... ACCA Manual D
Winter and Summer Air Conditioning and Equipment
Selection
For more information, contact these publishers:
ACCA Air Conditioning Contractors of America
1712 New Hampshire Ave. N.W.
Washington, DC 20009
Telephone: [phone]
Fax: [phone]
ANSI American National Standards Institute
11 West Street, 13th Floor
New York, NY 10036
Telephone: [phone]
Fax: [phone]
ASHRAE American Society of Heating, Refrigeration
and Air Conditioning Engineers, Inc.
1791 Tullie Circle, N.E.
Atlanta, GA 30329-2305
Telephone: [phone]
Fax: [phone]
NFPA National Fire Protection Association
Batterymarch Park
P.O. Box 9101
Quincy, MA 02269-9901
Telephone: [phone]
Fax: [phone]

Manual 2100-581D
Page 4 of 26
WALL MOUNT GENERAL INFORMATION
AIR CONDITIONER WALL MOUNT MODEL NOMENCLATURE
NOTE: Vent options X, B and M are without exhaust capability. May require separate field-supplied barometric relief in building.
SHIPPING DAMAGE
Upon receipt of equipment, the carton should be
checked for external signs of shipping damage. If
damage is found, the receiving party must contact
the last carrier immediately, preferably in writing,
requesting inspection by the carrier’s agent.
GENERAL
The equipment covered in this manual is to be installed
by trained, experienced service and installation
technicians.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
The refrigerant system is completely assembled and
charged. All internal wiring is complete.
The unit is designed for use with or without duct work.
Flanges are provided for attaching the supply and
return ducts.
These instructions explain the recommended method
to install the air cooled self-contained unit and the
electrical wiring connections to the unit.
These instructions and any instructions packaged with
any separate equipment required to make up the entire
air conditioning system should be carefully read before
beginning the installation. Note particularly “Starting
Procedure” and any tags and/or labels attached to the
equipment.
While these instructions are intended as a general
recommended guide, they do not supersede any
national and/or local codes in any way. Authorities
having jurisdiction should be consulted before the
installation is made. See Page 3 for information on
codes and standards.
Size of unit for a proposed installation should be based
on heat loss calculation made according to methods of
Air Conditioning Contractors of America (ACCA). The
air duct should be installed in accordance with the
Standards of the National Fire Protection Association
for the Installation of Air Conditioning and Ventilating
Systems of Other Than Residence Type, NFPA No.
90A, and Residence Type Warm Air Heating and Air
Conditioning Systems, NFPA No. 90B. Where local
regulations are at a variance with instructions, installer
should adhere to local codes.
CONTROL MODULES
(See Spec. Sheet S3397)
COIL OPTIONS
X–Standard
1–Phenolic Coated Evaporator
2–Phenolic Coated Condenser
3–Phenolic Coated Evaporator
and Condenser
Insert “D” for dehumidification with hot gas reheat.
Reference Form 7960-668 for complete details.
SPECIALTY PRODUCTS 
(Non-Standard)
W 42 A A –A 10 X X X X X A
MODEL SERIES
REVISION
KW
A – Right Hand
L – Left Hand
FILTER OPTIONS
X–1" Throwaway (Standard)
W–1" Washable
P–2" Pleated
OUTLET OPTIONS
X–Front (Standard)
T–Top Outlet (W30A, W36A only)
COLOR OPTIONS
X–Beige (Standard)
1–White
4–Buckeye Gray
5–Desert Brown
8–Dark Bronze
A–Aluminum
S–Stainless Steel
CAPACITY
17 –1½ Ton
18 –1½ Ton
24 –2 Ton
30 –2½ Ton
36 –3 Ton
42 –3½ Ton
48 –4 Ton
60 –5 Ton
720–6 Ton
VENTILATION OPTIONS
X–Barometric Fresh Air Damper (Standard)
B–Blank-off Plate
M–Motorized Fresh Air Damper
V–Commercial Ventilator - Motorized with Exhaust
R–Energy Recovery Ventilator - Motorized with Exhaust
S–Economizer - School Versions, Enthalpy
W–Economizer - Equipment Building, Enthalpy
T–Economizer - Equipment Building, DB Temp.
A–230/208/60/1
B–230/208/60/3
C–460/60/3
D–240/220/50/1
VOLTS & PHASE
E–240/220/50/3
or 220/200/50/3
F–415/380/50/3

Manual 2100-581D
Page 5 of 26
DUCT WORK
All duct work, supply and return, must be properly sized
for the design airflow requirement of the equipment.
Air Conditioning Contractors of America (ACCA) is an
excellent guide to proper sizing. All duct work or portions
thereof not in the conditioned space should be properly
insulated in order to both conserve energy and prevent
condensation or moisture damage.
Refer to Maximum ESP of operation Electric Heat Table 7.
Design the duct work according to methods given by the Air
Conditioning Contractors of America (ACCA). When duct
runs through unheated spaces, it should be insulated with
a minimum of one inch of insulation. Use insulation with
a vapor barrier on the outside of the insulation. Flexible
joints should be used to connect the duct work to the
equipment in order to keep the noise transmission to a
minimum.
Models W17 – W24 are approved for 0" clearance to the
supply duct. For model series W30, W36, W42, W48,
W60 and W70, a 1/4" clearance to combustible material
for the first 3' of duct attached to the outlet air frame is
required. See Wall Mounting Instructions and Figures 3
and 4 for further details.
Ducts through the walls must be insulated and all joints
taped or sealed to prevent air or moisture entering the wall
cavity.
Some installations may not require any return air duct. A
metallic return air grille is required with installations not
requiring a return air duct. The spacing between louvers
on the grille shall not be larger than 5/8".
Any grille that meets with 5/8" louver criteria may be
used. It is recommended that Bard Return Air Grille Kit
RG2 through RG5 or RFG2 through RFG5 be installed
when no return duct is used. Contact distributor or
factory for ordering information. If using a return air
filter grille, filters must be of sufficient size to allow a
maximum velocity of 400 fpm.
NOTE: If no return air duct is used, applicable
installation codes may limit this cabinet to installation
only in a single story structure.
FILTERS
A 1" throwaway filter is standard with each unit. The
filter slides into position making it easy to service. This
filter can be serviced from the outside by removing the
filter access panel. A 1" washable filter and 2" pleated
filter are also available as optional accessories. The
internal filter brackets are adjustable to accommodate
the 2" filter by bending two (2) tabs down on each side
of the filter support bracket.
FRESH AIR INTAKE
All units are built with fresh air inlet slots punched in
the service door.
If the unit is equipped with a fresh air damper
assembly, the assembly is shipped already attached
to the unit. The damper blade is locked in the
closed position. To allow the damper to operate, the
maximum and minimum blade position stops must be
installed (see Figure 1).
All capacity, efficiency and cost of operation
information is based upon the fresh air blank-off plate
in place and is recommended for maximum energy
efficiency.
The blank-off plate is available upon request from the
factory and is installed in place of the fresh air damper
shipped with each unit.
CONDENSATE DRAIN
A plastic drain hose extends from the drain pan at
the top of the unit down to the unit base. There are
openings in the unit base for the drain hose to pass
through. In the event the drain hose is connected to
a drain system of some type, it must be an open or
vented type system to assure proper drainage.
FIGURE 1
Fresh Air Damper Assembly

Manual 2100-581D
Page 6 of 26
Clearances Required for Service Access and
Adequate Condenser Airflow
MODELS LEFT
SIDE
RIGHT
SIDE
DISCHARGE
SIDE
W17A, W18A, W24A, W30A, W36A 15" 20" 10'
W17L, W18L, W24L, W30L, W36L 20" 15" 10'
W42A, W48A, W60A, W70A 20" 20" 10'
W42L, W48L, W60L, W70L 20" 20" 10'
Minimum Clearances Required to
Combustible Materials
MODELS SUPPLY AIR DUCT
FIRST THREE FEET CABINET
W17A, L / W18A, L / W24A, L 0" 0"
W30A, L / W36A, L 1/4" 0"
W42A, L / W48A, L
W60A, L / W70A, L 1/4" 0"
NOTE: For side by side installation of two (2) W**A models there
must be 20" between units. This can be reduced to 15" by using a
W**L model (left side compressor and controls) for the left unit and
WA (right side compressor and controls) for right unit.
See W**A Specification S3397 & W**L Specification S3400.
INSTALLATION
WARNING
Failure to provide the 1/4" clearance between
the supply duct and a combustible surface
for the rst 3' of duct can result in re causing
damage, injury or death.
WALL MOUNTING INFORMATION
1. Two holes for the supply and return air openings
must be cut through the wall as shown in Figure 3.
2. On wood frame walls, the wall construction must
be strong and rigid enough to carry the weight of
the unit without transmitting any unit vibration.
3. Concrete block walls must be thoroughly inspected
to insure that they are capable of carrying the
weight of the installed unit.
MOUNTING THE UNIT
1. These units are secured by wall mounting brackets
which secure the unit to the outside wall surface at
both sides. A bottom mounting bracket, attached
to skid for shipping, is provided for ease of
installation, but is not required.
2. The unit itself is suitable for 0" clearance, but the
supply air duct flange and the first 3' of supply
air duct require a minimum of 1/4" clearance
to combustible material for model series W30,
W36, W42, W48, W60 and W70. However, it
is generally recommended that a 1" clearance is
used for ease of installation and maintaining the
required clearance to combustible material. See
Figure 3 for details on opening sizes.
3. Locate and mark lag bolt locations and bottom
mounting bracket location (see Figure 3).
4. Mount bottom mounting bracket.
5. Hook top rain flashing, attached to front-right of
supply flange for shipping, under back bend of top.
6. Position unit in opening and secure with 5/16" lag
bolts; use 7/8" diameter flat washers on the lag
bolts.
7. Secure rain flashing to wall and caulk across entire
length of top (see Figure 3).
8. For additional mounting rigidity, the return air
and supply air frames or collars can be drilled
and screwed or welded to the structural wall itself
(depending upon wall construction). Be sure to
observe required clearance if combustible wall.
9. On side-by-side installations, maintain a minimum
of 20" clearance on right side to allow access to
control panel and heat strips, and to allow proper
airflow to the outdoor coil. Additional clearance
may be required to meet local or national codes.

Manual 2100-581D
Page 7 of 26
Dimensions of Basic Unit for Architectural and Installation Requirements (Nominal)
MODEL WIDTH
(W)
DEPTH
(D)
HEIGHT
(H)
SUPPLY RETURN
A B C B E F G I J K L M N O P Q R S T
W17A, L
W18A, L
W24A, L
33.300 17.125 70.563 7.88 19.88 11.88 19.88 35.00 11.00 25.75 20.56 26.75 28.06 29.25 27.00 2.63 34.13 22.06 10.55 4.19 12.00 5.00
W30A, L
W36A, L 38.200 17.125 70.563 7.88 27.88 13.88 27.88 40.00 11.00 25.75 17.93 26.75 28.75 29.25 27.00 2.75 39.19 22.75 9.14 4.19 12.00 5.00
W42A, L
W48A, L
W60A, L
W70A, L
42.075 22.432 84.875 9.88 29.88 15.88 29.88 43.88 13.63 31.66 30.00 32.68 26.94 34.69 32.43 3.37 42.88 23.88 10.00 1.44 16.00 1.88
1.250
H
A
C
K
2.13
3"
J
N
E
P
M
Q
B
O
.44 W
5.88
F
G
R
S
S
S
S
S
T
D
L
I
1
Bracket
Installation
Air Outlet
Shipping
Drain
Air
Location
Entrances
Bottom
models
Side View
Inlet
Flashing
High Voltage
Supply Air Opening
Condenser
Cond.
Access
Panel
Back View
Side Wall
Mounting
Brackets
Optional
Heater
Return Air Opening
Entrance
Electrical
(Built In)
Ventilation Air
models.
Electrical
4° Pitch
Filter Access Panel
Top Rain
Low Voltage
Electrical
Entrance
Standard flush
vent door for
Access Panel
(Lockable)
non-ERV/Econ.
Disconnect
Electric
Heat
Front View
C. Breaker/
Built In
Rain Hood
Hood for
ECONWMT
MIS-3124 B
Hood used on
ERV and
ECONWMS only
11"
3"
7.88
1.00
11"
31.88
Filter Access Panel
Air Outlet
Front View
Condenser
Standard
flush vent
door for
non-ERV/
Econ.
models
Ventilation Air
W
5.88
F
G
1
1
Heat
models.
1
Electric
Hood for
ECONWMT
MIS-2487 H
(Lockable)
Built In
Rain Hood
4° Pitch
Entrance
High Voltage
Entrance
Access Panel
Low Voltage
Disconnect
Heater
Panel
Access
Air
Inlet
Drain
Cond.
Electrical
Side View
Electrical
C. Breaker/
Hood for ERV and
ECONWMS models
only
1.250
H
A
I
D
J
2.13
C
K
Electrical
Side Wall
Entrances
Mounting
Optional
Supply Air Opening
(Built In)
Shipping
Location
Brackets
Return Air Opening
Top Rain
Flashing
Bottom Installation
Bracket
Back View
T
B
M
O
E
R
S
S
S
S
S
P
.44
N
Q
L
 Optional top outlet (factory installed only) for W30A and W36A models only.
FIGURE 2
All dimensions are in inches. Dimensional drawings are not to scale.
W**A
RIGHT
UNIT
W**L
LEFT
UNIT

Manual 2100-581D
Page 8 of 26
FIGURE 3A
W17A2, W17L2, W18A2, W18L2, W24A2, W24L2
Mounting Instructions
12" 12" 12" 12" 12"
20" 20"
1"
3"
4"
Typ.
8"
20 1
2"
12"
1"
31
8"
4"
Typ.
5"
7 8"
313
16 "
2" 2"
71
16 "1
16 "
7
CONTROLS AND HEATER ACCESS
NOTES:
TOP
TOP FLASHING AT TIME OF INSTALLATION.
OPENING
MIS-3157
ENTIRE LENGTH OF TOP.
RETURN AIR
DUCT
Wall Opening and Hole Location View Right Side View
OF CAULKING ALONG
PANEL
FOAM AIR SEAL
WALL STRUCTURE
WALL
HEATER ACCESS
RAIN FLASHING
SILICONE CAULKING BE PLACED BEHIND IS ON OPPOSITE (LEFT) SIDE.
THE SIDE MOUNTING FLANGES AND UNDER
SEAL WITH BEAD
IT IS RECOMMENDED THAT A BEAD OF
W**A UNIT SHOWN, W**LUNIT
SUPPLY AIR
SUPPLIED
Return Opening
Supply Opening

Manual 2100-581D
Page 9 of 26
FIGURE 3B
W30A2, W30L2, W36A2, W36L2
Mounting Instructions
28"
A
C
D
C
12" 12" 12" 12" 12"
5 1
16 "
B E
14"
4 11
16 "4 11
16 "
4"
Typ.
2 7
8"
7 8"7
8"
4"
Typ.
7 8"
3 1
8"
W*RUNIT SHOWN, W*LUNIT
MIS-3158
ENTIRE LENGTH OF TOP.
SUPPLIED
SUPPLY AIR
TOP
OF CAULKING ALONG
PANEL
FOAM AIR SEAL
WALL STRUCTURE
RAIN FLASHING
FOUR SIDES OF SUPPLY AIR DUCT IS REQUIRED FROM COMBUSTABLE MATERIALS
NOTES:
1/4" CLEARANCE ON ALL
HEATER ACCESS
TOP FLASHING AT TIME OF INSTALLATION.
THE SIDE MOUNTING FLANGES AND UNDER
SILICONE CAULKING BE PLACED BEHIND IS ON OPPOSITE (LEFT) SIDE.
OPENING
CONTROLS AND HEATER ACCESS
DUCT
RETURN AIR
Right Side View
SEAL WITH BEAD
IT IS RECOMMENDED THAT A BEAD OF
WALL
Wall Opening and Hole Location View
Return Opening
16 7/84 7/164 5/89 7/829 7/8
17 5/8311/165 3/88 3/8
28 3/8
EDCBA
COMBUSTIBLE MATERIALS
RECOMMENDED 1" CLEARANCE FROM
REQUIRED DIMENSIONS TO MAINTAIN
COMBUSTIBLE MATERIALS
1/4" MIN. CLEARANCE FROM
REQUIRED DIMENSIONS TO MAINTAIN
Supply Opening

Manual 2100-581D
Page 10 of 26
FIGURE 3C
W42A2, W42L2, W48A2, W48L2, W60A2, W60L2, W70A2, W70L2
Mounting Instructions
D
16" 16" 16" 16" 16"
17
8"
61
2" 6 1
2"
21
8"
7 8"
1"
3"
4"
Typ.
4"
Typ.
61
2"30"
E
16"
A CC
31
8"
B
Wall Opening and Hole Location View
RETURN AIR
1
REQUIRED DIMENSIONS TO MAINTAIN
1/4" MIN. CLEARANCE FROM
COMBUSTIBLE MATERIALS
REQUIRED DIMENSIONS TO MAINTAIN 29
DUCT
COMBUSTIBLE MATERIALS
A B C DE
30 1/2 10 1/2 6 1/4 1 1/4 29 3/4
32 12 5 1/2 2
NOTES:
WALL STRUCTURE
1
SUPPLY AIR
IT IS RECOMMENDED THAT A BEADOF
OPENING
Right Side View
RAIN FLASHING
SILICONE CAULKING BE PLACED BEHIND
RECOMMENDED 1" CLEARANCE FROM
THE SIDE MOUNTING FLANGES AND UNDER
TOP FLASHING AT TIME OFINSTALLATION.
TOP.
PANEL
HEATER ACCESS
FOUR SIDES OFSUPPLY
AIRDUCTIS REQUIRED
FROM COMBUSTABLE
WALL
1/4" CLEARANCE ONALL MATERIALS
Supply Opening
FOAMAIRSEAL
SUPPLIED
SEAL WITH BEAD
OF CAULKING ALONG
ENTIRE LENGTH OF
TOP
1
Return Opening
MIS-416 E
Dimension is 21" on 95" tall units.
2
Dimension is 10" on T48H1 & T60H1.
2
Dimension is 6" on T48H1 & T60H1.
3
3

Manual 2100-581D
Page 11 of 26
FIGURE 4
Electric Heat Clearance
W30A2, W30L2, W36A2, W36L2, W42A2, W42L2, W48A2, W48L2, W60A2, W60L2, W70A2, W70L2
WARNING
A minimum of 1/4" clearance must be maintained between the
supply air duct and combustible materials. This is required for the
rst 3' of ducting.
It is important to insure that the 1/4" minimum spacing is maintained
at all points.
Failure to do this could result in overheating the combustible
material and may result in a re causing damage, injury or death.
NOTE 1: SIDE SECTION VIEW OF SUPPLY AIR
DUCT FOR WALL MOUNTED UNIT SHOWING 1/4"
CLEARANCE TO COMBUSTIBLE SURFACES.

Manual 2100-581D
Page 12 of 26
FIGURE 5
Wall Mounting Instructions
FIGURE 6
Wall Mounting Instructions
DUCT
OPENING
RETURN AIR
SUPPLY AIR
WOOD FRAME WALL INSTALLATION
OPENING
WALL BEFORE
MOUNT ON UNIT
OPENING
BEFORE INSTALLATION
BOTTOM MOUNTING
CONCRETE BLOCK WALL INSTALLATION
BRACKET. MOUNT ON
OPENING
WOOD OR STEELSIDING
OPENING
INSTALLING UNIT.
RETURN AIR
WALL STRUCTURE
RETURN AIR
SUPPLY AIR
FACTORY SUPPLIED
RAIN FLASHING.
SUPPLY AIR
MIS-548 A
SIDE VIEW
I
A
C
K
E + 1.000
B
1.000
SUPPLY DUCT
OVER FRAME
INTERIOR FINISHED WALL
ALL AROUND DUCT
FRAMING MATERIAL
EXTERIOR FINISH WALL
OPENING
FOR ACTUAL DIMENSIONS.
2 x 4'S, 2 x 6'S &/OR
STRUCTURAL STEEL
ATTACH TO TOP
1.000" CLEARANCE
1.000" CLEARANCE
PLATE OF WALL
C
SEE UNIT DIMENSIONS, FIGURE 2,
OPENING
RETURN DUCT
2 x 6
ATTACH TO BOTTOM
OVER FRAME
PLATE OF WALL
L
THIS STRUCTURAL MEMBER
LOCATED TO MATCH STUD
SPACING FOR REST OF WALL.
A SECOND MEMBER MAY BE
REQUIRED FOR SOME WALLS.
MIS-549 B
ALL AROUND DUCT
SEE FIGURES 3A-C MOUNTING INSTRUCTIONS

Manual 2100-581D
Page 13 of 26
FIGURE 7
Common Wall Mounting Instructions
LOWERED
RAISED FLOOR
RAFTERS
SUPPLY AIR
CEILING SURFACE
WALL SLEEVE
RETURN AIR
CLOSET WALL
GRILLE
FLASHING
RETURN AIR
FLASHING
SUPPLY DUCT MAYBE LOCATED INANATTIC
OR BELOW CEILING RAFTERS AS SHOWN
SUPPLY DUCT MAY BE LOCATED INANATTIC
SURFACE
RAFTERS
FINISHED CEILING
SUPPLY AIRDUCT
WALL
OPENING W/ GRILLE
SUPPLY DUCT MAYBE LOCATED INANATTIC
OR BELOW CEILING RAFTERS AS SHOWN
CEILING
RAIN
RETURN AIR
SLEEVE
WALL
SUPPLY AIRDUCT
RAFTERS
RAFTERS
RETURN AIR
OPENING W/ GRILLE
RAIN
FALSE WALL INSTALLATION
DUCTED SUPPLY
GRILLE
OUTSIDE
SPACE
FALSE WALL
RETURN AIR GRILLE
OUTSIDE
OR BELOW CEILING RAFTERS AS SHOWN
FINISHED CEILING SURFACE
RAIN
FLASHING
RAIN
FLASHING
RETURN AT UNITNO DUCT
WALL
SUPPLY AIRDUCT
CLOSETINSTALLATION
RETURN AIR
FINISHED
FINISHED CEILING SURFACE
MIS-550 B
FREE AIR FLOW
OUTSIDE
WALL
OUTSIDE
WALL
SUPPLY AIRDUCT
W/ GRILLE

Manual 2100-581D
Page 14 of 26
WIRING – MAIN POWER
Refer to the unit rating plate for wire sizing information
and maximum fuse or circuit breaker size. Each
outdoor unit is marked with a “Minimum Circuit
Ampacity”. This means that the field wiring used must
be sized to carry that amount of current. Depending
on the installed KW of electric heat, there may be
two field power circuits required. If this is the case,
the unit serial plate will so indicate. All models are
suitable only for connection with copper wire. Each
unit and/or wiring diagram will be marked “Use Copper
Conductors Only”. These instructions must be adhered
to. Refer to the National Electrical Code (NEC) for
complete current carrying capacity data on the various
insulation grades of wiring material. All wiring must
conform to NEC and all local codes.
The electrical data lists fuse and wire sizes (75°C
copper) for all models including the most commonly
used heater sizes. Also shown are the number of field
power circuits required for the various models with
heaters.
The unit rating plate lists a “Maximum Time Delay
Relay Fuse” or circuit breaker that is to be used with
the equipment. The correct size must be used for
proper circuit protection and also to assure that there
will be no nuisance tripping due to the momentary high
starting current of the compressor motor.
The disconnect access door on this unit may be locked
to prevent unauthorized access to the disconnect. To
convert for the locking capability, bend the tab located
in the bottom left-hand corner of the disconnect
opening under the disconnect access panel straight
out. This tab will now line up with the slot in the door.
When shut, a padlock may be placed through the hole
in the tab preventing entry.
See “Start Up” section for important information on
three phase scroll compressor start ups.
See Tables 3 and 4 for Electrical Specifications.
WIRING – LOW VOLTAGE
All 230/208V 1 phase and 3 phase equipment have
dual primary voltage transformers. All equipment
leaves the factory wired on 240V tap. For 208V
operation, reconnect from 240V to 208V tap. The
acceptable operating voltage range for the 240 and
208V taps are:
TAP RANGE
240 253 – 216
208 220 – 187
NOTE: The voltage should be measured at the field
power connection point in the unit and while
the unit is operating at full load (maximum
amperage operating condition).
For wiring size and connections, refer to wiring manual
2100-582.

Manual 2100-581D
Page 15 of 26
START UP
THESE UNITS REQUIRE R-410A
REFRIGERANT AND POLYOL ESTER OIL.
GENERAL
1. Use separate service equipment to avoid cross
contamination of oil and refrigerants.
2. Use recovery equipment rated for R-410A
refrigerant.
3. Use manifold gauges rated for R-410A (800
psi/250 psi low).
4. R-410A is a binary blend of HFC-32 and HFC-
125.
5. R-410A is nearly azeotropic—similar to R-22 and
R-12. Although nearly azeotropic, charge with
liquid refrigerant.
6. R-410A operates at 40-70% higher pressure
than R-22 and systems designed for R-22 cannot
withstand this higher pressure.
7. R-410A has an ozone depletion potential of zero,
but must be reclaimed due to its global warming
potential.
8. R-410A compressors use Polyol Ester oil.
9. Polyol Ester oil is hygroscopic; it will rapidly absorb
moisture and strongly hold this moisture in the oil.
10. A liquid line dryer must be used—even a deep
vacuum will not separate moisture from the oil.
11. Limit atmospheric exposure to 15 minutes.
12. If compressor removal is necessary, always plug
compressor immediately after removal. Purge with
small amount of nitrogen when inserting plugs.
TOPPING OFF SYSTEM CHARGE
If a leak has occurred in the system, Bard
Manufacturing recommends reclaiming, evacuating
(see criteria above) and charging to the nameplate
charge. If done correctly, topping off the system
charge can be done without problems.
With R-410A, there are no significant changes in the
refrigerant composition during multiple leaks and
recharges. R-410A refrigerant is close to being an
azeotropic blend (it behaves like a pure compound
or single component refrigerant). The remaining
refrigerant charge, in the system, may be used after
leaks have occurred and then “top-off” the charge by
utilizing the pressure charts on the inner control panel
cover as a guideline.
REMEMBER: When adding R-410A refrigerant, it must
come out of the charging cylinder/tank as a liquid to
avoid any fractionation, and to ensure optimal system
performance. Refer to instructions for the cylinder that
is being utilized for proper method of liquid extraction.
SAFETY PRACTICES
1. Never mix R-410A with other refrigerants.
2. Use gloves and safety glasses. Polyol Ester oils
can be irritating to the skin, and liquid refrigerant
will freeze the skin.
3. Never use air and R-410A to leak check; the
mixture may become flammable.
4. Do not inhale R-410A—the vapor attacks
the nervous system, creating dizziness, loss
of coordination and slurred speech. Cardiac
irregularities, unconsciousness and ultimate death
can result from breathing this concentration.
5. Do not burn R-410A. This decomposition
produces hazardous vapors. Evacuate the area if
exposed.
6. Use only cylinders rated DOT4BA/4BW 400.
7. Never fill cylinders over 80% of total capacity.
8. Store cylinders in a cool area, out of direct
sunlight.
9. Never heat cylinders above 125°F.
10. Never trap liquid R-410A in manifold sets, gauge
lines or cylinders. R-410A expands significantly
at warmer temperatures. Once a cylinder or line is
full of liquid, any further rise in temperature will
cause it to burst.
WARNING
Failure to conform to these practices could
lead to damage, injury or death.

Manual 2100-581D
Page 16 of 26
IMPORTANT INSTALLER NOTE
For improved start up performance wash the indoor coil
with a dish washing detergent.
HIGH PRESSURE SWITCH
All W**A/W**L wall mounted air conditioner series
models are supplied with a remote reset for the high
and low pressure switch. If tripped, this pressure
switch may be reset by turning the thermostat off then
back on again.
THREE PHASE SCROLL COMPRESSOR
START UP INFORMATION
Scroll compressors, like several other types of
compressors, will only compress in one rotational
direction. Direction of rotation is not an issue with
single phase compressors since they will always start
and run in the proper direction.
However, three phase compressors will rotate in either
direction depending upon phasing of the power.
Since there is a 50-50 chance of connecting power
in such a way as to cause rotation in the reverse
direction, verification of proper rotation must be made.
Verification of proper rotation direction is made by
observing that suction pressure drops and discharge
pressure rises when the compressor is energized.
Reverse rotation also results in an elevated sound level
over that with correct rotation, as well as substantially
reduced current draw compared to tabulated values.
Verification of proper rotation must be made at the time
the equipment is put into service. If improper rotation
is corrected at this time, there will be no negative
impact on the durability of the compressor. However,
reverse operation for over 1 hour may have a negative
impact on the bearing due to oil pump out.
NOTE: If compressor is allowed to run in reverse
rotation for an extended period of time, the
compressor’s internal protector will trip.
All three phase compressors are wired identically
internally. As a result, once the correct phasing
is determined for a specific system or installation,
connecting properly phased power leads to the same
Fusite terminal should maintain proper rotation
direction.
The direction of rotation of the compressor may be
changed by reversing any two line connections to the
unit.
PHASE MONITOR
All units with three phase scroll compressors are
equipped with a three phase line monitor to prevent
compressor damage due to phase reversal.
The phase monitor in this unit is equipped with two
LEDs. If the Y signal is present at the phase monitor
and phases are correct the green LED will light.
If phases are reversed, the red fault LED will be lit and
compressor operation is inhibited.
If a fault condition occurs, reverse two of the supply
leads to the unit. Do not reverse any of the unit factory
wires as damage may occur.
CONDENSER FAN OPERATION
NOTE: Certain models may be equipped with a low
ambient control (LAC), and if so equipped, the
condenser fan motor will have delayed start
until system refrigerant operating pressure
builds up. After starting, the fan motor may
or may not cycle depending upon ambient
conditions. This is normal operation.
Applies to W42, W48, W60 and W70 models only. The
condenser fan motor on 230/208 volt one and three
phase 60 HZ units is a two-speed motor that comes
factory wired on high speed for peak performance. If
ambient conditions permit, it can be reconnected to
low speed (red wire) for lower sound level (see wiring
diagram).
50 HZ models must have fan wired on low speed.
These models are factory wired on low speed.
SERVICE HINTS
1. Caution owner/operator to maintain clean air
filters at all times and also not to needlessly close
off supply and return air registers. This reduces
airflow through the system, which shortens
equipment service life as well as increasing
operating costs.
2. Check all power fuses or circuit breakers to be sure
they are the correct rating.
3. Periodic cleaning of the outdoor coil to permit full
and unrestricted airflow circulation is essential.
SEQUENCE OF OPERATION
COOLING – Circuit R-Y makes at thermostat pulling
in compressor contactor, starting the compressor and
outdoor motor. (See NOTE under Condenser Fan
Operation if equipped with low ambient control.) The
G (indoor motor) circuit is automatically completed
by the thermostat on any call for cooling operation or
can be energized by manual fan switch on subbase for
constant air circulation. On a call for heating, circuit
R-W1 make at the thermostat pulling in heat contactor
for the strip heat and blower operation. On a call for
second stage heat, R-W2 makes bringing on second
heat contactor, if so equipped.

Manual 2100-581D
Page 17 of 26
COMPRESSOR CONTROL MODULE
The compressor control module is standard on all
models covered by this manual. The compressor
control module is an anti-short cycle/lockout timer with
high and low pressure switch monitoring and alarm
relay output.
Adjustable Delay-on-Make And Delay-on-Break Timer
On initial power up or anytime power is interrupted to
the unit, the delay-on-make period begins, which will
be 2 minutes plus 10% of the delay-on-break setting.
When the delay-on-make is complete and the high
pressure switch and low pressure switch are closed, the
compressor contactor is energized. Upon shutdown,
the delay-on-break timer starts and prevents restart
until the delay-on-break and delay-on-make periods
have expired.
During routine operation of the unit with no power
interruptions, the compressor will operate on demand
with no delay.
High Pressure Switch and Lockout Sequence
If the high pressure switch opens, the compressor
contactor will de-energize immediately. The lockout
timer will go into a soft lockout and stay in soft lockout
until the high pressure switch closes and the delay-
on-break time has expired. If the high pressure switch
opens again in this same operating cycle, the unit will
go into manual lockout condition and the alarm relay
circuit will energize. Recycling the wall thermostat
resets the manual lockout.
Low Pressure Switch, Bypass and Lockout Sequence
If the low pressure switch opens for more than 120
seconds, the compressor contactor will de-energize and
go into a soft lockout. Regardless the state of the low
pressure switch, the contactor will re-energize after
the delay-on-make time delay has expired. If the low
pressure switch remains open, or opens again for longer
than 120 seconds, the unit will go into manual lockout
condition and the alarm relay circuit will energize.
Recycling the wall thermostat resets the manual
lockout.
Alarm Relay Output
Alarm terminal is output connection for applications
where alarm relay is employed. This terminal is
powered whenever the compressor is locked out due to
HPC or LPC sequences as described.
NOTE: Both high and low pressure switch controls are
inherently automatic reset devices. The high
pressure switch and low pressure switch cut
out and cut in settings are fixed by specific air
conditioner unit model. The lockout features,
both soft and manual, are a function of the
compressor control module.
ADJUSTMENTS
Adjustable Delay-on-Make and Delay-on-Break Timer
The potentiometer is used to select delay-on-break time
from 30 seconds to 5 minutes. Delay-on-make (DOM)
timing on power-up and after power interruptions is
equal to 2 minutes plus 10% of delay-on-break (DOB)
setting:
0.5 minute (30 seconds) DOB = 123 second DOM
1.0 minute (60 seconds) DOB = 126 second DOM
2.0 minute (120 seconds) DOB = 132 second DOM
3.0 minute (180 seconds) DOB = 138 second DOM
4.0 minute (240 seconds) DOB = 144 second DOM
5.0 minute (300 seconds) DOB = 150 second DOM
During routine operation of the unit with no power
interruptions, the compressor will operate on demand
with no delay.
Typical Settings for Dual Unit Installation:
Unit 1: DOB set at 2 minutes and DOM is 132
seconds
Unit 2: DOB set at 4 minutes and DOM is 144
seconds
PRESSURE SERVICE PORTS
High and low pressure service ports are installed on
all units so that the system operating pressures can be
observed. A pressure table can be found later in the
manual covering all models. It is imperative to match
the correct pressure table to the unit by model number.
See Table 2.
This unit employs high-flow Coremax valves instead of
the typical Shrader type valves.
WARNING! Do NOT use a Schrader valve core removal
tool with these valves. Use of such a tool could result
in eye injuries or refrigerant burns!
To change a Coremax valve without first removing the
refrigerant, a special tool is required which can be
obtained at www.fastestinc.com/en/SCCA07H. See the
replacement parts manual for replacement core part
numbers.

Manual 2100-581D
Page 18 of 26
SERVICE
FIGURE 8
Fan Blade Setting
TABLE 1
Fan Blade Dimension
R-410A REFRIGERANT CHARGE
This unit was charged at the factory with the quantity
of refrigerant listed on the serial plate. AHRI capacity
and efficiency ratings were determined by testing with
this refrigerant charge quantity.
The following pressure table shows nominal
pressures for the units. Since many installation
specific situations can affect the pressure readings,
this information should only be used by certified
technicians as a guide for evaluating proper system
performance. They shall not be used to adjust charge.
If charge is in doubt, reclaim, evacuate and recharge
the unit to the serial plate charge
.
REMOVAL OF FAN SHROUD
1. Disconnect all power to the unit.
2. Remove the screws holding both grilles, one on
each side of unit, and remove grilles.
3. Remove nine (9) screws holding fan shroud to
condenser and bottom.
4. Unwire condenser fan motor.
5. Slide complete motor, fan blade, and shroud
assembly out the left side of the unit.
6. Service motor/fan as needed.
7. Reverse steps to reinstall.
"A"
AIRFLOW
MIS-1724
Model Dimension
A
W17A2 / W17L2
W18A2 / W18L2
W24A2 / W24L2
1.00"
W30A2 / W30L2
W36A2 / W36L2 1.25"
W42A2 / W42L2
W48A2 / W48L2
W60A2 / W60L2
W70A2 / W70L2
1.75"
FAN BLADE SETTING DIMENSIONS
Shown in Figure 8 is the correct fan blade setting for
proper air delivery across the outdoor coil. Refer to
Table 1 for unit specific dimension.
Any service work requiring removal or adjustment in the
fan and/or motor area will require that the dimensions
below be checked and blade adjusted in or out on the
motor shaft accordingly.

Manual 2100-581D
Page 19 of 26
TABLE 2
Cooling Pressure
Air Temperature Entering Outdoor Coil °F
Low side pressure ± 4 PSIG
High side pressure ± 10 PSIG
Tables are based upon rated CFM (airflow) across the evaporator coil. If there is any doubt as to correct operating charge
being in the system, the charge should be removed, system evacuated and recharged to serial plate charge weight.
NOTE: Pressure table based on high speed condenser fan operation. If condensing pressures appear elevated check
condenser fan wiring. See “Condenser Fan Operation”.
Model Return Air Temp
(DB/WB) Pressure 75 80 85 90 95 100 105 110 115 120
W17A/L
75/62 Low Side
High Side
124
321
126
340
128
362
130
384
132
409
133
434
135
461
137
490
138
521
140
553
80/67 Low Side
High Side
133
329
135
349
137
371
139
394
141
419
142
445
144
473
146
503
148
534
150
567
85/72 Low Side
High Side
138
341
140
361
142
384
144
408
146
434
147
461
149
490
151
521
153
553
155
587
W18A/L
75/62 Low Side
High Side
127
318
129
339
131
362
133
385
135
409
137
434
138
459
140
486
143
513
145
541
80/67 Low Side
High Side
136
326
138
348
140
371
142
395
144
419
146
445
148
471
150
498
153
526
155
555
85/72 Low Side
High Side
141
337
143
360
145
384
147
409
149
434
151
461
153
487
155
515
158
544
160
574
W24A/L
75/62 Low Side
High Side
119
340
121
361
122
383
124
407
127
432
129
459
131
488
133
518
135
550
137
583
80/67 Low Side
High Side
127
349
129
370
131
393
133
417
136
443
138
471
140
500
142
531
144
564
146
598
85/72 Low Side
High Side
131
361
134
383
136
407
138
432
141
459
143
487
145
518
147
550
149
584
151
619
W30A/L
75/62 Low Side
High Side
122
335
124
358
127
381
129
406
131
431
133
456
135
483
137
509
137
536
139
565
80/67 Low Side
High Side
130
344
133
367
136
391
138
416
140
442
142
468
144
495
146
522
147
550
149
579
85/72 Low Side
High Side
135
356
138
380
141
405
143
431
145
457
147
484
149
512
151
540
152
569
154
599
W36A/L
75/62 Low Side
High Side
120
339
122
366
124
392
126
418
129
446
130
473
132
501
134
529
135
558
136
586
80/67 Low Side
High Side
128
348
130
375
133
402
135
429
138
457
139
485
141
514
143
543
144
572
145
601
85/72 Low Side
High Side
132
360
135
388
138
416
140
444
143
473
144
502
146
532
148
562
149
592
150
622
W42A/L
75/62 Low Side
High Side
123
320
124
342
126
367
128
391
130
416
132
443
134
469
136
496
137
526
139
554
80/67 Low Side
High Side
132
328
133
351
135
376
137
401
139
427
141
454
143
481
145
509
147
539
149
568
85/72 Low Side
High Side
137
339
138
363
140
389
142
415
144
442
146
470
148
498
150
527
152
558
154
588
W48A/L
75/62 Low Side
High Side
117
355
119
378
121
403
123
427
125
454
127
482
129
510
131
539
133
570
135
603
80/67 Low Side
High Side
125
364
127
388
129
413
132
438
134
466
136
494
138
523
140
553
142
585
144
618
85/72 Low Side
High Side
129
377
131
402
134
427
137
453
139
482
141
511
143
541
145
572
147
605
149
640
W60A/L
75/62 Low Side
High Side
122
346
124
371
126
396
128
421
130
447
131
473
133
499
135
526
137
553
138
580
80/67 Low Side
High Side
131
355
133
380
135
406
137
432
139
458
140
485
142
512
144
539
146
567
148
595
85/72 Low Side
High Side
136
367
138
393
140
420
142
447
144
474
145
502
147
530
149
558
151
587
153
616
W70A/L
75/62 Low Side
High Side
118
349
121
371
122
395
123
419
125
444
127
470
129
497
131
525
132
553
134
583
80/67 Low Side
High Side
126
358
129
381
131
405
132
430
134
455
136
482
138
510
140
538
141
567
143
598
85/72 Low Side
High Side
130
371
134
394
136
419
137
445
139
471
141
499
143
528
145
557
146
587
148
619

Manual 2100-581D
Page 20 of 26
TABLE 3
Maximum size of the time delay fuse or circuit breaker for protection of field wiring conductors.
Based on 75C copper wire. All wiring must conform to the National Electrical Code and all local codes.
These “Minimum Circuit Ampacity” values are to be used for sizing the field power conductors. Refer to the National Electrical code (latest version), Article 310 for power conductor sizing.
Caution: When more than one field power circuit is run through one conduit, the conductors must be derated. Pay special attention to note 8 of Table 310 regarding Ampacity
Adjustment Factors when more than three (3) current carrying conductors are in a raceway.
* Top outlet supply option is available only factory installed and only on the selected models.
IMPORTANT: While this electrical data is presented as a guide, it is important to electrically connect properly sized fuses and conductor wires in accordance with the National
Electrical Code and all local codes.
Electrical Specifications –W**A Series
MODEL
Rated
Volts &
Phase
No.
Field
Power
Circuits
Single Circuit Dual Circuit

Minimum
Circuit
Ampacity

Maximum
External
Fuse or Ckt.
Brkr.

Field
Power
Wire Size

Ground
Wire
Minimum
Circuit
Ampacity
Maximum
External Fuse or
Ckt. Breaker

Field Power
Wire Size

Ground
Wire Size
Ckt. A Ckt. B Ckt. A Ckt. B Ckt. A Ckt. B Ckt. A Ckt. B
W17, 18A2-
A00,A0Z
A05
A08
A10
230/208-
1
1
1
1
1
16
30
46
56
20
30
50
60
12
10
8
6
12
10
10
10
W24A2-A00, A0Z
A04
A05
A08
A10
230/208-
1
1
1
1
1
1
21
25
30
46
56
30
30
30
50
60
10
10
10
8
6
10
10
10
10
10
W24A2-B00, B0Z
B06
230/208-
3
1
1
15
22
20
25
12
10
12
10
W24A2-C00, C0Z
C06 460-3 1 1
9
11
15
15
14
14
14
14
W30A2-A00*, A0Z*
A05*
A08
A10*
A15
230/208-
1
1
1
1
1
1 or 2
24
32
47
58
84
35
35
50
60
90
8
8
8
6
4
10
10
10
10
8 58 26 60 30 6 10 10 10
W30A2-B00*, B0Z*
B06
B09*
B15
230/208-
3
1
1
1
1
18
24
33
51
20
25
35
60
12
10
8
6
12
10
10
10
W30A2-C00*, C0Z*
C06
C09*
C15
460-3
1
1
1
1
11
12
17
26
15
15
20
30
14
14
12
10
14
14
12
10
W36A2-A00*, A0Z*
A05*
A08
A10*
A15
230/208-
1
1
1
1
1
1 or 2
29
32
47
58
84
35
35
50
60
90
8
8
8
6
4
10
10
10
10
8 58 26 60 30 6 10 10 10
W36A2-B00*, B0Z*
B06*
B09*
B15
230/208-
3
1
1
1
1
23
24
33
51
30
30
35
60
10
10
8
6
10
10
10
10
W36A2-C00*, C0Z*
C06*
C09*
C15
460-3
1
1
1
1
11
12
16
26
15
15
20
30
14
14
12
10
14
14
12
10
W42A2-A00, A0Z
A05
A10
A15
A20
230/208-
1
1
1
1
1 or 2
1 or 2
32
32
58
84
110
50
50
60
90
125
8
8
6
4
2
10
10
10
8
6
58
58
26
52
60
60
30
60
6
6
10
6
10
10
10
10
W42A2-B00, B0Z
B09
B15
B18
230/208-
3
1
1
1
1
24
33
51
60
35
35
60
60
8
8
6
6
10
10
10
10
W42A2-C00, C0Z
C09
C15
460-3
1
1
1
12
17
26
15
20
30
14
12
10
14
12
10
W48A2-A00, A0Z
A05
A10
A15
A20
230/208-
1
1
1
1
1 or 2
1 or 2
39
39
58
84
110
50
50
60
90
125
8
8
6
4
2
10
10
10
8
6
58
58
26
52
60
60
30
60
6
6
10
6
10
10
10
10
W48A2-B00, B0Z
B09
B15
B18
230/208-
3
1
1
1
1
27
33
51
60
40
40
60
60
8
8
6
6
10
10
10
10
W48A2-C00, C0Z
C09
C15
460-3
1
1
1
13
17
26
20
20
30
12
12
10
12
12
10
W60A2-A00, A0Z
A05
A10
A15
A20
230/208-
1
1
1
1
1 or 2
1 or 2
42
42
60
86
112
60
60
60
90
125
8
8
6
3
2
10
10
10
8
6
60
60
26
52
60
60
30
60
6
6
10
6
10
10
10
10
W60A2-B00, B0Z
B09
B15
B18
230/208-
3
1
1
1
2
28
35
53
N/A
40
40
60
N/A
8
8
6
N/A
10
10
10
N/A 35 28 40 30 8 10 10 10
W60A2-C00, C0Z
C09
C15
460-3
1
1
1
15
18
27
20
20
30
12
12
10
12
12
10
W70A2-A00, A0Z
A05
A10
A15
A20
230/208-
1
1
1
1
1 or 2
1 or 2
56
56
59
85
111
60
60
60
90
125
6
6
6
4
2
10
10
10
8
6
59
59
26
52
60
60
30
60
6
6
10
6
10
10
10
10
W70A2-B00, B0Z
B09
B15
B18
230/208-
3
1
1
1
2
38
38
53
N/A
60
60
60
N/A
8
8
6
N/A
10
10
10
N/A 38 28 60 30 8 10 10 10
W70A2-C00, C0Z
C09
C15
460-3
1
1
1
19
19
27
30
30
35
10
10
18
10
10
10
