Bardac E3 Series User manual

AC Variable Speed Drive
IP66 (NEMA 4X)
0.37kW – 22kW / 0.5HP – 30HP
110 – 480V Single and 3 Phase Input
User Manual
1
Safety Warnings
2
General Information
and Ratings
3
Mechanical Installation
4
Power & Control Wiring
5
Operation
6
Parameters
7
Analog and Digital Input
Macro Configurations
8
Modbus RTU
Communications
10
Technical Data
9
CAN Communication
Troubleshooting 11
drive.web Distributed Control Technology 12

2| E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
1. Safety Warnings ..............................4
1.1. Important Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2. General Information and Ratings ............ <OV>

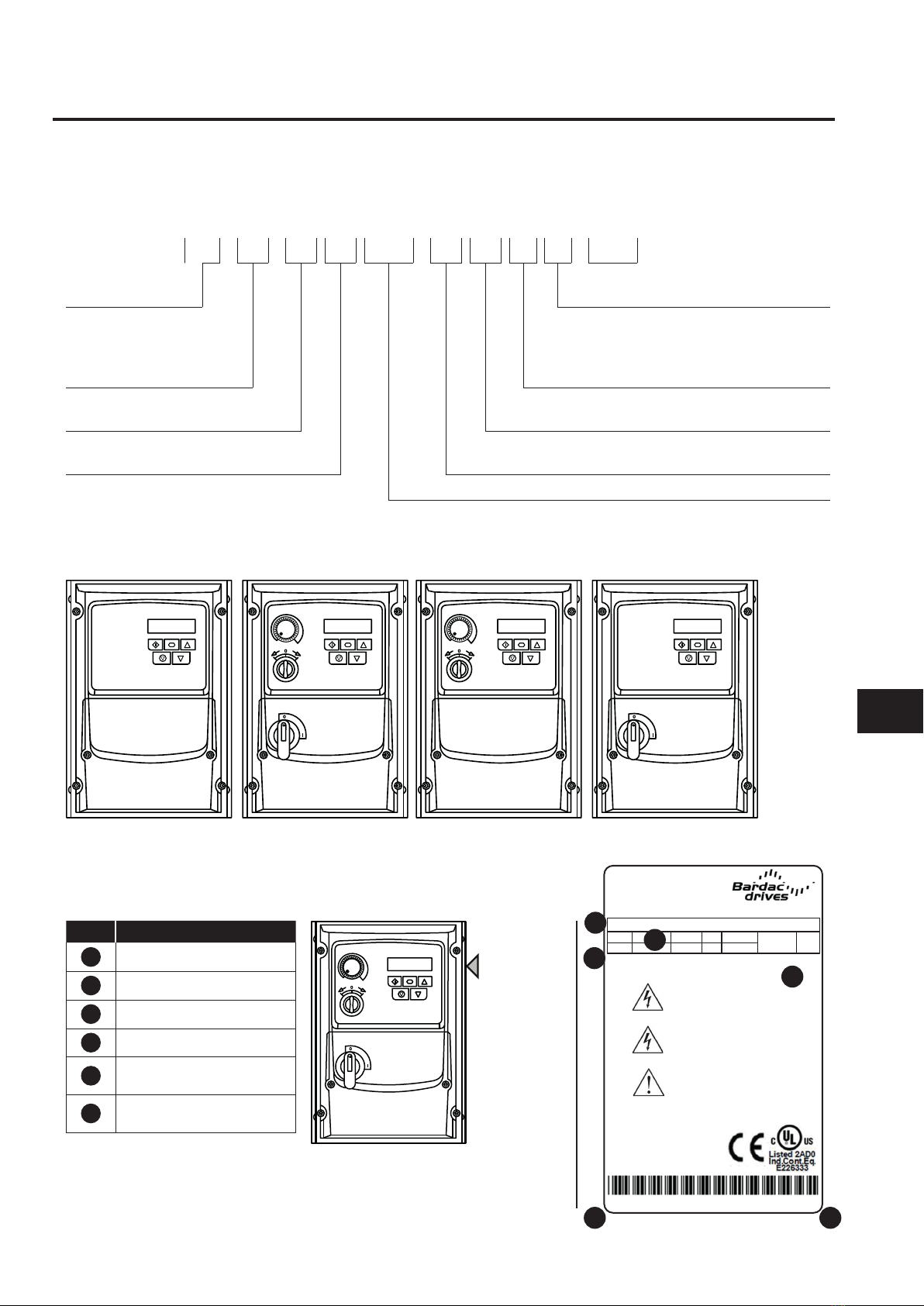

2.1. Identifying the Drive by Model Number..................5
2.2. IP66 Drive Variants ...................................5
2.3. Understanding the Rating Label.....................<OV>
2.4. Drive Model Numbers................................6
3. Mechanical Installation ........................7
3.1. General ............................................7
3.2. UL Compliant Installation ..............................7
3.3. Mechanical Dimensions ................................7
3.4. Guidelines for mounting...............................8
3.5. Gland Plate and Lock Off .............................8
3.6. Removing the Terminal Cover ..........................9
3.7. Routine Maintenance .................................9
4. Power & Control Wiring .......................10
4.1. Connection Locations ................................10

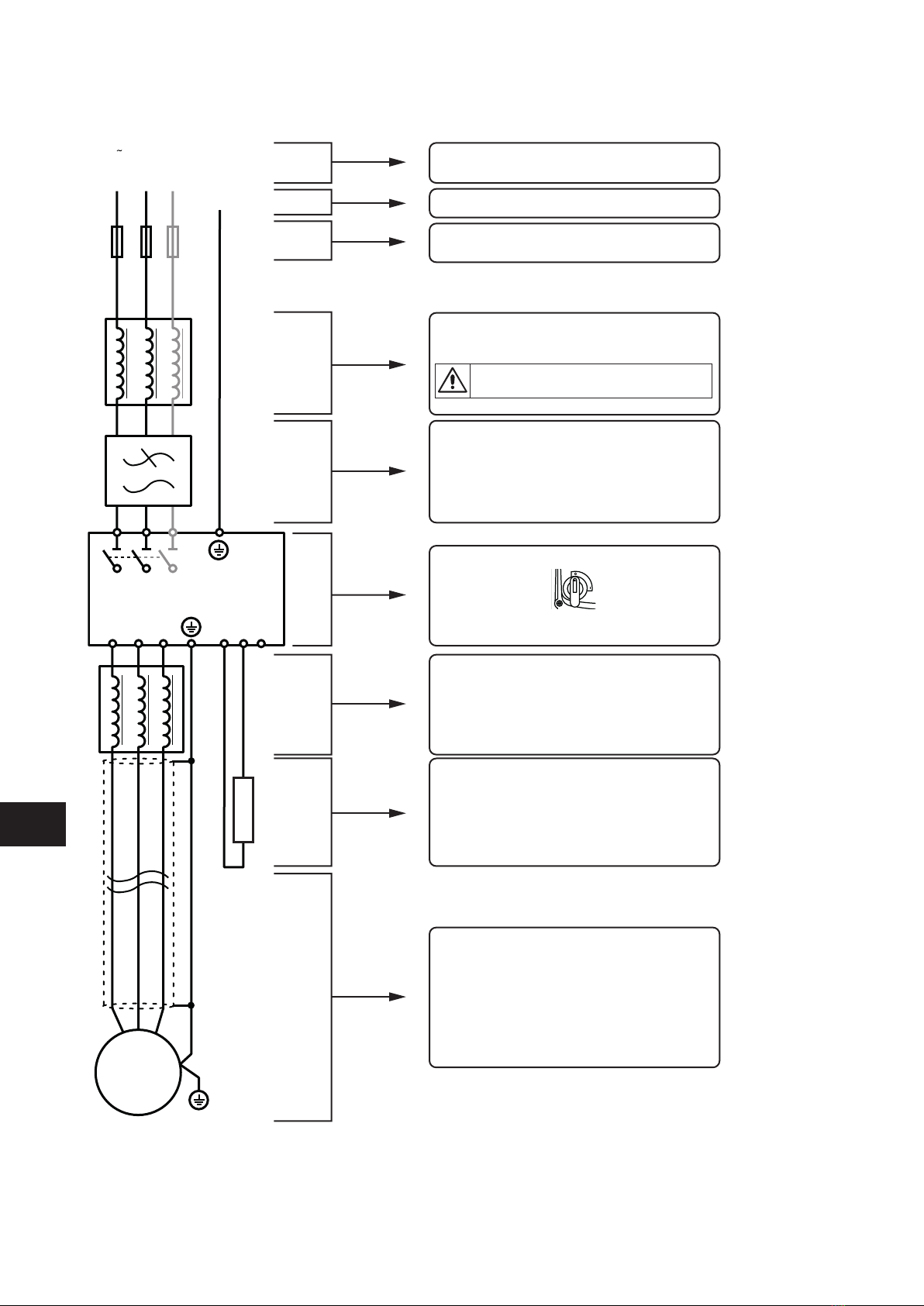

4.2. Connection Diagram ................................ 11
4.3. Protective Earth (PE) Connection .......................12
4.4. Incoming Power Connection ..........................13

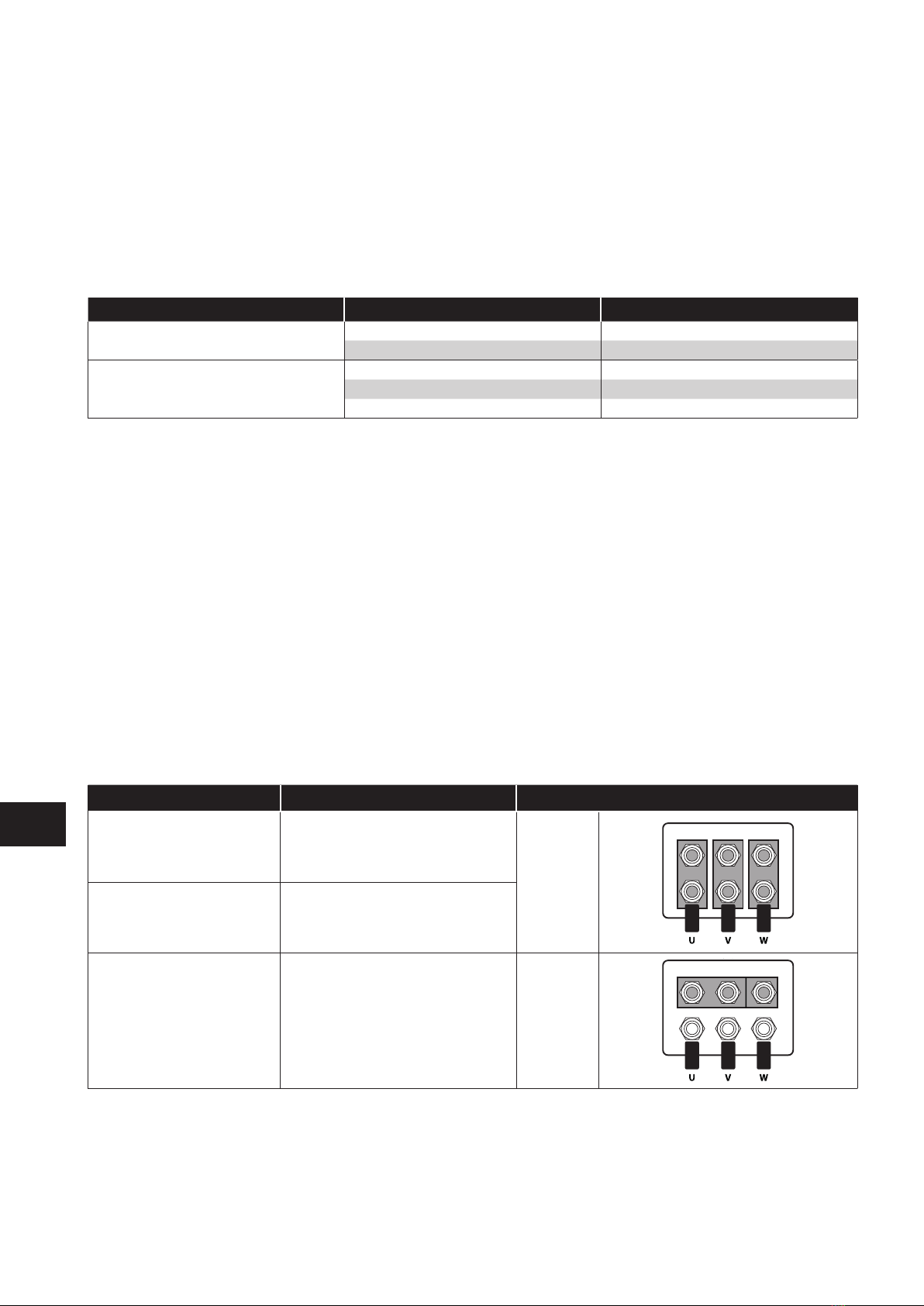

4.5. Motor Connection ..................................14
4.6. Motor Terminal Box Connections ......................14
4.7. Control Terminal Wiring ..............................14

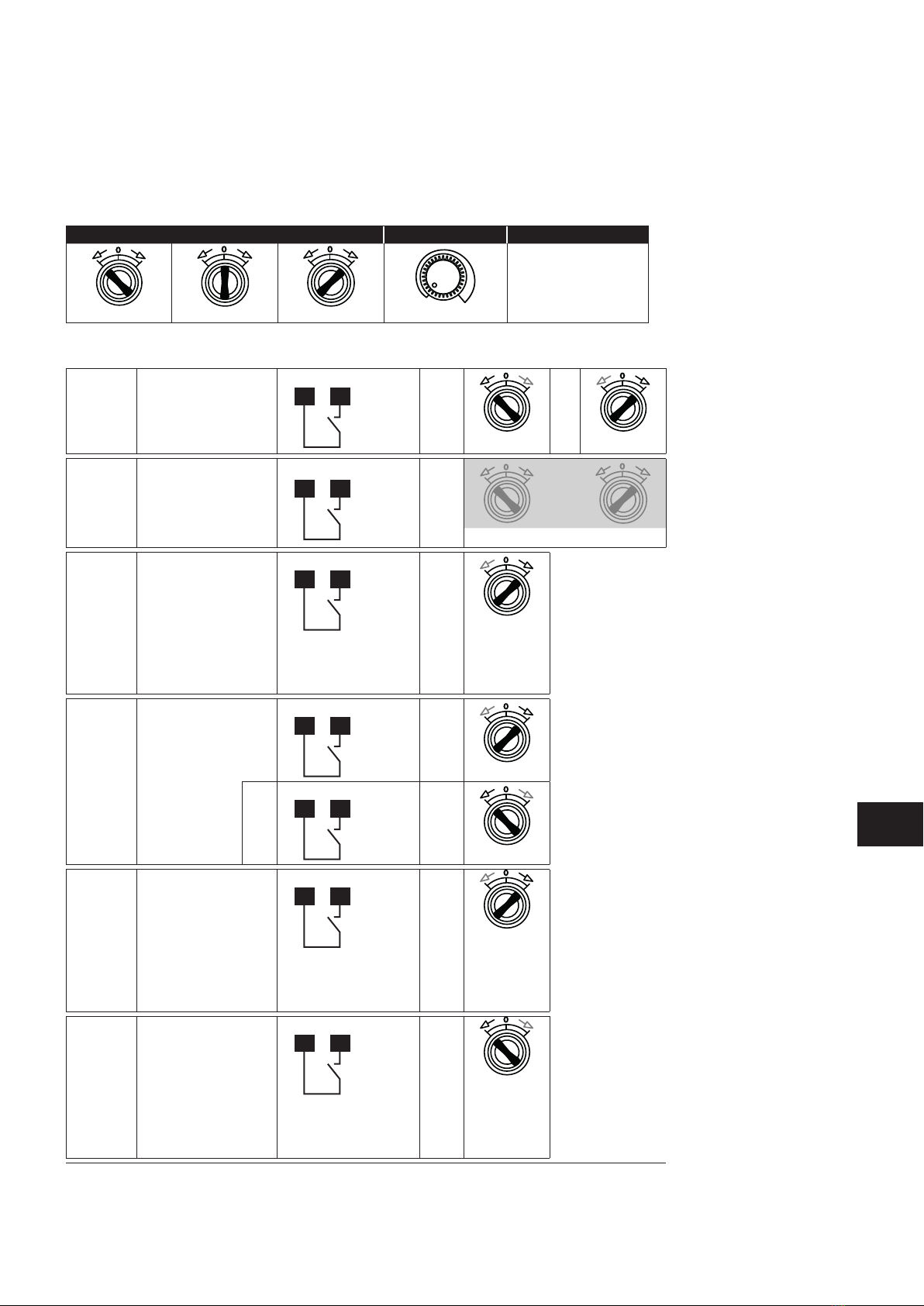

4.8. Using the REV/0/FWD Selector Switch (Versions With Local
Controls Only)..........................................15
4.9. Using the Internal Pot (Local Control Versions Only) .......16

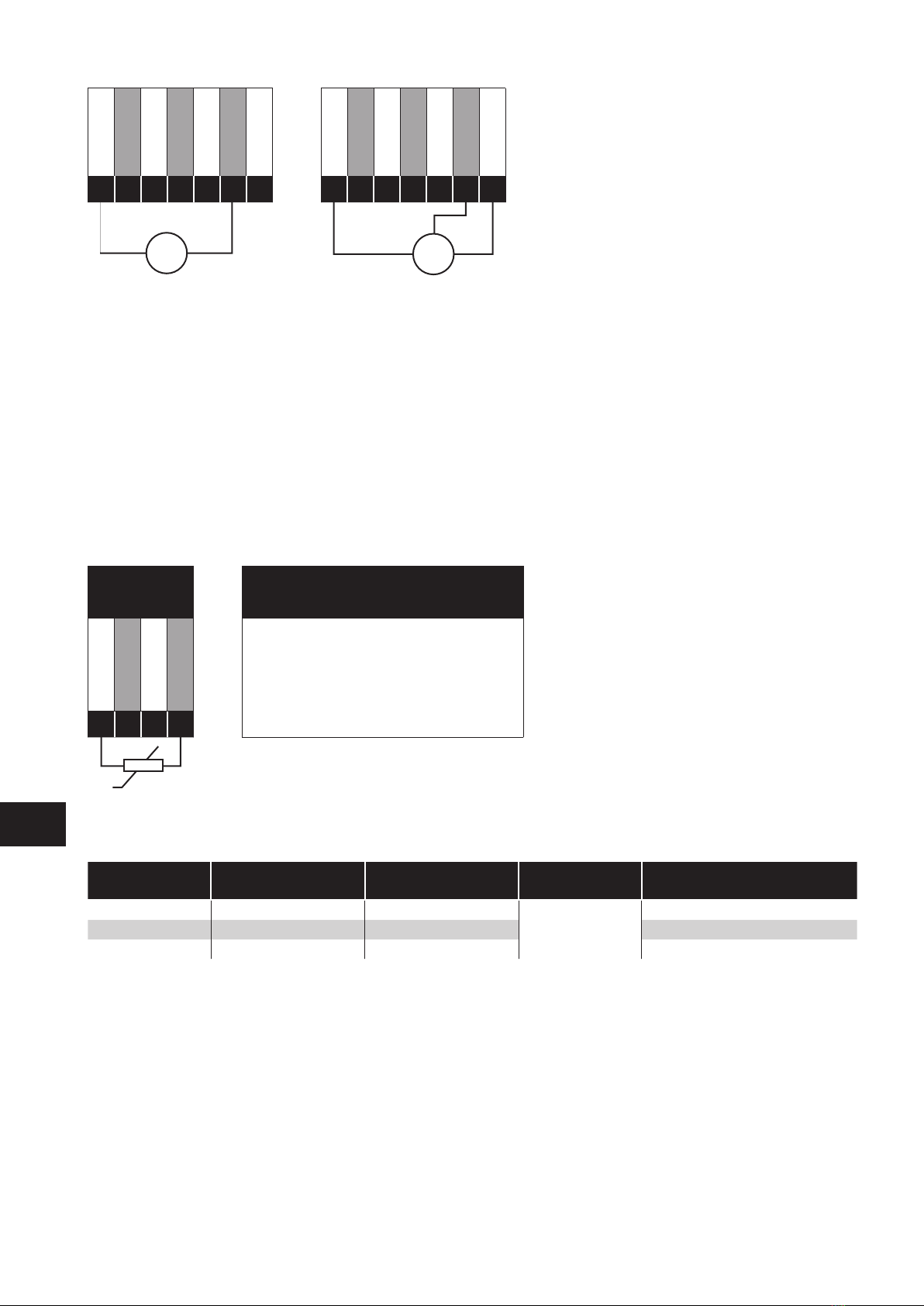

4.10. Control Terminal Connections ........................16
4.11. Motor Thermal Overload Protection ...................18
4.12. EMC Compliant Installation ..........................18
4.13. Optional Brake Resistor..............................19
5. Operation ..................................20

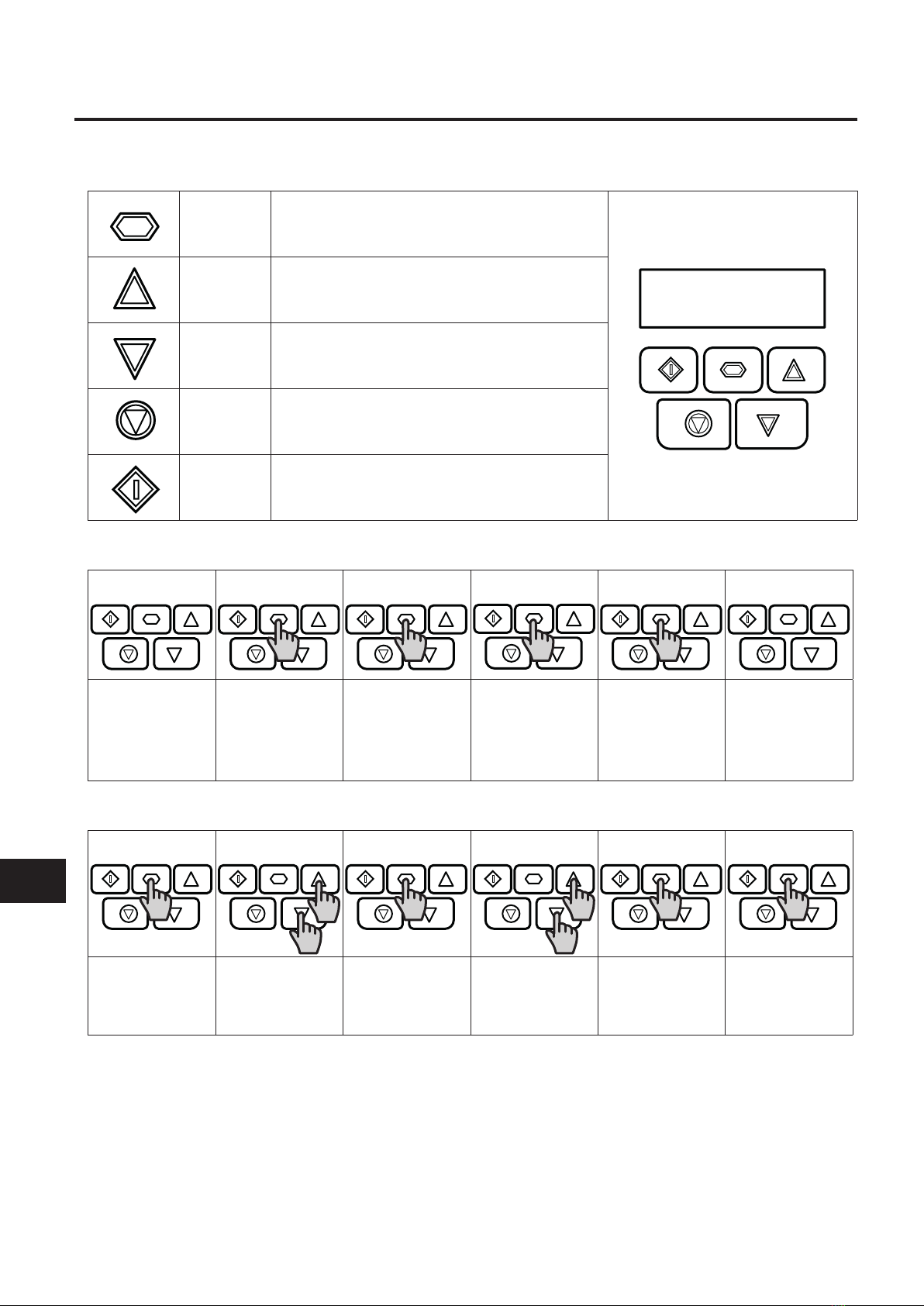

5.1. Managing the Keypad ...............................20
5.2. Operating Displays..................................20
5.3. Changing Parameters................................20
5.4. Read Only Parameter Access .........................21
5.5. Resetting Parameters.................................21
5.6. Resetting a Fault.....................................21
5.7. LED Display ........................................22
6. Parameters ............................... 23
6.1. Standard Parameters...............................23
6.2. Parameter List.....................................23
6.3. Parameter Functions ...............................25
6.4. Commissioning Various Motor Types .................36
6.5. P-00 Read Only Status Parameters...................39
7. Analog and Digital Input Macro Configurations .. 40
7.1. Overview ........................................40
7.2. Example Connection Diagrams......................40
7.3. Macro Functions Guide Key ........................ 41
7.4. Macro Functions – Terminal Mode (P-12 = 0)..........42
7.5. Macro Functions - Keypad Mode (P-12 = 1 or 2) ......43
7.6. Macro Functions - Fieldbus Control Mode (P-12 = 3, 4,
7, 8 or 9) ............................................43
7.7. Macro Functions - User PI Control Mode (P-12 = 5 or 6) ...44
8. Modbus RTU Communications ................ 45
8.1. Introduction.......................................45
8.2. Modbus RTU Specification .........................45
8.3. RJ45 Connector Configuration ......................46
8.4. Modbus Register Map.............................46
9. CAN Communication........................ 50
9.1. CAN Communication ..............................50
9.2. Additional Information Relating to CAN or Modbus or
Both ............................................... 52
10. Technical Data ............................ 54
10.1. Environmental....................................54
10.2. Input Power Supply Requirements...................54
10.3. Rating Tables .................................<OV>
10.4. Single Phase Operation of Three Phase Drives ........55
10.5. Additional Information for UL Compliance............55
10.6. EMC Filter Disconnect ............................56
11. Troubleshooting............................57
11.1. Fault Code Messages .............................57
11.2. Resetting a Fault ..................................57
12. drive.web Distributed Control Technology. . . . . 58
12.1 drive.web Overview ..............................58
12.2 savvy configuration tools ..........................59
12.3 savvy Drive configuration ..........................60
12.4 drive.web System Design..........................60
Intended Audience
This User Manual is intended to be used in conjunction with the Quick Start User Guide included with the product, and is intended to
provide additional information for more advanced product applications and usage. The reader should be familiar with the contents of
the Quick Start User Guide, and in particular, should observe all safety warnings and installation guidelines contained therein.

Version 1.25 | E3 IP66 Outdoor Rated User Guide | 3www.bardac.com
General Information
It is the responsibility of the installer to ensure that the equipment or system into which the product is incorporated complies with all
relevant legislation and codes of practice which apply in the country of use.
CE Marking
All Bardac products intended for use within the European Union carry the CE mark to indicate compliance with European Directives.
A declaration of conformity is available from the website, www.bardac.com
For compliance with the European EMC Directive, the necessary guidance is provided within this document and it is the responsibility
of the installer to ensure this guidance is followed to ensure compliance.
UL Conformity
A list of currently listed products is available from the UL website, www.ul.com.
For compliance with UL requirements, the necessary guidance is provided within this document and it is the responsibility of the installer
to ensure this guidance is followed to ensure compliance.
Copyright Bardac Corporation © 2021
All rights reserved. No part of this User Guide may be reproduced or transmitted in any form or by any means, electrical or
mechanical including photocopying, recording or by any information storage or retrieval system without permission in writing from the
publisher.
2 Year Warranty
All Bardac E3 drive units carry a 2 year warranty against manufacturing defects from the date of manufacture. The manufacturer
accepts no liability for any damage caused during or resulting from transport, receipt of delivery, installation or commissioning. The
manufacturer also accepts no liability for damage or consequences resulting from inappropriate, negligent or incorrect installation,
incorrect adjustment of the operating parameters of the drive, incorrect matching of the drive to the motor, incorrect installation,
unacceptable dust, moisture, corrosive substances, excessive vibration or ambient temperatures outside of the design specification.
The local distributor may offer different terms and conditions at their discretion, and in all cases concerning warranty, the local
distributor should be contacted first.
This user guide is the “original instructions” document. All non-English versions are translations of the
“original instructions”.
The contents of this User Guide are believed to be correct at the time of printing. In the interest of a commitment to a policy of
continuous improvement, the manufacturer reserves the right to change the specification of the product or its performance or the
contents of the User Guide without notice.
This User Guide is for use with version 3.11 Firmware
User Guide Revision 1.25
Bardac adopts a policy of continuous improvement and whilst every effort has been made to provide accurate and up to date
information, the information contained in this User Guide should be used for guidance purposes only and does not form the part of
any contract.
When installing the drive on any power supply where the phase-ground voltage may exceed the phase-phase voltage
(typically IT supply networks or Marine vessels) it is essential that the internal EMC filter ground and surge protection
varistor ground (where fitted) are disconnected. If in doubt, refer to your Sales Partner for further information.
This manual is intended as a guide for proper installation. Bardac cannot assume responsibility for the compliance or the
non-compliance to any code, national, local or otherwise, for the proper installation of this drive or associated equipment.
A hazard of personal injury and/or equipment damage exists if codes are ignored during installation.
This E3 drive contains high voltage capacitors that take time to discharge after removal of the main supply. Before working
on the drive, ensure isolation of the main supply from line inputs. Wait ten (10) minutes for the capacitors to discharge to
safe voltage levels. Failure to observe this precaution could result in severe bodily injury or loss of life.
Only qualified electrical personnel familiar with the construction and operation of this equipment and the hazards involved
should install, adjust, operate, or service this equipment. Read and understand this manual and other applicable manuals
in their entirety before proceeding. Failure to observe this precaution could result in severe bodily injury or loss of life.

4| E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
Safety Warnings
1
1. Safety Warnings
1.1. Important Safety Information
Please read the IMPORTANT SAFETY INFORMATION below, and all Warning and Caution information elsewhere.
Danger: Indicates a risk of electric shock, which,
if not avoided, could result in damage to the
equipment and possible injury or death.
This variable speed drive product (E3 drive) is intended for
professional incorporation into complete equipment or systems
as part of a fixed installation. If installed incorrectly it may present
a safety hazard. The E3 drive uses high voltages and currents,
carries a high level of stored electrical energy, and is used to
control mechanical plant that may cause injury. Close attention
is required to system design and electrical installation to avoid
hazards in either normal operation or in the event of equipment
malfunction. Only qualified electricians are allowed to install
and maintain this product.
System design, installation, commissioning and maintenance
must be carried out only by personnel who have the necessary
training and experience. They must carefully read this safety
information and the instructions in this Guide and follow all
information regarding transport, storage, installation and use of
the E3 drive, including the specified environmental limitations.
Do not perform any flash test or voltage withstand test on the E3
drive. Any electrical measurements required should be carried
out with the E3 drive disconnected.
Electric shock hazard! Disconnect and ISOLATE the E3 drive
before attempting any work on it. High voltages are present
at the terminals and within the drive for up to 10 minutes after
disconnection of the electrical supply. Always ensure by using a
suitable multimeter that no voltage is present on any drive power
terminals prior to commencing any work.
Where supply to the drive is through a plug and socket
connector, do not disconnect until 10 minutes have elapsed after
turning off the supply.
Ensure correct earthing connections. The earth cable must
be sufficient to carry the maximum supply fault current which
normally will be limited by the fuses or MCB. Suitably rated
fuses or MCB should be fitted in the mains supply to the drive,
according to any local legislation or codes.
Ensure correct earthing connections and cable selection as per
defined by local legislation or codes. The drive may have a
leakage current of greater than 3.5mA; furthermore the earth
cable must be sufficient to carry the maximum supply fault current
which normally will be limited by the fuses or MCB. Suitably
rated fuses or MCB should be fitted in the mains supply to the
drive, according to any local legislation or codes.
Do not carry out any work on the drive control cables whilst
power is applied to the drive or to the external control circuits.
Danger: Indicates a potentially hazardous situation
other than electrical, which if not avoided, could
result in damage to property.
Within the European Union, all machinery in which this product
is used must comply with Directive 2006/42/EC, Safety of
Machinery. In particular, the machine manufacturer is responsible
for providing a main switch and ensuring the electrical equipment
complies with EN60204-1.
The level of integrity offered by the E3 drive control input
functions – for example stop/start, forward/reverse and
maximum speed is not sufficient for use in safety-critical
applications without independent channels of protection. All
applications where malfunction could cause injury or loss of
life must be subject to a risk assessment and further protection
provided where needed.
The driven motor can start at power up if the enable input signal
is present.
The STOP function does not remove potentially lethal high
voltages. ISOLATE the drive and wait 10 minutes before starting
any work on it. Never carry out any work on the Drive, Motor or
Motor cable whilst the input power is still applied.
The E3 drive can be programmed to operate the driven motor at
speeds above or below the speed achieved when connecting
the motor directly to the mains supply. Obtain confirmation from
the manufacturers of the motor and the driven machine about
suitability for operation over the intended speed range prior to
machine start up.
Do not activate the automatic fault reset function on any systems
whereby this may cause a potentially dangerous situation.
When mounting the drive, ensure that sufficient cooling is provided.
Do not carry out drilling operations with the drive in place, dust
and swarf from drilling may lead to damage.
The entry of conductive or flammable foreign bodies should be
prevented. Flammable material should not be placed close to
the drive
Relative humidity must be less than 95% (non-condensing).
Ensure that the supply voltage, frequency and no. of phases (1
or 3 phase) correspond to the rating of the E3 drive as delivered.
Never connect the mains power supply to the Output terminals
U, V, W.
Do not install any type of automatic switchgear between the
drive and the motor.
Wherever control cabling is close to power cabling, maintain
a minimum separation of 100 mm and arrange crossings
at 90 degrees. Ensure that all terminals are tightened to the
appropriate torque setting.
Do not attempt to carry out any repair of the E3 drive. In the case
of suspected fault or malfunction, contact your local Bardac
Sales Partner for further assistance.

Version 1.25 | E3 IP66 Outdoor Rated User Guide | 5www.bardac.com
2. General Information and Ratings
This chapter contains information about the E3 drive including how to identify the drive.
2.1. Identifying the Drive by Model Number
Each drive can be identified by its model number, as shown in the table below. The model number is on the shipping label and the
drive nameplate. The model number includes the drive and any options.
E - 3 - 1 2 0021 - 1 F 1 A - EIP
Additional
Option
1 = Not Fitted
4 = Internal Transistor
Product Family IP Rating
A = IP66 Non Switched
B = IP66 Switched
C = IP66 with local controls
E = IP66 with switch-disconnector
Generation Dynamic Brake
Transistor
1 = Not Fitted
4 = Internal Transistor
Frame Size Filter Type 0 = No Filter
F = Internal EMC Filter
Input Voltage 1 = 110 – 115 No. Of Input Phases
2 = 200 – 240
4 = 380 – 480 Output Current x 10
2.2. IP66 Drive Variants
A = IP66 Non Switched B = IP66 Switched C = IP66 with local controls E = IP66 with switch-disconector
2.3. Understanding the Rating Label
The product rating label provides the following information
Proposed
E3 Series
Variable Frequency Drive
IP66 / NEMA 4X
Serial No.: 11111111111 S/W : V3.09 10022021
E3-11023-101B
Input 200 – 240V 50/60Hz 1Ph 7.5A IE2%
Output 0 – Vin 0-500Hz 3Ph 2.3A 2
0.75kW /
1HP
CAUTION
Power down for 10 minutes
before removing cover
Read User Guide before
installation or servicing
Risk of Electric Shock
Max Amb, 40° CMade in the UK
SCCR: For rating and protection refer to User Guide
AVERTISSMENT
Risque du choc electrique
Une Tensin dangereuse peut etre
presentee jusqu a 10 mins avoir
coupe l’alimentation
IDL: ODE-3-110023-101B
Made in the UK By Invertek Drives
www.Bardac.com
Key
On right hand
side when
viewed from
the front.
1 Model Code
2 Enclosure Type and IP Rating
3 Firmware Version
4 Serial Number
5 Technical Data – Supply
Voltage
6 Technical Data – Maximum
continuous output current
General Information & Ratings
2
2
5
1
6
34

6| E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
2.4. Drive Model Numbers
110 – 115V ± 10% - 1 Phase Input – 3 Phase 230V Output (Voltage Doubler)
Model Number kW HP Output Current
(A) Frame Size
With Filter Without Filter
N/A E3-110023-101# 0.5 2.3 1
N/A E3-110043-101# 1 4.3 1
N/A E3-210058-104# 1.5 5.8 2
200 – 240V ± 10% - 1 Phase Input – 3 Phase Output
Model Number kW HP Output Current
(A) Frame Size
With Filter Without Filter
E3-120023-1F1# E3-120023-101# 0.37 0.5 2.3 1
E3-120043-1F1# E3-120043-101# 0.75 1 4.3 1
E3-120070-1F1# E3-120070-101# 1.5 271
E3-220070-1F4# E3-220070-104# 1.5 272
E3-220105-1F4# E3-220105-104# 2.2 3 10.5 2
E3-320153-1F4# E3-320153-104# 4.0 5 15 . 3 3
N/A E3-420240-104# 5.5 7. 5 24 4
N/A E3-420300-104# 7. 5 10 30 4
200 – 240V ± 10% - 3 Phase Input – 3 Phase Output
Model Number kW HP Output Current
(A) Frame Size
With Filter Without Filter
E3-120023-3F1# E3-120023-301# 0.37 0.5 2.3 1
E3-120043-3F1# E3-120043-301# 0.75 1 4.3 1
E3-120070-3F1# E3-120070-301# 1.5 271
E3-220070-3F4# E3-220070-304# 1.5 272
E3-220105-3F4# E3-220105-304# 2.2 3 10.5 2
E3-320180-3F4# E3-320180-304# 4.0 5 18 3
E3-320240-3F4# E3-320240-304# 5.5 7. 5 24 3
E3-420300-3F4# E3-420300-304# 7. 5 10 30 4
E3-420460-3F4# E3-420460-304# 11 15 46 4
380 – 480V ± 10% - 3 Phase Input – 3 Phase Output
Model Number kW HP Output Current
(A) Frame Size
With Filter Without Filter
E3-140022-3F1# E3-140022-301# 0.75 1 2.2 1
E3-140041-3F1# E3-140041-301# 1.5 24.1 1
E3-240041-3F4# E3-240041-304# 1.5 24.1 2
E3-240058-3F4# E3-240058-304# 2.2 3 5.8 2
E3-240095-3F4# E3-240095-304# 4 5 9.5 2
E3-340140-3F4# E3-340140-304# 5.5 7. 5 14 3
E3-340180-3F4# E3-340180-304# 7. 5 10 18 3
E3-340240-3F4# E3-340240-3042 11 15 24 3
E3-440300-3F4# E3-440300-3042 15 20 30 4
E3-440390-3F4# E3-440390-3042 18.5 25 39 4
E3-440460-3F4# E3-440460-3042 22 30 46 4
NOTE
For IP66 replace the '#' with:
IP66 FWD/REV Pot Disconnect
A   
B
C   
E   
General Information & Ratings
2

Version 1.25 | E3 IP66 Outdoor Rated User Guide | 7www.bardac.com
Mechanical Installation
3
3. Mechanical Installation
3.1. General
 The E3 drive should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting using the integral
mounting holes.
 Do not mount flammable material close to the E3 drive.
 Ensure that the minimum cooling air gaps, as detailed in section 3.4. Guidelines for mounting on page 8.
 Ensure that the ambient temperature range does not exceed the permissible limits for the E3 drive given in section 10.1.
Environmental on page 54.
3.2. UL Compliant Installation
Refer to section 10.5. Additional Information for UL Compliance on page 55 for Additional Information for UL Compliance.
3.3. Mechanical Dimensions
C
Drive Size A B C D E Weight
mm in mm in mm in mm in mm in kg Ib
1232 9 .13 161 6.34 162 6.37 18 9 7.44 148.5 5.85 2.3 5
2257 10 .12 18 8 7. 4 182 7.16 200 7. 87 178 7.00 3.5 7. 7
3310 12.2 211 8.3 235 9.25 252 9.92 19 7 7. 75 6.6 14.5
4 360 14 .17 240 9.44 271 10.67 300 11 . 81 227 8.94 9.5 20.9
Mounting Bolts Tightening Torques
Frame Size Metric UNF Frame Size Required Torque Terminal Type
All Sizes M4 #8 Control Terminals All 0.5 Nm 4.5lb-in Rising Clamp
Power Terminals 1 - 3 0.8 Nm 7 lb-in Rising Clamp
4 2 Nm 18 lb-in Rising Clamp

8| E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
3.4. Guidelines for mounting
 Before mounting the drive, ensure that the chosen
location meets the environmental
condition requirements for the drive shown in section
10.1. Environmental on page 54.
 The drive must be mounted vertically, on a suitable flat
surface.
 The minimum mounting clearances as shown in the
table below must be observed.
 The mounting site and chosen mountings should be
sufficient to support the weight of the drives.
 Using the drive as a template, or the dimensions
shown above, mark the locations required for drilling.
 Suitable cable glands to maintain the ingress protection
of the drive are required. Gland holes for power and
motor cables are pre-moulded into the drive enclosure,
recommended gland sizes are shown below. Gland
holes for control cables may be cut as required.
 The mounting location should be free from vibration.
 Do not mount the drive in any area with excessive humidity, corrosive airborne chemicals or potentially dangerous dust particles.
 Avoid mounting close to high heat sources.
 The drive must not be mounted in direct sunlight. If necessary, install a suitable shade cover.
 The mounting location must be free from frost.
 Do not restrict the flow of air through the drive heatsink. The drive generates heat which must be naturally allowed to dissipate.
Correct air clearance around the drive must be observed.
 If the location is subject to wide ambient temperature and air pressure variation, install a suitable pressure compensation valve in
the drive gland plate.
NOTE If the drive has been in storage for a period longer than 2 years, the DC link capacitors must be reformed.
Drive Size X Above & Below Y Either Side
mm in mm in
1 200 7. 87 10 0.39
2 200 7. 87 10 0.39
3 200 7. 87 10 0.39
4 200 7. 87 10 0.39
NOTE Above are guidelines only and the operating ambient temperature of the drive MUST be
maintained within the limits shown in section 10.1. Environmental at all times.
3.5. Gland Plate and Lock Off
The use of a suitable gland system is required to maintain the appropriate IP / NEMA rating. The gland plate has pre moulded cable
entry holes for power and motor connections suitable for use with glands as shown in the following table. Where additional holes are
required, these can be drilled to suitable size. Please take care when drilling to avoid leaving any particles within the product.
Gland Plate Holes Sizes & Recommended glands IP66 / NEMA 4X Gland Plate
Frame
Size
Power & Motor Cables Control Cables
Hole Size Recommended Gland Hole Size Recommended Gland
PG Metric PG Metric
1
20.4mm / 0.8 inch PG13.5 M20 20.4mm /
0.8 inch
PG13.5 M20
2 & 3
27mm / 1.06 inch PG21 M25 PG13.5 M20
4 37mm / 1.46 inch PG29 – PG13.5 M20
 UL rated ingress protection ("Type" ) is only met when cables are installed using a UL
recognized bushing or fitting for a flexible-conduit system which meets the required level
of protection ("Type").
 For conduit installations the conduit entry holes require standard opening to the required
sizes specified per the NEC.
 Not intended for installation using rigid conduit system.
Mechanical Installation
3

Version 1.25 | E3 IP66 Outdoor Rated User Guide | 9www.bardac.com
Mains switch-disconnector Lock Off
On the switched models the mains switch-disconnector can be locked in the ‘Off’ position using a 20mm standard shackle padlock
(not supplied).
IP66 / NEMA 4X Unit Lock Off
3.6. Removing the Terminal Cover
To access the connection terminals, the drive front cover needs to be removed as shown.
IP66 / NEMA 4X Units
Removing the screws on the front of the product allows access to the connection terminals, as shown below.
3.7. Routine Maintenance
The drive should be included within the scheduled maintenance program so that the installation maintains a suitable operating
environment, this should include:
 Ambient temperature is at or below that set out in section 10.1. Environmental on page 54.
 Heat sink fans (where fitted) freely rotating and dust free.
 The Enclosure in which the drive is installed should be free from dust and condensation; furthermore ventilation fans and air filters
should be checked for correct air flow.
Checks should also be made on all electrical connections, ensuring screw terminals are correctly torqued; and that power cables
have no signs of heat damage.
Mechanical Installation
3

10 | E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
4. Power & Control Wiring
4.1. Connection Locations
4.1.1. Connection locations – Frame size 1
Single phase supply 3 phase supply
L1 L3 EMCL2/N UVW
1 2 3 4 5 6 7 8 9 10 11
I0I0I I0I0I
AB
C
L1 L3 EMCL2/N UVW
1 2 3 4 5 6 7 8 9 10 11
I0I0I I0I0I
AB
C
4.1.2. Connection locations – Frame sizes 2, 3 and 4
Single phase supply 3 phase supply
L1 L3
EMC
L2/N
U V W
1 2 3 4 5 6 7 8 9 10 11
I0I0I I0I0I
BR
+-
AB
C
D
L1 L3
EMC
L2/N
U V W
1 2 3 4 5 6 7 8 9 10 11
I0I0I I0I0I
+-
A
C
BR
DB
A– Incoming Power Connections see section 4.4. Incoming Power Connection for more information
B– Motor Connections see section 4.5. Motor Connection for more information
C– Control Terminal Connections see section 4.10. Control Terminal Connections for more information
D– Brake Resistor see section 4.13. Optional Brake Resistor for more information
Power & Control Wiring
4

Version 1.25 | E3 IP66 Outdoor Rated User Guide | 11www.bardac.com
4.2. Connection Diagram
All power terminal locations are marked directly on the product. DC+/BR/DC- terminals are not available on Size 1 models.
4.2.1. IP66 (Nema 4X) Non-Switched Units
L1/L L2/N L3
L1/L L2/N L3
Mains (1 or 3 phase)
U V W
E3 IP66 (NEMA 4X) Non-Switched
PE
BR
DC
+
PE
WI
VI
UI
M
DC
-
Incoming Power Connection
Additional information in section 4.4. on page 13
Protective Earth PE Connection
Additional information in section 4.3. on page 13
Isolator/Disconnect
Ensure there is at least 30 seconds
between each power-on!
Fuses/Circuit Breaker
Additional information in section 4.4.2. on page 13
External Line Reactor (optional)
Additional information in section 4.4.3. on page 14
It must not be used with frame size 4 models!
External EMC Filter (optional)
Additional information in section 4.12. on page 18
External Output Filter (optional)
Output Choke (load reactor)
dV/dT filter
Sinewave filter
Brake Resistor with Thermal Overload Protection
Additional information in section 4 .13 . on page 19
Shielded Motor Cable with PE Connection
Additional information in section 4.5. on page14
Power & Control Wiring
4

12 | E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
Power & Control Wiring
4
4.2.2. Electrical Power Connections – IP66 (NEMA 4X) Switched Models
L1/L L2/N L3
L1/L L2/N L3
Mains (1 or 3 phase)
U V W
E3 IP66 (NEMA 4X) Switched
PE
BR
DC
+
PE
WI
VI
UI
M
DC
-
Incoming Power Connection
Additional information in section 4.4. on page 13
Protective Earth PE Connection
Additional information in section 4.3. on page 13
Fuses/Circuit Breaker
Additional information in section 4.4.2. on page 13
External Line Reactor (optional)
Additional information in section 4.4.3. on page 14
It must not be used with frame size 4 models!
External EMC Filter (optional)
Additional information in section 4.12. on page 18
Built-in mains switch-disconnector
Ensure there is at least 30 seconds
between each power-on!
External Output Filter (optional)
Output Choke (load reactor)
dV/dT filter
Sinewave filter
Brake Resistor with Thermal Overload Protection
Additional information in section 4 .13 . on page 19
Shielded Motor Cable with PE Connection
Additional information in section 4.5. on page14

Version 1.25 | E3 IP66 Outdoor Rated User Guide | 13www.bardac.com
4.3. Protective Earth (PE) Connection
Grounding Guidelines
The ground terminal of each E3 drive should be individually connected DIRECTLY to the site ground bus bar (through the filter if
installed). E3 drive ground connections should not loop from one drive to another, or to, or from any other equipment. Ground loop
impedance must confirm to local industrial safety regulations. To meet UL regulations, UL approved ring crimp terminals should be
used for all ground wiring connections.
The drive Safety Ground must be connected to system ground. Ground impedance must conform to the requirements of national and
local industrial safety regulations and/or electrical codes. The integrity of all ground connections should be checked periodically.
Protective Earth Conductor
The Cross sectional area of the PE Conductor must be at least equal to that of the incoming supply conductor.
Safety Ground
This is the safety ground for the drive that is required by code. One of these points must be connected to adjacent building steel
(girder, joist), a floor ground rod, or bus bar. Grounding points must comply with national and local industrial safety regulations and/
or electrical codes.
Motor Ground
The motor ground must be connected to one of the ground terminals on the drive.
Ground Fault Monitoring
As with all inverters, a leakage current to earth can exist. The E3 drive is designed to produce the minimum possible leakage current
whilst complying with worldwide standards. The level of current is affected by motor cable length and type, the effective switching
frequency, the earth connections used and the type of RFI filter installed. If an ELCB (Earth Leakage Circuit Breaker) is to be used, the
following conditions apply:
 A Type B Device must be used.
 The device must be suitable for protecting equipment with a DC component in the leakage current.
 Individual ELCBs should be used for each E3 drive.
Shield Termination (Cable Screen)
The safety ground terminal provides a grounding point for the motor cable shield. The motor cable shield connected to this terminal
(drive end) should also be connected to the motor frame (motor end). Use a shield terminating or EMI clamp to connect the shield to
the safety ground terminal.
4.4. Incoming Power Connection
4.4.1. Cable Selection
 For 1 phase supply, the mains power cables should be connected to L1/L, L2/N.
 For 3 phase supplies, the mains power cables should be connected to L1, L2, and L3. Phase sequence is not important.
 For compliance with CE EMC requirements, refer to section 4.12. EMC Compliant Installation on page 18.
 A fixed installation is required according to IEC61800-5-1 with a suitable disconnecting device installed between the E3 drive
and the AC Power Source. The disconnecting device must conform to the local safety code / regulations (e.g. within Europe,
EN60204-1, Safety of machinery).
 The cables should be dimensioned according to any local codes or regulations. Maximum dimensions are given in section 10.3.
Rating Tables on page 54.
4.4.2. Fuse / Circuit Breaker Selection
 Suitable fuses to provide wiring protection of the input power cable should be installed in the incoming supply line, according
to the data in section 10.3. Rating Tables on page 54. The fuses must comply with any local codes or regulations in place.
In general, type gG (IEC 60269) or UL type J fuses are suitable; however in some cases type aR fuses may be required. The
operating time of the fuses must be below 0.5 seconds.
 Where allowed by local regulations, suitably dimensioned type B MCB circuit breakers of equivalent rating may be utilised in
place of fuses, providing that the clearing capacity is sufficient for the installation. For UL approved installation, fuses must be used,
refer to section 10.5. Additional Information for UL Compliance on page 55.
 The maximum permissible short circuit current at the E3 drive Power terminals is shown in section 10.2. Input Power Supply
Requirements on page 54.
Power & Control Wiring
4

14 | E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
4.4.3. Optional Input Choke
 Do not use input choke with size 4 models!
 An optional Input Choke is recommended to be installed in the supply line for drives frame size 1, 2 and 3 where any of the
following conditions occur:
o The incoming supply impedance is low or the fault level / short circuit current is high.
o The supply is prone to dips or brown outs.
o An imbalance exists on the supply (3 phase drives).
o The power supply to the drive is via a busbar and brush gear system (typically overhead Cranes).
 In all other installations, an input choke is recommended to ensure protection of the drive against power supply faults. Part numbers
are shown in the table.
Supply Frame Size AC Input Inductor
230 Volt
1 Phase
1 Contact
2 [email protected]
400 Volt
3 Phase
1 for
2 options
3
4.5. Motor Connection
 The drive inherently produces fast switching of the output voltage (PWM) to the motor compared to the mains supply. For motors
which have been wound for operation with a variable speed drive additional measures are not required; however if the quality of
insulation is unknown the motor manufacturer should be consulted and preventative measures may be required.
 The motor should be connected to the E3 drive U, V, and W terminals using a suitable 3 or 4 core cable. Where a 3 core cable
is utilised, with the shield operating as an earth conductor, the shield must have a cross sectional area at least equal to the phase
conductors when they are made from the same material. Where a 4 core cable is utilised, the earth conductor must be of at least
equal cross sectional area and manufactured from the same material as the phase conductors.
 The motor earth must be connected to one of the E3 drive earth terminals.
 Maximum permitted motor cable length for all models: 100 metres shielded, 150 metres unshielded.
 Where multiple motors are connected to a single drive using parallel cables, an output choke must be installed.
4.6. Motor Terminal Box Connections
Do not install any mechanical or electro-mechanical switching devices between the drive and motor. Where a local isolator is installed
close to the motor, this should be interlocked with the drive control circuit to ensure the drive is disabled when the motor is isolated.
Most general purpose motors are wound for operation on dual voltage supplies. This is indicated on the nameplate of the motor. This
operational voltage is normally selected when installing the motor by selecting either STAR or DELTA connection. STAR always gives
the higher of the two voltage ratings.
Incoming Supply Voltage Motor Nameplate Voltages Connection
230 230 / 400
Delta
∆
400 400 / 690
400 230 / 400 Star
⅄
4.7. Control Terminal Wiring
 All analog signal cables should be suitably shielded. Twisted pair cables are recommended.
 Power and Control Signal cables should be routed separately where possible, and must not be routed parallel to each other.
 Signal levels of different voltages e.g. 24 Volt DC and 110 Volt AC, should not be routed in the same cable.
 Maximum control terminal tightening torque is 0.5Nm.
 Control Cable entry conductor size: 0.05 – 2.5mm2/ 30 – 12 AWG.
Power & Control Wiring
4

Version 1.25 | E3 IP66 Outdoor Rated User Guide | 15www.bardac.com
4.8. Using the REV/0/FWD Selector Switch (Versions With Local Controls Only)
By adjusting the parameter settings the E3 drive can be configured for multiple applications and not just for Forward or Reverse.
This could typically be for Hand/Off/Auto applications (also known and Local/Remote) for HVAC and pumping industries. The
integrated switch operates in parallel with drive terminal 2 (T2) and terminal 3 (T3) as digital input 1 and digital input 2. By default,
the integrated switch is enabled.
4.8.1. Default functions of the control switches
Switch Position POT Notes
Factory Default
Configuration.
Run Forward or Reverse
with speed controlled from
the Local POT.
Run Reverse
STOP Run Forward Sets the output frequency
4.8.2. Switch Configuration
P-64 = 0 DI1
=
T2
OR
Switch REV
OR
Switch FWD
T1 T2
External
User
Switches
VFD Control
Terminals
+24V DC
OR OR
Run Reverse Run Forward
P-64 = 1 DI1
=T2 only
T1 T2
External
User
Switches
VFD Control
Terminals
+24V DC
Drive Switch is disabled
P-64 = 2 DI1
=
T2
OR
Switch FWD
T1 T2
External
User
Switches
VFD Control
Terminals
+24V DC
OR
Run Forward
P-64 = 3 DI1
=
T2
AND
Switch
FWD
OR
T2
AND
Switch REV
T1 T2
External
User
Switches
VFD Control
Terminals
+24V DC
AND
Run Forward
OR
T1 T2
External
User
Switches
VFD Control
Terminals
+24V DC
AND
Run Reverse
P-64 = 4 DI1
=
T2
AND
Switch FWD
T1 T2
External
User
Switches
VFD Control
Terminals
+24V DC
AND
Run Forward
P-65 = 0 DI2
=
T3
OR
Switch REV
T1 T3
External
User
Switches
VFD Control
Terminals
+24V DC
OR
Run Reverse
Power & Control Wiring
4

16 | E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
P-65 = 1 DI2
=T3 only
T1 T3
External
User
Switches
VFD Control
Terminals
+24V DC
Drive Switch is disabled
P-65 = 2 DI2
=
T3
AND
Switch REV
T1 T3
External
User
Switches
VFD Control
Terminals
+24V DC
AND
Run Reverse
4.9. Using the Internal Pot (Local Control Versions Only)
On switched drives, the built-in pot (indicated) may be used to directly control the signal level applied to analog input 1, and therefore
the output frequency (motor speed).
To select the built-in pot as the signal source for analog input 1, set P-16 = 8 In-pot.
4.10. Control Terminal Connections
2 (Dl 1)
1 (+24V DC/ 100mA)
5 (+10V DC/ 10mA)
6 (AI 1/ DI 4*)
(AO / DO*) 8
(0V/ COM) 9
AO mode:
0-10V
DO mode:
24V DC
0-10 V
0/4-20 mA
20-4 mA
0-10 V
10-0 V
0/4-20 mA
20-4 mA
10 (RL-COM)
11 (RL-NO)
NOTE
* Dashed lines shows connection for analog inputs and output in digital mode
7 (0V/ COM)
3 (Dl 2)
4 (AI 2/ Dl 3*)
Key Default Function Sec. Page
Open Closed
1+24V DC 24 Volt DC Output On-board +24V DC Supply (100mA)
2DI 1 Digital Input 1 (Run Enable) STOP RUN
3DI 2 Digital Input 2 FORWARD REVERSE
4AI 2 / DI 3 Analog Input 2 / Digital Input 3 AI1 Reference Preset Speed 1 (P-20)
Power & Control Wiring
4

Version 1.25 | E3 IP66 Outdoor Rated User Guide | 17www.bardac.com
Key Default Function Sec. Page
Open Closed
5+10V DC +10Volt DC Output On-board +10V DC Supply (10 mA)
6AI 1 / DI 4 Analog Input 1 / Digital Input 4 Speed Reference 1 (0-10V)
70V / COM 0 Volt Common 0V Common for AI/AO/DI/DO
8AO Analog Output Motor Speed (0-10V)
90V / COM 0 Volt Common 0V Common for AI/AO/DI/DO
10 RL-COM Relay Output Common Drive Faulty Drive Healthy
11 RL-NO Relay Output NO Contact
NOTE
Digital Inputs: Logic High = 8-30V DC (30V DC max)
Analog Output: 0 – 10 Volt (20mA max)
Relay Output: 6A/250V AC, 5A/30V DC (resistive load)
4.10.1. Analog Output
The analog output function may be configured using parameter P-25, which is described in section 6.2. Parameter List on page 23.
The output has two operating modes, dependent on the parameter selection:
 Analog Mode
o The output is a 0 – 10 volt DC signal, 20mA max load current.
 Digital Mode
o The output is 24 volt DC, 20mA max load current.
4.10.2. Relay Output
The relay output function may be configured using parameter P-18, which is described in section 6.2. Parameter List on page 23.
4.10.3. Analog Inputs
Two analog inputs are available, which may also be used as Digital Inputs if required. The signal formats are selected by parameters
as follows:
 Analog Input 1 Format Selection Parameter P-16.
 Analog Input 2 Format Selection Parameter P-47.
These parameters are described more fully in section 6.3.3 Input and Output Functions on page 28.
Local Potentiometer
Connection - AI1
2-wire Analog Voltage
or Current signal
+24V DC
DI 1 DI 2 DI 3
+10V DC
AI 1
0V / COM
+24V DC
DI 1 DI 2 DI 3
+10V DC
AI 1
0V / COM
1 2 3 4 5 6 7 1 2 3 4 5 6 7
0-10 V
10-0 V
0/4-20 mA
20-4 mA
+
V/A
-
2-wire or Loop
Powered Transducer 3-wire Transducer
Power & Control Wiring
4

18 | E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
+24V DC
DI 1 DI 2 DI 3
+10V DC
AI 1
0V / COM
+24V DC
DI 1 DI 2 DI 3
+10V DC
AI 1
0V / COM
1 2 3 4 5 6 7 1 2 3 4 5 6 7
0/4-20 mA
+24V DC
Sensor
-
0/4-20 mA
+24 V DC
Sensor
-
The function of the analog input, e.g. for speed reference or PID feedback for example is defined by parameters P-15. The function of
these parameters and available options is described in section 7. Analog and Digital Input Macro Configurations on page 40.
4.10.4. Digital Inputs
Up to four digital inputs are available. The function of the inputs is defined by parameters P-12 and P-15, which are explained in
section 7. Analog and Digital Input Macro Configurations on page 40.
4.11. Motor Thermal Overload Protection
4.11.1. Internal Thermal Overload Protection
The drive has an built-in motor thermal overload function; this is in the form of an “I.t-trP” trip after delivering >100% of the value set in
P-08 for a sustained period of time (e.g. 150% for 60 seconds).
4.11.2. Motor Thermistor Connection
Where a motor thermistor is to be used, it should be connected as follows:
Motor
Thermistor
Connection Additional Information
+24V DC
DI 1 DI 2 DI 3
Compatible Thermistor: PTC Type, 2.5kΩ trip level.
 Use a setting of P-15 that has Input 3 function as
External Trip, e.g. P-15 = 3. Refer to section
7. Analog and Digital Input Macro
Configurations on page 40 for further details.
Set P-47 = “"
1 2 3 4
Refer to section 7. Analog and Digital Input Macro Configurations for further information regarding configuration of the input functions.
4.12. EMC Compliant Installation
Category Supply Cable Type Motor Cable Type Control Cables Maximum Permissible
Motor Cable Length
C16Shielded1Shielded1,5
Shielded4
1M / 5M7
C2 Shielded2Shielded1, 5 5M / 25M7
C3 Unshielded3Shielded225M / 100M7
1A screened (shielded) cable suitable for fixed installation with the relevant mains voltage in use. Braided or twisted type screened
cable where the screen covers at least 85% of the cable surface area, designed with low impedance to HF signals. Installation of
a standard cable within a suitable steel or copper tube is also acceptable.
2A cable suitable for fixed installation with relevant mains voltage with a concentric protection wire. Installation of a standard cable
within a suitable steel or copper tube is also acceptable.
3A cable suitable for fixed installation with relevant mains voltage. A shielded type cable is not necessary.
4A shielded cable with low impedance shield. Twisted pair cable is recommended for analog signals.
5The cable screen should be terminated at the motor end using an EMC type gland allowing connection to the motor body
through the largest possible surface area. Where drives are mounted in a steel control panel enclosure, the cable screen may be
terminated directly to the control panel using a suitable EMC clamp or gland, as close to the drive as possible. For IP66 drives,
connect the motor cable screen to the internal ground clamp.
Power & Control Wiring
4

Version 1.25 | E3 IP66 Outdoor Rated User Guide | 19www.bardac.com
6Compliance with category C1 conducted emissions only is achieved. For compliance with category C1 radiated emissions,
additional measures may be required, contact your Sales Partner for further assistance. Frame size 3 single phase 230V input is not
C1 compliant.
7Permissible cable length with additional external EMC filter.
4.13. Optional Brake Resistor
E3 drive Frame Size 2 and above units have a built-in Brake Transistor. This allows an external resistor to be connected to the drive to
provide improved braking torque in applications that require this.
The brake resistor should be connected to the “+” and “BR” terminals as shown in the diagrams in sections 4.2. Connection Diagram
on page 11.
The voltage level at these terminals may exceed 800VDC.
Stored charge may be present after disconnecting the mains power.
Allow a minimum of 10 minutes discharge after power off before attempting any connection to these terminals.
Suitable resistors and guidance on selection can be obtained from your Bardac Sales Partner. The brake transistor is enabled here by
setting P-34 > 0. See section 6. Parameters on page 23 for more information.
Dynamic Brake Transistor with Thermal Overload Protection
L1/L
K1
E3
DC+
K1 - Main Contractor
Thermal Overload / Brake Resistor with internal Over Temperature switch
BR
L2/N L3
Dlx
+ 24 VDC E3
Optional wiring
It is highly recommended to equip the drive with a main contactor and
provide and use an additional thermal overload protection for braking
resistor.
The contractor should be wired so that it opens in case the resistor overheats,
otherwise the drive will not be able to interrupt the main supply if the brake
chopper remains closed (short-circuited) in a faulty situation.
It is also recommended to wire the thermal overload protection to a digital
input of the drive as an External Trip.
The voltage level at these terminals
may exceed 800VDC.
Stored charge may be present after
disconnecting the mains power.
Allow a minimum of 10 minutes
discharge after power off before
attempting any connection to these
terminals.
Power & Control Wiring
4

20 | E3 IP66 Outdoor Rated User Guide | Version 1.25 www.bardac.com
5. Operation
5.1. Managing the Keypad
The drive is configured and its operation monitored via the keypad and display.
NAVIGATE Used to display real-time information, to access and exit
parameter edit mode and to store parameter changes.
UP Used to increase speed in real-time mode or to increase
parameter values in parameter edit mode.
DOWN Used to decrease speed in real-time mode or to
decrease parameter values in parameter edit mode.
RESET /
STOP
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
START
When in keypad mode, used to Start a stopped drive
or to reverse the direction of rotation if bi-directional
keypad mode is enabled.
5.2. Operating Displays
  
   Fire
Drive Stopped /
Disabled
Drive is enabled
/ running, display
shows the output
frequency (Hz)
Press the Navigate
key for < 1 second.
The display will
show the motor
current (Amps)
Press the Navigate
key for < 1 second.
The display will
show the motor
power (kW)
If P-10 > 0, pressing
the Navigate key
for < 1 second will
display the motor
speed (RPM)
Drive is in fire mode
and can’t be reset
until fore mode is
deactivated
5.3. Changing Parameters
     
Press and hold the
Navigate key > 2
seconds
Use the up and
down keys to
select the required
parameter
Press the Navigate
key for < 1 second
Adjust the value
using the Up and
Down keys
Press for < 1 second
to return to the
parameter menu
Press for > 2
seconds to return
to the operating
display
Operation
5
