GIOTTO TOP®
Bardiani Valvole S.p.A.
via G. di Vittorio, 50/52 - 43045 Fornovo di Taro (PR) - Italy
tel. [phone] - fax [phone]
[email protected] - www.bardiani.com
Instruction, Use and Maintenance Manual
CONTROL UNITS
EN-IST-GIOT360-1021(Translation of the original instructions)

2
EN-IST-GIOT360-1021
MANUAL REVISION DATE

3 EN-IST-GIOT360-1021
INDEX
1 Safety, Warning and Mandatory Signs 5
1.1 Operator training 6
2 Safety 7
2.1 General safety warnings 7
3 Technical data 9
3.1 Giotto Top electrical connections 10
4 Checking / Unpacking / Lifting 13
5 Installation of the Giotto Top 14
6 Giotto Top Pneumatic connections 17
7 Troubleshooting 20
8 Cleaning 22
9 Disposal 23
10 Maintenance 24
10.1 Giotto Top Control unit 25
10.2 Disassembly / Assembly of the Giotto Top 26
11 Valve complete with control unit 31
12 Warranty 32
13 Recommendations 33

4
EN-IST-GIOT360-1021
INTRODUCTION
This “Instruction, Use and Maintenance Manual” has been drawn up expressly for expert
technical personnel. Consequently any information which can easily be deducted from reading
the text and/or examining the illustrations and/or drawings provided herein shall not be the
object of further explanation.
This “Instruction, Use and Maintenance Manual” forms an integral part of the control unit.
Before proceeding with installation, use or maintenance of each type of control unit it is
compulsory to read and understand this manual.
This manual must be kept for all future reference
When using valves in compliance with Directive 2014/34/EU (ATEX) it is mandatory to
consult a specic manual.
It being understood that the essential characteristics of the type of control unit described herein
shall remain the same, the manufacturer reserves the right to amend and/or integrate and/or
update the data and/or information relative to use of the control unit provided in the “Instruction,
Use and Maintenance Manual”, at any time and without prior notice.
The latest, updated version of the "Instruction, Use and Maintenance Manual" is always available at
www.bardiani.com
The manufacturer shall not in any way be held liable for any consequences resulting from a failure
to correctly observe the prescriptions provided in the relative manual concerning installation, use,
maintenance and care of the Product.
All rights reserved. It is prohibited, without prior written authorization from the manufacturer, to
totally and/or partially reproduce and/or transmission and/or record any part of this "Instruction,
Use and Maintenance Manual" using any means and/or support, including IT and/or electronic
and/or mechanical and/or paper formats, or by means of any other system to save and/or reuse
it for purposes different to the exclusive use by the purchaser.

5
1 Safety, Warning and Mandatory Signs
EN-IST-GIOT360-1021
1 Safety, Warning and Mandatory Signs
SIGNALS
Pictogram Description Notes
WARNING
General
This tells the person in question that the operation
described involves (when not performed in accordance
with the relative safety regulations) the risk of personal
injury.
OBLIGATION
General
Special instructions must be followed to avoid injury to
persons.
SKILLED
PERSONNEL
Dismantling/Assembling and maintenance operations
must be carried out by expert technicians only.
NOTE Follow the indicated note with care
ELECTRICAL
CONNECTION
Electrical connection to the control unit
ELECTRICAL
DISCONNECTION
Electrical disconnection from the control unit
PNEUMATIC
CONNECTION
Compressed air connection to the control unit
PNEUMATIC
DISCONNECTION
Compressed air disconnection from the control unit.
OPERATING SIGNS
Pictogram Description Notes
1APPLICATION OF
FOODSAFE
GREASE
Use only FOODLUBE HI-TEMP 2 grease or equivalent

6
1 Safety, Warning and Mandatory Signs
EN-IST-GIOT360-1021
1.1 Operator training
All persons who have to work on the valve must be qualified to carry out the relative
maintenance tasks.
They must be informed as to the possible hazards involved and must observe all the
safety instructions set out in this manual.
Allow expert personnel only to work on the electrical components.

7
2 Safety
EN-IST-GIOT360-1021
2 Safety
2.1 General safety warnings
Intended Use
The control unit has been designed to control the pneumatically controlled process valves
manufactured by Bardiani Valvole S.p.A..
It is possible to fit the Giotto Top with a maximum of three solenoid valves for controlling the process valve
and up to a maximum of four inductive sensors, including an external one for controlling the position.
For the electrical connections inside the control unit, there are three different configurations:
• LED terminal block and As-i card: the LEDs indicate, in the presence of the relative inductive sensor,
the status of the valve: green light = valve open; yellow light = valve closed; white light = bottom or top
lift activated.
• 10-pole terminal block: no LEDs.
General warnings
• Always read the technical data carefully before machine installation, operation and maintenance.
• The Giotto Top must always be installed, operated and maintained by authorized personnel. Said
personnel must know and understand both the unit and the contents of the manual.
• Take care over any separate parts of the Giotto Top when removing it from its packaging.
• Always connect the air supply carefully and disconnect it after use.
• Always connect the power supply carefully and disconnect it after use.
• Never touch the moving parts in the Giotto Top or valves.
• Always handle detergents with care.
Prohibited use
Use of the control unit is not envisaged:
• for any operations other than those for which it was designed.
WARNING
The machine may not he used inside premises where there is a potentially explosive atmosphere or risk
of fire unless otherwise stated by the manufacturer (in the case of valves certified in accordance with
Directive 2014/34/EU please refer to the ATEX Manual).

8
2 Safety
EN-IST-GIOT360-1021
WARNING
The control unit contains circuits classified as LOW VOLTAGE LIMITED ENERGY CIRCUIT. For correct use
in North America dimension the protection circuits in accordance with Standard UL508A.
WARNING
ALWAYS make sure the electrical and pneumatic connections are NOT active when executing operations
on the Giotto Top and that the power supply voltage is only 24 Vdc.
WARNING
Under normal circumstances (exposure time, eye pupils, viewing distance) it is assumed that the
LEDs do not present any danger to eyes. In principle, however, please remember that intense
light sources have a high potential of secondary exposure due to their blinding effect. As also
occurs when looking at other bright light sources (such as vehicle high beams), there may be
a temporary reduction in visual acuity and afterimage which can cause irritation, discomfort,
eyesight issues and even injury, depending on the situation.
BARDIANI VALVOLE S.p.A. declines all liability
for installation, use or maintenance which fails to comply
with the indications provided in this manual!

9
3 Technical data
EN-IST-GIOT360-1021
3 Technical data
CONTROL UNIT TECHNICAL DATA
Weight from 0.55 Kg to 0.65 Kg depending on the configuration
Casing material PA66 + PA6-GF30 (glass fibre reinforced nylon)
Gaskets material NBR / EPDM
Protection class IP67
Air supply and vent connections 1/8” BSP
Air line connections 6 mm / (1/4” ON REQUEST)
Electrical connections
7-pole connector, M12 5 pole connector, M12 8 pole connector,
M12 12 pole connector
Threaded fitting for cable gland PG11 or M20x1.5
Field bus connections Actuator Sensor interface (AS-i).
Vibrations 1mm amplitude f=10..55Hz
Storage temperature from -10°C to +25°C
Air supply Class 2,4,3 according to ISO 8573-1
SOLENOID VALVE APPLICATION CRITERIA
Single Acting Valves 1 Solenoid valve
Double Acting Valves (1 normally open and 1 normally closed), Mixproof and Twin-Stop
valves (2 normally closed)
2 Solenoid valves
Mixproof valves with air supply for opening, top and bottom lift (3 normally closed) 3 Solenoid valves
SOLENOID VALVE TECHNICAL DATA
Electrical power supply 24 Vdc ±10%
Air pressure supply max. 7bar
min. 6bar
Ambient temperature for solenoid valve type B 0..+55°C
Ambient temperature for solenoid valve type S -10..+50°C
INDUCTIVE SENSOR TECHNICAL DATA
Electrical power supply 24 Vdc
Ambient temperature -25..+80°C
AS-I CARD TECHNICAL DATA
No. / type of inputs 4 / PNP
No. / type of outputs 3 / PNP
Ambient temperature -25..+70°C
MAX absorbed current 220 mA
MAX total current (IN + OUT) 150 mA
AS-interface profile S-7.A.7.F
As-interface specification V 3.0
AS-interface IC ASI4U
Extended addressing mode
ü
Solenoid valves type “B”
ü
Solenoid valves type “S”
ü

10
3 Technical data
EN-IST-GIOT360-1021
In the event of any doubt, please contact Bardiani Valvole S.p.A.
Solenoid valve 3
Solenoid valve 1
N.C.
Solenoid valve 1
1,2 PNP sensors with 1,2,3 normally closed solenoid valves and 7-pole connector
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
PIN
Connector
(7)
(6)
(4)
(3)
(2)
(1)
(5)
COLOR
Wire
(White)
(Blue)
(Brown)
(Purple)
(Black)
(Red)
(Gray)
Sensor signal
VALVE CLOSED
+24Vdc
Solenoid valves 0Vdc
PIN
Connector
(1)
(2)
(7)
(6)
(4)
(3)
(5)
COLOR
Wire
(Red)
(Black)
(Blue)
(White)
(Brown)
(Purple)
(Gray)
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valves
+24Vdc Sensors
Solenoid valve 2
N.O.
Solenoid valve 2
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valve 1
+24Vdc Solenoid valve 2
+24Vdc Solenoid valve 3
+24Vdc Sensors
Solenoid valve 3
+24Vdc
Solenoid valve 1 0Vdc
+24Vdc
Solenoid valve 2
+24Vdc
Solenoid valve 3 Sensor signal
VALVE OPEN
+24Vdc
Sensors
Sensor signal
VALVE CLOSED
Sensor signal
VALVE OPEN
+24Vdc
Sensors
1,2 PNP sensors with 1 normally closed solenoid valves and 5-pole connector
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Solenoid valve
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
+24Vdc
Solenoid valve
0Vdc
Sensor signal
VALVE CLOSED
Sensor signal
VALVE OPEN
+24Vdc
Sensors
PIN
Connector
(2)
(4)
(3)
(5)
(1)
COLOR
Wire
(White)
(Black)
(Blue)
(Gray)
(Brown)
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
+24Vdc
Solenoid valves
0Vdc
Sensor signal
VALVE CLOSED
Sensor signal
VALVE OPEN
PIN
Connector
(2)
(4)
(3)
(5)
(1)
COLOR
Wire
(White)
(Black)
(Blue)
(Gray)
(Brown)
+24Vdc
Sensors
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valve
+24Vdc Sensors
Solenoid valve 1
N.C. Solenoid valve 2
N.O.
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valves
+24Vdc Sensors

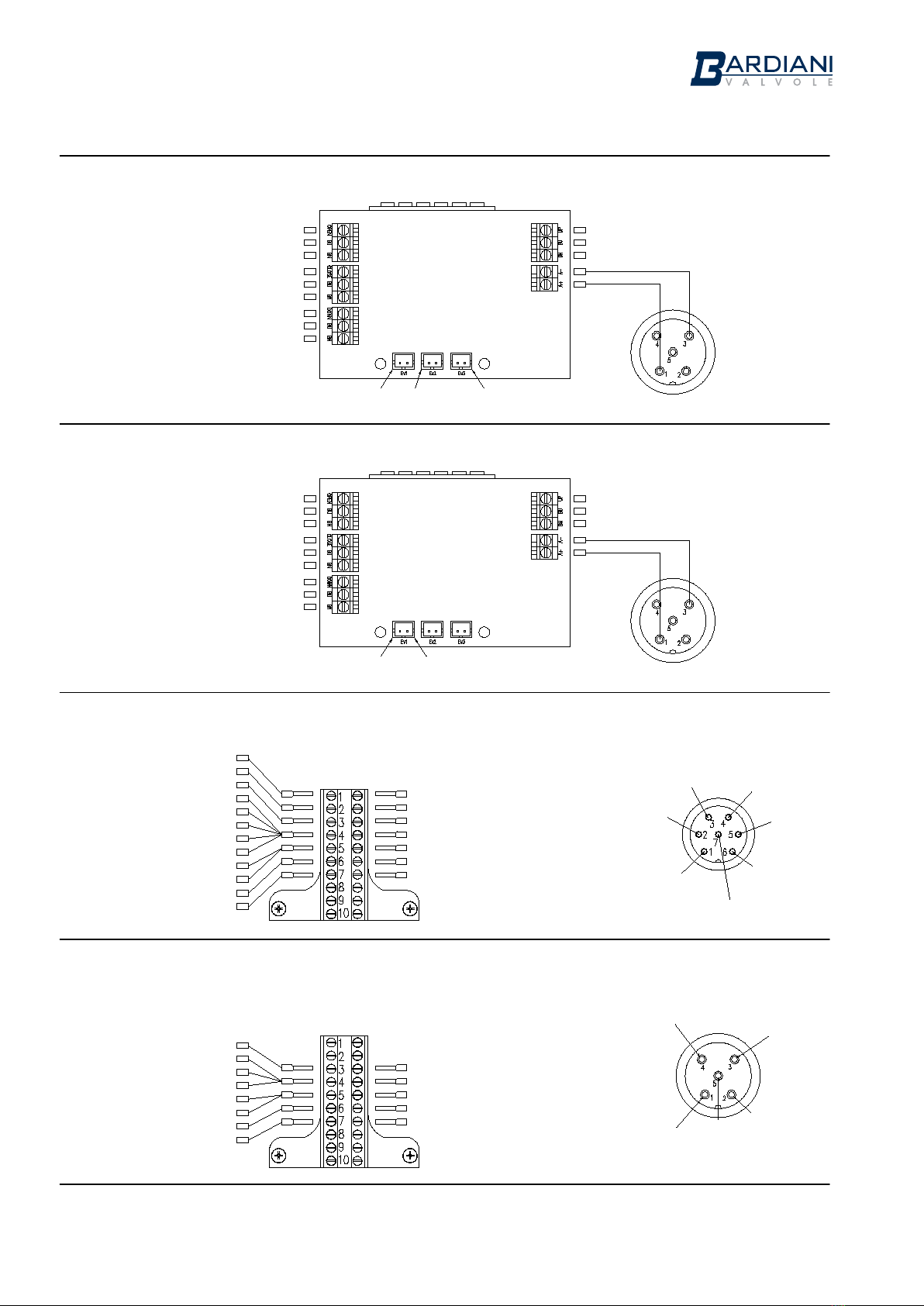

1,2 PNP sensors with 2 solenoid valves (1 N.C. and 1 N.O.) for double acting 7-pole connector
1,2 PNP sensors with 2 solenoid valves (1 N.C. and 1 N.O.) for double acting 5-pole connector

11
3 Technical data
EN-IST-GIOT360-1021
Solenoid valve 1
Solenoid valve 1
1,2,3 PNP sensors with 1,2,3 normally closed solenoid valves and 8-pole connector
1,2,3 PNP sensors with 1,2,3 normally closed solenoid valves and 8-pole connector
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
PIN
Connector
(8)
(1)
(6)
(7)
(5)
(3)
(4)
(2)
COLOR
Wire
(Red)
(White)
(Pink)
(Blue)
(Gray)
(Green)
(Yellow)
(Brown)
External Sensor signal
UPPER LIFT
PIN
Connector
(8)
(1)
(6)
(7)
(5)
(3)
(4)
(2)
COLOR
Wire
(Red)
(White)
(Pink)
(Blue)
(Gray)
(Green)
(Yellow)
(Brown)
LOWER LIFT Sensor signal
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valve 1
+24Vdc Solenoid valve 2
+24Vdc Solenoid valve 3
+24Vdc Sensors
Solenoid valve 2
Solenoid valve 2
UPPER LIFT Sensor signal
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valve 1
+24Vdc Solenoid valve 2
+24Vdc Solenoid valve 3
+24Vdc Sensors
Solenoid valve 3
+24Vdc
Solenoid valve 1
0Vdc
Sensor signal
VALVE OPEN
+24Vdc
Solenoid valve 3
+24Vdc
Sensors
Sensor signal
VALVE CLOSED
Sensor signal
VALVE OPEN
+24Vdc
Sensors
1,2,3,4 PNP sensors with 1,2,3 normally closed solenoid valves
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Solenoid valve 1
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
1,2 PNP sensors with 2 solenoid valves (1 N.C. and 1 N.O.) for double acting
signal (black)
Sensor
UPPER LIFT
(external)
+24Vdc (brown)
0Vdc (Blue)
+24Vdc
Solenoid valve 2
Sensor signal
VALVE CLOSED
+24Vdc
Solenoid valve 1
Sensor
LOWER LIFT
+24Vdc
Solenoid valve 3
+24Vdc
Solenoid valve 2
Sensor signal
LOWER LIFT
Solenoid valve 3
signal (black)
Sensor
UPPER LIFT
(external)
+24Vdc (brown)
0Vdc (Blue)
Sensor
LOWER LIFT
Solenoid valve 2
Solenoid valve 3
UPPER LIFT Sensor signal
LOWER LIFT Sensor signal
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valve 1
+24Vdc Solenoid valve 2
+24Vdc Solenoid valve 3
+24Vdc Sensors
Sensor
VALVE
OPEN
Sensor
VALVE
CLOSED
Solenoid valve 1
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Solenoid valve 2
CLOSED VALVE Sensor signal
OPEN VALVE Sensor signal
0Vdc
+24Vdc Solenoid valves
+24Vdc Sensors
0Vdc
PLC
PLC

12
3 Technical data
EN-IST-GIOT360-1021
AS-i 360° Board 1,2,3,4 PNP sensors with 1,2,3 normally closed solenoid valves
Sensor
VALVE
OPEN (DI0)
Sensor
VALVE
CLOSED (DI1)
Sensor
LOWER LIFT
(DI3)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Solenoid valve 1
(DO0)
Solenoid valve 2
(DO1)
Solenoid valve 3
(DO2)
AS-i Network
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
AS-i - (Blue)
AS-i + (Brown)
Sensor
UPPER
LIFT (DI2)
AS-i 360° Board 1,2 PNP sensors with 2 solenoid valves (1 N.C. and 1 N.O.) for double acting
Sensor
VALVE
OPEN (DI0)
Sensor
VALVE
CLOSED (DI1)
Sensor
LOWER LIFT
(DI3)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
Solenoid valve 1
(DO0)
Solenoid valve 2
(DO0)
AS-i Network
Signal (Black)
0Vdc (Blue)
+24Vdc (Brown)
AS-i - (Blue)
AS-i + (Brown)
Sensor
UPPER
LIFT (DI2)
1,2,3 normally closed solenoid valves and 7-pole connector
+24Vdc Solenoid valve 3
+24Vdc Solenoid valve 2
+24Vdc Solenoid valve 1
0Vdc
+24Vdc Sensors
HIGH Sensor signal
LOW Sensor signal
PIN
Connector
(1)
(2)
(3)
(4)
(5)
(6)
(7)
COLOR
Wire
(Red)
(Black)
(Purple)
(Brown)
(Gray)
(White)
(Blue)
Sensor signal
LOW
+24Vdc
Sensors
+24Vdc
Solenoid valve 1
+24Vdc
Solenoid valve 2
+24Vdc
Solenoid valve 3
Sensor signal
HIGH
0Vdc
+24Vdc Solenoid valve 3 (Red)
+24Vdc Solenoid valve 2 (Red)
+24Vdc Solenoid valve 1 (Red)
0Vdc Solenoid valve 3 (Black)
0Vdc Solenoid valve 2 (Black)
0Vdc Solenoid valve 1 (Black)
0Vdc Sensor HIGH (Blue)
0Vdc Sensor LOW (Blue)
+24Vdc Sensor HIGH (Brown)
+24Vdc Sensor LOW (Brown)
HIGH Sensor signal (Black)
LOW Sensor signal (Black)
+24Vdc
Sensors
+24Vdc Solenoid valve
0Vdc
+24Vdc Sensors
HIGH Sensor signal
LOW Sensor signal
PIN
Connector
(5)
(3)
(1)
(4)
(2)
COLOR
Wire
(Gray)
(Blue)
(Brown)
(Black)
(White)
1,2,3 normally closed solenoid valves and 5-pole connector
Sensor signal
LOW
Sensor signal
HIGH
0Vdc
+24Vdc
Solenoid valve
+24Vdc Solenoid valve (Red)
0Vdc Solenoid valve (Black)
0Vdc Sensor HIGH (Blue)
0Vdc Sensor LOW (Blue)
+24Vdc Sensor HIGH (Brown)
+24Vdc Sensor LOW (Brown)
HIGH Sensor signal (Black)
LOW Sensor signal (Black)

13
4 Checking / Unpacking / Lifting
EN-IST-GIOT360-1021
3.1 Giotto Top electrical connections
4 Checking / Unpacking / Lifting
1. CHECK:
-Make sure the control unit shows no signs of damage caused during transport and that it corresponds
with the order;
2. UNPACKING:
The control unit packaging is made up of cardboard, wood and plastic.
The control unit is primarily made from plastic materials. The gaskets are usually made from elastomers.
Disposal must be in compliance with local legislation.
3. VALVE LIFTING:
Exercise caution when lifting the control unit.
.
WARNING!
Before lifting, make sure there are no disassembled or separate parts which could fall off causing injury
to persons and damage to the valve.
4. WAREHOUSING:
Avoid storing the control unit in a damp, dusty, wet or excessively hot place. Avoid areas subjected to
strong vibrations.

14
114b
114c
114d
25
22
1 2
3
26
4
114a
5 Installation of the Giotto Top
EN-IST-GIOT360-1021
The permitted storage temperature is between -10° and + 25°C.
5 Installation of the Giotto Top
WARNING
Always make sure that all wires are connected and securely fastened to the terminals and that the
solenoid valves, solenoid valves support, AS-i card and LED terminal block (when present) and any other
parts inside the Giotto Top are well assembled and secured.
WARNING
Always make sure that the electrical and pneumatic connections are disconnected when carrying out

15
12
3
4
1 mm
Ø 12,5 MM
PG7
(M12x1,5)
5
5 Installation of the Giotto Top
EN-IST-GIOT360-1021
External inductive sensor installation
Pages 13-16
Sensor adjustment:
-Activate the upper lift and secure the sensor in
place so that it detects the presence of the cam.
-Close the valve and check that the sensor is
deactivated.

16
5 Installation of the Giotto Top
EN-IST-GIOT360-1021
Valve not activated Valve activated
Valve
open
Upper lift
reading
Lower lift
reading

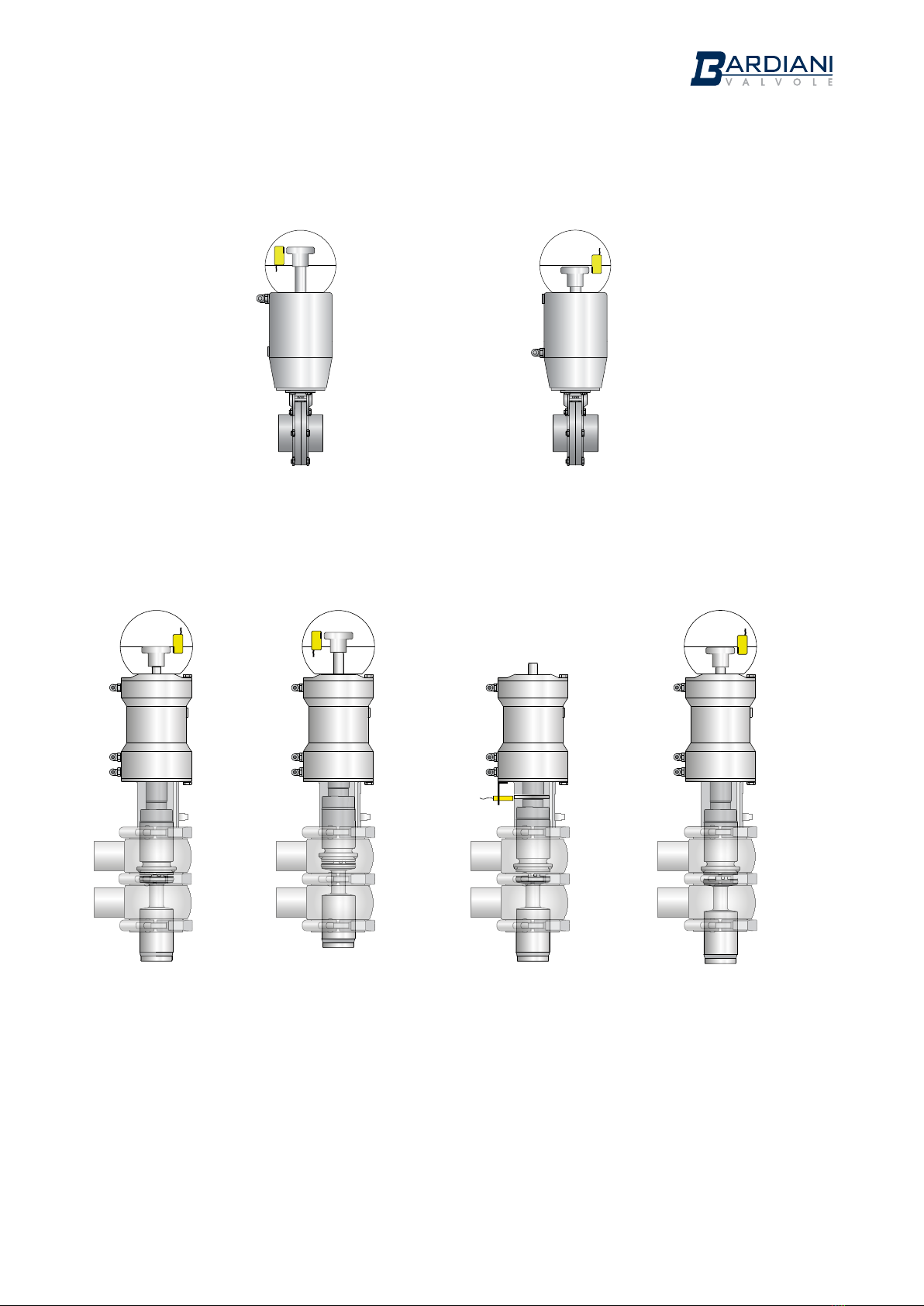

Sensor position for reading valve status
Valve
closed

17
6
6 Giotto Top Pneumatic connections
EN-IST-GIOT360-1021
Compressed Air
Inlet. Use hose with
an external diameter
of 6 mm. A 1/4" hose
connector can be
supplied on request.
Connections
for air tting.
Use hose with an
external diameter of 6
mm
Air vent
operations on the Giotto Top.
6 Giotto Top Pneumatic connections
WARNING
Use only pipes with an external diameter of 6 mm.
Cut these pipes with a suitable cutter to avoid damaging the pipe which could lead to Giotto Top
malfunctions.
Select a suitable length of pipe which allows the Giotto Top to be removed without unscrewing the
anchoring.

18
ZVFBBZP - BBYP -
BBWP
ZVFBBZP - BBYP -
BBZQ
6 Giotto Top Pneumatic connections
EN-IST-GIOT360-1021

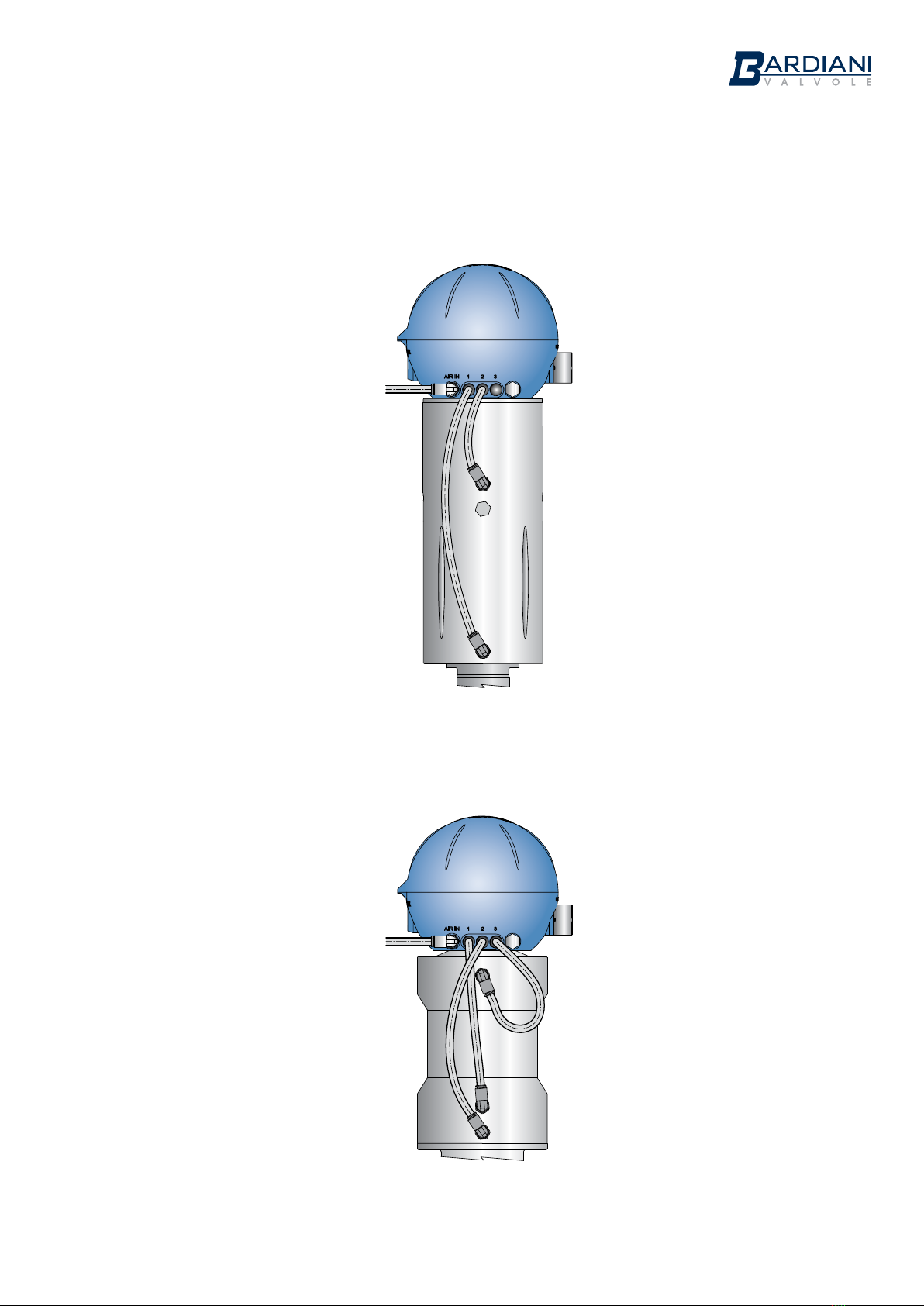

Valve with single acting actuator
Valve with double acting actuator

19
BBZT
B925 - B935
6 Giotto Top Pneumatic connections
EN-IST-GIOT360-1021
Valve with single acting actuator with Twin Stop
Mixproof valve

20
OK
OK
7 Troubleshooting
EN-IST-GIOT360-1021
7 Troubleshooting
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Air leak from solenoid valve support No gaskets or loose fitting Check the sealing capacity of the
gaskets and tighten the screws
Air leaks in safety valve
The LED do not come on
Circuit board
damaged Replace the circuit board
Damaged LEDs
Inductive sensors
not working
Check the sensor connections in
the terminal block and restore if
necessary
The solenoid valve does not activate
Damaged solenoid valve Replace solenoid valve
Circuit board
damaged Replace the circuit board
Air supply pressure
incorrect
Consult the Technical Data section
in the Manual
Solenoid valve support damaged Replace solenoid valve support
Electrical connections not made
properly
Check the connections in the
terminal block on the electrical
board and tighten the screws.
The solenoid valve manual control
has been activated
Reposition the manual control in
the default position, see picture
above.
The inductive sensors are not
working
Inductive sensors
damaged Replace inductive sensors
Electrical connections not made
properly
Check the connections in the
terminal block on the electrical
board and tighten the screws.
Distance between the cam and
the inductive sensors greater than
1.5 mm.
Check the centring of the Giotto
and the fastening to the double
guide
The cam is not present Secure the cam and check the
position of the sensors
