Kodak AP550 DUAL FAN User manual

P.1
AP550_User Manual_V1.8
User Manual
KODAK Smart Air Puriier
AP550 DUAL FAN
The features described in this User Manual
are subject to modiications without prior notice.

P.2 P.3
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS
2. PRODUCT PARTS OVERVIEW
3. CONTROL PANEL
4. DISPLAY ICONS
5. OPERATION INSTRUCTIONS
6. MOBILE APP DISPLAY ICONS
7. OPERATION INSTRUCTIONS (MOBILE APP)
4
10
11
12
14
24
26
8. GRANT ACCESS
9. TROUBLESHOOTING
10. SPECIFICATIONS
11. EXCLUSION FROM COVERAGE
12. FCC, IC AND CE REGULATIONS
13. WARNING
14. EC DECLARATION OF CONFORMITY
52
54
56
57
59
61
63

P.4 P.5
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING:
BEFORE USING THE KODAK SMART AIR PURIFIER,
PLEASE READ THROUGH ALL THE INSTRUCTIONS
AND CAUTIONARY MARKINGS IN THE MANUAL AND
ON THE AIR PURIFIER. PLEASE KEEP IT FOR FUTURE
REFERENCE.
This appliance can be used by children aged from 8+ years
old and people with reduced physical, sensory or mental
abilities or lack of experience and knowledge, only if they are
under supervision or have been given instructions concern-
ing the use of the appliance in a safe way and understanding
the hazards involved. Children shall not play with the appli-
ance. Cleaning and user maintenance shall not be undertak-
en by children without supervision.
Please place at least 30cm away from any metal surfaces or
objects.
Danger
• Do not let water or any other liquid or lammable de-
tergent enter the air puriier to avoid electric shock
and/or a ire hazard.
• Do not clean the WHOLE air puriier with water, any
other liquid, or a (lammable) detergent to avoid
electric shock and/or a ire hazard.
• Do not spray any lammable materials such as insec-
ticides or fragrance around the air puriier.
Warning
• Check if the voltage indicated on the air puriier corre-
sponds to the local power voltage before you connect
the appliance.
• Do not use the air puriier if the plug, the power cord,
or the appliance itself is damaged.
• Do not block the air inlet and outlet, e.g. by placing
items on the air outlet or in front of the air inlet.
• Make sure that foreign objects do not fall into the air
puriier through the air outlet.
Recommend >30cm
Any metal
surface or
objects

P.6 P.7
• Leave at least 30 cm free space all around the device
(back,front & sides) and at least 40cm above the air
puriier.
• This air puriier is not a substitute for proper ventila-
tion, regular vacuum cleaning, or use of an extractor
hood or fan while cooking.
• If the power socket used to power the air puriier has
poor connections, the plug of the air puriier becomes
hot. Make sure that you plug the air puriier into a
properly connected power socket.
• Always place and use the air puriier on a dry, stable,
level, and horizontal surface.
• Do not place anything on top of the air puriier.
• Do not sit or stand on the air puriier. Sitting or stand-
ing on the appliance may lead to potential injury.
• Make sure the reusable ilter, front cover and back cov-
er are properly installed before you switch on the air
puriier.
• Only use the original reusable ilter specially intended
for this KODAK Smart Air Puriier. Do not use any other
ilters or add any extra ilters in the device.
• Avoid knocking against the air puriier (the air inlet and
outlet in particular) with hard objects.
• Always lift or move the air puriier by the handle on top
of the device.
• Do not insert your ingers or objects into the air outlet
or the air inlet to prevent physical injury or malfunc-
tioning of the air puriier.
• Do not use this air puriier when you have used indoor
smoke-type insect repellents or in places with oily resi-
dues, burning incense, or chemical fumes.
• Do not use the air puriier near gas appliances, heating
devices or ireplaces.
• Always unplug the air puriier after use and before
cleaning or carrying out other maintenance.
• Do not use the air puriier in a room with major tem-
perature changes, as this may cause condensation
inside the air puriier.
• To prevent interference, place the air puriier at least
2 meters away from other electrical appliances that
use airborne radio waves such as TVs, radios, and ra-
dio-controlled clocks.
Caution

P.8 P.9
• The air puriier is only intended for household use
under normal operating conditions.
• If you need to move the air puriier, disconnect it from
the power supply irst.
• When moving the air puriier, do it slowly and do not
push it rapidly.
• Do not move the air puriier by pulling its power cord.
• This KODAK Smart Air Puriier is not intended for use by
people (including children) with reduced physical, sen-
sory or reasoning capabilities, or lack of experience and
knowledge, unless they are under supervision or have
been given instructions concerning the use of the de-
vice by a person responsible for their safety.
• Ensure the device is fully assembled in line with the
instructions before use.
• Do not allow to be used as a toy. Close attention is nec-
essary when used by or near children. Children should
be supervised to ensure that they do not play with the
device.
• Use only as described in this KODAK Smart Air Puriier
User Manual. Do not carry out any maintenance other
than the one shown in this User Manual, or advise
given by the Kodak Smart Home Customer Support
team.
• Suitable for dry location ONLY. Do not use outdoors or
on wet surfaces and do not expose to water or rain.
• Do not handle any part of the plug or device with wet
hands.
• Do not operate any device with a damaged cord or
plug. Discard the device or return to an authorized ser-
vice facility for examination and/or repair. If the supply
cord is damaged it must be replaced by oicial chan-
nel, its service agent or similarly qualiied person in
order to avoid a hazard.
• If the device is not working as it should, has received
a sharp blow, has been dropped, damaged, left out-
doors, or dropped into water, do not use it and con-
tact the Kodak Smart Home Customer Support team.
• Do not stretch the cord or place it under any strain.
Keep the cord away from any heated surfaces.
• Do not run the cord under carpeting. Do not cover the
cord with rugs, runners or similar coverings. Do not
route the cord under furniture or any appliances. Place
the cord away from any traic area and where it will
not be tripped over.
• Do not use any cleaning agents or lubricants on this
device. Unplug it before cleaning or carrying out any
maintenance .

P.10 P.11
Back
Cover
2. PRODUCT PARTS OVERVIEW 3. CONTROL PANEL
Reusable and
Washable Filter
Front
Cover
Screen Button Power On/O
Button

P.12 P.13
Mode Display
Air Quality Rings
29˚C 89%
Humidity Reading
PM2.5 Reading
Temperature
Reading
Mode Display
%
29˚C 89
• Capital letter “A” indicates that the air puriier is in
Auto mode.
29
˚C
89
%
• “No WiFi connection icon” indicates that the air
puriier cannot connect to the WiFi (router)
29
˚C
89
%
• “No Internet connection icon” indicates that the
air puriier cannot connect to the Internet
Good
000-050
Moderate
051-100
Unhealthy
101-300
Hazardous
301-500
29˚C 89%
29˚C 89%
29˚C 89%
29˚C 89%
This view shows that the
device is not able to detect the
air quality correctly. Please Re-
set the device. If the problem
persists contact the KODAK
Smart Home Customer Support
team.
4. DISPLAY ICONS

P.14 P.15
5. OPERATION INSTRUCTIONS
Setup
• Plug in the provided power adaptor to a power socket,
then plug in the DC plug into the DC jack located at
bottom of the air puriier to power up the device.
Power ON
• Press the power button once to turn ON the air
puriier.
Power OFF
x1
3 sec
• Press the power button for 3 sec to turn OFF the air
puriier.

P.16 P.17

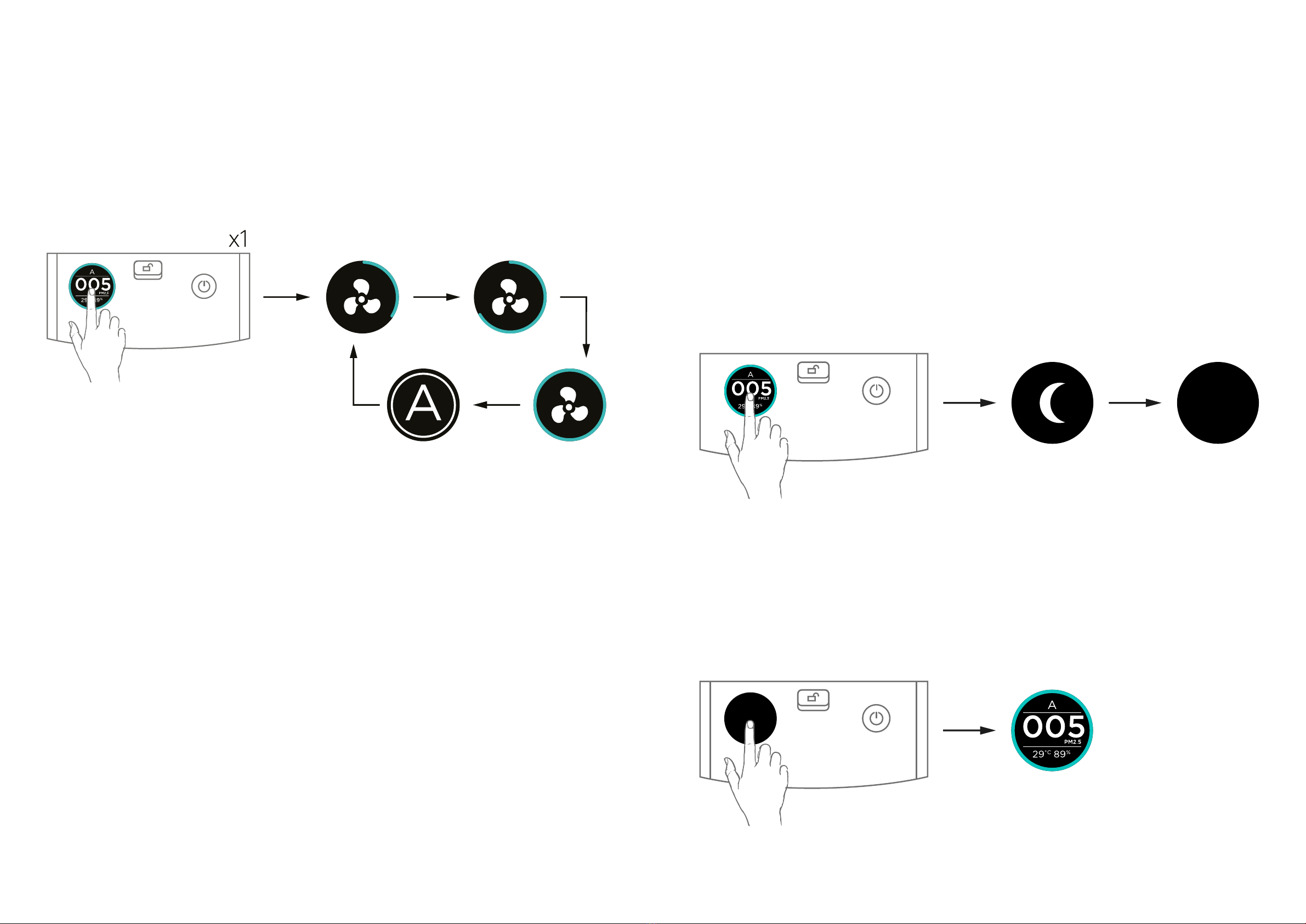

Change fan speed and auto mode
• Press the Screen button to switch the fan speed and
auto mode. The change sequence is Fan Speed 1
-> Fan Speed 2 -> Fan Speed 3 -> Auto Mode -> Fan
speed 1 -> ... (loop) See igure below
Sleep mode
• Press the screen button for 2 seconds, to enter sleep
mode.
• In sleep mode, the LCD display will turn o. And the
fan speed will also change according to PM2.5 read-
ing, just like auto mode, but the power of the fans is
relatively reduced to provide a quieter environment for
sleep.
• Press the Screen button once to exit sleep mode
if the air purifier is in sleep mode.
2 sec
x1
• In auto mode, the fan speed will change according to
PM2.5 reading. If the PM2.5 reading increases, the fan
speed will automatically and progressively increase.
The same will happen if in the meantime the PM2.5
reading decreases, then the fan speed will automat-
ically and progressively decrease according to the
PM2.5 reading.

P.18 P.19
Cleaning

P.20 P.21
1. Select Air Puriier op-
tion to start pairing
2. Tap Continue after
holding 2 buttons
and hearing a beep
sound
3. (For IOS only) Tap
the Go to Settings to
access to the Wi-Fi
settings
• Pairing Flow
• Press the Screen button and power button
simultaneously for 2 seconds to enter pairing mode.
KODAK
Smart Home App
2sec
Pairing mode

P.22 P.23

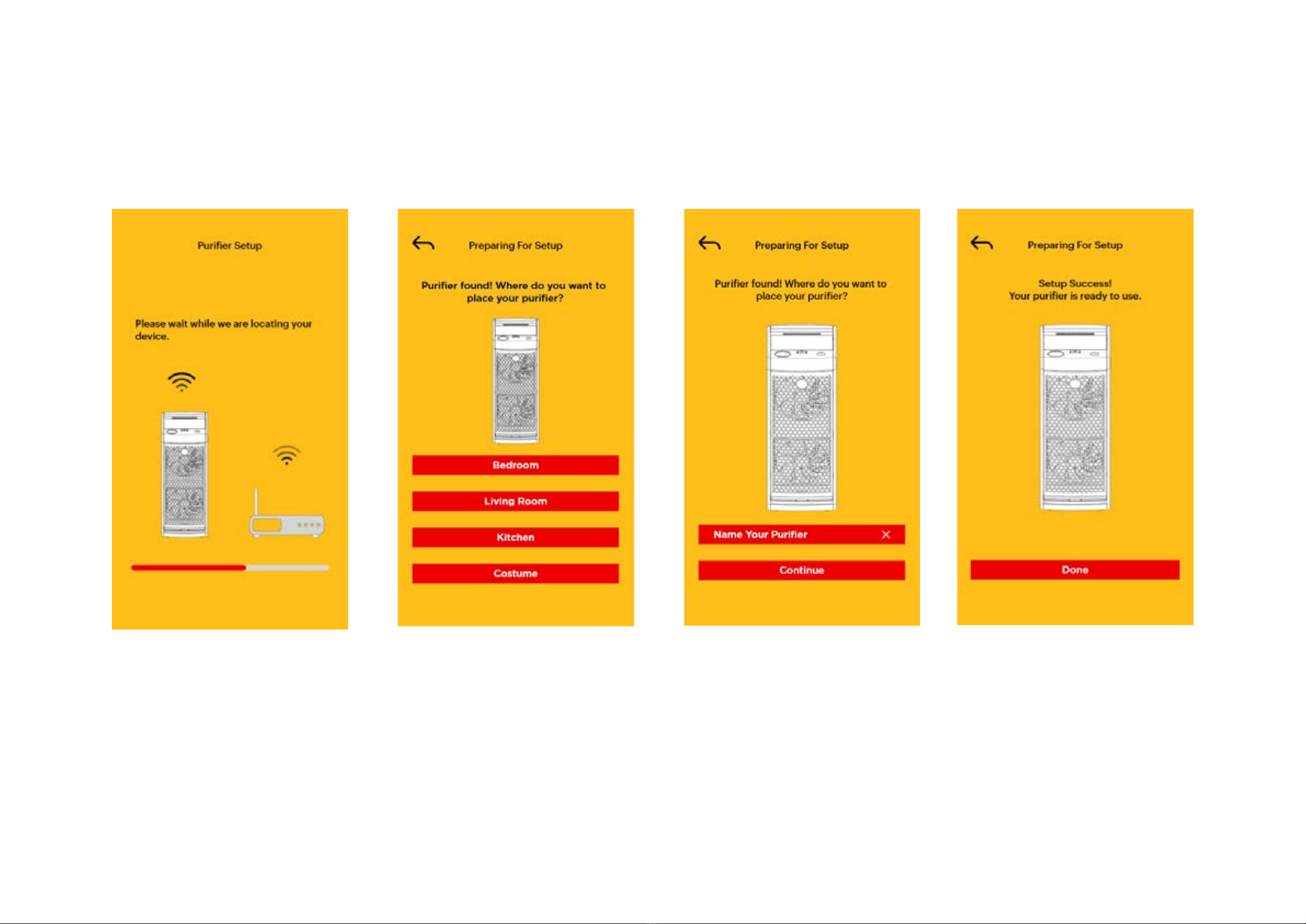

4. (For IOS only) In the
Wi-Fi settings, connect
to Puriier-VXXXXXXXXX
and return to the app
5. Wait while pairing in
progress
6. You may choose one
of the recommended
names or customise
it.
7. Tap Continue after
customizing your
name
8. Waiting while the
app is setting up the
names
9. Tap Done to conirm
the setup

P.24 P.25
Auto Mode
Sleep Mode Timer
Graph
Swipe Left or Right to view
other air puriier devices
Quick Start Guide
Fan Speed
Sleep Mode
Power On/ O
Schedule
Air Quality Indicator
Move up or down to show
outdoor weather information
6. MOBILE DISPLAY APP ICONS

P.26 P.27
• Sign up or Login KODAK Air Puriier app
scan to install
7. OPERATION INSTRUCTIONS
( MOBILE APP)
To download the KODAK Smart Home app:
• On your mobile device, visit the App Store (iOS) or Google
Play (Android)
• Search for KODAK Smart Home app
• Download and install the KODAK Smart Home app on
your mobile device

P.28 P.29
• Create or Login to Your Account
If this is your irst KODAK Smart Home product, you will be
asked to create an account. To set up an account:
• On your mobile device, open the KODAK Smart Home app
• Tap SIGN UP
• Follow the in-app instructions to create a new account
If you already have another KODAK Smart Home prod-
uct installed, simply select LOGIN:

P.30 P.31
• Pairing
1. Select Add New
Device
2. Select Air Puriier
option
3. Tap Continue after
following the steps 12
above
4. (For IOS only)
Go to settings
and connect to
WiFi Puriier-Vxxxxxxxx
5. (For IOS only)
Return to the app and
proceed to the next
step

P.32 P.33
6. Wait while pairing in
progress
7. You may choose one
of the recommended
names or customise it.
8. Tap Continue after cus-
tomizing your name
9. Tap Done to conirm the
setup

P.34 P.35

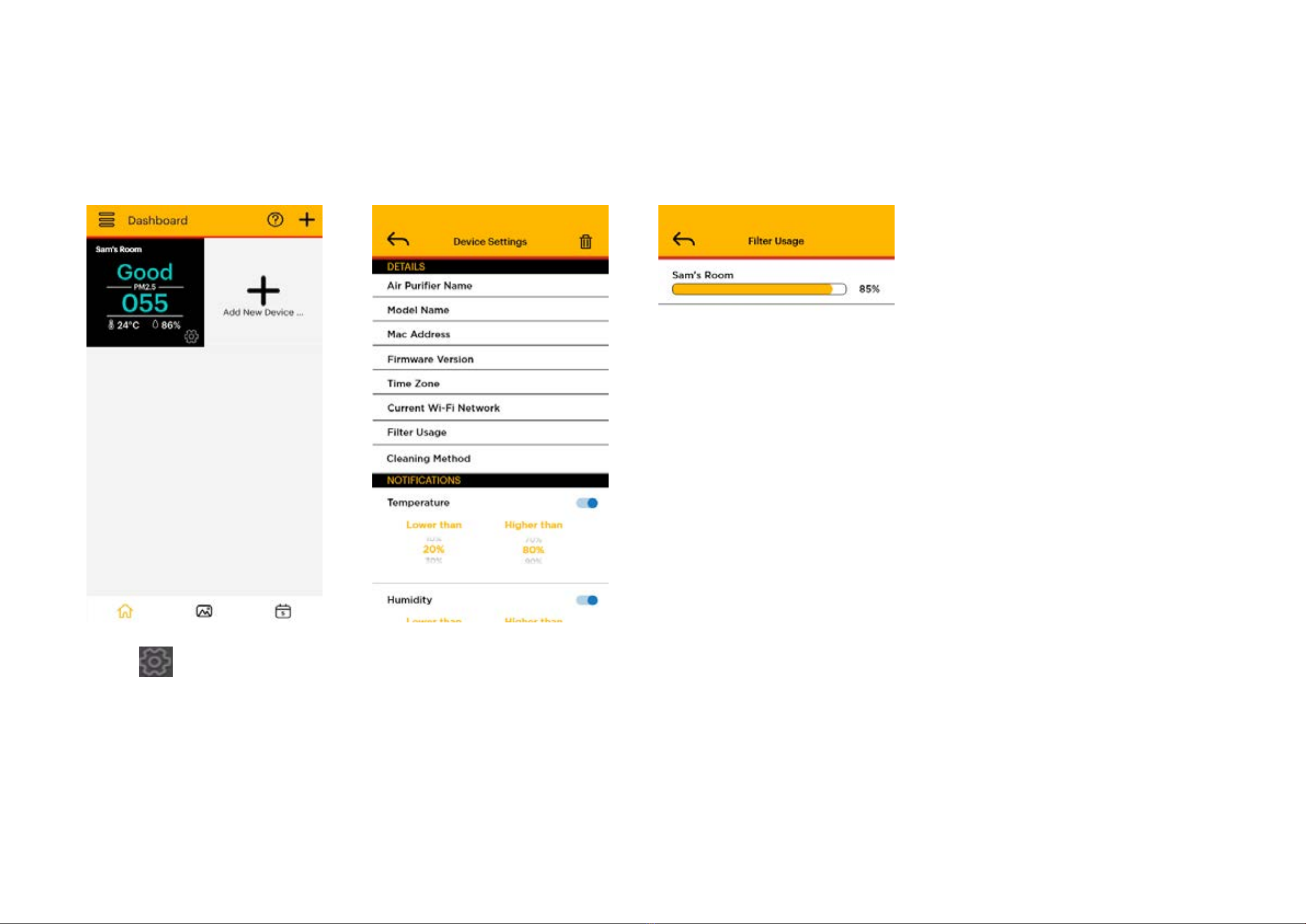

• Observe the Filter Usage
1. Tap to open the side
menu
2. Tap Filter Usage 3. When the status bar
of the Filter Usage is
100%, it means that the
device ilter needs to
be cleaned

P.36 P.37
• Power On/O
1. Tap to Power on 2. Tap to Power o

P.38 P.39
• Change the Fan Speed
1. Tap to activate to
fan speed
2. Indicates that the fan
speed is low
3. Indicates that the
fan speed is middle
4. Indicates that the
fan speed is high
